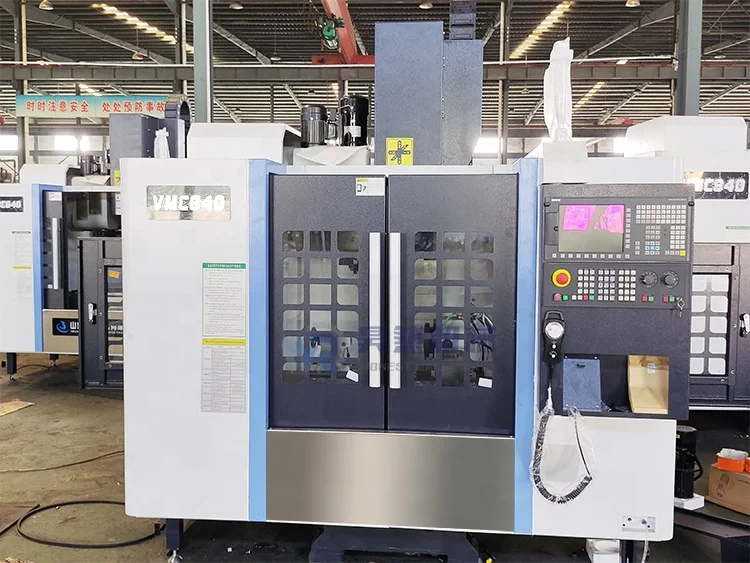

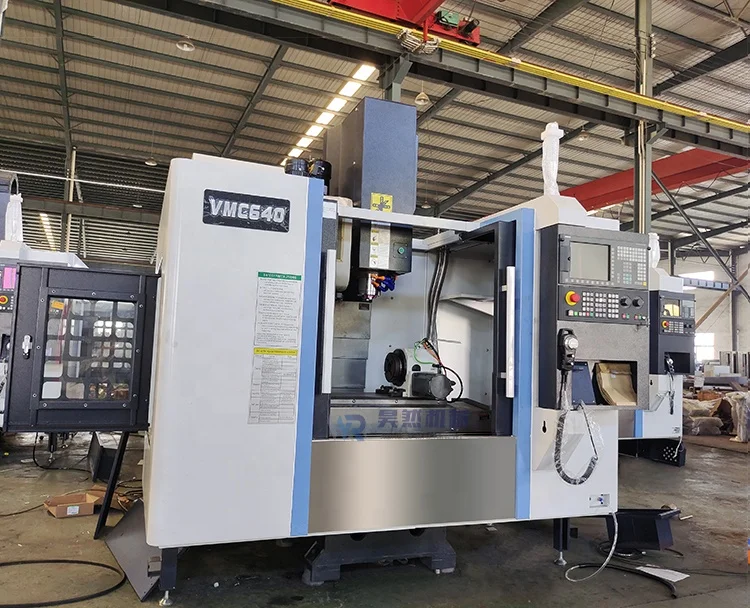

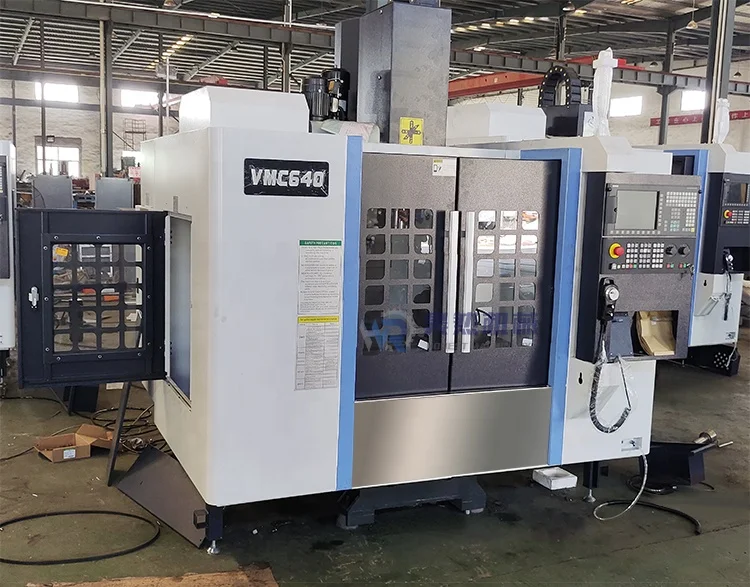

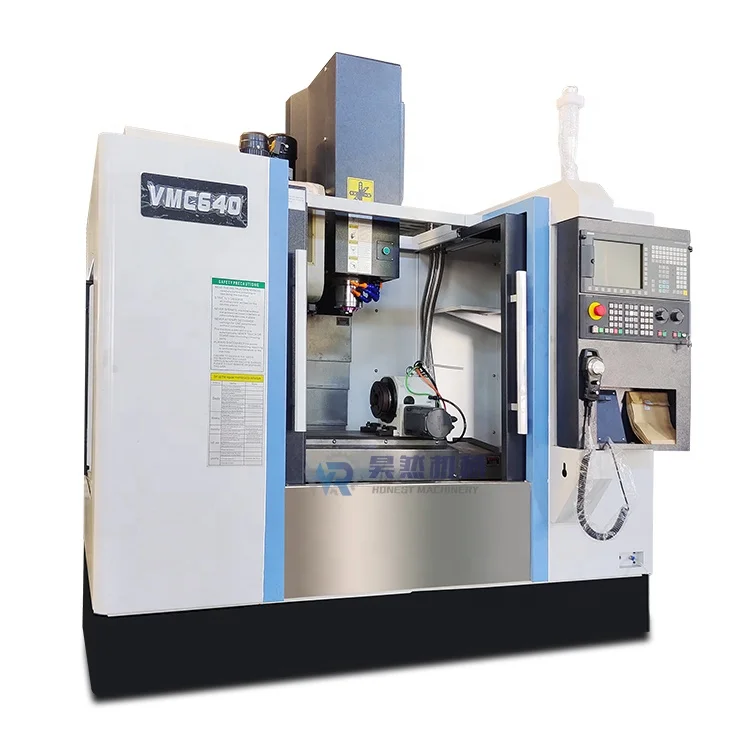

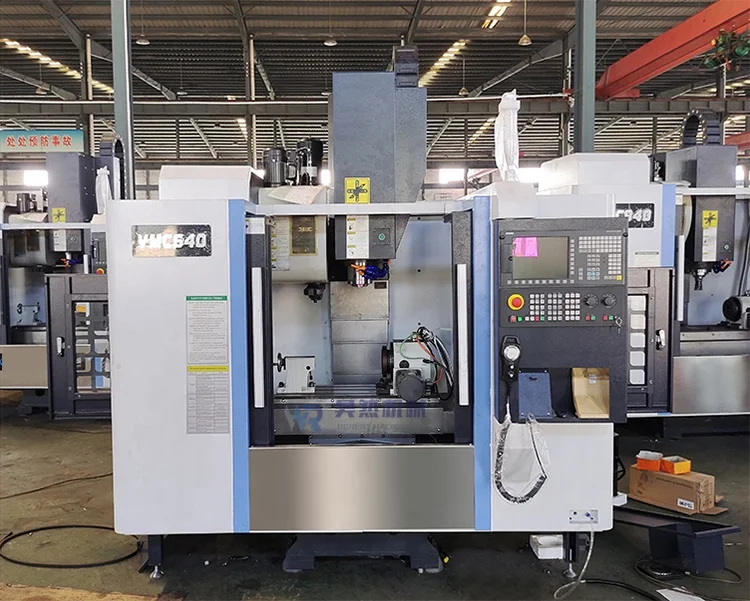

Vertical Metal Small Milling Machine CNC Vmc 640 Mini Machining Center
- Category: >>>
- Supplier: Shandong HR Machinery Co. Ltd.
Share on (1600927361334):
Product Overview
Description
VMC640 CNC Milling Machine
Product Description
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.Machining centers are usually classified according to the relative position of the spindle and the worktable, and are divided into horizontal, vertical and universal machining centers.
Specifications | VMC640 | ||||||
Work table | Area of work table | 800×300mm | |||||
Load capacity | 400 kg | ||||||
spindle | Motor power | 5.5/7.5kw | |||||
Distance between the spindle end and the work surface | 120-670 mm | ||||||
Spindle center to column guide rail | 460 mm | ||||||
Speed | 8000 rpm | ||||||
Taper of spindle | BT40 | ||||||
Distance of travel | X-Axis | 600 mm | |||||
Y-Axis | 400mm | ||||||
Z-Axis | 450mm | ||||||
Feed | X/Y/Z-axis fast moving | 24/24/18mm(linear guide way) | |||||
fast cutting speed mm /min | 1-10000 mm/min | ||||||
precision | Positional accuracy | ±0.01 mm | |||||
Repeat positional accuracy | ±0.005 mm | ||||||
Tools | Tool changer type | 16 tools head type tool changer | |||||
Max. tool length | 300mm | ||||||
Max. Tool diameter | Φ80(adjacent tool)/φ150(not adjacent tool) | ||||||
Max.tool weight | 8kg | ||||||
Tool changing time(tool-to-tool) | 7sec | ||||||
Data | Air pressure | 0.6 Mpa | |||||
Power Supply | Voltage(V)/frequency (Hz) | 380/50 | |||||
Total capacity(KVA) | 10 | ||||||
Weight | 3000 kg | ||||||
Diamention | 2280×2150×2250mm | ||||||

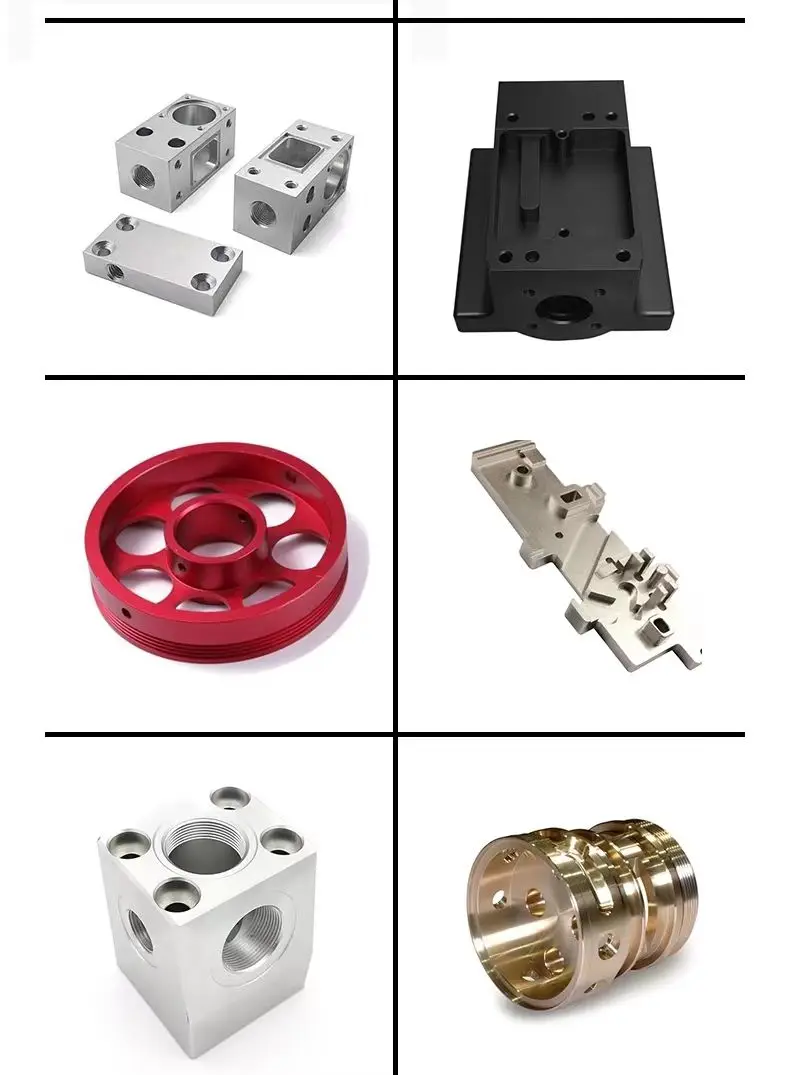

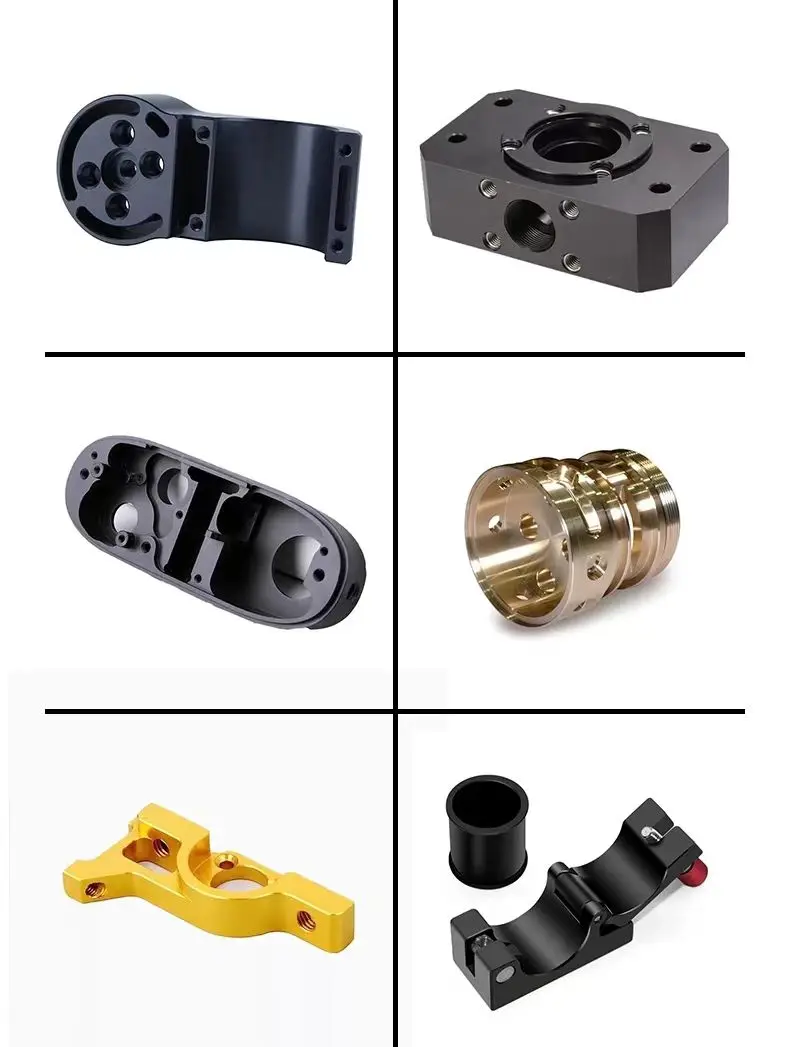

Widely applicable, the production gospel of various industries
-------Automotive parts, bicycle parts
-------Electrical and electric tool parts
-------Optical accessories, railway accessories, petroleum machinery, printing machines
-------Automotive parts, bicycle parts
-------Electrical and electric tool parts
-------Optical accessories, railway accessories, petroleum machinery, printing machines
Detailed Images
Display
Certificate
All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product,please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
