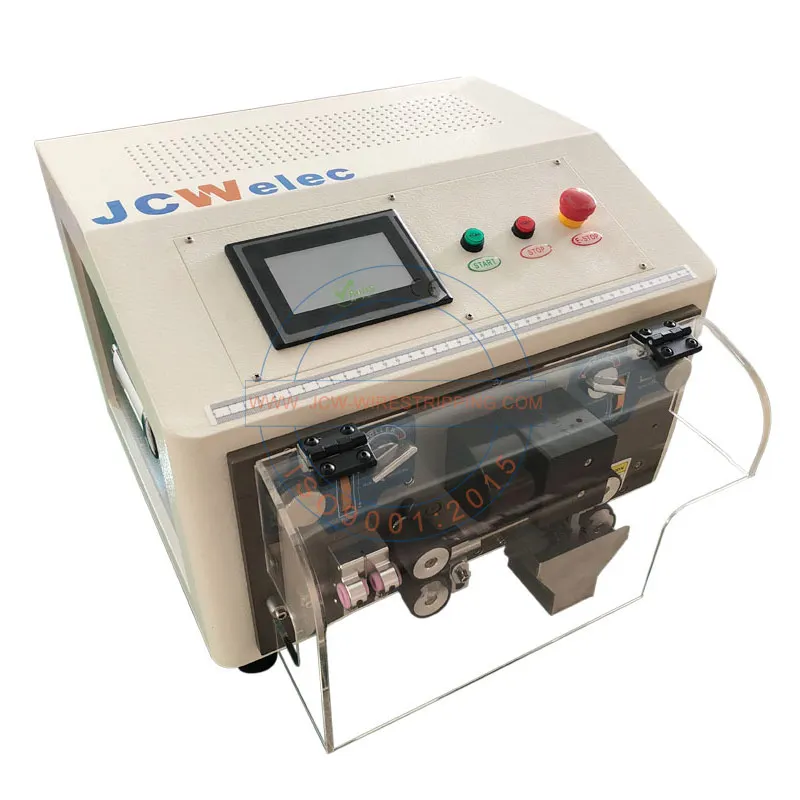

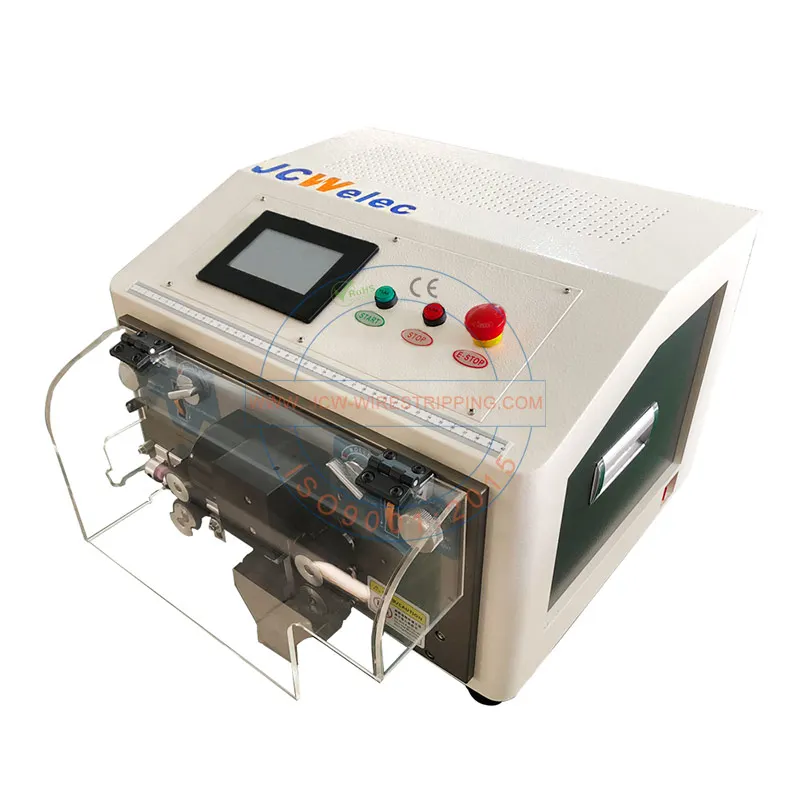

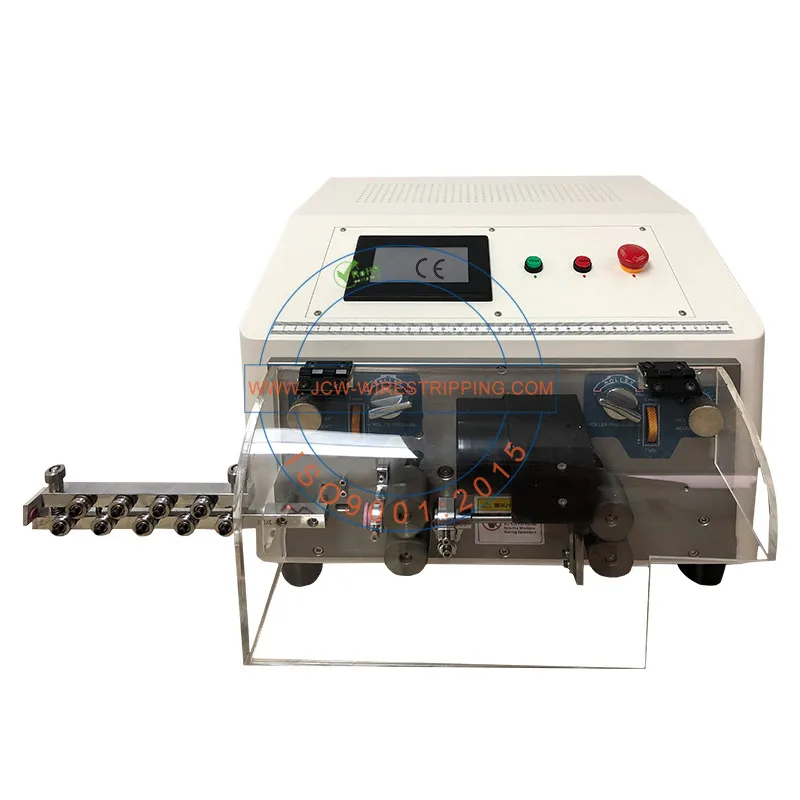

JCW CS03 Automatic wire harness cutting stripping machine high quality wire stripper cable peel off machinery
- Category: >>>
- Supplier: Qingdao Titan Lansheng Trading Co. Ltd.
Share on (1600927363396):
Product Overview
Description
Function | Single wire, Multicore cable, Zip-cord, Wire measuring, Cut into length, Full stripping, Partial stripping, Mid-stripping, Flat cable slitting, Wire lack sensor, Length correction, Thermal transfer printer |
Raw material | PVC, Teflon, Silicone, Low halogen, Fiberglass, etc |
Conductor cross-sections | 0.03 - 6 mm² |
Cutting length ( L ) | 0.1 - 999999 mm |
Stripping length | Front ( right ) side: 50 mm |
Rear ( left ) side: 30 mm | |
Middle strip | 13 sections |
Production rate | 4700 - 9500 pcs/h by 50mm wire length [ single/double wire guider ] |
Display | 4.3" color touchscreen, English / Chinese [ other languages on request ] |
Compatible peripherals | Cable splitter, wire pre feeder, robot arm, conveyor belt |
Power supply | AC 220 V ± 10%, 50 / 60 Hz [ 110V on request ] |
Air supply | 0.4 - 0.7 MPa ( clean and dry air ) |
Dimensions | L 460 x W 470 x H 350 mm. 35KG |
Why Choose Us
Q1: Are you a factory or a trading company?
A: We started trading 14 years ago and started production 10 years ago. Now we have complete production equipment and experienced team of engineers.
Q2: Do your products have CE certification?
A: We have formal CE certification, test report, and declaration of conformity. We have ISO9001:2015 certification as factory.
Q3: Can you customize the machine?
A: Yes, we can customize the machine according to your requirements, and we can also provide you with a complete set of wire harness production solution.
Q4: Can I get some samples?
A: We are honored to offer you samples to test and check quality. Customers should pay for the shipping freight. The samples’ leading time will be 7-10 days.
Q5: What's your delivery time?
A: It usually take 1-2 days for small orders and 10-15 days for big orders.
Q6: Do you have the products in stock?
A: Depends on your request, we have standard models in stock. Some special products and big orders will be newly produced by your requirements.
Q7: What's your warranty time?
A: We offers 12 months warranty time since.
