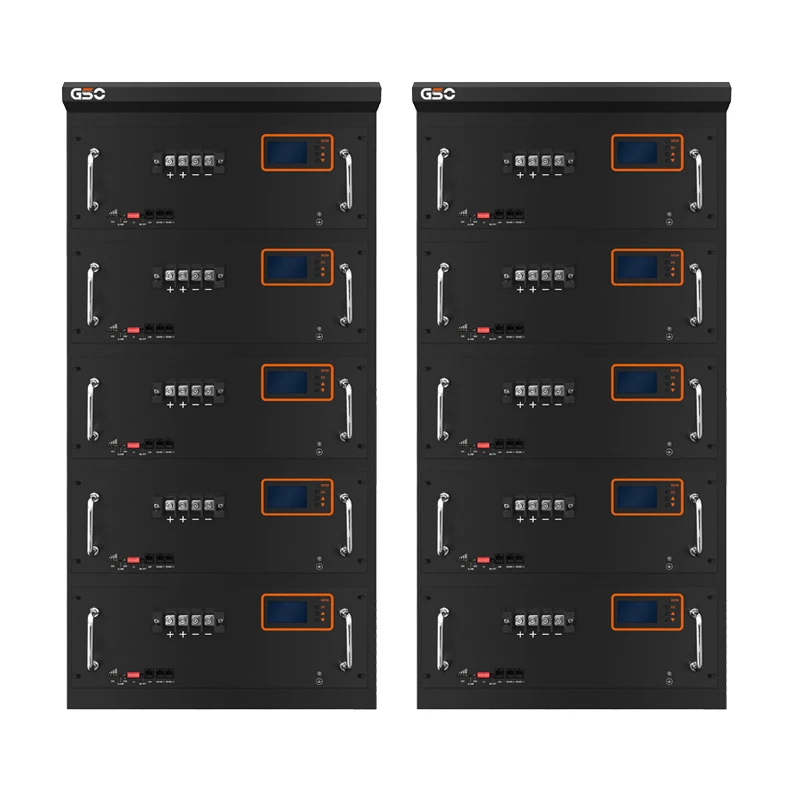

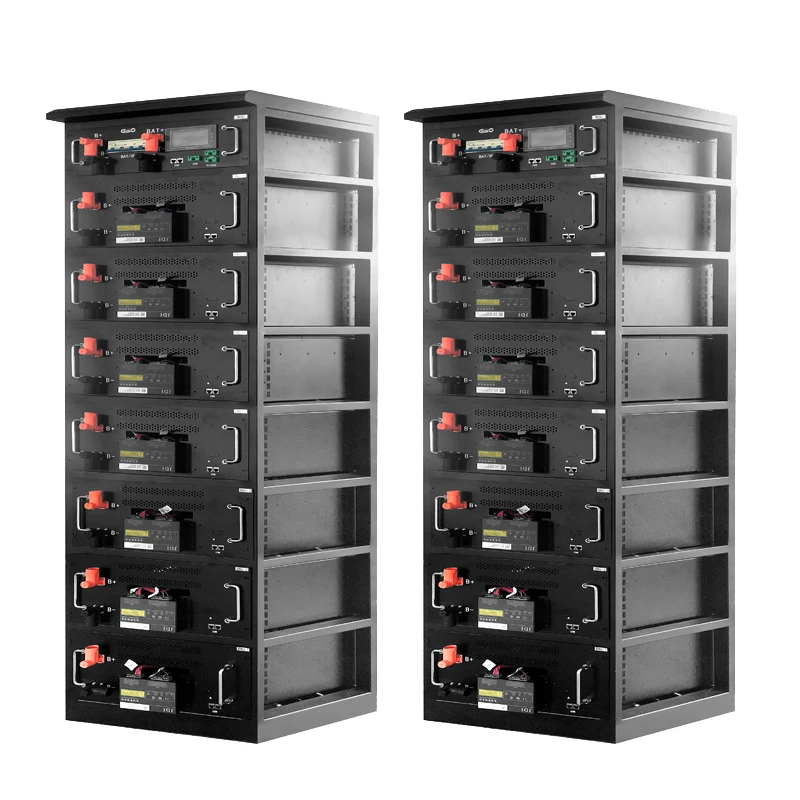

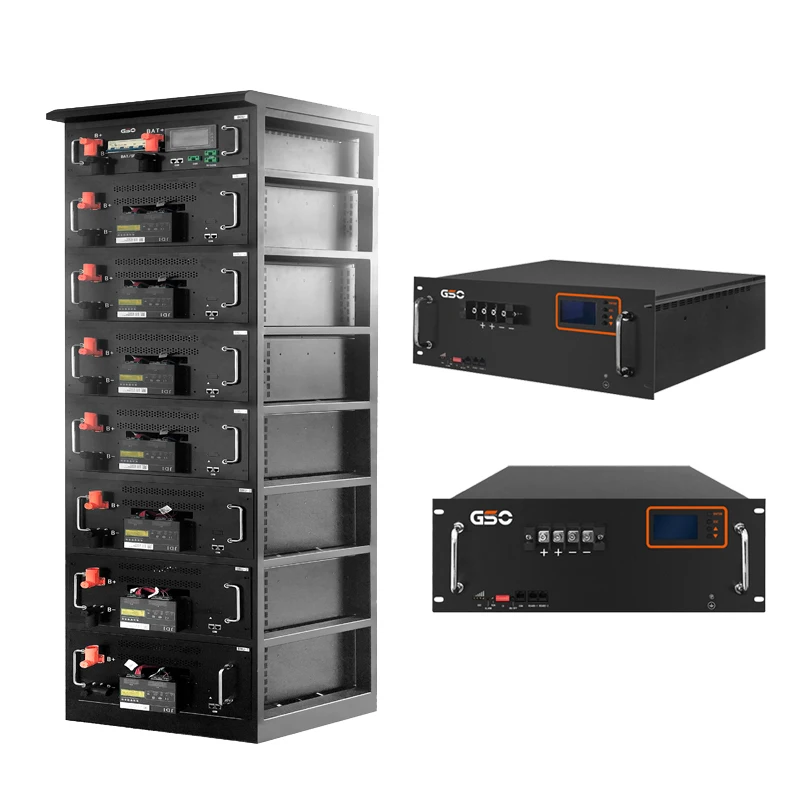

GSO 220V 100AH 22kwh Rack LiFePO4 Battery storage energy can use to server rack battery battery storage system
- Category: >>>
- Supplier: Nanning Shuxin Trading Co. Ltd.
Share on (1600927552351):
Product Overview
Description
Video Description
Product Description

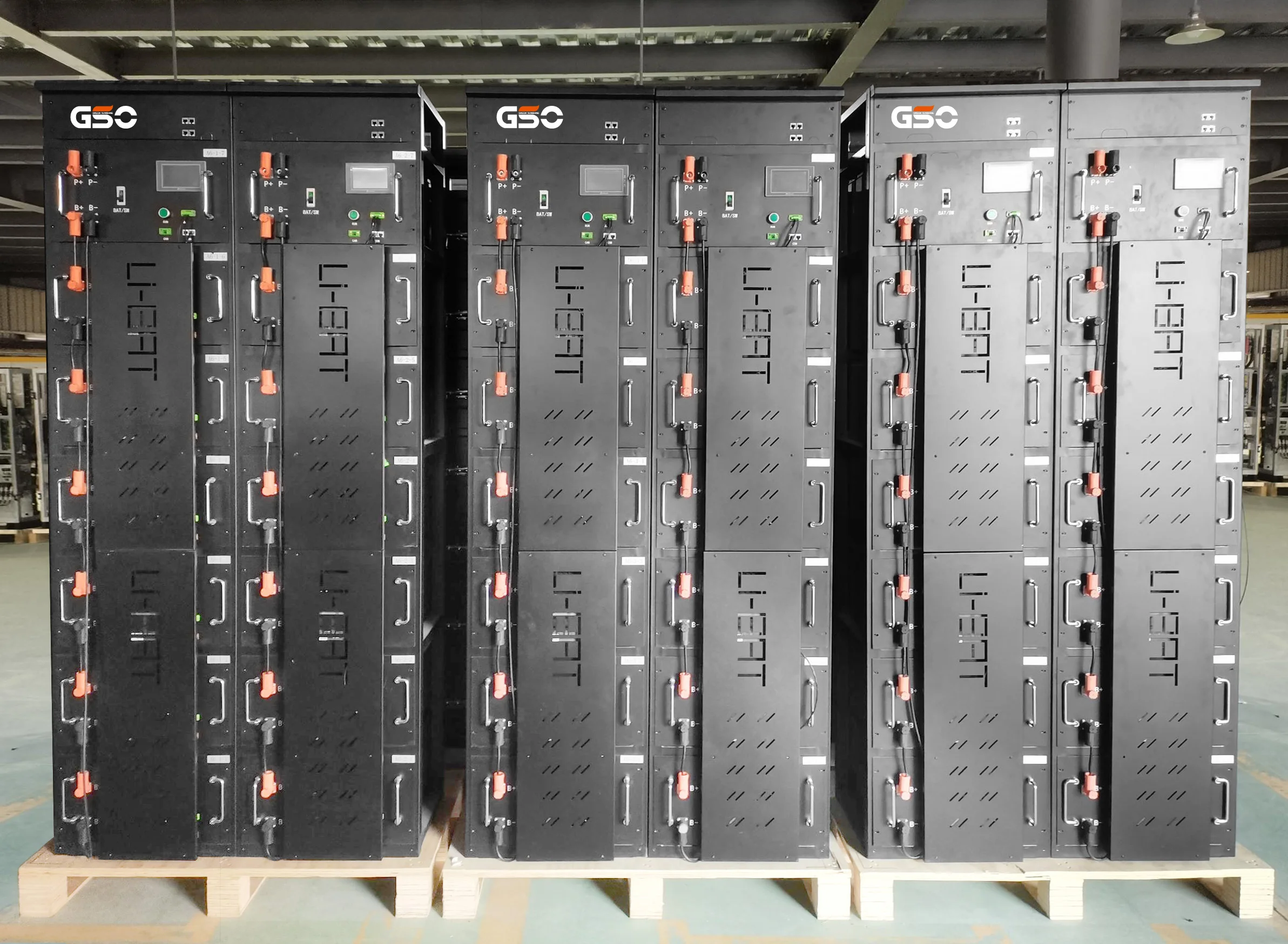

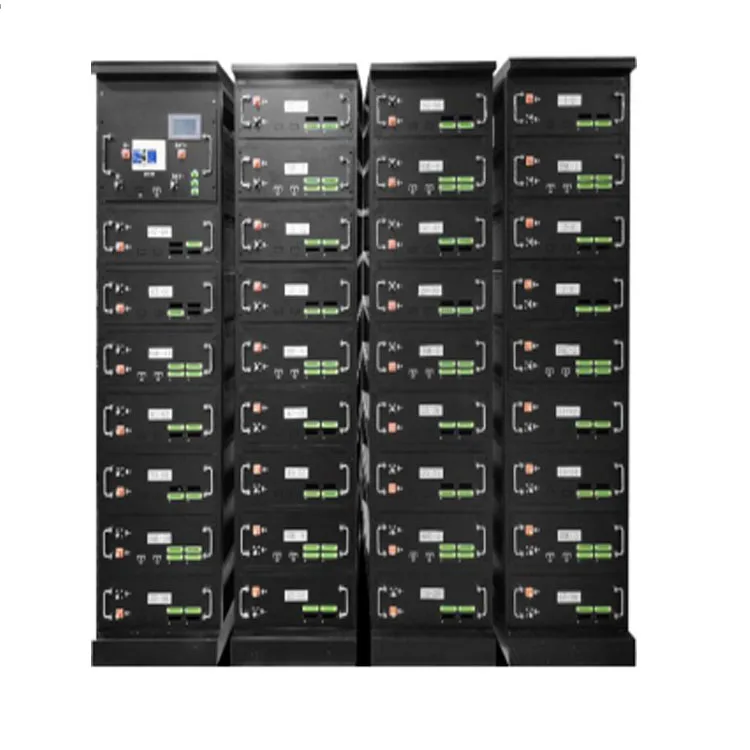

Equipment photos and parameters
Product profile
This product is composed of high quality lithium iron phosphate core (series-parallel connection) and advanced BMS management system.
It can be used as independent DC power supply or as "basic unit" to form a variety of energy storage lithium battery power supply systems. It has high reliability and long life. Products developed for applications such as power grid energy storage, industrial and commercial energy storage, home high voltage energy storage, high voltage UPS, and data room.
Model | GBP 220V100AH | GBP 220V200AH | GBP 360V100AH | GBP 360V200AH | GBP 384V100AH | GBP 384V200AH | |||||
Type of core | Lithium iron phosphate | ||||||||||
Rated energy(KWH) | 22 | 44 | 36 | 72 | 40 | 80 | |||||
Nominal capacity (AH) | 100 | 200 | 100 | 200 | 100 | 200 | |||||
Nominal voltage(VDC) | 220.8 | 358.4 | 384 | ||||||||
Operating voltage range(VDC) | 179~259 | 291~420 | 312~450 | ||||||||
Recommended Charge Voltage(VDC) | 242 | 392 | 420 | ||||||||
Recommended discharge cutoff voltage(VDC) | 210 | 342 | 366 | ||||||||
Standard charging current (A) | 50 | 80 | 50 | 80 | 50 | 80 | |||||
Maximum continuous charge current(A) | 100 | 200 | 100 | 200 | 100 | 200 | |||||
Standard discharge current (A) | 50 | 80 | 50 | 80 | 50 | 80 | |||||
Maximum continuous discharge current(A) | 100 | 200 | 100 | 200 | 100 | 200 | |||||
Working temperature | -20~65℃ | ||||||||||
Protection level | IP20 | ||||||||||
Communication interface | RS485/CAN two choose one | ||||||||||
Reference Weight (Kg) | 300 | 600 | 470 | 940 | 500 | 1000 | |||||
Reference size(D*W*Hmm) | 530*650*1180 | 625*550*1810 | 530*550*1810 | (625*550*2040)*2 | 530*550*2020 | (625*550*1600)*2 | |||||
Performance Test

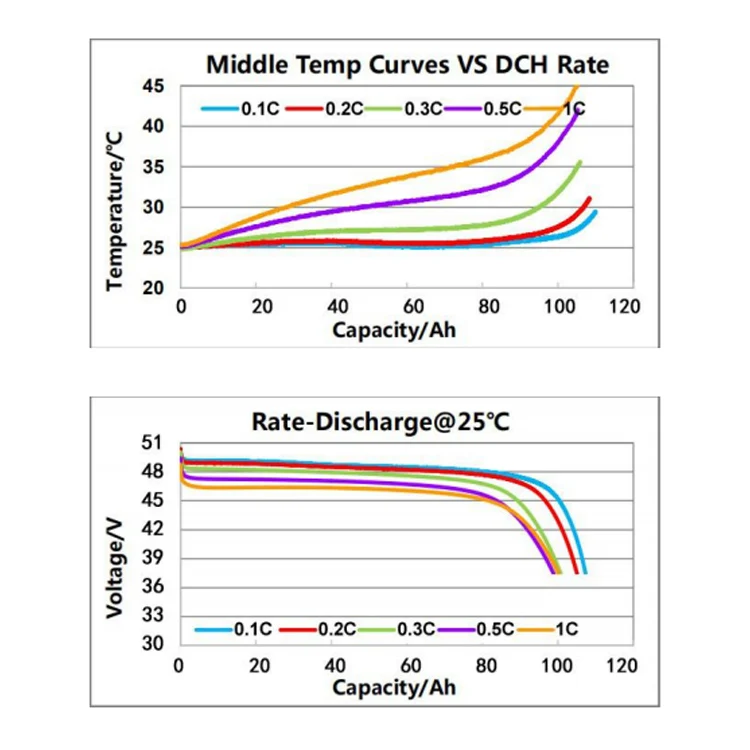

Nominal Capacity
The battery pack is placed in a 25℃ environmental chamber,0.2C constant current and constant voltage to 54.65V, 0.05C cut-off,put it aside for 60 minutes; 1C discharge to 37.5V.

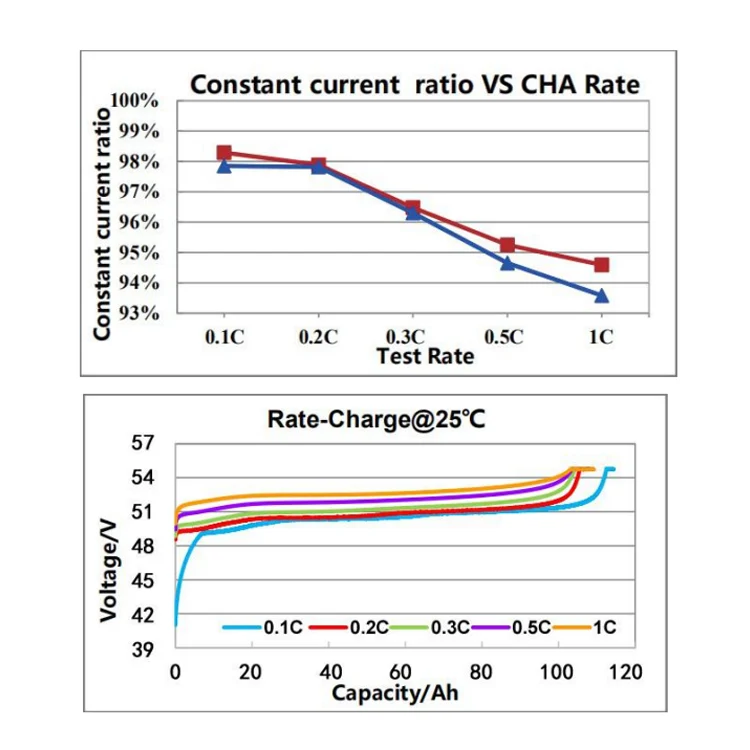

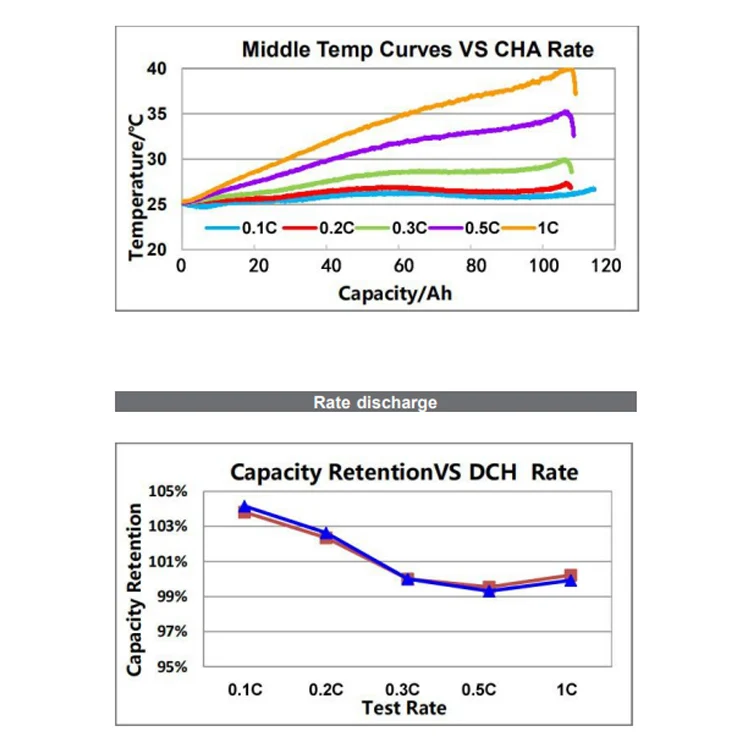

Rate Charging
The battery pack are charged at a constant current of 0.1C,0.2C,0.3C,0.5C,and 1C to 54.75V in an environment of 25℃.
Stop charging after the constant voltage reaches 0.05C, and record the charging test data under different magnifications.
Storage performance-place at room temperature
In a normal temperature environment,100% SOS storage for 28 days,test capacity retention and recovery rate(Test for 5 groups batteries)
Storage performance-place at high temperature
55℃,100%SOC storage 4*7 28 days,test capacity retention and recovery rate(Test average value for 5 groups batteries)

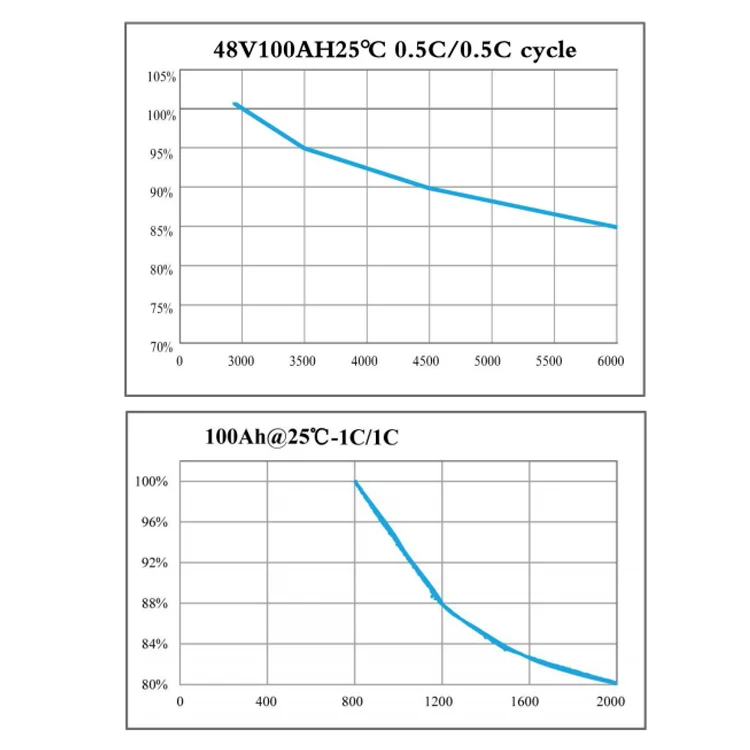

Cycle performance
25℃,0.2C constant current charge to 53.25V, constant voltage to 0.05C cut-off;after 30 minutes of storage,0.2C discharge Power to 42V,cycle to 80%SOC cut-off;
25℃,1C constant current charge to 53.25V,constant voltage to 0.05C cut-off;after 30 minutes of storage,1C discharge to 42V,cycle to 80%SOC cut-off.

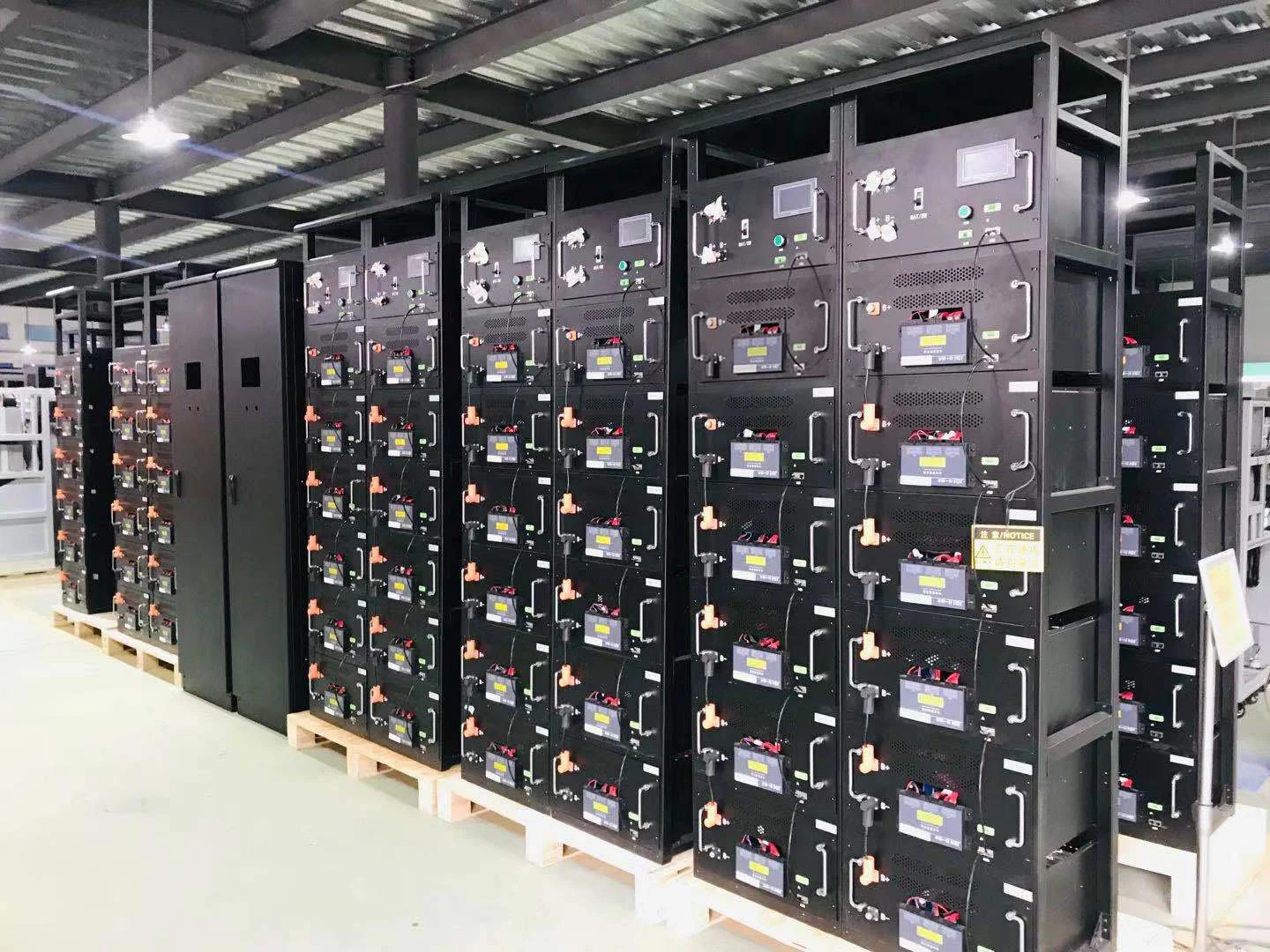

Introduction to the factory

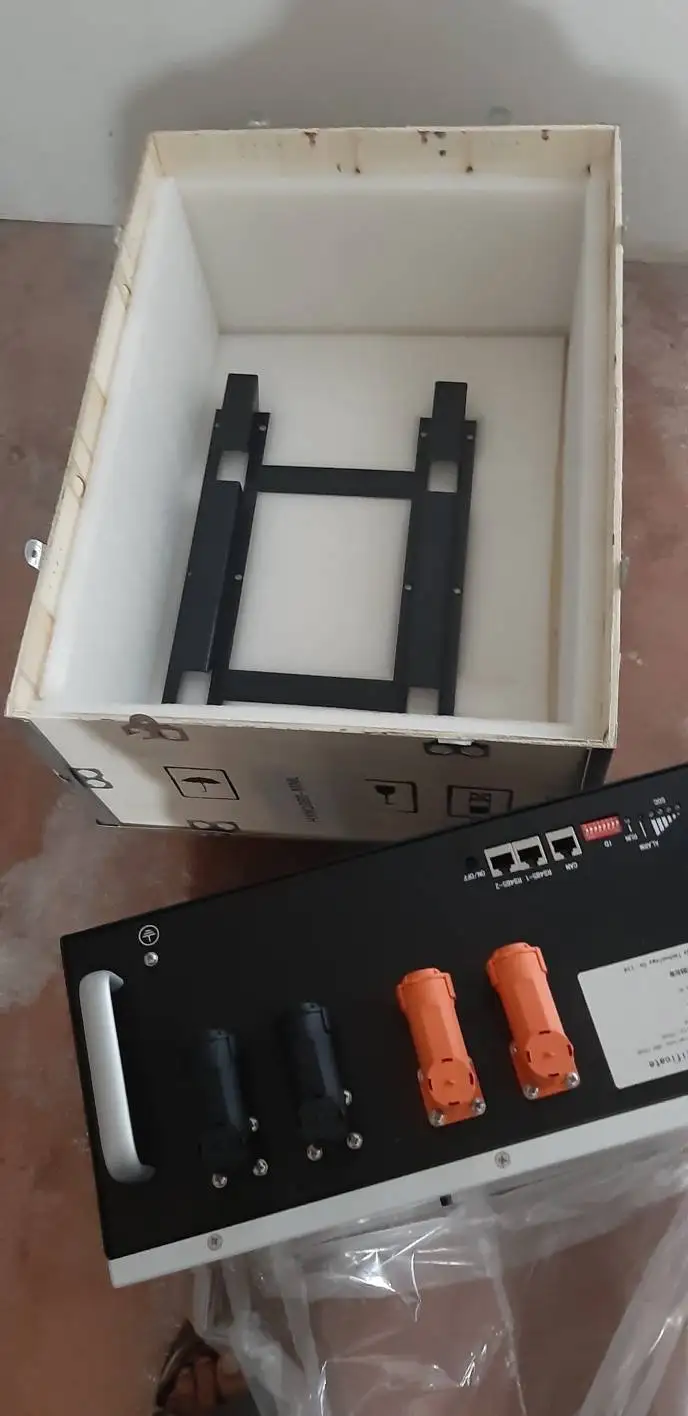

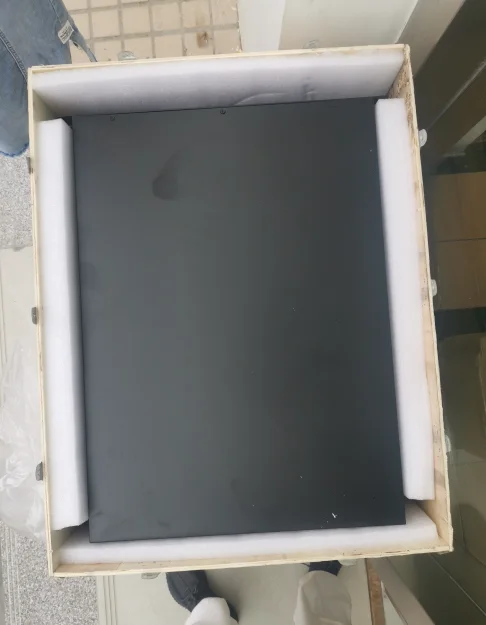

Product packaging
FAQ
1. who are we?
We are based in Guangxi, China, start from 2022,sell to Domestic Marke,South Asia,Eastern Asia,North
America,South America,Oceania,Western Europe,Southern Europe,Central America,Northern
Europe,Africa,Eastern Europe,Mid East,Southeast Asia. There are total about 11-20 people in our
office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Residential Energy Storage/Commercial Industrial ESS/Wall Mounted Lithium Battery Pack, Lithium Ion Power Battery, Battery Packs
4. why should you buy from us not from other suppliers?
Hunan Langle New Energy technology Co., Ltd. It is an integrated green energy enterprise specialized in the R&D and manufacturing
of F60 series lithium-ion battery cells and battery systems.
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
We are based in Guangxi, China, start from 2022,sell to Domestic Marke,South Asia,Eastern Asia,North
America,South America,Oceania,Western Europe,Southern Europe,Central America,Northern
Europe,Africa,Eastern Europe,Mid East,Southeast Asia. There are total about 11-20 people in our
office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Residential Energy Storage/Commercial Industrial ESS/Wall Mounted Lithium Battery Pack, Lithium Ion Power Battery, Battery Packs
4. why should you buy from us not from other suppliers?
Hunan Langle New Energy technology Co., Ltd. It is an integrated green energy enterprise specialized in the R&D and manufacturing
of F60 series lithium-ion battery cells and battery systems.
5. what services can we provide?
Accepted Delivery Terms: null；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A;
Language Spoken:English,Chinese
