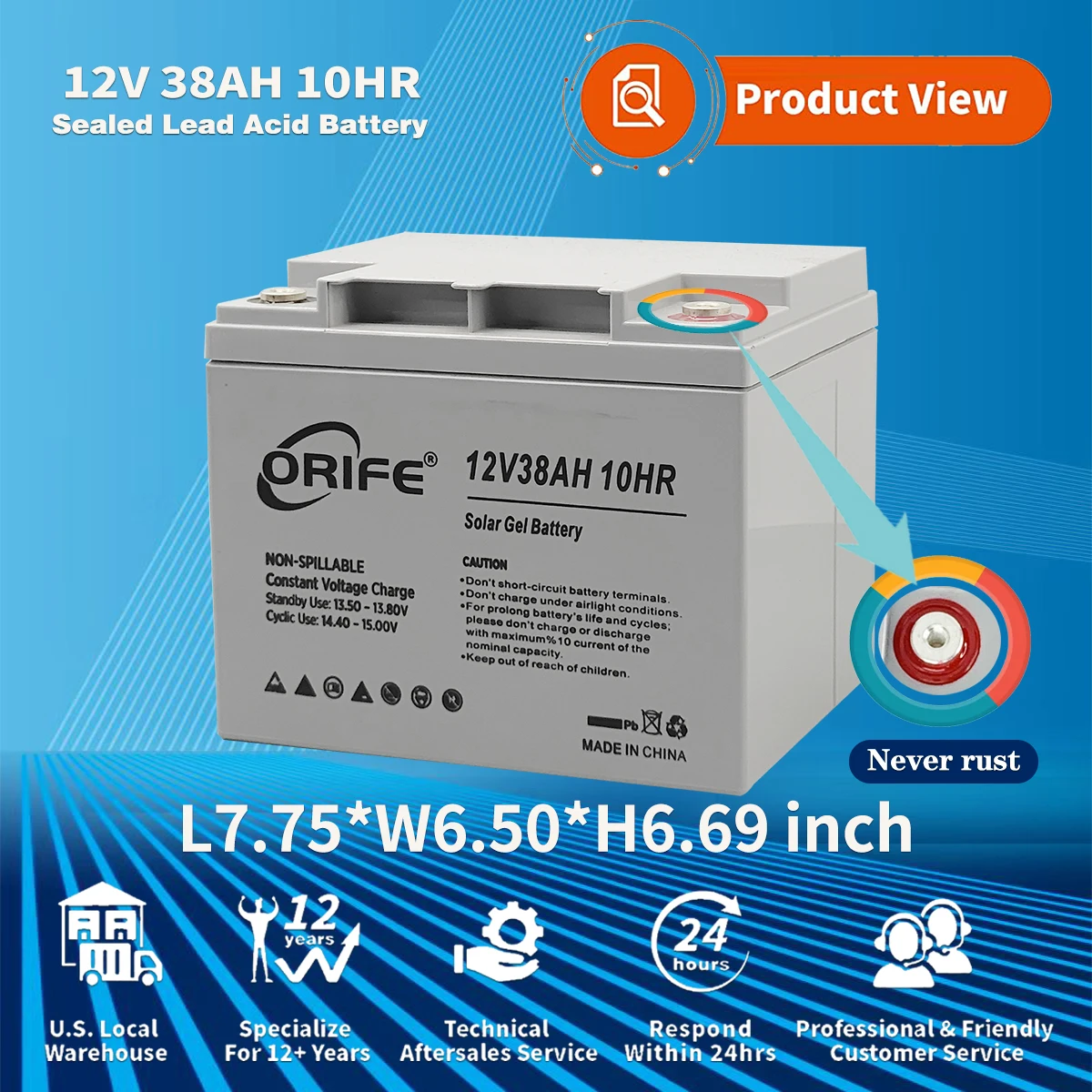

ORIFE custom inverter power tools deep cycle acumulator 12v 38ah calcium long life lead acid battery
ORIFE custom inverter power tools deep cycle acumulator 12v 38ah calcium long life lead acid battery
ORIFE custom inverter power tools deep cycle acumulator 12v 38ah calcium long life lead acid battery
ORIFE custom inverter power tools deep cycle acumulator 12v 38ah calcium long life lead acid battery
ORIFE custom inverter power tools deep cycle acumulator 12v 38ah calcium long life lead acid battery
ORIFE custom inverter power tools deep cycle acumulator 12v 38ah calcium long life lead acid battery
ORIFE custom inverter power tools deep cycle acumulator 12v 38ah calcium long life lead acid battery

ORIFE custom inverter power tools deep cycle acumulator 12v 38ah calcium long life lead acid battery

Share on (1600927634763):


Price:$36.00 - $42.00

Quantity:


Product Overview

Description







◆ Specifications


Nominal Voltage
12 V
Capacity (25℃)
20HR(10.5V)
38Ah
10HR(10.5V)
31.2Ah
1HR(9.60V)
23.3Ah

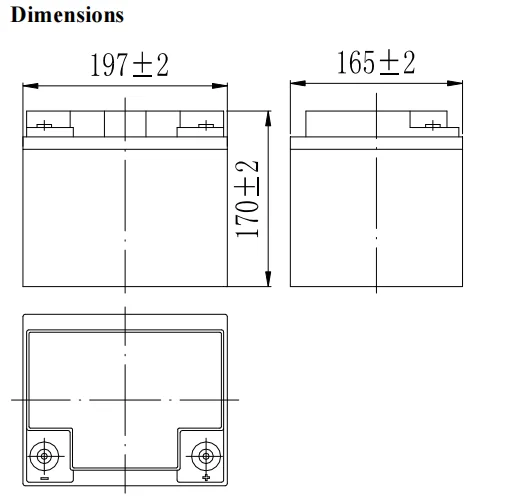

Dimension
Length
197±2mm (7.75inch)
Width
165±2mm (6.50inch)
Height
170±2mm (6.69inch)
Total Height
170±2mm (6.69inch)
Approx. Weight
12.5kg (27.5lbs) ±4%

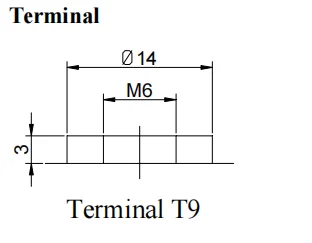

Terminal type
T9
Internal resistance (Fully charged, 25℃)
Approx.9.5mΩ
Capacity affected by temperature (20HR)
40℃
103%
25℃
100%
0℃
88%
-15℃
70%
Self-discharge (25℃)
3 month
Remaining Capacity: 94%
6 month
Remaining Capacity: 88%
12 month
Remaining Capacity: 75%
Nominal operating temperature
25℃±3℃(77℉±5℉)
Operating temperature range
Discharge
-15℃～55℃(5℉～131℉)
Charge
-10℃～55℃(14℉～131℉)
Storage
-20℃～55℃(-4℉～131℉)

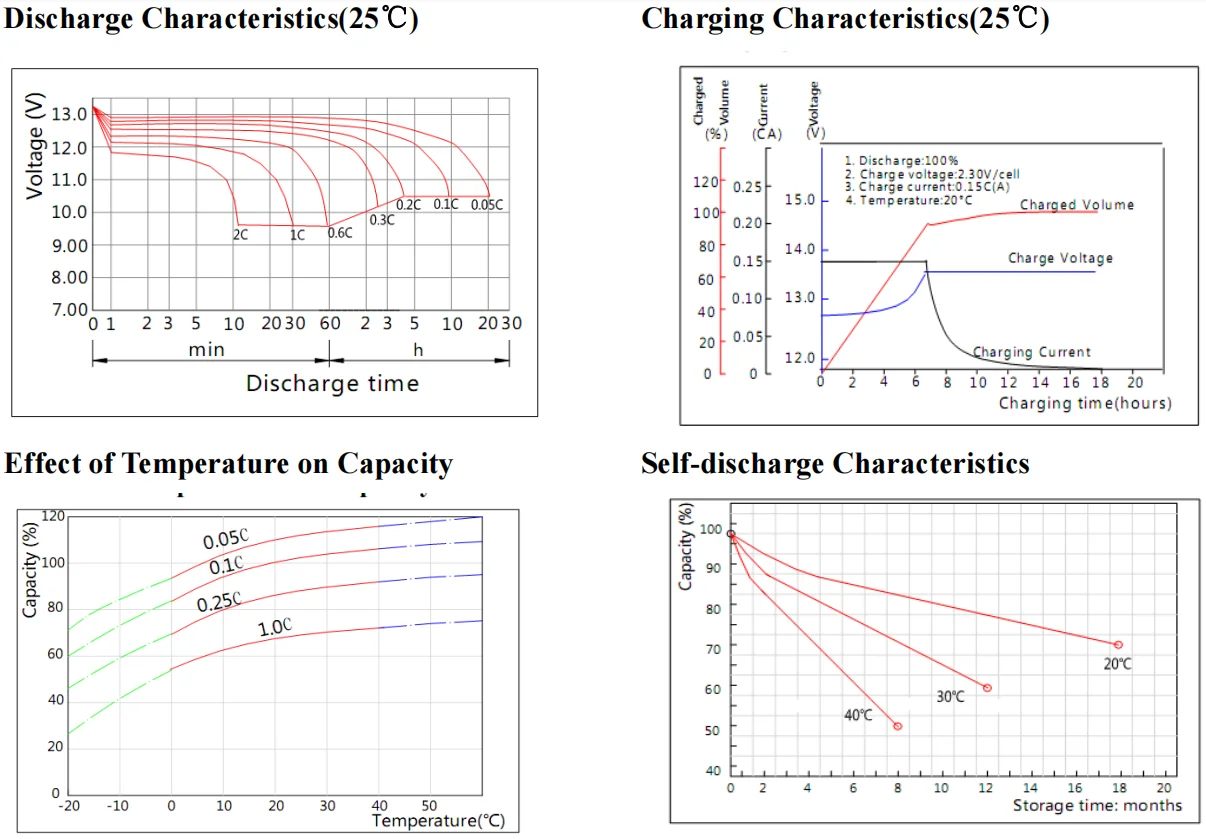

◆ Constant Current Discharge Characteristics (A, 25℃)


F.V/TIME
15min
30min
60min
2h
3h
4h
5h
6h
8h
9.60V
54
37.3
23.3
13.6
9.6
7.56
6.32
5.4
4.2
9.90V
52.8
36.5
22.9
13.5
9.52
7.52
6.28
5.36
4.16
10.2V
50.8
35.4
22.4
13.4
9.48
7.44
6.24
5.32
4.16
10.5V
49.2
34.6
21.9
13.2
9.4
7.4
6.2
5.28
4.12
10.8V
46.4
33.3
21.2
12.9
9.12
7.16
6
5.12
4


◆ Constant Power Discharge Characteristics (Watt, 25℃)


F.V/TIME
15min
30min
60min
2h
3h
4h
5h
6h
8h
9.60V
603
425
268
158
113
89.2
75.2
64
50
9.90V
588
416
264
157
113
88.8
74.8
63.6
50
10.2V
566
404
258
156
112
88
74
63.2
49.6
10.5V
547
394
252
154
111
87.6
73.6
62.8
49.2
10.8V
518
380
244
150
108
84.8
71.6
60.8
47.6


Note: The above characteristics data can be obtained within three charge/discharge cycles.
















ORIFE
Pls click here>>>>>contact us for more factory prices, shipping and discounts>>> 1.Our own brand design, novel design, Orife
leading the battery market; 2.Support small batch testing market; 3.Brand customization, one-drop service; 4.Support factory
inspection. Contact Us Email:catherine@orifeenergy.com Whatsapp/wechat:+86 18802012393
