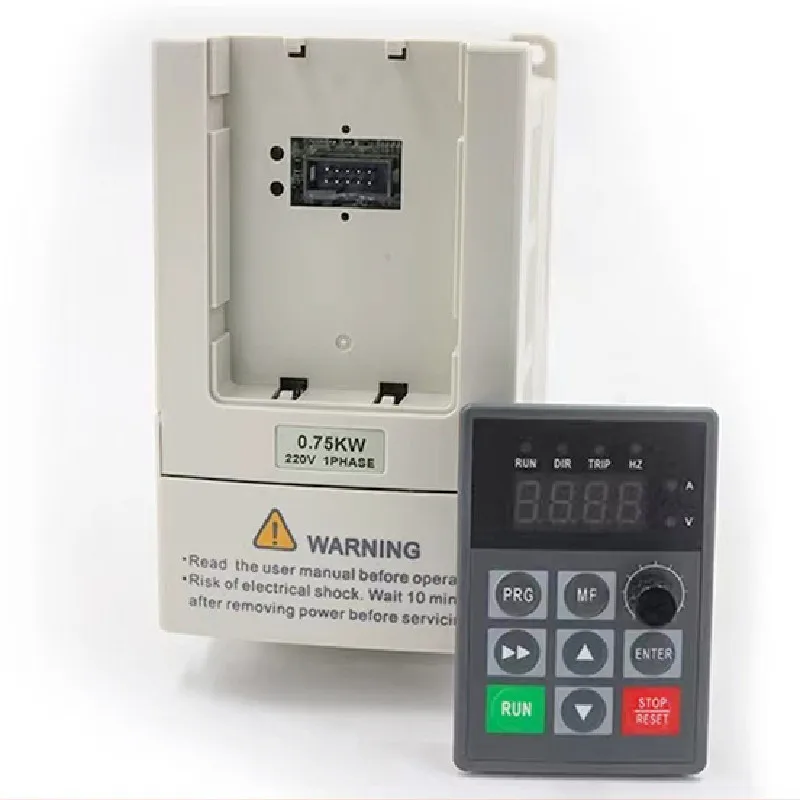

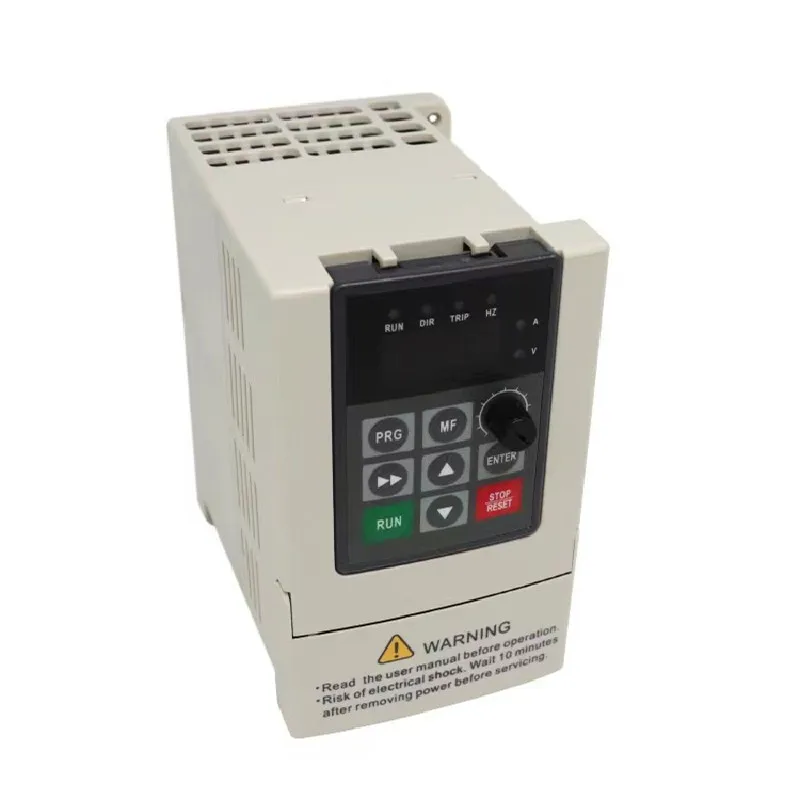

China brand vfd single phase to 3 phase 220v to 380v frequency converter 50hz to 60hz 1.5kw 2hp vfd drive inverter
- Category: >>>
- Supplier: Shanghai Fmz Industry Co. Ltd.
Share on (1600927696749):
Product Overview
Description
Product Description
V3 Vector Control Variable Frequency Drive
Solar Pump Inverter
● 110VAC 1PH To 3PH 0.4~1.5KW
● 220VAC 1PH To 3PH 0.4~2.2KW
● 220VAC 1PH To 1PH 0.4~2.2KW
● 380VAC 3PH To 3PH 0.75~7.5KW
● 220VAC 1PH To 380VAC 3PH 0.75~2.2KW
● 220VAC 1PH To 380VAC 3PH 0.75~2.2KW

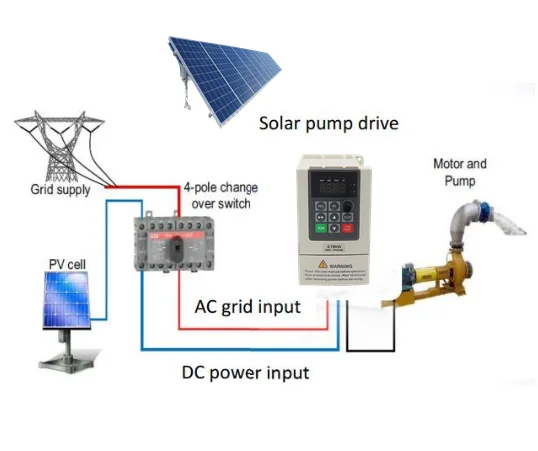

● DC TO AC Solar Pump Inverter
Voltage: -15% 220V+15% 1Phase
-15% 380V+15% 3Phase
-15% 380V+15% 3Phase
Power Range:
● 220VAC 1PH To 3PH 0.4~2.2KW
● 220VAC 1PH To 1PH 0.4~2.2KW
● 380VAC 3PH To 3PH 0.75~7.5KW
● 220VAC 1PH To 380VAC 3PH 0.75~2.2KW
● DC TO AC Solar Pump Inverter
Typical Technical Characteristics:
1)Reliable IPM Module Design
2)Simple PLC operation
3)Carrier frequency: 2.0kHz~8.0kHz
4)Frequency Output: 0~999Hz
5)Acceleration/Deceleration time: 0~255s
6)PID function is available
FLAME RETARDANT
● Industrial Grade ABS Plastic,
● Shock Resistant,
● Safe and Secure
● High Temperature Resistant,
QUALITY ELEMENT
●Industrial Grade PCB Board
●Conductive Strong
●High Welding Reliability
●Conductive Strong
●High Welding Reliability
GOOD HEAT DISSIPATION
● Double Roller Ball Bearing
● Long Service Life
● Large air volume
● Long Service Life
● Large air volume
Control Mode

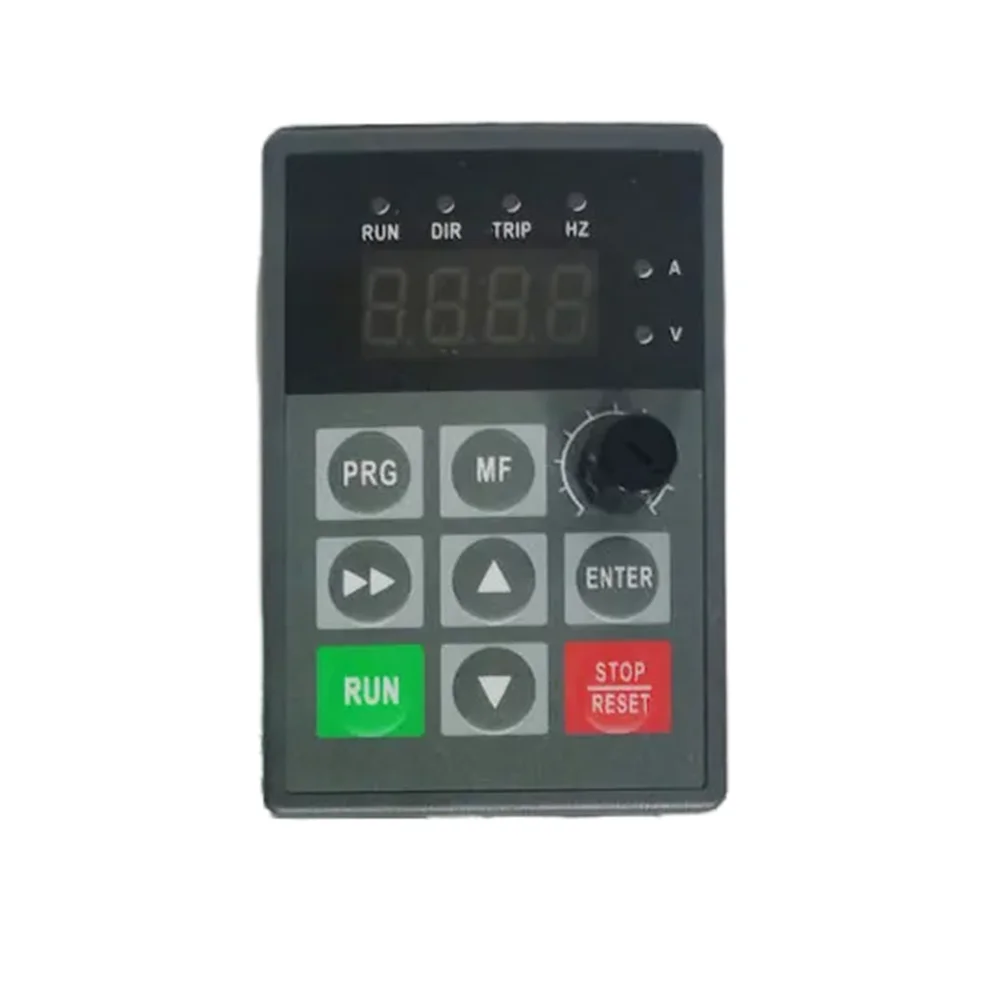

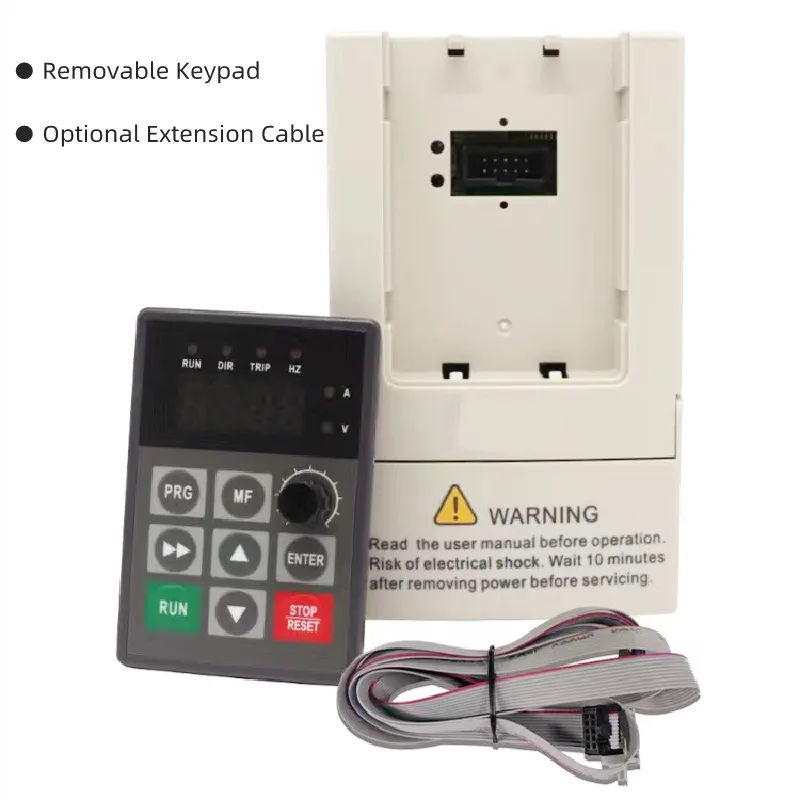

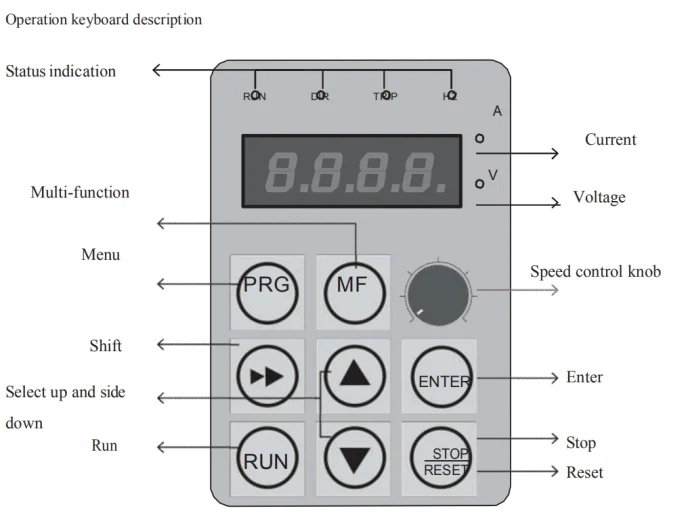

Local control--interfaces through the operation panel(keypad)Remote control--interfaces through external terminals control.
Note:Ensure that the drive is in local control before starting or stopping the inverter using the control panel.
● Maximum power ponit tracking(MPPT) with fast response speed and stable operation.
● Dry run(under load) protection
● Motor maximum current protection
● Input power protection
● Low stop frequency protection
● The PQ(power/flow) performance curve enables calculating the flow output from the pump
● Digital control for fully automatic operation,data storage and protective functions
● Intelligent power module(IPM) for the main circuit
● LED display operating panel and support input is available
● Low water probe sensor,and water level control funtion
● Ambient temperature for using:-10 to +50℃
● Dry run(under load) protection
● Motor maximum current protection
● Input power protection
● Low stop frequency protection
● The PQ(power/flow) performance curve enables calculating the flow output from the pump
● Digital control for fully automatic operation,data storage and protective functions
● Intelligent power module(IPM) for the main circuit
● LED display operating panel and support input is available
● Low water probe sensor,and water level control funtion
● Ambient temperature for using:-10 to +50℃
Details Images
Product Features
Model No | Motor Power(kW) | Rated Current(A) | Outline Dimensions （H*W*D）（mm) | Package Dimensions （H*W*D）（mm) | ||||
110V 1-phase input & 1-phase output （Voltage Range: -15% 110V~110+15%） | ||||||||
V3-0R4G-S1-110 | 0.4 | 5 | 143*85*116 | 230*160*170 | ||||
V3-0R75G-S1-110 | 0.75 | 8.5 | 143*85*116 | 230*160*170 | ||||
V3-1R5G-S1-110 | 1.5 | 13 | 209*113*188 | 320*170*245 | ||||
220V 1-phase input & 1-phase output （Voltage Range: -15% 220V~220+15%） | ||||||||
V3-0R4G-S1-220 | 0.4 | 4 | 143*85*116 | 230*160*170 | ||||
V3-0R75G-S1-220 | 0.75 | 5 | 143*85*116 | 230*160*170 | ||||
V3-1R5G-S1-220 | 1.5 | 8.5 | 143*85*116 | 230*160*170 | ||||
V3-2R2G-S1-220 | 2.2 | 13 | 209*113*188 | 320*170*245 | ||||
220V 1-phase input & 3-phase output （Voltage Range: -15% 220V~220+15%） | ||||||||
V3-0R4G-S2 | 0.4 | 2.5 | 143*85*116 | 230*160*170 | ||||
V3-0R75G-S2 | 0.75 | 5 | 143*85*116 | 230*160*170 | ||||
V3-1R5G-S2 | 1.5 | 7 | 143*85*116 | 230*160*170 | ||||
V3-2R2G-S2 | 2.2 | 10 | 151*100*120 | 230*160*170 | ||||
380V 3-phase input & 3-phase output （Voltage Range: -15% 380V~380+15%） | ||||||||
V3-0R7G/1R5P-T4 | 0.75 | 3 | 151*100*120 | 230*160*170 | ||||
V3-1R5G/2R2P-T4 | 1.5 | 4 | 151*100*120 | 230*160*170 | ||||
V3-2R2G/3R0P-T4 | 2.2 | 5 | 151*100*120 | 230*160*170 | ||||
V3-4R0G/5R5P-T4 | 4.0 | 8.5 | 209*113*188 | 320*170*245 | ||||
V3-5R5G/7R5P-T4 | 5.5 | 13 | 209*113*188 | 320*170*245 | ||||
V3-7R5G/11RP-T4 | 7.5 | 18 | 209*113*188 | 320*170*245 | ||||
220V 1-phase input & 380V 3-phase output （Voltage Range: -15% 220V~220+15%, -15% 380V~380+15%） | ||||||||
V3-0R75G-S4 | 0.75 | 5 | 151*100*120 | 230*160*170 | ||||
V3-1R5G-S4 | 1.5 | 7 | 151*100*120 | 230*160*170 | ||||
V3-2R2G-S4 | 2.2 | 10 | 209*113*188 | 320*170*245 | ||||
Product Name | V3 Series AC Drive/Frequency Converter/VFD |
Model Number | V3-1R5R-S4 |
Control Mode | SVC, V/F Control |
Torque Rise | Auto Torque Rise, Manual Torque Rise 0~30%V/F Mode |
Rated Power | 1.5kW |
Input Voltage | 1PH 220V 50/60Hz |
Output Voltage | 3PH 220V |
Operating Temperature | -10-50℃ |
IP Protection | IP20 |
Application | Fan, Pump, Conveyor, Packing Machinery, Textile machinery... |

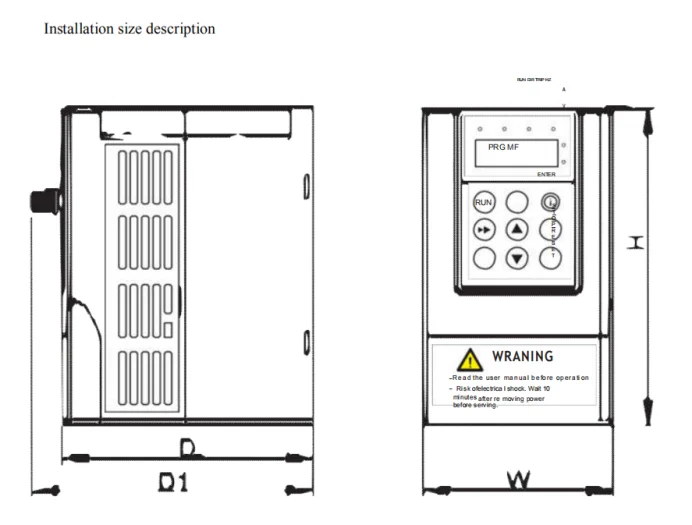

Product Paramenters
Input/Output Voltage | Power (KW) | Output current (A) | W (mm) | H (mm) | D (mm) | D1 (mm) | Mounting aperture (mm) |
80~400VDC /0~250V AC | 0.4 | 2.5 | 85 | 143 | 116 | 126 | 4.5 |
0.75 | 5 | ||||||
1.5 | 7 | ||||||
2.2 | 10 | 100 | 151 | 120 | 130 | ||
0.75 | 3 | ||||||
1.5 | 4 | ||||||
2.2 | 5 | ||||||
3.7 | 8.5 | 125 | 220 | 166 | 176 | ||
5.5 | 13 | ||||||
7.5 | 17 |
Application
Product packaging
Carton packing 1
Carton packing 2
Carton packing 3
Company Profile
Shanghai FMZ Industry Co., Ltd specializes in R&D, manufacture, sales and professional technical services upon industrial
automation control products such as frequency inverter (variable frequency drive, VFD, VSD, frequency converter, AC Drive), soft starter, HMI, motor servo, PLC and other general parts.
Our products could widely meet demands of all kinds of machinery equipment, system integration and industrial applications, which are reliable, intelligent and excellent. They are widely applied to CNC(machine tool), mine, textiles, metallurgy, lifting, oil,plastics, chemicals, municipal project and other industries.
We always keep working hard to support our customers with our all-around services and do our best to provide them with prompt customized solutions. Thanks for the persistent efforts from our hard working colleagues, we are getting more and more comprehensive recognition from our valuable customers all around the world.
About after-sales service, we have organized an experienced team to support our customers with various effective solutions, help analyze all kinds of automation applications, and they are available to go to the site to carry out the equipment commissioning, operation or problem shot and offer free training.
Our business philosophy is to ‘Always be with you and enjoy success together.
automation control products such as frequency inverter (variable frequency drive, VFD, VSD, frequency converter, AC Drive), soft starter, HMI, motor servo, PLC and other general parts.
Our products could widely meet demands of all kinds of machinery equipment, system integration and industrial applications, which are reliable, intelligent and excellent. They are widely applied to CNC(machine tool), mine, textiles, metallurgy, lifting, oil,plastics, chemicals, municipal project and other industries.
We always keep working hard to support our customers with our all-around services and do our best to provide them with prompt customized solutions. Thanks for the persistent efforts from our hard working colleagues, we are getting more and more comprehensive recognition from our valuable customers all around the world.
About after-sales service, we have organized an experienced team to support our customers with various effective solutions, help analyze all kinds of automation applications, and they are available to go to the site to carry out the equipment commissioning, operation or problem shot and offer free training.
Our business philosophy is to ‘Always be with you and enjoy success together.
FAQ
1.what's the payment term? | T/T,L/C,D/P,WEST UNION,CASH Alibaba |
2.what's the delivery time? | 3-15 days. |
3.what is the standard of package? | Export standard package or special package according to customer. |
4.what is the warranty? | 18 months after delivery. |
5.what is the export experience? | Europe(Denmark,Poland,Russia,etc),Middle East(Iran,SA,UAE,etc),south America(Mexico,Columbia,Brasil,etc),Asia(India,Pakistan,Bangladesh,Vietnam,Thailand,Indonesia,Malaysia,etc),Afria(Kenya,Zimbabwe,Negeria,etc) |
6.What is trade Term? | EX-Works, FOB China, CFR & CIF |
7.Do you accept OEM business? | We accept OEM under your autherization. |
8.what about the aftersales service? | We have one mature after-sales service team. Normally we offerquick technical support via email or online talking tools like whatsapp, wechat or others. If urgent or necessary, we also can send our technician to your site with full-time support. |
9.Do you accept OEM/ODM service request? | OEM or ODM service is available |
10.Is it training available for your technician? | Yes. Definitely we warmly welcome your technician to accept related maintenance and repair training in our factory. We will help arrange the hotel and food. |
