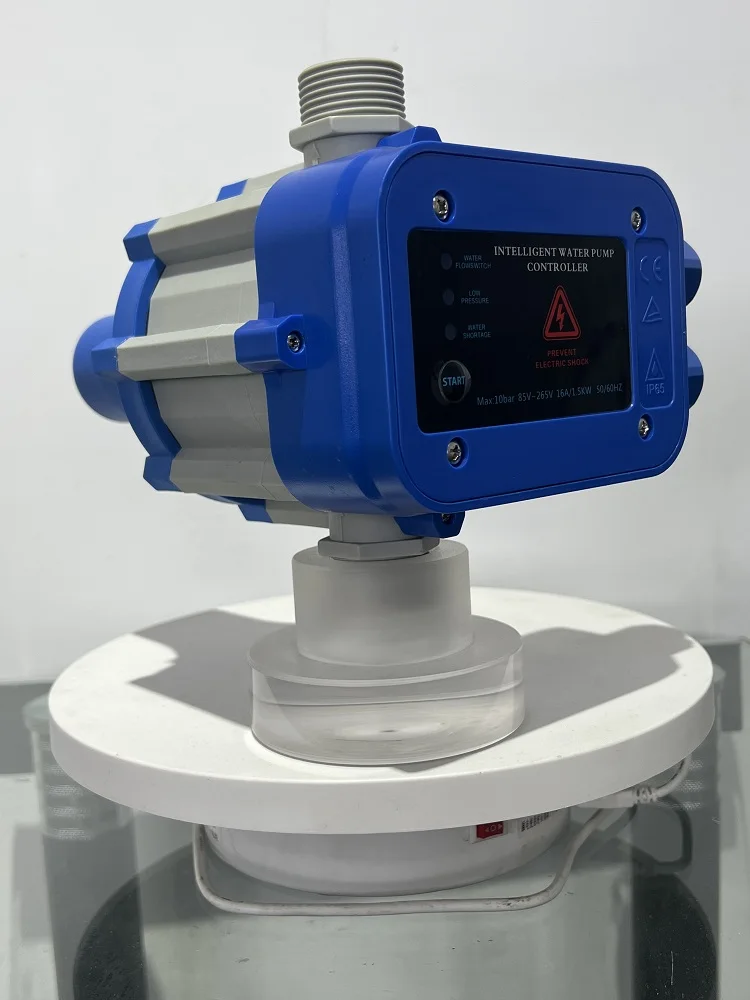

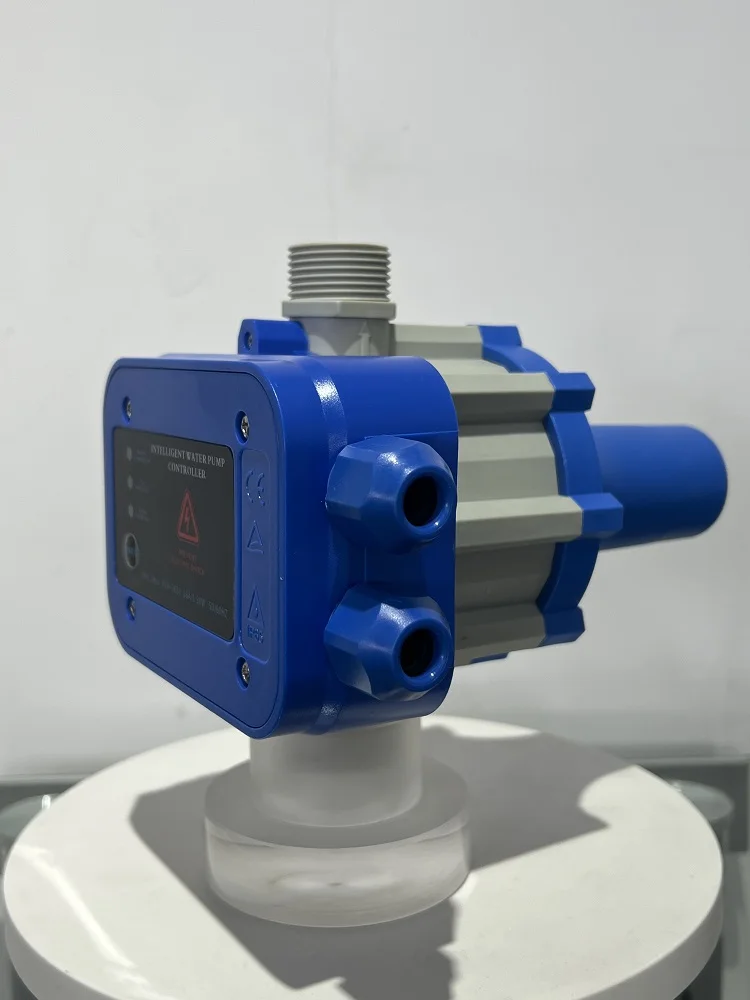

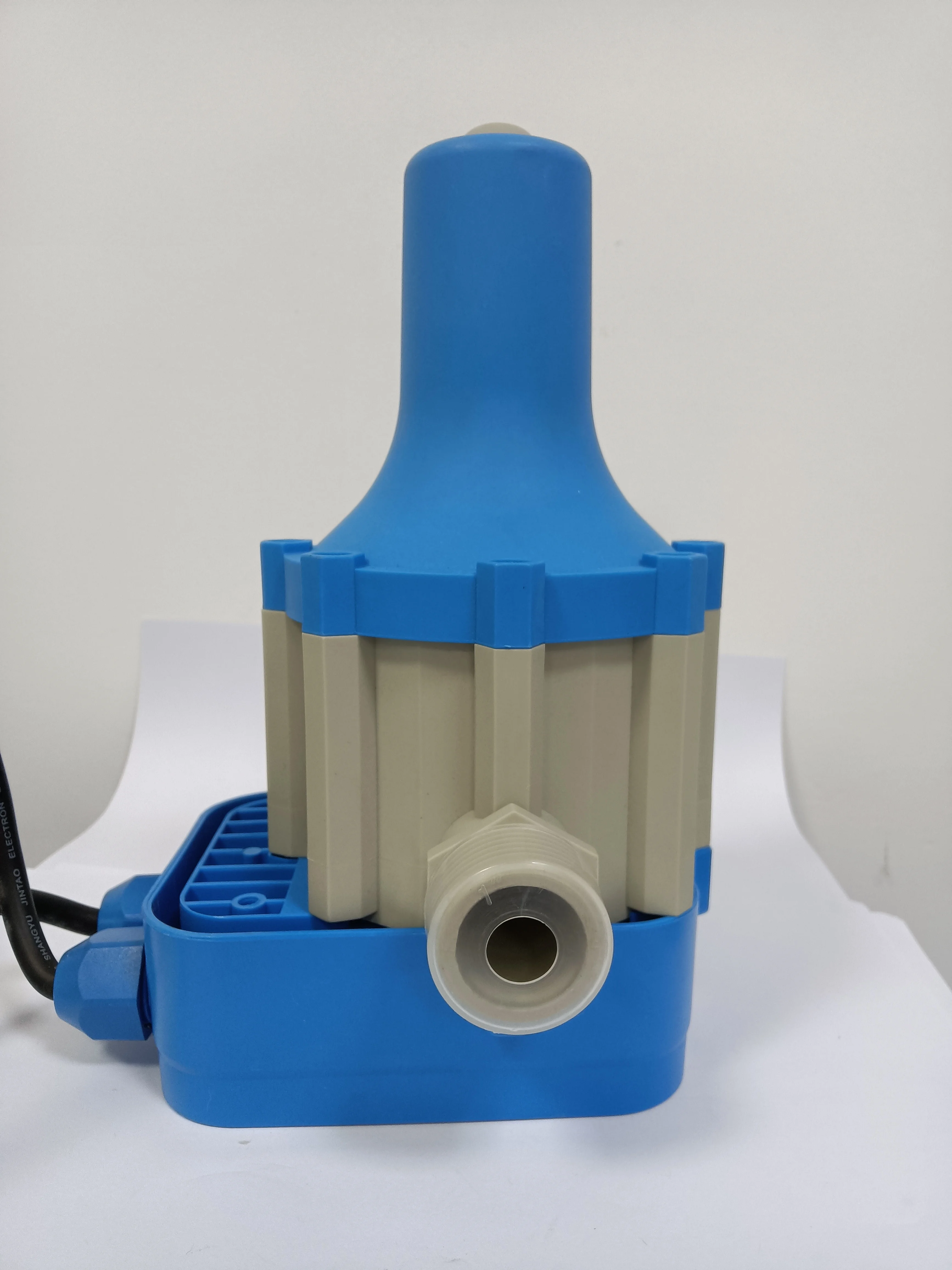

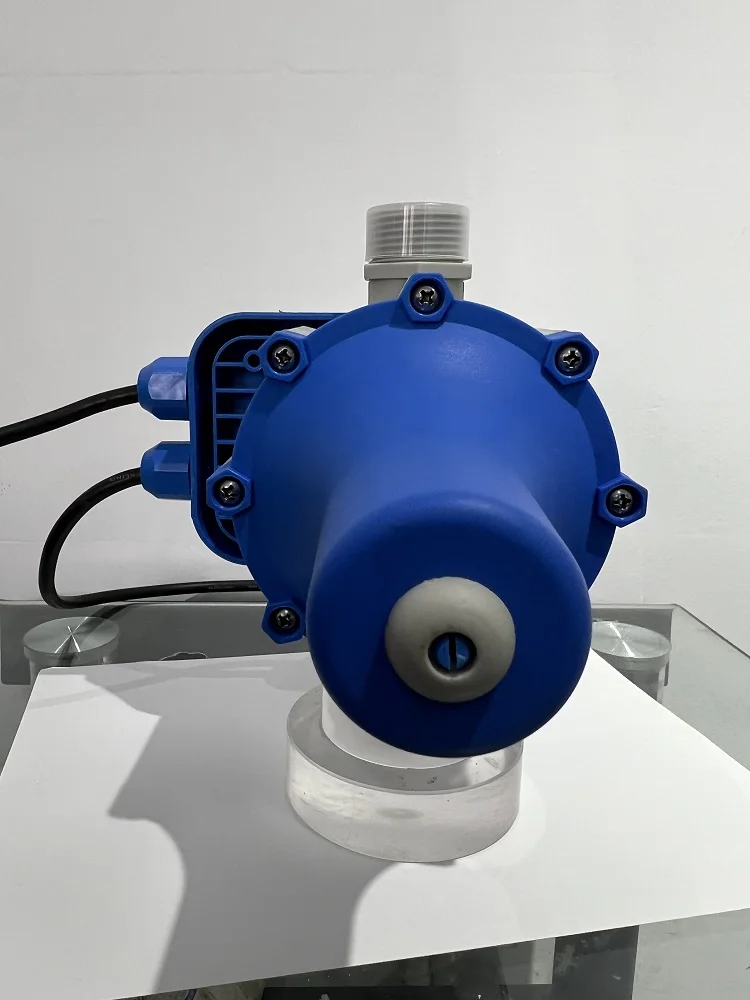

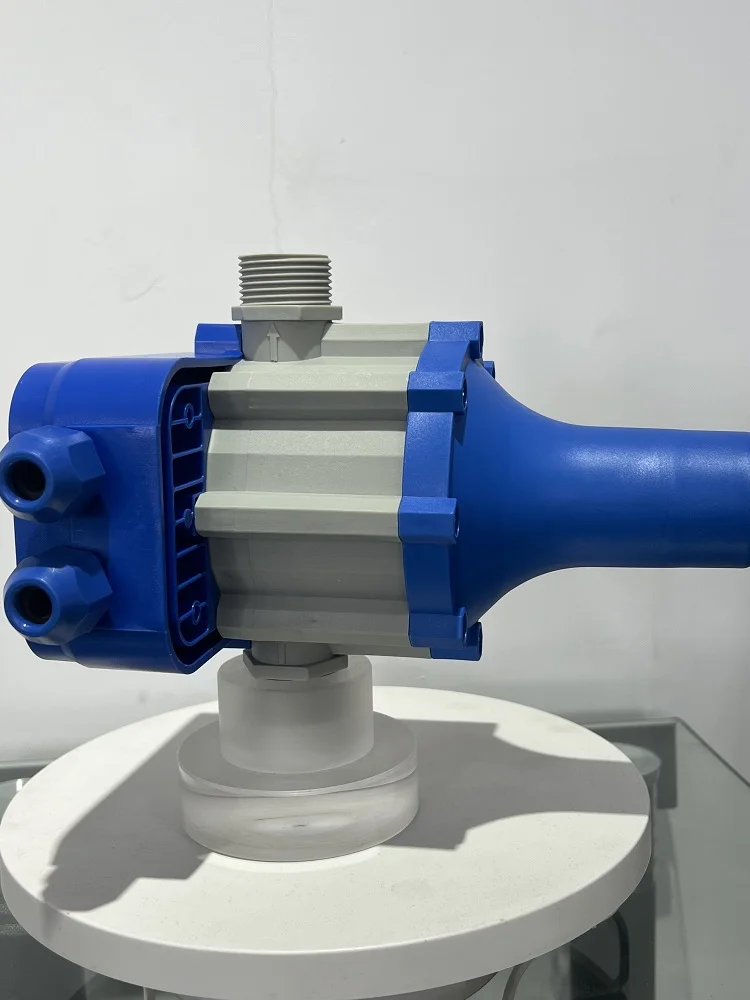

Water Pump Automatic Pressure Control Electronic Switch Automatic Pump Control

Product Overview

Description





Model

Relay Power(A)

Operating Voltage Range(Support customization)

Frequency

Application Mode

Pump Start Value(BAR)

Control method

Pump head(Max Pressure) Requirements

Use the highest tap position

Diameter (mm)

Packing Number(PCS)

PS01A

16A

AC85-265V

50/60Hz

Intelligent supercharging

1.0 not adjustable

Reed switch + reed switch

At least 1.0bar above the start value

Vertical use height 10 meters

25

12

1.6 not adjustable

Vertical use height 16 meters

2.2 not adjustable

Vertical use height 22 meters

2.8 not adjustable

Vertical use height 28 meters

1.0-2.5/1.5-3.0bar adjustable

Vertical use height 25 meters

Vertical use height 30 meters

PS01A

16A

AC85-265V

50/60Hz

Intelligent supercharging

1.0 not adjustable

Reed switch + reed switch

At least 1.0bar above the start value

Vertical use height 10 meters

25

12

1.6 not adjustable

Vertical use height 16 meters

2.2 not adjustable

Vertical use height 22 meters

2.8 not adjustable

Vertical use height 28 meters

1.0-2.5/1.5-3.0bar adjustable

Vertical use height 25 meters

Vertical use height 30 meters



Pump Pressure Switch is the electronic intelligent water pump control equipment, which can completely replace traditional strong power control system composed of pressure tank, pressure switch, water shortage protection device, check value and four ports, also saving time and material when installation. Control cabinet with complete isolation of electric part and pipe and high sealing make controller own characteristics of safety, environmental protection, long life, stable performance, less maintenance and no noise, which is better than traditional pressure and preferred by family.
