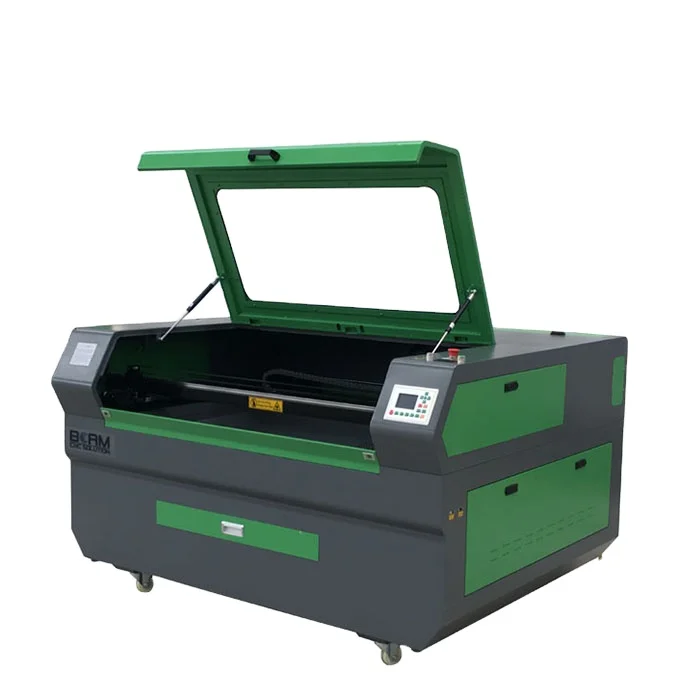

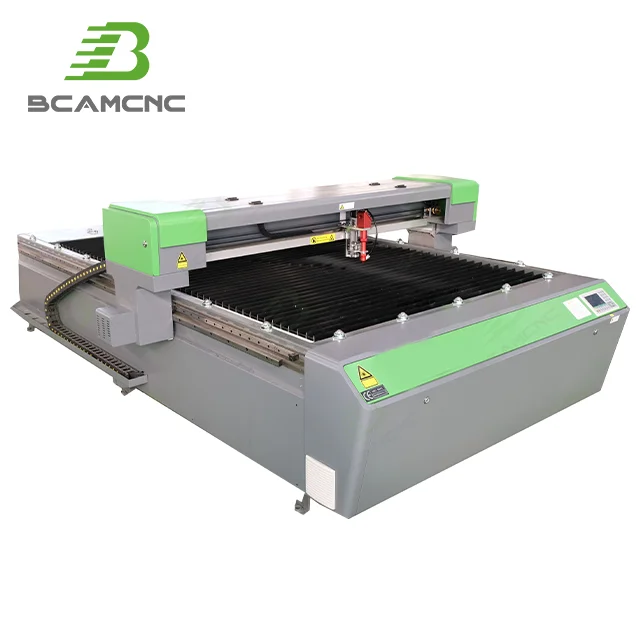

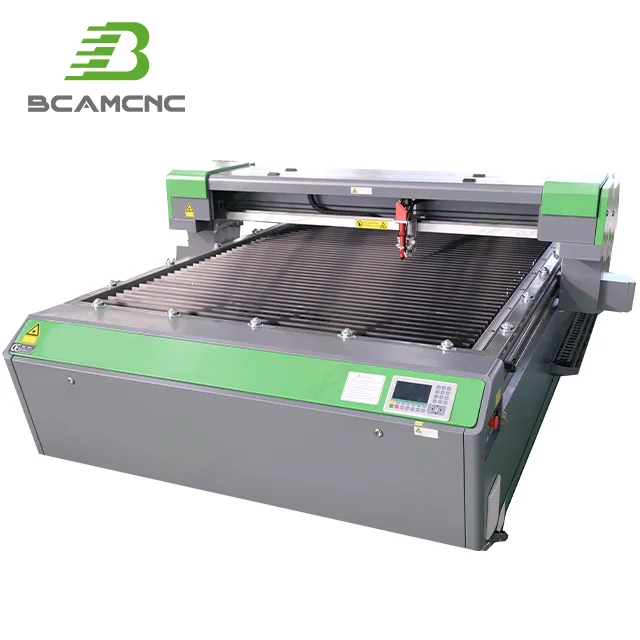

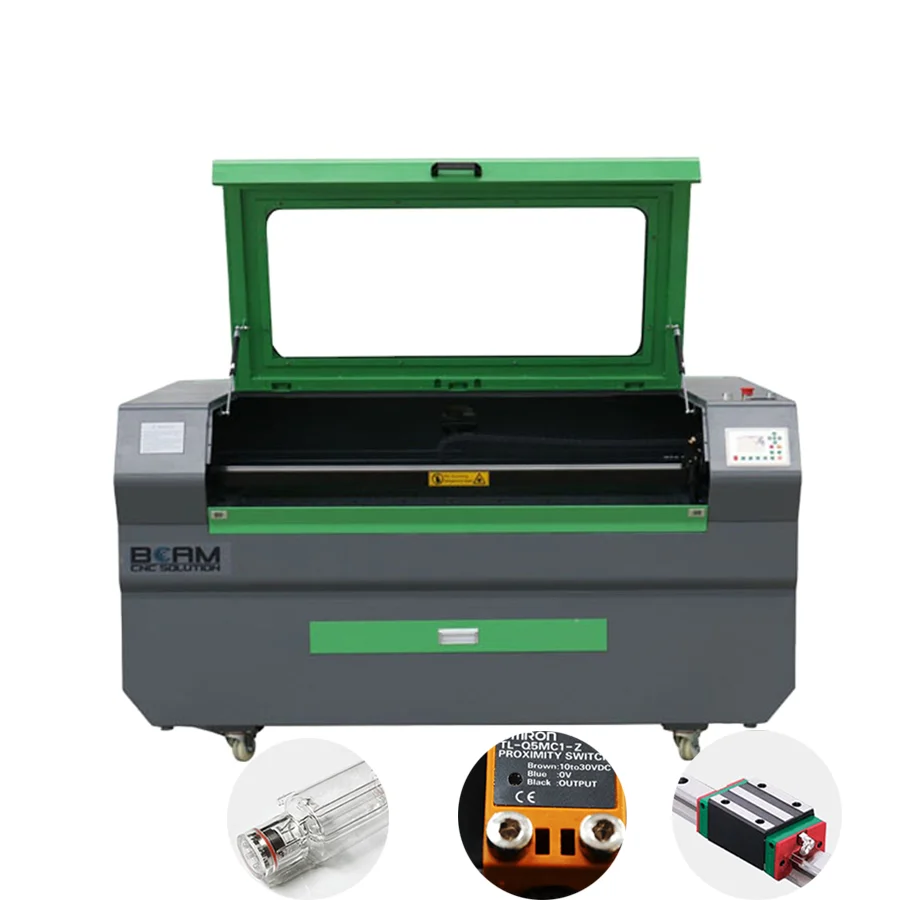

Laser cutting machine 4 wide by 8 ft long 40w/50w/60w CO2 Plate Fiber Laser / fiber laser pipe Cutting Machine Price

Share on (1600927870608):


Price:$3,688.00 - $3,999.00

Quantity:


Product Overview

Description



Product Description

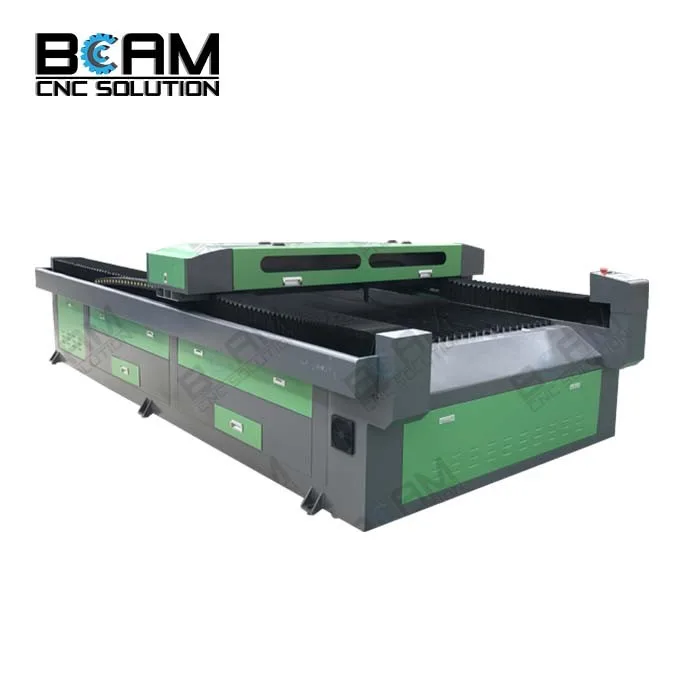

Acrylic cutting 1325 co2 laser engraving machine price

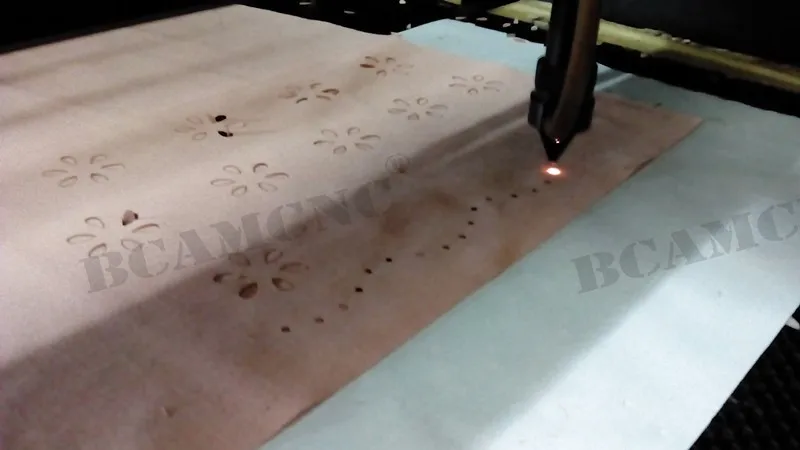

This co2 laser machine can cut and engrave non-metal, for example wood, acrylic, MDF, plywood, lather, fabric, rubber, paper,  plastic, plexiglax, cloth, textile,...




Its power have 80W, 100W, 130W and 150W. Parameter as following:



Power
Acrylic
Wood
MDF
80W
12mm
8mm
7mm
100W
15mm
10mm
9mm
130W
20mm
15mm
13mm
150W
30mm
20mm
20mm

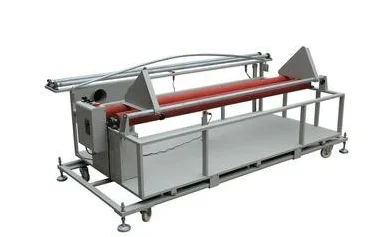

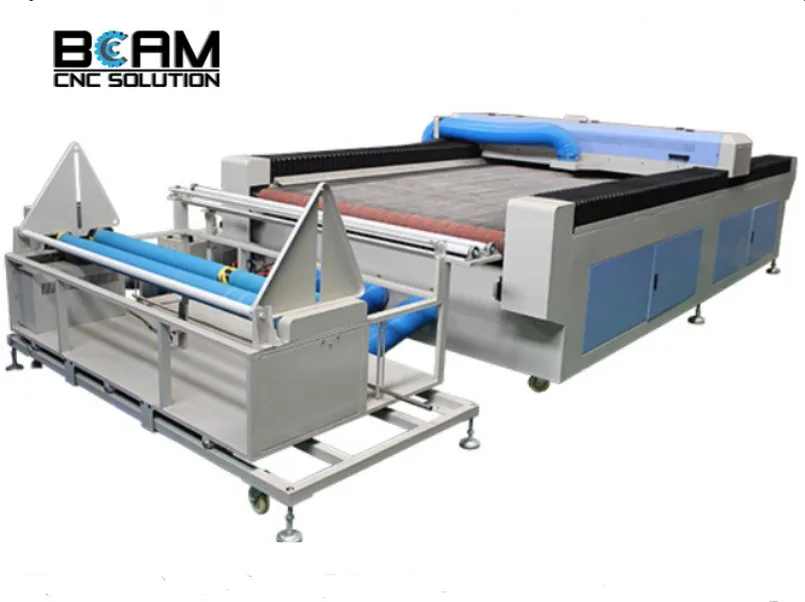

CO2 laser machine with automatic feeding system

Specializing in the processing of fabrics with laser machines, the co2 laser machine can add a auto feeding system, this can improve work efficiency.







Related Machines








Detailed Images

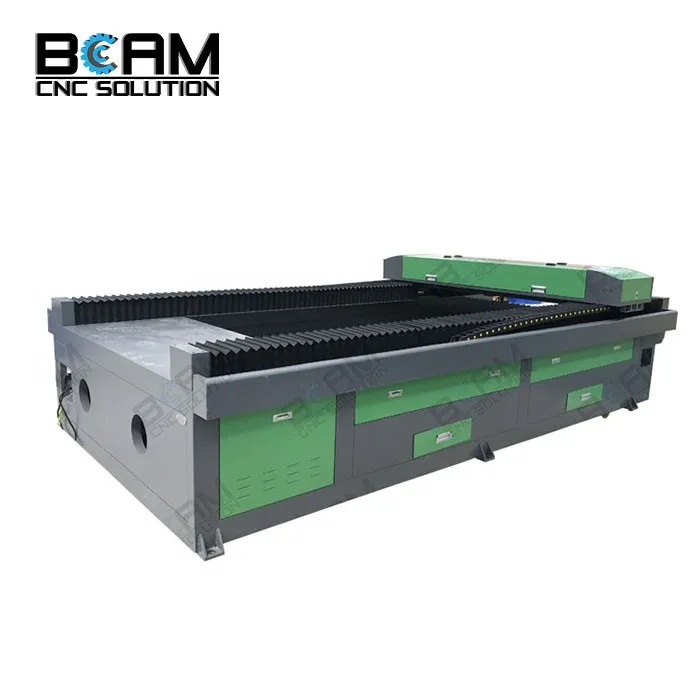

 Configuration of laser machine
Production name
Laser machine
Certification
CE certification
Machine model
BCJ1325
Working area
1300*2500mm
Optional size
600*900mm,1300*900mm,1400*1000mm,1600*1000mm, 1500*3000mm,...
Laser tube
Reci laser brand laser tube
Table
Blade table (Optional: Honeycomb table )
Control system
RD controller
Driver system
Stepper motor and driver
Rail
Taiwan PMI rail guide
Transmission
Shanghai Fulong belt
Lens and mirrors
Singapore lens and mirrors

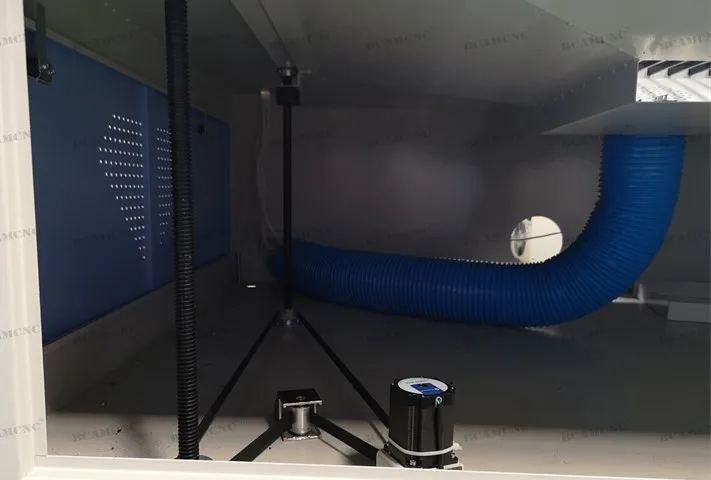

Dust collect
Exhaust fan
Cooling system
Water pupm (Optional: water chiller )
Air assistant
Air pump

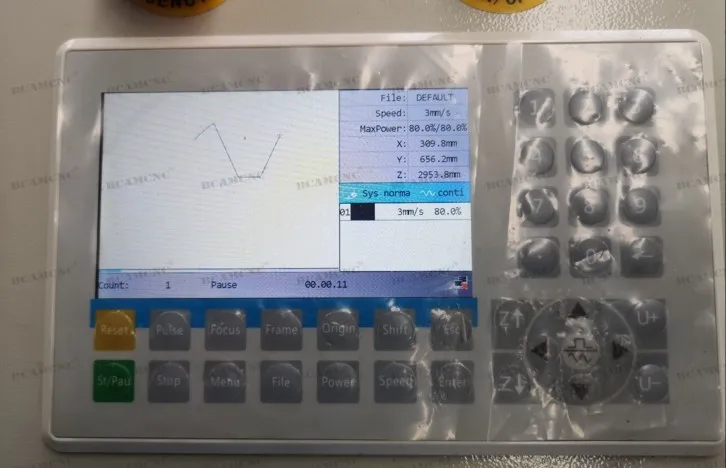

RDC6445G control system

This control system is very easy learn and operate. It support for multiple languages, for example English, Russian, French, Portuguese, Spanish, German, Turkish,.... And many new features, for example automatic focus (easy operate), parameter adjustment, add Z and U keys (easy to install this conveyor system),....

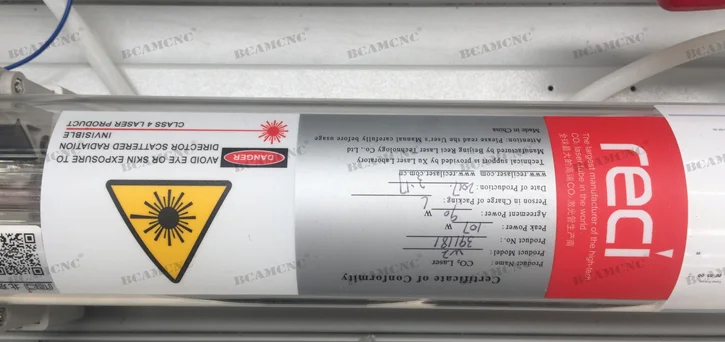

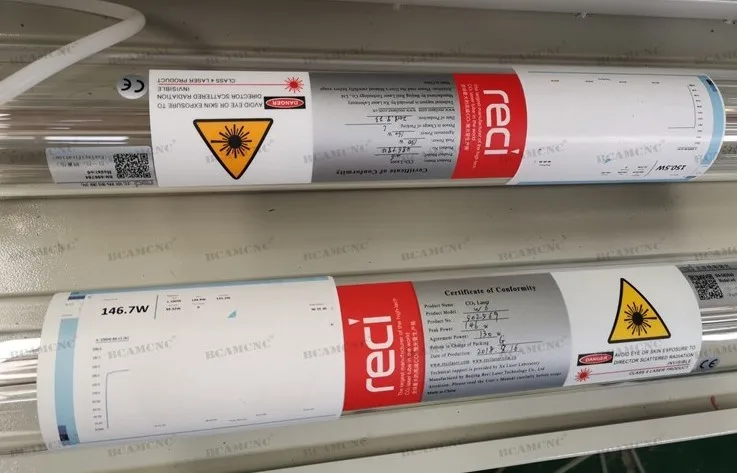

Reci laser tube

This machine used Reci laser tube, It is famous brand in world. Its life time is 1000H, can be use 3-4 years. For the laser tube, we provide 12 months warranty.

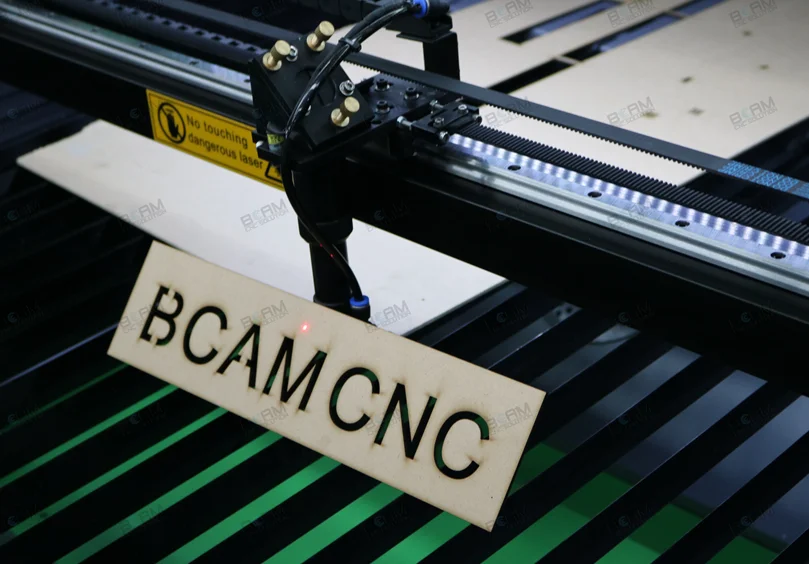

Laser head:

This is laser head, used to cut and engrave non-metal material.

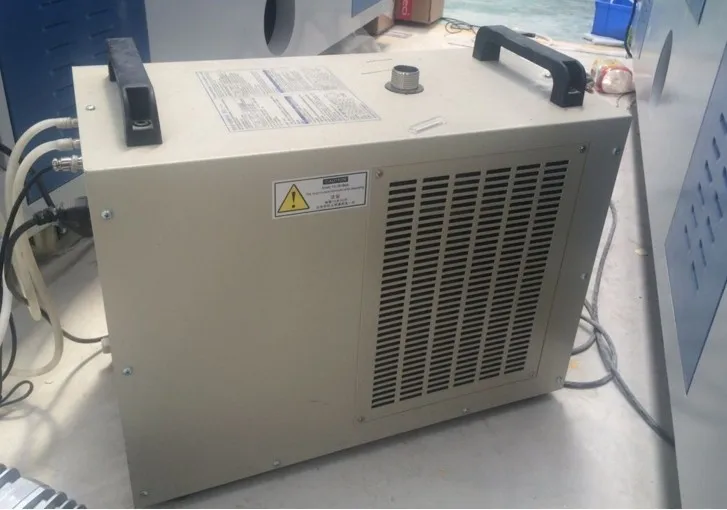

Water chiller

Used for cooling machine, usually, It is necessary when machine power up 100W. (If machine with 80W power, water pump is enough.)





Optional Parts


Optional Parts

According work need, co2 laser machine can make some change. For example, double head, rotay, up-down table,....

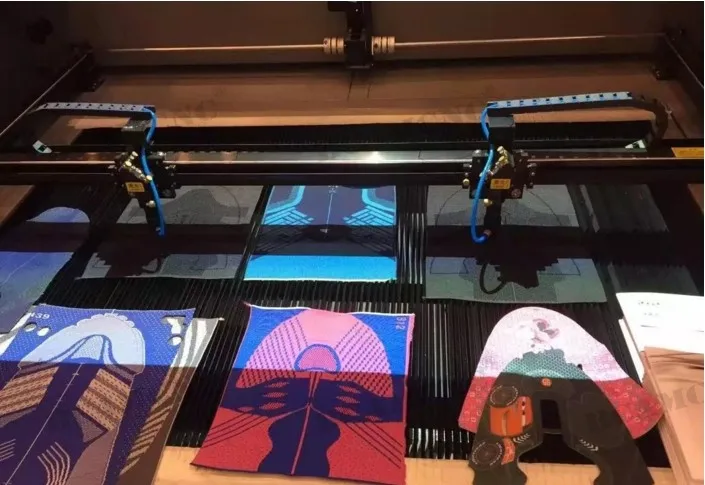

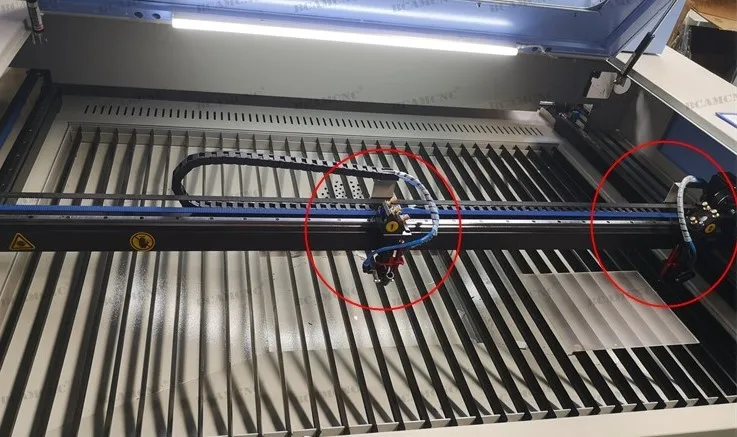

Double head

CO2 laser machine support double head or more. It can improve work speed and efficiency.

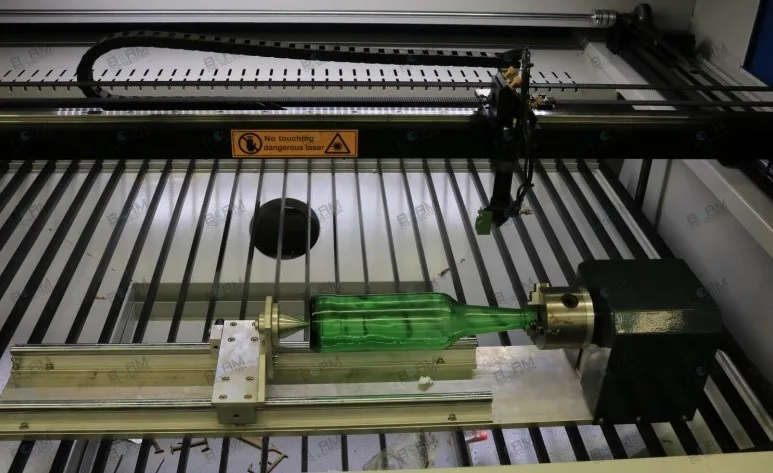

Rotary

Used for processing round material.

Up-down table

Used to adjust the working table.





FAQ


 1. How long is the warranty of co2 laser metal cutting machine?
Reply: 1 year warranty and lifelong maintenance.

2. How to provide after-sales service?
Reply:12 months guarantee of the whole machine, main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period. Software is on update for free whole life. Our engineer could service you 24 hours online by Skype, yahoo, msn, QQ, or by cellphone.


3. How long is the delivery time?

Reply: For standard co2 laser machine, Its production time is about 10-15 working days. For customized co2 laser machine, delivery machine time take about 20-25 working days.


4. How to make payment?

Reply: We support 50% deposit payment or 100% payment (Total amount is lower)before machine production. By T/T, L/C, Western Union, Alibaba,.. All is ok.



Packing & Delivery

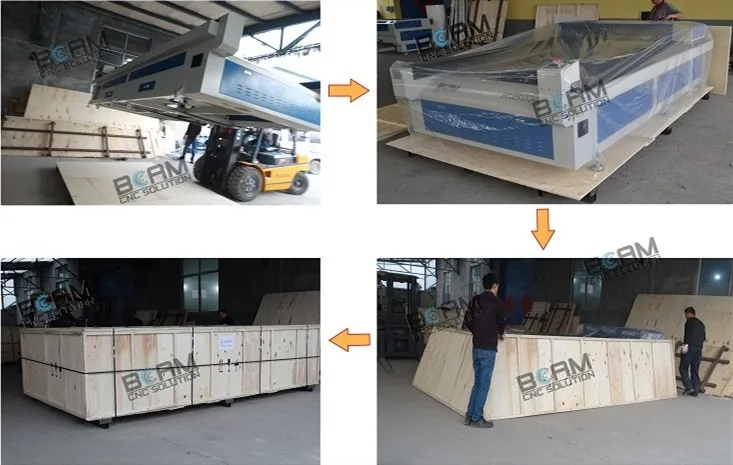

Firstly, we will packed the co2 laser metal cutting machine with plastic sheet for clearing and damp proofing, Then put the laser machine in the plywood case for safety and clashing. Finally, transport co2 laser machine to seaport.



Our Service


1. For this co2 laser cutting machine, we provide 1 yeras warranty for whole machine, all life time techinal and oversea engineer service.

2. Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period. Software is on update for free whole life.

3. Our engineer could support you technology to your country if necessary.

4. Our engineer could service you 24 hours online by Skype, yahoo, msn, QQ, or by cellphone.

5. English manual and CD video for machine using and maintaining will send to you with the machine.





Factory


BCAMCNC group established in 2002, integrates the excellent design, high quality production with logistics resources. Specialized in the Manufacture and marketing of laser machine,engraving machine for years. Now we have expert staff more than 100 , 10 sales teams, 2 product R&D teams , 2 after-sales service teams Products sell well in Europe, America, Australia ,Africa, Asia etc, welcomed by consumers for its Strictly abide by the principles "Credit First, Quality First, Customer First and Service First."
