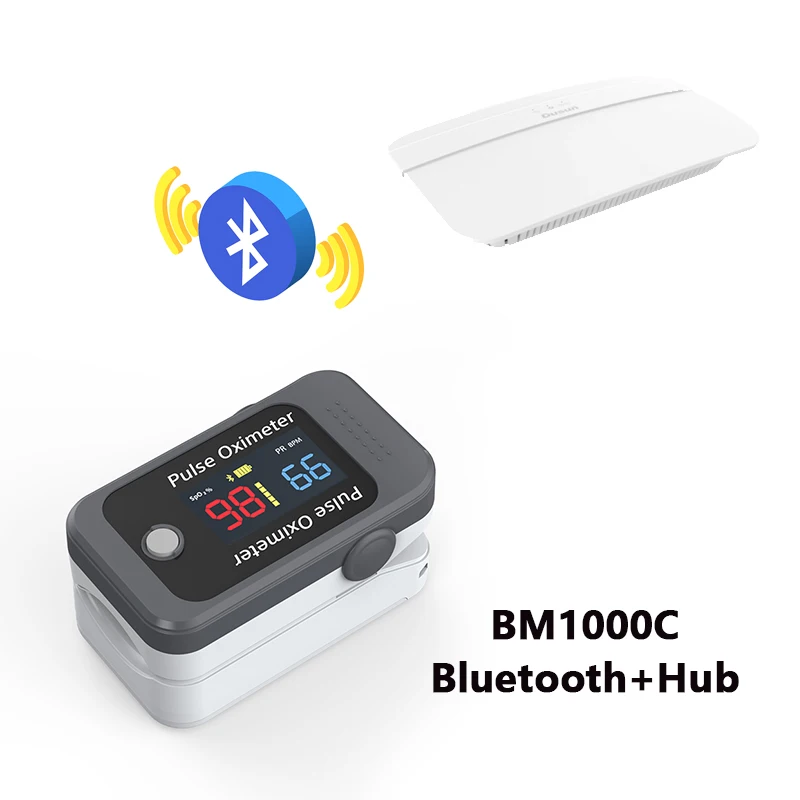

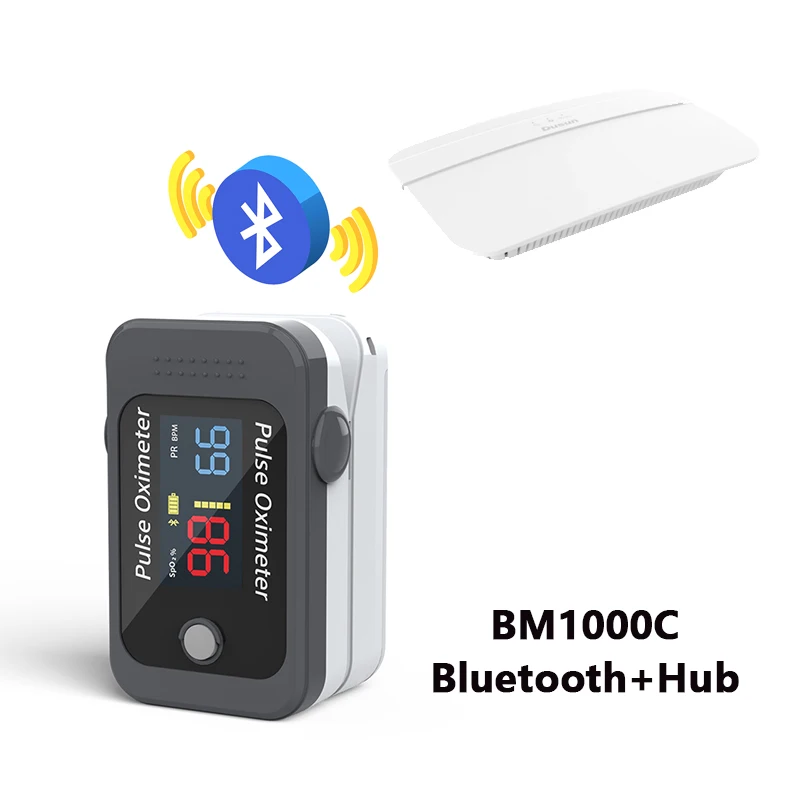

The remote oximeter consists of a Bluetooth oximeter and a Bluetooth gateway
- Category: >>>
- Supplier: Shanghai Berry Elcetronic Tech Co. Ltd.
Share on (1600927916627):
Product Overview
Description
Instructions

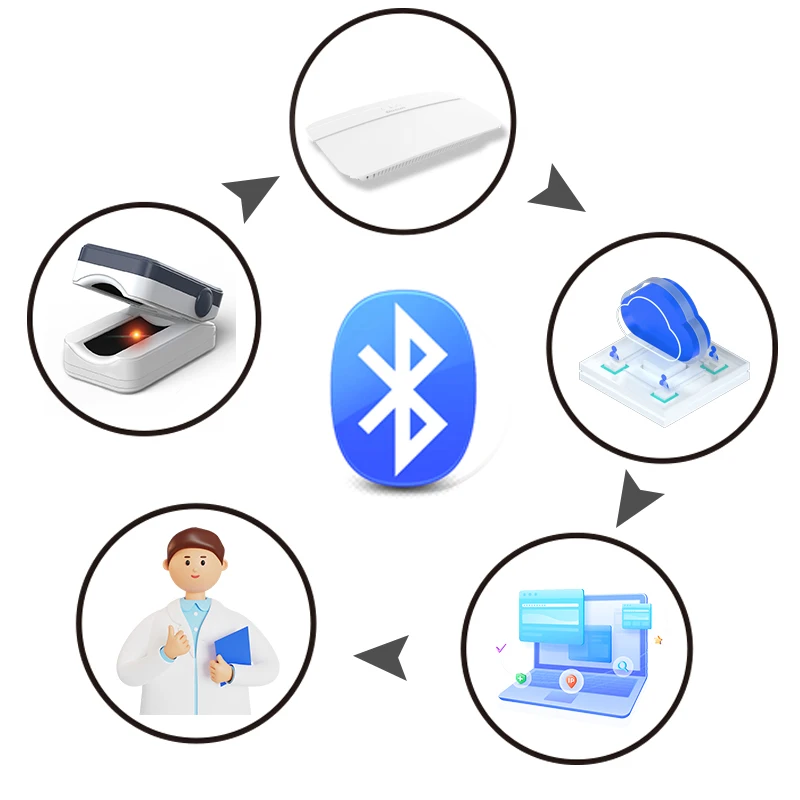

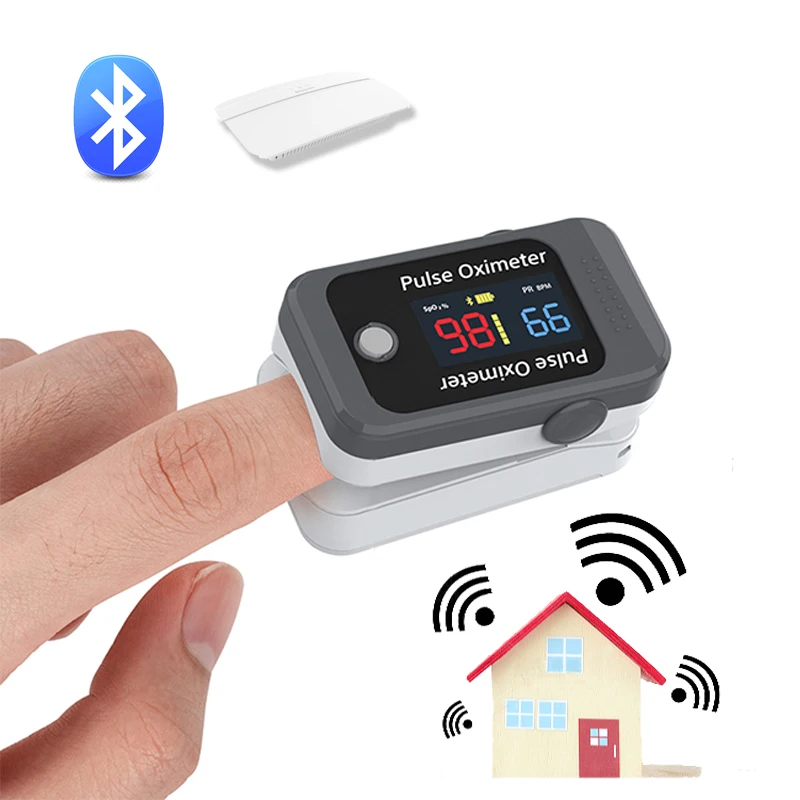

The remote oximeter consists of a Bluetooth oximeter and a Bluetooth gateway, and can be flexibly used in a variety of scenarios.
Real-time monitoring of SpO2 and heart rate, remote query and long-term data can be tracked
Bluetooth gateway supports Bluetooth BLE 5.2, data rate up to 2Mbps, up to 15 Bluetooth intelligent acquisition devices, supports WIFI, 4G (LTE CAT1), WAN (network port) and other ways to conduct data interaction with the server
Widely Used In Daily Life
Normally, the blood oxygen value should not be lower than 94%, otherwise it will be considered as insufficient oxygen supply. Diabetics with abnormal blood sugar will have low blood oxygen saturation.
Medical staff can grasp the changes of each patient index data in real time through the background. Easy to operate and carry. It is also applicable to the monitoring of elderly care, medical rehabilitation and clinical departments in hospitals.
Real-time monitoring of SpO2 and heart rate, remote query and long-term data can be tracked
Bluetooth gateway supports Bluetooth BLE 5.2, data rate up to 2Mbps, up to 15 Bluetooth intelligent acquisition devices, supports WIFI, 4G (LTE CAT1), WAN (network port) and other ways to conduct data interaction with the server
Widely Used In Daily Life
Normally, the blood oxygen value should not be lower than 94%, otherwise it will be considered as insufficient oxygen supply. Diabetics with abnormal blood sugar will have low blood oxygen saturation.
Medical staff can grasp the changes of each patient index data in real time through the background. Easy to operate and carry. It is also applicable to the monitoring of elderly care, medical rehabilitation and clinical departments in hospitals.
Major Features
Automatic connection, without manual intervention
Support for one-to many connections, reduce the cost of device networking
Low power consumption, low radiation
High scalability, can support a variety of SpO2 devices
Technical Features
Oximeter Technical Parameters
1.SpO2:
Measurementrange:35~100%
Accuracy:±2%（80%~100%）;±3%（70%~79%）
2.PulseRate:
Measurementrange:25~250bpm
Accuracy:±2bpm
3.WirelessBluetoothParameters
Bluetoothprotocolversion:5.0
Frequencyrange:2402.00~2484.00MHz
Occupiedbandwidth:≤2.5MHz
Effectiveradiatedpower:≤4dBm
Gateway features:
Automatic connection, without manual intervention
Support for one-to many connections, reduce the cost of device networking
Low power consumption, low radiation
High scalability, can support a variety of SpO2 devices
Bluetooth Gateway Technical Parameters
Bluetooth Performance
• TX Power: 19.5dBm
• Bluetooth: 19.5dBm
• Range: 150 meters minimum, open filed
• Receiving Sensibility: -80dBm@0.1%BER
• Frequency offset: +/-20KHZ
• Frequency Range (MHz):2401.0~2483.5
• Low Frequency (MHz):2400
• High Frequency (MHz):2483.5
• E.i.r.p (Equivalent Isotopically Radiated power) (mW)<10mW
• Bandwidth (MHz):2MHz
• Modulation: GFS
4G(LTE Cat M1)
Operation Frequency Band: 850/900/1800/1900MHZ
Global: LTE: FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28
North America: LTE TDD: B2/B4/B12/B13
LTE TDD:B39(for cat.M1 only)
Wi-Fi Performance
IEEE wireless LAN standard:
IEEE802.11n; IEEE802.11g; IEEE 802.11b
Data Rate:
IEEE 802.11b Standard Mode:1,2,5.5,11Mbps
IEEE 802.11g Standard Mode:6,9,12,18,24,36,48,54 Mbps
IEEE 802.11n: MCS0~MCS7 @ HT20/ 2.4GHz band
MCS0~MCS7 @ HT40/ 2.4GHz band
Sensitivity:
HT40 MCS7: -70dBm@10% PER(MCS7) /2.4GHz band
HT20 MCS7: -71dBm@10% PER(MCS7) /2.4GHz band
Transmit Power:
IEEE 802.11n: 16dBm @HT20/40 MCS7 /2.4GHz band
IEEE 802.11g: 16dBm @54MHz
IEEE 802.11b: 18dBm @11MHz
Wireless Security: WPA/WPA2, WEP, TKIP, and AES
Working mode : Bridge、Gateway、AP Client
Range: 50 meters minimum, open field
Transmit Power:17dBm
Highest Transmission Rate: 300Mbps
Frequency offset: +/- 50KHZ
Frequency Range (MHz): 2412.0~2483.5
Low Frequency (MHz):2400
High Frequency (MHz):2483.5
E.i.r.p (Equivalent Isotopically Radiated power) (mW)<100mW
Bandwidth (MHz):20MHz/40MHz
Modulation: BPSK/QPSK, FHSSCCK/DSSS, 64QAM/OFDM
WAN/LAN
10/100Mbps
Support for one-to many connections, reduce the cost of device networking
Low power consumption, low radiation
High scalability, can support a variety of SpO2 devices
Technical Features
Oximeter Technical Parameters
1.SpO2:
Measurementrange:35~100%
Accuracy:±2%（80%~100%）;±3%（70%~79%）
2.PulseRate:
Measurementrange:25~250bpm
Accuracy:±2bpm
3.WirelessBluetoothParameters
Bluetoothprotocolversion:5.0
Frequencyrange:2402.00~2484.00MHz
Occupiedbandwidth:≤2.5MHz
Effectiveradiatedpower:≤4dBm
Gateway features:
Automatic connection, without manual intervention
Support for one-to many connections, reduce the cost of device networking
Low power consumption, low radiation
High scalability, can support a variety of SpO2 devices
Bluetooth Gateway Technical Parameters
Bluetooth Performance
• TX Power: 19.5dBm
• Bluetooth: 19.5dBm
• Range: 150 meters minimum, open filed
• Receiving Sensibility: -80dBm@0.1%BER
• Frequency offset: +/-20KHZ
• Frequency Range (MHz):2401.0~2483.5
• Low Frequency (MHz):2400
• High Frequency (MHz):2483.5
• E.i.r.p (Equivalent Isotopically Radiated power) (mW)<10mW
• Bandwidth (MHz):2MHz
• Modulation: GFS
4G(LTE Cat M1)
Operation Frequency Band: 850/900/1800/1900MHZ
Global: LTE: FDD: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B26/B28
North America: LTE TDD: B2/B4/B12/B13
LTE TDD:B39(for cat.M1 only)
Wi-Fi Performance
IEEE wireless LAN standard:
IEEE802.11n; IEEE802.11g; IEEE 802.11b
Data Rate:
IEEE 802.11b Standard Mode:1,2,5.5,11Mbps
IEEE 802.11g Standard Mode:6,9,12,18,24,36,48,54 Mbps
IEEE 802.11n: MCS0~MCS7 @ HT20/ 2.4GHz band
MCS0~MCS7 @ HT40/ 2.4GHz band
Sensitivity:
HT40 MCS7: -70dBm@10% PER(MCS7) /2.4GHz band
HT20 MCS7: -71dBm@10% PER(MCS7) /2.4GHz band
Transmit Power:
IEEE 802.11n: 16dBm @HT20/40 MCS7 /2.4GHz band
IEEE 802.11g: 16dBm @54MHz
IEEE 802.11b: 18dBm @11MHz
Wireless Security: WPA/WPA2, WEP, TKIP, and AES
Working mode : Bridge、Gateway、AP Client
Range: 50 meters minimum, open field
Transmit Power:17dBm
Highest Transmission Rate: 300Mbps
Frequency offset: +/- 50KHZ
Frequency Range (MHz): 2412.0~2483.5
Low Frequency (MHz):2400
High Frequency (MHz):2483.5
E.i.r.p (Equivalent Isotopically Radiated power) (mW)<100mW
Bandwidth (MHz):20MHz/40MHz
Modulation: BPSK/QPSK, FHSSCCK/DSSS, 64QAM/OFDM
WAN/LAN
10/100Mbps

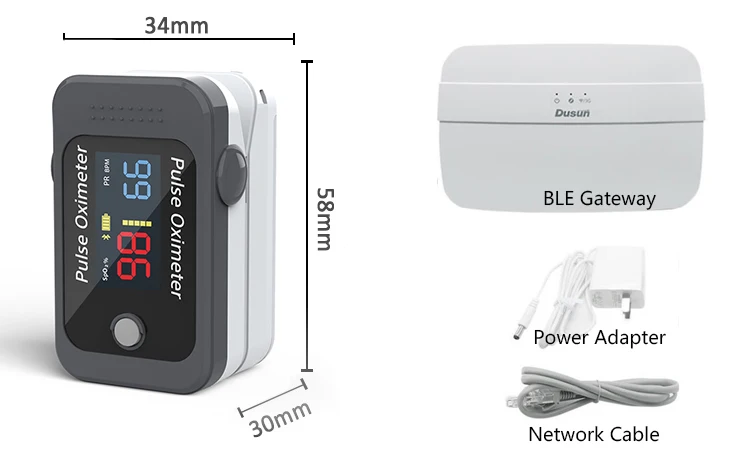

Standard Configuration
1、Gift box
2、Hanging rope
3、User manual
4、Pulse oximeter
5. Bluetooth Gateway
2、Hanging rope
3、User manual
4、Pulse oximeter
5. Bluetooth Gateway

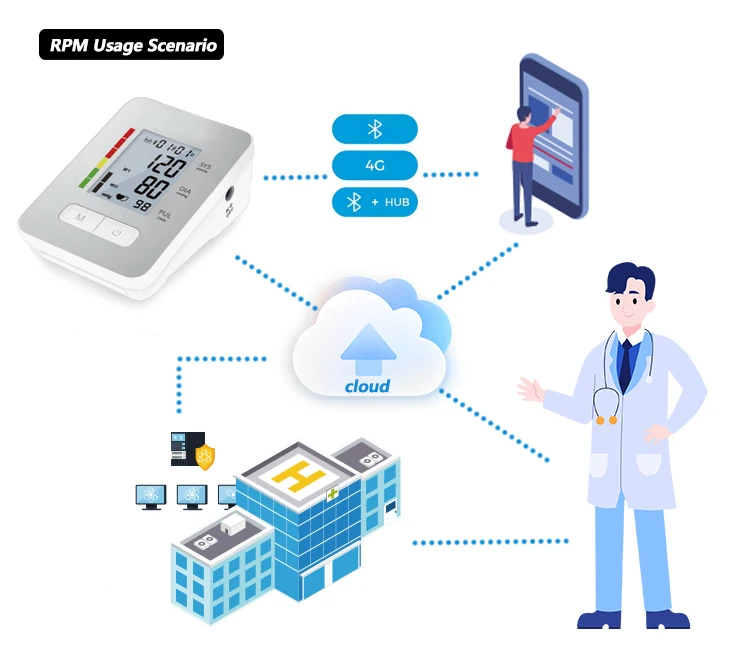

Telemedicine systems can exchange clinical information separating patients, expert diagnostic opinions, and other relevant medical, teaching and research materials.

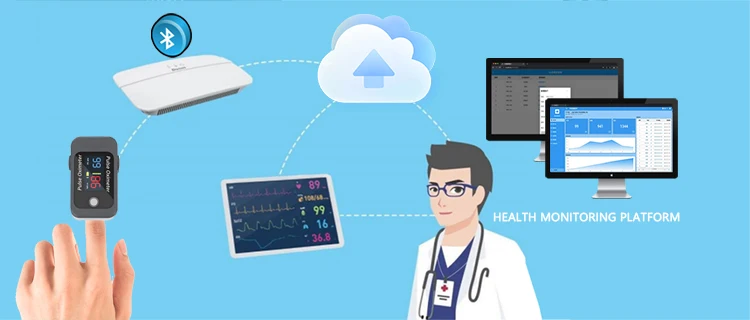

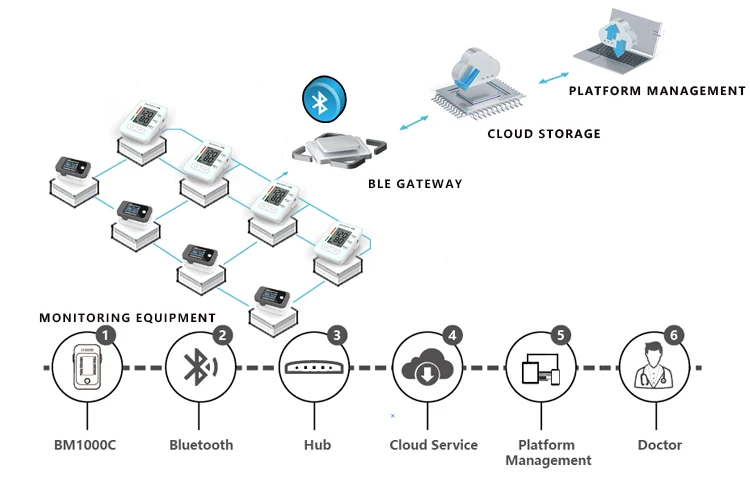

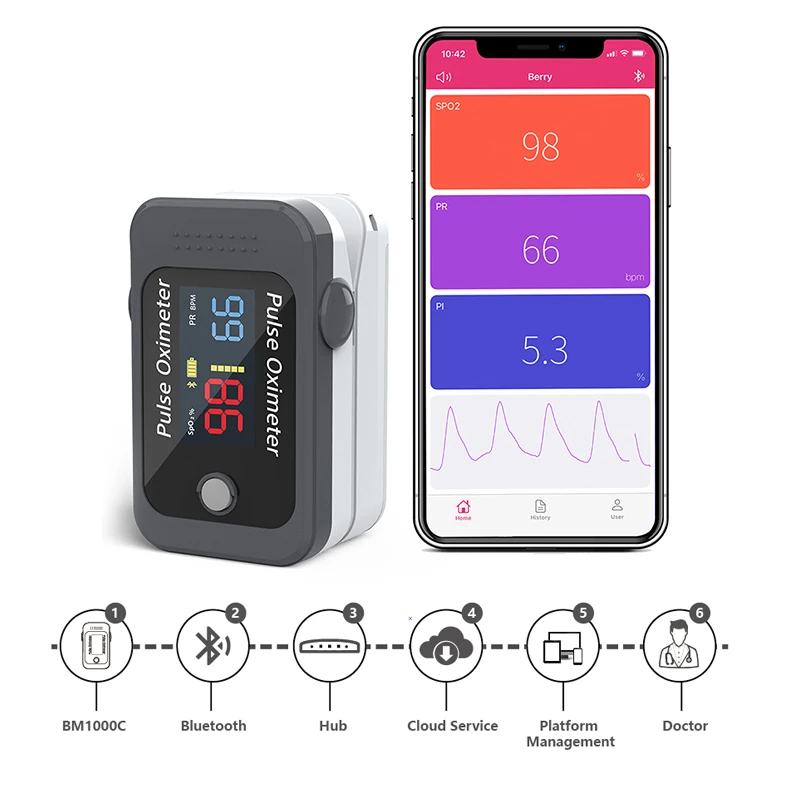

Patients use oximeter equipment (the device can support Bluetooth, 4G or Bluetooth gateway function), and the data is uploaded to the cloud and imported into the hospital's exclusive patient management background
Patients use oximeter equipment (the device can support Bluetooth, 4G or Bluetooth gateway function), and the data is uploaded to the cloud and imported into the hospital's exclusive patient management background
Scope of application: Solutions For Chronic Condition
1.Hypertension
2.Pneumonia
3.Heart disease
4.Obesity
5.Senile Diseases
6.Health management
2.Pneumonia
3.Heart disease
4.Obesity
5.Senile Diseases
6.Health management
Company Information
Shanghai Berry Electronic Tech Co., Ltd. is located in Shanghai Caohejing High-tech Park, a beautiful low-carbon and environmentally friendly city. We have been devoted to the R&D, manufacturing and sales of medical electronic instruments in the field of monitoring since 2003.

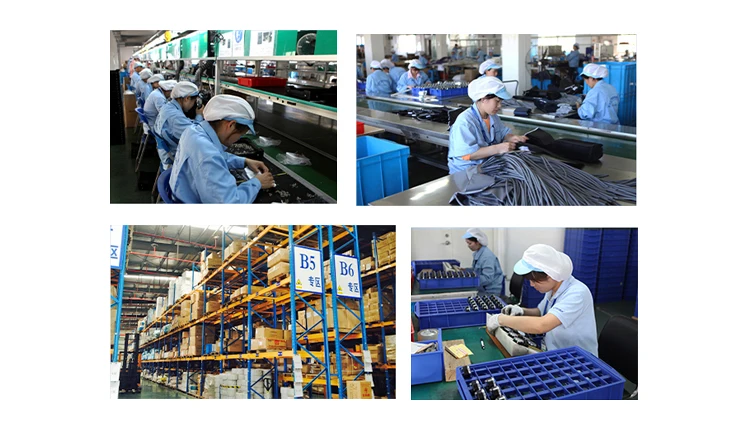

Our Factory
Our Bio-Medical technology has reached the domestic advanced level. Important breakthroughs have been made in non-invasive blood pressure calculation methods, blood oxygen saturation detection, and multi-parameter monitoring systems. After years of development, we have established good cooperative relations with customers worldwide, with annual sales reaching tens of millions dollars.
