Products Description

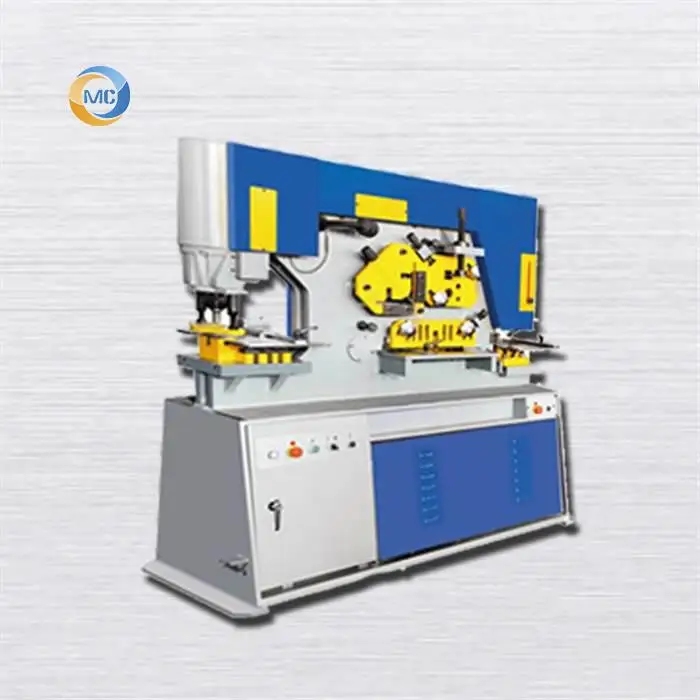

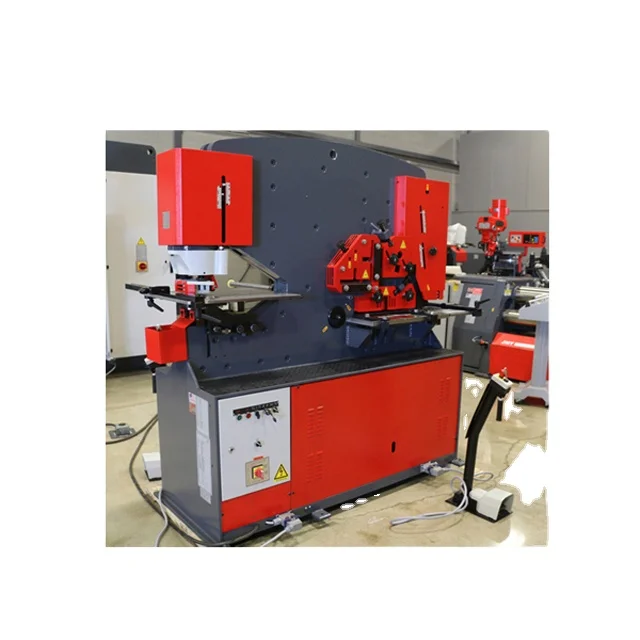

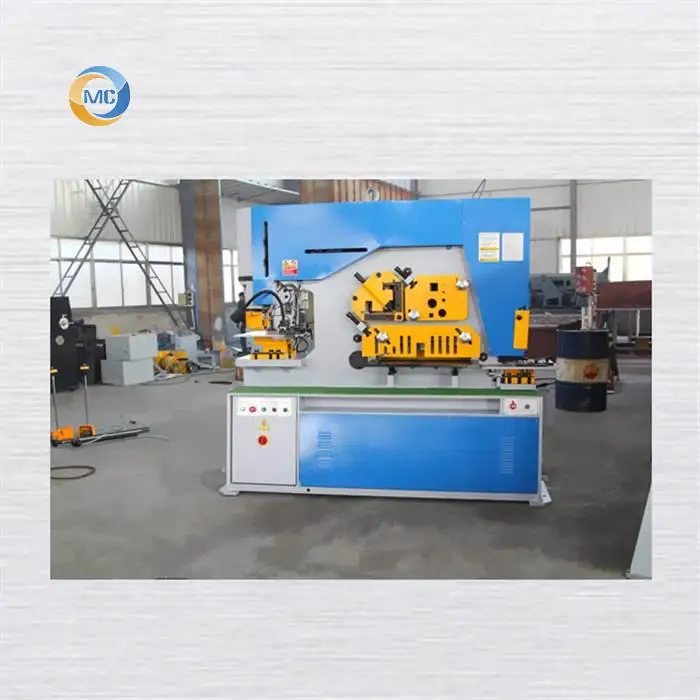

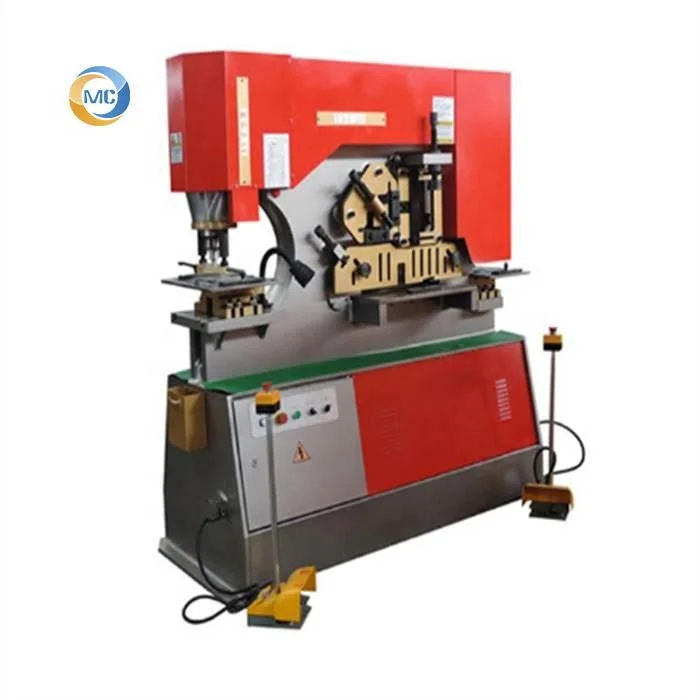

Hidraulica Ironworker small ironworker machine q35y
Hydraulic drive,is currently the co-punching machine the latest products,can sheet,square steel,round steel,angle steel,channel steel,l-beam for cutting,punching and feeding device with shear block.
1.Double-cylinder hydraulic punch and shearing machine
2.Large punching table with multi-purpose bolster
3.Rear notching station, Low power inching and adjustable stroke at punching station
4.Punching Full range of universal punches and dies are available.
5.Shearing Round and square bar shear has multiple holes for a variety of sizes.
6.Notching Unique design allows for cutting of angle and flat bar. Electrical interlock safety guard and three gauging stops for precise positioning.
2.Large punching table with multi-purpose bolster
3.Rear notching station, Low power inching and adjustable stroke at punching station
4.Punching Full range of universal punches and dies are available.
5.Shearing Round and square bar shear has multiple holes for a variety of sizes.
6.Notching Unique design allows for cutting of angle and flat bar. Electrical interlock safety guard and three gauging stops for precise positioning.
Application scope of multifunctional combined hydraulic punching and shearing machine

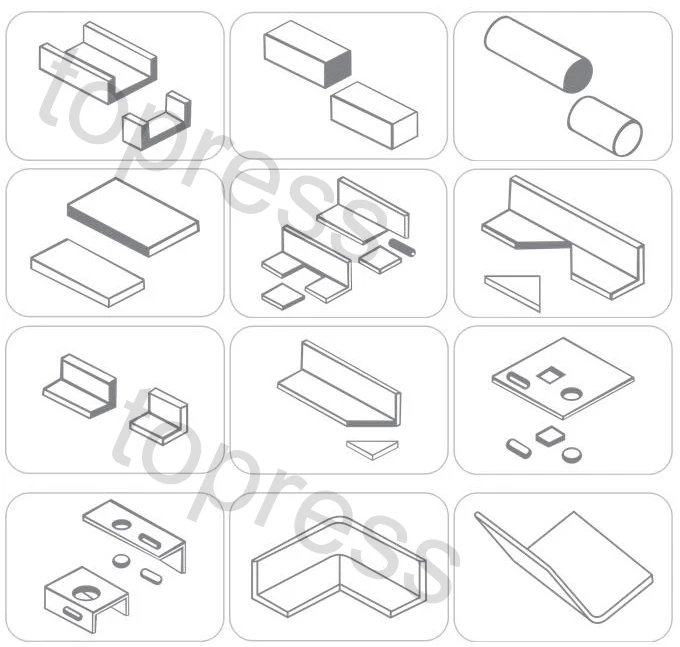

The multi-functional combined hydraulic punching and shearing machine is suitable for steel bar processing plants, tunnels,
bridges and other projects of highways and high-speed railway projects. It is suitable for processing steel plates, angle irons,
channel steels, I-beams, round steels, and square steels. This machine has multiple functions, high efficiency, labor saving, and
equipment investment. It is an indispensable tool for steel processing.
bridges and other projects of highways and high-speed railway projects. It is suitable for processing steel plates, angle irons,
channel steels, I-beams, round steels, and square steels. This machine has multiple functions, high efficiency, labor saving, and
equipment investment. It is an indispensable tool for steel processing.

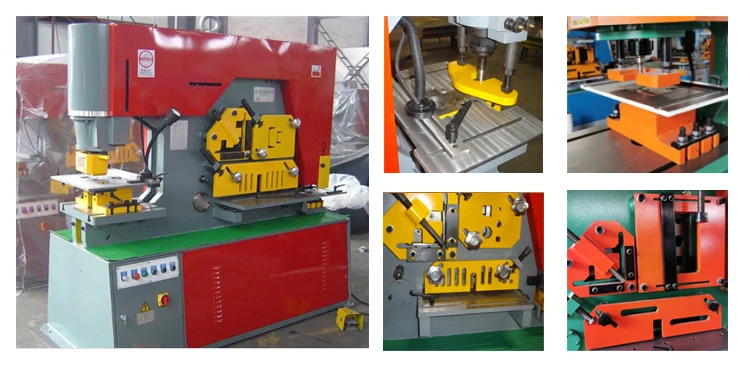

Q35Y hydraulic iron worker main functions：

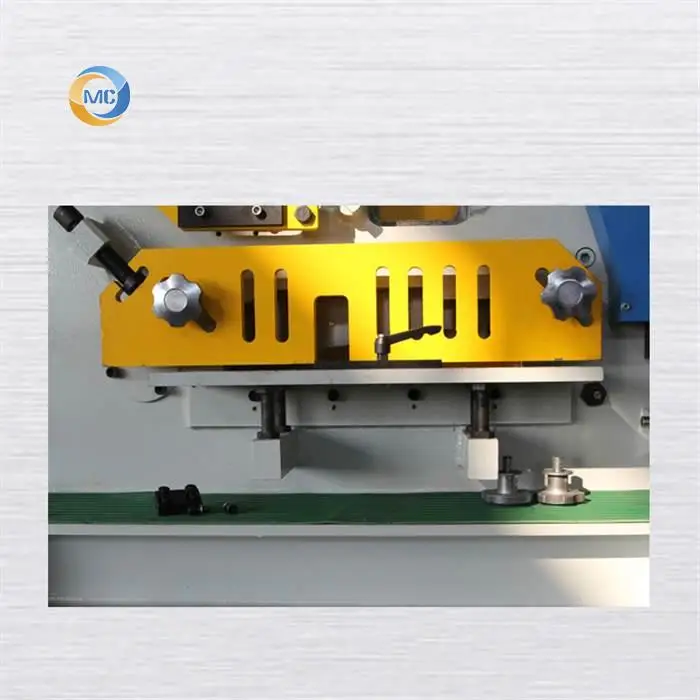

Shearing: Round and square bar shear has multiple holes for a variety of sizes. Adjustable hold down device for round/square bar,channel/beam cutting. Large strong guarding for max safety. The angle shear has the ability to cut angle at 45°both top and bottom leg. This gives the operator the ability to make a picture frame corner for perfect welds.Diamond shaped blade for quality cuts that is minimal material lost and deformity. Easily adjustable hold-down device for accurate plate cutting.Large 15″squaring arm with inlaid scale.Special anti-distorted blade for quality cutting.Lower blade has four usable edges.There is screw allow for gap adjust no shim needed.
Punching: Full range of universal punches and dies are available.unique style allows for large angle iron punching and large channel punching.Large viewing window on stripper swing away design for ease of operation.large two piece gauging table with rulers and stop as standard fittings.Quick change coupling nut and sleeve for rapid replacement of change.
Shearing: Round and square bar shear has multiple holes for a variety of sizes. Adjustable hold down device for round/square bar,channel/beam cutting. Large strong guarding for max safety. The angle shear has the ability to cut angle at 45°both top and bottom leg. This gives the operator the ability to make a picture frame corner for perfect welds.Diamond shaped blade for quality cuts that is minimal material lost and deformity. Easily adjustable hold-down device for accurate plate cutting.Large 15″squaring arm with inlaid scale.Special anti-distorted blade for quality cutting.Lower blade has four usable edges.There is screw allow for gap adjust no shim needed.
Notching: Unique design allows for cutting of angle and flat bar. Electrical interlock safety guard and three gauging stops for precise positioning.The notching section of this hydraulic ironworker is perfect for notching out metal plate, angle iron and much more. The notching station also has an over sized table with material stops. This section of the machine can also be outfitted with the optional vee notcher.
Bending: Also bend the plate below 500mm. All the components of Machine are of the highest quality in their safety, function. Q35Y ironworker shearing and punching machine CE Approved Q35Y hydraulic iron worker
Product Paramenters
SPECIFICATIONS FOR hydraulic iron worker | ||||||||||
Model | Punching Pressure (T) | Max.cutting thickness of steel | A trip size(T*W)(mm) | Throat depth(mm) | max.motor power(mm) | |||||
Q35Y-12 | 35 | 12 | 300*12 | 115 | 25 | |||||
Q35Y-16 | 55 | 16 | 16*250 8*400 | 300 | 25 | |||||
Q35Y-20 | 75 | 20 | 20*330 10*480 | 355 | 30 | |||||
Q35Y-25 | 110 | 25 | 25*330 16*600 | 400 | 35 | |||||
Q35Y-30 | 140 | 30 | 30*335 20*600 | 600 | 38 | |||||
we use the famouse brand for hydraulic iron worker combined punching and shearing machine configurations,smoothly cutting effect,good quality and high performance.
No. | Item | Quantity | Brand |
1 | Motor | 1Set | Siemens China |
2 | Valve | 1Set | Yuken Japan |
3 | Pump | 1Set | Atos Italy |
4 | Main electric parts | 1Set | Siemens China |
5 | Hydraulic system | 1Set | Rexroth Germany |
6 | Oil Seals | 1Set | NOK Japan |
7 | Wiring Terminal Block | 1Set | Weidmuller Germany |
8 | Timer Relay | 1Set | Omron Japan |
