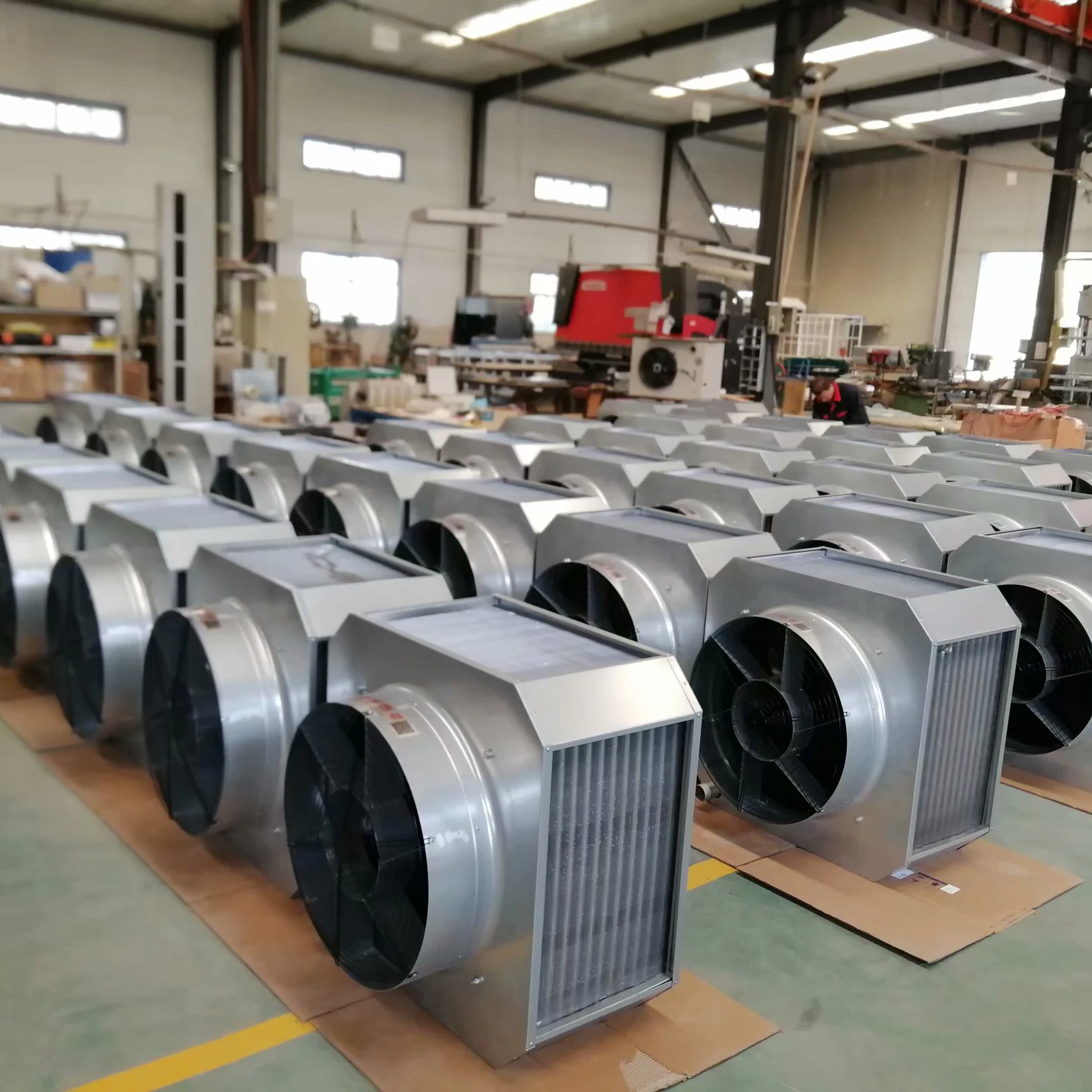

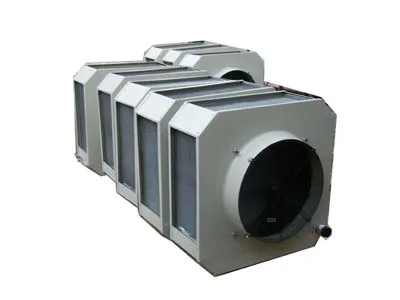

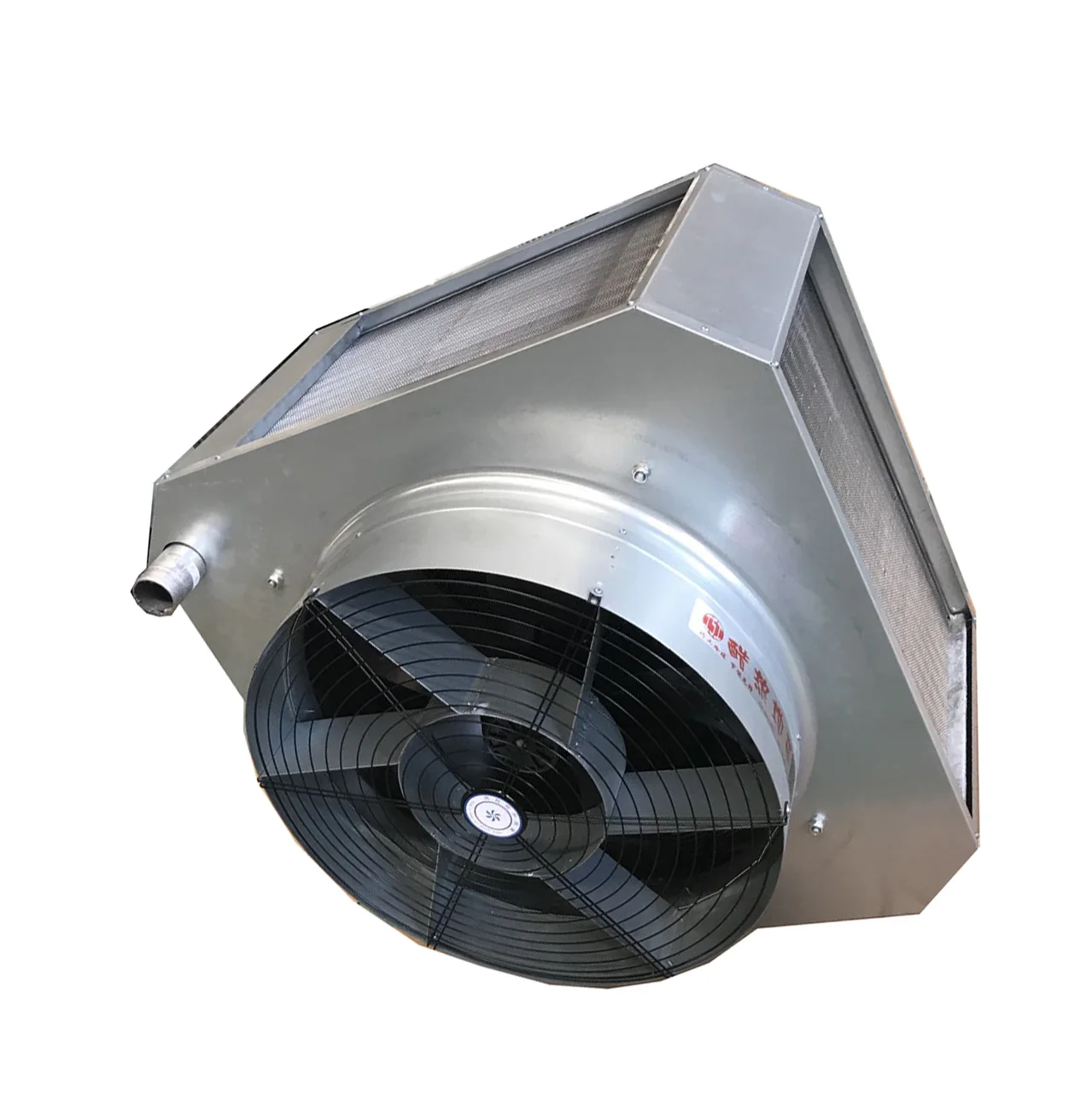

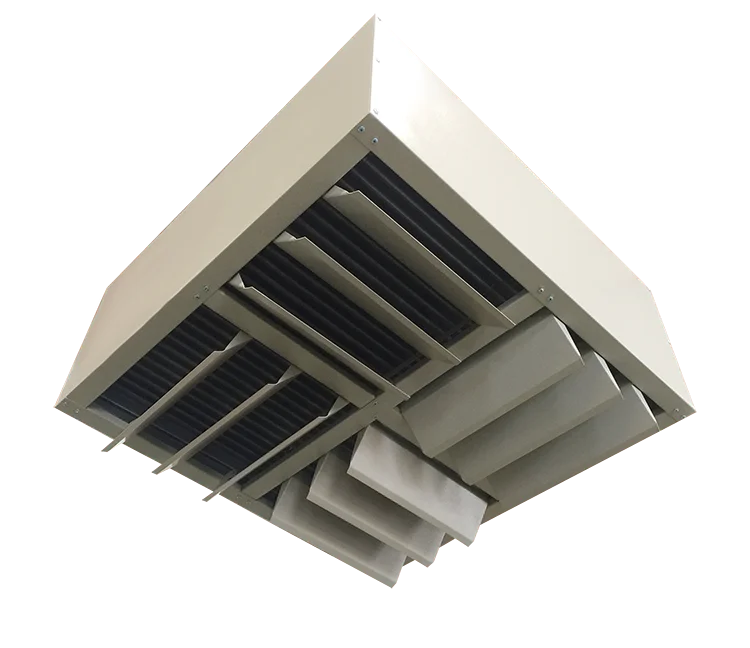

30000BTU Industrial ceiling unit heater fan coil heater with two speed fan for workshops warehouses, shops, garages, greenhouses
- Category: >>>
- Supplier: Shenyang Qiaogong Cooling And Heating Technology Co. Ltd.
Share on (1600928013358):
Product Overview
Description
Products Description
Product Features

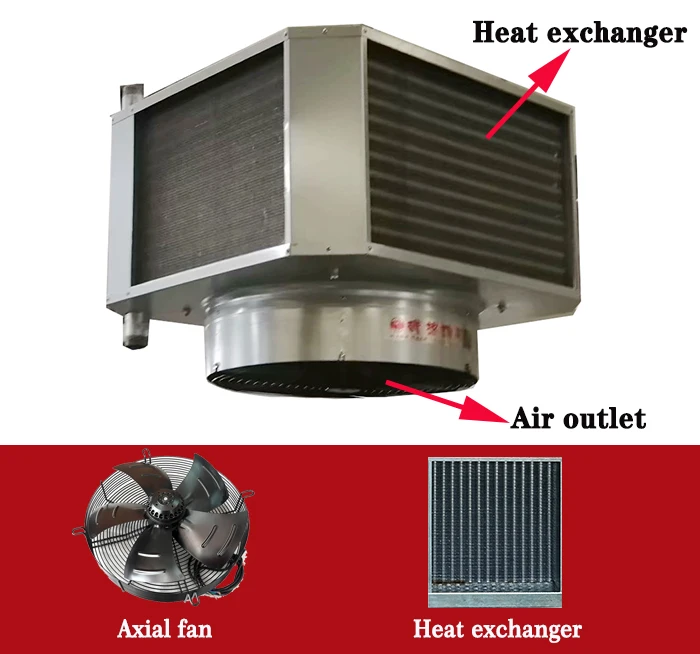

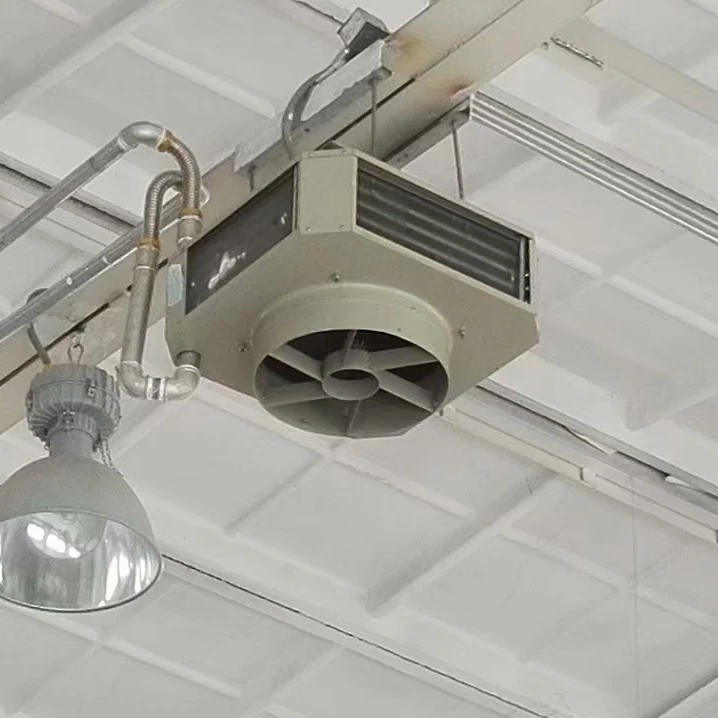

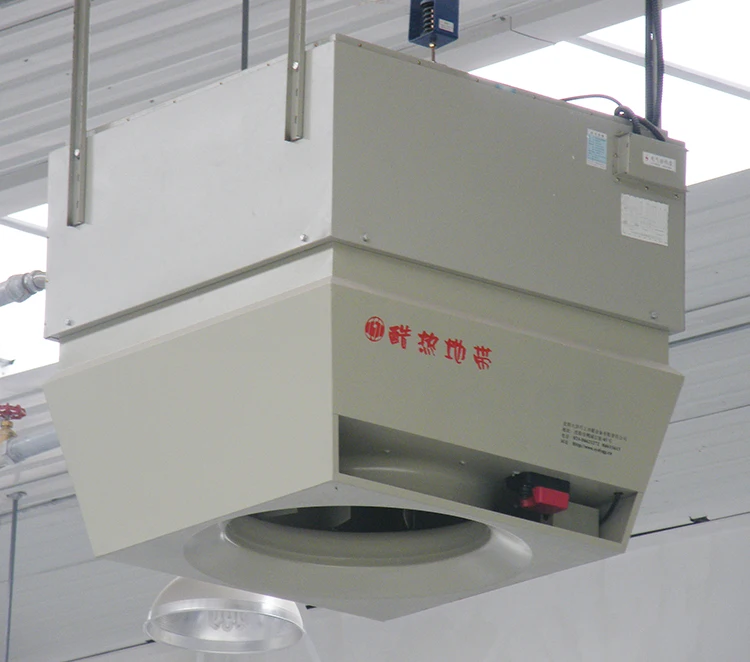

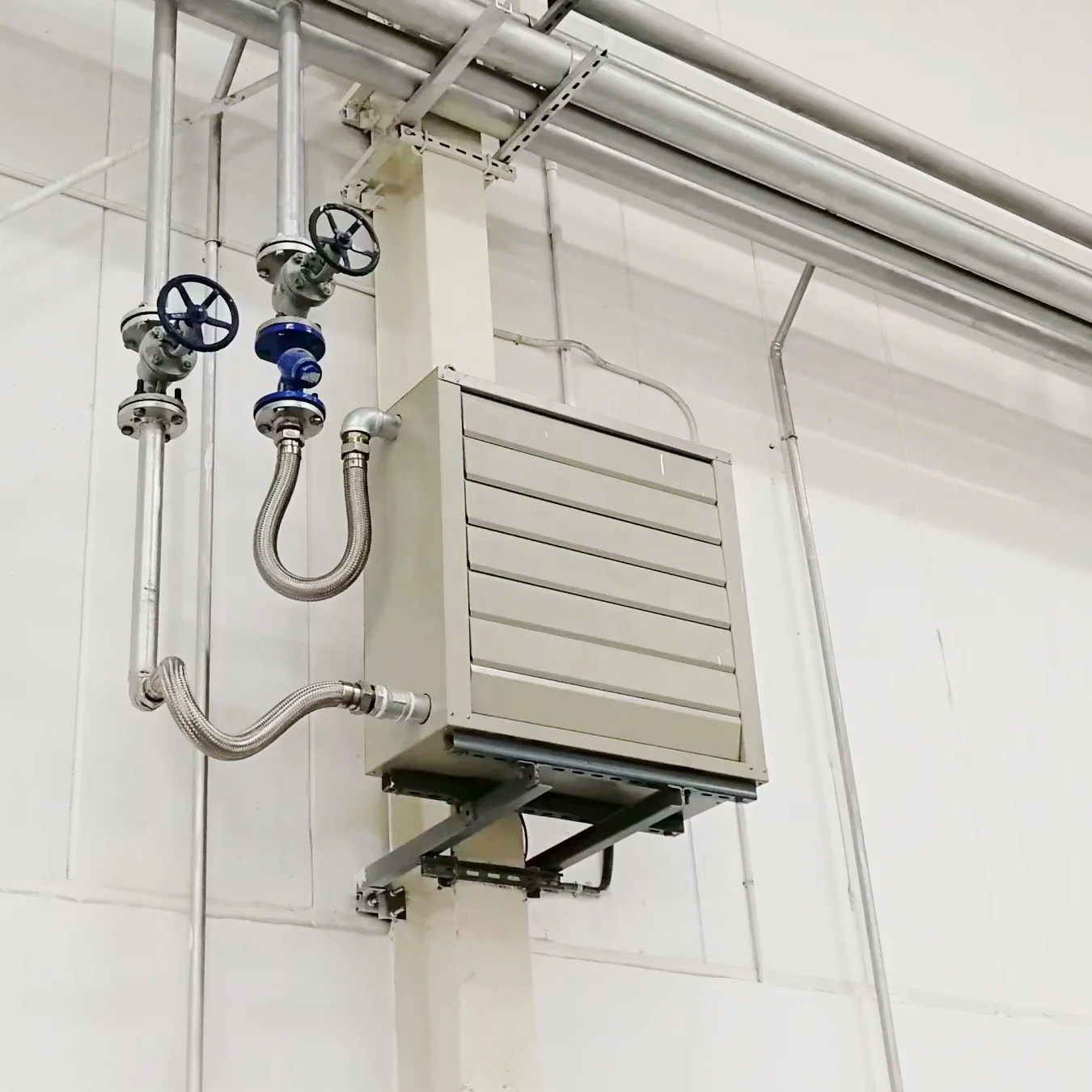

It is a heating equipment for high spaces. The unit heater is suspended under the roof and the air is heated by the heat exchanger and sent near the ground through the jet air outlet.The air is heated by the hot water heat exchanger and then sent out through the air outlet.
The color of the unit can be specially customized, and the voltage of the motor can be customized 220V, 440V, 660V, etc. The common voltage is 380V～/50HZ. Explosion-proof models can also be customized.
Product Applications

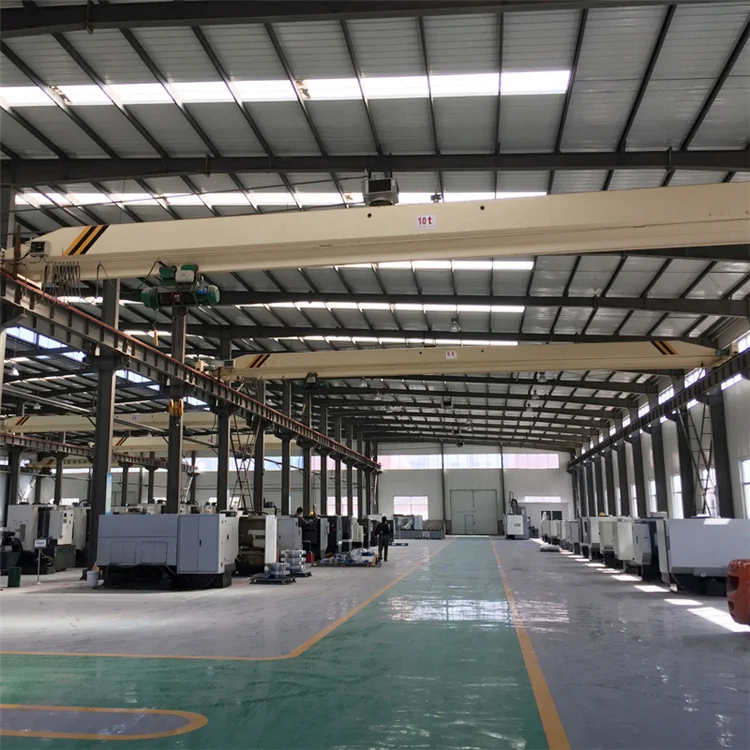

It is suitable for energy-saving heating in factories, shopping malls, stadiums, large entertainment venues, agricultural greenhouses, animal husbandry and other places.
Performance Data
Performance Data at Standard Conditions of 93.3℃ Entering Water, 15.6℃ Entering Air
Model | DNF-14.5 | DNF-17.6 | DNF-23.7 | DNF-27.1 | DNF-38.2 | DNF-44.3 | DNF-59.6 | DNF-65.7 |
Heating capacity(kW) | 8.9 | 13 | 17.1 | 20.8 | 32.5 | 37.7 | 41.8 | 46.6 |
Water flow rate(m3/h) | 0.69 | 1.01 | 1.32 | 1.61 | 2.52 | 2.92 | 3.24 | 3.61 |
Interface pipe diameter(DN) | 40 | 40 | 40 | 40 | 40 | 40 | 50 | 50 |
Water pressure drop(kPa) | 2.39 | 4.48 | 2.09 | 2.99 | 8.97 | 11.66 | 6.58 | 8.07 |
Max.Mounting Height(m) | 4.6 | 5.5 | 5.8 | 6.4 | 13 | 13 | 16 | 16 |
Throw(m) | 5.2 | 6.1 | 6.7 | 7.3 | 13.5 | 13.5 | 16.5 | 16.5 |
Airflow rate(m3/h) | 1453 | 1758 | 2370 | 2714 | 3823 | 4434 | 5963 | 6575 |
Outlet air velocity(m/s) | 3.56 | 4.31 | 4.54 | 5.19 | 5.87 | 6.81 | 7.51 | 8.28 |
Supply air temp.(℃) | 36 | 40 | 40 | 41 | 44 | 44 | 39 | 40 |
Power(W) | 75 | 75 | 200 | 200 | 200 | 200 | 310 | 310 |
RPM | 900 | 900 | 900 | 900 | 900 | 900 | 900 | 900 |
Model | DNF-78.4 | DNF-88.7 | DNF-100.9 | DNF-120.2 | DNF-165.0 | DNF-188.8 |
Heating capacity(kW) | 57.7 | 64.5 | 77.6 | 90.2 | 118.1 | 134.5 |
Water flow rate(m3/h) | 4.47 | 5 | 6.01 | 6.99 | 9.15 | 10.42 |
Interface pipe diameter(DN) | 50 | 50 | 50 | 50 | 65 | 65 |
Water pressure drop(kPa) | 13.75 | 16.74 | 16.14 | 18.83 | 24.51 | 27.8 |
Max.Mounting Height(m) | 20 | 20 | 24 | 24 | 30 | 30 |
Throw(m) | 21 | 21 | 25 | 25 | 32 | 32 |
Airflow rate(m3/h) | 7844 | 8868 | 10091 | 12018 | 16498 | 18883 |
Outlet air velocity(m/s) | 8.25 | 9.33 | 9 | 8.82 | 11.38 | 10.72 |
Supply air temp.(℃) | 40 | 40 | 41 | 40 | 38 | 40 |
Power(W) | 480 | 480 | 750 | 750 | 1100 | 1100 |
RPM | 900 | 900 | 970 | 970 | 970 | 970 |
Recommend Products

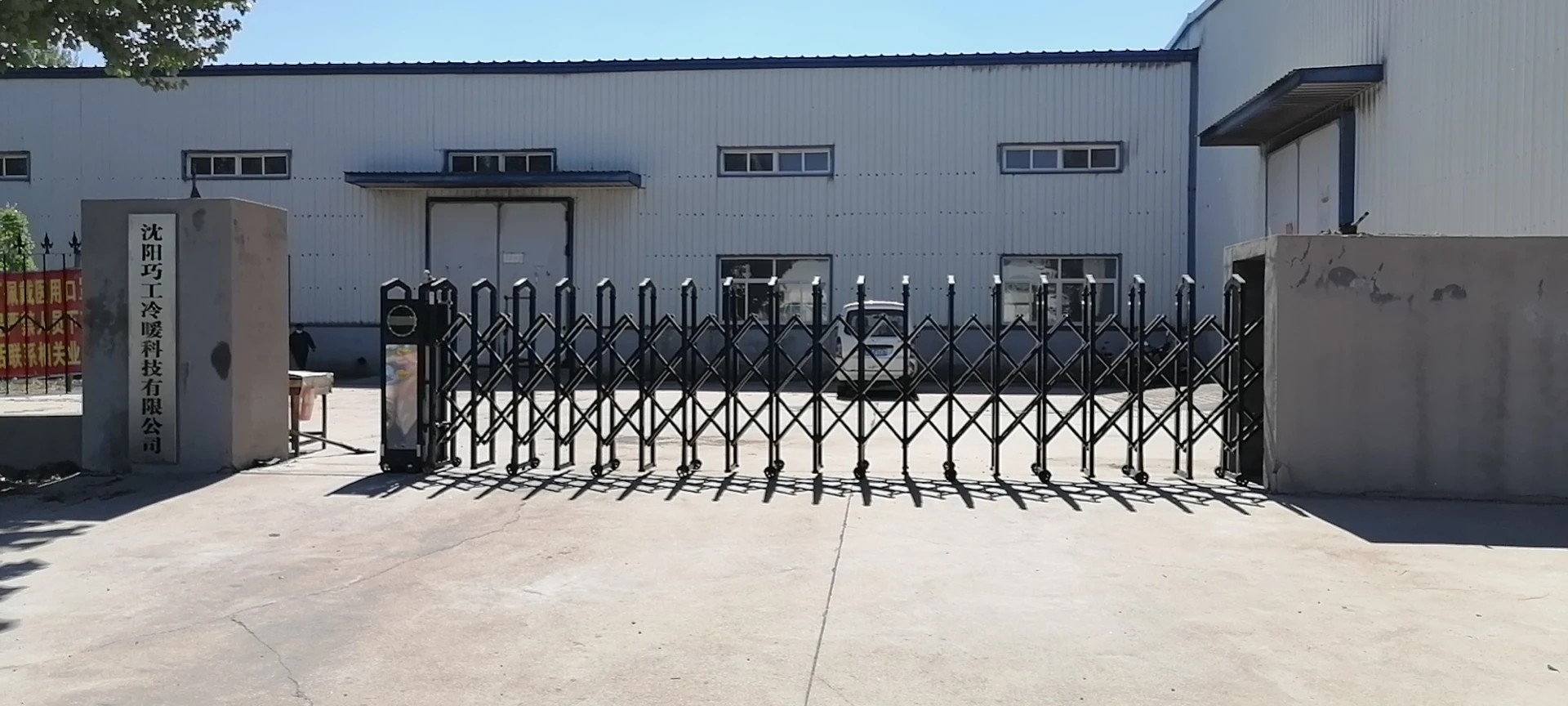

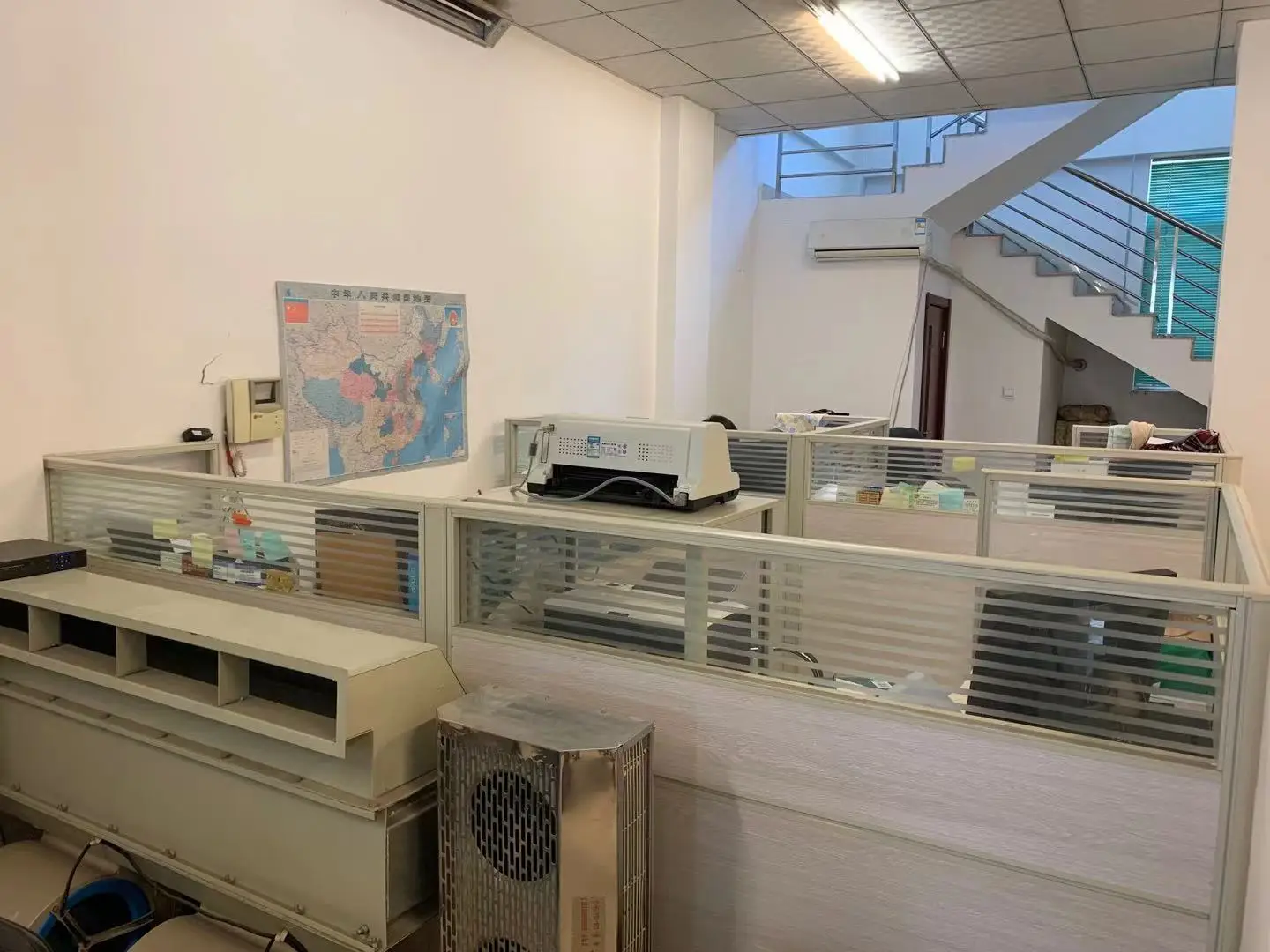

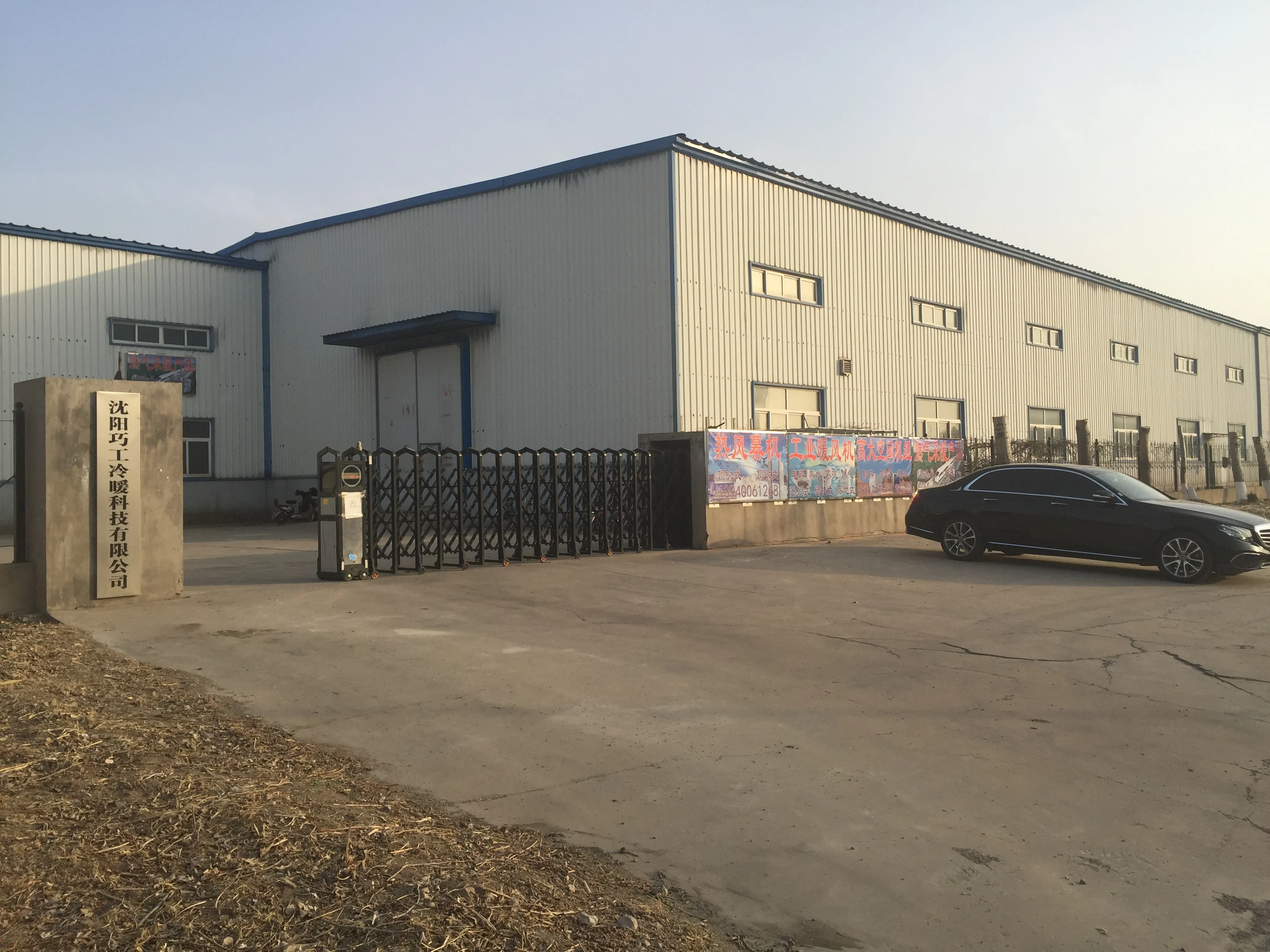

Company Profile
About us
We are Shenyang QiaoGong Heating and Cooling Technology Co., Ltd.: We deliver sustainable HVAC products and solutions that improve the environments in which we live and work.
For more than ten years, we have been trusted to exceed our customers’ expectations by delivering effective and economical products and solutions through expertise, partnership and innovation.
We offer the widest and most complete range of HVAC products in the market. Our extensive product range and wealth of knowledge allows us to work with our customers to design the most efficient HVAC solutions to meet their unique requirements.
For more than 10 years,QiaoGong has gone from strength to strength, consistently evolving to better serve its customers and maintain its position as a leading provider of heating, cooling and ventilation solutions.Now QiaoGong has evolved to be the preferred name in industrial and commercial HVAC solutions.
For more than ten years, we have been trusted to exceed our customers’ expectations by delivering effective and economical products and solutions through expertise, partnership and innovation.
We offer the widest and most complete range of HVAC products in the market. Our extensive product range and wealth of knowledge allows us to work with our customers to design the most efficient HVAC solutions to meet their unique requirements.
For more than 10 years,QiaoGong has gone from strength to strength, consistently evolving to better serve its customers and maintain its position as a leading provider of heating, cooling and ventilation solutions.Now QiaoGong has evolved to be the preferred name in industrial and commercial HVAC solutions.

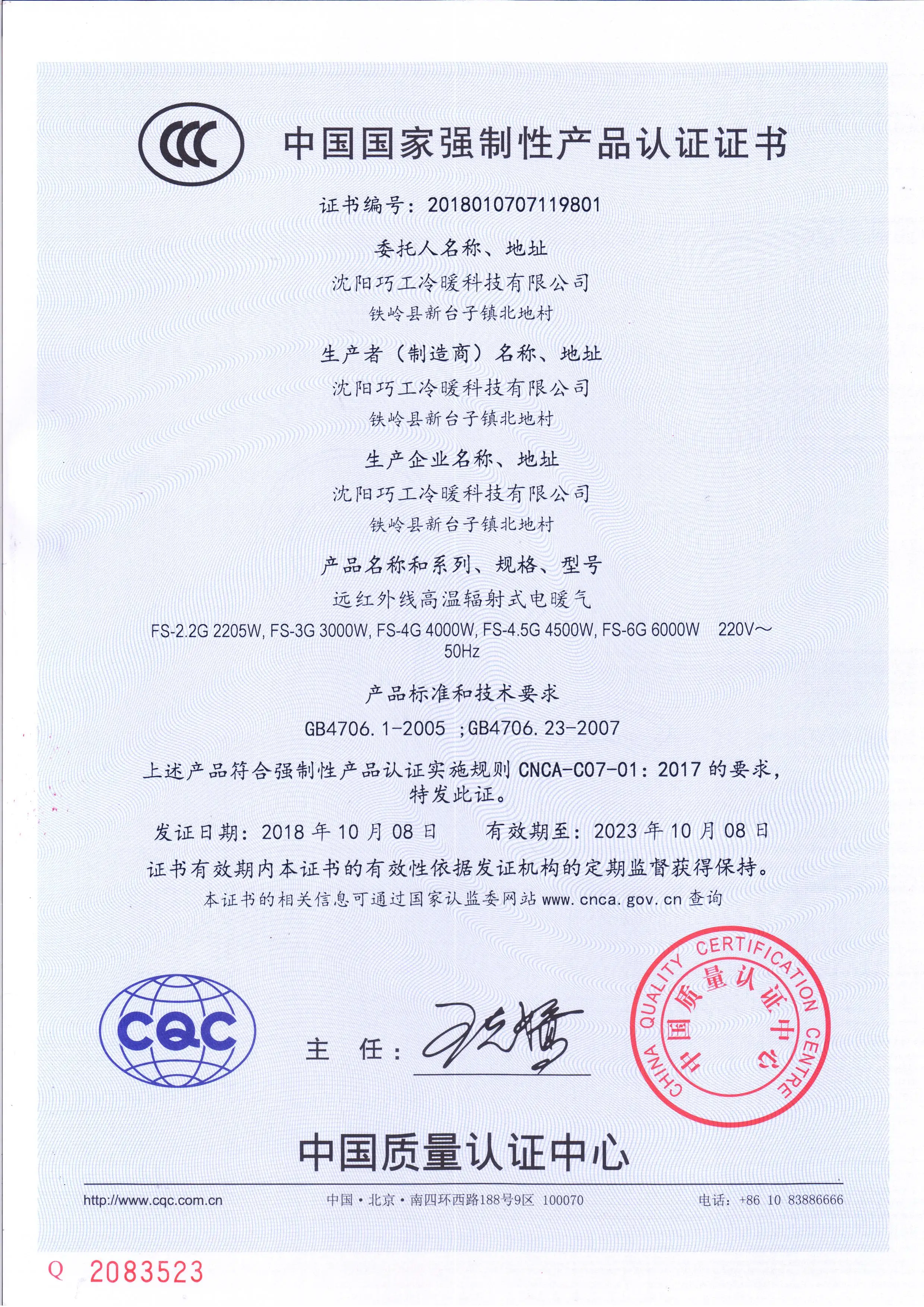

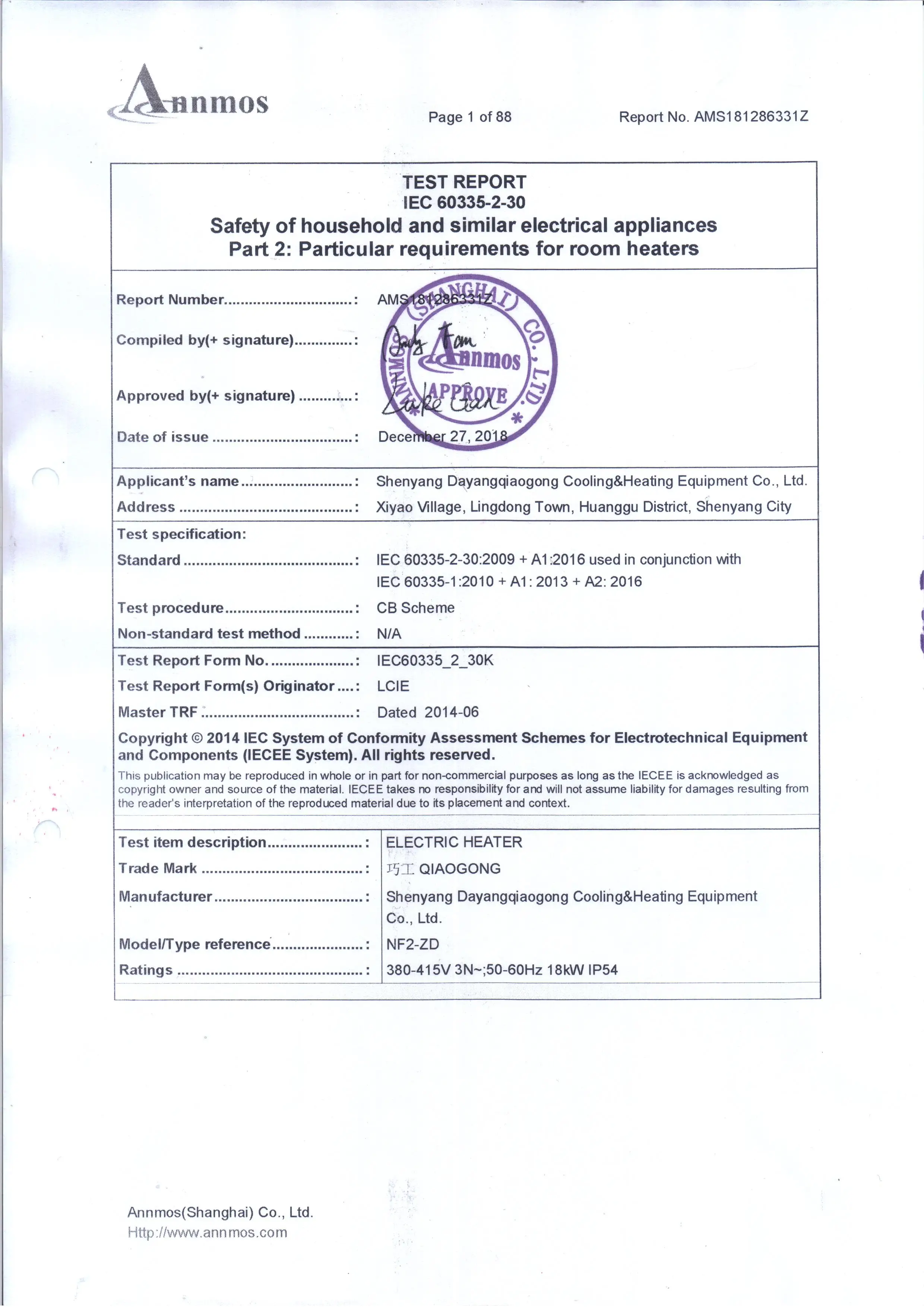

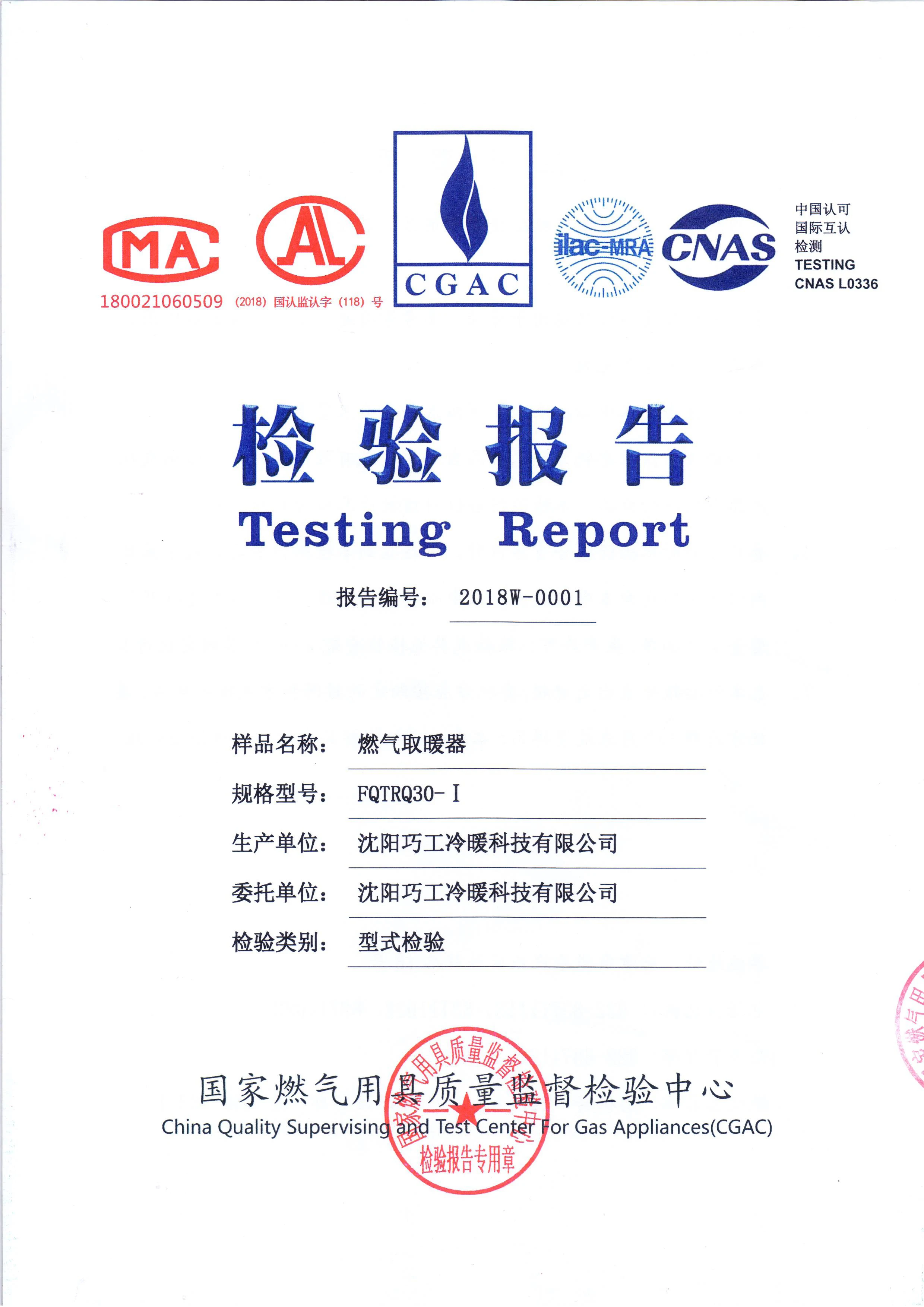

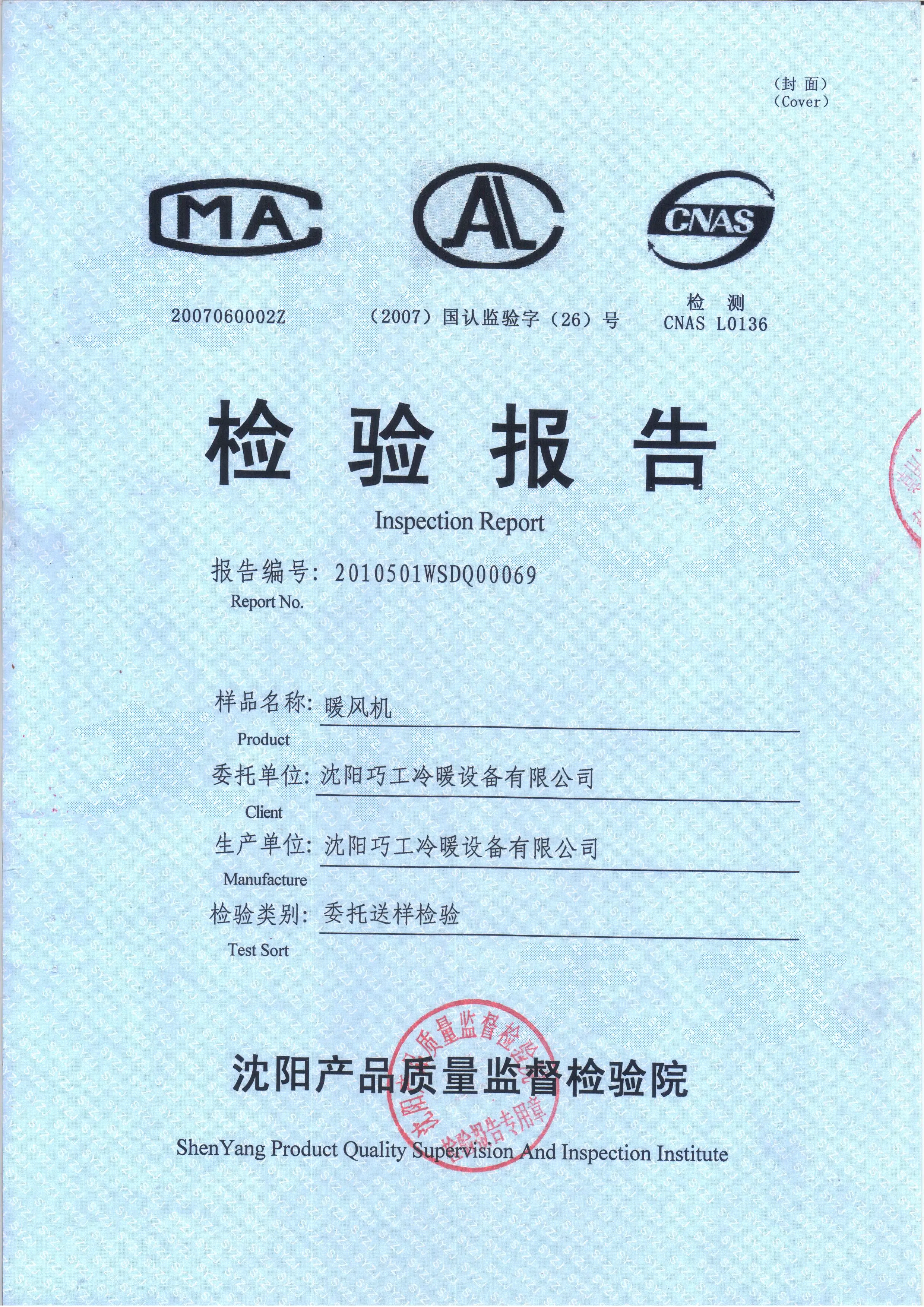

Certification
Our Customers
Exhibition

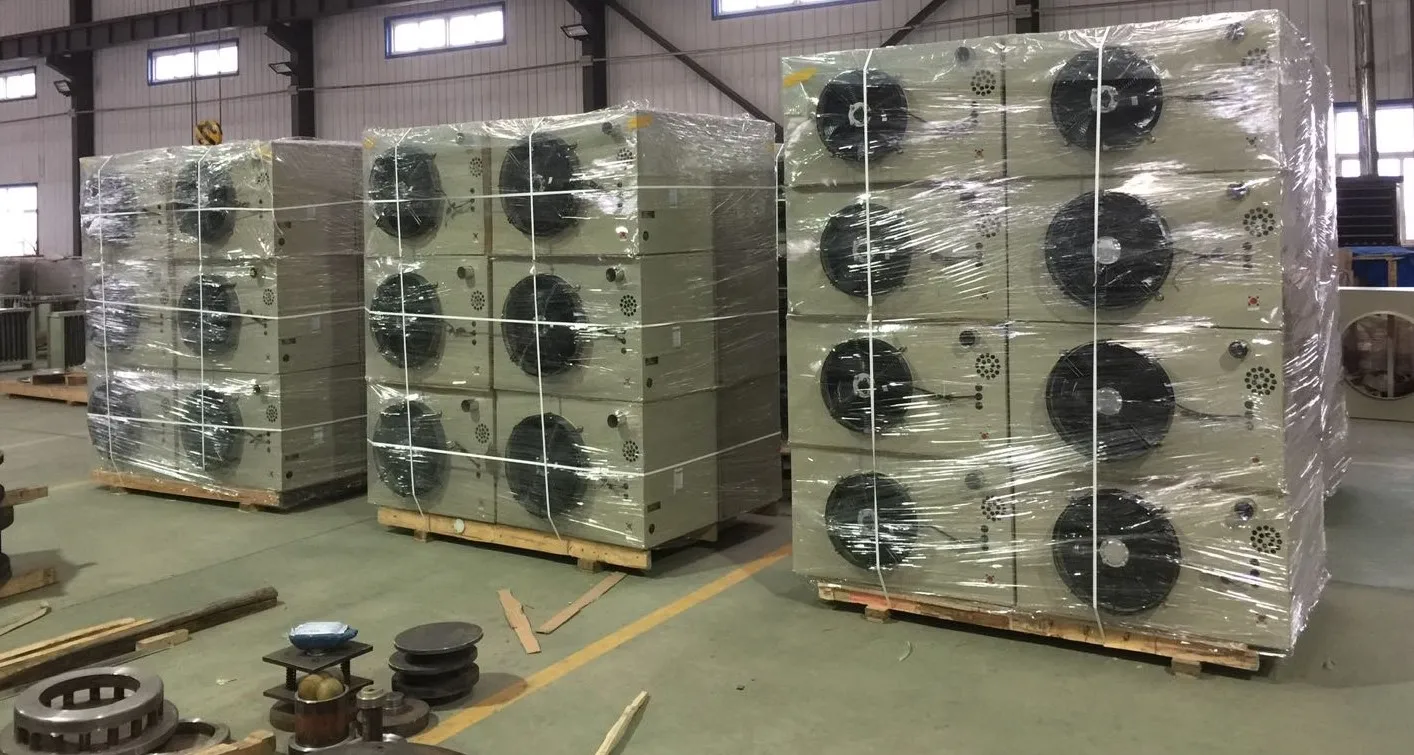

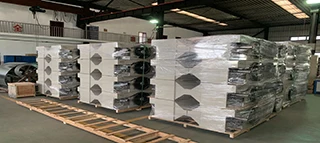

Product packaging
FAQ
1. Where is your company located? Are you a factory or a trading company?
A: Our factory located in Tieling City, Liaoning Province, China.
B: We are a factory.
B: We are a factory.
2. What products your factory supply ?
Hot water unit heater, Steam unit heater, Electric unit heater, Gas fired unit heater, Warm air curtain, axial fans, air heater
etc.
etc.
3. Can Electric parameter be customized?
Yes, pls let us know '?Voltage-?Phases-?Hz'.
4. Can you do our logo or brand on the fan?
Yes, OEM & ODM are all available.
5. Can I order some samples at first to see the quality?
Yes, of course.
6. What's your trade term & payment term?
Trade terms: EXW/ FOB/ CFR/ CIF;
Terms of payment: T/T, L/C, D/P, or paid by third party are available.
Terms of payment: T/T, L/C, D/P, or paid by third party are available.
7. Do you have the products in stock?
Yes. There are some series products in stock.
8. What's the delivery time?
Normally, it will take 30 days.
9. Can I mix different models in one container?
Yes, but need to meet the MOQ.
