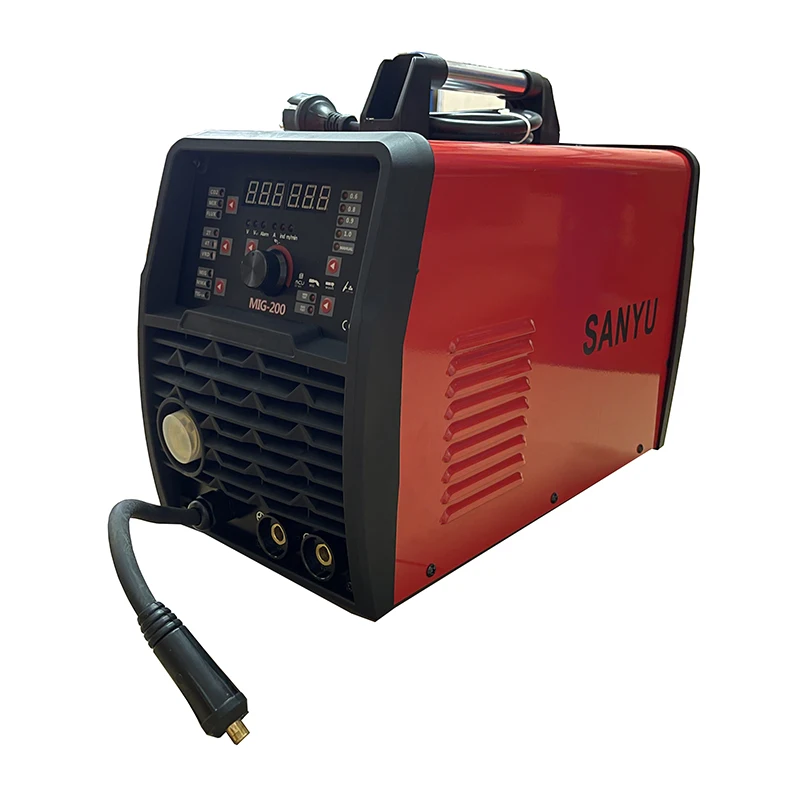

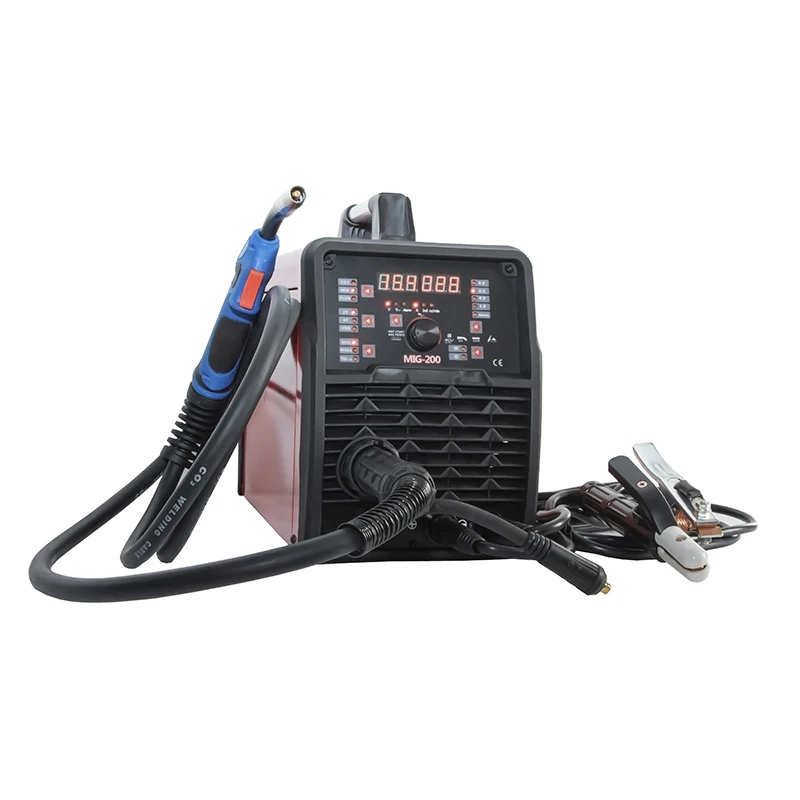

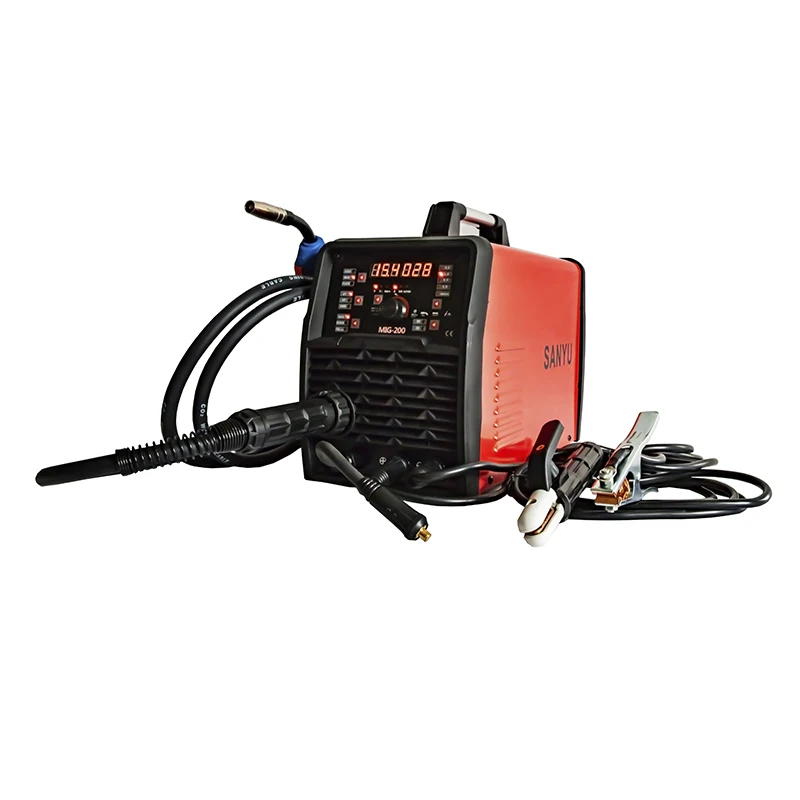

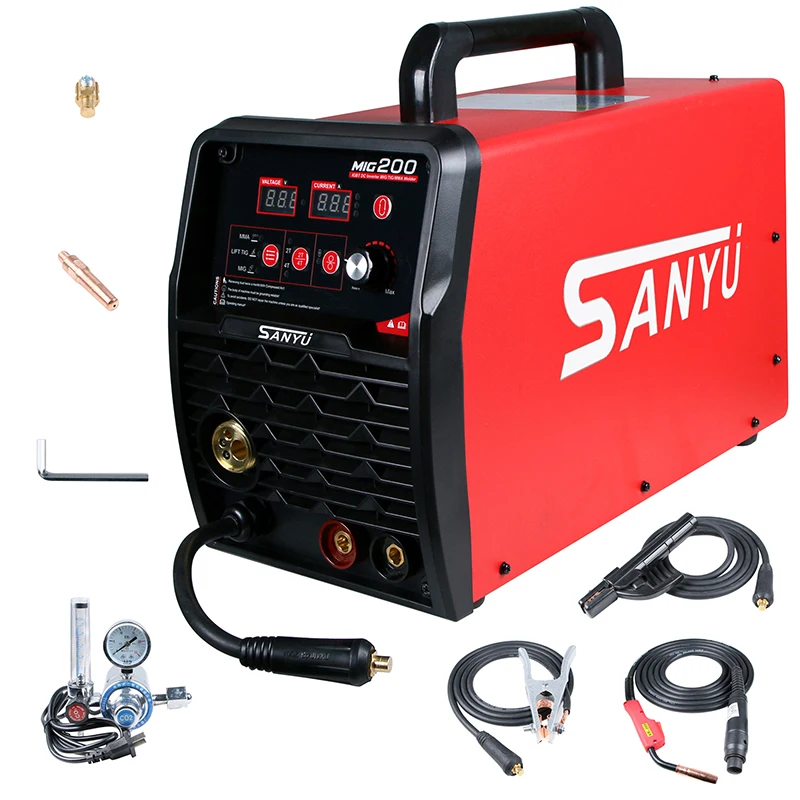

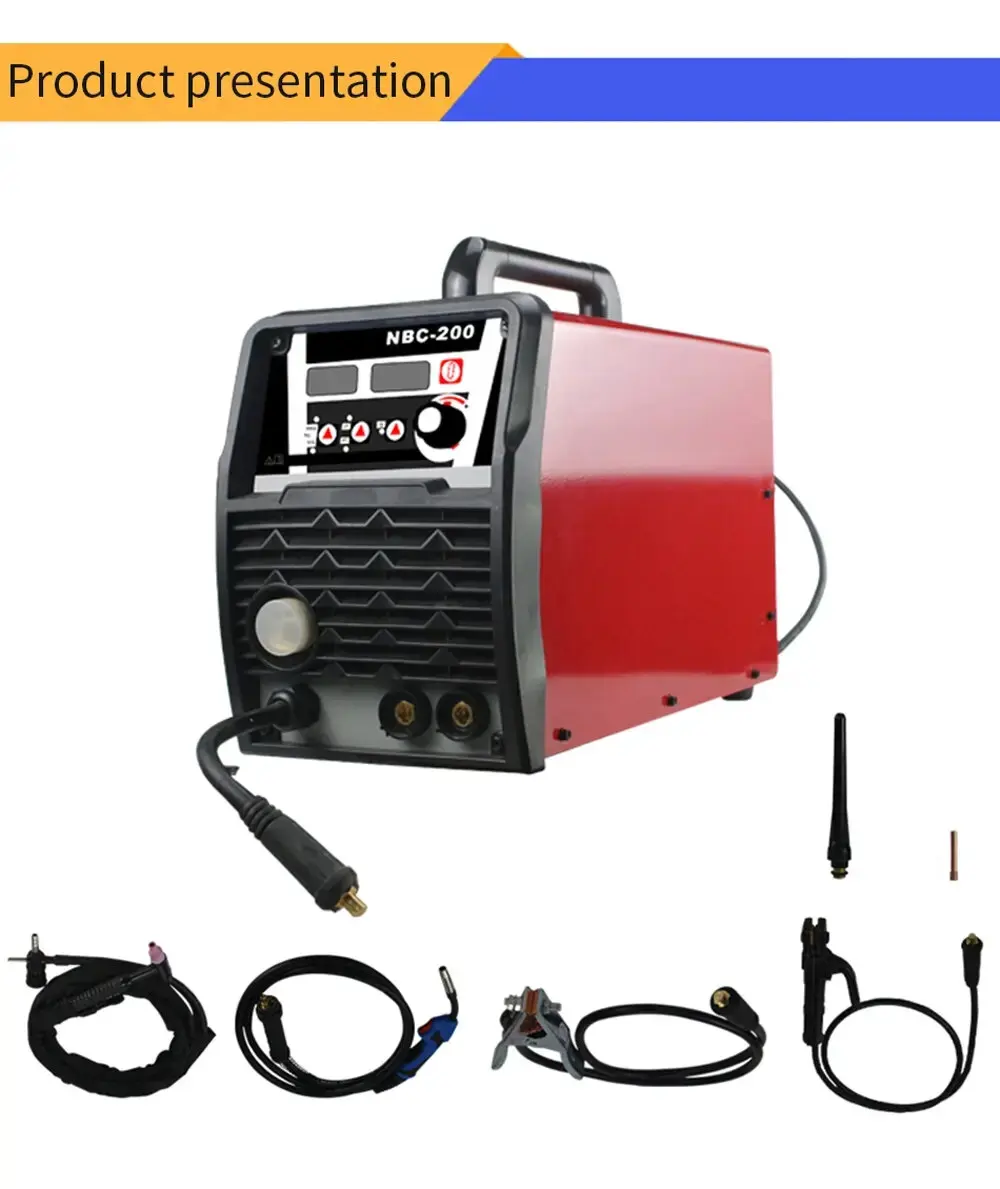

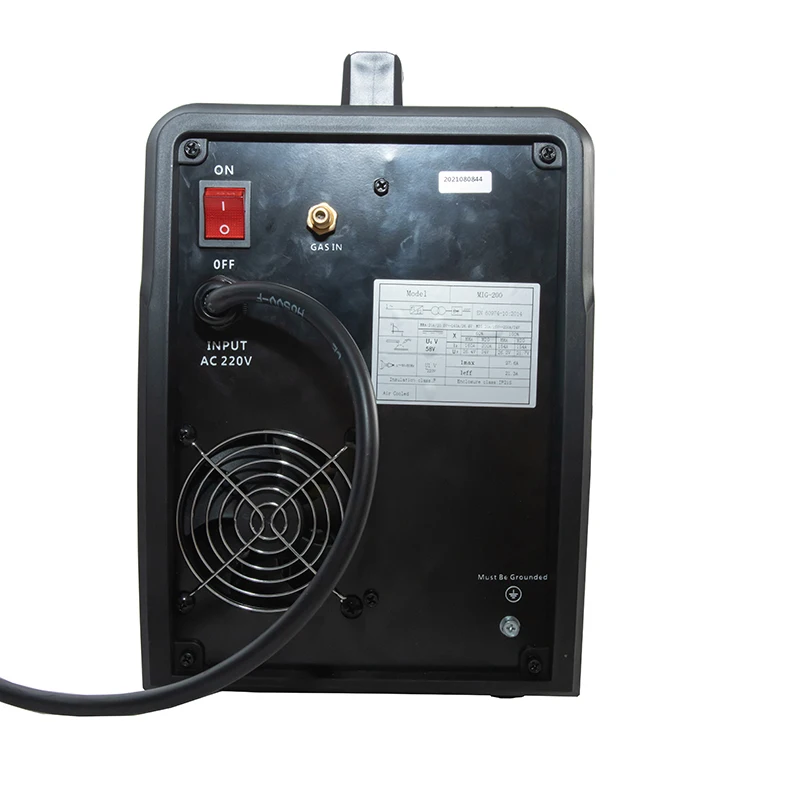

Mini MIG no gas MIG/MAG 200 welding machine 5 in 1
- Category: >>>
- Supplier: Shanghai Sanyu Industry Co. Ltd.
Share on (1600928178089):
Product Overview
Description
Mini MIG no gas MIG/MAG welding machine 5 in 1
| 1. MIG SERIES arc welding machine uses Mix gas as shielded gas to realize gas shielded welding, active gas(Ar+O2,Ar+CO2) as shielded gas to realize MAG welding and inactive gas(Ar)as shielded gas to realize MIG welding | ||||
| 2.Easy-to-underdstand operator interface.Select material type,set wire diameter then start welding | ||||
| 3.Digital control system, real-time display the welding parameters;digital voltmeter and ammeters for easy viewing | ||||
| 4.Stick with adjustable Arc force;Wave form control;stable welding arc | ||||
| 5.Lift TIG with solenoid valve and adjustable down slope time | ||||
| 6.Thermal overload,over voltage and over current protection automatically shuts down the power source to prevent high repair cost | ||||
| 7.Synergic control of the welding current and voltage | ||||
| 8.5kg spool size makes machine light and portable | ||||
| 9.Flux cored self-shielded |
Detailed specification list
| Item/Model | MIG-200 | MIG-160 | ||||
| Voltage | 220V+/-15% | 220V+/-15% | ||||
| Frequency | 50/60HZ | 50/60HZ | ||||
| Rated Input Power | MIG | TIG | MMA | MIG | TIG | MMA |
| 5.9KW | 4.3KW | 5.5KW | 4.2KW | 3.2KW | 5.1KW | |
| Rated Input Current | 37A | 27.4A | 36A | 27A | 20A | 31.6A |
| Output Current Range | 25-200A | 10-200A | 10-170A | 25-160A | 10-160A | 10-160A |
| Duty Cycle at 40℃ | 30% | 30% | ||||
| No Load Voltage | 58V | 58V | ||||
| Welding Voltage Range | 15V-24V | 10.4V-18V | 20.4V-26.8V | 15V-22V | 10.4V-16.4V | 20.4V-26.4V |
| Efficiency | 85% | 85% | ||||
| Power Factor | 0.72 | 0.72 | ||||
| Wire Diameter | SS:0.8/0.9/1.0MM;/1.0MM | Fe:0.6/0.8/0.9/1.0MM | ||||
| Net Weight | 13.5kgs | 11.5kgs | ||||
| Gross Weight | 26kgs | 24.5kgs | ||||
| Dimension | 470*210*380MM | 470*210*380MM | ||||
| IP | 23S | 23S | ||||
| Insulation Class | F | F | ||||
| Cooling | Air | Air | ||||
| Product Code | 2014061 | 2014060 | ||||
Company Information
Shanghai Sanyu is one of the leading AC drive, soft starter and welding machine manufactures and exporters in Shanghai China, which has about twenty years history in this field.
Till now our products have been exported to more than 30 countries.
Our inverter and soft starter were used in "Beijing Olympic Center, Shanghai Expo Pavilion, Shanghai Air Port" etc.
And we have CE, ISO9001, SGS, CCC certificate and so on.
We successfully developed AC drives as SY6600 series, SY7000 series, SY8000 Series and SY8600 series, soft starter as SJR2-2000 series economical type, SJR2-5000 intelligent type, SJR2-3000 built-in bypass type.
FAQ
| Q1. Factory or trade company only? What certifications do you get? |
| A: We are factory absolutely. And we have CE, ISO9001, SGS, CCC. |
| Q2. Can I be your sale agent in our market? |
| A: Why not, welcome. Email me now if you are interested. |
| Q3. What is your MOQ? |
| A: The Minimum Order Quantity is 1 set. |
| Q4. What will your company do for the warranty? |
| A: All the goods are 100% quality testing before shipping. We’ll offer 12 or 18 month warranty.During the warranty period,if goods have any quality problem without any human factors, we’ll send parts for your repair and replace. |
| Q5. Can you accept OEM orders? |
| A: Yes, OEM/ODM orders are highly welcome. |
| Q6. what's the payment term? |
| A: We accept T/T, L/C, West Union, Cash, etc. |
| Usually, T/T 30% deposit and 70% balance before shipment or against copy of B/L. 100% for at sight LC. |
| Q7. What package standard? |
| A: For small capacity,we packed with carton,but for big capacity,we can make the pallet or use strong plywooden case to distinguish and protect the goods. |
| Q8. why choose us ? |
| A: 1. Famous brand in china for more than 10 years ---- Sanyu |
| 2.Easy operating system ---- Easy but effective software, gentle touch achieves |
| 3. Stable performance ---- best famous compenents ensure the quality all the time |
| 4. Excellent aftersales service ---- 24*7 hours online serive, never leave you alone |
| 5. Fast delivery ---- cheap & safe delivery, we look after it all the time |
| Q9. What is your production capacity? |
| A: 3000 sets per month, could provide customerlized package upon requests. |
| Q10. How to contact you? |
| A: send me inquiry on alibaba, or text me on whatsapp +8613331927182 |
| More details about our welder, please click. |
| Q11.How much is the freight cost? |
| A: Please confirm the models and order quantity, we will quote you the freight accordingly. |
