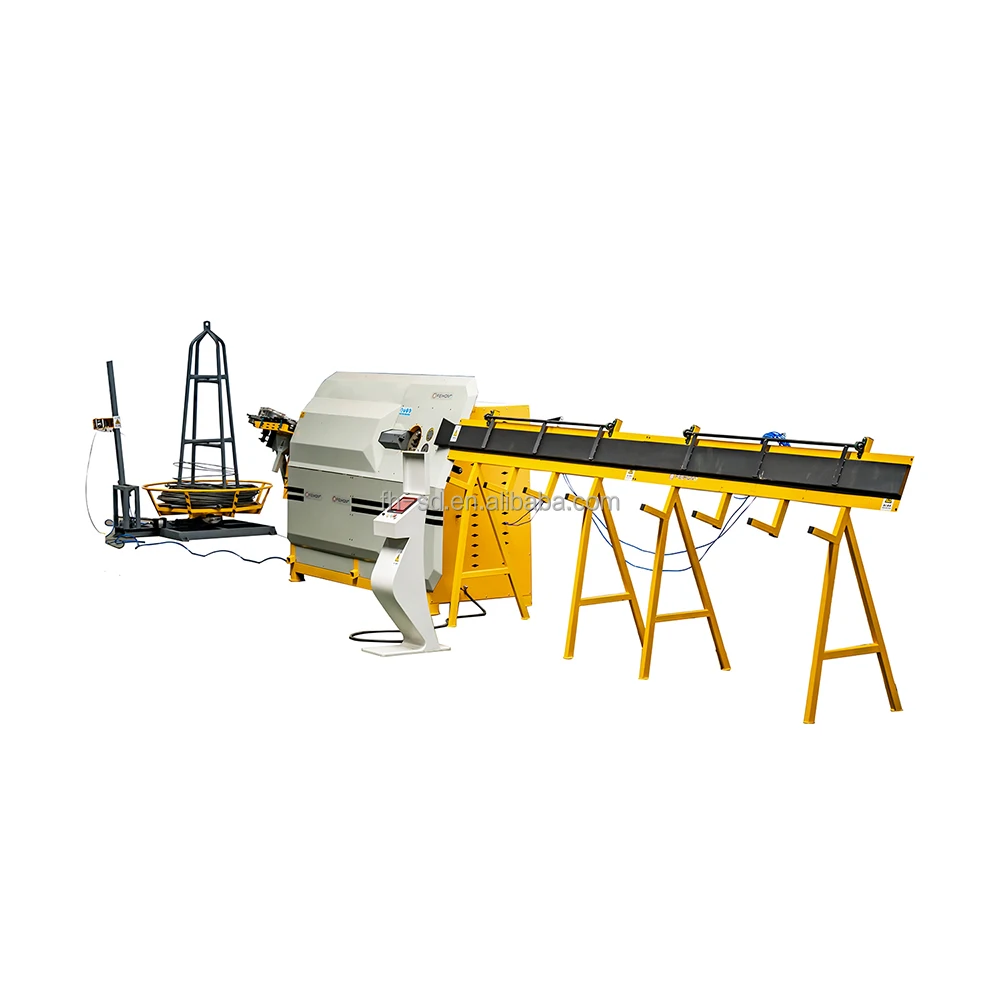

6 16mm Fully Automatic CNC Rebar Bending Machine Stirrup Bender
- Category: >>>
- Supplier: Shandong Feihong Engineering Machinery Co. Ltd.
Share on (1600928182080):
Product Overview
Description
Introduction & Advantage:
CNC stirrup bender CNC rebar bending machine tirrup bending machine rebar bending Introduction :
CNC stirrup bender can automatically complete the straightening, lengthening, bending and cutting of steel wire, so that it can save time, labor and materials. With high processing precision and efficiency, it can realize fully automated, uninterrupted assembly line for steel wire processing. The machine is widely used in railways, highways, bridges, real estate, large-scale wire processing plants and other fields.
Advantage :

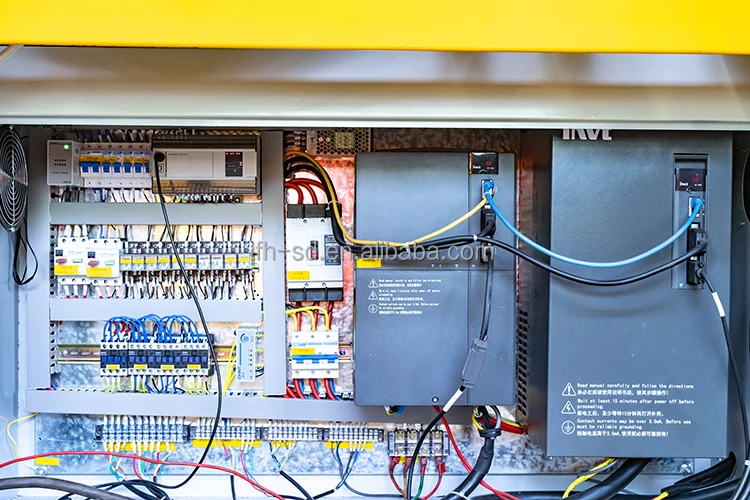

1.CNC stirrup bender can digitally control the traction and pressing amount according to the steel wire diameter, and the electric control detects the bending motion to make the operation simple and the work more stable;

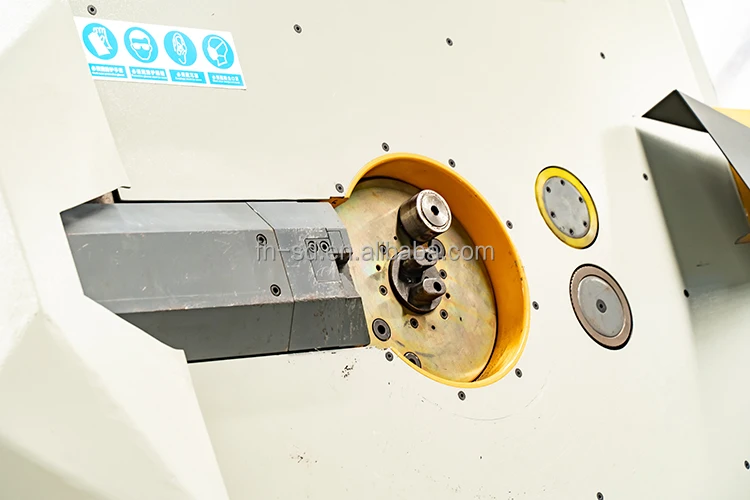

2.Double-position bending axis setting & optional multiple moulds; it can bent various stirrups of 50-1500mm;
3.Mechanical cutting,only need to replace the wear blade regularly,no other vulnerable parts. More durable cutting blade of high quality die steel Corrosion wear resistance&long service life :special heat treatment processing to harden the surface to HRC55-60.
333

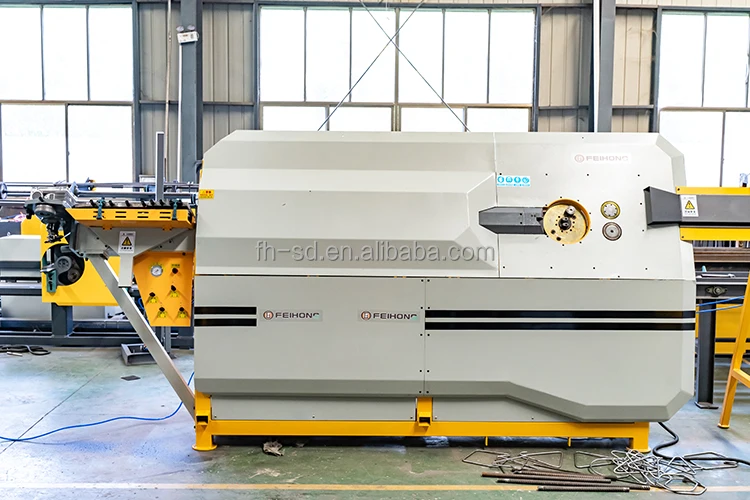

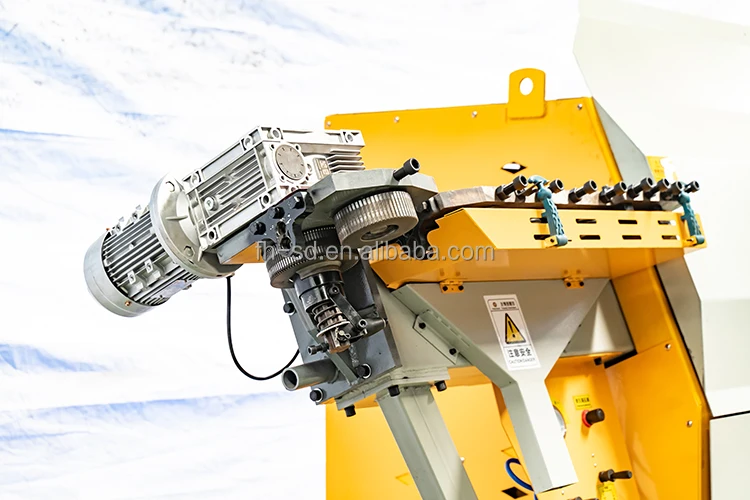

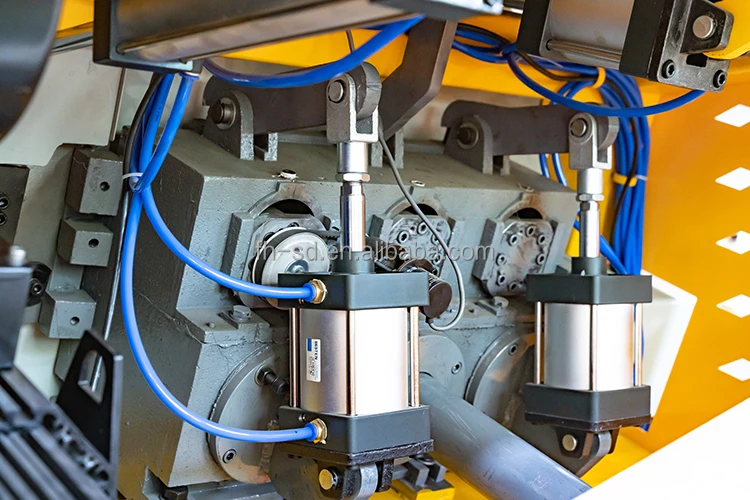

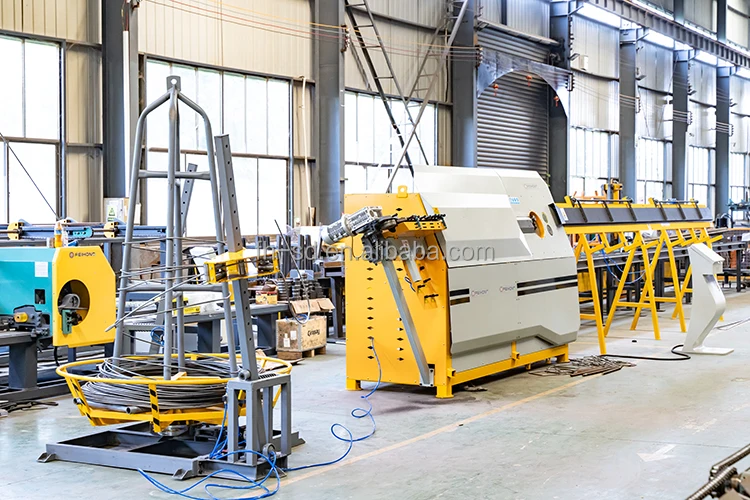

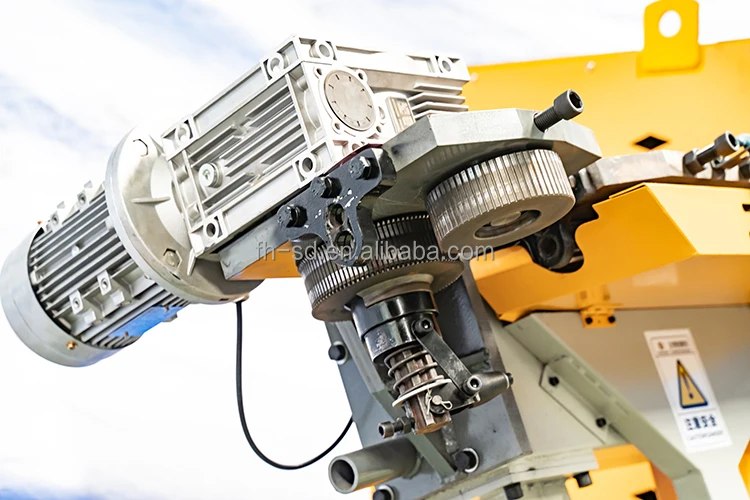

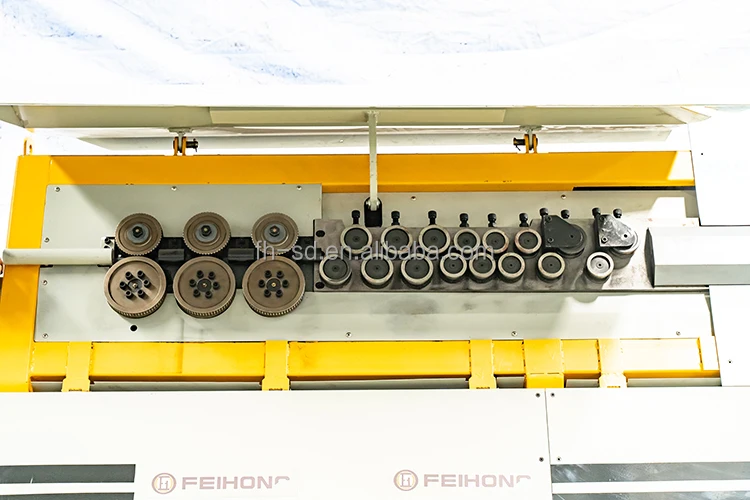

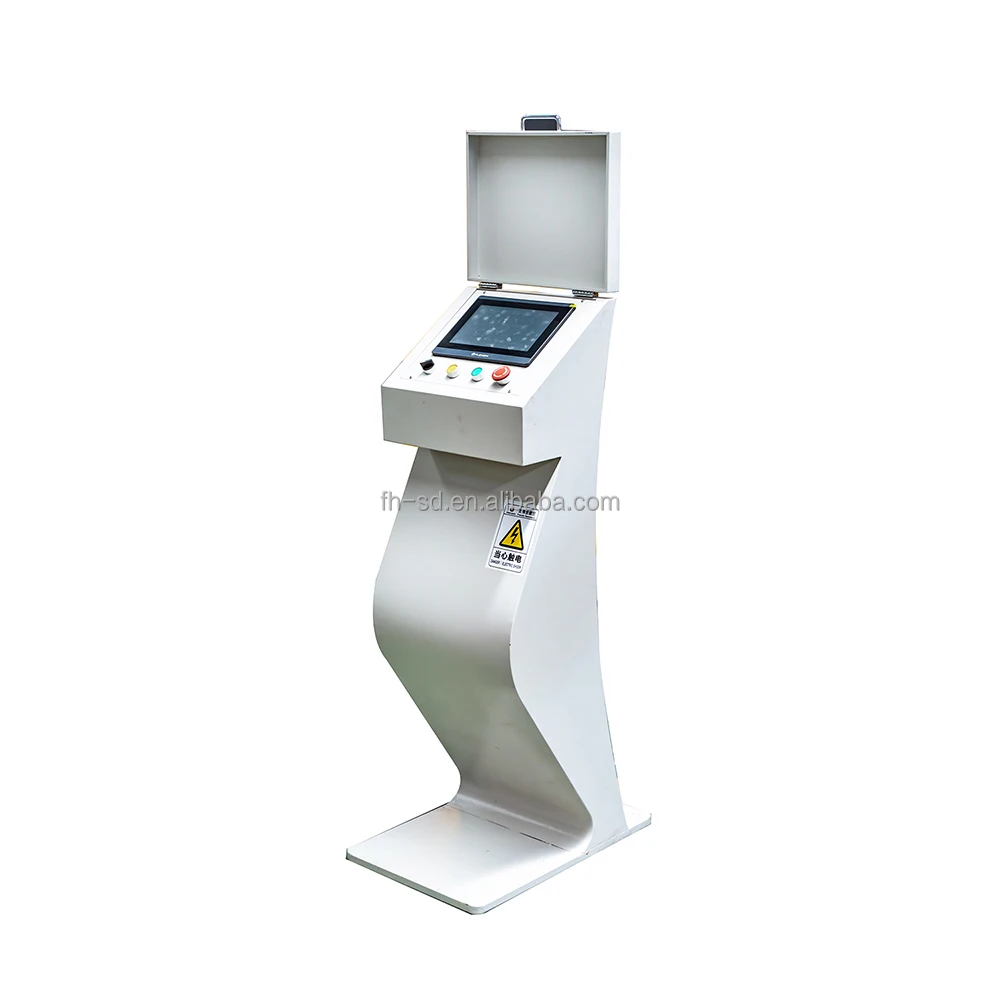

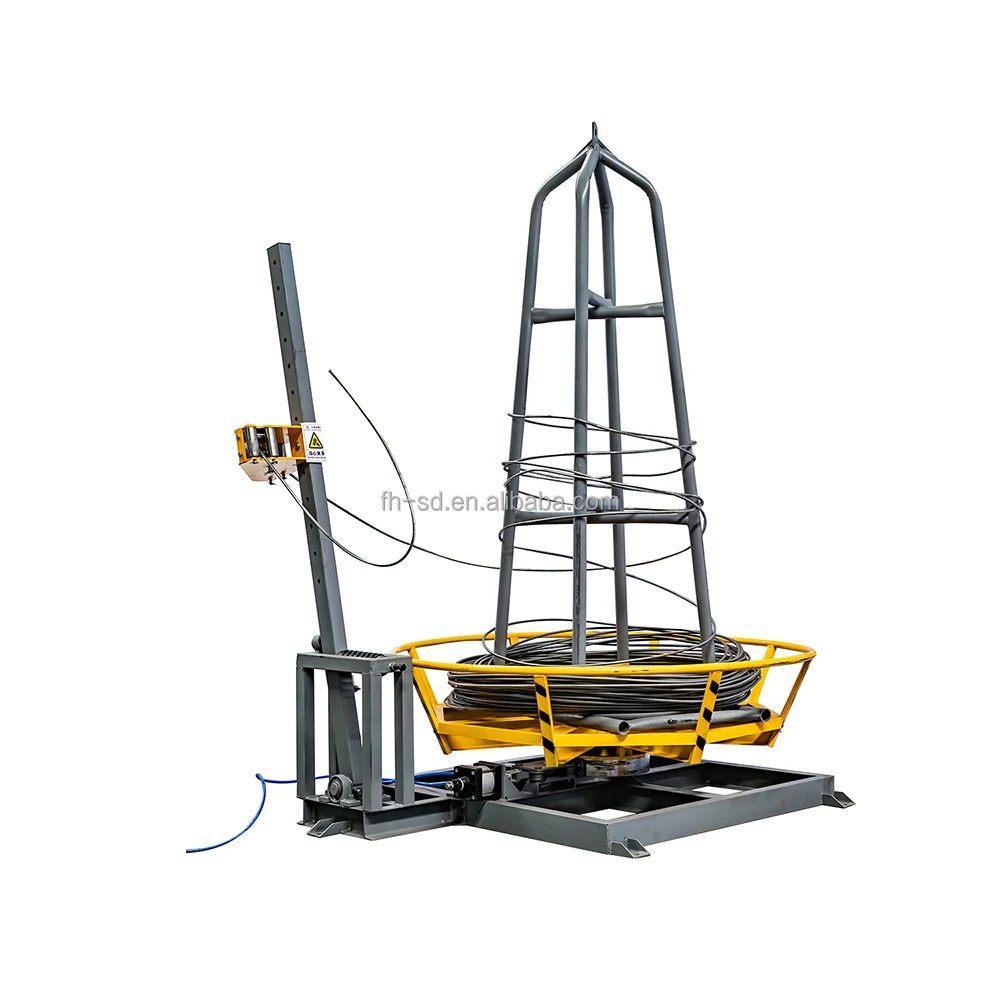

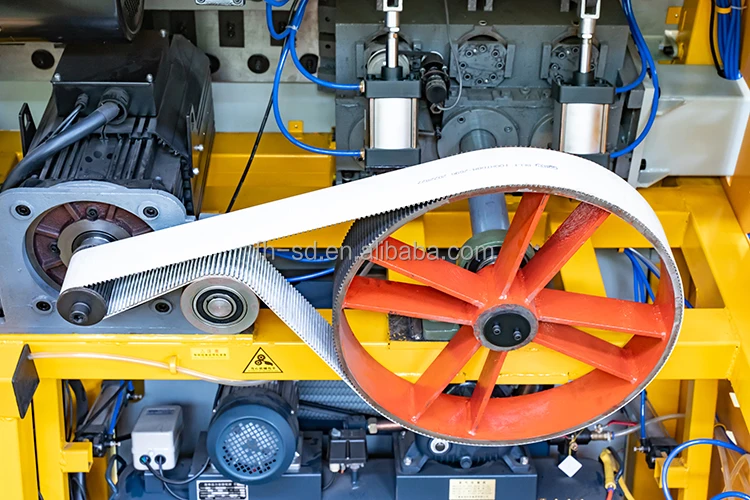

Product Display
Technical Parameters
Model No. | FHG-10D | FHG-12C | FHG-14C | FHG-16B |
Single wire | 5-10 ribbed 5-12 plain | 5-13 ribbed&plain | 6-14 ribbed&plain | 6-16 ribbed&plain |
Double wire | 5-8 ribbed 5-10 plain | 5-10 ribbed&plain | 6-10 ribbed&plain | 6-12 ribbed&plain |
Sizing accuracy (mm) | ±1 | ±1 | ±1 | ±1 |
Bending accuracy(°） | ±1 | ±1 | ±1 | ±1 |
Max traction speed （m/min） | 100 | 110 | 110 | 75 |
Max bending angle （°） | 135° single direction | 180° bidirection | 180° bidirection | 180° bidirection |
Max bending speed （°/sec） | 1000 | 1200 | 1200 | 1000 |
Traction servo motor(kw) | 7.5 | 17.3 | 20 | 30 |
Bending servo motor (kw) | 4 | 7.5 | 20 | 15 |
Cutting motor(kw） | 4 | 4 | 4 | 4 |
Air compressor（kw) | 1.5 | 4 | 4 | 4 |
Total power | 17 | 32.8 | 48 | 53 |
Weight （kg) | 1000 | 2300 | 2500 | 3000 |
Dimension (mm) | 2500*960*1800 | 3600*1200*2060 | 3680×1050×2100 | 4000×2000×2200 |

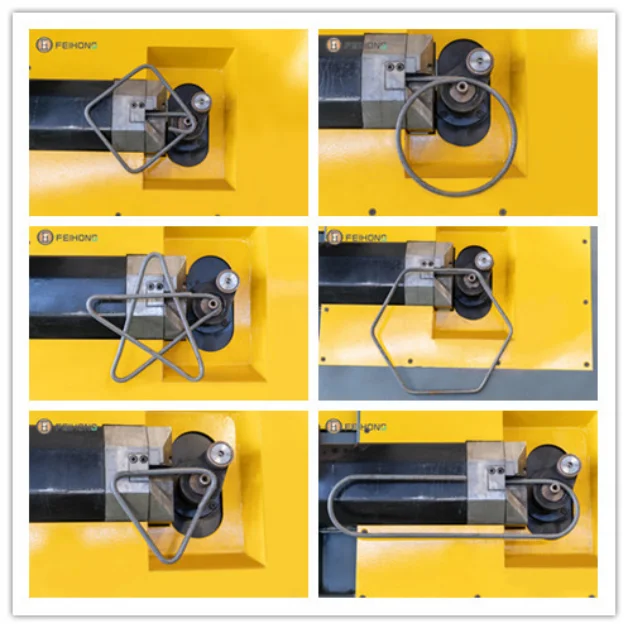

Finished Product Display
