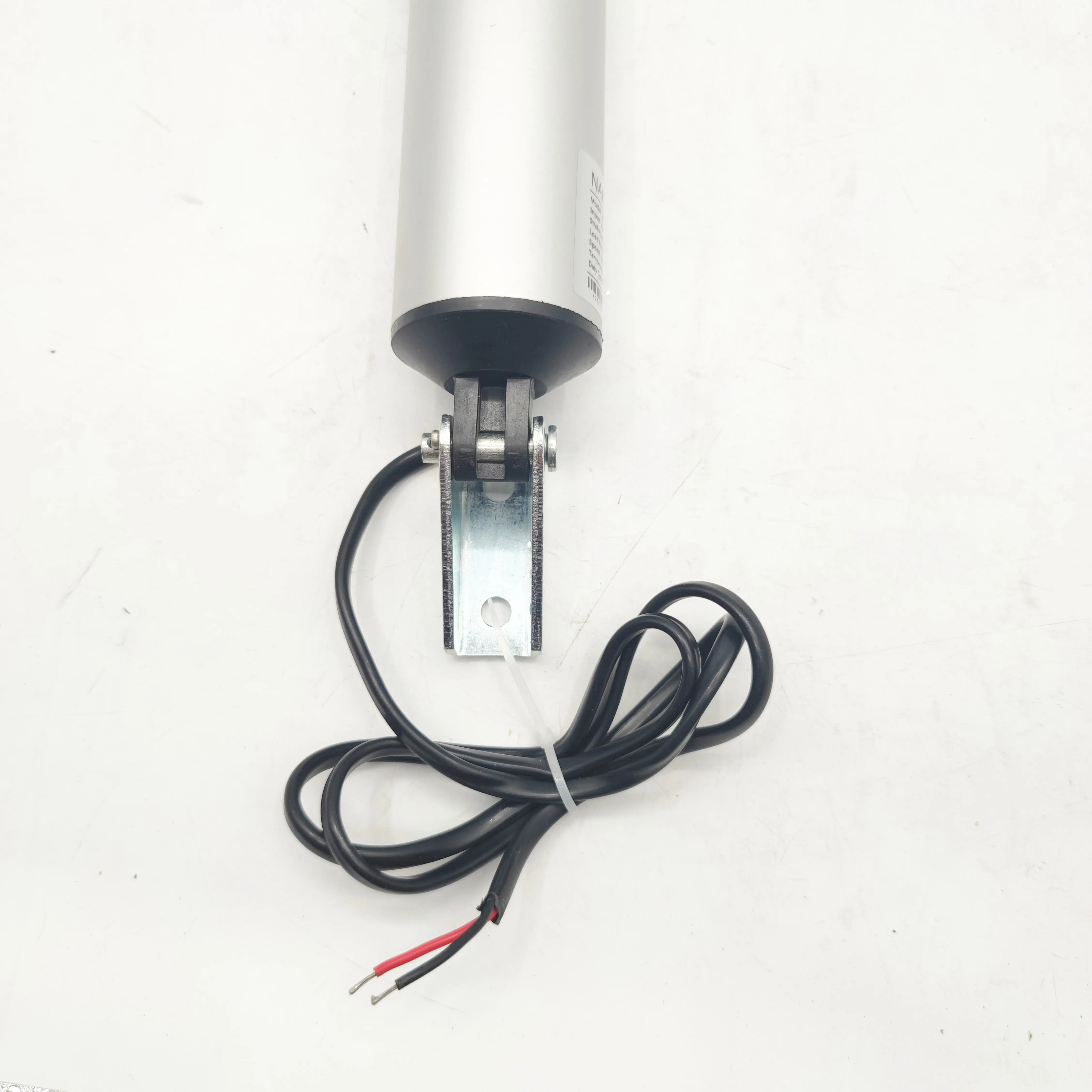

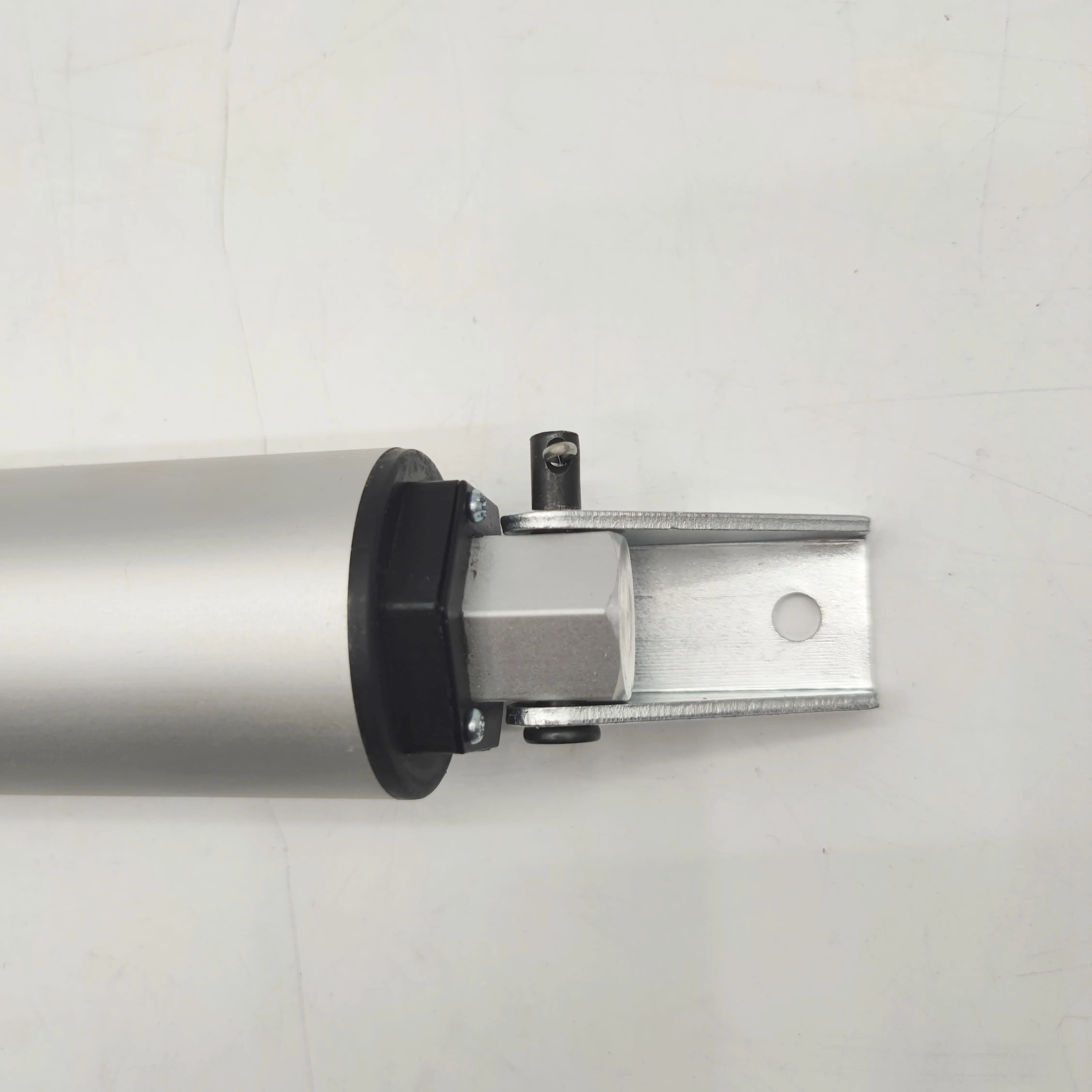

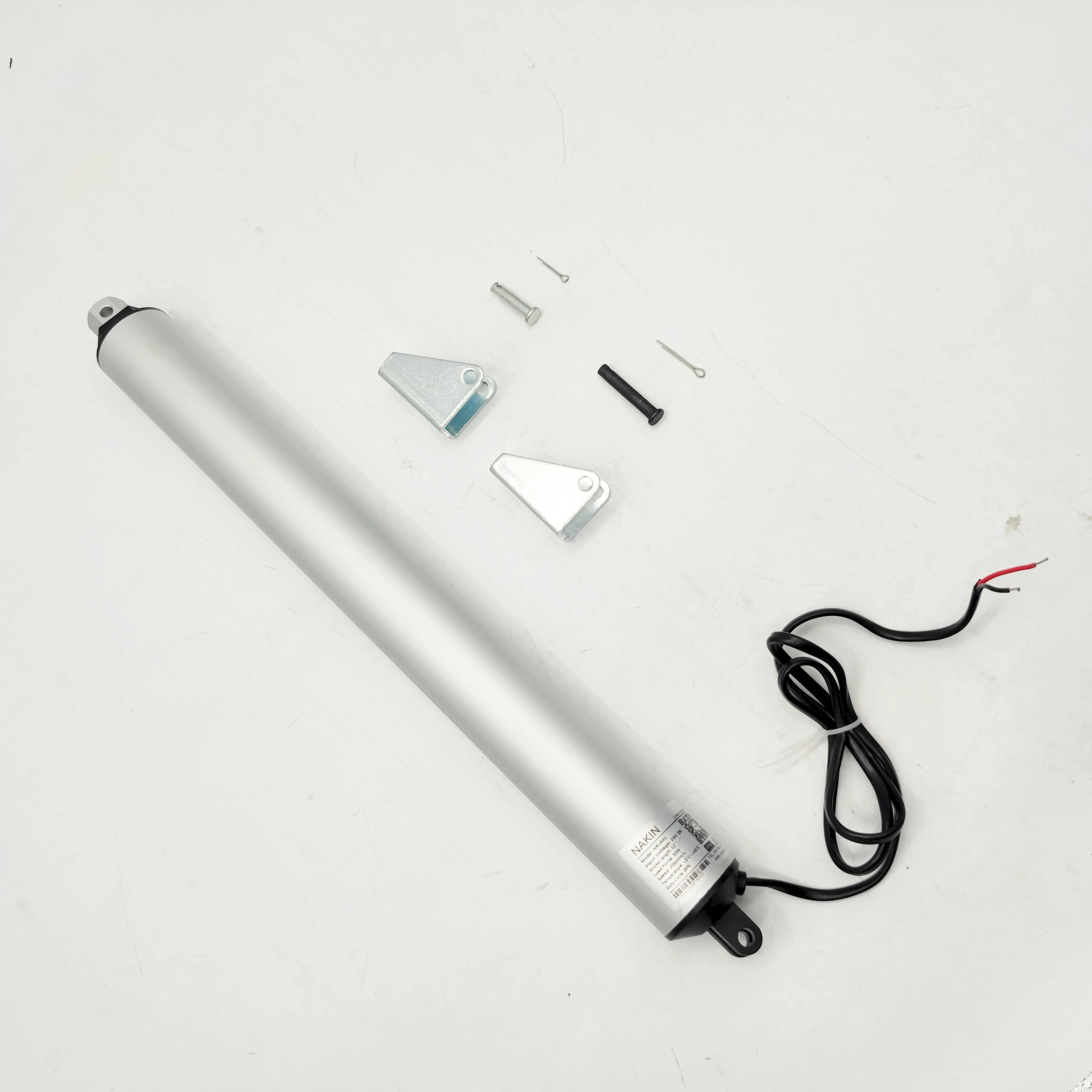

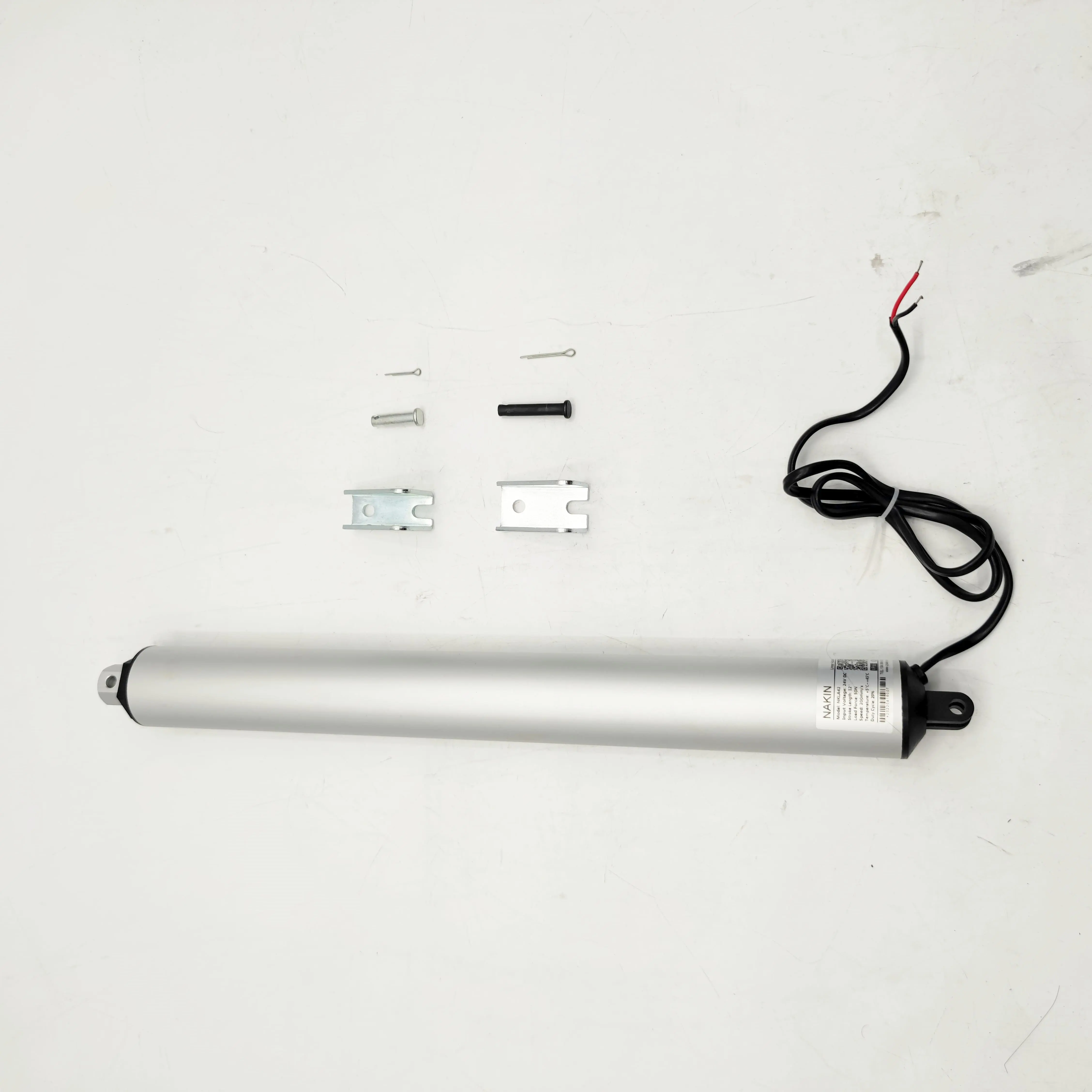

12VDC 24vdc 230mm/s 22lb force high speed linear actuator fast acting tubular actuator for door open
- Category: >>>
- Supplier: Zhejiang Nakin Intelligent Technology Co. Ltd.
Share on (1600928186832):
Product Overview
Description
Specification
Feature
High-quality products and high-quality services
High strength wear-resistant gear
Aluminum alloy outer tube and telescopic inner tube
Strong thrust, up to 200N / 20 Kgs / 40 lbs
Multiple speed options, from 45 mm/second to 230 mm/second
Built-in two limit switches, linear actuator will automatically stop when stroke rod reaches the limit position.
Automatically lock after stopping movement, and no power supply is required.
High strength wear-resistant gear
Aluminum alloy outer tube and telescopic inner tube
Strong thrust, up to 200N / 20 Kgs / 40 lbs
Multiple speed options, from 45 mm/second to 230 mm/second
Built-in two limit switches, linear actuator will automatically stop when stroke rod reaches the limit position.
Automatically lock after stopping movement, and no power supply is required.
Plug Standard: Ordinary Two-core Wire
Certifications: CE
Environment temperature: -26℃ to 85℃
Operating Noise: about 46dB~52dB (Linear actuators with different parameters will have different noise levels.)
IP rating: IP54
Certifications: CE
Environment temperature: -26℃ to 85℃
Operating Noise: about 46dB~52dB (Linear actuators with different parameters will have different noise levels.)
IP rating: IP54
Specifications:

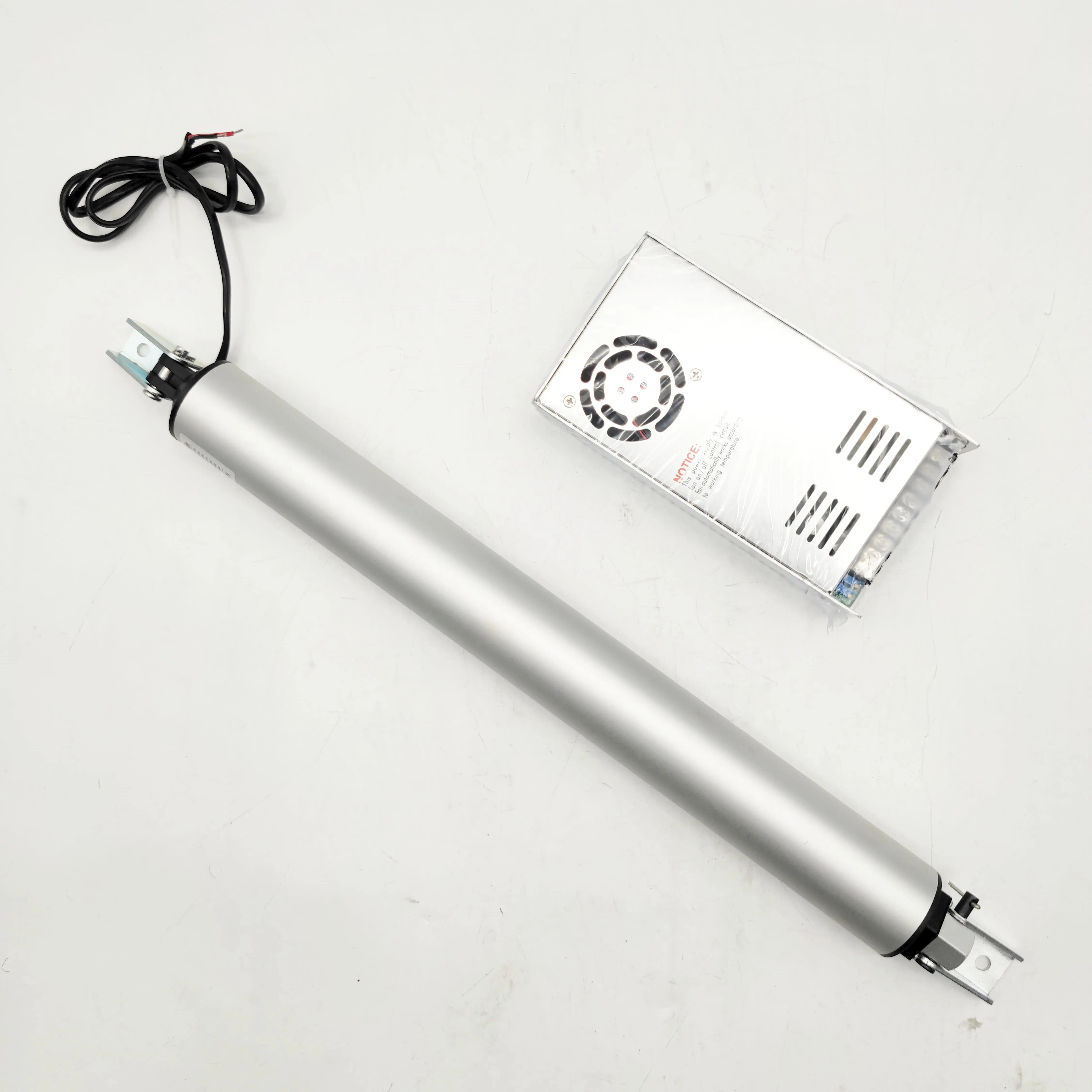

Please use a 12V/10A or 24V/5A power supply to power a linear actuator or use a 12V/20A or 24V/10A power supply to power two linear actuators.
Stroke range: 6 inches or 150mm
Max Load capacity: 200N / 20 Kgs / 40 lbs at 45mm/s
No-load working current: about 1.5A
Maximum full load working current: about 3-6A
Maximum full load working current: about 3-6A
Outer tube diameter: 55mm
Shaft diameter: 28mm
Mounting holes diameter: 8mm
Housing Material: Aluminum Alloy
Stroke Rod Material: Aluminum Alloy
Gear Material: Polymer Plastic
Motor Type: Brushed DC Motor
Duty Cycle: 20% at 100% load, Max 2mins continuous use
Shaft diameter: 28mm
Mounting holes diameter: 8mm
Housing Material: Aluminum Alloy
Stroke Rod Material: Aluminum Alloy
Gear Material: Polymer Plastic
Motor Type: Brushed DC Motor
Duty Cycle: 20% at 100% load, Max 2mins continuous use
Product Name | linear actuator |
Max Load Force | 50~200N |
Full Load Speed | 80~230mm/s |
Stroke | 50~1000mm/1"-40" |
Protection class | IP54 |
Duty cycle | 10%，max 2min continuous use |
Operating Temperature | -26℃~+65℃ |
Optional Part 1 | Sphericla plain bearing |
feature | High speed |
Product Description
Company Profile
Product Application
solar tracker system
medical bed
skylight
workbench
industry lift
car trunk opener
Product Process
Packing & Delivery
FAQ
Q: May I have a sample order before bulk one?
A: Of course, we can provide a sample for you.
Q: How can I get the quotation?
A: You need to send up information, we will let our sales to contact with you, and the details you should to give: email address, telephone number, input voltage , Load force , stroke length , retracted length , speed and quantity .
A: Of course, we can provide a sample for you.
Q: How can I get the quotation?
A: You need to send up information, we will let our sales to contact with you, and the details you should to give: email address, telephone number, input voltage , Load force , stroke length , retracted length , speed and quantity .
