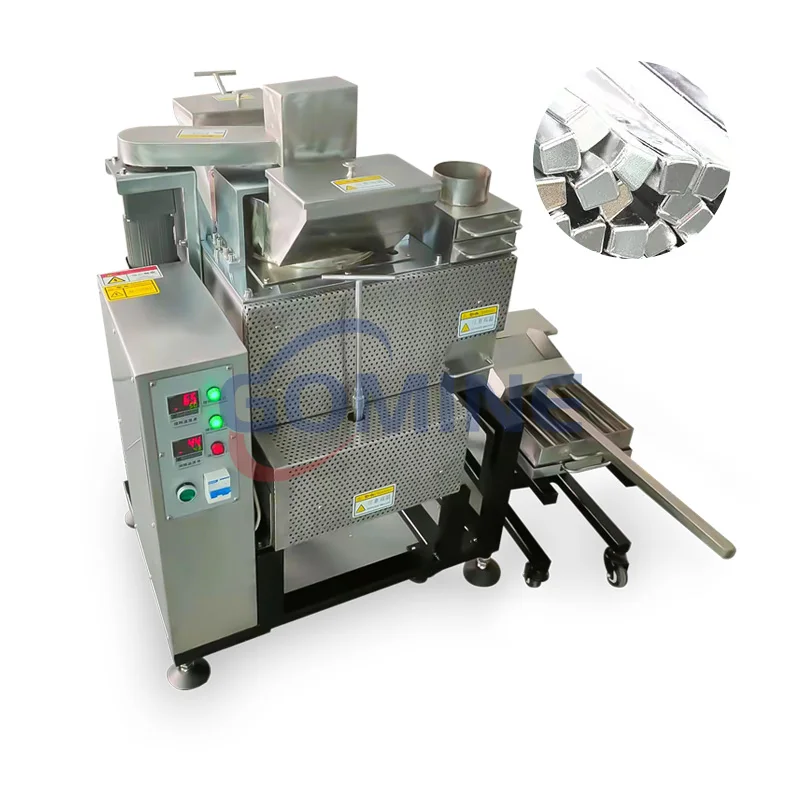

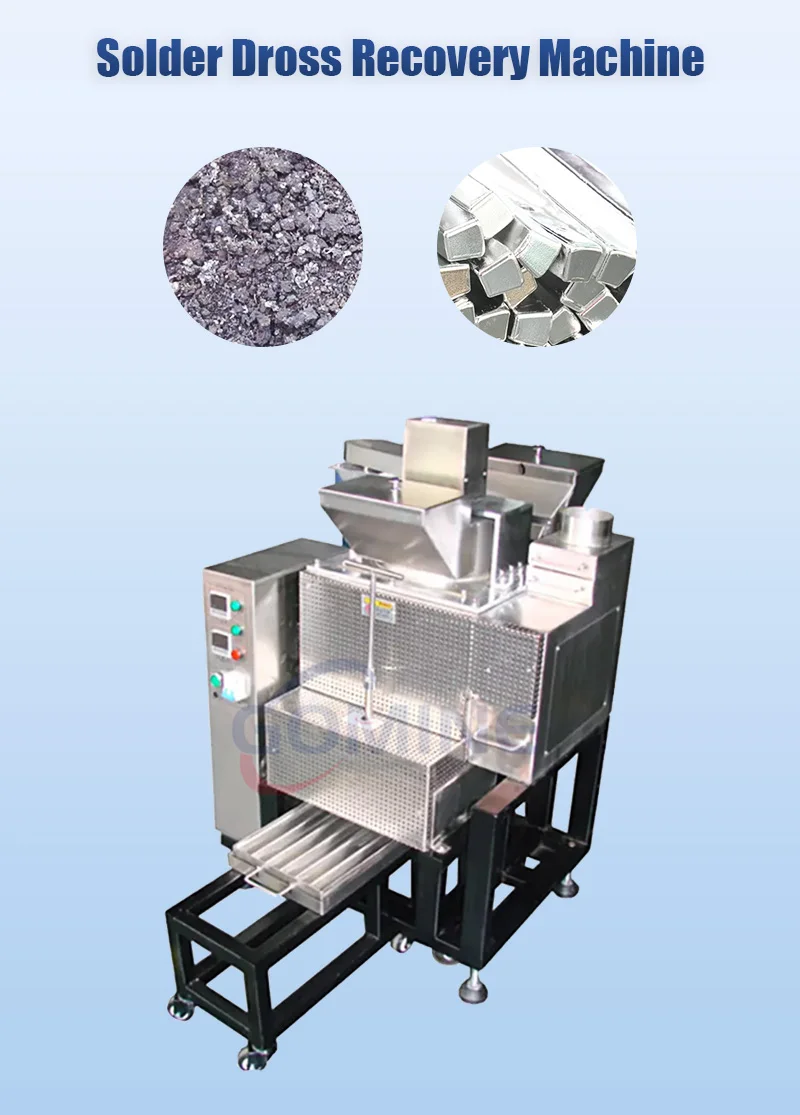

High efficiency solder dross recovery machine for separating Waste Tin Solder Dross
- Category: >>>
- Supplier: Henan Gomine Environmental Protection Technology Co. Ltd.
Share on (1600928209622):
Product Overview
Description
High Quality Solder Dross Recovery Machine Solder Dross Ash Separating Removing Machine
Product Description
Solder Dross Separation Machine is an endeavor in reverting and recycling the oxides which occur during working of a Wave Soldering Machine in order to reduce production cost, create a greener environment and assist the quality process.
Solder dross separator for slag solder wave solder recycling, GM-SD10 model with small size,manually put tin,with tin car,PCB manufacturers use solder recycling machine to recycle solder onsite directly from their wave solder machine.

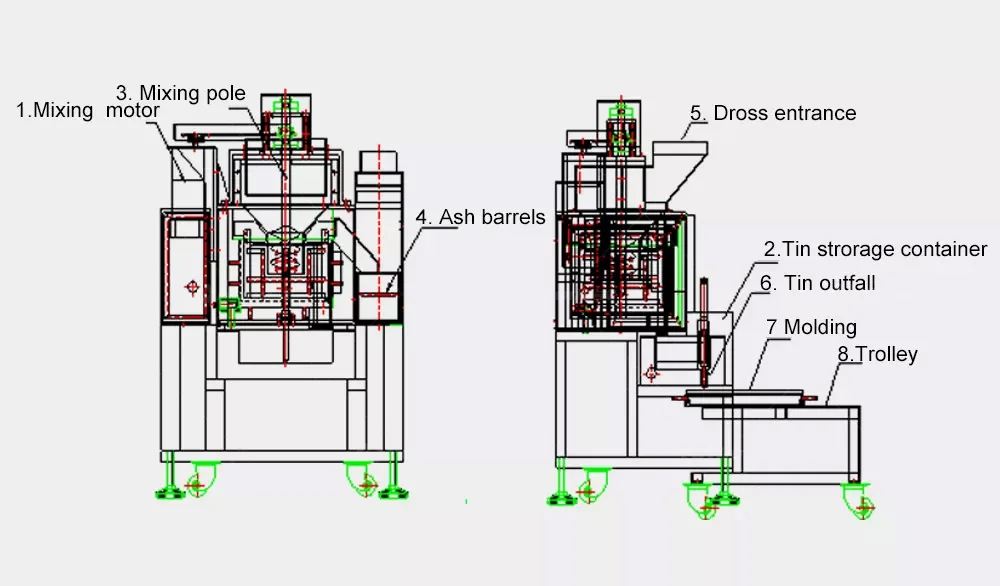

Product Structure
Product Advantage
Pure physical separation without using any chemicals.
Tin alloy separation rate is up to 98%
The recycled solder bar can be direct use for wave soldering
Compact in size, all stainless steel and is easy to maintain
Patented mixing and separation system for improved separation efficiency
Solder pot is made of corrosion resisting ss 316L material with has a long service life
The unit uses a “U” shape heater covered cast iron heating plate, which will avoid deformation
OMRON temperature controller and SSR relay ensure accurate temperature control and long service life
Machine will alarm when separated solder is in the cabin and reaches the full volume, this indicates to discharge the solder
Tin alloy separation rate is up to 98%
The recycled solder bar can be direct use for wave soldering
Compact in size, all stainless steel and is easy to maintain
Patented mixing and separation system for improved separation efficiency
Solder pot is made of corrosion resisting ss 316L material with has a long service life
The unit uses a “U” shape heater covered cast iron heating plate, which will avoid deformation
OMRON temperature controller and SSR relay ensure accurate temperature control and long service life
Machine will alarm when separated solder is in the cabin and reaches the full volume, this indicates to discharge the solder

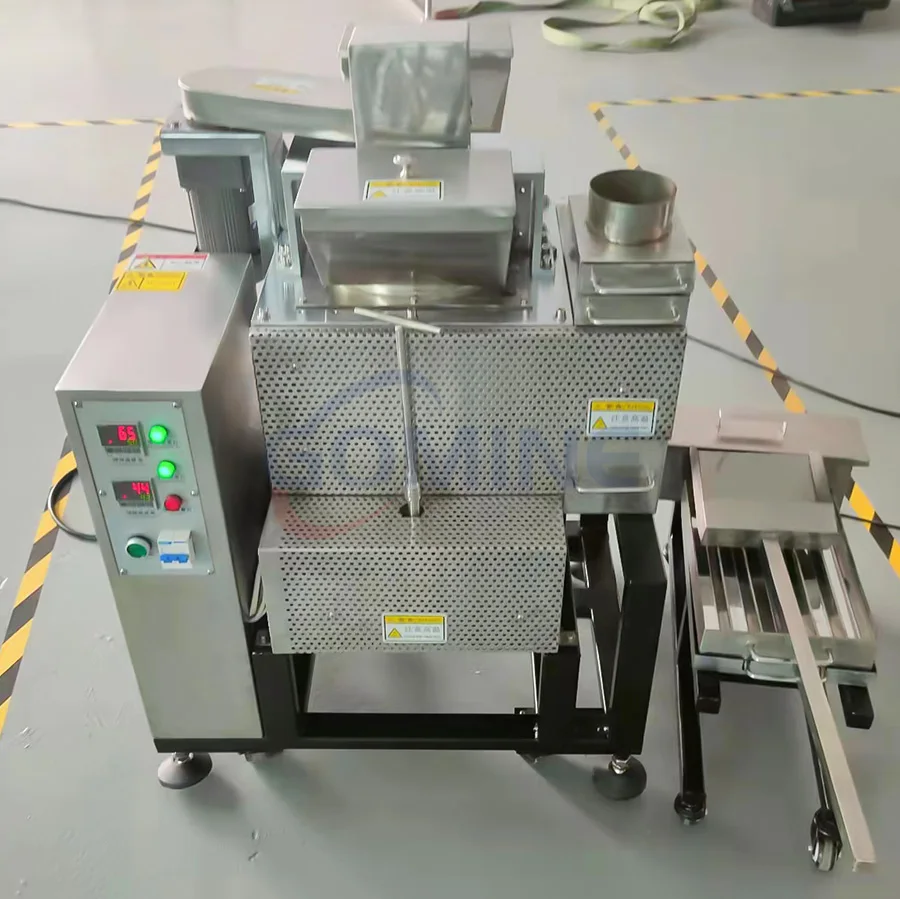

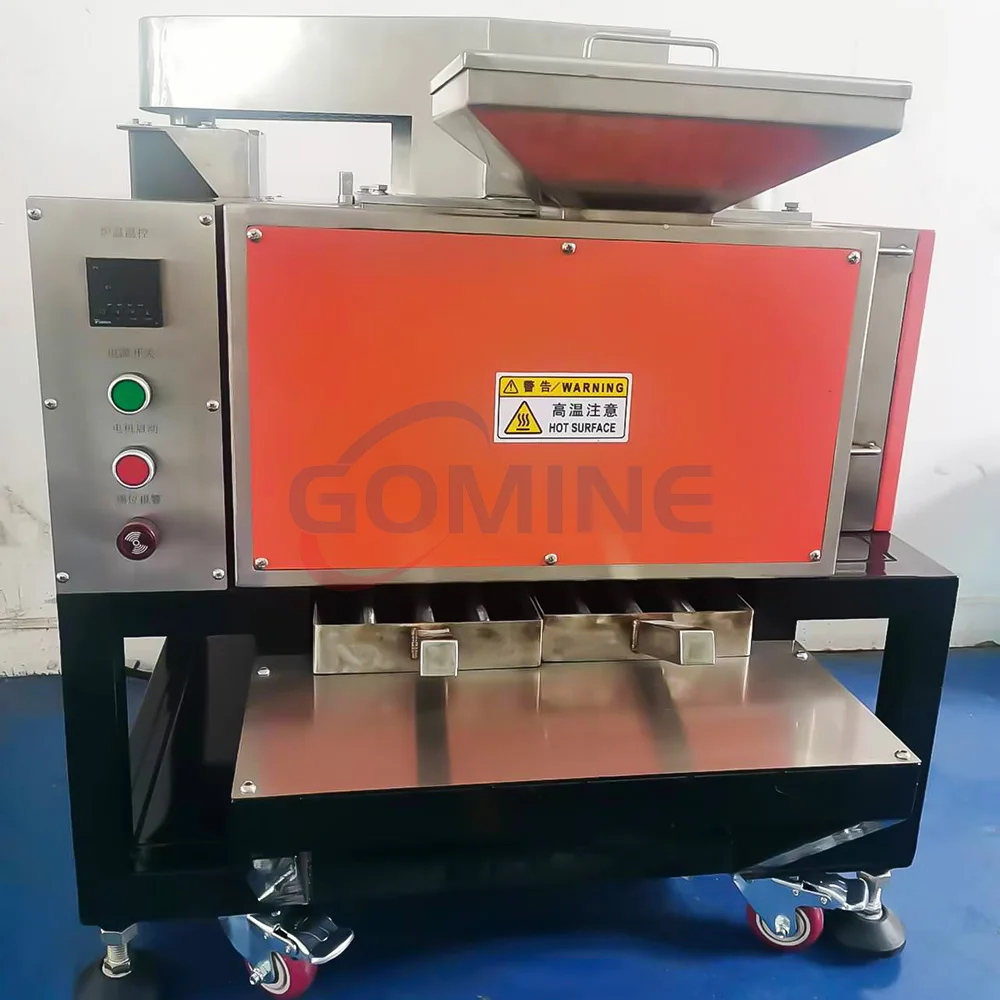

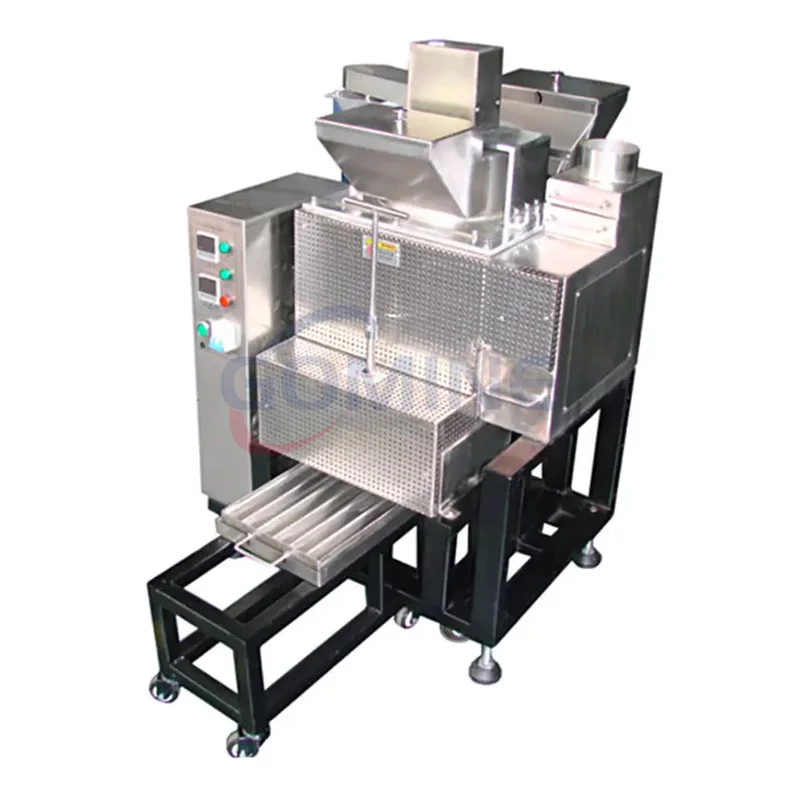

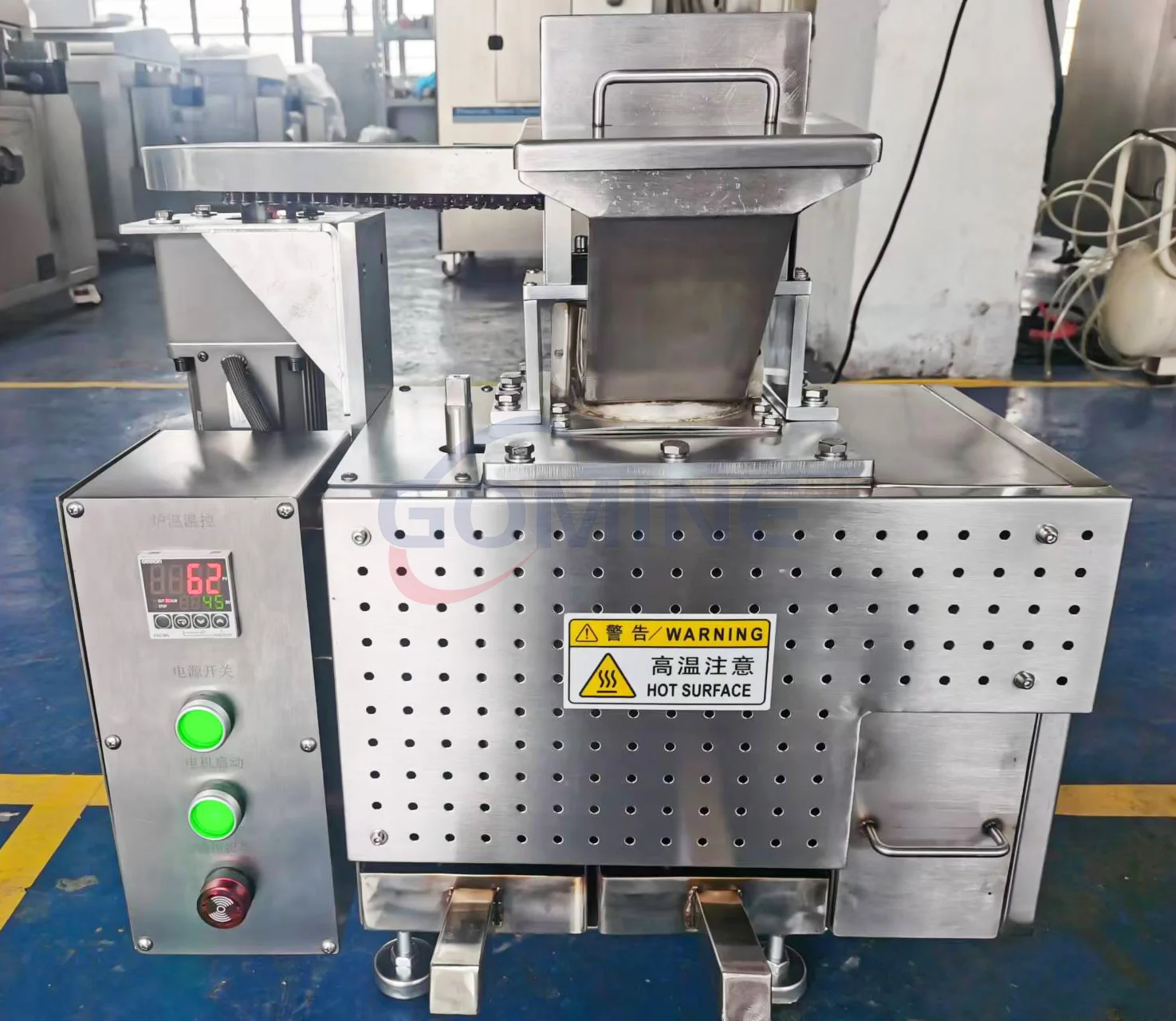

Details Images
Specification
Model | GM-SD10 |
Mixing motor | 1φ 220V 90W |
Mixing Capacity of Bottom Tin | 10KG |
Temperature Scope | Up to 350℃ |
Heating-up time | 30MIN |
Feeding time | Continuous5-20kg/15min |
Dimension | 500(L) * 250(W) * 600(H) |
Totol Power Consumption | 2KW |
Normal running power | 0.6KW |
Power | 1φ220V 50Hz |
Net Weight | Appro*45kg |
Model | GM-SD20 |
Mixing motor | 1φ 220V 90W |
Mixing Heating Power | 3.8KW |
Mixing Capacity of Bottom Tin | 60KG |
Temperature Scope | Up to 450℃ |
Heating-up time | 50MIN |
Feeding time | Continuous5-20kg/15min |
Dimension | 760(L) * 620(W) * 780(H) |
Totol Power Consumption | 4KW |
Normal running power | 2KW |
Power | 1φ220V 50Hz |
Net Weight | Appro*85kg |
Product packaging
Company Profile
Gomine Environmental Protection Technology Co., Ltd. is a comprehensive environmental protection equipment manufacturing enterprise integrating process design, technology research and development, manufacturing, sales and after-sales service.
Why Choose Us
We have rich experience in e waste recycling machines manufacturing. Our machines have high reputation both at home and abroad. Over years, our machines have been exported to more than 60 countries, including USA, Germany, Mexico, Japan, Thailand, Egypt, etc.
FAQ
1. Are you the manufacture?
Yes, we are. We have mature product lines. If you want to come andvisit, we absolutely welcome and we are willing to arrange the travel for you.
2. How to ensure delivery on time?
Customers can place an order in Alibaba, this is a third party and it will provide supervise and protect for buyer. If seller didn’t deliver the product in time, buyer can apply for a refund through the Ali platform to avoid losses.
3. How about payment terms?
You can send your sample scrap materials to us and we will test the machine for you without charging the fees. And we can send the
machine test video to you. According to your time, you can pay a visit to our factory to test our machine.
machine test video to you. According to your time, you can pay a visit to our factory to test our machine.
4. How can i find a most suitable solder dross recovery machine?
We have most professional sales manager to help you choose the machine, and also, our strong engineer group will back up for anytechnology problems.
5. Is there any benefits for becoming a dealer?
Of course. If you have the strength and willingness to become our distributor, we will not only adjust the price. Secondly, we canprovide you with customized machines according to the sales habits of the buyer's market. More importantly, technically, we willsend professional engineers to give you on-the-spot guidance, so that you become the most understanding of the machine.
