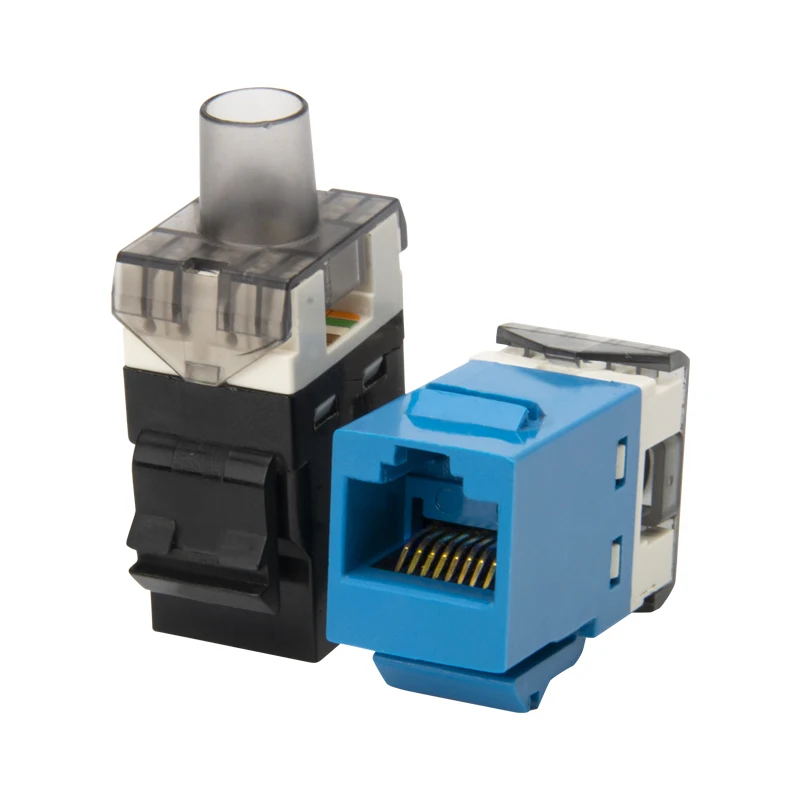

High Quality Network cat6 utp keystone jack module 180 degree Ethernet Cat 6 8p8c Rj45 Keystone jack
- Category: >>>
- Supplier: Ningbo Hyconnect Communication Technology Co. Ltd.
Share on (1600928211646):
Product Overview
Description
VR
Product Name | Cat6 UTP AMP keystone Jack |
Material | PC UL94V-0 |
Place of Origin | CHINA |
Brand Name | HY-CONNECT |
Model Number | HKJ-810-C6 |
Color | Black、Blue、white |
Usage | Data center, working area, managing room, equipment room, etc |
1. Technique Characteristics
Material of plastic parts: PC UL94V-0
Standard 110 and LSA dual use punching tool make operation more convenient
According to the standard of ISO/IEC 11801 & TIA/EIA 568-B.2 Cat.6
IDC clips: Tinned phosphor bronze nickel plated with dependability 250 times
2. Electrical Characteristics
DC Resistance: ≤300mΩ
Contact Resistance: ≤20mΩ
Dielectric strength: 1000V(AC750V)1min no break down and flashover
Insulation Resistance: ≥1000MΩ
3. Physical Characteristics

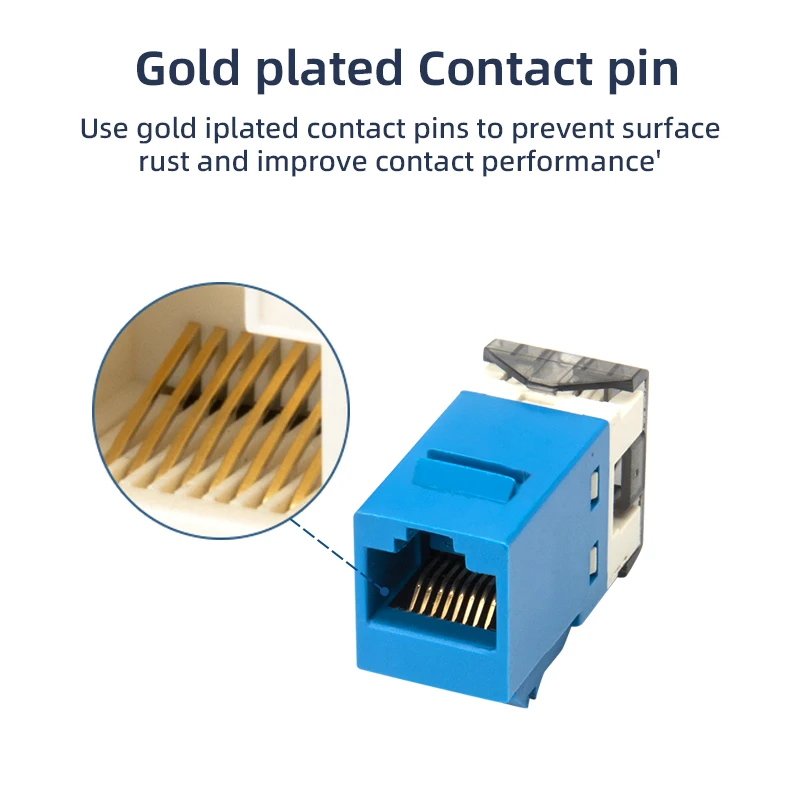

Phosphor bronze with nickel plated , connector pins with golden plated 3μ

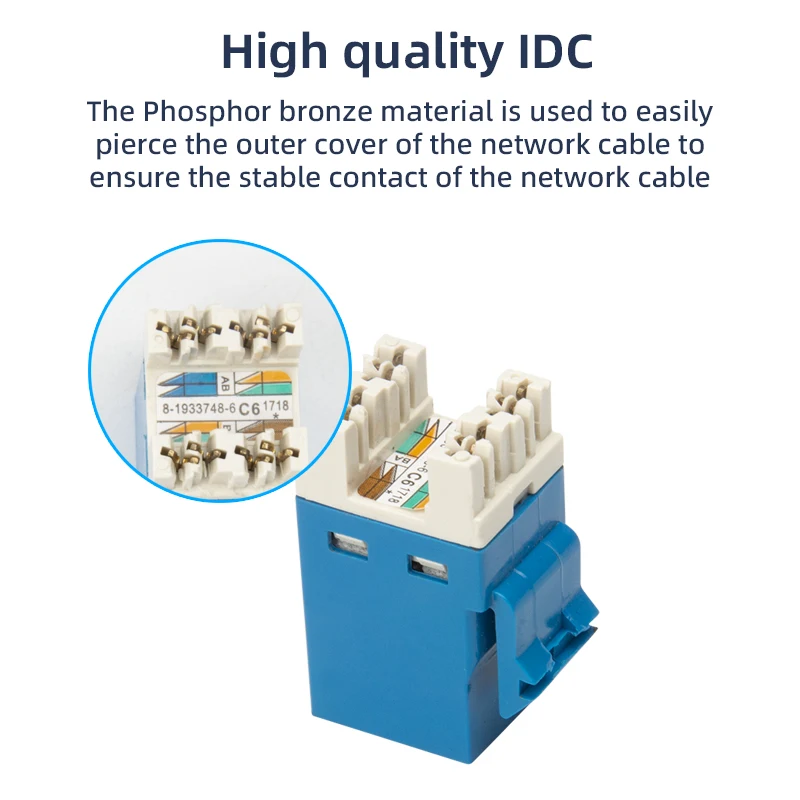

IDC clip: Tinned phosphor bronze pins with nickel plated, fitting for 22-26AWG cables
Inserting Duration: ≥750 times
Punching Duration: ≥250 times
Jack housing plastic part: UL 94V-2,RED,YELLOW,BLUE,GREEN,BLACK and other colors available

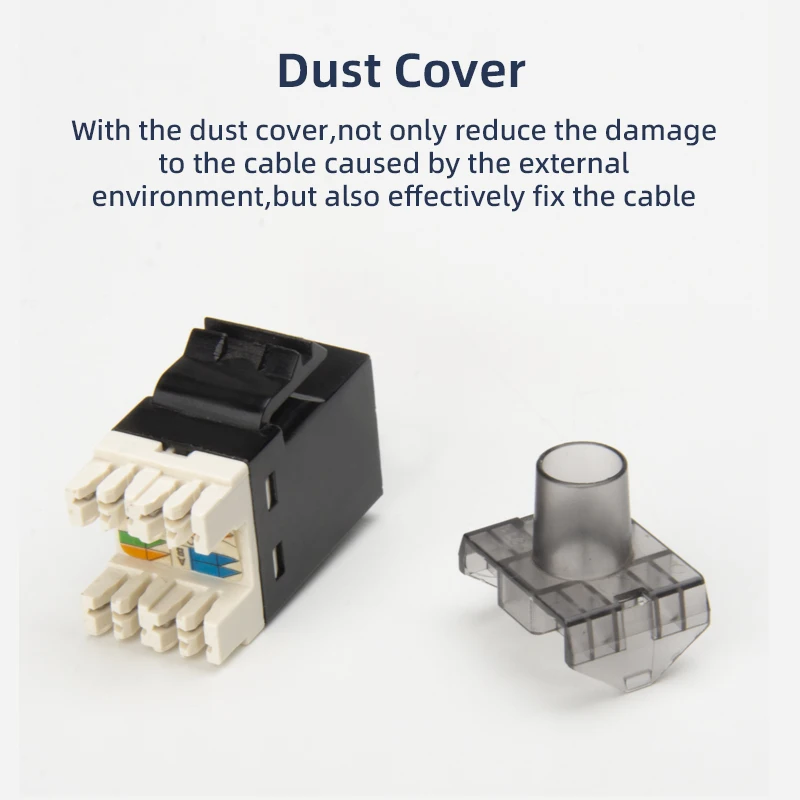

Termination caps material UL94V -2
Working temperature: -25℃~60℃

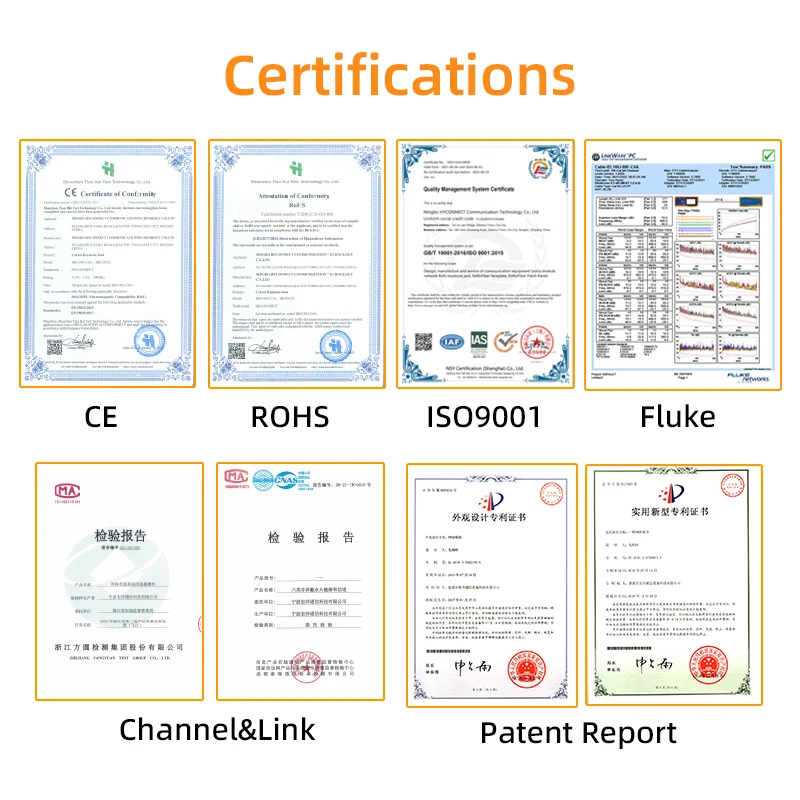

4. Standards
ISO/IEC11801
TIA/EIA-568B.2-1;
EN50173;
5. Application
Structured cabling transmitting data ,voice, video
Applied for Cat.6and E Classes
Suitable for working area, central room, managing room, equipment room and subsystem applications
Material of plastic parts: PC UL94V-0
Standard 110 and LSA dual use punching tool make operation more convenient
According to the standard of ISO/IEC 11801 & TIA/EIA 568-B.2 Cat.6
IDC clips: Tinned phosphor bronze nickel plated with dependability 250 times
2. Electrical Characteristics
DC Resistance: ≤300mΩ
Contact Resistance: ≤20mΩ
Dielectric strength: 1000V(AC750V)1min no break down and flashover
Insulation Resistance: ≥1000MΩ
3. Physical Characteristics
Phosphor bronze with nickel plated , connector pins with golden plated 3μ
IDC clip: Tinned phosphor bronze pins with nickel plated, fitting for 22-26AWG cables
Inserting Duration: ≥750 times
Punching Duration: ≥250 times
Jack housing plastic part: UL 94V-2,RED,YELLOW,BLUE,GREEN,BLACK and other colors available
Termination caps material UL94V -2
Working temperature: -25℃~60℃
4. Standards
ISO/IEC11801
TIA/EIA-568B.2-1;
EN50173;
5. Application
Structured cabling transmitting data ,voice, video
Applied for Cat.6and E Classes
Suitable for working area, central room, managing room, equipment room and subsystem applications
FAQ
Q.1: Are you manufactory or trading company?
We are the manufactory specialize in structured cabling network products and accessories. Our factory had been verified by ISO9001:2005, and we are AAA grade credit enterprise.
Q.2: Can we pay the visit to your factory?
Welcome to our factory, we will confirm the schedule with clients, and arrange pick up service and accompany with you during the whole visit
Q.3: How long to get the samples? How to pay sample and freight charge?
Welcome to our factory, we will confirm the schedule with clients, and arrange pick up service and accompany with you during the whole visit
Q.4: How to assure of your quality control
Firstly, all the raw material by IQC before production process; Secondly, during production by IPQC; Thirdly, QC check before packing; Finally, full inspection before shipment.
Q.5: Can we have our logo or company name to be printed on the product or packing?
Firstly, all the raw material by IQC before production process; Secondly, during production by IPQC; Thirdly, QC check before packing; Finally, full inspection before shipment.
Q.6: How to make orders?
Please send your P.O to us by Email, we will make Proforma invoice under your request. After get your confirmation for the PI, we will reply the lead time and arrange production accordingly.
Q.7: What's your shipment suggest?
We suggest small or trial order by Air, or courier like DHL, FedEx, UPS, etc. For large order, we suggest by Sea, if you have own forwarder, you can send the contact information, if you need us to quote freight, we can check the best price for you.
Q.8: What's lead time for shipment? Do you have stock?
Normally we have stock for hot items. We will quote the delivery time based on your quantity.7-15days for regular orders.
