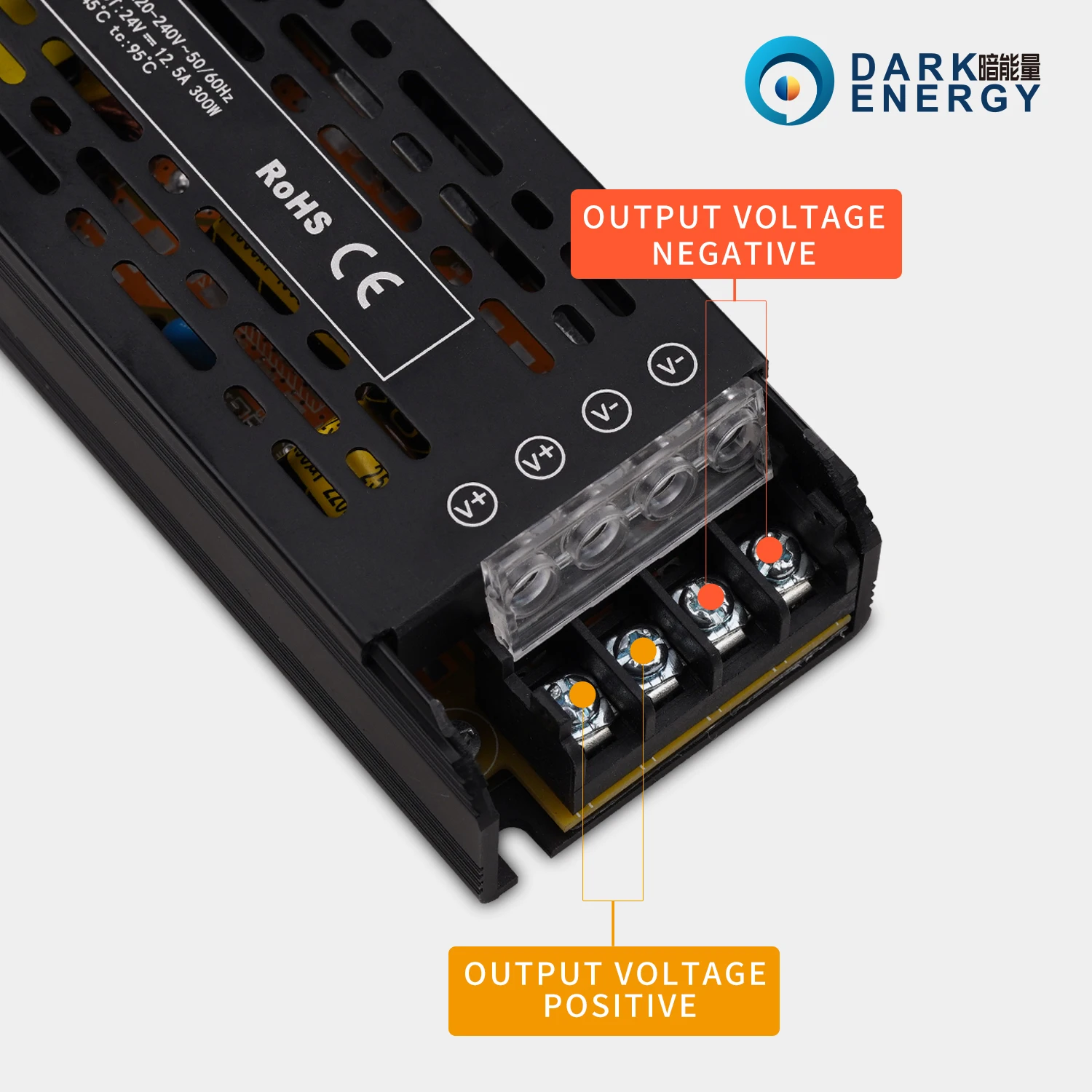

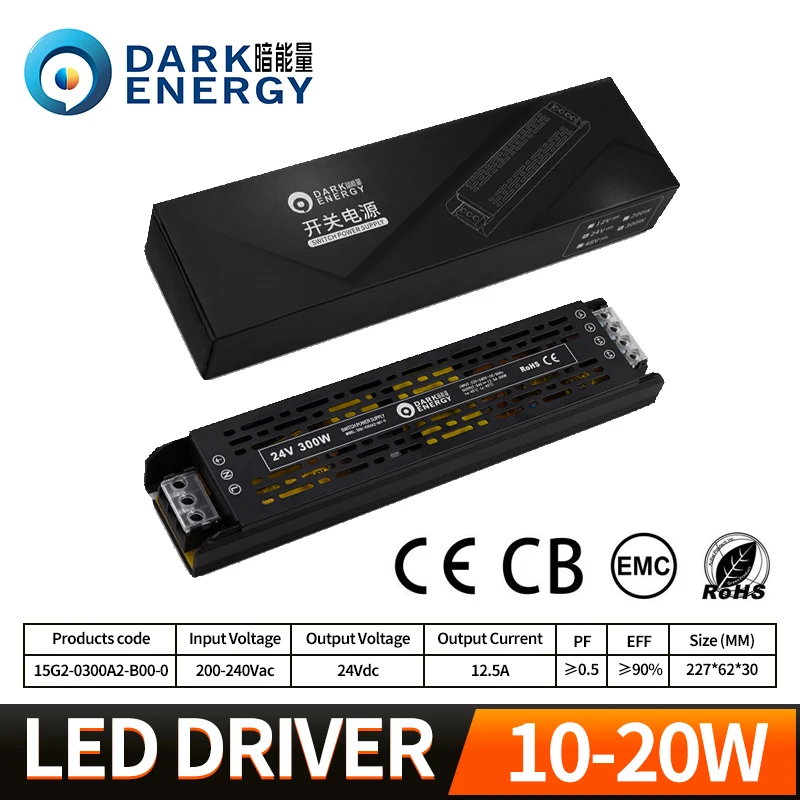

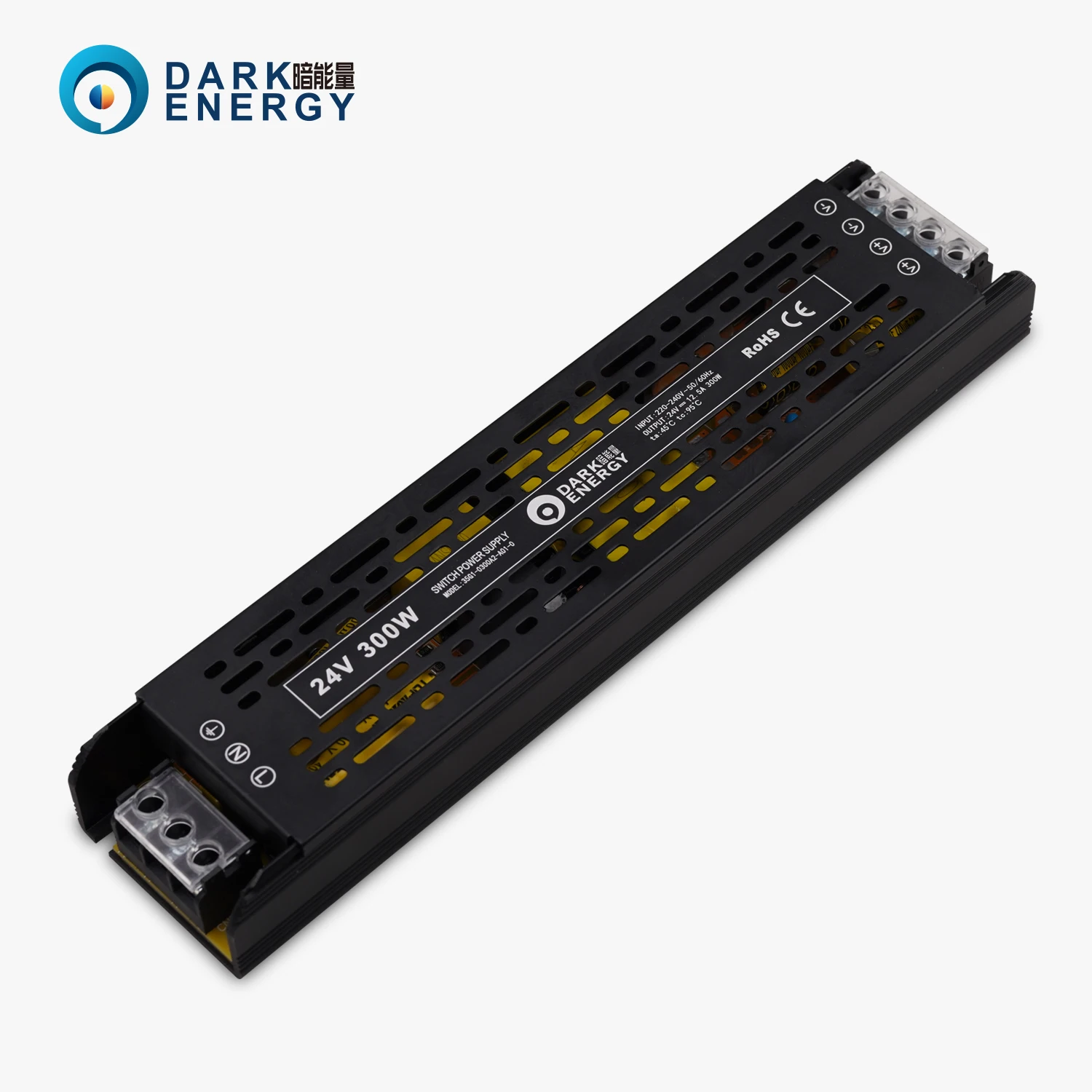

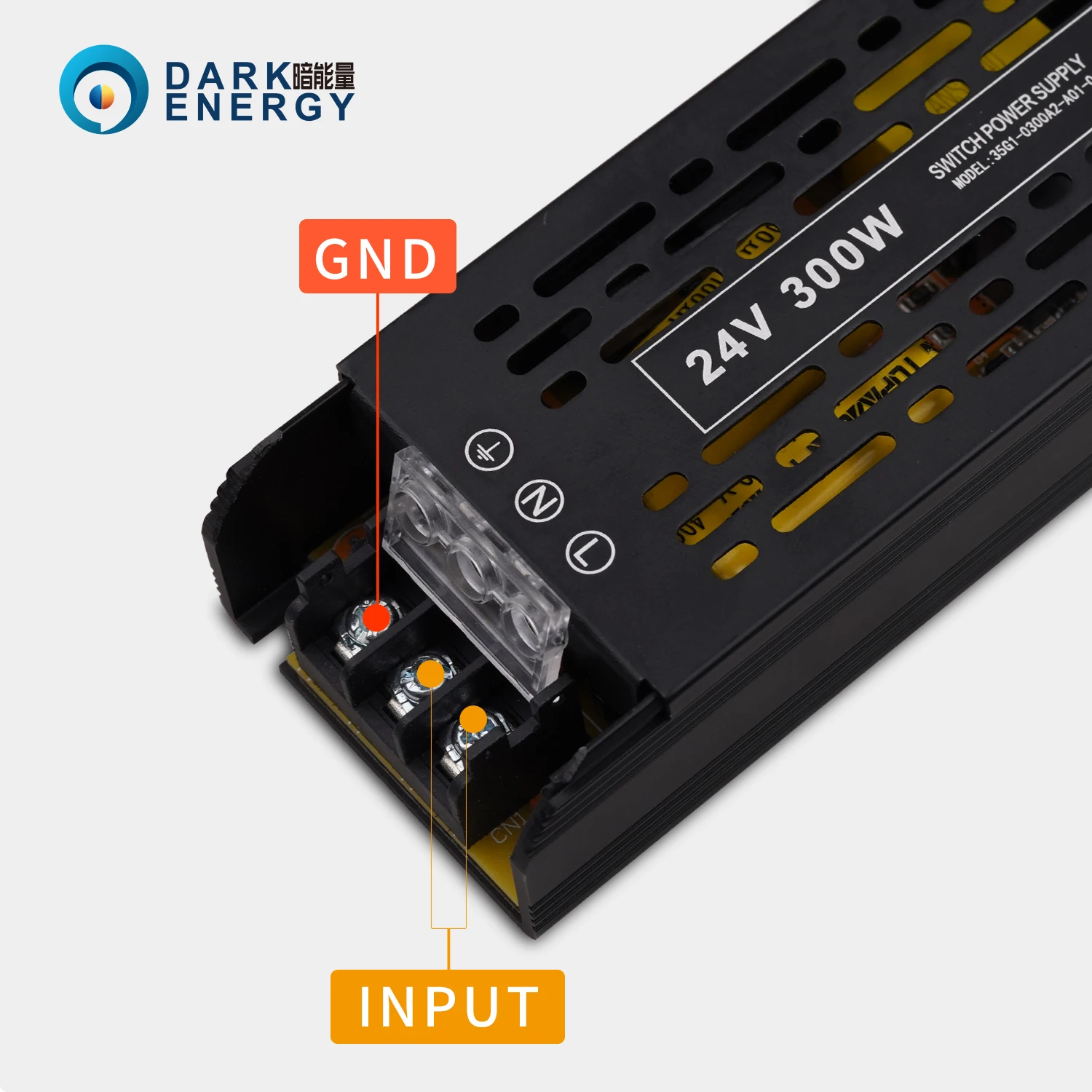

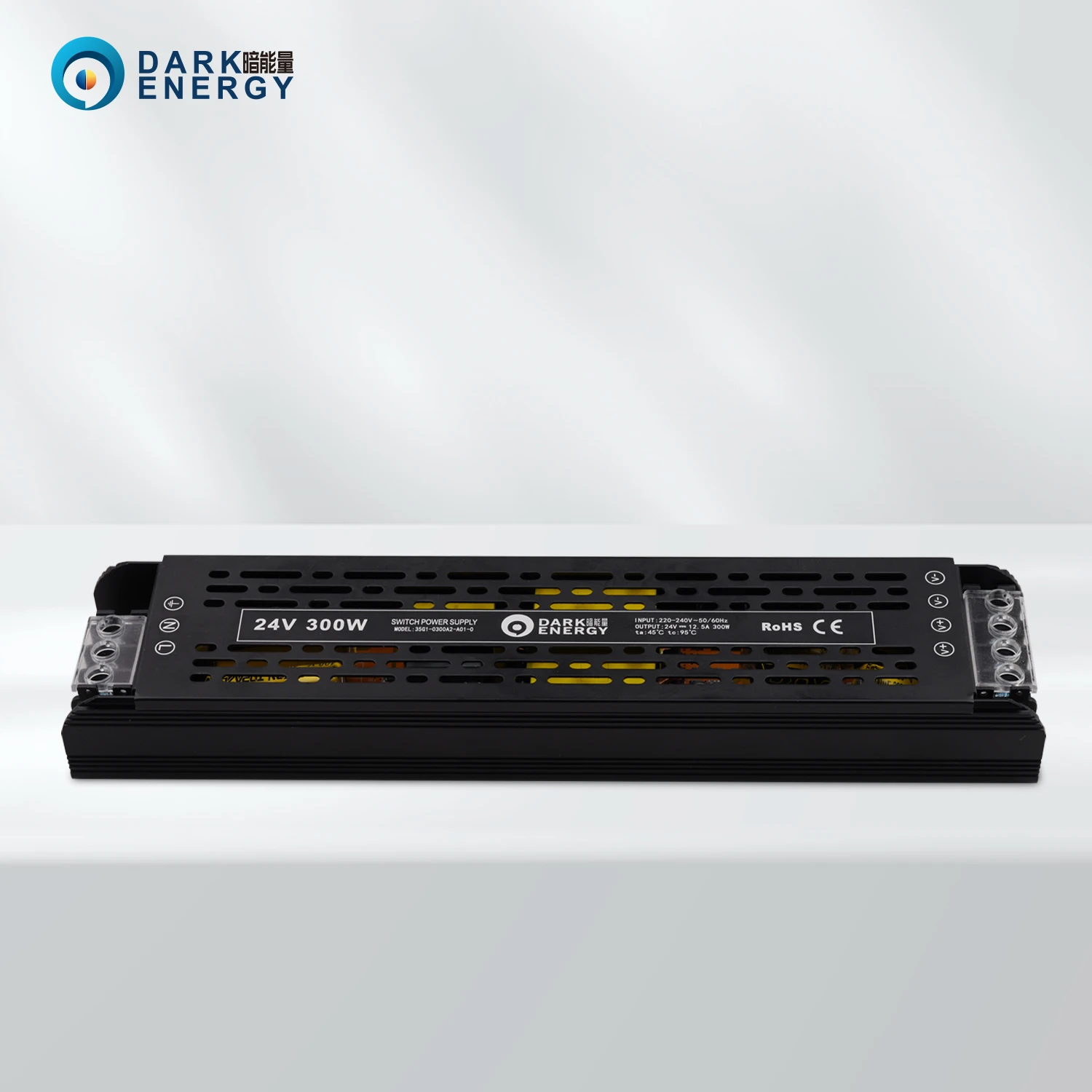

  • Dark Energy constant voltage 200W 300W Constant Voltage LED driver power supply 24V 36V 48V
Dark Energy constant voltage 200W 300W Constant Voltage LED driver power supply 24V 36V 48V
Dark Energy constant voltage 200W 300W Constant Voltage LED driver power supply 24V 36V 48V
Dark Energy constant voltage 200W 300W Constant Voltage LED driver power supply 24V 36V 48V
Dark Energy constant voltage 200W 300W Constant Voltage LED driver power supply 24V 36V 48V
Dark Energy constant voltage 200W 300W Constant Voltage LED driver power supply 24V 36V 48V
Dark Energy constant voltage 200W 300W Constant Voltage LED driver power supply 24V 36V 48V
Dark Energy constant voltage 200W 300W Constant Voltage LED driver power supply 24V 36V 48V

Dark Energy constant voltage 200W 300W Constant Voltage LED driver power supply 24V 36V 48V

Share on (1600928223430):


Price:$13.00 - $16.30

Quantity:


Product Overview

Description











Products Description




Dark Energy Ul led driver Power Supply Constant Current 300W 12v 24v 36v 48v 54v waterproof Switching power supply





Input Characteristics
Input Voltage Range
220-240VAC
Current Max
3.1A Max
Power Factor
≥0.45/230Vac Full Load
Efficiency
≥89%/230Vac Full Load
THD
/


Output Characteristics
Rated DC Voltage
24VDC
No-load voltage
24V±1.5V
Rated Current
≤12.5A
Rated Power
300W
Start-up Delay Time
<1S


Protection
Short Circuit
YES
Open Circuit
YES
Surge Voltage Protection
2000V

Environment
Working Tem
-15℃~+30℃
Working Humidity
20-90%RH

Safety
Insulation Resistance
≥5.0MΩ
Voltage Resistance Test
I/P-O/P:3.75KVAC

Standard
EMC
EN55015/GB17743CDN
EMI
EN61000-4-2,3,4,5,6,8,11;EN61547
