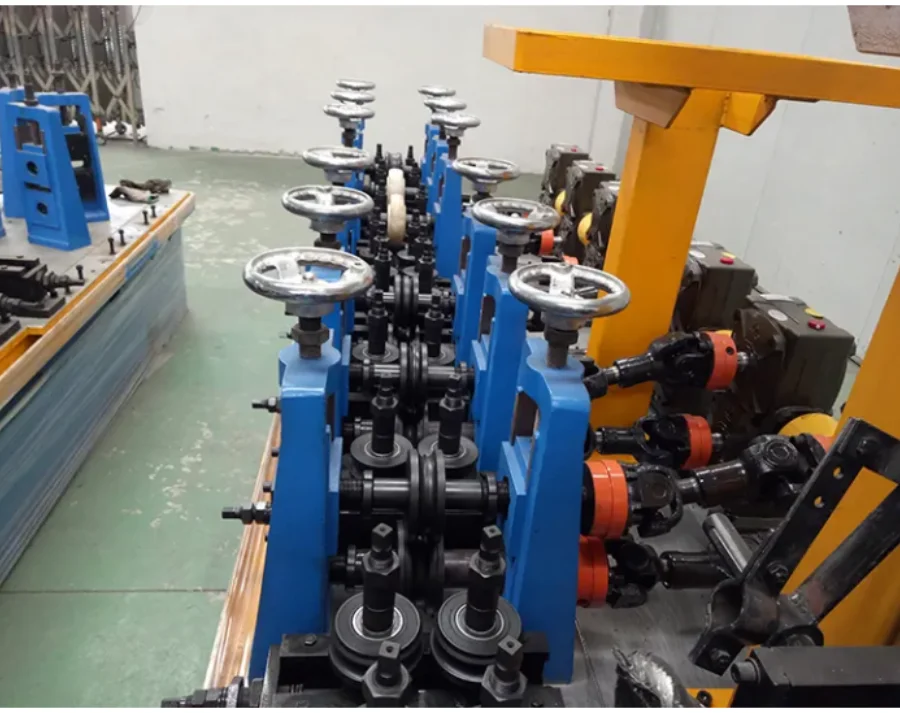

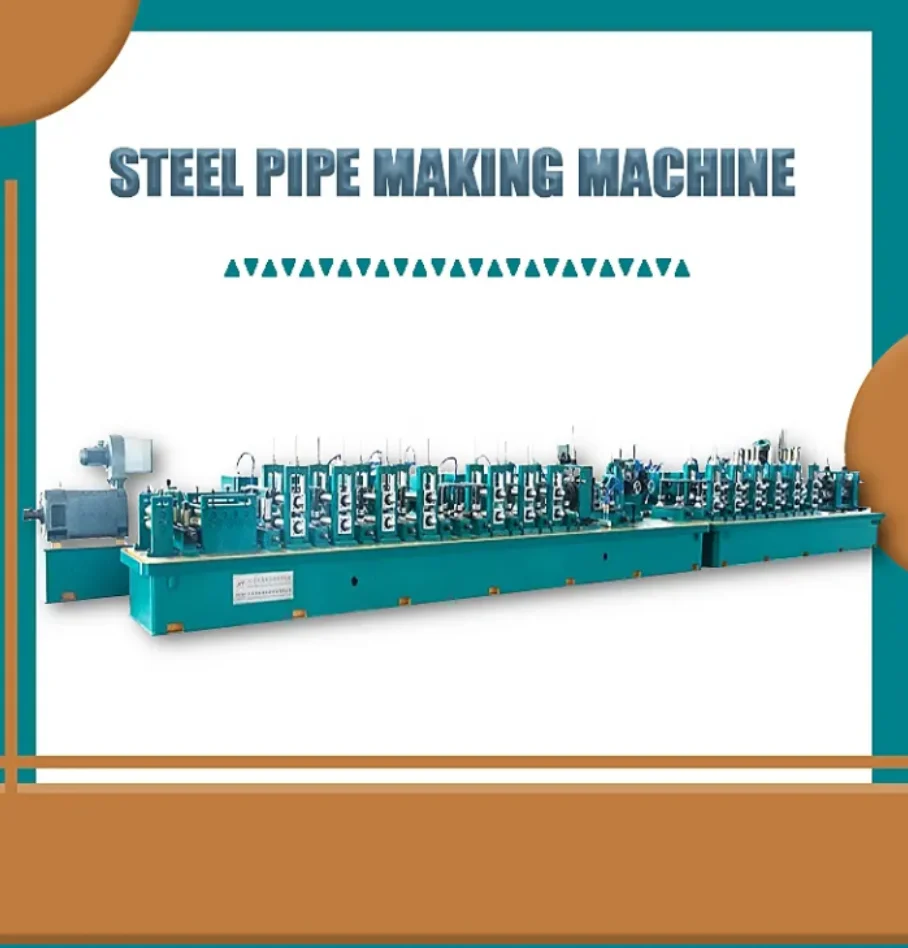

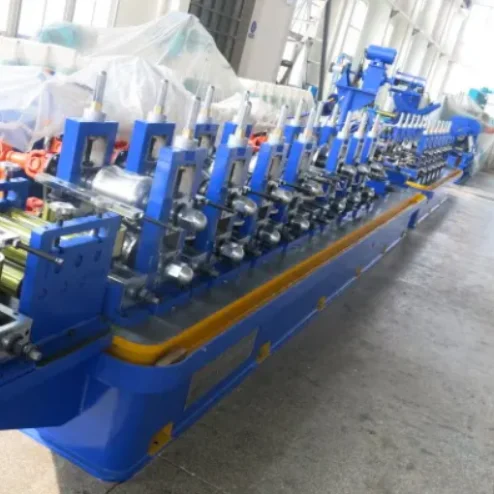

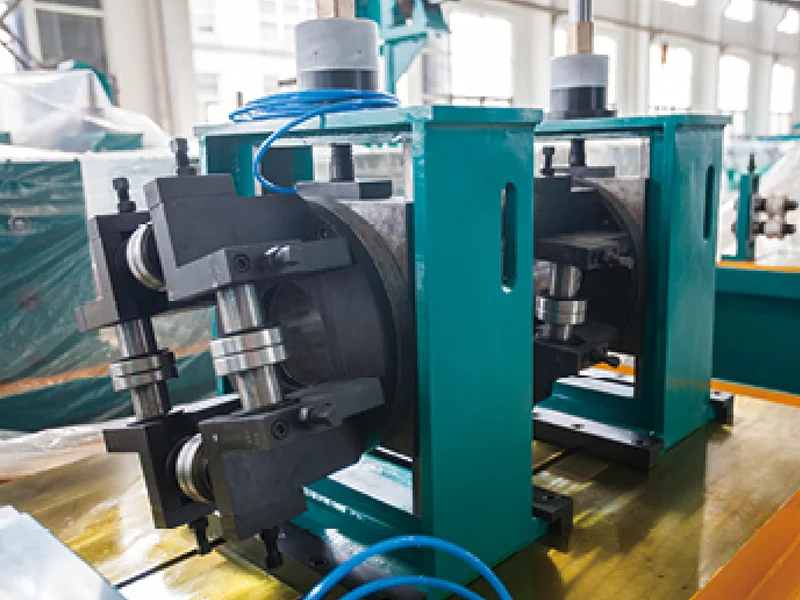

Automatic Stainless Steel Metal Pipe Production Line Making Machine
Automatic Stainless Steel Metal Pipe Production Line Making Machine
Automatic Stainless Steel Metal Pipe Production Line Making Machine
Automatic Stainless Steel Metal Pipe Production Line Making Machine
Automatic Stainless Steel Metal Pipe Production Line Making Machine
Automatic Stainless Steel Metal Pipe Production Line Making Machine
Automatic Stainless Steel Metal Pipe Production Line Making Machine

Automatic Stainless Steel Metal Pipe Production Line Making Machine

Share on (1600928265046):


Price:$44,800.00-56,000.00

Quantity:


Product Overview

Description



Recommend Products




Product Description




Description

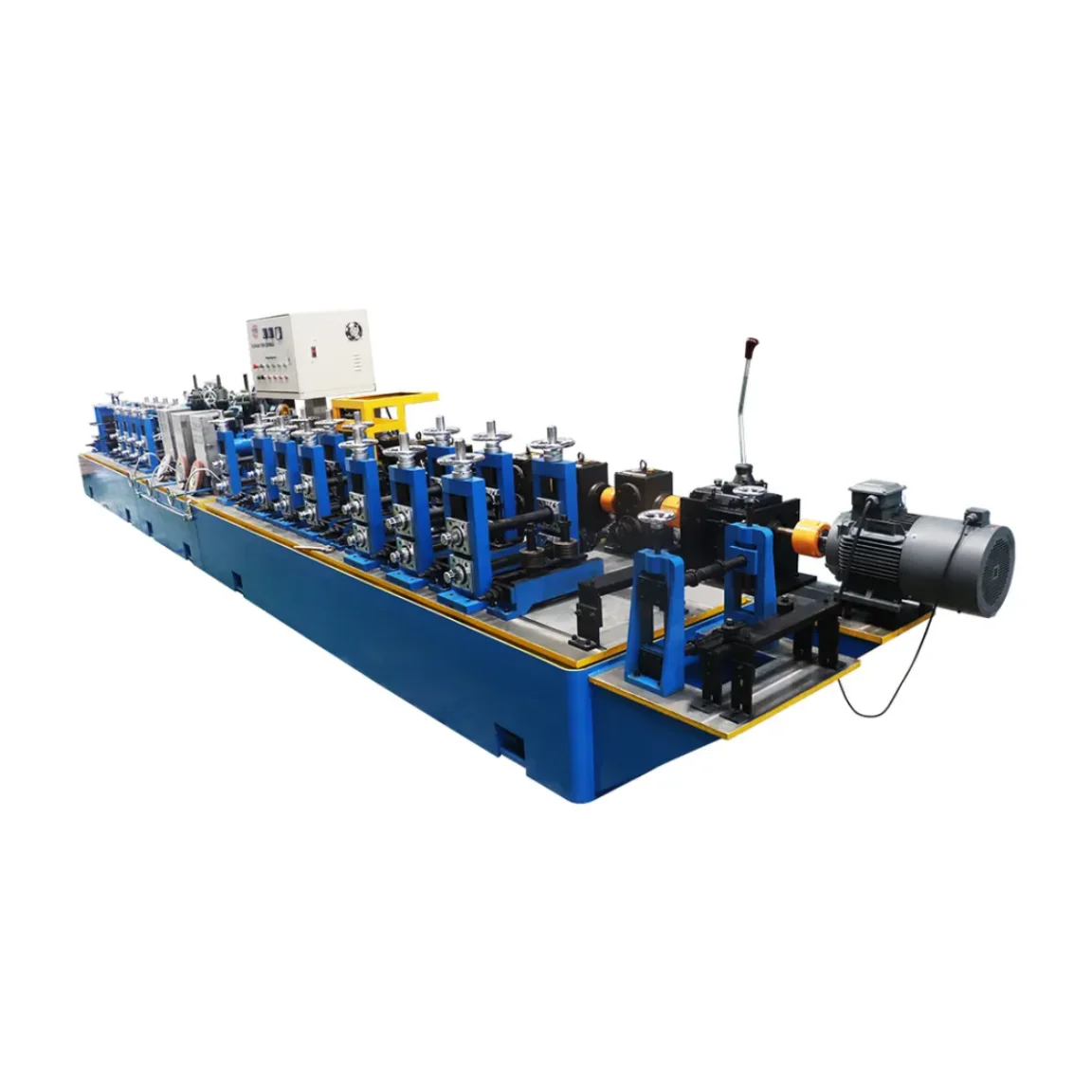

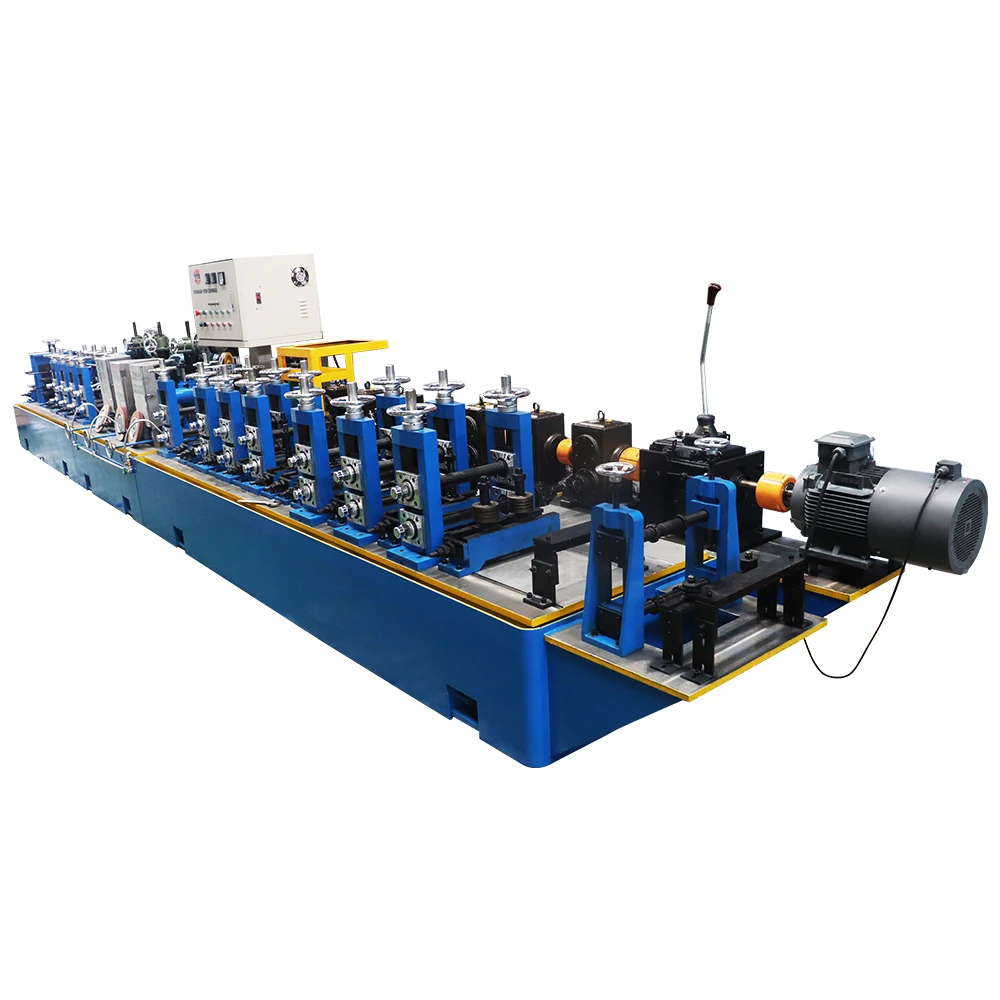

This equipment is specially used for producing Φ15-Φ63.5mm, 0.8-2.5mm high-frequency straight seam welded tube and corresponding
square tube and special-shaped tube (δ≤2.0mm). The composition of equipment is from uncoiler to fixed length cutting saw. Rolling speed can be adjusted correspondingly within suitable range of tube diameter and wall thickness.


Applicable material:
(1) Hot or cold-rolled steel strip (As per GB700-88)
(2) Material: Low-carbon steel, low alloy steel, galvanized steel strip
(3) The thickness of steel strip: 0.8-2.5mm (As per GB708-88)
(4) The width of steel strip: 50-200mm
(5) I.D. of steel coil: Φ450-Φ550mm
(6) O.D. of steel coil: Φ800-Φ1200mm
(7) Maximum weight coil: 2500kgs


Dimension range of processing steel tube:
(1) O.D.: Φ22-Φ76mm
(2) Square pipe size: 18x18~60x60mm
(3) rectangle pipe size:15x20~40x80mm
(4) Wall thickness: 1.0-3.0mm(square pipe and special-shaped pipeδ≤3.0mm)
(5) Length: 3.0-8m

Milling speed: 30-70M/min (choose different speed as per different pipe diameter and thickness)


Product (steel tube) process flow:
Raw material (steel coil) → uncoiling → shearing and end welding → material accumulating → non-power leveling → mill-forming →high-frequency welding → removing burrs outside of weld seam → cooling → sizing → roughly straightening → fixed length cutting →finishing tube






Specification


item
value
Color
Customer's Demand
Name
Pipe Making Machine
Usage
making pipe
type
ZG76
diameter of welded tubes
25-80mm
wall thickness of welded tube
1.5-4mm
speed of tube welding
15-60M/min
power of major motor
160kw
high frequency power
300kw
Material
Stainess Steel


Company Profile

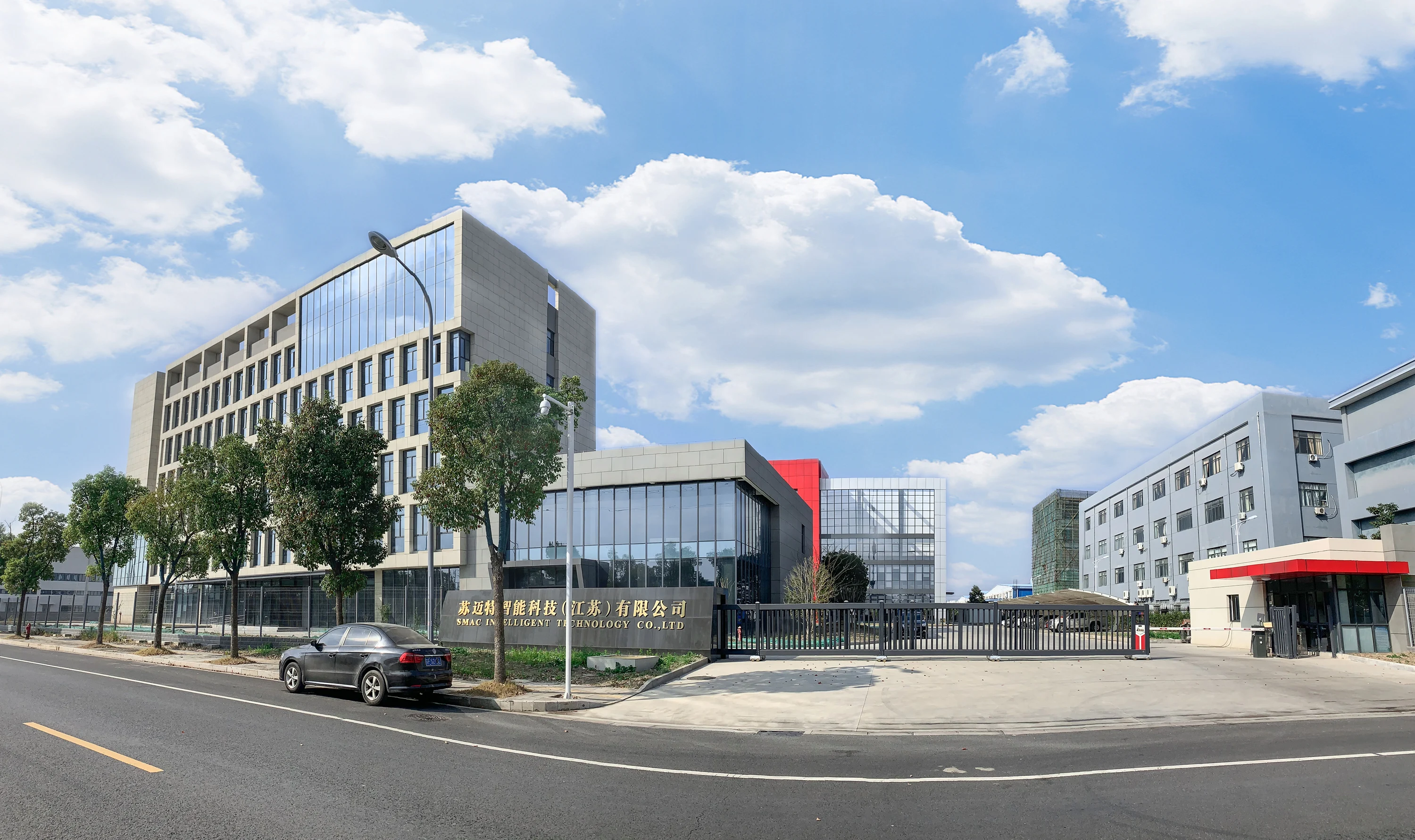

SJR Machinery Co., Ltd. , was founded in 1984, which is the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. Our company specializes in the manufacture and import/export of brand new industrial machinery and tools. We are capable of producing more than 80 types of machines.Sincerely welcoming you to contact us for more information, we look forward to becoming your supplier in the near future.

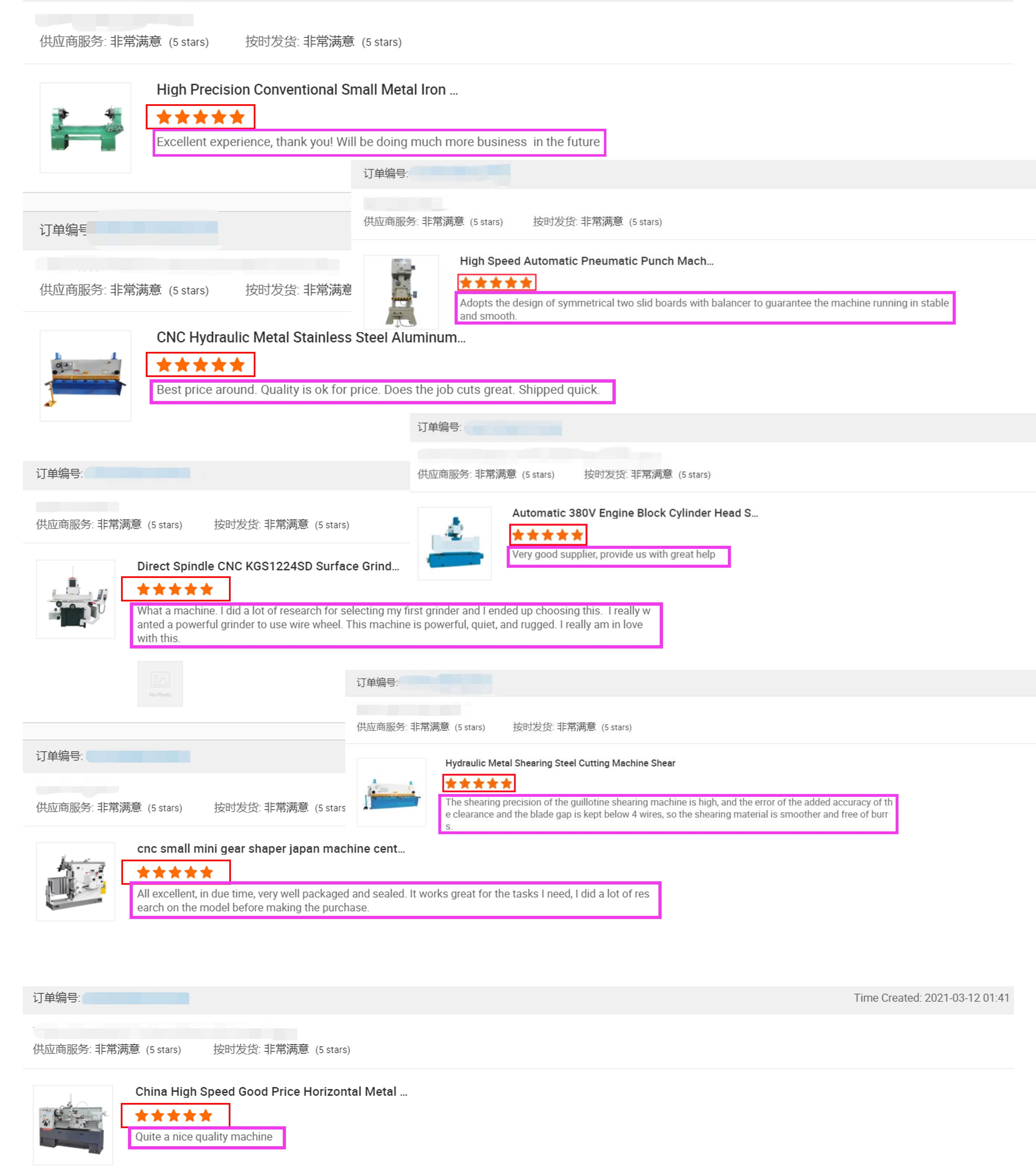

Order Evaluation




Exhibition




Customer Photos




Certifications




FAQ


1. How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2. What is your payment terms ?
A: 30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation.

3: Where is our factory located? How can I visit there?
A : Our factory is located in No. 52 Linyin Road, Economic and Technological Development Zone, Nantong City, Jiangsu Province ,226001 China. You are warmly welcomed to visit us.

4. What is your delivery time ?
The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.

5. Can you send the service engineer to our company ?
We have engineers stationed in Canada, Egypt, and Algeria. The after-sales service system is very perfect.
