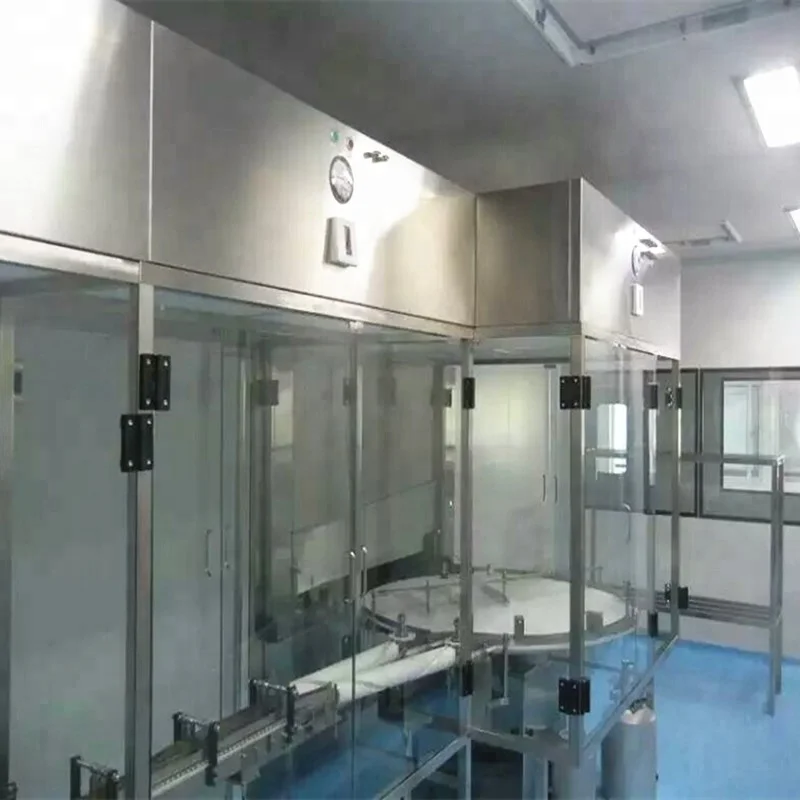

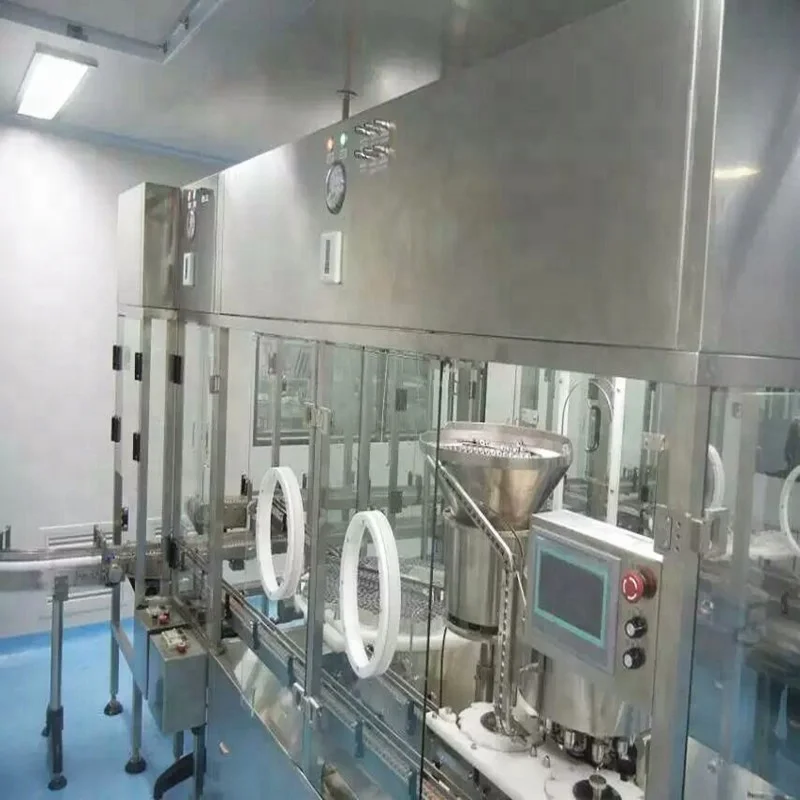

Laminar flow hood is a kind of air purification equipment that can provide partial high cleanliness.
lt is uses a fan and a high-efficiency filter to purify the dust particles in the airflow,and evenly transports the clean airflow to the coverage area of the laminar flow hood after passing through the air flow equal mesh ,thereby improving the cleanliness of the area and protecting the area The production operating environment and material safety of the area are protected

Features
1.It adopts modular design which is convenient for transportation and installation, and can meet different site layout requirements
2.Adopt special fan for laminar flow hood, high stability and low noise
3.The double layer structure reduces the vibration noise of the fan, and the appearances simple and beautiful
4.Equipped with PAO testing port it is convenient to verify the installation reliability after replacing the filter. At the same time, a differential pressure gauge is configured to monitor the use of high efficiency filters in real time.
5.According to the different installation requirements of the site, the side indoor return air the top indoor return air the side
takeover return at the top take over return air and other structures can be selected
6.Different installation methods such as suspension mounting and bracket mounting can be used.

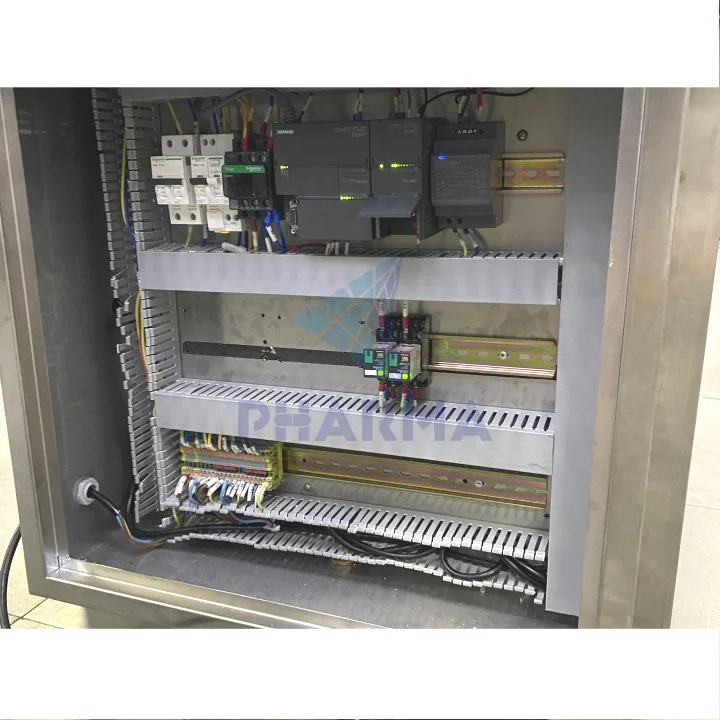

7.According to different installation heights, the C control panel and the laminar flow hood can be installed Integrated,or an independent control box can be installed to a suitable height on the wall








Specification


Basic Requirement
Laminar Air Flow should be Ceiling Mounted with 99.999%
HEPA Filter (0.3 micron) efficiency according to GMP to avoid
particulate & microbial contamination during filling process. It
should comply DOP test and air velocity criteria .
Dimensions
Customized
Type
Ceiling/Floor Mounted
MOC
SS304
Noise Level
60 to 65 db from 1 meter distance
Blower Assembly
Statically & Dynamically balanced with suitable rating & size
Air Velocity
0.45 +/- 20% m/sec under HEPA Filter
DOP Port
DOP/PAO port should be provided
Class
Class-100
PVC Curtain
Three side pvc curtain,one side open, curtain length 1850 mm
down from the LAF
Air Flow Pattern
Vertical down flow
Documentation
Operation & Maintenance manual should be provided.
Drawing of the equipment showing front elevation, side
elevation & plan view should be provided. IQ and OQ dully
prepared and supplied.


Packing & Delivery
