5 Axis Processing of Wood, non Ferrous Metals, Composite Materials 3D Mold 4 Axis CNC Machine
- Category: >>>
- Supplier: Jinan Mingpu CNC Equipment Co. Ltd.
Share on (1600928287515):
Product Overview
Description

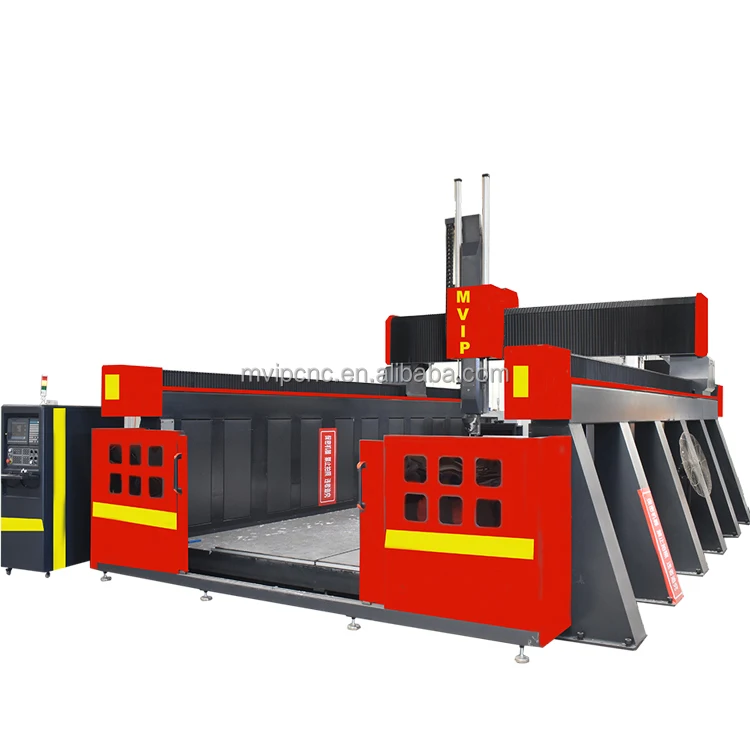

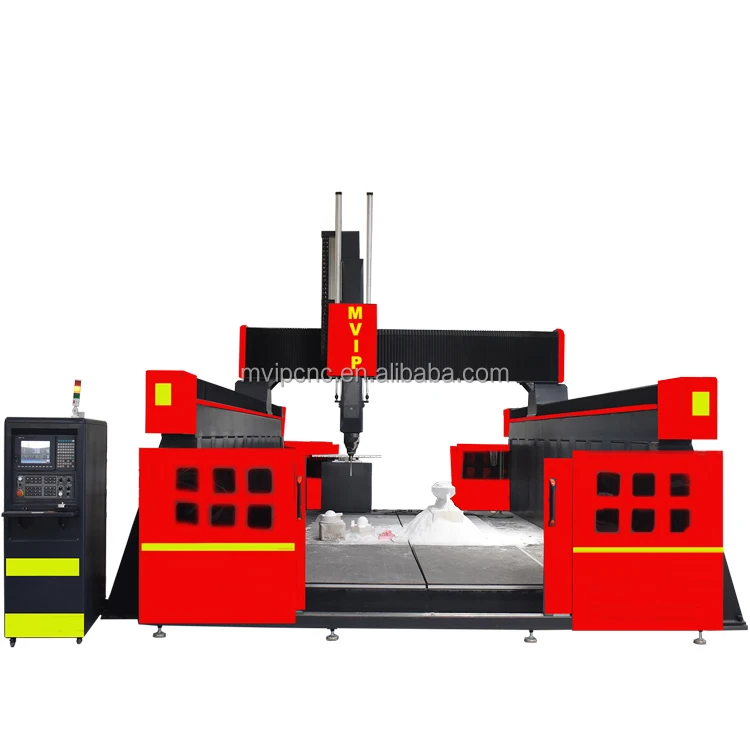

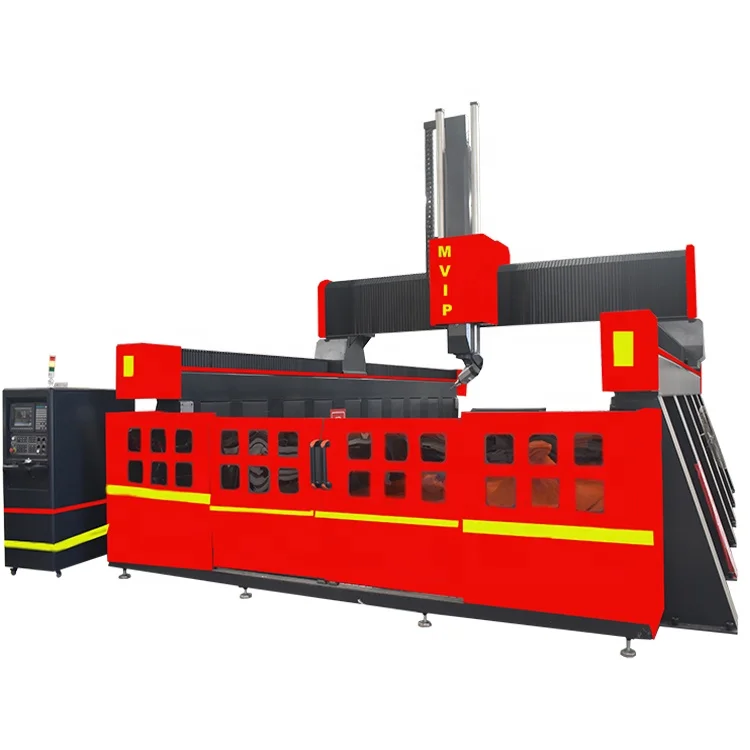

5-Axis Processing of Wood, non-Ferrous Metals, Composite Materials 3D Mold 4 Axis CNC Machine
Product Description
1. Large 5 axis cnc router machine working size : X axis 4000mm, Y axis 8000mm, Z axis 2000mm B axis 120 degrees C axis 220 degrees
2. The spindle power is 15-17kw, 24000rpm , HSK63F models for working on wood , styrofoam etc and some light metal
3. Guide rails are high precision 45mm from Taiwan HIWIN --good quality and good accuracy during working
4. 5 Axis cnc milling machine is taken with 3KW servo motors on X Y Z axis . Japan Yaskawa servo motors and motor reducer .
5. Control system are Taiwan Syntec with RTCP function ( five-axis compensation-Rotation tool center point feature for high precision processing on surface )
6. Strong machine frame steel welding 24mm thickness . Whole machine weight 23000-25000 kgs
7. Front and back door for the machine . It is optional
8. Travel speed 40-45m/min. working speed is 15-20m/min
9. Professional engineers in MVIPCNC check the machine carefully and test the machine more than 48 hours .
10. All machine manual is ready for using machine.

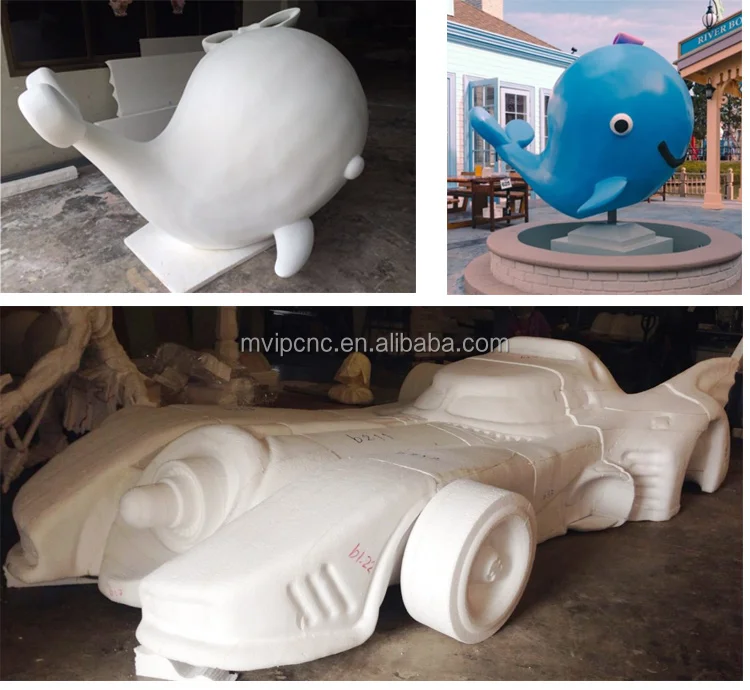

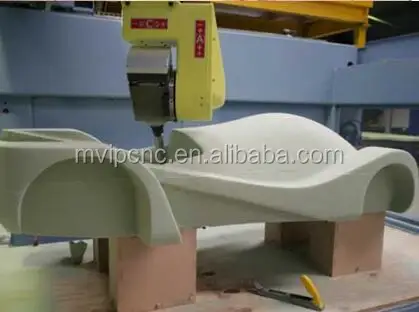

Styrofoam 5 axis carving --car mould

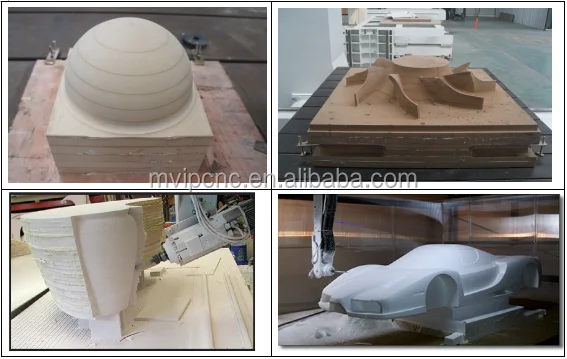

Wood 5 axis working --3D car mould

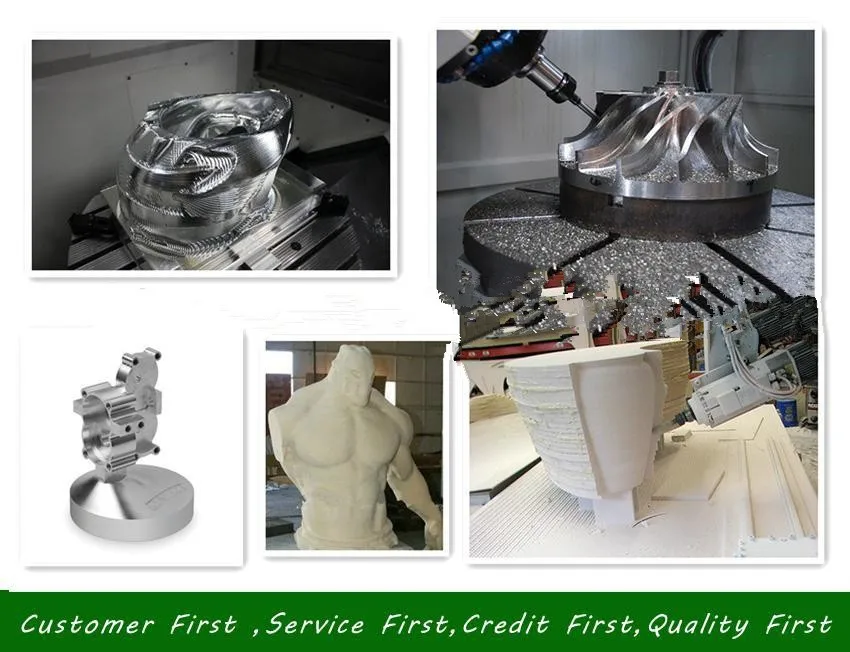

Aluminum 5 axis engraving-car mould
Parameter of the machine
Item | Specification | Parameter |
Working Size | X axis working | 3000mm/4000mm |
Y axis working | 6000mm/8000mm | |
Z axis working | 1500mm/2000mm | |
B axis | 120 | |
C axis | 220 | |
Spindle | Power | 15-17kw |
Speed | 24000rpm | |
Cooling | water | |
Tool holder | HSK63F | |
Tool magazine | 12 tools | |
Travel Speed | X axis | 45m/min |
Y axis | 45m/min | |
Z axis | 25m/min | |
B axis | 4000°/min | |
C axis | 4000°/min | |
Positioning Precision | Positioning precision | 0.05mm/300mm |
Re- positioning precision | 0.05mm/300mm | |
Servo Motor | X axis | 3kw |
Y axis | 3kw | |
Z axis | 3kw | |
B axis | 750w | |
C axis | 750w |
Specification of the machine
Strong machine frame with steel 12mm thickness welded . High temperature tempering process, no deformation, high hardness. Improve the machining accuracy of the 5 axis cnc machine tools
Taiwan original HIWIN guide rails 45mm. Three sliders on each guide rails. Grinding grade balls, well sealed, wear-resistant, high precision
XY axis is installed with Dust-proof organ cloth. Good stretchability, pull resistance, no deformation. Front and rear double doors. Beautiful while reducing pollution

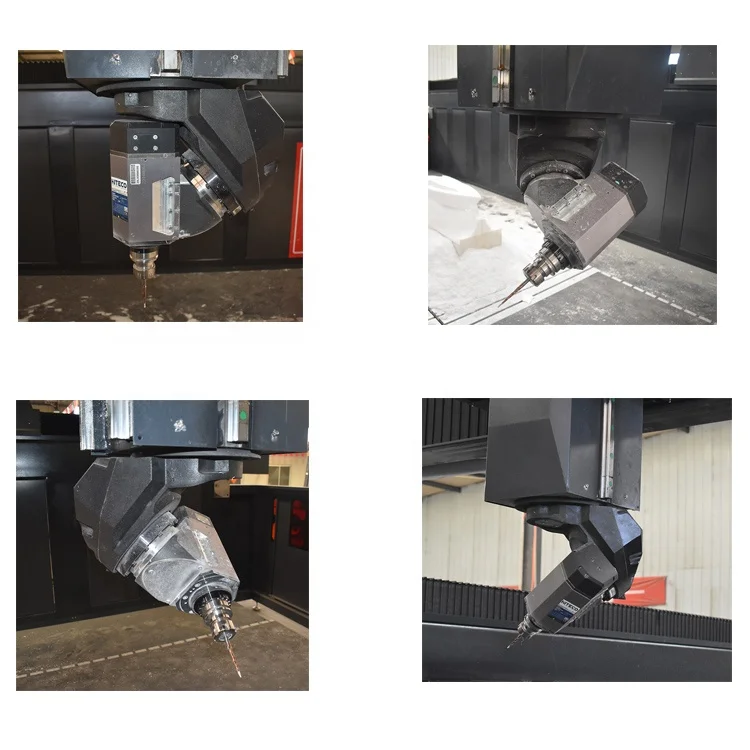

5 axis head with B axis and C axis. Spindle can +- 120 degrees in B axis and +-220 degrees in C axis. So the spindle tool can work in 5 sides of the material. UP side--Left side--Right side--Front side--back side .
Z axis is taken with Taiwan TBI grinding ball screw. diameter 50mm . High precision and stable moving in Z axis 1500-2000 mm.
Linear tool magazine in back side. It takes about 5-8 seconds to change the tool. 12 tools are arranged ready for changing automatically
Big power water chiller with max pump lift 25m. 2-3KW power cooling capacity for the spindle. It is included the machine spare parts
Scientific and reasonable line layout. Equipped with industrial air conditioners to dissipate heat and cool down in time. Extend the service life of various electrical components
X Y Z B C axis are all moved by JAPAN YASKAWA SERVO motors . 2.5-3.5KW big power. Bus Absolute Servo Motor
There is no need to return to the machine home position when starting up. Quick and easy to use.
5 Axis CNC Router Testing
Horizontal accuracy
Professional inspection stick. Check the horizontal accuracy of the machine by playing the meter
Vertical Accuracy
Vertical accuracy detection. Ensure the vertical accuracy of the machine tool is less than 0.05mm
RTCP
Five-axis compensation-Rotation tool center point feature for high precision processing on surface
Application of the machine
Widely used in woodworking carving, mold processing, trimming and milling of household appliances, intensive repair of bathroom bags, aviation, motor cars, wind power, RVs, yachts, wooden houses, handicrafts and other modeling processing.
Processing of new materials such as PVC, PP, PE, foam, EPS, glass fiber, carbon fiber, resin, rubber and plastic, wood substitute, and light metals such as copper and aluminum polymers.
Processing of new materials such as PVC, PP, PE, foam, EPS, glass fiber, carbon fiber, resin, rubber and plastic, wood substitute, and light metals such as copper and aluminum polymers.
1. Die industry: Any sculpture of aluminum, foam, plastic, PVC, wood, fiberglass and other soft-metallic materials;
2. Mold industry: Any type car mold, boat mold, foundry mold, aviation mold, dia mold, etc;
3. Plate processing industry: Insulation, aluminium,plastic and chemical, the PCB, move the car body, bowing, track, anti-special board, epoxy, resin, ABS, PP, PE, and other carbon mixture;
Packing & Delivery
Warranty
1. Whole machine one year warranty . Within warranty, we provide new parts free.
2. Exceed warranty period 1 year: if the cnc machine parts have any problem, we can offer new machine parts with cost price and your side should pay all the shipping cost.
3. Engineers available to serve and train overseas, but your side should pay all the expense. Free training at our factory.
4. Gantry, lathe bed, stand whole life warranty.
Service
1. Before order, professional sale advise you with right model machine and reasonable price after confirmed your working.
2. During order, service sale will send you all details of the machine every week. Confirm shipping date with customers in time.
3. After order, Technical support online. Experienced engineers will video with customers to help customers use the machine correctly and quickly find machine problems.
1. Whole machine one year warranty . Within warranty, we provide new parts free.
2. Exceed warranty period 1 year: if the cnc machine parts have any problem, we can offer new machine parts with cost price and your side should pay all the shipping cost.
3. Engineers available to serve and train overseas, but your side should pay all the expense. Free training at our factory.
4. Gantry, lathe bed, stand whole life warranty.
Service
1. Before order, professional sale advise you with right model machine and reasonable price after confirmed your working.
2. During order, service sale will send you all details of the machine every week. Confirm shipping date with customers in time.
3. After order, Technical support online. Experienced engineers will video with customers to help customers use the machine correctly and quickly find machine problems.
