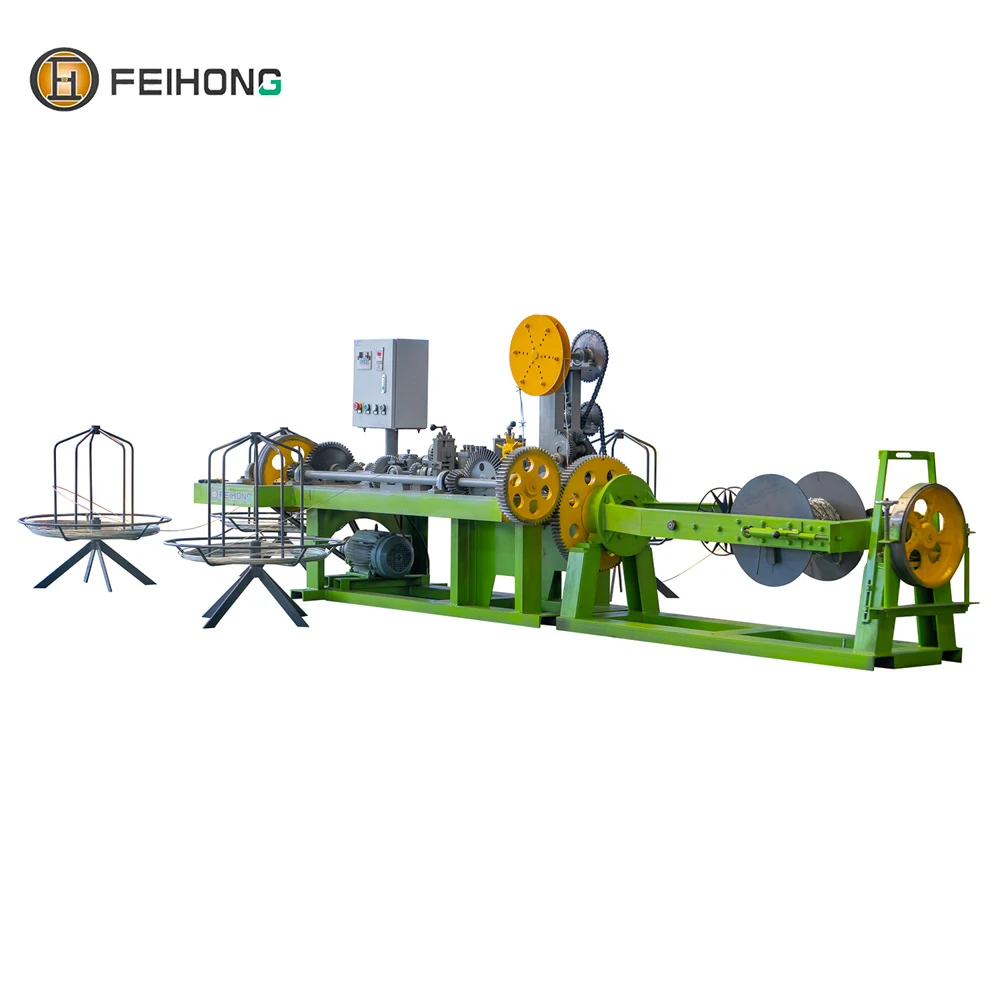

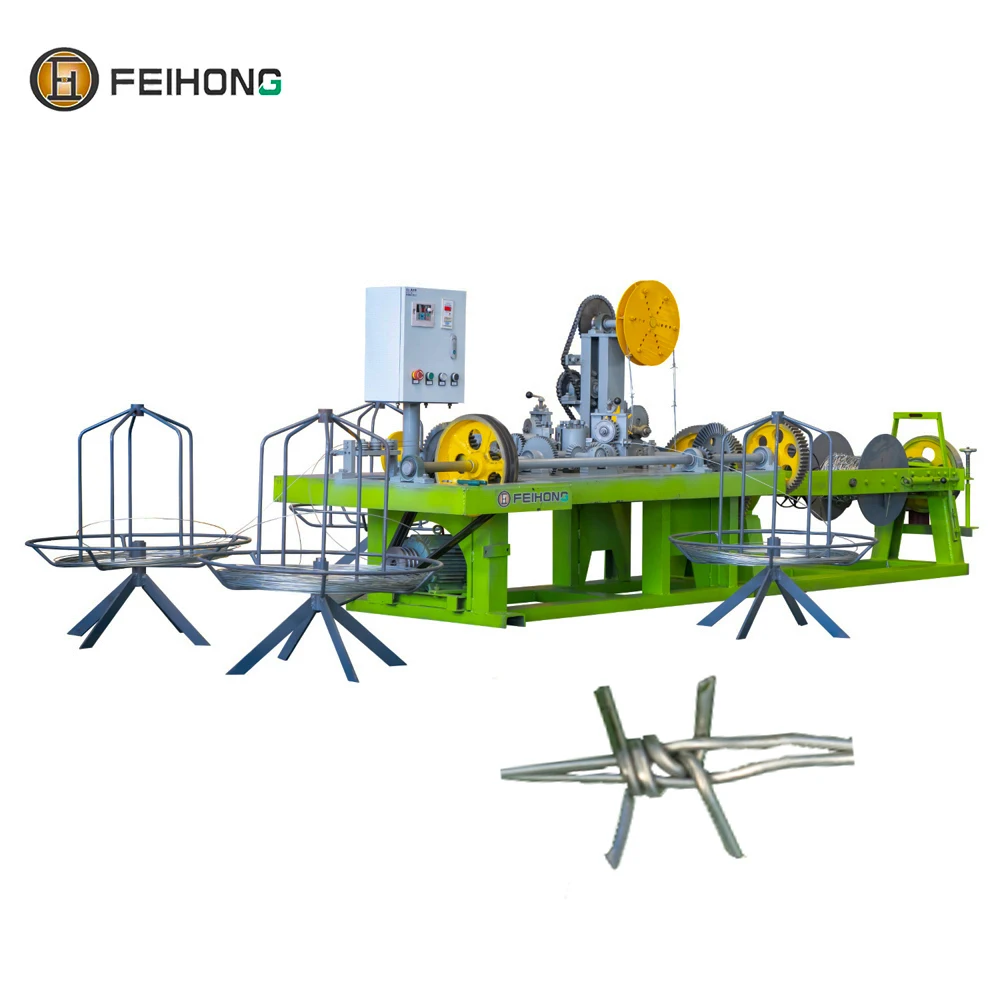

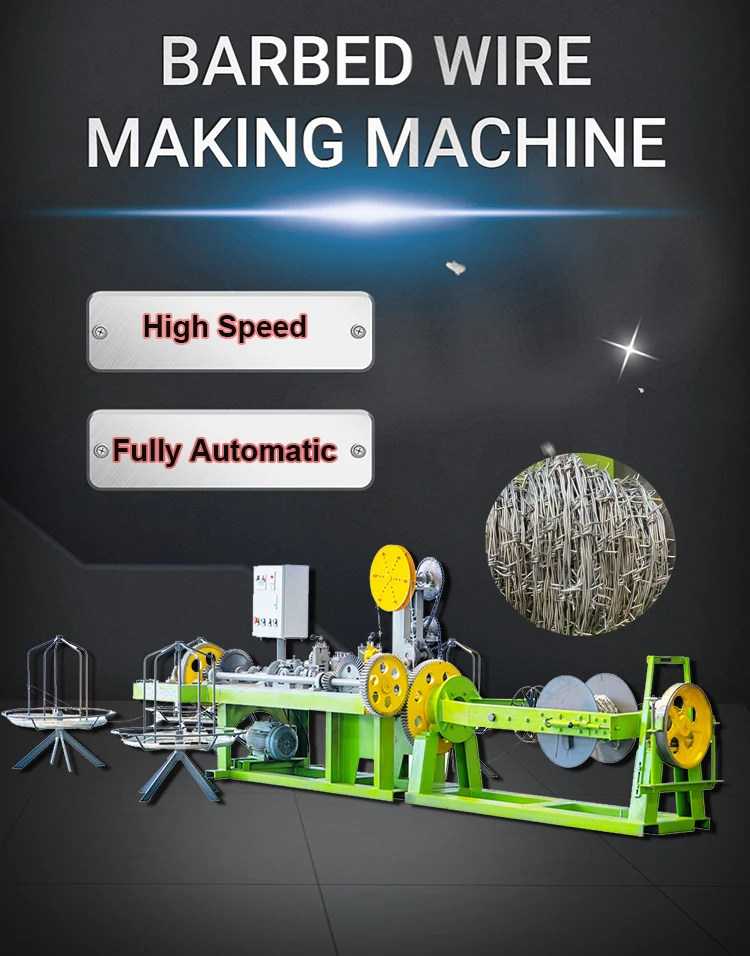

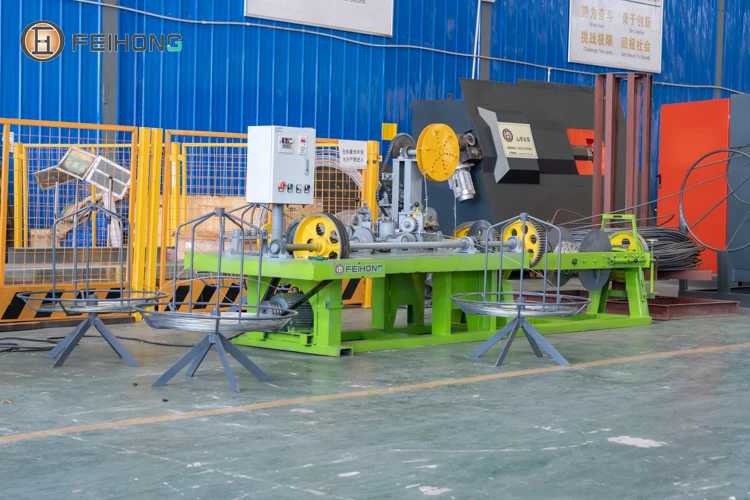

Best price steel wire barbed wire mesh making machine for building
- Category: >>>
- Supplier: Shandong Feihong Engineering Machinery Co. Ltd.
Share on (1600928306362):
Product Overview
Description
Product Description
FEATURES.

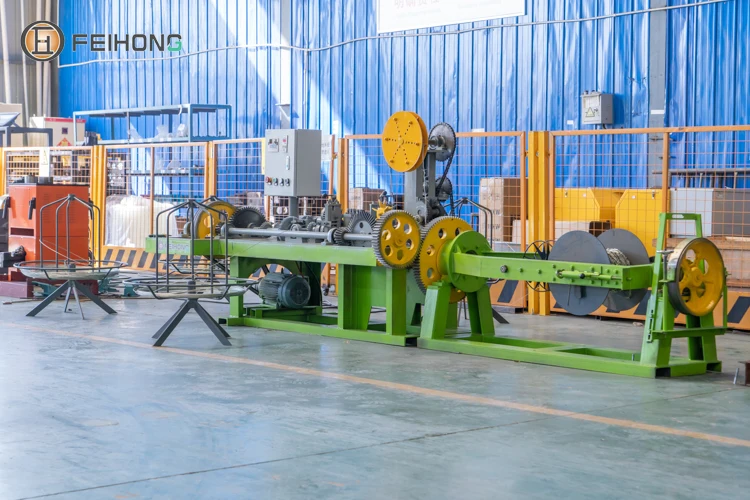

Barbed wire machine is composed of two parts: positive and negative twisting, winding and friction wire-drawing, and four

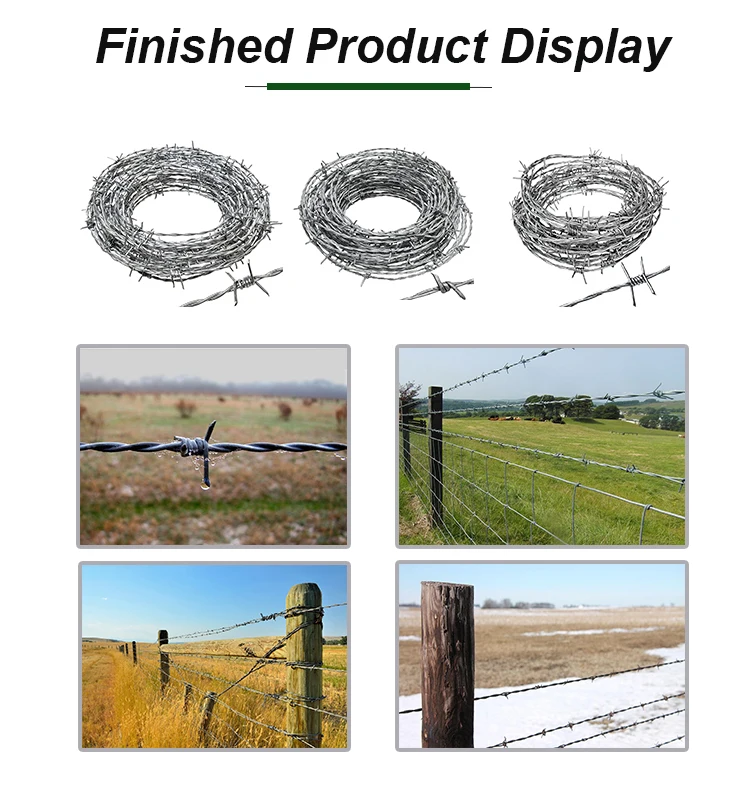

wire-drawing trays are matched. Barbed wire machine is used to produce barbed wire, which is widely used for playground fence,
animal husbandry,safety protection functions,national defense,agriculture,expressway, etc.
wire-drawing trays are matched. Barbed wire machine is used to produce barbed wire, which is widely used for playground fence,
animal husbandry,safety protection functions,national defense,agriculture,expressway, etc.
Machine Advantage
1.-Manually installation, Easy to set up;
2.-Steel cover on driving shaft for safety operation;
3.-Saving materials and high capacity;
4.-Counter to count the number of barbs and calculate length of barbed wire.
5.-Button switches and leveler to start and stop machine easily.
6.-Quick and easy roll extraction from the machine.
7.-Guiding system to avoid wire snarls.
fy automat double manual operate wire mesh chain link fence weaving net fencing making machine factory price
Specification
Model | CS-A | CS-B | CS-C | ||
Strand wire diameter | 1.6-3.0mm | 1.6-2.8mm | 2.0-3.2mm | ||
Barb diameter | 1.6-2.4mm | 1.6-2.4mm | 1.8-2.4mm | ||
Bard pitch | 3"(7.5cm)/4"(10cm)5"(12.5cm)6"(15cm) | ||||
Procuctivity(m/h) | 675/900/1125/1350 | 450/600/750/900 | 450/600/750/900 | ||
Procuctivity(kg/h) | 120 | 30 | 60 | ||
Twisted number | 3-5 | 3 | 7 | ||
Raw material | Galvanized steel wire/PVC coated wire/black wire etc. | ||||
Motor power(kw) | 3 | 3 | 3 | ||
Weight(kg) | 1000 | 800 | 800 | ||

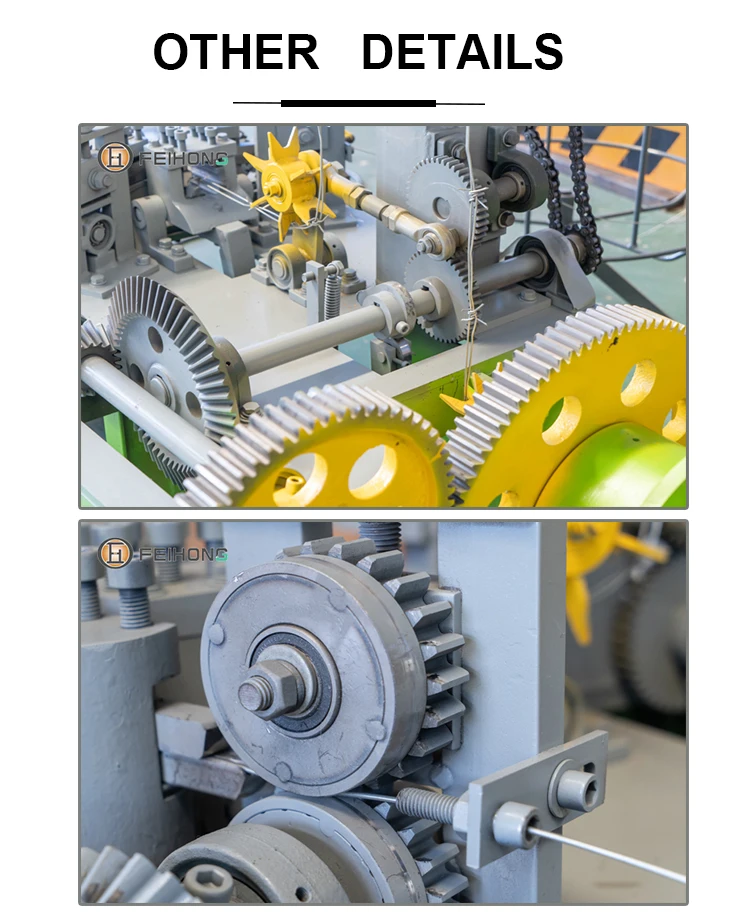

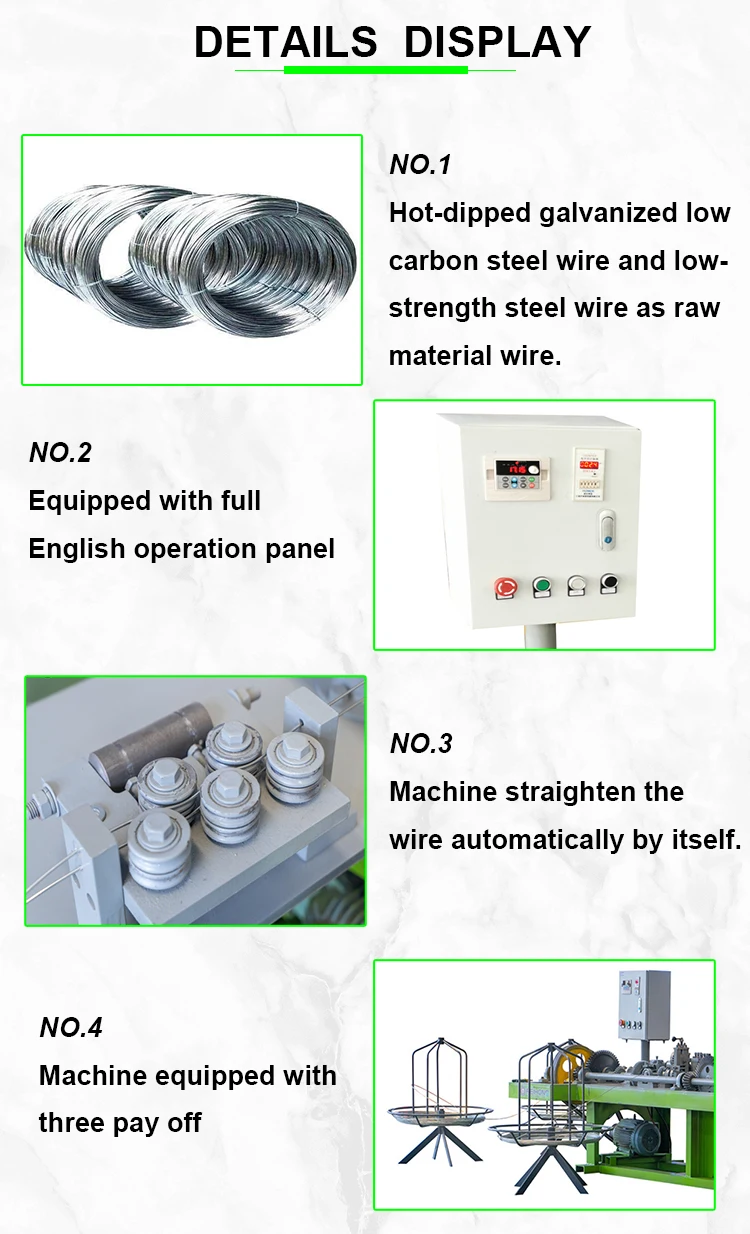

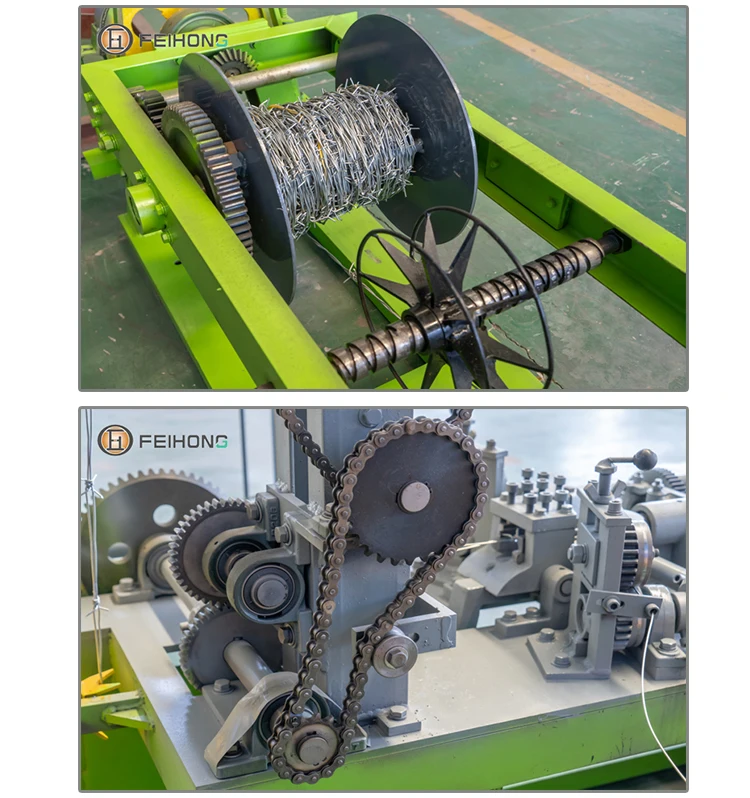

Details Images

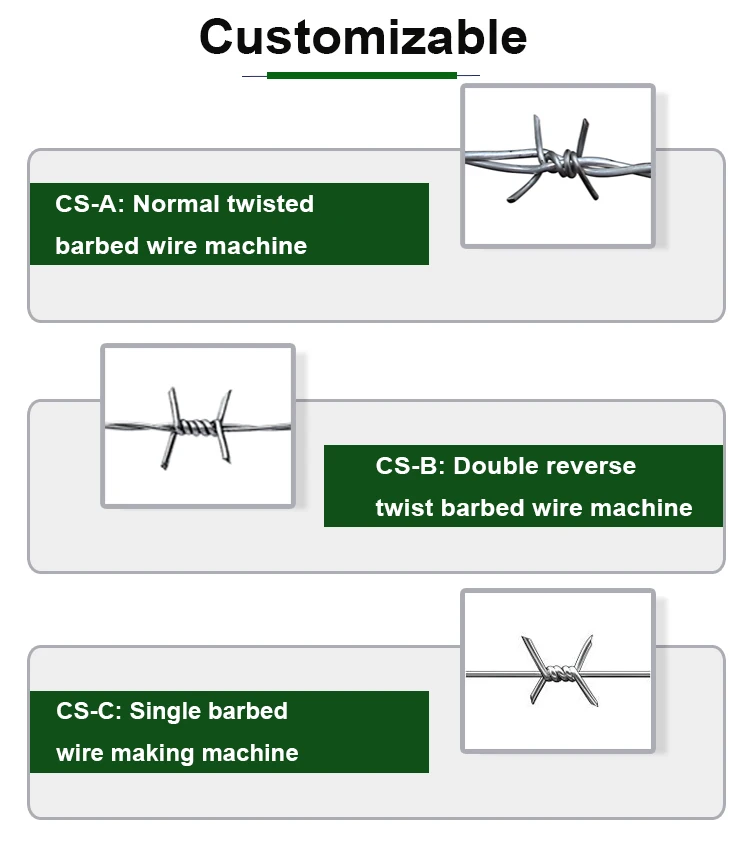

Three types of the machine of barbed wire
1. CS-A type:
The machine has consisted of wire wrapped and wire collected device and equipped with a three-wire pay-off.
2.CS-B type:
It uses a straight and reverses twist way for winded the twist. The barbed wire products have no rebound and winding phenomenon,so it is more beautiful compared with ordinary barbed wire.
3.CS-C type:
It adopts advanced electronic counting control. It works smooth, low noise, high safety, save energy consumption, and highefficiency.
