Product Overview

Description











Display


 Item
Parameter
Description
Color
16.7M（16777216）colors
DGUS mode 24 bit color 8R8G8B
Video display mode 262K color
Active Area
211.7mm (W) × 158.9mm (H)
1024x768 Pixel
View Area
211.7mm (W) × 158.9mm (H)
1024x768 Pixel
Resolution
1024x768
Support 0°/90°/180°/270° rotated display

Backlight

LED
≥ 30000H （ Continuous working with maximum brightness, time of brightness halves）

Brightness

250nit
DGUSⅡ system:100 levels adjustment (It's not recommend to set brightness to 1%~30% of the maximum,which may lead a flicker)


Voltage & Current


Item
Conditions
Min
Typ
Max
Unit
Power Voltage
-
7.0
12.0
36
V

Operation Current
VCC = +12V, Backlight on
-
350
-
mA
VCC = +12V, Backlight off
-
180
-
mA


Reliability Test


Item
Conditions
Min
Typ
Max
Unit
Working Temperature
60%RH at 12V voltage
-20
25
70
℃
Storage Temperature
-
-30
25
85
℃
Working Humidity
25℃
10%
60%
90%
RH
Conformal Coating
-
-
Yes
-
-


Interface


Item
Conditions
Min
Typ
Max
Unit
Baud Rate
User Set
3150
115200
3225600
bps
Output Voltage (TXD）
Output 1，Iout = 8mA
3.0
-
5.0
V
Output 0，Iout = -8mA
-
0
0.3
V
Input Voltage (RXD）
Input 1
2.7
3.3
-
V
Input 0
0
-
1.2
V
UART Mode
Mode is determined by Jumper：ON=N81, 3.3V & 5V TTL/CMOS；OFF=N81,RS232

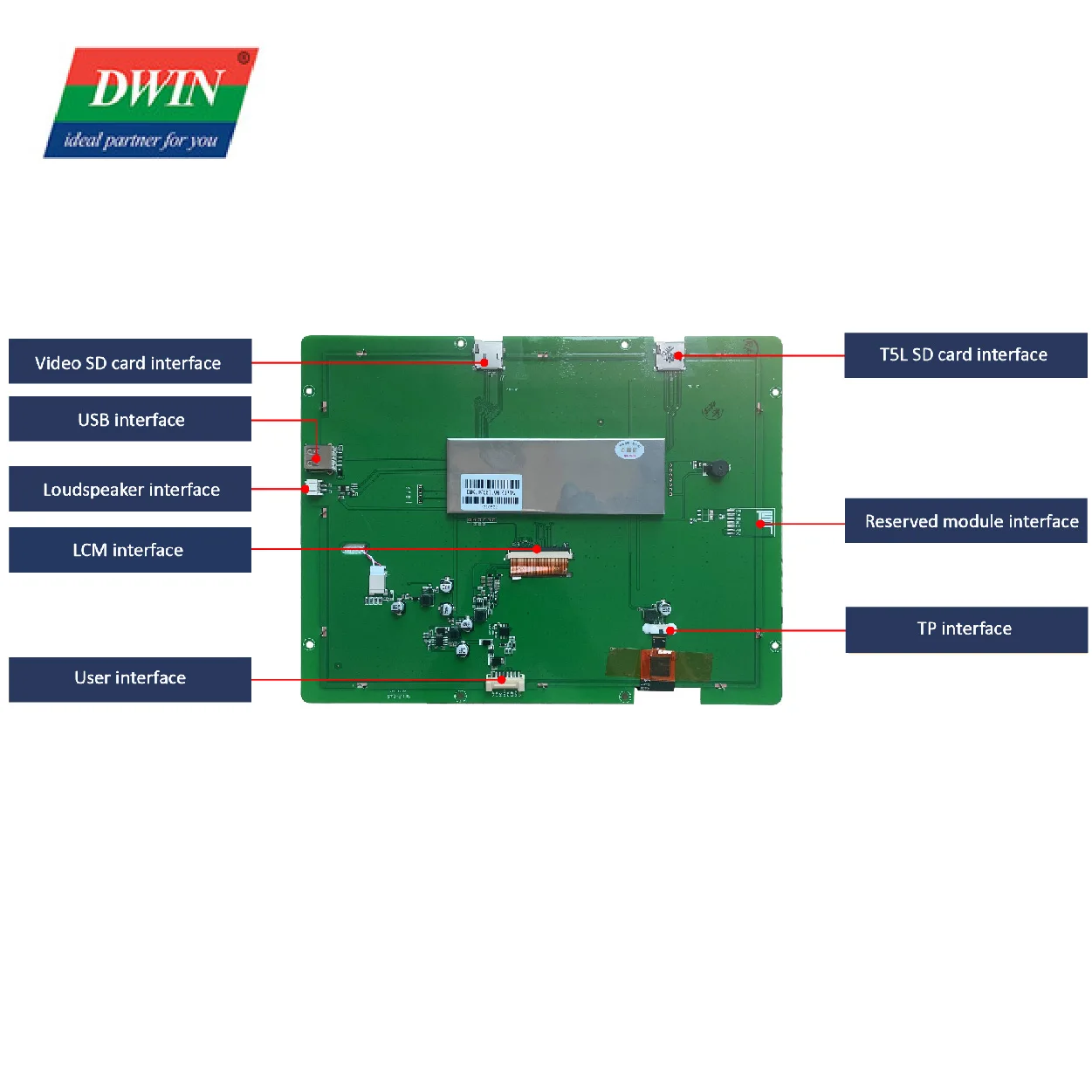

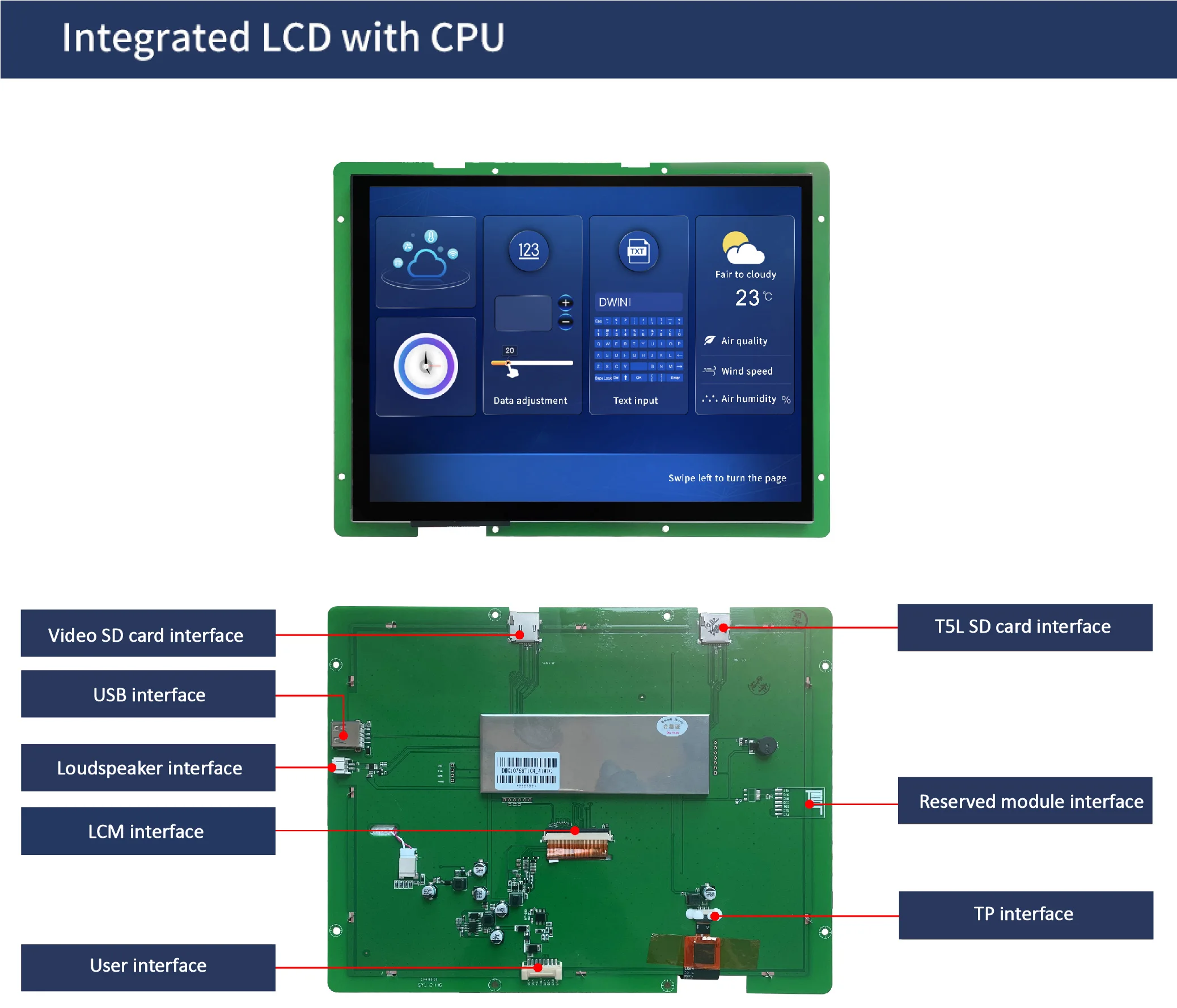

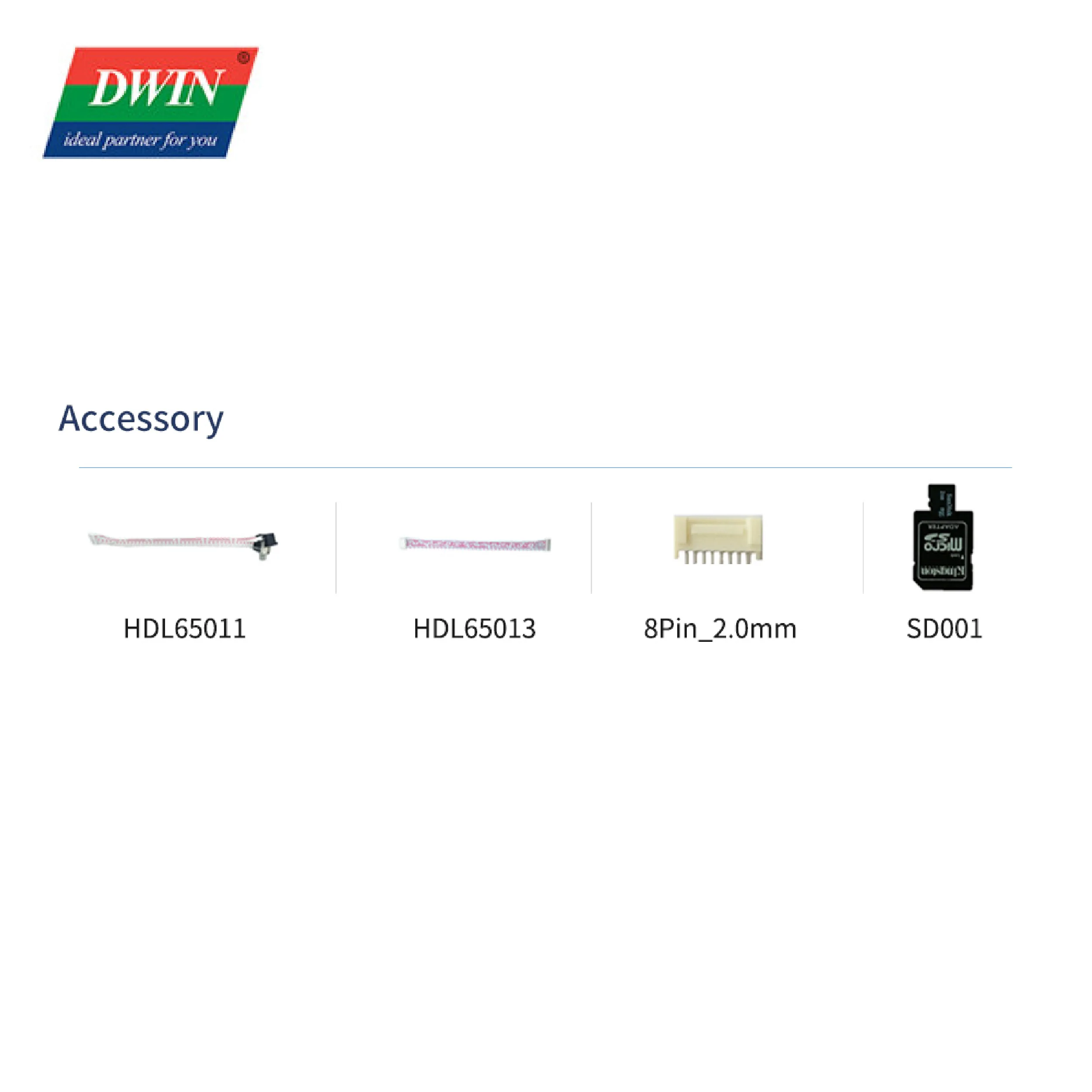

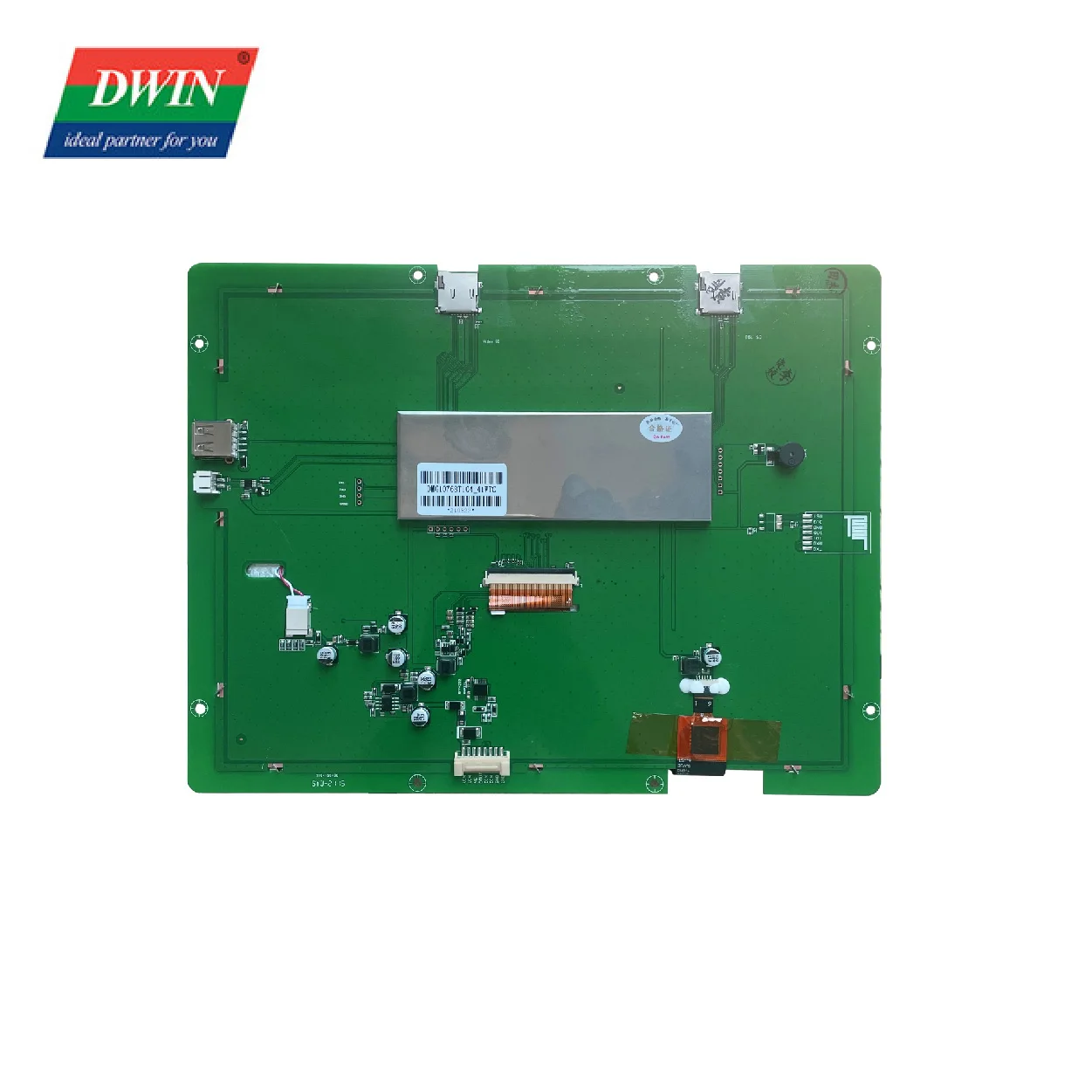

User Interface
8Pin_2.0mm Lock Socket

SD Card Interface
YES (SDHC/FAT32 Format)
VIDEO SD: Reads Video and Audio Files
T5L SD: User Download and Configuration
USB Interface
USB camera
Speaker
2Pin_2.0mm


Memory


Item
Typical value
Features
Typ value
Unit
Description




Flash (DGUSⅡ)




16Mbytes

Space of Font

4~12

Mbytes
A single font of 256K bytes,store font, icon libraries, andother binary files

Picture Storage
(.ICL file)


12~4


Mbytes
JPEG format(Picture quantity relate to JPEG size，size of a single JPEG image file should not exceed 760K bytes)
RAM (DGUSⅡ)
128Kbytes
Variable Storage Space
/
/
Data is not saved when power down
Nor Flash (DGUSⅡ)
512Kbytes
User database
/
/
Data is saved when power down


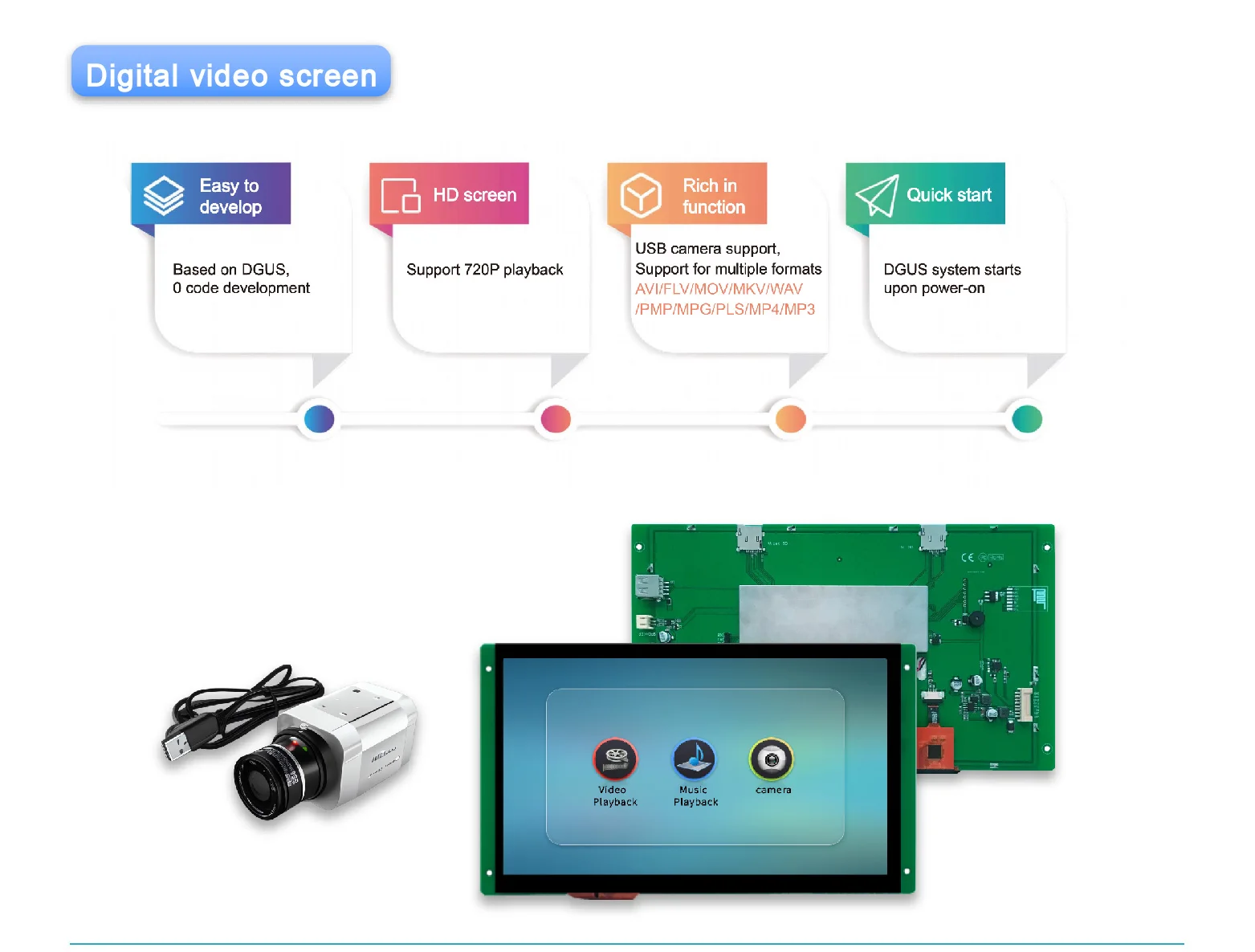

UI & Peripheral


UI & Peripheral
UI Version
DGUS Ⅱ

Peripheral
Support Capacitance touch, Speaker，Music play，USB camera，Viedo play，Buzzer
Support audio file formats: MP3, AAC, WAV and other format
Support video file formats: AVI，FLV，MOV，MP4 and other format

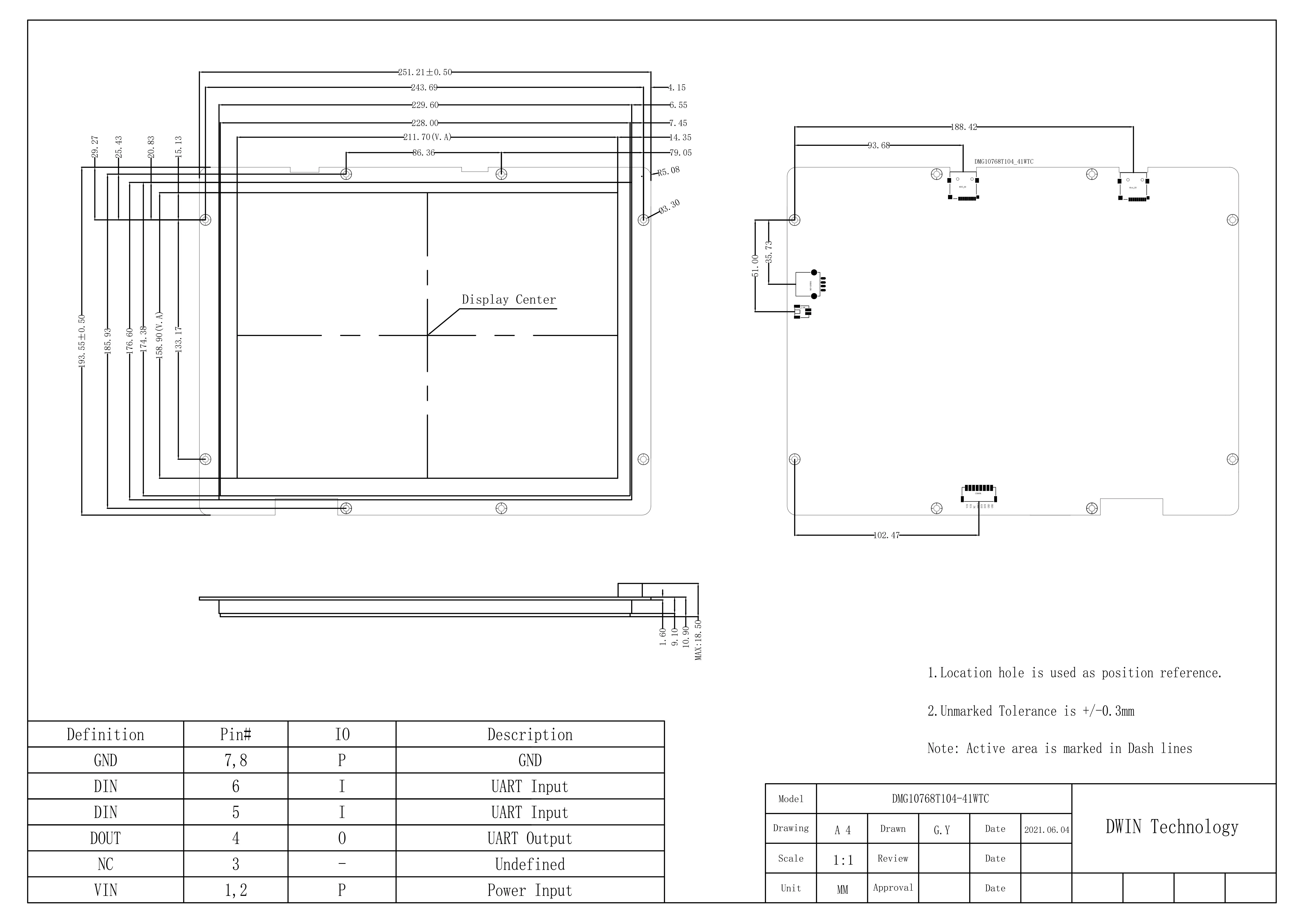

Packing Capacity & Dimension


Dimension
Dimension
251.21(W) ×193.55(H) × 18.50(T) mm
Net Weight
745g
Packing Capacity
Model
Size
Layer
Quantity/Layer
Quantity(Pcs)
Carton1：
220mm(L)×160mm(W)×47mm(H)
-
-
-
Carton2：
250mm(L)×200mm(W)×80mm(H)
-
-
-
Carton3：
320mm(L)×270mm(W)×80mm(H)
1
2
2
Carton4：
450mm(L)×350mm(W)×300mm(H)
2
5
10
Carton5：
600mm(L)×450mm(W)×300mm(H)
2
8
16


Disclaimer: There is no extra-notice if the product design changes that do not affect performance parameters and use










DWIN Technology is established in year 2003,always focusing on Human-machine Interaction.The headquarter is located in Beijing,China,which has 400,000 square meters production park in Hunan province,China.
The product includes the LCD module, touch panel,ASIC,Intelligent solution etc.




















FAQ




DWIN website: www.dwin-global.com


Question 1:

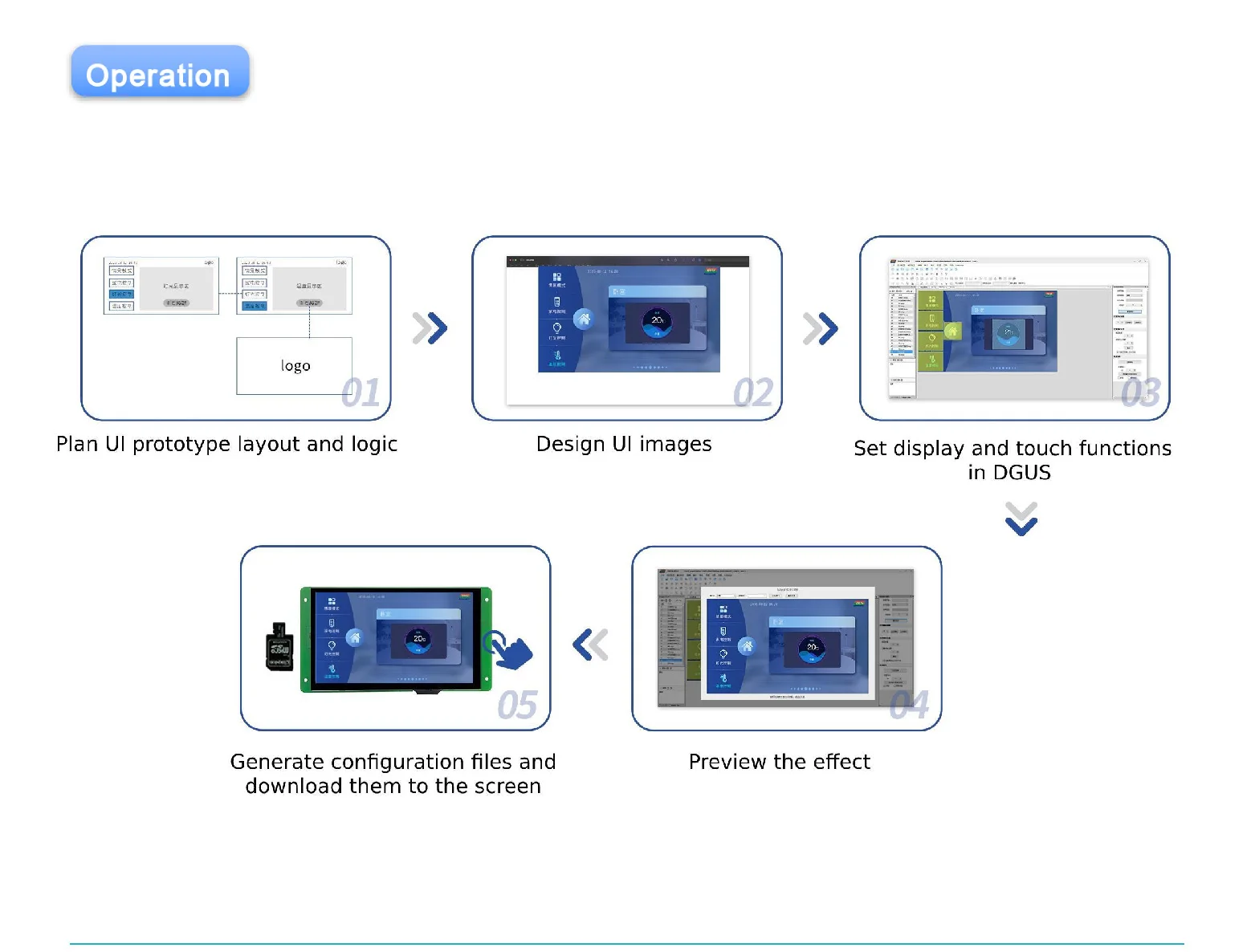

How can I start development with a DWIN LCD Module? Can I assemble it directly on my machine?
Answer: No, you should update the program to LCD at first, and then assemble it.
Step 1, check the software platform of the screen, it mentioned in datasheet.
Step 2, use the correct development SDK (different platform use different SDK) to finish developing.
Step 3, update software program and test
Step 4, when test OK, assemble it on machine.
Question 2:
What industries are DWIN LCD used in?
Answer: Beauty machine, Physical therapy, Health and fitness, Medical treatment, Air treatment, Air control, Transportation (Car &ship instruments), instruments and apparatus automation, Electricity, Water treatment, IC design and manufacture, Kitchen appliances (Juicer, oven, ice machine, ice-cream machine, kitchen ventilator), New energy(Photovoltaic, Wind electricity, Charging Pile), Household appliances…
Question 3:
Does DWIN product need a MOQ when purchase? I only need some samples in the first.
Answer: No MOQ for standard product, and we have free sample for application, please leave messages to us on Alibaba.com
Question 4:
Will DWIN have online technical support?
Answer: Yes of course, below ways you can get technical support.
- Whatsapp: +86 19192113166
- DWIN website: www.dwin-global.com
- DWIN Forum: https://forums.dwin-global.com/
- Leave messages to us on Alibaba.com
Question 5:
What kind of Express are supported? Trade terms is ?
Answer: DHL, TNT, UPS, Fedex. Trade terms is EXW.
