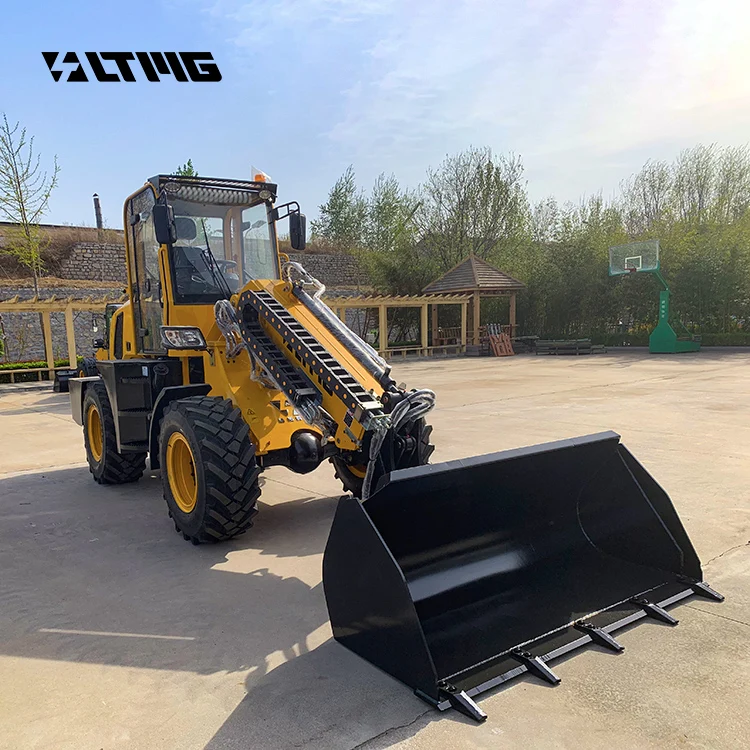

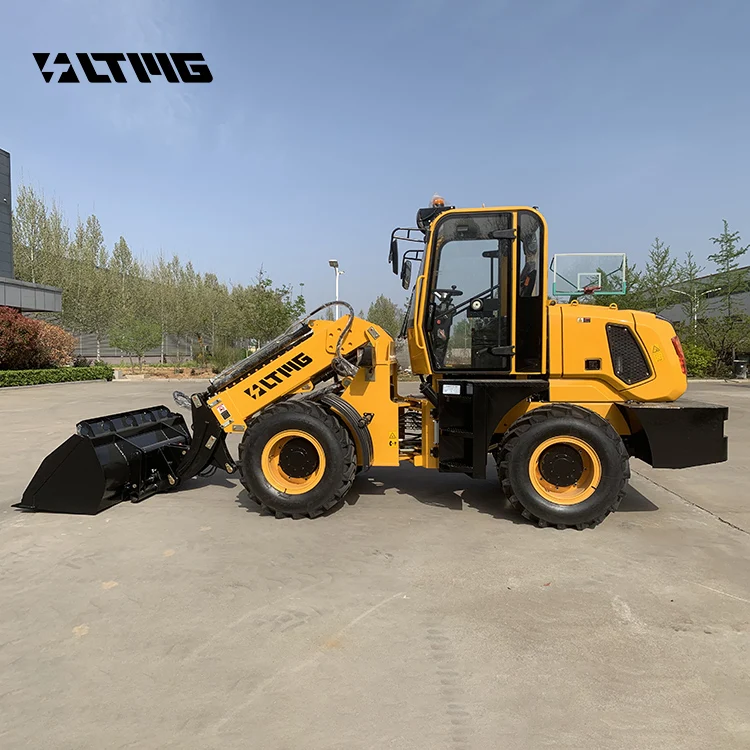

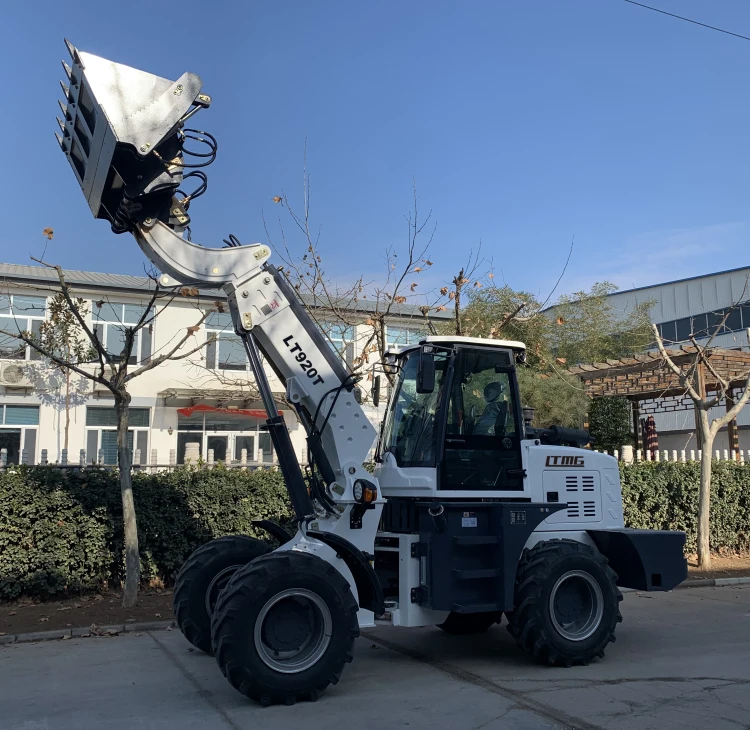

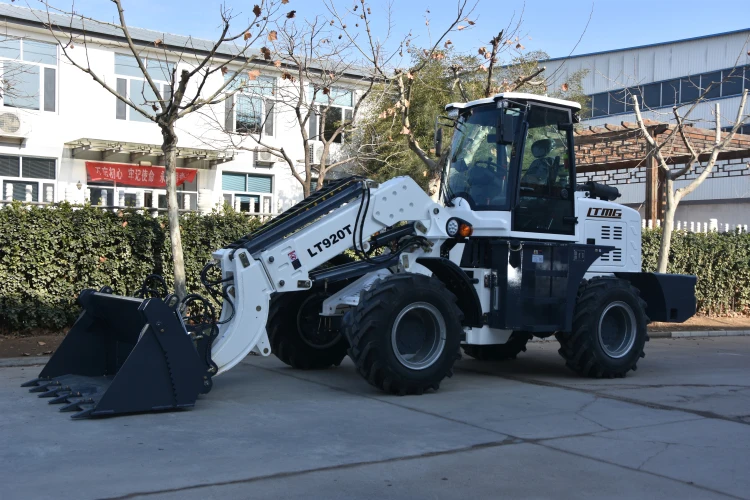

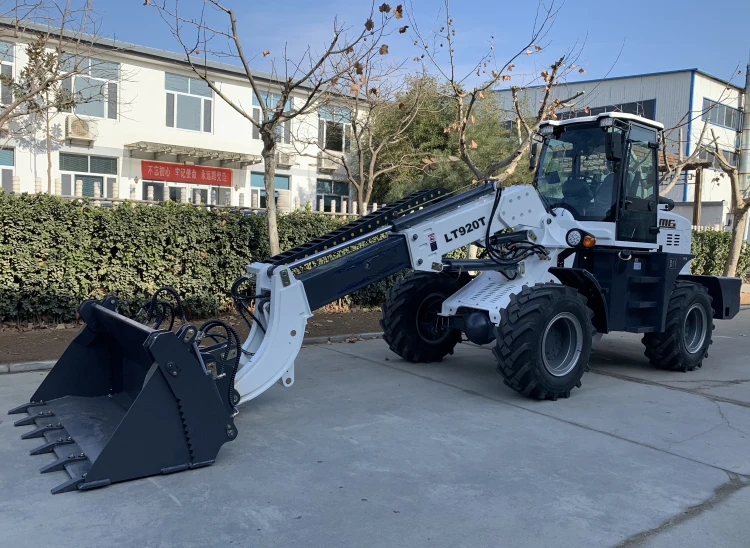

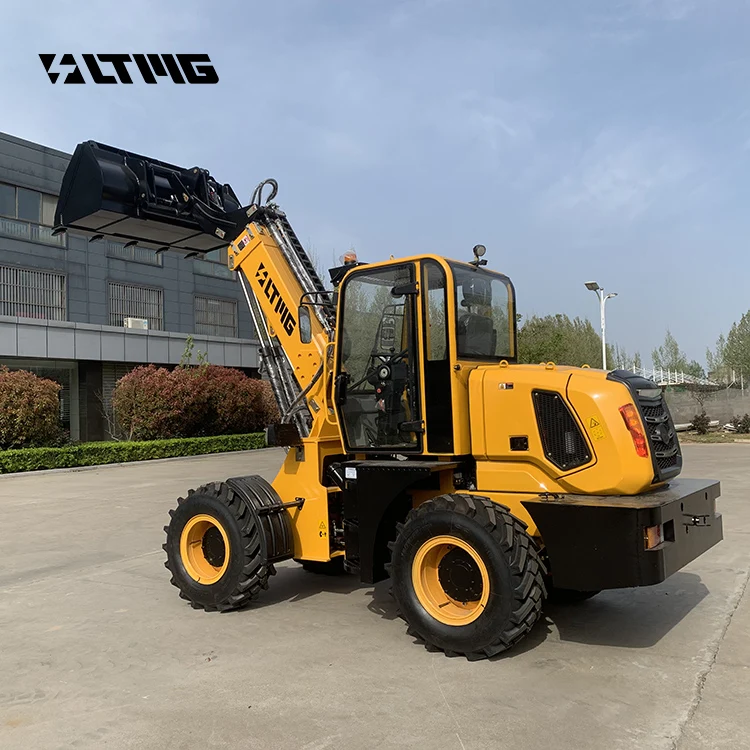

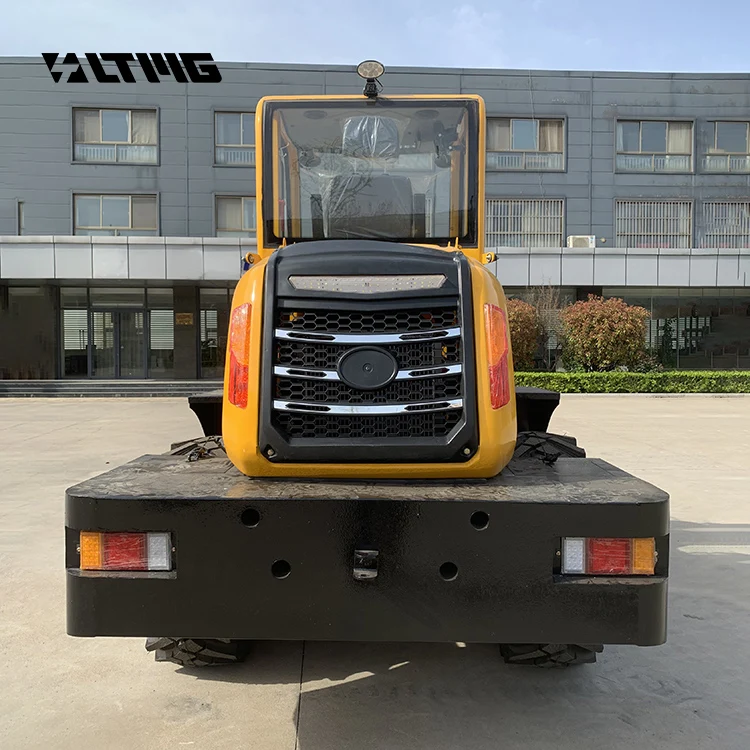

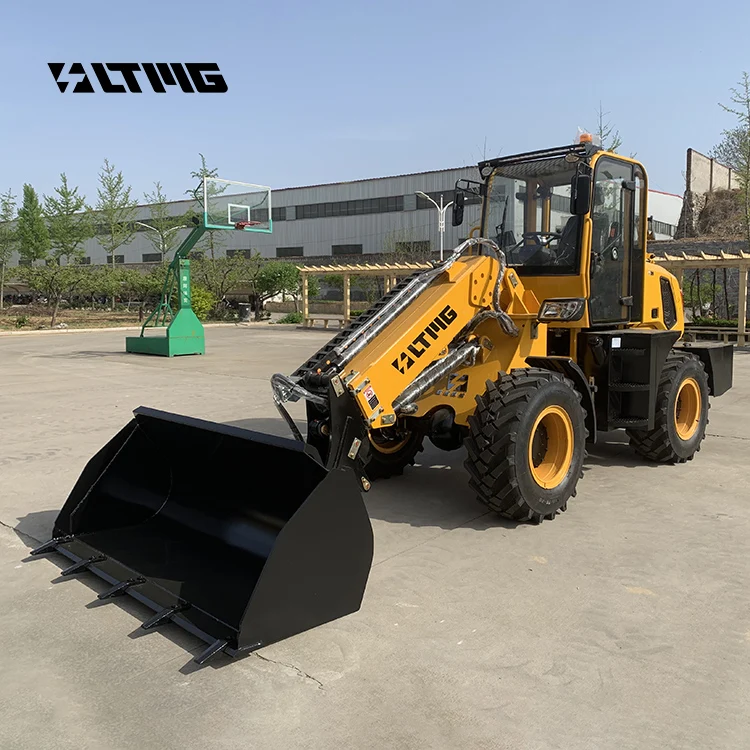

  • telehandler loader machine 1 ton 2 ton 3 ton telescopic wheel loader with hydraulic joystick
telehandler loader machine 1 ton 2 ton 3 ton telescopic wheel loader with hydraulic joystick
telehandler loader machine 1 ton 2 ton 3 ton telescopic wheel loader with hydraulic joystick
telehandler loader machine 1 ton 2 ton 3 ton telescopic wheel loader with hydraulic joystick
telehandler loader machine 1 ton 2 ton 3 ton telescopic wheel loader with hydraulic joystick
telehandler loader machine 1 ton 2 ton 3 ton telescopic wheel loader with hydraulic joystick
telehandler loader machine 1 ton 2 ton 3 ton telescopic wheel loader with hydraulic joystick
telehandler loader machine 1 ton 2 ton 3 ton telescopic wheel loader with hydraulic joystick

telehandler loader machine 1 ton 2 ton 3 ton telescopic wheel loader with hydraulic joystick

Share on (1600928314878):


Price:$7,783.00-7,983.00

Quantity:


Product Overview

Description











The Specification of 2ton Telescopic Wheel Loader
1.Main technical specification
Bucket Capacity(m³)
1.0cbm
Operating Weight(kg)
5400
Bucket Width(mm)
2300
Rated Load(kg)
2000kg
Wheel base(mm)
2500
Track(mm)
1550
Driving Mode
Hydraulic converter, four wheel drive
Overall Dimensions(mm)
6600x2300x2880
Lifting Height
5480/4680mm
Dumping Height
3750/2860mm
2.Engine Details
Model
YUNNEI Engine
Engine Type
In-line arrangement, water-cooled, four-cycle diesel,turbocharged Engine
Rated Power(kw)
76
Rated Speed (rpm)
2400r/p.min
Optional Engine
CUMMINS/xinchai
3.Transmission System
Hydraulic converter + gearbox+drive shaft + hub reduction axles
4.Operating Specifications
Steering System
Articulated Frame with hydraulic power steering
Min Turning Radius(mm)
5500
Driving System
Hydraulic converter, four wheel drive
European quick coupling system
Joystick control
5.Brake System
Service Brake
air assist disc brake braking system
Parking Brake
Hand operated(Disc brakes)
6.Tire
Model:
16/70-20




















LTMG always treat after-sale service as important as sale.
Nowadays more than 50 agents and 21 after sales center around the world
can supply LTMG professional after-sale service.All the product of LTMG supplied with one year or 2000 working hours (which occurs first) period quality warranty.Detail clauses and policies please check our website and product certificate.
