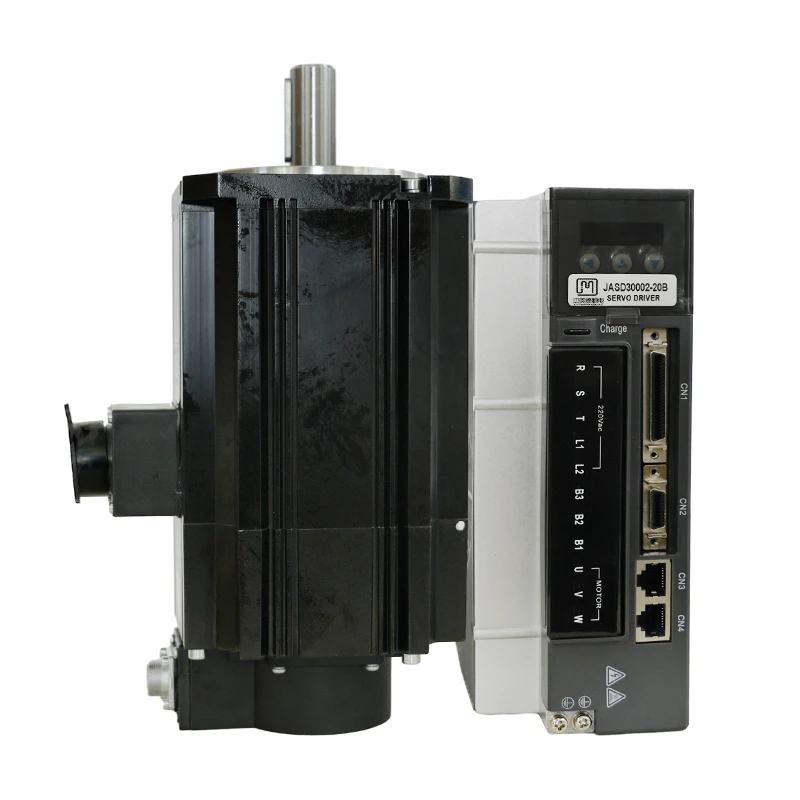

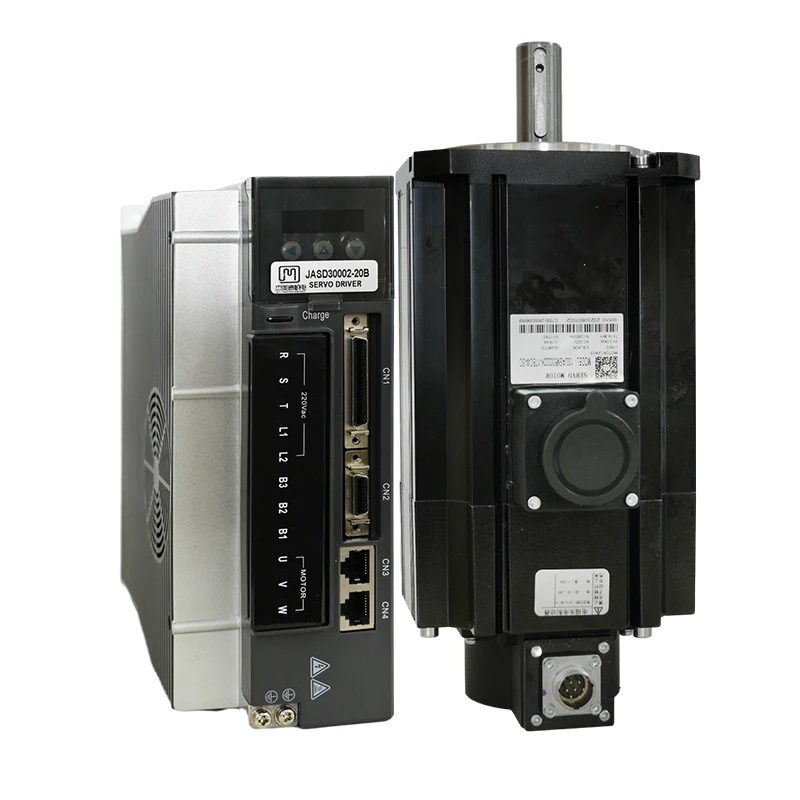

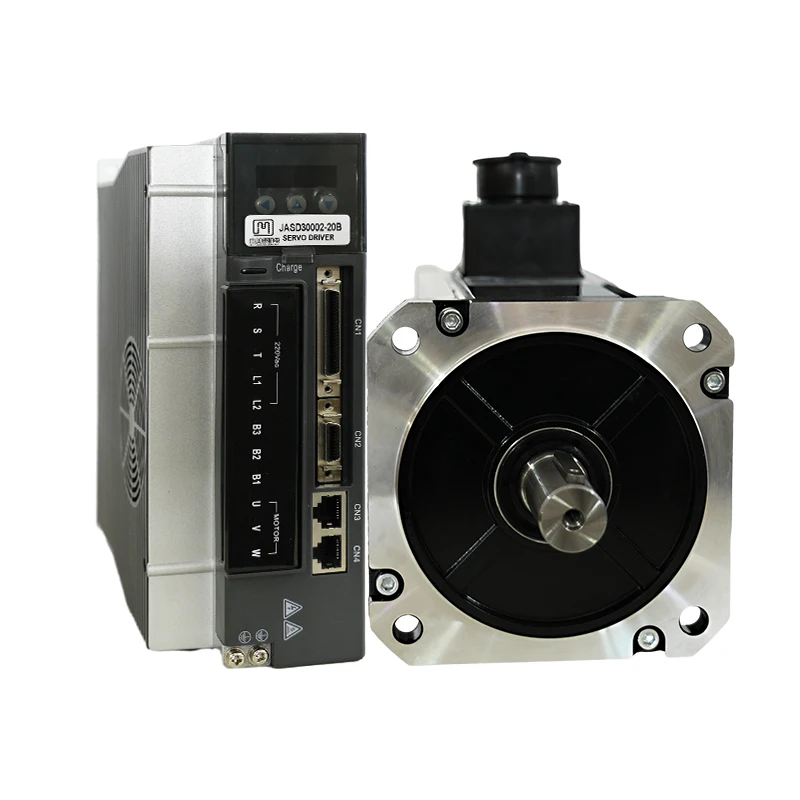

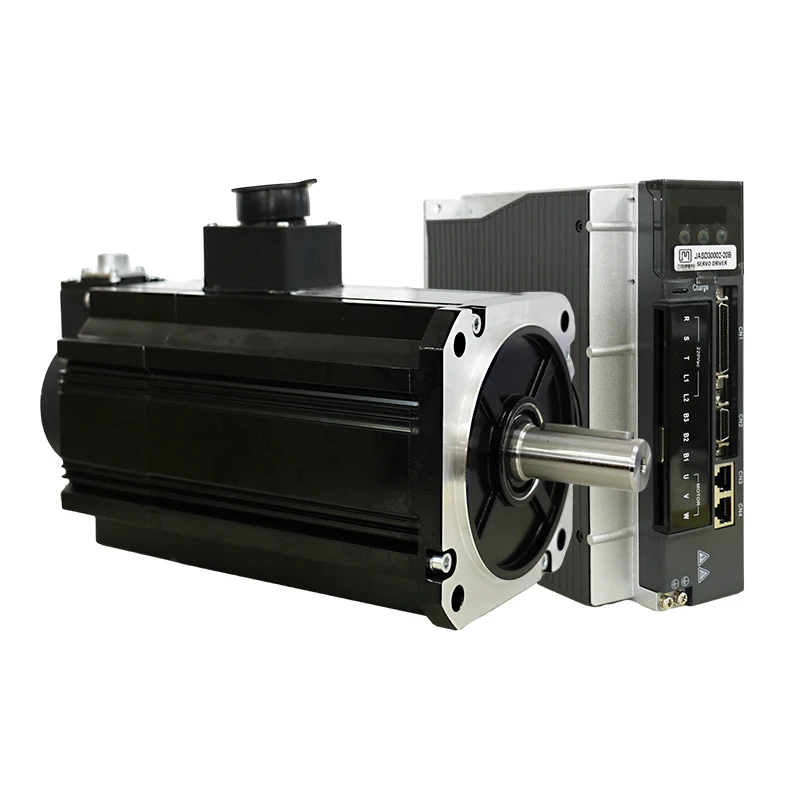

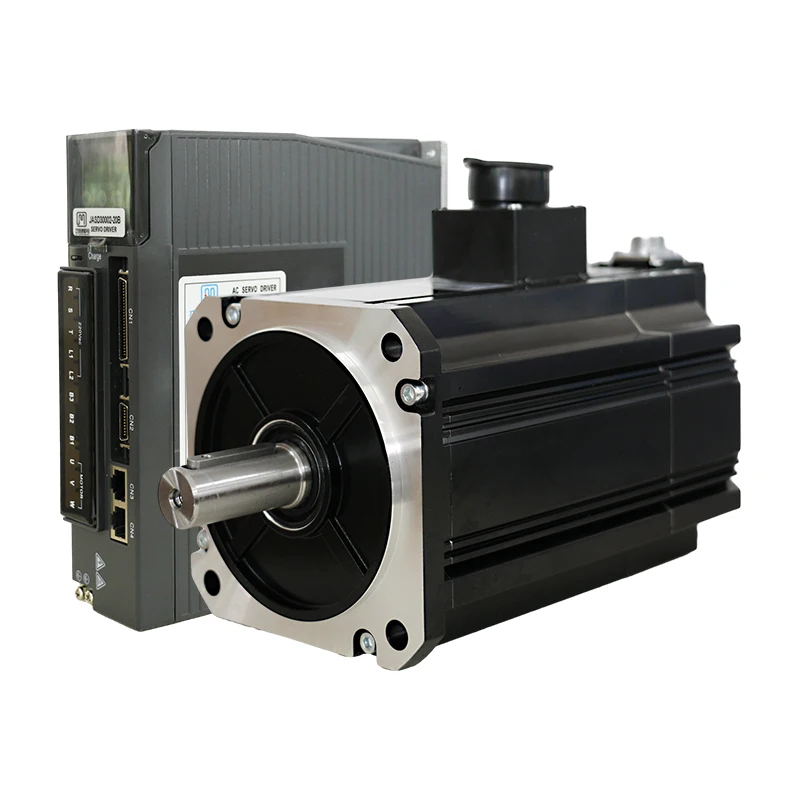

130JASM530220K 17B SC JASD30002 20B New Product Explosion cnc ac servo motor and driver low cost 3kw 14.32nm servo motor for cnc
- Category: >>>
- Supplier: Shenzhen Just Motion Control Electromechanics Co. ltd.
Share on (1600928315102):
Product Overview
Description
Details of Products

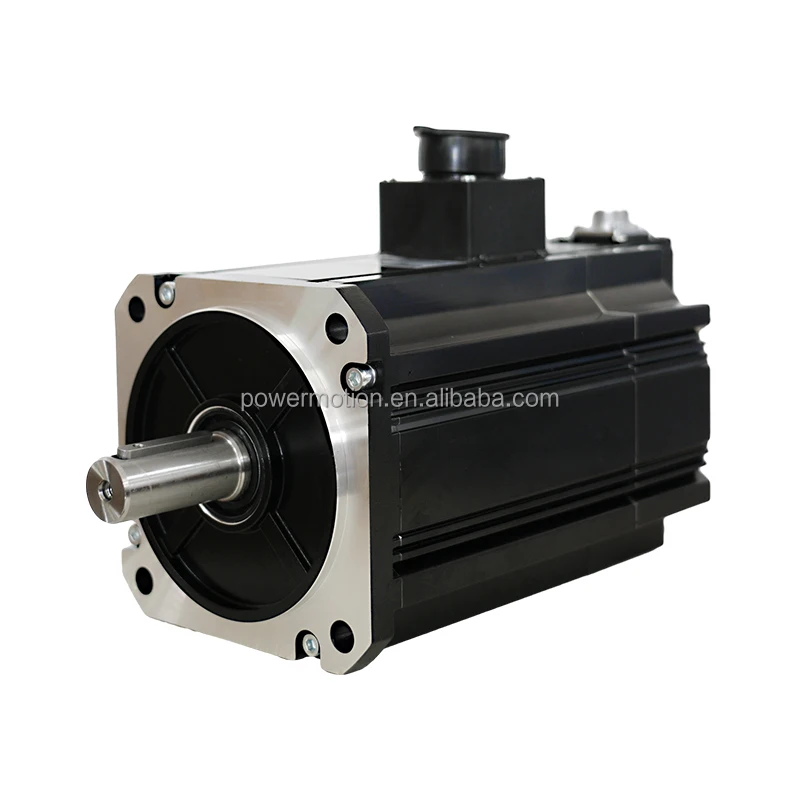

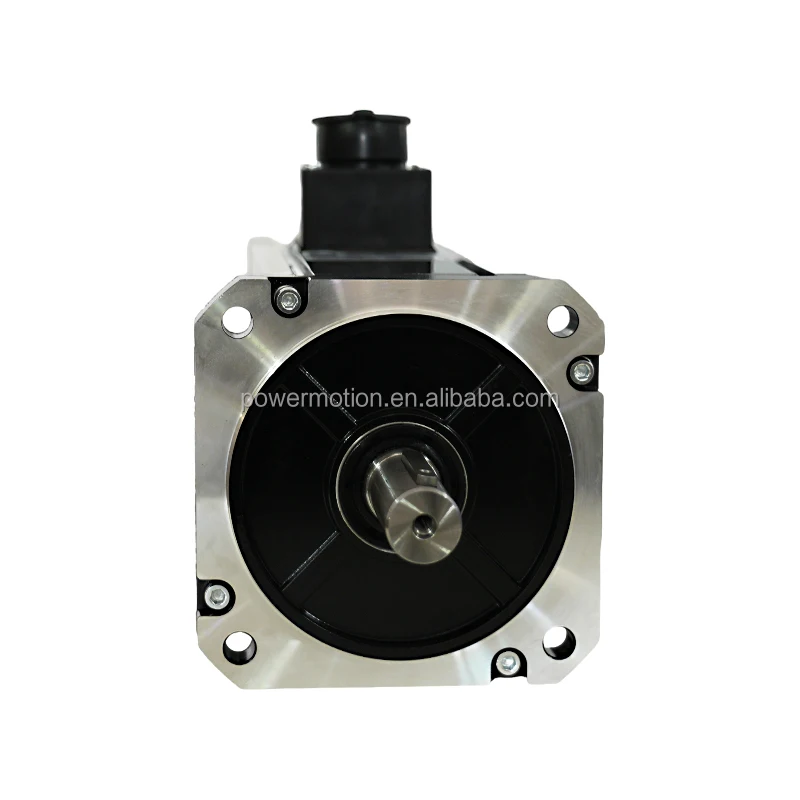

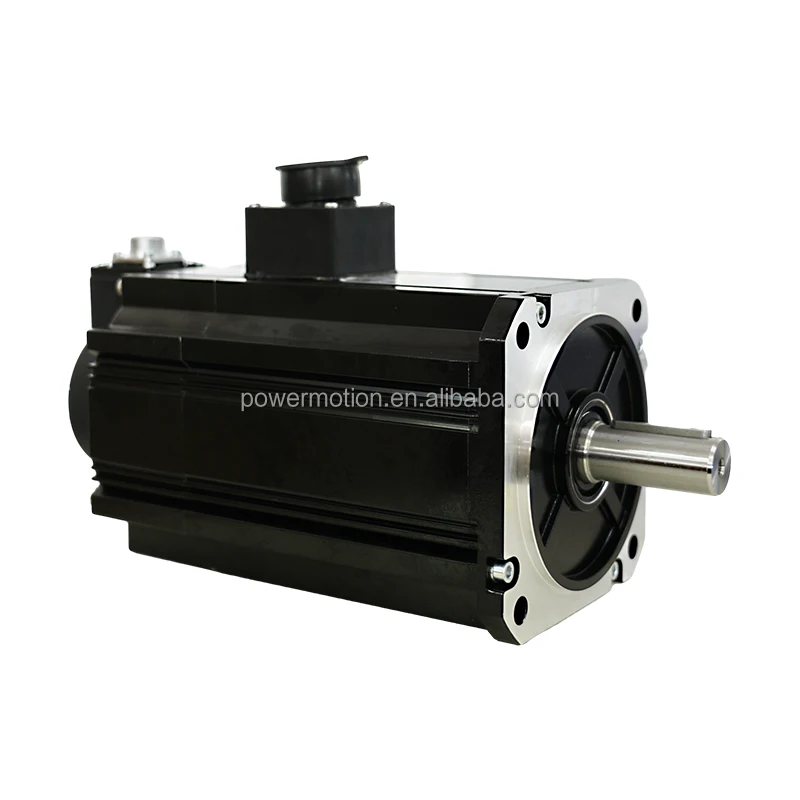

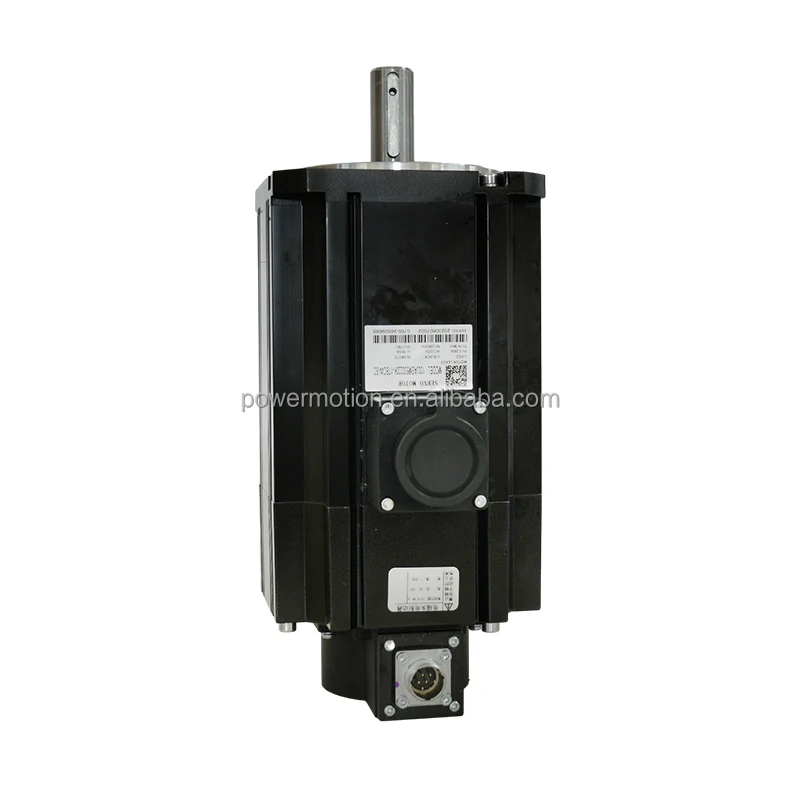

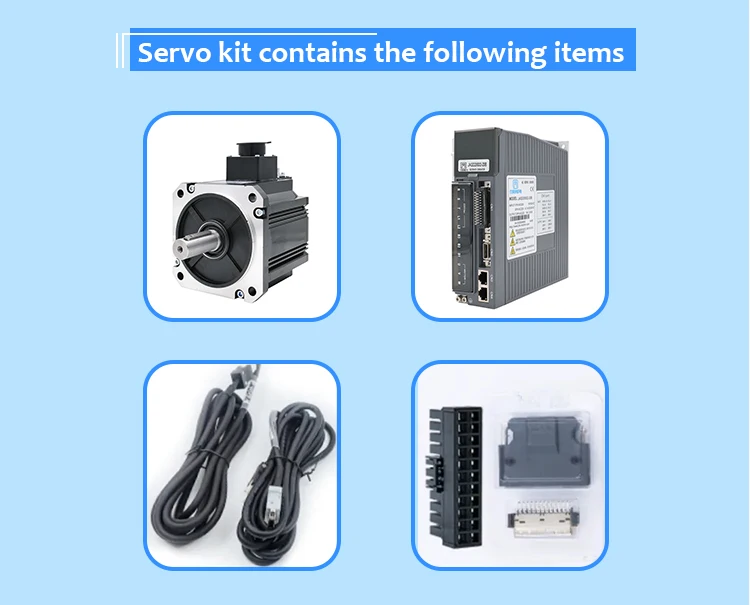

Product | AC servo motor (with brake) + servo driver |
Brand | Just Motion Control |
Model | 130JASM530220K-17B-SC +JASD30002-20B |
Input Voltage | Single phase AC 180V-240V, 50/60Hz |
Motor Base | 130*130mm |
Motor Rated Power | 3000W |
Rated Torque / Peak Torque | 14.32N.m / 28.6N.m |
Rated Speed / Peak Speed | 2000rpm /3000rpm |
Encoder | 17-bit single-turn absolute encoder (magnetic) |
Control Type | Pulse type |
Drive Features | Space-saving, Excellent performance, Good apperance |
Models | Voltage (V) | Rated Power (W) | Rated Torque (N.m) | Rated Speed (rpm) | Rated Currect (A) | Matching Driver | ||||||
130JASM515230K-17B | 220 | 1500 | 4.78 | 3000 | 5.6 | JASD15002-20B | ||||||
130JASM515220K-17B | 220 | 1500 | 7.16 | 2000 | 7.2 | JASD20002-20B | ||||||
130JASM515215K-17B | 220 | 1500 | 9.55 | 1500 | 6.2 | |||||||
130JASM520220K-17B | 220 | 2000 | 9.55 | 2000 | 10.2 | |||||||
130JASM523215K-17B | 220 | 2300 | 14.64 | 1500 | 12.3 | JASD30002-20B | ||||||
130JASM530220K-17B | 220 | 3000 | 14.32 | 2000 | 13.6 | |||||||
Motor with brake is optional | ||||||||||||

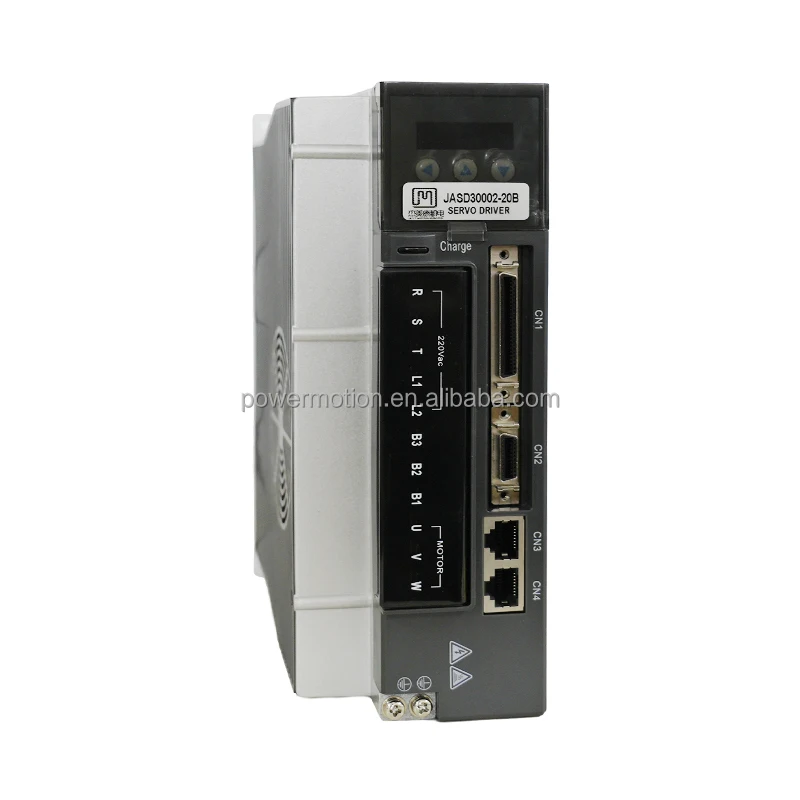

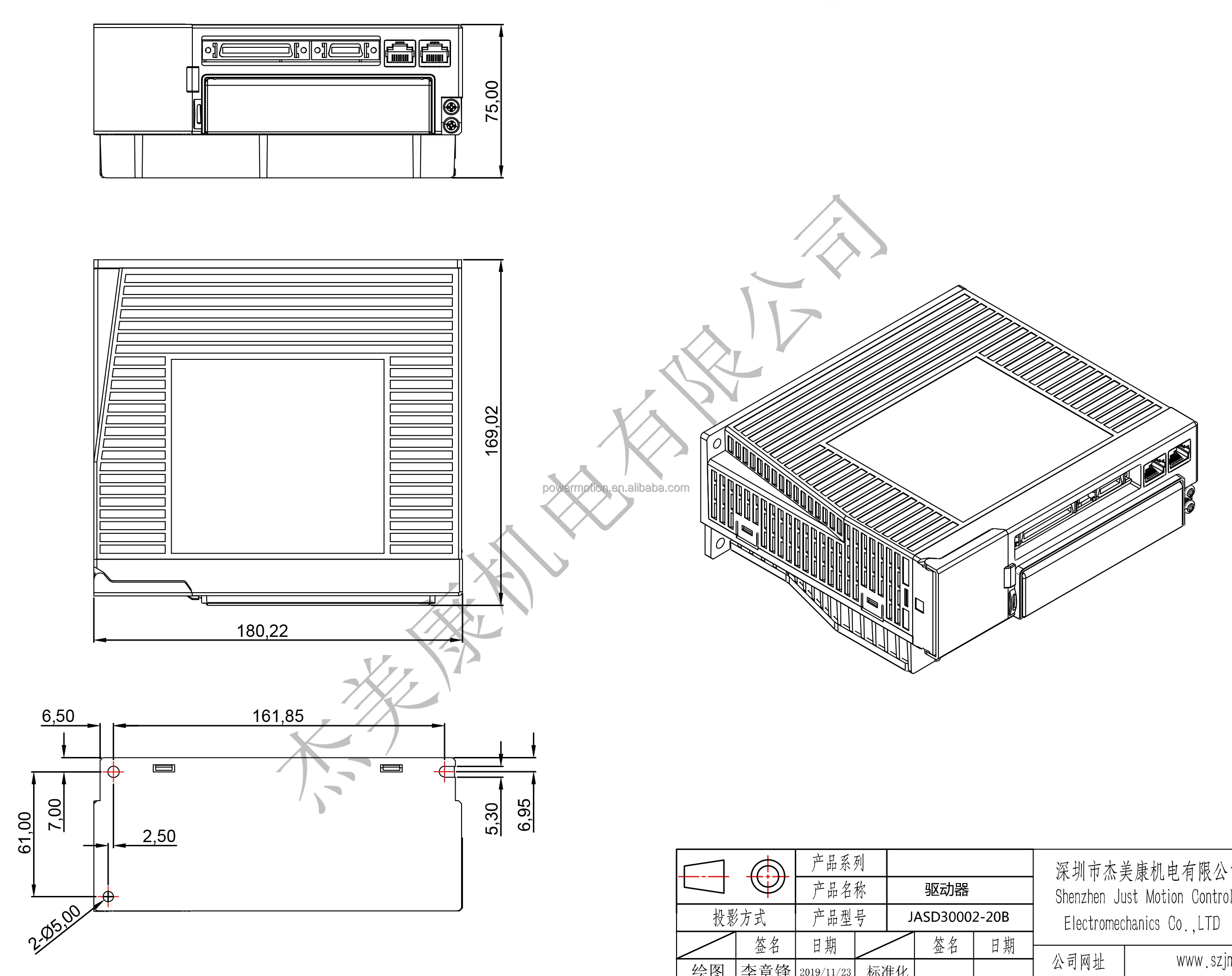

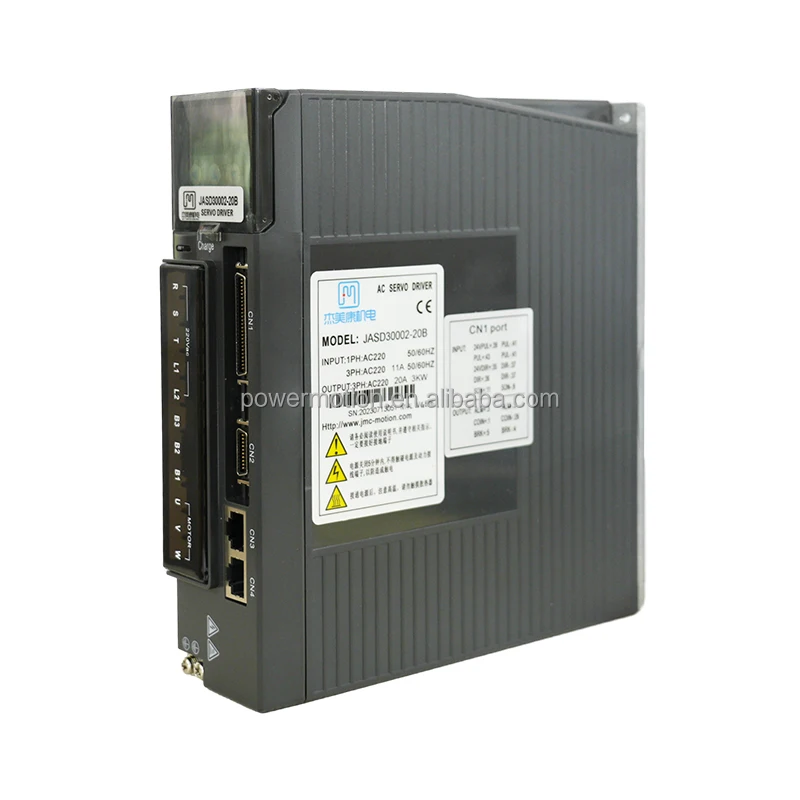

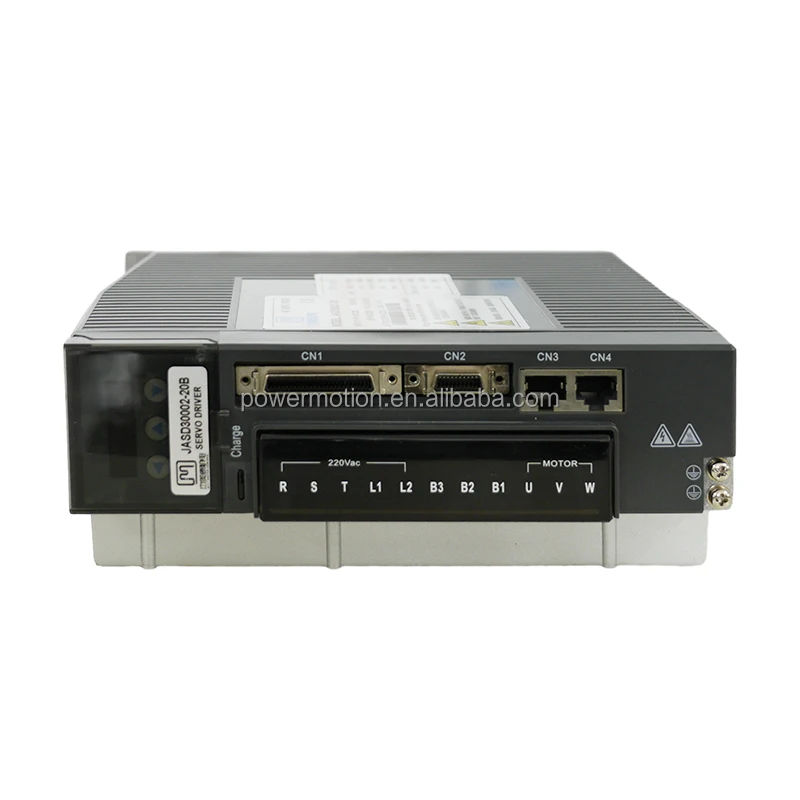

Model | JASD15002-20B | JASD20002-20B | JASD30002-20B | ||
Rated power (W) | 1500 | 2000 | 3000 | ||
Continuous input current (A) | 6 | 8.7 | 11 | ||
Continuous output current (A) | 8 | 14 | 20 | ||
Max output current (A) | 19 | 33 | 50 | ||
Input voltage | 3 phase AC 180V-240V, 50/60Hz | ||||
Braking resistor | Built-in braking resistor | ||||
Communication function | RS232, for debugging on PC RS485, support modbus protocol (only for reading data) | ||||
