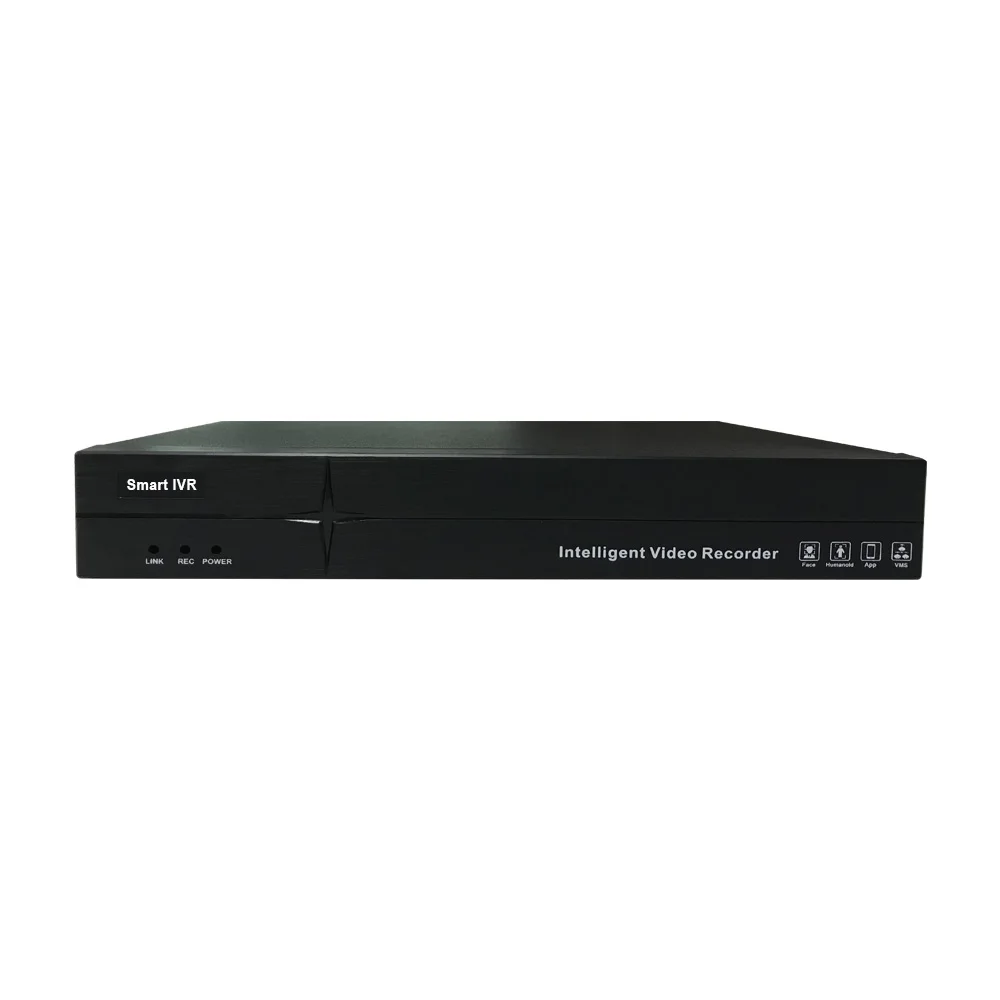

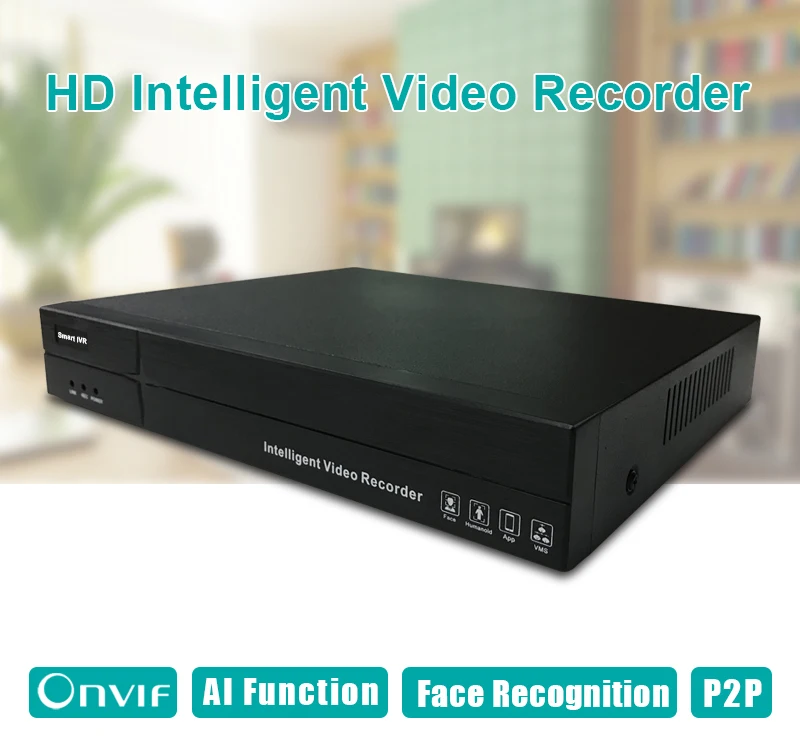

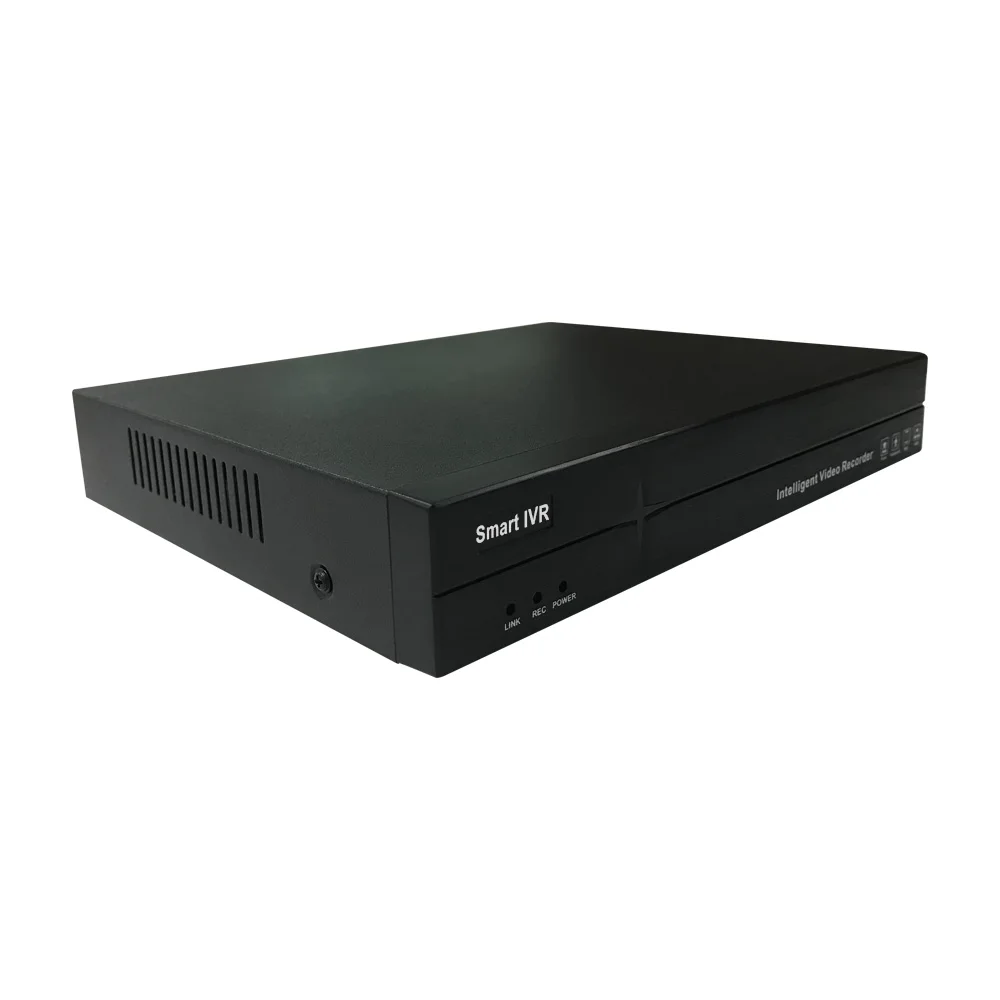

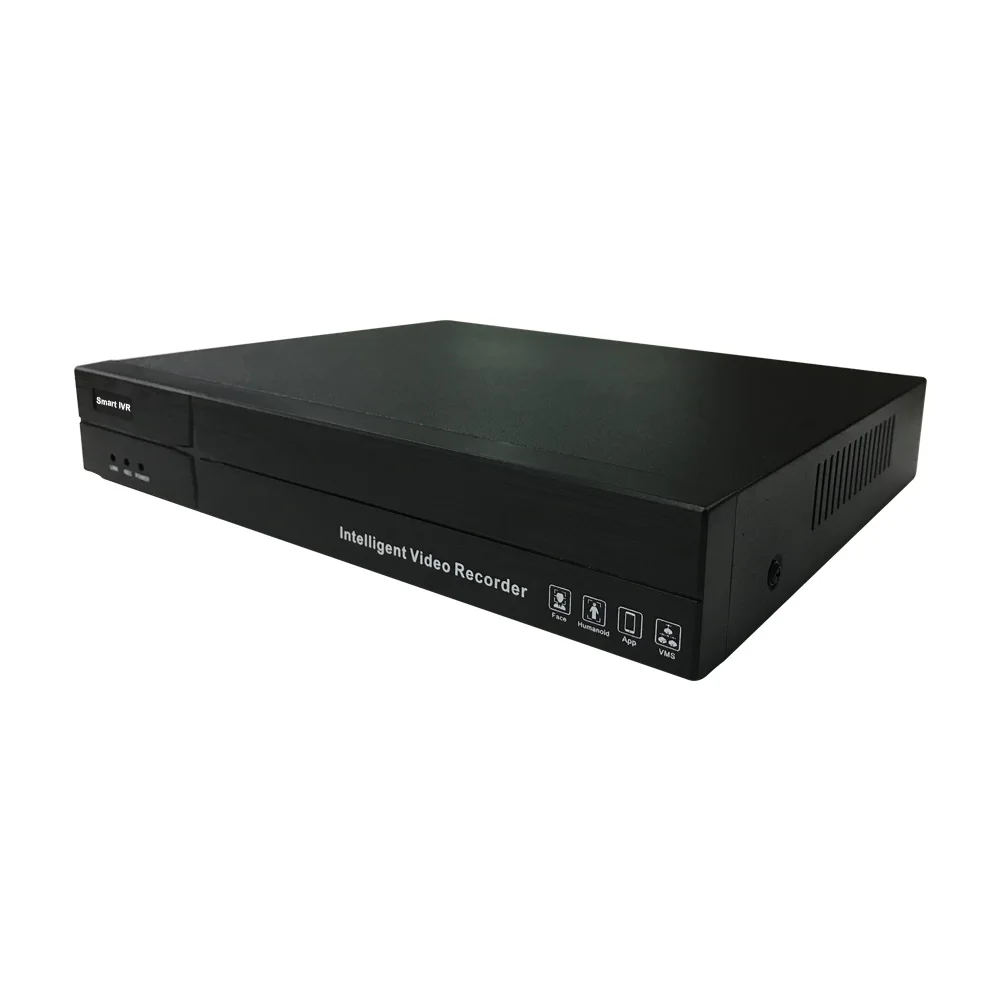

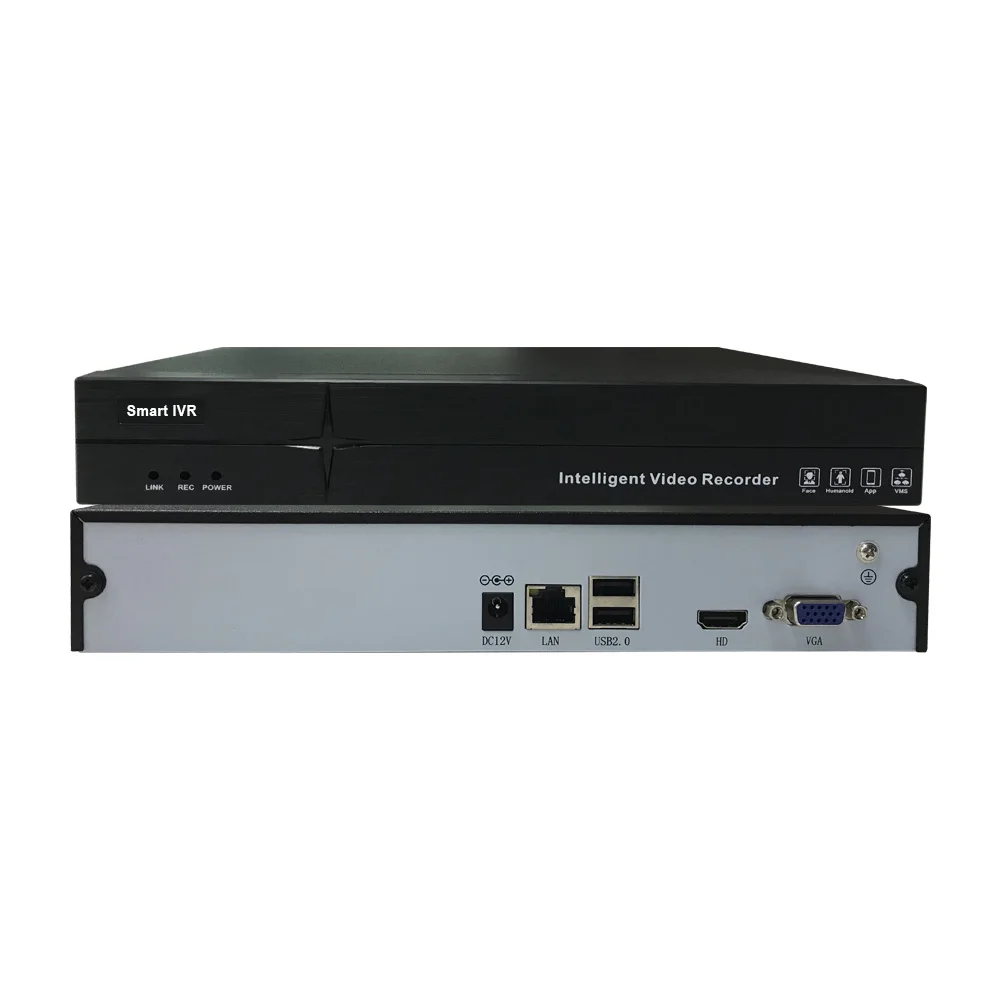

16 Channel Ingenic ENZ NVR with Two Way Audio Talk and Broadcast Function
16 Channel Ingenic ENZ NVR with Two Way Audio Talk and Broadcast Function
16 Channel Ingenic ENZ NVR with Two Way Audio Talk and Broadcast Function
16 Channel Ingenic ENZ NVR with Two Way Audio Talk and Broadcast Function
16 Channel Ingenic ENZ NVR with Two Way Audio Talk and Broadcast Function
16 Channel Ingenic ENZ NVR with Two Way Audio Talk and Broadcast Function
16 Channel Ingenic ENZ NVR with Two Way Audio Talk and Broadcast Function

16 Channel Ingenic ENZ NVR with Two Way Audio Talk and Broadcast Function

Share on (1600928331306):


Price:$19.80 - $25.80

Quantity:


Product Overview

Description







Related Products




Product Description


 Product Name
16 Channel 4K NVR
Model
TT-NVR51614KI
 Function
Onvif, P2P, RS485, 1 SATA HDD Slot, USB, DHMI, VGA, two way Audio,  broadcasting, AI


Major Features:
1.h.265+/H.265/H.264 triple stream decoding, embedded Linux operating system
2.Support 16 CH 4K IPC input, IPC centralized management, including IPC parameter configuration, information export and import, real-time information acquisition and upgrade, etc.
3. Need to work with our Smart IPC to achieve these functions: Humanoid Detection,target count, absent alarm, retrograde motion detection, E-bike detection, area intrusion.
4.Support synchronous recording, remote monitoring, backup
5.HDMI,VGA synchronous output, support 4K preview ( 9 CH mode)
6.Support preview image and playback image 12 times electronic magnification
7.Standard ONVIF, SLINK, RTSP ,GB28181protocol
8.Support DDNS, EMAIL, UPNP, P2P and other functions
9.Support WEB, mobile phone monitoring, client, VMS monitoring
10.Supports disk grouping quotas and disk group storage modes
11.Support channel grouping, preview tour
12.Supports maximum 4CH 1080P recording synchronous playback and multi-channel synchronous playback
13.Support double password authentication
14.Support network monitoring: network traffic, network delay packet loss test, network packet capture backup
15.Support current bandwidth, stream information,support multiple language
16. Support two way audio talk.
17. with broadcasting function




Product Specifications


System
Main Chipset
INGENIC
Operating System
Embedded Linux
Bandwidth
40M
Video Format
H.265+/H.265/H.264
Video Resolution
4K / 5MP / 3MP / 720p / D1 / VGA / CIF / QCIF
Smart Functions
Humanoid Detection,target count, absent alarm, retrograde motion detection, E-bike detection, area intrusion. (Need to work with our Smart IPC to achieve these functions)
Record Mode
Manual, Schedule, Motion Detection, Timing, smart analysis alarm
Playback
4CH 1080P playback, 1CH 4K
Backup Mode
USB Device/Network
Video
Normal Mode
16 CH normal IPC ( or humanoid detection IPC)
Split
1
4
6
8
9
16
Decode
4K
4K
4K
4K
4K
4K
Video Output
1 HDMI, 1 VGA
Audio Output
HDMI audio
Alarm Input & Output
N/A
Storage
HDD
1 SATA, MAX 6TB HDD
E-Sata
N/A
Network
Network Interface
1*RJ45 10M/100M self-adaptive LAN port
POE
N/A
Network Function
DDNS,EMAIL,UPNP,NTP,DHCP,IP Filter,PPPoE,P2P
Smart Phone
iPhone, Android
External Ports
USB
2 USB Ports(2 USB2.0)
RS232
N/A
RS485
N/A
Others
Power Supply
DC12V 2A
Power Consumption
≤10W(without HDD )
Dimension
Equipment: 450X240X70mm, Packing: 290X70X300mm
Weight
N.W.: 0.9Kg; With Package: 1.3Kg
Outside Carton
10 pcs/Carton. 595mm×368mm×325mm; Weight: 13Kg
