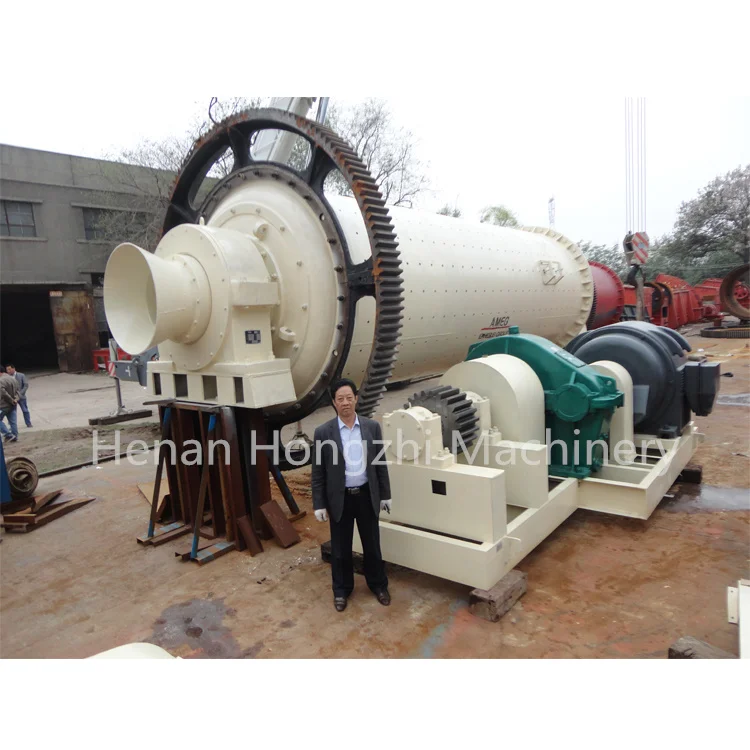

Ball mill machine mini ball mill for gold mining gold ore wet dry ball mill machine

Brief Introduction to Wet Gold Copper Iron Chromite Tin Raw Ore Ball Mill

Wet Gold Copper Iron Chromite Tin Raw Ore Ball Mill is the key equipment for further crushing, widely applicable for industries including but not limited to cement, silicate, new building materials, fireproof materials, fertilizer, ferrous and non-ferrous metal, and glass ceramic, for purpose of proceeding dry grinding or wed grinding with regard to all kinds of minerals and other kinds of abrasive materials.

Working Principle for Wet Gold Copper Iron Chromite Tin Raw Ore Ball Mill

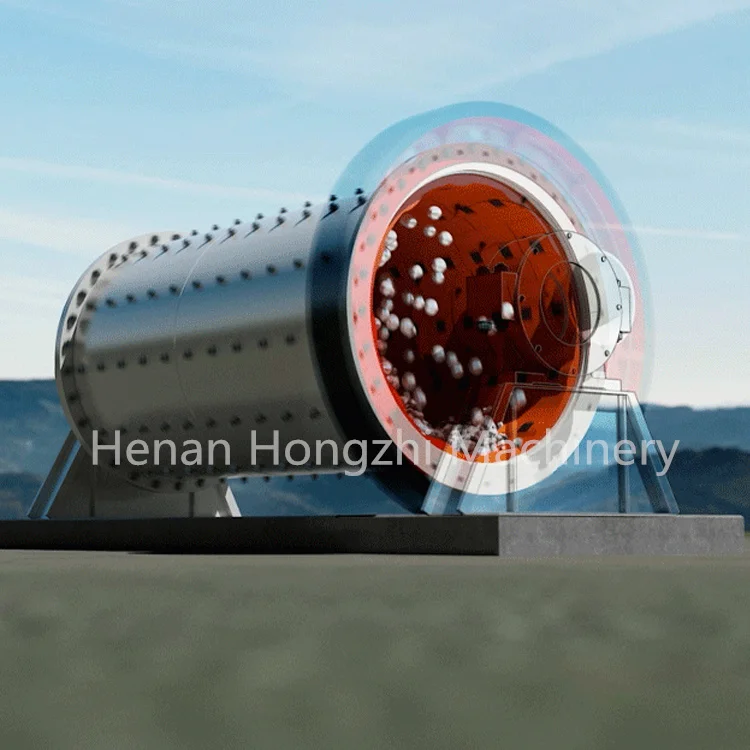

The ball mill is a type of grate ball mill, equipped with horizontal drum rotating device, external gear transmission device and two chambers. After passing through feeding unit, materials would be delivered to feeding hollow shaft where the same are evenly delivered into the 1^st Chamber along with the spiral movement. The Chamber is equipped with stepped lining plate or corrugated lining plate, and different steel balls which would be lifted up to a certain height due to centrifugal force generated from drum rotation and drop down therefrom to complete impacting and grinding process. Subjected to rough grinding in the 1^st chamber, the same would pass through the single bulkhead and be delivered into the 2^nd chamber where there is equipped with flat lining plate and steel balls for further grinding. Finally, powder materials would be discharged from grate plate to complete grinding process.

Features of Wet Gold Copper Iron Chromite Tin Raw Ore Ball Mill

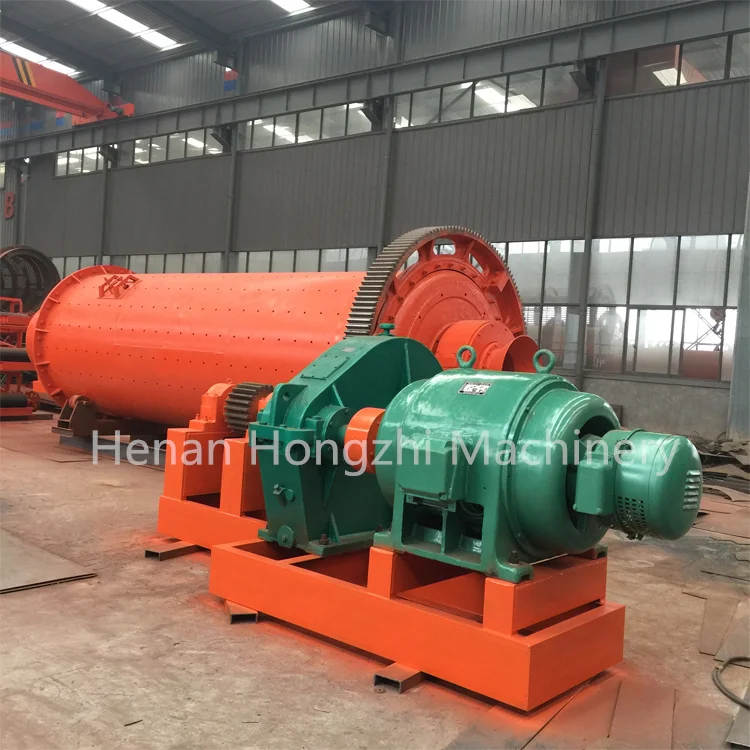

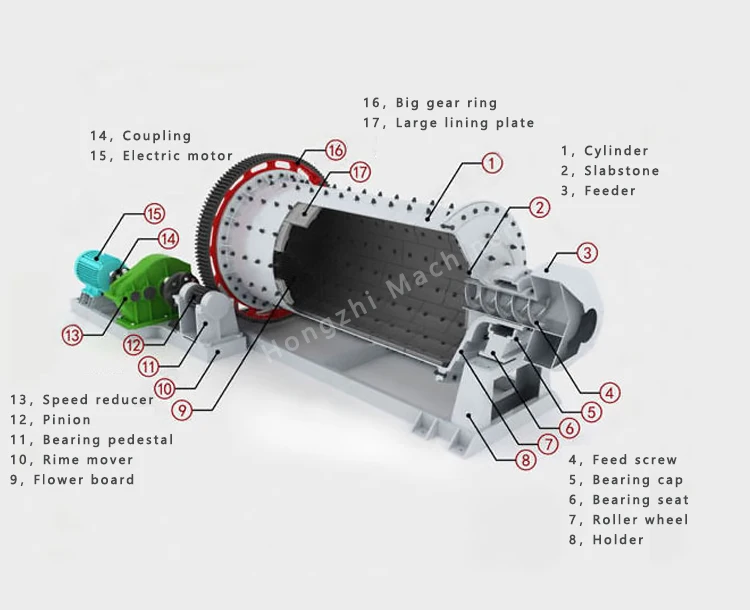

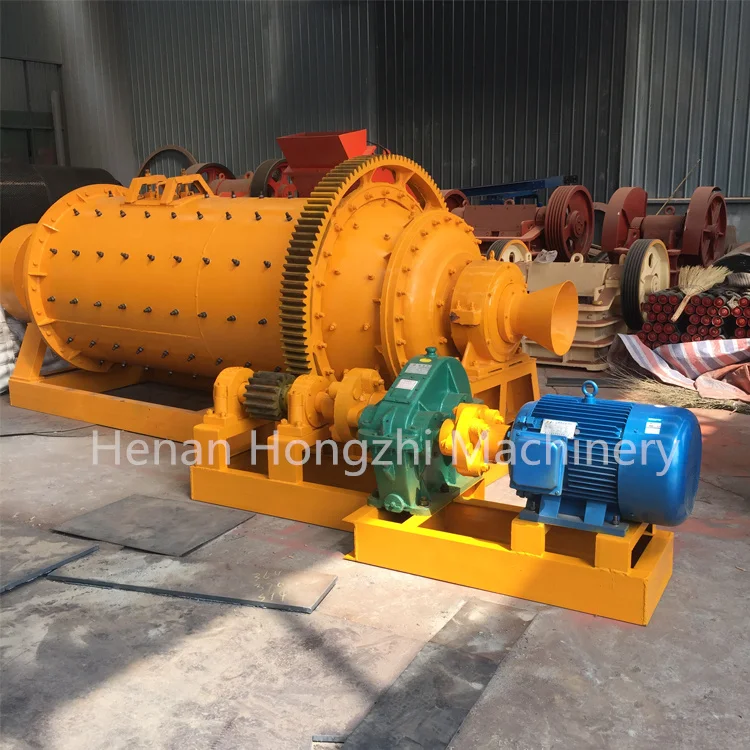

This type of ball mill is mainly composed of feeding unit, discharging unit, rotating unit, and transmission unit which consists of reducer, small transmission gear, motor and electronic control system, featured by stationary and reliable operation.

• Hollow shaft is made of cast iron;


• Lining could be replaced;


• Large rotating gear is made of casting after gear hobbing;

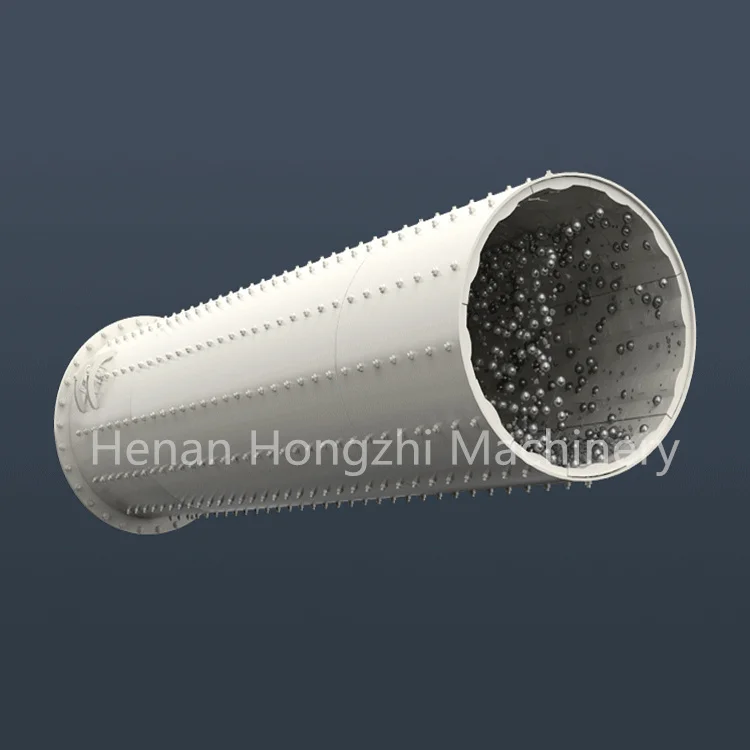

• Drum is equipped with anti-abrasive lining plate internally, with a high anti-abrasion performance;

Technical Parameters for Wet Gold Copper Iron Chromite Tin Raw Ore Ball Mill

Technical Parameters Table for Wet Gold Copper Iron Chromite Tin Raw Ore Ball Mill
