44pin PATA DOM SLC MLC IDE DOM 8GB 16GB With PATA & IDE ATA Interface NAND FLASH
- Category: >>>
- Supplier: Shenzhen Univo Industrial Co. Ltd.
Share on (1600928419183):
Product Overview
Description
Product Description
Product Name | IDE DOM 44 PIN（PATA Flash Module) |
Series | Standard Series |
Model | DH30 |
Capacity | SLC：128MB~16GB MLC：4GB~256GB |
Feature | * High reliability, low power consumption |
* Comply with PATA&IDE (ATA) interface specification | |
* Master / Slave Switch | |
Shock / Vibration | 1500/20 |
MTBF(h) | 2,000,000 |
Operating Voltage | 5V ± 5% |
Operating Temperature | NT：0℃ ~ 70 ℃ WT：-40 ℃~85 ℃ |
Storage Temperature | -55℃ ~95℃ |
Sequential R/W Performance(Max) | Read：64MB/S Write：48MB/S |
Dimension(LxWxH) | 48.4mm(L)X27.3mm(W)x5.8mm(H) |

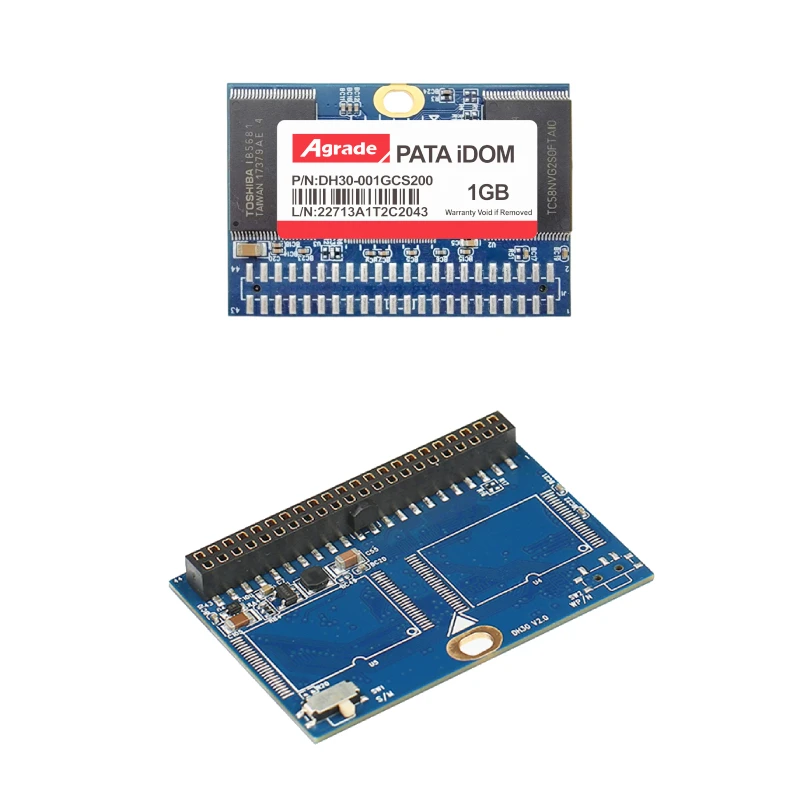

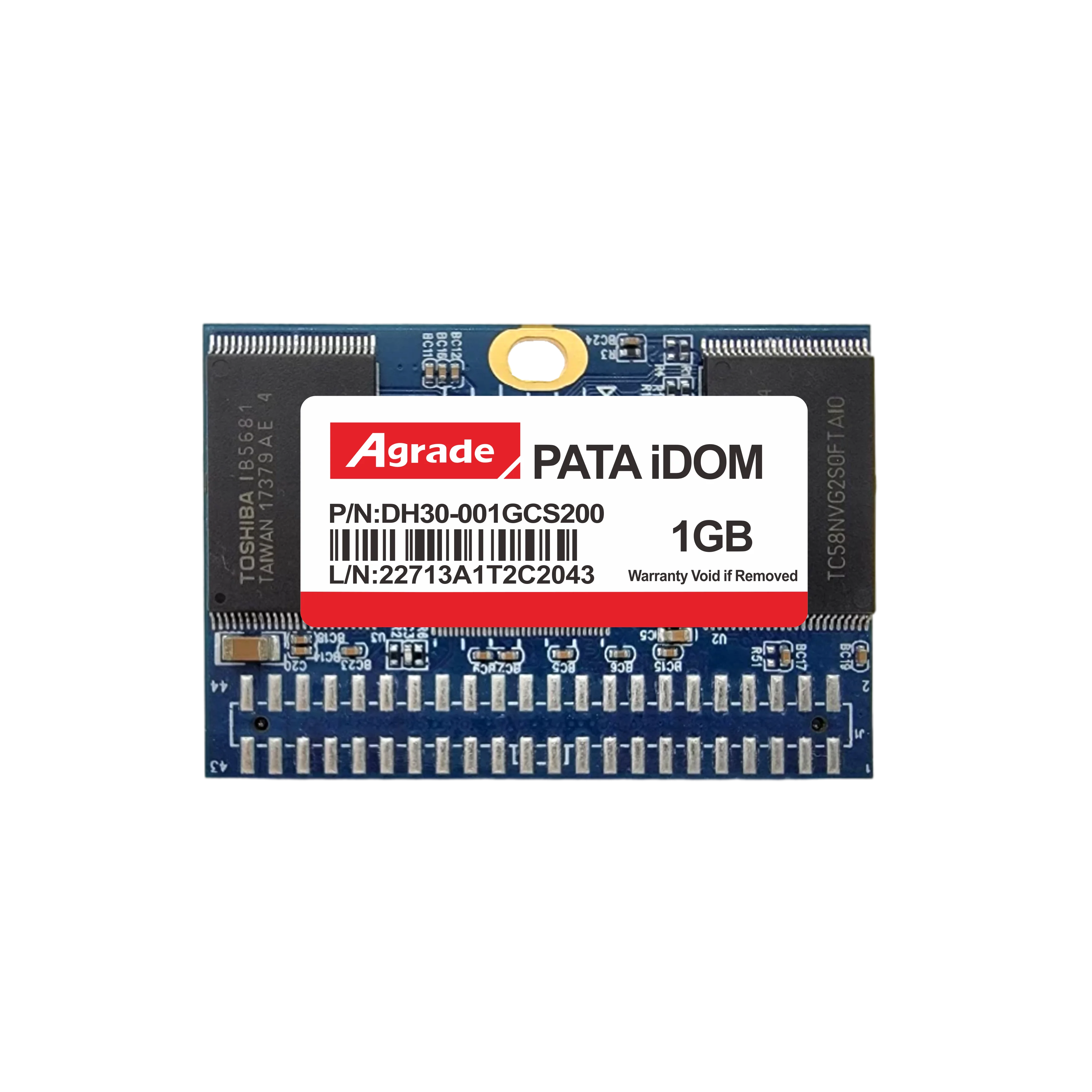

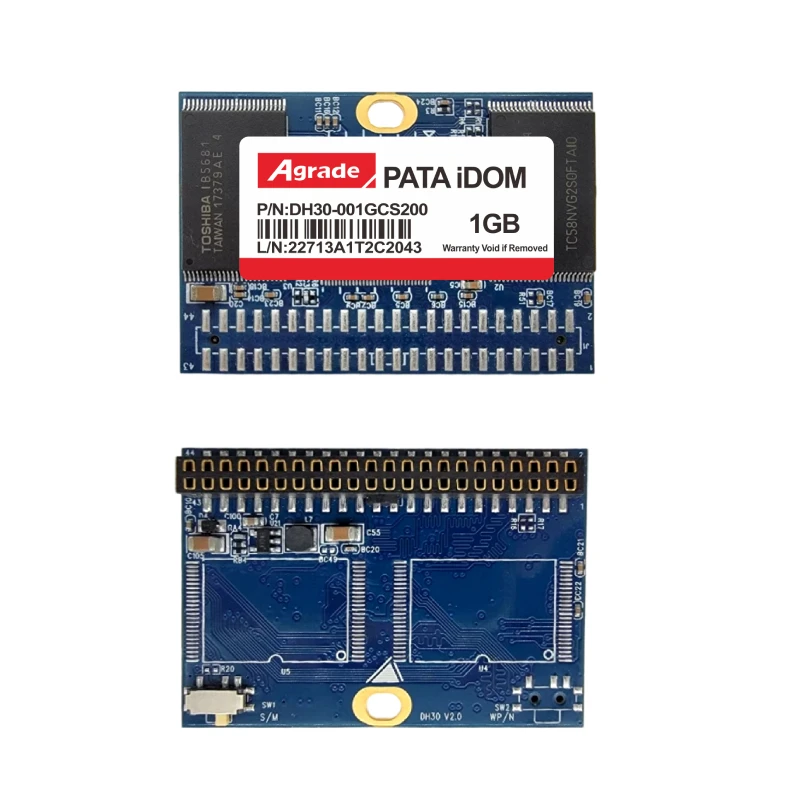

- Industrial IDE DOM 44 PIN（PATA Flash Module)
Agrade’s Industrial IDE Flash Module, DH30 series, is based on FLASH memory controller technology equipped with NAND FLASH memory. DH30 standard 44 pins with power input as 2.5” IDE storage disk interface. This DH30 series also provides standard Security and SMART functions that can allow the host system with versatile implementations for risk control or life DH30-an management in advance.
Details Images
Agrade’s Industrial IDE Flash Module, DH30 series, is based on FLASH memory controller technology equipped with NAND FLASH memory. DH30 standard 44 pins with power input as 2.5” IDE storage disk interface.
This DH30 series also provides standard Security and SMART functions that can allow the host system with versatile implementations for risk control or life DH30-an management in advance.
Wide-temperature DRAM modules can operate in the range of -40°C to 85°C. These modules are designed to solve the harsh environmental conditions of applications such as vehicles, factories, networks and outdoor kiosks, as well as surveillance and
security markets.
security markets.

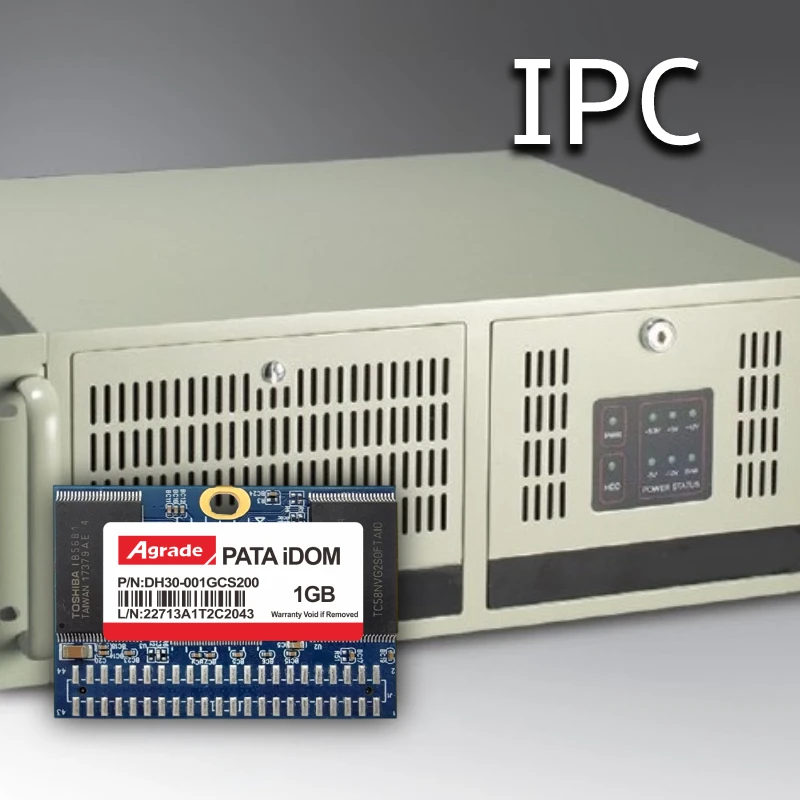

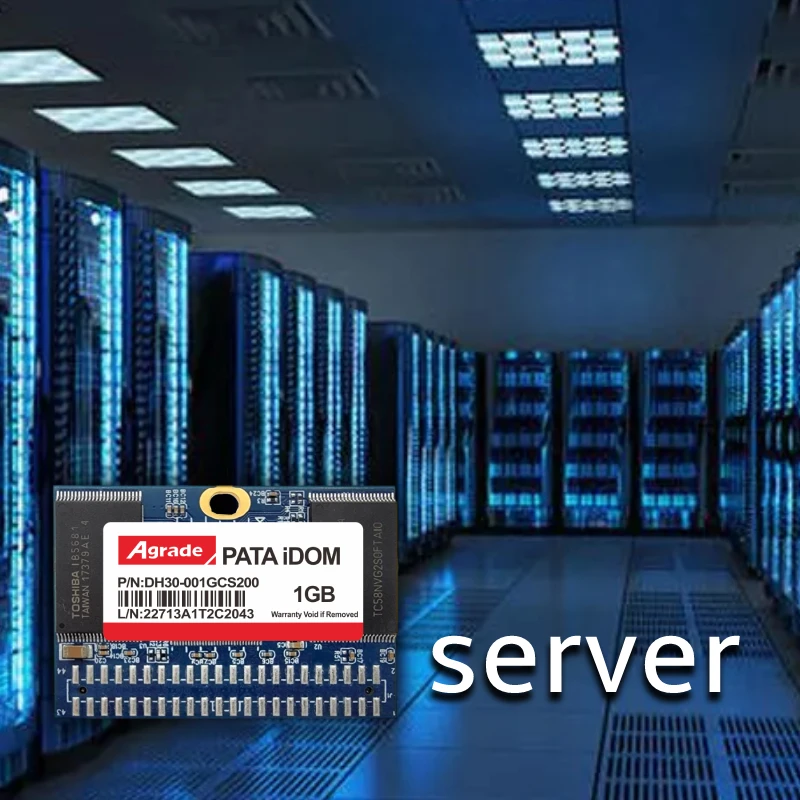

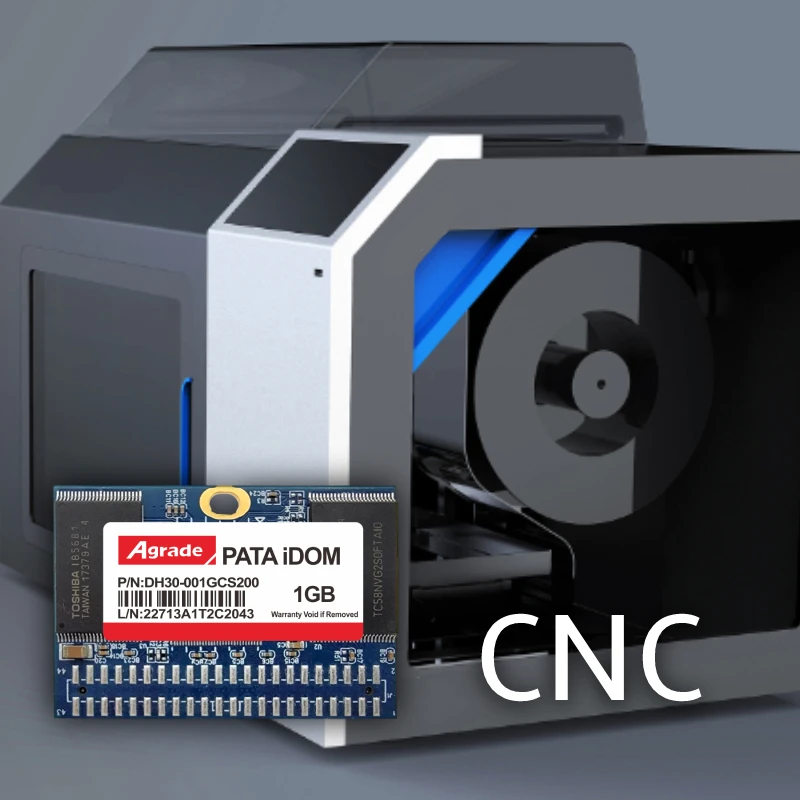

Product Usage
Industrial IDE DOM 44 PIN（PATA Flash Module)
Agrade’s Industrial IDE Flash Module, DH30 series, is based on FLASH memory controller technology equipped with NAND FLASH memory. DH30 standard 44 pins with power input as 2.5” IDE storage disk interface.
Description of product
This DH30 series also provides standard Security and SMART functions that can allow the host system with versatile implementations for risk control or life DH30-an management in advance.
Packing&Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

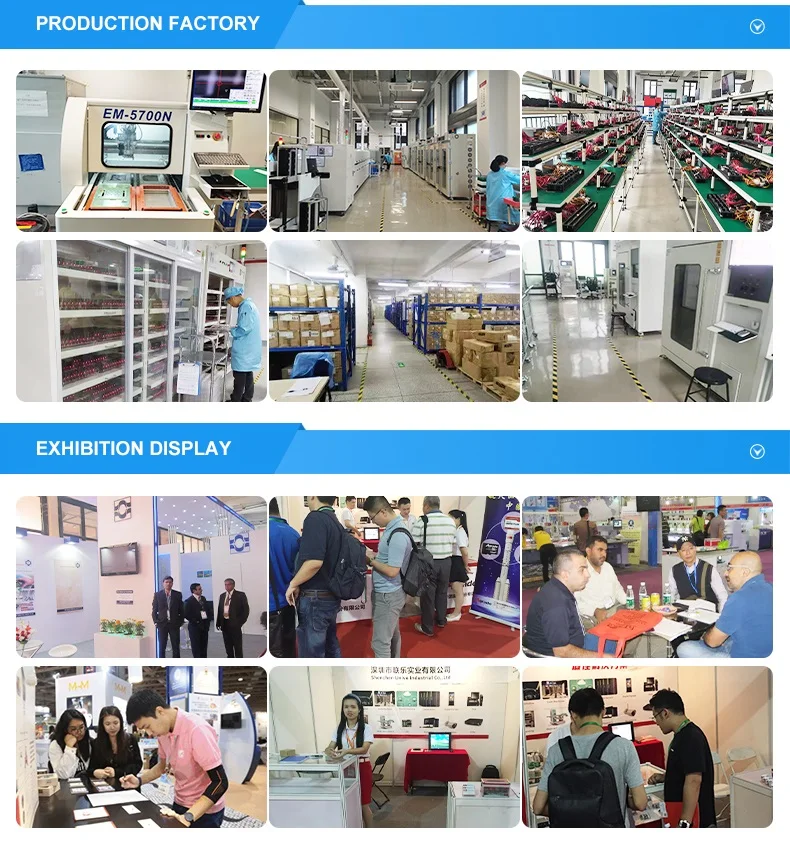

Company Introduction
SHENZHEN UNIVO INDUSTRIAL CO., LTD. Shenzhen Union Industrial Co., Ltd. was established in 2004 and is located in Shenzhen China. We are specialized in Ram, SSD, USB Flash Drives, Flash Card, CPU. Our company has rich experience in the storage industry. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction. We are making great efforts to develop new products to meet different requirements. In addition, we have obtained CE, FCC, RoHS ,ISO certificates. Selling well in all cities and provinces around China, our products are also exported to clients in such countries and regions as USA, UK, Poland, Russia and more. At the same time, we also undertake OEM and ODM orders. we have had a reliable reputation among our customers because of our professional services, quality products and competitive prices. Whether your company is selecting a product from our existing ordering catalog or looking for assistance with engineering applications, you can talk to our customer service center about your sourcing requirements. Welcome customers work together with with us for common success.
FAQ
Q. Could you send your price list ?
A. Send inquiry to Univo now and inform your products details then price list will be sent Or contact platform sales for price list .
Q. Can I get samples to test before place an order?
A. Yes, we welcome sample order to test and check quality.
Q. Do you accept OEM/ODM?
A. Yes, We support it.
Q. Can I get a lower price if I order large quantities ?
A. Yes. Cheaper prices with more bigger orders.
Q. How can we guarantee quality?
A. Always a pre-production sample before mass production; Always final Inspection before shipment;
Q. What kind of warranty you offer?
A. We provide 3-5year warranty.
Q. How long will it take to deliver goods?
A. We will start preparing goods upon receipt of buyers' T/T copy. After receiving your full payment, we will deliver the goods within the deadline which both parties agreed.
Q. What kind of transportation methods you offer?
A. For spare-parts, we use express delivery like DHL, UPS, FedEx, TNT and EMS , as we enjoy very good discount in these companies. But if buyers provide us accounts of their own, transportation fee paid by such accounts are also welcomed.
Q. Can I get samples to test before place an order?
A. Yes, we welcome sample order to test and check quality.
Q. Do you accept OEM/ODM?
A. Yes, We support it.
Q. Can I get a lower price if I order large quantities ?
A. Yes. Cheaper prices with more bigger orders.
Q. How can we guarantee quality?
A. Always a pre-production sample before mass production; Always final Inspection before shipment;
Q. What kind of warranty you offer?
A. We provide 3-5year warranty.
Q. How long will it take to deliver goods?
A. We will start preparing goods upon receipt of buyers' T/T copy. After receiving your full payment, we will deliver the goods within the deadline which both parties agreed.
Q. What kind of transportation methods you offer?
A. For spare-parts, we use express delivery like DHL, UPS, FedEx, TNT and EMS , as we enjoy very good discount in these companies. But if buyers provide us accounts of their own, transportation fee paid by such accounts are also welcomed.
