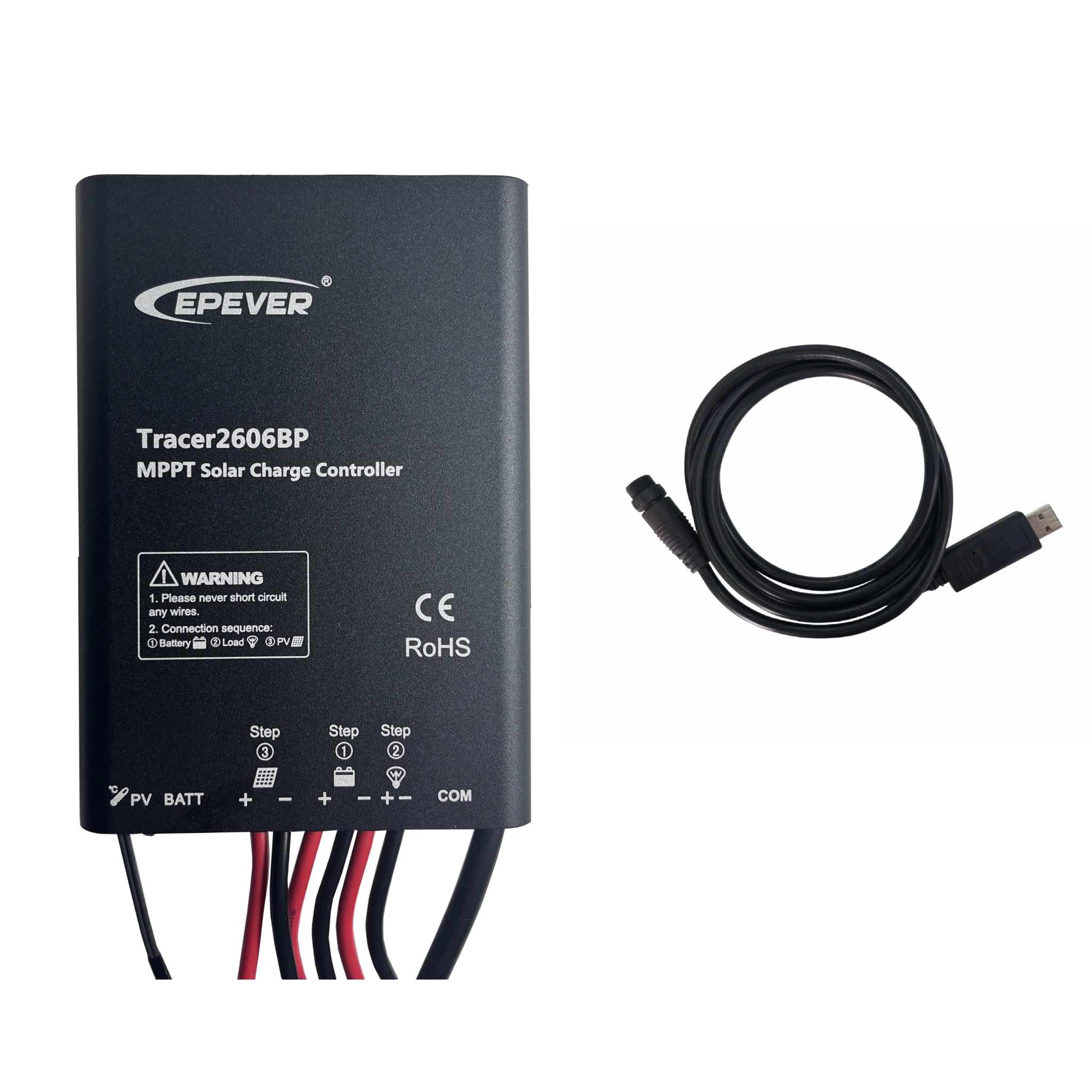

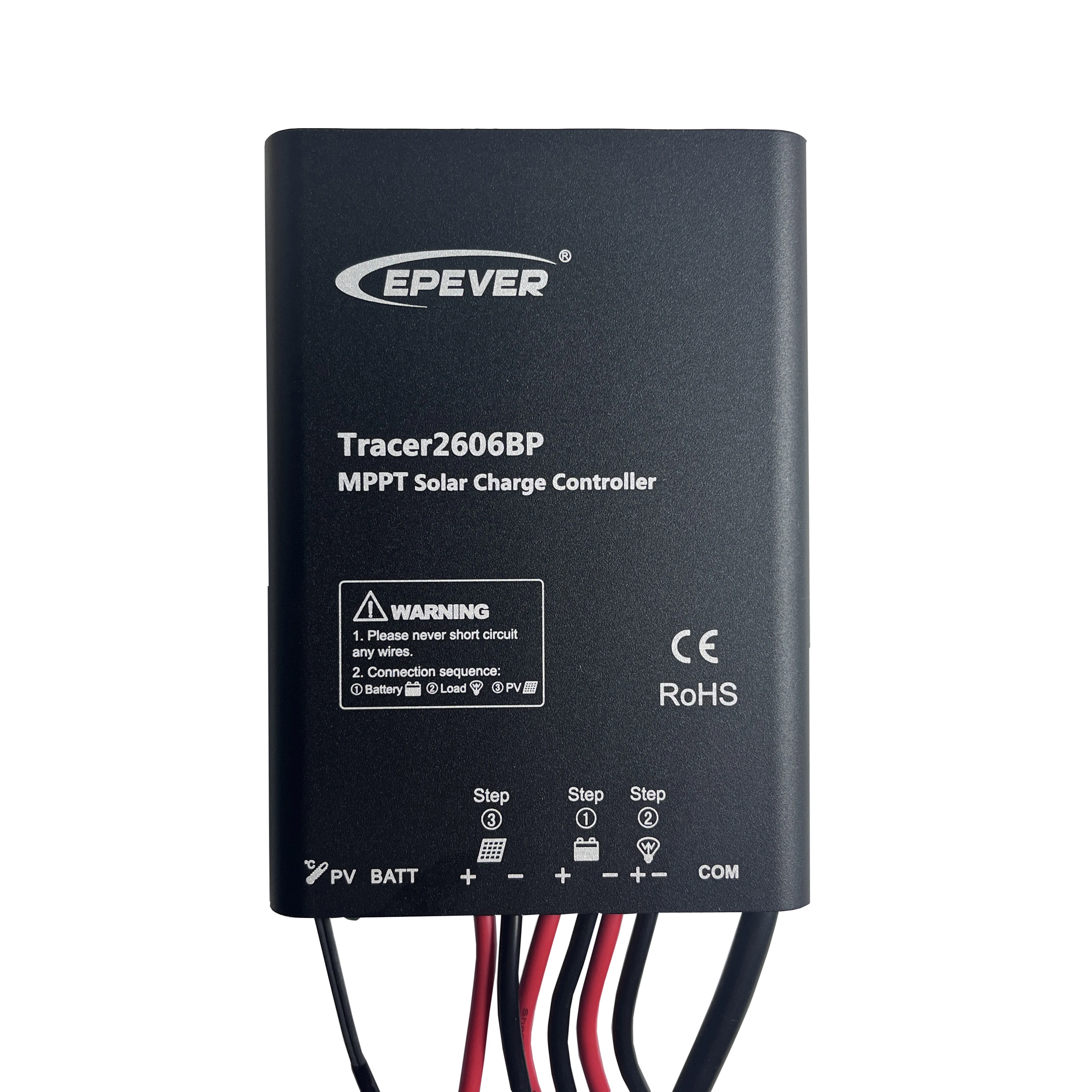

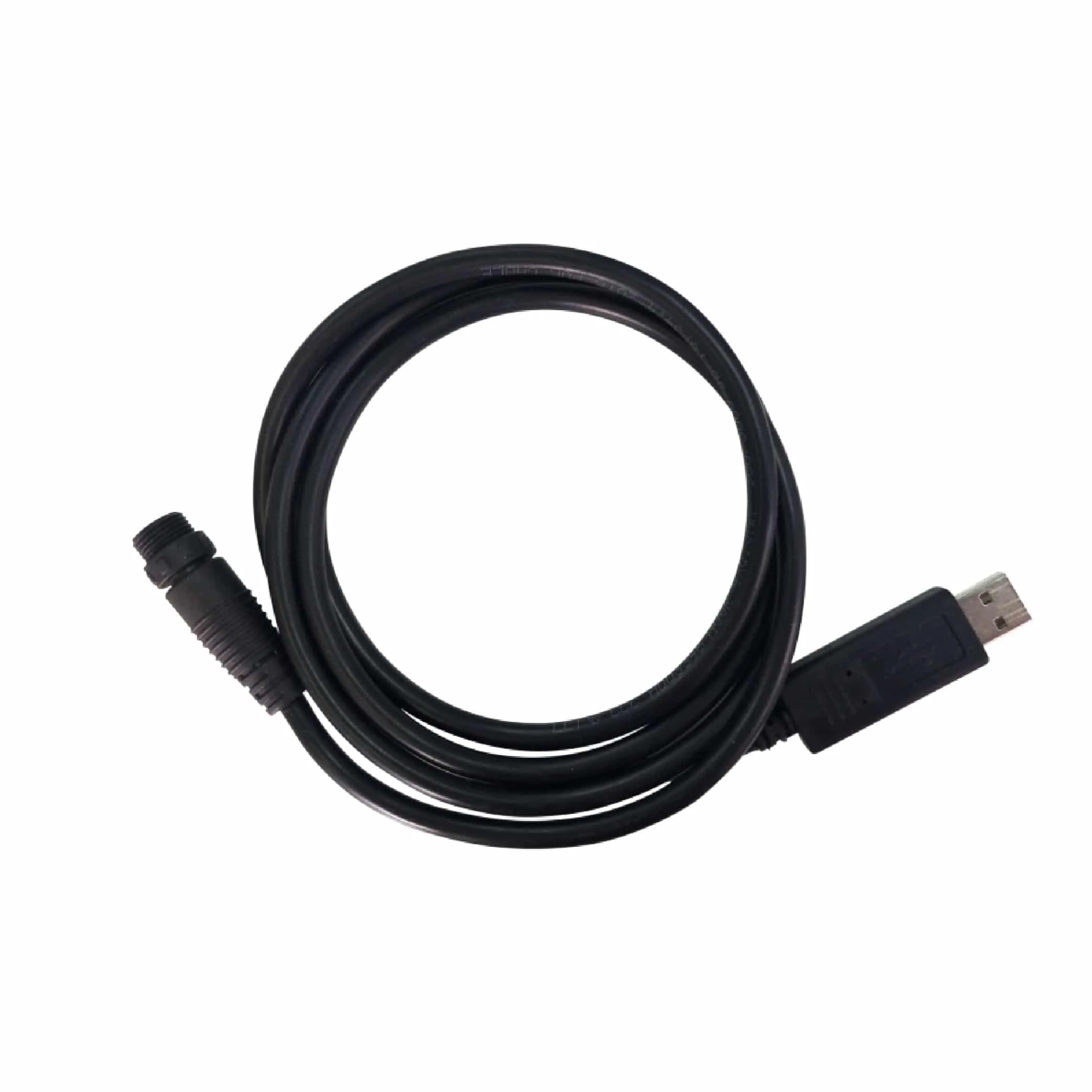

EPEVER Tracer2606BP Waterproof IP68 Outdoor Use Aluminum Case MPPT Solar Charge Controller 10A With USB Cable

Product Overview

Description

EPEVER Tracer2606BP Waterproof IP68 Outdoor Use Aluminum Case MPPT Solar Charge Controller 10A With USB Cable





Overview

The Tracer BP series solar charge controller adopt to the advanced Maximum Power Point Tracking charging methods, it enables the system charging and discharging management to obtain the most radical optimization. Increase the system flexibility, yet lower down the system cost. The controller support a variety of battery, for example sealed, gel, flooded and lithium battery. User can view and modify the working status and parameters. It can be widely used on solar home system, traffic signal, solar street light, solar garden lamp, etc.





Features

1. Adopt high quality components of ST,IR and Infineon, make sure product using lifespan
2. Wide working environment temperature
3. Apply to lead-acid battery and lithium battery
4. Lithium battery self-activating and low temperature protection function
5. Maximum conversion efficiency of 98%
6. Advanced Maximum Power Point Tracking (MPPT) technology, with tracking efficiency no less than 99%
7. Ultra-fast tracking speed and guaranteed tracking efficiency
8. Accurately recognizing and tracking of multiple power points
9. PV power limitation function
10. Monitoring and setting parameter via Mobile APP, PC Monitor setting software with RS485 communication interface
11. Use of standard Modbus communication protocol for RS485 bus connections, communication protocol compatibility much better
12. Connecting the IOT(Internet of Things) module and Cloud Server monitoring software to realize remote monitoring of the multi-machine system
13. The RS485 connector can provide power supply
14. Aluminum housing for better cooling
15. Real-time energy statistics function
16. IP68 waterproof degree







Product introduction

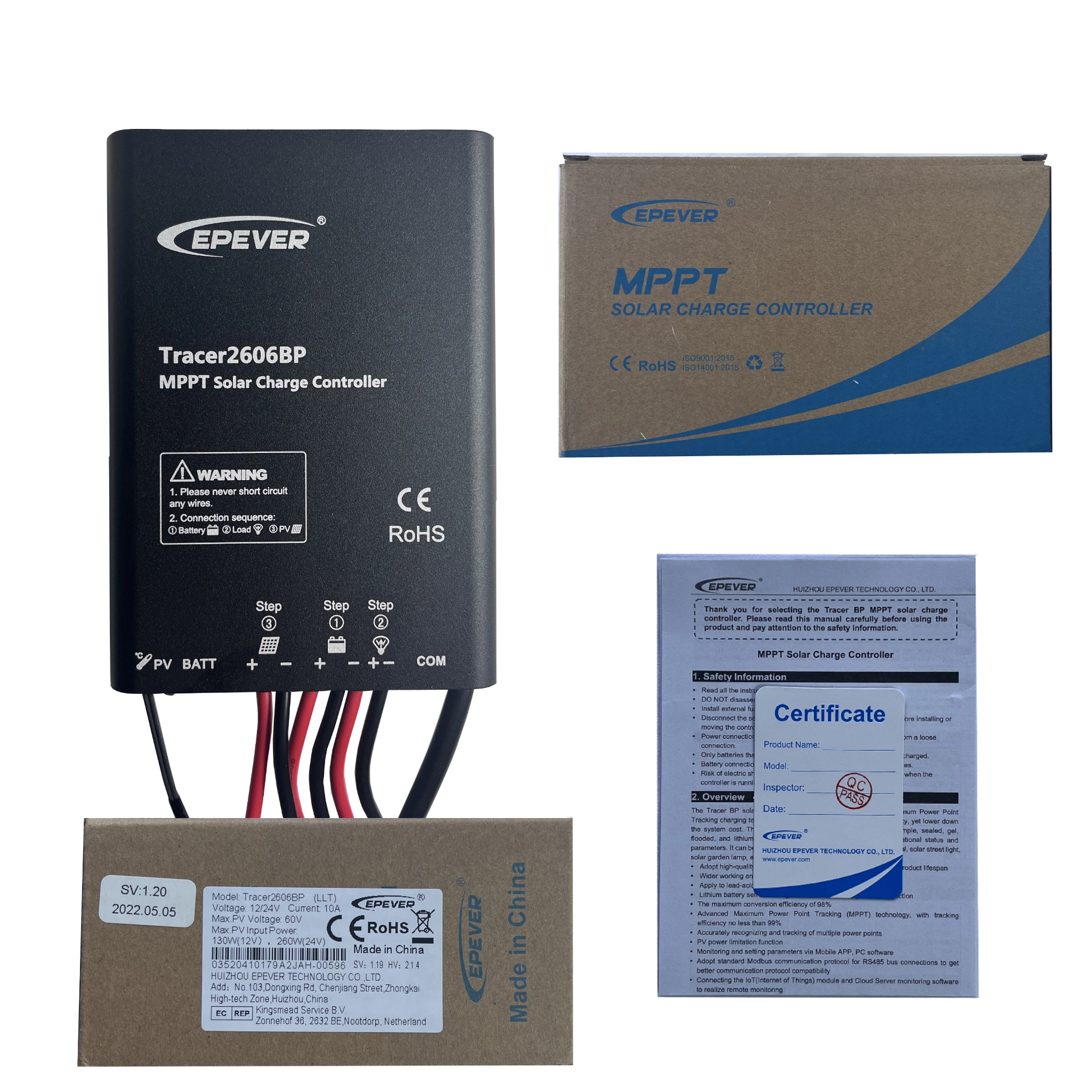

Package



Technical Specifications

Model	Tracer 2606BP	Tracer 3906BP	Tracer 5206BP	Tracer 2610BP	Tracer 3910BP	Tracer 5210BP	Tracer 7810BP
Nominal system voltage	12/24VDC Auto
Battery type	Lead-acid (Sealed/Gel/Flooded)/Lithium (LiFePO4/Li(NiCoMn)O2)/User
Battery input voltage range	8.5~32VDC
Rated charge current	10A	15A	20A	10A	15A	20A	30A
Rated discharge current	10A	15A	20A	10A	15A	20A	30A
Rated charge power	130W/12V 260W/24V	200W/12V 400W/24V	260W/12V 520W/24V	130W/12V 260W/24V	200W/12V 400W/24V	260W/12V 520W/24V	390W/12V 780W/24V
Max. conversion efficiency	≤98%
Tracking efficiency	≥99%
Max. PV open circuit voltage	60V( at minimum operating environment temperature ) 46V( at 25℃ environment temperature )			100V( at minimum operating environment temperature ) 92V( at 25℃ environment temperature )
MPP voltage range	(Battery voltage +2V)~36V			(Battery voltage +2V)~72V
Equalization voltage	Sealed:14.6V,Flooded:14.8V,User-defined:9-17V
Boost voltage	Gel:14.2V,Sealed:14.4V,Flooded:14.6V,User-defined:9-17V
Float voltage	Gel/Sealed/Flooded:13.8V,User-defined:9-17V
Low voltage reconnect voltage	Gel/Sealed/Flooded:12.6V,User-defined:9-17V
Low voltage disconnect voltage	Gel/Sealed/Flooded:11.1V,User-defined:9-17V
Self-consumption	≤13mA(12V);≤11.5mA(24V)
Temperature compensation ( for lead-acid battery)	-3mV/℃/2V(default)
Enclosure	IP68
Communication interface	RS485( waterproof)
Operating temperature range	-40℃~+60℃						-40℃~+50℃
Dimensions(LxWxH)(mm)	124×89 ×30	150×93.5 ×32.7	153×105 ×52.1	124×89 ×30	150×93.5 ×32.7	153×105 ×52.1	153.3×105 ×52.1
Net weight	0.54kg	0.74kg	1.20kg	0.54kg	0.74kg	1.20kg	1.26kg
1. The controlller can't automatically identify system voltage if lithium batteries were connected.
2. The voltage point is for 12V system, please *2 in 24V system.
