CNC oscillating knife cutter leather Nonwoven Oxford fabric cloth garment carbon fiber Prepreg fiberglass cutting machine
- Category: >>>
- Supplier: Jinan Deveup Intelligent Equipment Co. Ltd.
Share on (1600928449241):
Product Overview
Description
Product Description
Oscillating knife cutting machine for fabric cloth fiberglass leather carbon fiber prepreg have many advantages:
Deveup cnc digital knife cutting machine adopts high-power active rotary knife to cut fabrics, with strong cutting power, suitable for cutting high-strength composite materials. Cutting carbon fiber fiberglass or leather and related fabric cloth with knives is more environmentally friendly, will not produce smoke and other phenomena, and will not change the characteristics of the material. It is equipped with an intelligent operating system, supports automatic feeding and automatic nesting cutting. The concentration of many advantages makes RUBYCNC knife cutting machine the best solution for cutting carbon fiber composite materials.
At present, CNC oscillating knife cutting machines have been maturely used in aerospace, military equipment, new energy power generation, and other industries. At the same time, some clothing, carpet, leather, and other industries are also using oscillating knife cutting machines.
Main advantages of oscillating knife cutting machine:
1. It can cut many types of non-metallic materials. The oscillating knife cutting machine is suitable for cutting prepreg, fiberglass cloth, carbon fiber cloth, fiber cotton, fiberboard, leather, fur, clothing, and other materials.
2. Fast cutting speed. The oscillating knife cutting machine adopts an intelligent cutting system, and the Y-axis adopts double Mitsubishi servo motors as the power source, and the operating speed is up to 1500mm/s.
3. High precision. The oscillating knife cutting machine adopts red light positioning, the motor has pulse positioning, and the cutting accuracy is as high as 0.01mm (the accuracy of some materials will be reduced due to elasticity, please consult the online personnel for details).
4. Environmental protection. The oscillating knife cutting machine adopts kinetic energy contact cutting, which will not produce high temperature, smoke, peculiar smell, etc.
At present, CNC oscillating knife cutting machines have been maturely used in aerospace, military equipment, new energy power generation, and other industries. At the same time, some clothing, carpet, leather, and other industries are also using oscillating knife cutting machines.
Main advantages of oscillating knife cutting machine:
1. It can cut many types of non-metallic materials. The oscillating knife cutting machine is suitable for cutting prepreg, fiberglass cloth, carbon fiber cloth, fiber cotton, fiberboard, leather, fur, clothing, and other materials.
2. Fast cutting speed. The oscillating knife cutting machine adopts an intelligent cutting system, and the Y-axis adopts double Mitsubishi servo motors as the power source, and the operating speed is up to 1500mm/s.
3. High precision. The oscillating knife cutting machine adopts red light positioning, the motor has pulse positioning, and the cutting accuracy is as high as 0.01mm (the accuracy of some materials will be reduced due to elasticity, please consult the online personnel for details).
4. Environmental protection. The oscillating knife cutting machine adopts kinetic energy contact cutting, which will not produce high temperature, smoke, peculiar smell, etc.
Products Description
Model | DO1625/FV1625/DO2030/FV2030/DO1625 |
Working Size | 1600x2500mm, 2000x3000mm, 1600x5000mm |
Safety device | Physical anti-collision mechanism + infrared induction anti-collision to ensure production safety |
Cutting thickness | ≤45mm (Other thickness can be customized according to the material) |
Cutting speed | ≤1500mm/s(The actual speed depends on the material and cutting graphics) |
Applicable materials | Oxford cloth, Nonwoven Fabric, Prepreg, Neoprene, Synthetic Leather, cowhide, PVC, Foam, sound-absorbing cotton, KT board, car stickers, rubber, sponge, carton, film, fiberglass, fabric, carbon fiber, and other materi |
Cutting precision | ± 0.1mm |
Repeat accuracy | ≤0.05mm |
Cutting circular diameter | ≤3mm Diameter |
Positioning way | Laser positioning also optional CCD camera positioning |
Material fixed way | Vacuum adsorption |
Compatible software | AI software, AutoCAD, CorelDRAW, and all of the box type design software can output directly, without conversion, and with automatic optimization |
Command system | DWG, PLT, DXF, AI and etc |
Operation panel | Multilingual LCD touch panel |
Transmission system | High precision linear guide, meshing transmission gear and rack structure, Japanese Panasonic high performance servo drive motors + precision reducer |
Power supply voltage | AC 220 v to 380 v + 10%, 50 hz. |
Advantages
Our bed has the characteristics of heavy weight, good load-bearing capacity and high hardness, which ensures the accuracy and stability of the oscillating knife cutting machine at high speed. We guarantee that the machine will not be deformed in 10 years.
The crossbeam adopts the extrusion process of aviation aluminum alloy die, which ensures the stability and high precision of machine operation at high speed, especially suitable for some industries that require high precision, such as sealing gaskets
Taiwan imported famous brand helical gear rack, quenching and hardening treatment. High precision, strong load-bearing capacity, smooth
running at high speed and less noise.
running at high speed and less noise.
Taiwan PMI 20mm high precision linear guide, high positioning accuracy, high repeatability. Low friction resistance, high rigidity four-way load design, high speed and long time operation to maintain high precision
The worktable is a high precision and strength aluminum honeycomb vacuum absorption worktable. Cooperate with high power vacuum pump to fix the material. Prevents material displacement during cutting.

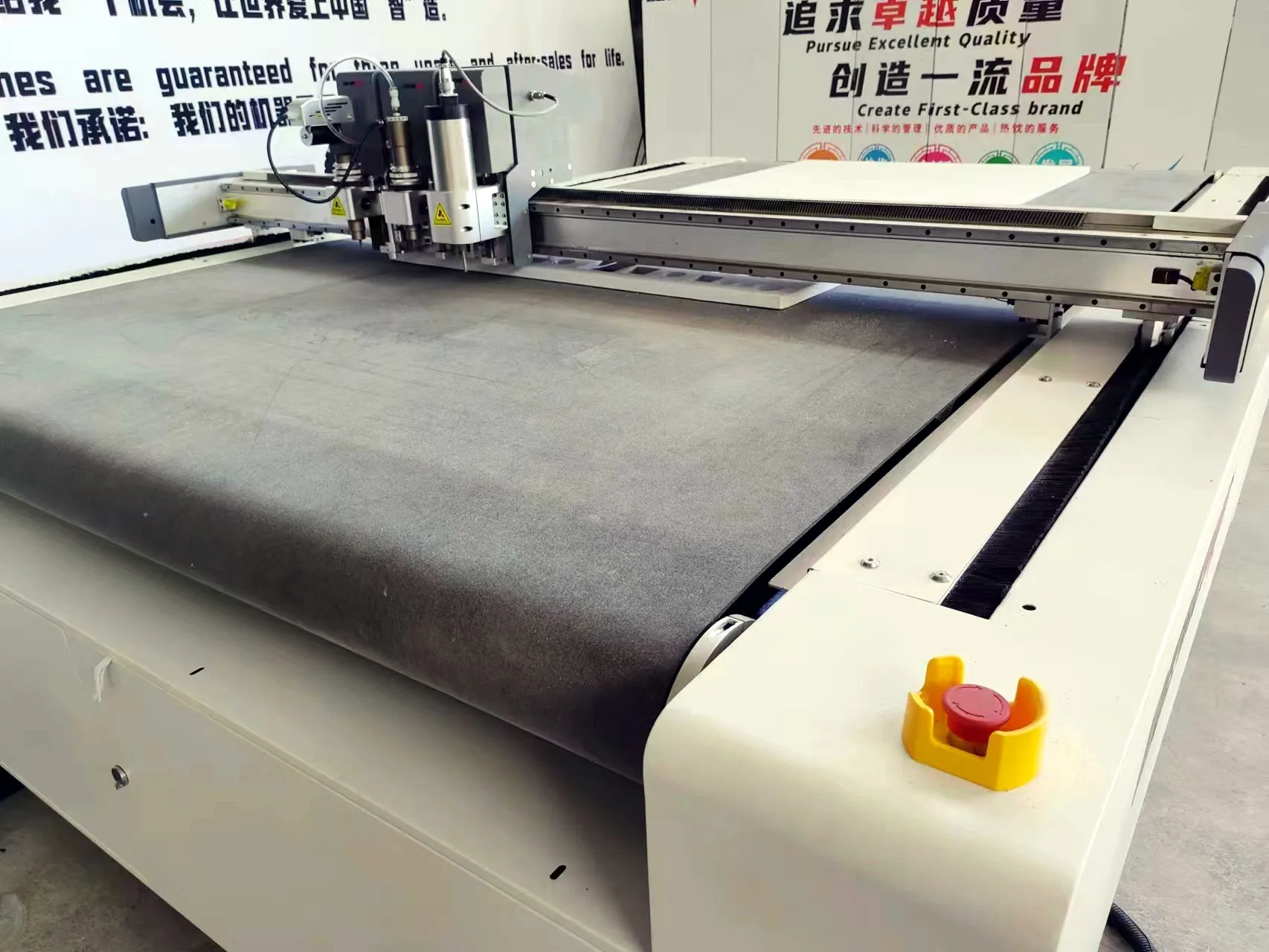

Imported Holland 4mm Felt to protect the vacuum table and blades when machine working. Cut resistance, good softness, will not scratch the product, non-slip

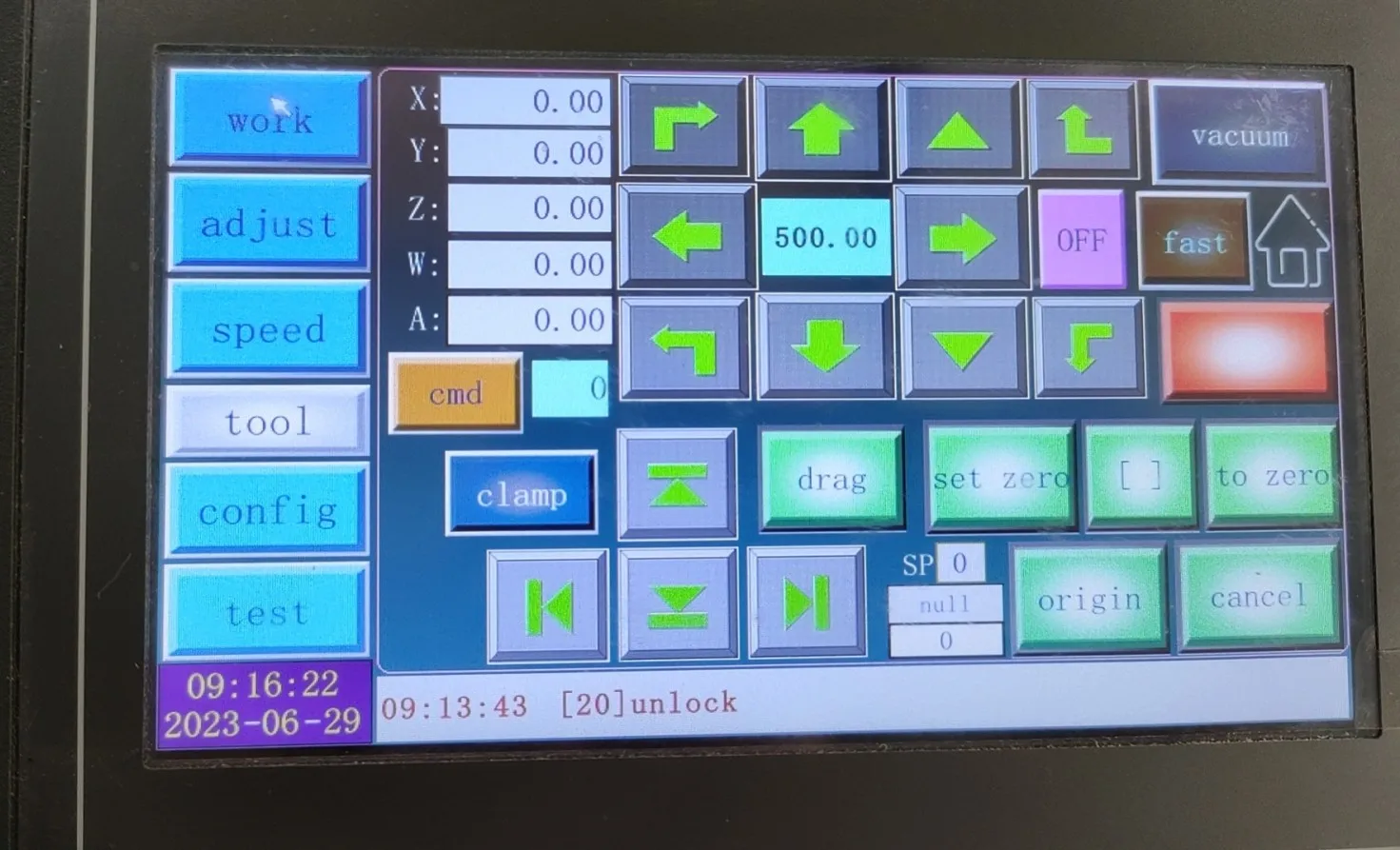

Colorful LCD touch operation panel supports world multilingual kinds of languages, with more intuitive operation interface, which can directly input processing data, set processing speed and knife depth, support screen automatic protection, and protect
processing data,feature-rich and user-friendly operation.
processing data,feature-rich and user-friendly operation.

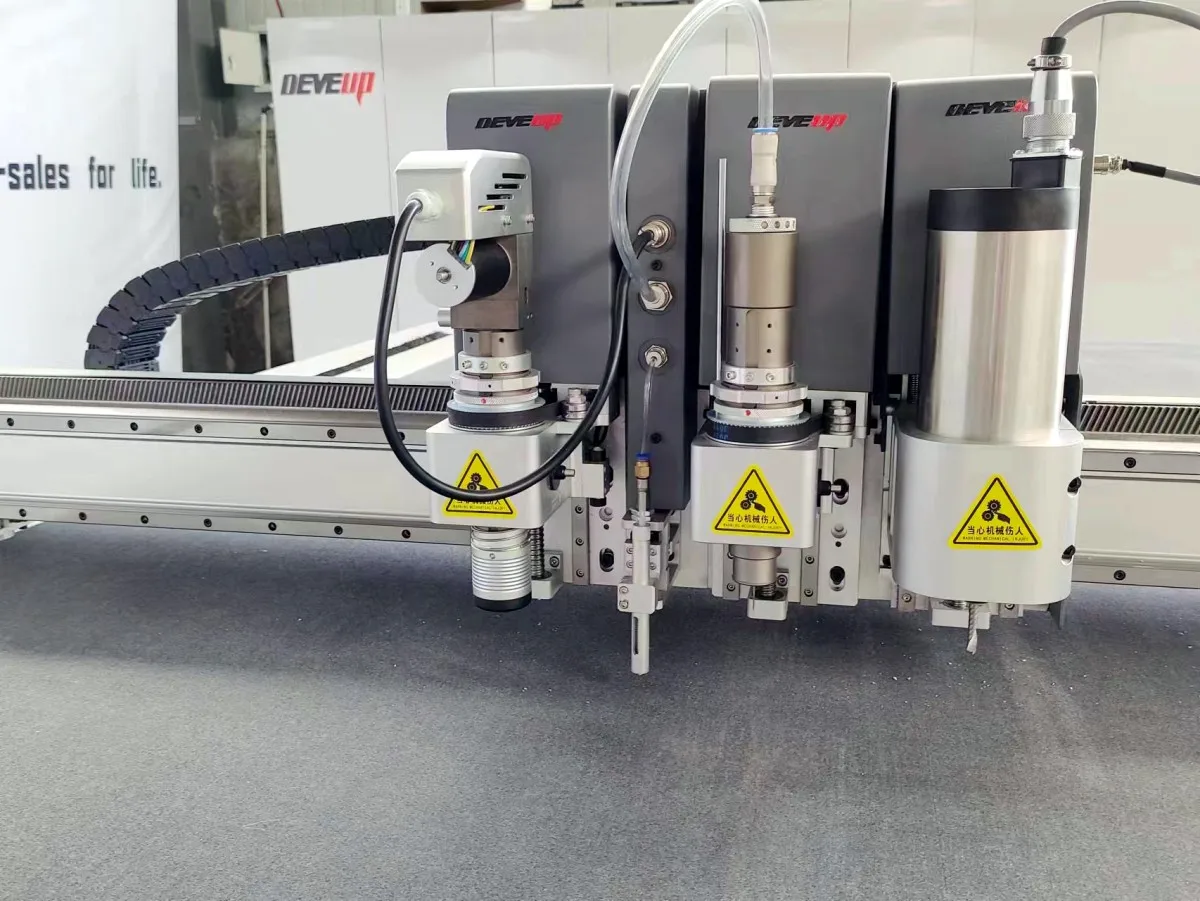

A variety of tool combinations, equipped with intelligent tools interchange system, can cut different materials to achieve different tasks, and multiple tool heads can work individually or in concert. Powerful function, fast running speed, high
processing accuracy, truly multi-purpose machine.
processing accuracy, truly multi-purpose machine.
Safety protection device. Highly sensitive collision avoidance system and red light brake system. When the machine is cutting at high speed, it can effectively protect safety of the operator.

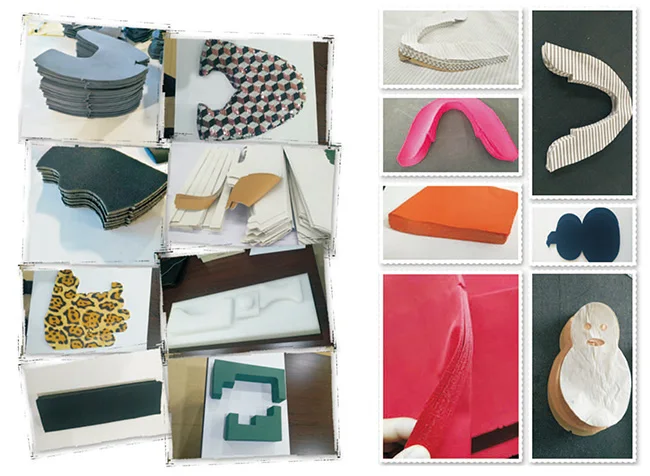

Cutting Samples

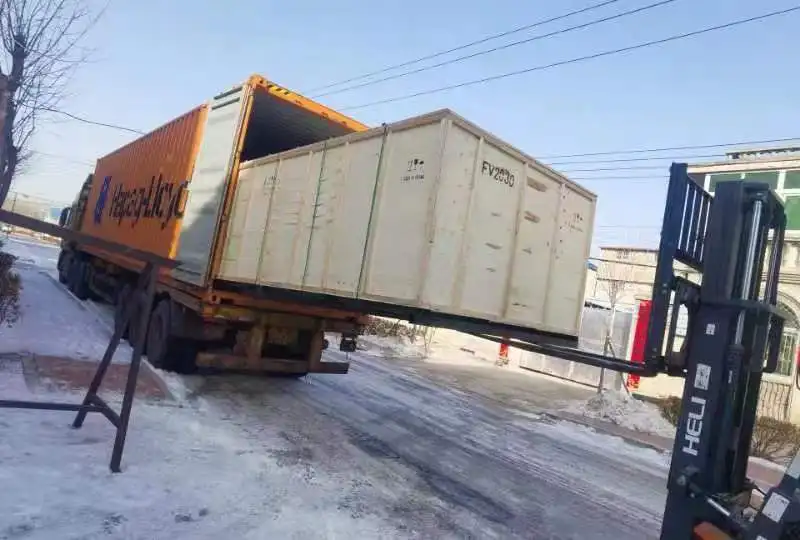

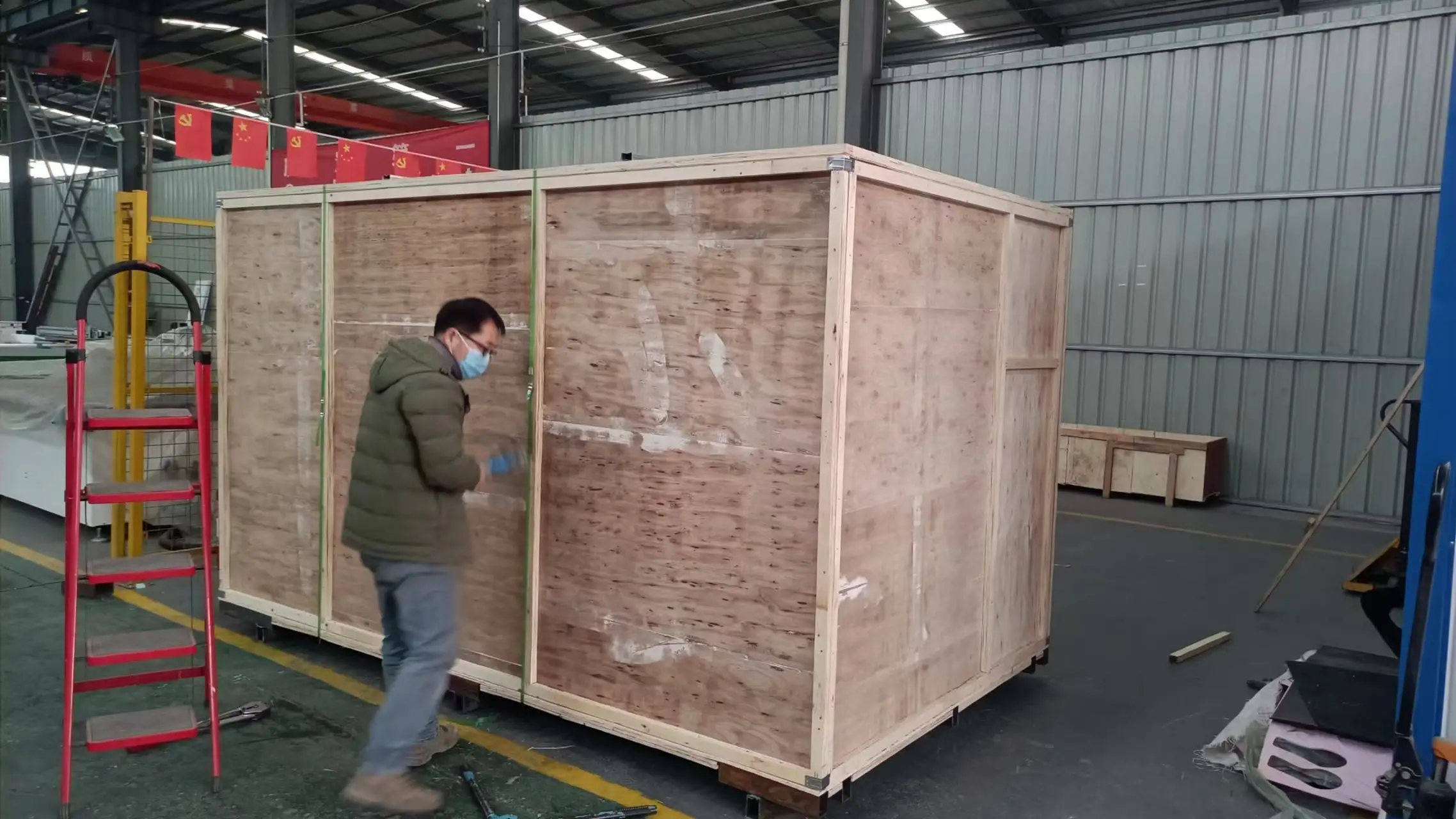

Package and Delivery
FAQ
1. Q: Are you a factory or Trading company?
A: We are a professional oscillating knife cutting machine production factory, we produce high-end quality CNC cutting machines.
2. Q: Can you customize the machine according to my needs?
A: Yes, we accept the customized machine, our company has an experienced professional design team, we can give you our professional suggestions according to your requirements and design a cost-effective machine for your needs.

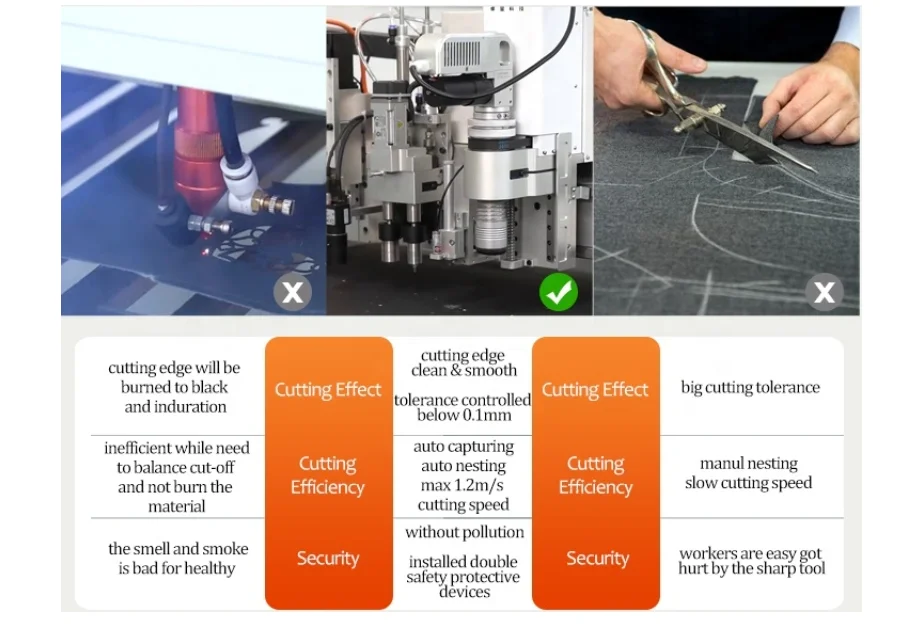

3. Q: What is the difference between this knife cutting product and your laser cutting machine?
A: a. This knife cutting machine cut with vibrating blades, no laser, no pollution, and create a good working environment for
workers.
b. Blade cutting can ensure the edge of material cutting smooth without burning.
4. Q: What's the warranty policy?
A:Standard warranty is 36 months upon delivery. Main parts are free of charge(except consumable parts) when problems happened because of quality problem during this period. Problems caused by wrong operate will also well-solved.
5. Q: Can I still get support after warranty?
A: Of course, We offers life-time technology support, you can always counting on our service.
6. Q: This is the first time I buy machine from China, what can you do for me?
A: We supply DDU service for the new buyers. This service means we will deliver machine directly to your factory.
A: We are a professional oscillating knife cutting machine production factory, we produce high-end quality CNC cutting machines.
2. Q: Can you customize the machine according to my needs?
A: Yes, we accept the customized machine, our company has an experienced professional design team, we can give you our professional suggestions according to your requirements and design a cost-effective machine for your needs.
3. Q: What is the difference between this knife cutting product and your laser cutting machine?
A: a. This knife cutting machine cut with vibrating blades, no laser, no pollution, and create a good working environment for
workers.
b. Blade cutting can ensure the edge of material cutting smooth without burning.
4. Q: What's the warranty policy?
A:Standard warranty is 36 months upon delivery. Main parts are free of charge(except consumable parts) when problems happened because of quality problem during this period. Problems caused by wrong operate will also well-solved.
5. Q: Can I still get support after warranty?
A: Of course, We offers life-time technology support, you can always counting on our service.
6. Q: This is the first time I buy machine from China, what can you do for me?
A: We supply DDU service for the new buyers. This service means we will deliver machine directly to your factory.
