Qingdao modular steel structure poultry fattening chicken shed with breeding equipment system
- Category: >>>
- Supplier: Qingdao Director Steel Structure Co. Ltd.
Share on (1600928460002):
Product Overview
Description
Qingdao modular steel structure poultry fattening chicken shed with breeding equipment system:
Product Description
2. Specification
| Items | Specification | |
| Main Steel Frame | Column | Q235, Q355 Welded H Section Steel |
| Beam | Q235, Q355 Welded H Section Steel | |
| Secondary Frame | Purlin | Q235 C and Z purlin |
| Knee brace | Q235 Angle Steel | |
| Tie Rod | Q235 Circular Steel Pipe | |
| Brace | Q235 Round Bar | |
| Vertical and Horizontal Support | Q235 Angle Steel, Round Bar or Steel Pipe | |
| Maintenance system | Roof Panel | EPS Sandwich Panel / Glass Fiber Sandwich Panel / |
| Rock Wool Sandwich Panel / PU Sandwich Panel /Steel Sheet | ||
| Wall Panel | Sandwich Panel / Corrugated Steel Sheet | |
| Accessories | Window | Aluminiumn Alloy Window / PVC Window / Sandwich Panel Window |
| Door | Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door | |
| Rainspout | PVC | |
| Live load on Roof | In 120kg/Sqm (Color steel panel surrounded) | |
| Wind Resistance Grade | 12 Grades | |
| Earthquake-resistance | 8 Grades | |
| Structure Usage | Up to 50 years | |
| Temperature | Suitable temperature: -50°C~+50°C | |
| Certification | ISO9001:2008, ISO14001:2004 | |
| Finishing Options | Vast array of colors and textures available | |
| Paint Options | Alkyd painting, twice primary painting, twice finish painting (grey paint, red paint, white paint, epoxy zinc, etc.) Or hot galvanized. | |

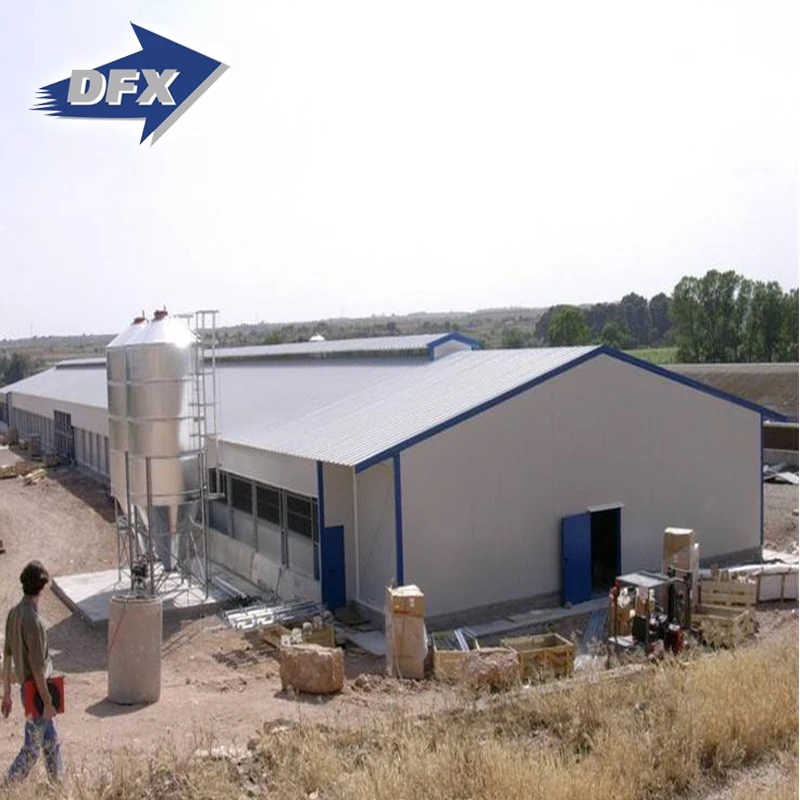

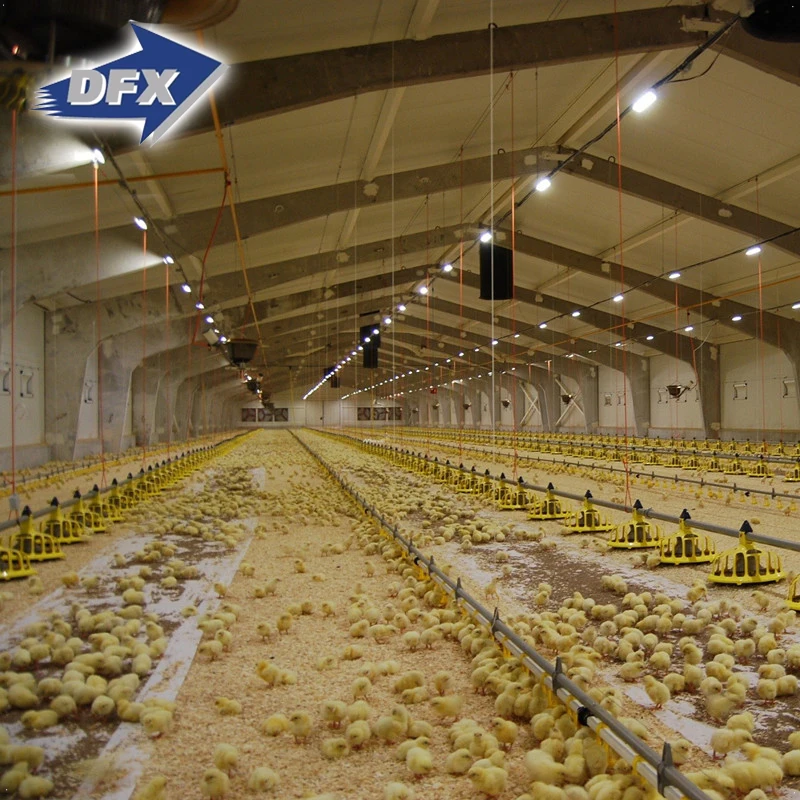

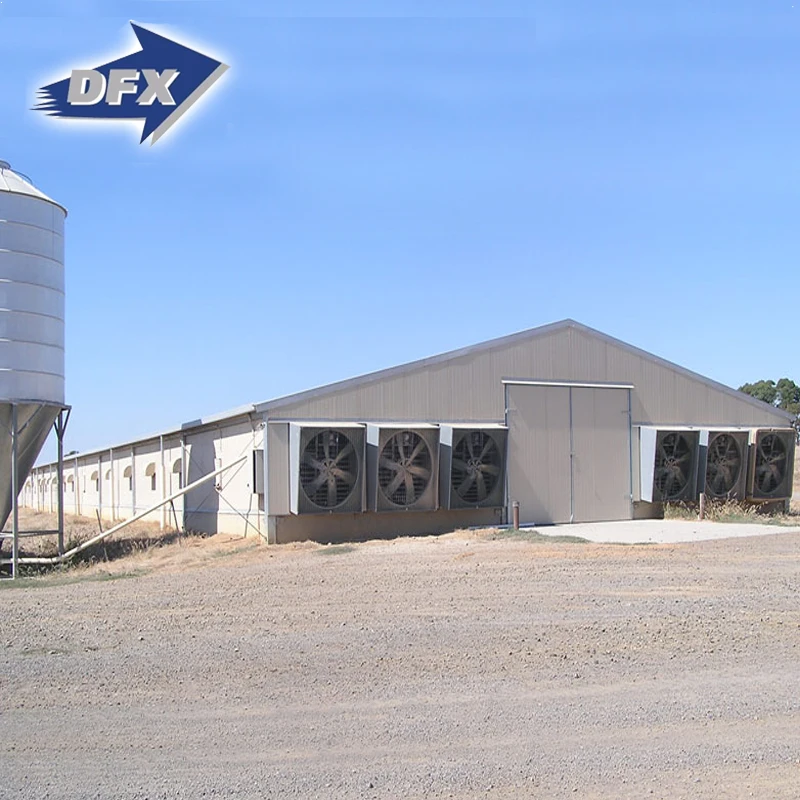

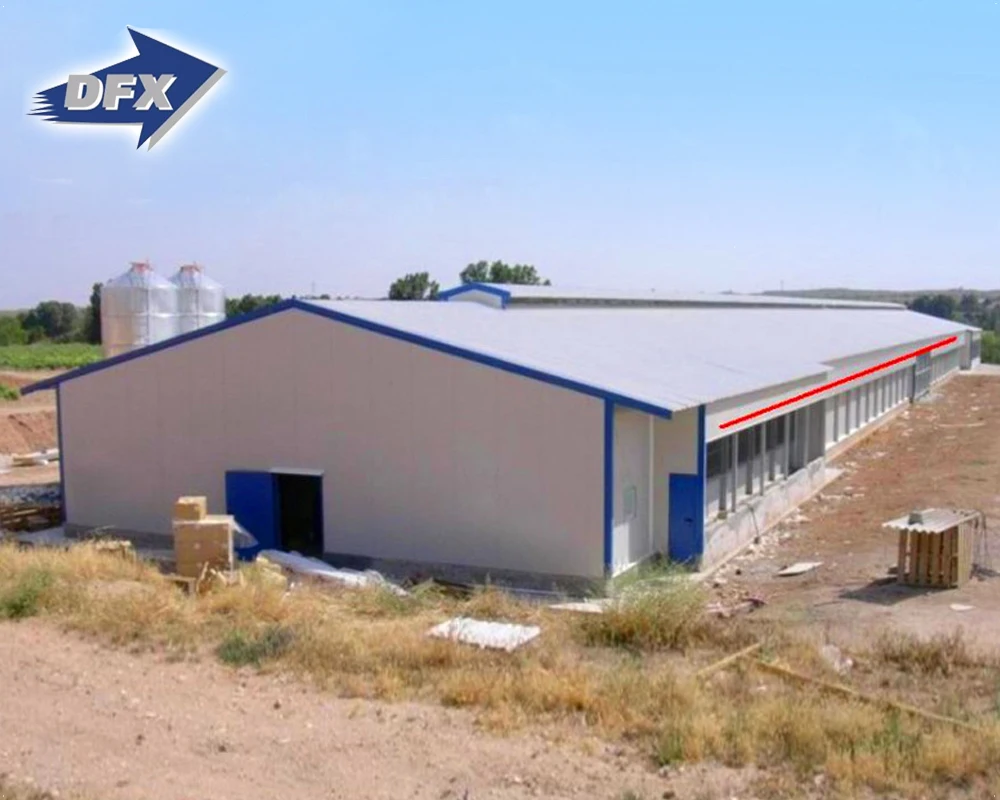

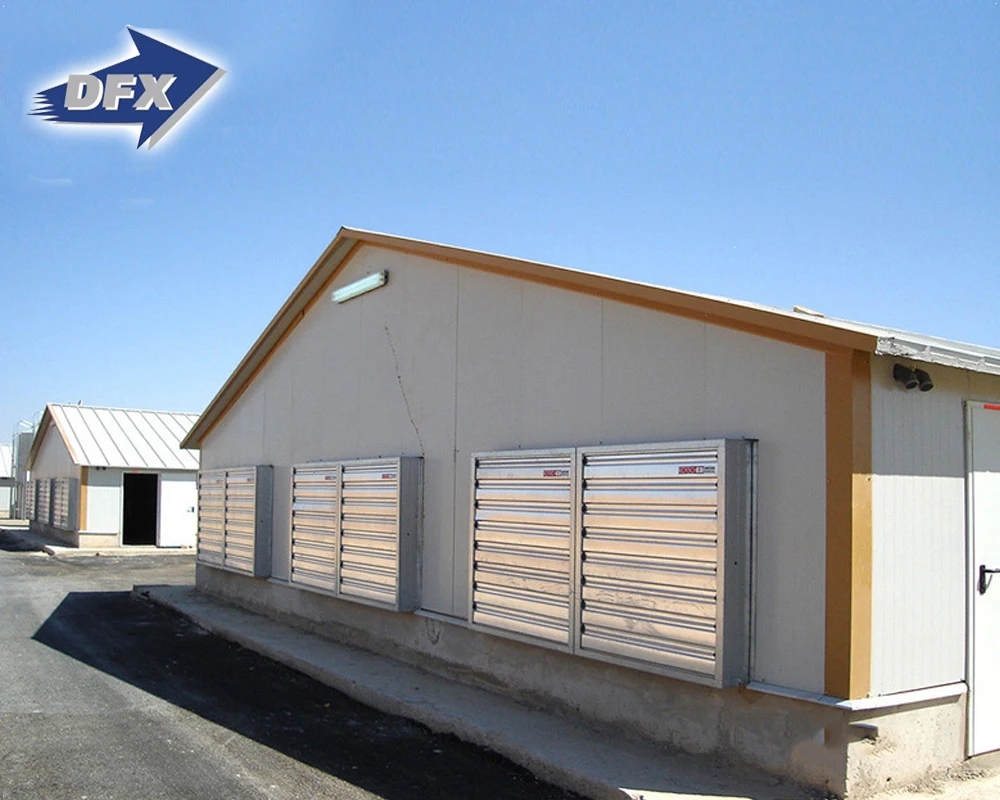

3. Detailed Images
4. Characteristics
1. Safe structure: using H section steel column and beam, which is much stronger than C section steel.
2. Low cost and maintenance: unit price range from USD35/m2 to USD70/m2 according to customers request.
3. Fast construction and easy installation: time saving and labor saving.
4. Long using lifespan: up to 50 years.
5. Nice appearance.
6. Others: environmental protection, stable structure, high quake-proof, water proof and fire proof, and energy conserving.
5. Poultry Automatic Feeding Equipments
Product Show
Successful Projet
1. Some main oversea projects we undertook in the last couple months
Industrial factory (13000 M2 )—Brazil
Warehouse (14000M2)---- Georgia
Workshop (12000M2)----France
Warehouse (3600M2)---Belerus
Vegetable market (2500M2)---- Mauritius
Pig shed (3500M2)---Australia
Chicken shed (2800M2)—Philippines
Aircraft hangar (1300M2)----Maldives
Warehouse (900M2)---- Russia
Prefabricated house (70M2)----800 sets---Angola
Container house (20')----60 sets—Australia
2. Transaction history
Company Information
Our Services
FAQ
Q1. You are manufacture factory or trading company? |
| Q2. Is your price competitive with other companies? A: Our business objectives are to give the best price with same quality and best quality with the same price. We will do everything we can to reduce your cost. |
| Q3. Do you offer service for installation? A: We will give detailed installation drawings and video for free. And if you need, we could send engineers as installation director even a team. |
| Q4. Do you accept container loading inspection? A: You are welcomed to send an inspector, not only for the container loading, but any time during the production time. |
| Q5. Do you offer designing service for us? A:Yes, we could design full solution drawings as your requirements. They use software such as Auto CAD, PKPM, MTS, 3D3S, etc. we will be glad to establish sincere business cooperation with you in the near future |
| Q6. What is the delivery time? A: Delivery time depends on order quantities. Generally, the delivery time will be 30 days after receiving deposit. |
Q7. How can you get a quotation for your projects? quotation ASAP. Thanks for your kind cooperation. |
Quotation
Our excellent design team will design the steel structure workshop warehouse for you. If you give the following information, we will give you an satisfactory drawing.
1. Location (Where will be built): Country area
2. Size ( length* width* height ): m* m* m*
3. Wind speed: KM/H
4. Snow load: KG/m²
5. Rain load: KG/m²
6. Anti-earthquake: level
7. Brickwall need or not? If yes, 1.2m high or 1.5m high?
8. Thermal insulation: If yes, fiberglass wool, rock wool, PU sandwich panels will be suggested; if not, the metal steels will be ok. The cost of the latter will be much lower than that of the former.
9. Door quantity & size: units (width)m (height)m
10. Window quantity & size: units (width)m (height)m
11. Crane needed or not: If yes, units, crane max lift height m, max lift capacity tons, max wheel pressure and min wheel pressure!
Qingdao modular steel structure poultry fattening chicken shed with breeding equipment system.
