Price for vacuum lab 10l rotary evaporator
- Category: >>>
- Supplier: Nanbei Instrument Limited
Share on (1600928484195):
Product Overview
Description

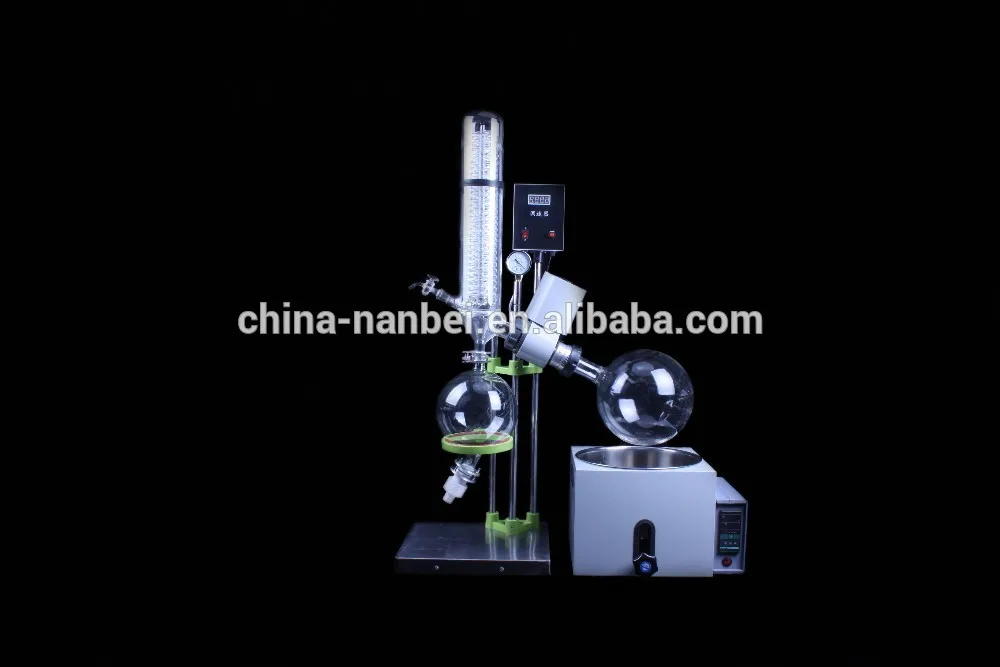

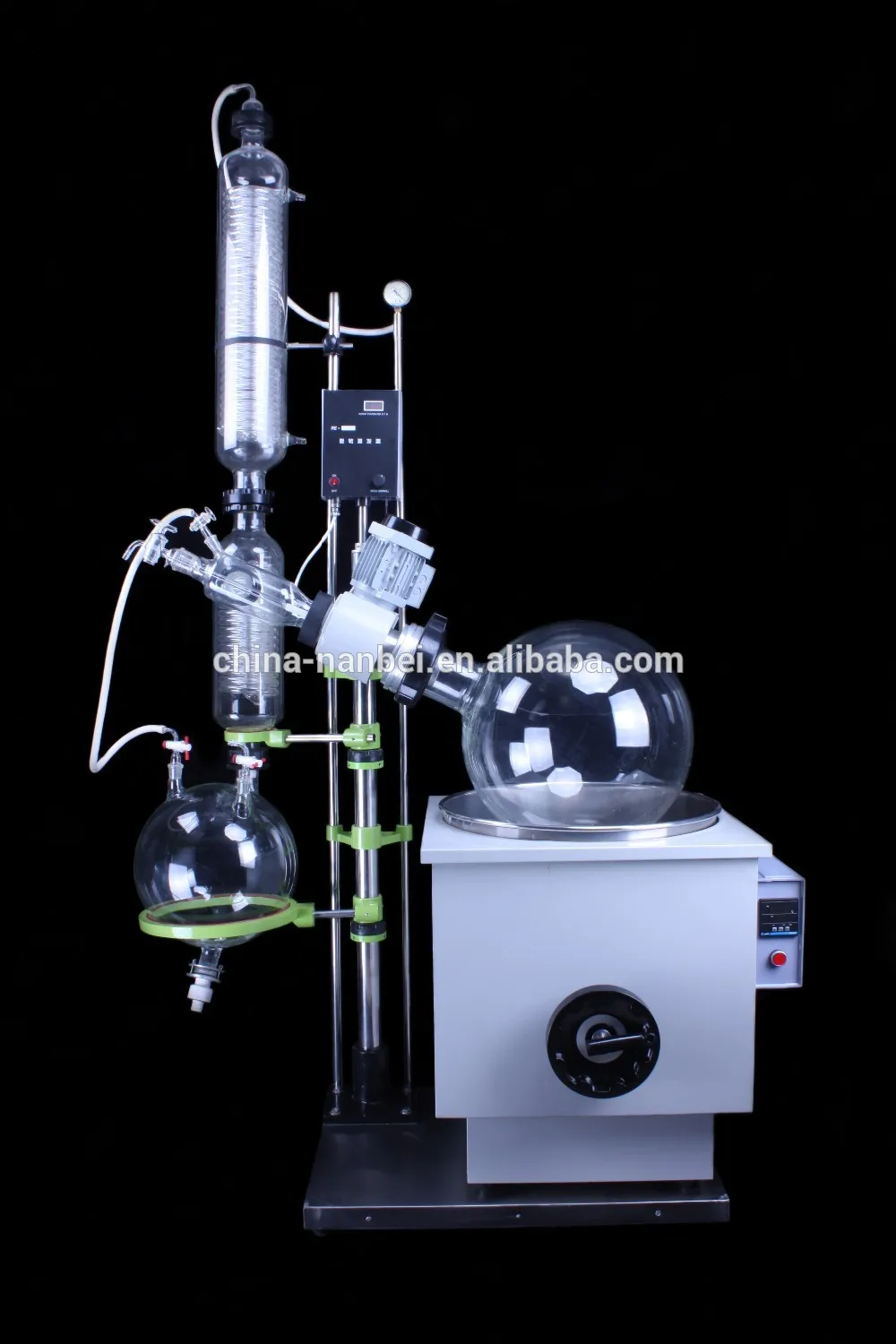

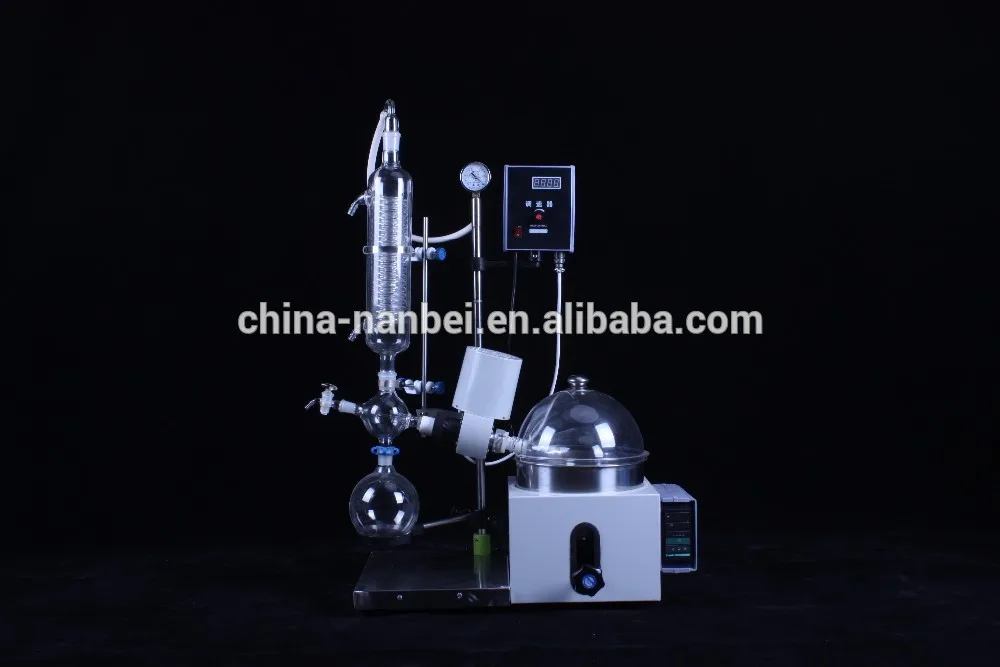

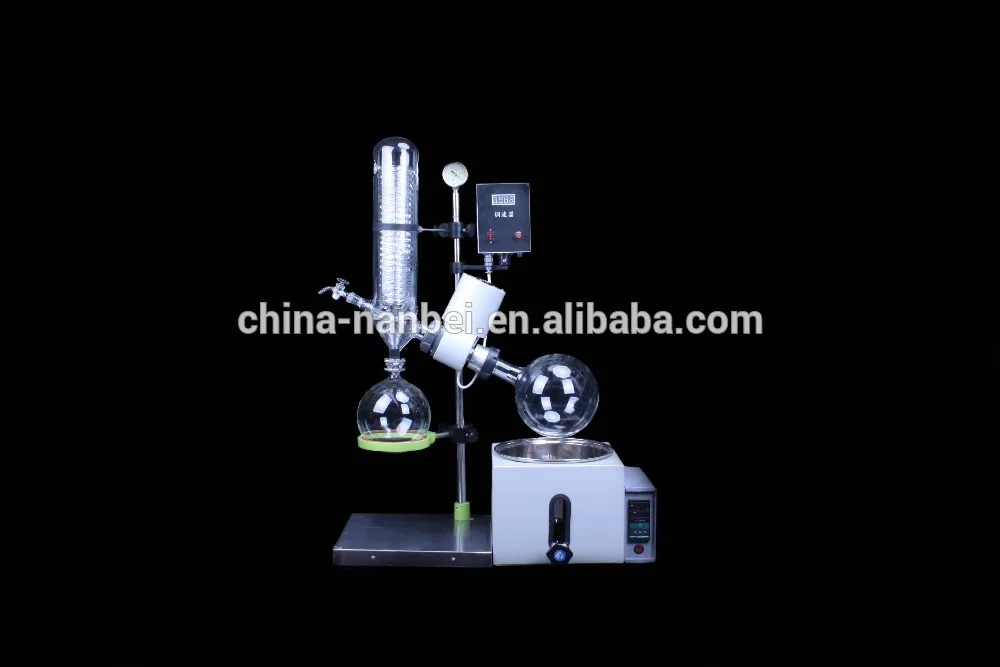

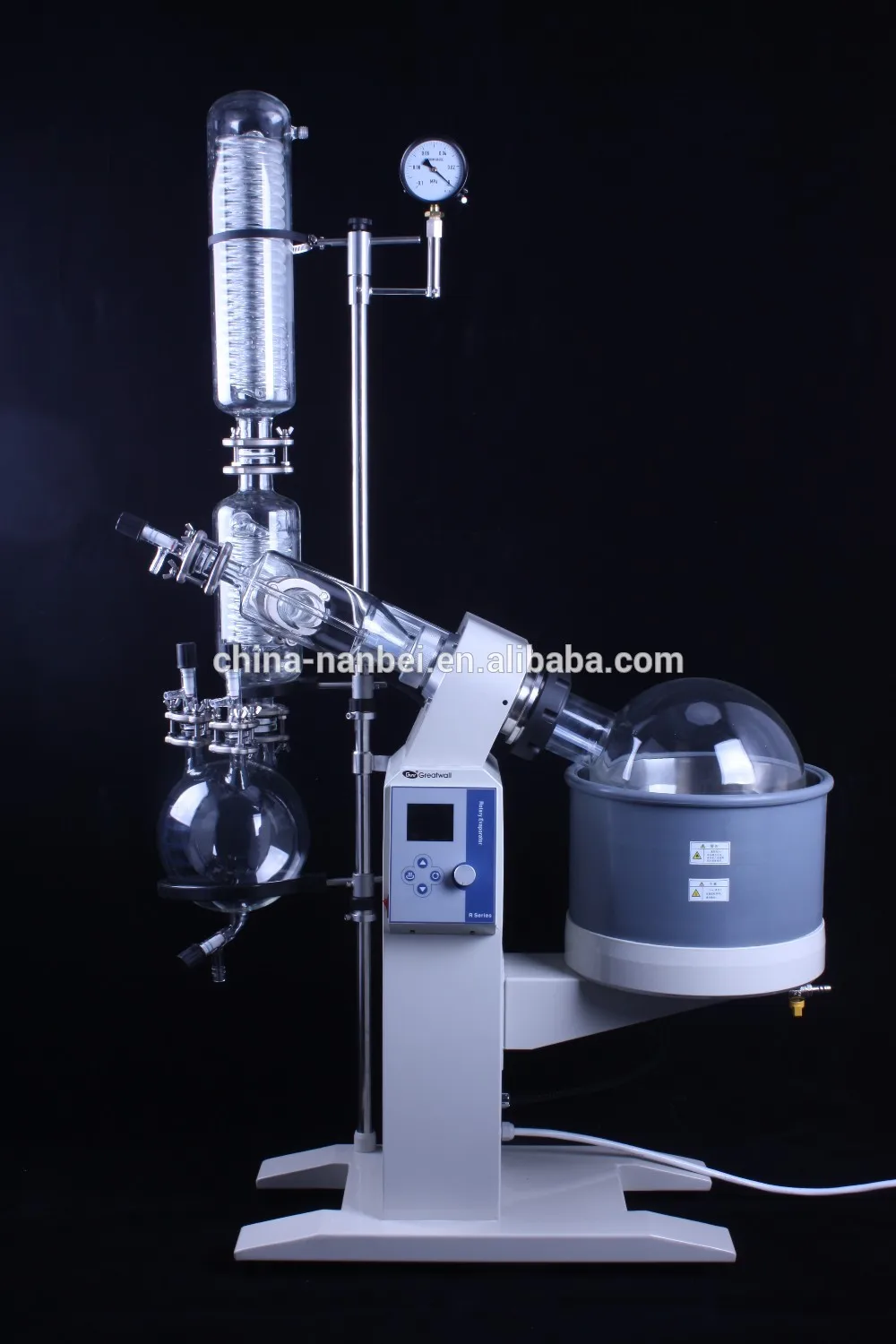

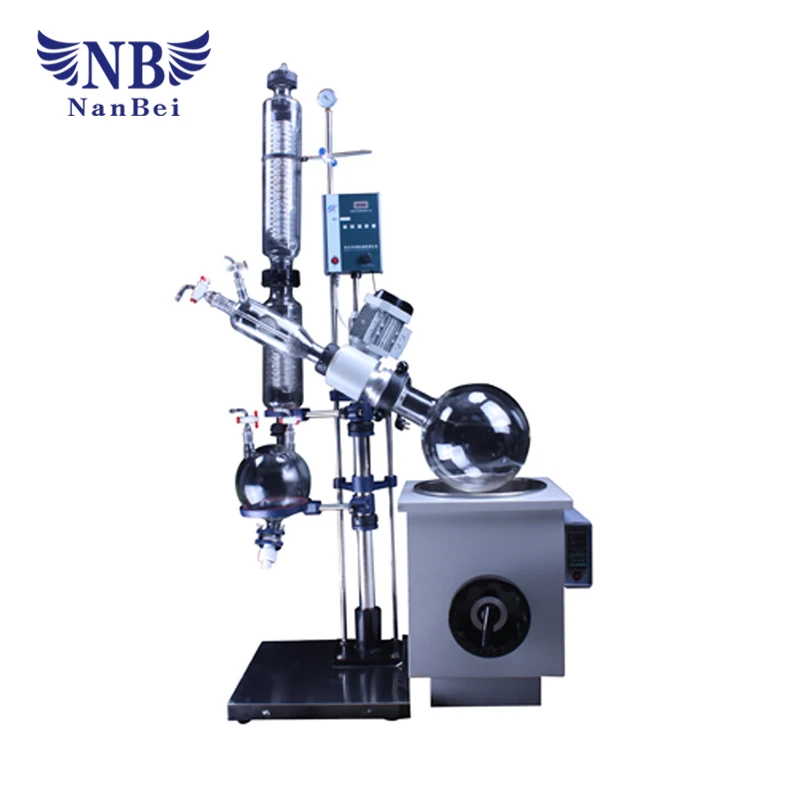

Price for vacuum lab 10l rotary evaporator
Product Description
Applications:
Rotary evaporator is the necessary basic instrument for chemical industry, institutions of higher learning and scientific research laboratory and other units, it is the main means for manufacturing and analyzing experiments when they do extraction and concentration .
Features:
Motor has the function of 10-120 RPM stepless speed regulation and automatic lifting , revolving consists of a set of stable and reliable micro motor, speed motor and integrated circuit control device. In the role of electronic speed, it can rotating steadily in 10-120 RPM range, it has reached the advanced level at home and abroad.
1 Quick and easy lifting mechanism
2 Evaporator along the horizontal direction can lean in 0-45 ℃ arbitrarily.
3 Vertical condensation system of high rate of evaporation
4 Vacuum sealing way
5 Automatic control temperature digital display.
Parameters for 2L, 3L, 5L
Model | 2L | 3L | 5L |
Glass meterial | GG-17 | ||
Holder material | Stainless steel | ||
Pot shell Material | aluminium alloy 270*270*195mm | aluminium alloy 270*296*240mm | aluminium alloy 310*320*240mm |

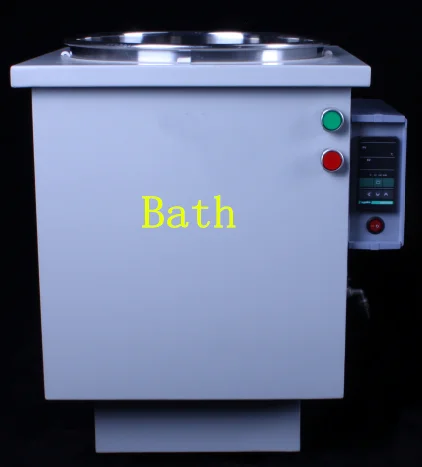

Pot bravery | Stainless steel 250*140mm | Stainless steel 255*170mm | Stainless steel 280*170mm |
Plate size | 280*330 | 350*330 | 350*330 |
Evaporator flask | 2L 24# | 3L flange mouth:Φ50mm | 5L flange mouth:Φ50mm |
Collect flask | 1L 24# | 2L 35# | 3L 35# |
Vacuum degree | 0.098Mpa | ||
Rotary speed | 0-120RPM | ||
Rotary power | 30W | 40W | 40W |
Heating power | 1.5KW | 2KW | 2KW |
Heating temp. | 0-400C | ||
Temp. accuracy | -1 | ||
Lifting stroke | 120mm | ||
Voltage | 220/110V 50/60HZ | ||
Dimension | 700*440*885mm | 660*330*970 | 700*335*1009 |
Packing size | 590*460*460mm | 1000*460*450 | 1040*620*410mm |
Packing weight | 21kg | 38kg | 38kg |
| 2L | 3L | 5L |
|  |  |
Parameters for 10L, 20L, 30L
Model | 10L | 20L | 30L |
Glass meterial | GG-17 | GG-17 | GG-17 |
Holder material | Stainless steel | Stainless steel | Stainless steel |
Pot shell Material | Spray anti-corrosion 490*430*540mm | Spray anti-corrosion 630*534*638mm | Spray anti-corrosion 710*620*700mm |
Pot bravery | Stainless steel 350*220mm | Stainless steel 450*250mm | Stainless steel 000*280mm |
Plate size | 474*474 | 534*504 | 804*574 |
Evaporator flask | 10L flange mouth:Φ95mm | 20L flange mouth:Φ95mm | 30L flange mouth:Φ125mm |
Collect flask | 5L flange mouth:Φ50mm | 10L flange mouth:Φ60mm | 20L flange mouth:Φ60mm |
Vacuum degree | 0.098Mpa | 0.098Mpa | 0.098Mpa |
Rotary speed | 0-110RPM | 0-110RPM | 0-110RPM |
Rotary power | 120W | 120W | 180W 220V/50HZ |
Heating power | 3KW | 5KW | 8KW 380V/50HZ |
Heating temp. | 0-400 | 0-400 | 0-400 |
Temp. accuracy | ±1 | ±1 | ±1 |
Lifting stroke | 180mm | 180mm | 180mm |
Voltage | 220V/50HZ | 220V/50HZ |
|
Dimension | 970*480*1950 | 1170*540*2200 | 1520*620*2470 |
Packing size | 1350*350*400 1280*570*660 | 1370*700*680 700*680*740 | 1450*390*440 1150*840*660 790*730*790 |
Packing weight | 100 | 123 | 170 |
| 50L | 10L |
 |  |
Parameters for 50L, 100L
Model | 50L | 100L |
Glass meterial | GG-17 | GG-17 |
Holder material | Stainless steel | Stainless steel |
Pot shell Material | Spray anti-corrosion 710*620*700mm | Spray anti-corrosion 820*820mm |
Pot bravery | Stainless steel 550*320mm | Stainless steel 795*330mm |
Plate size | 804*574mm | 1600*830mm |
Evaporator flask | 50L flange mouth:Φ125mm | 100L flange mouth:Φ180mm |
Collect flask | 20L flange mouth:Φ60mm | 50L ball mouth:Φ40mm |
Vacuum degree | 0.098Mpa | 0.098Mpa |
Rotary speed | 0-110RPM | 0-110RPM |
Rotary power | 180W 220V/50HZ | 400W 220V/50HZ |
Heating power | 8KW 380V/50HZ | 12KW 380V/50HZ |
Heating temp. | 0-400 | 0-400 |
Temp. accuracy | ±1 | ±1 |
Lifting stroke | 180mm | 180mm |
Voltage |
|
|
Dimension | 1520*620*2470 | 1700*850*2600 |
Packing size | 1450*390*440mm 1150*840*660mm 790*730*790mm |
|
Packing weight | 170kg | 400kg |

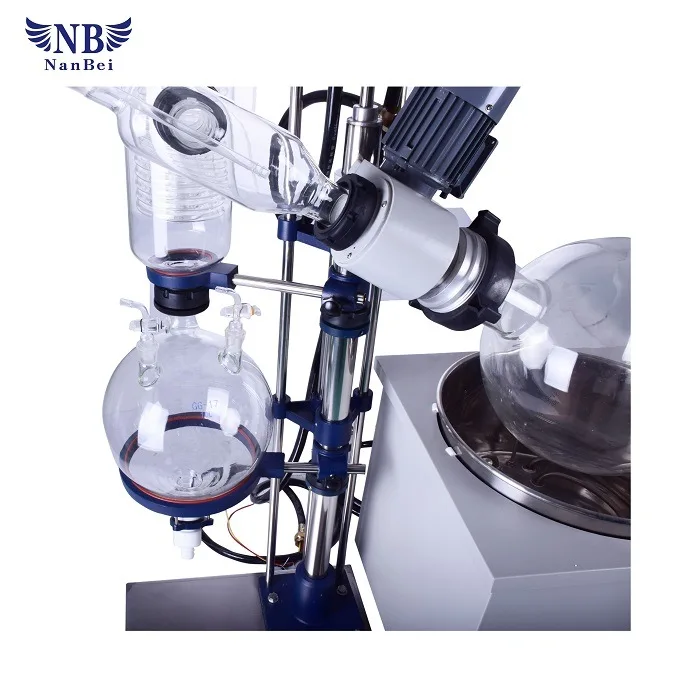

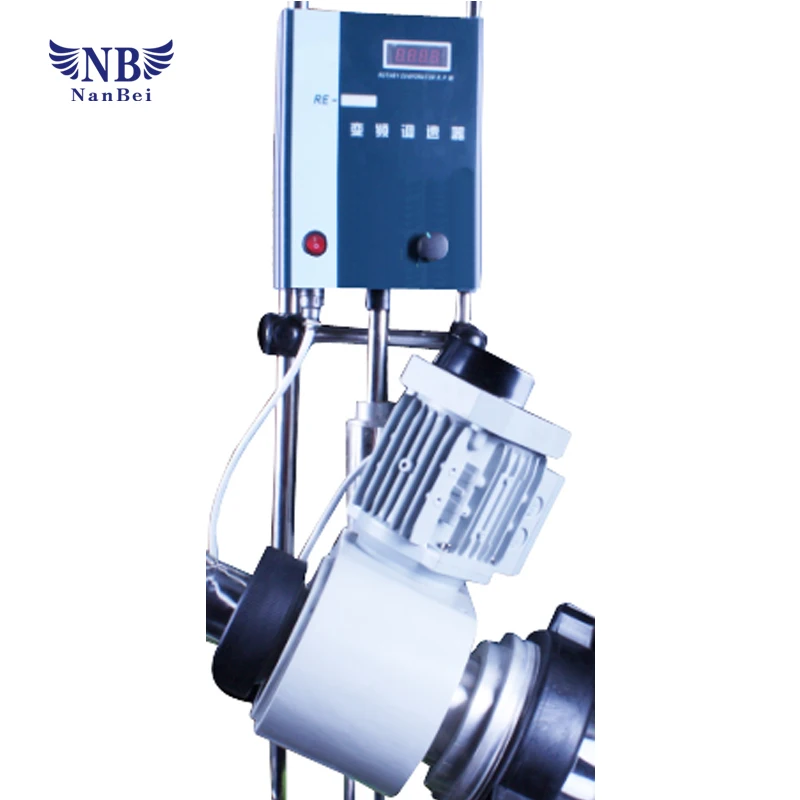

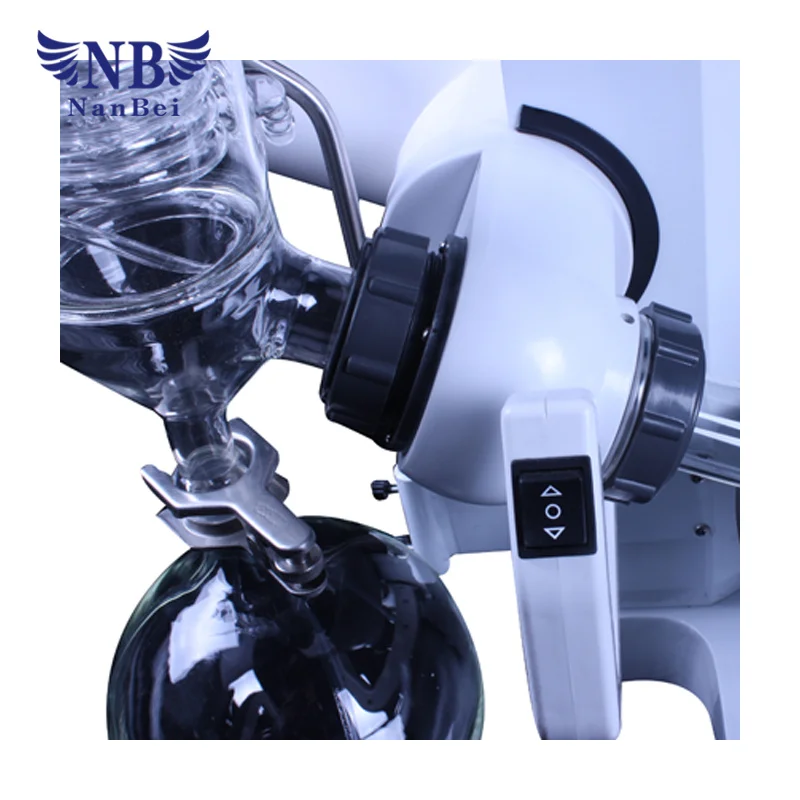

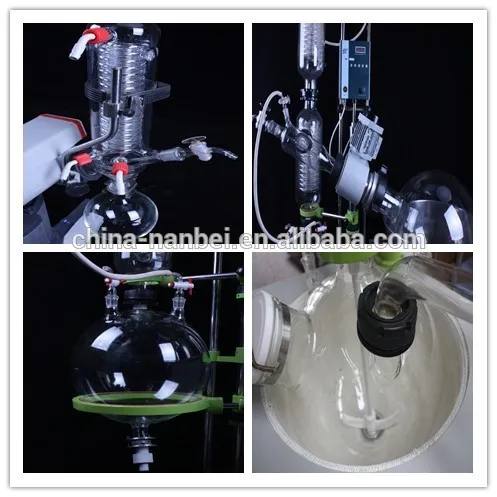

Details for rotary evaporator
Related products:

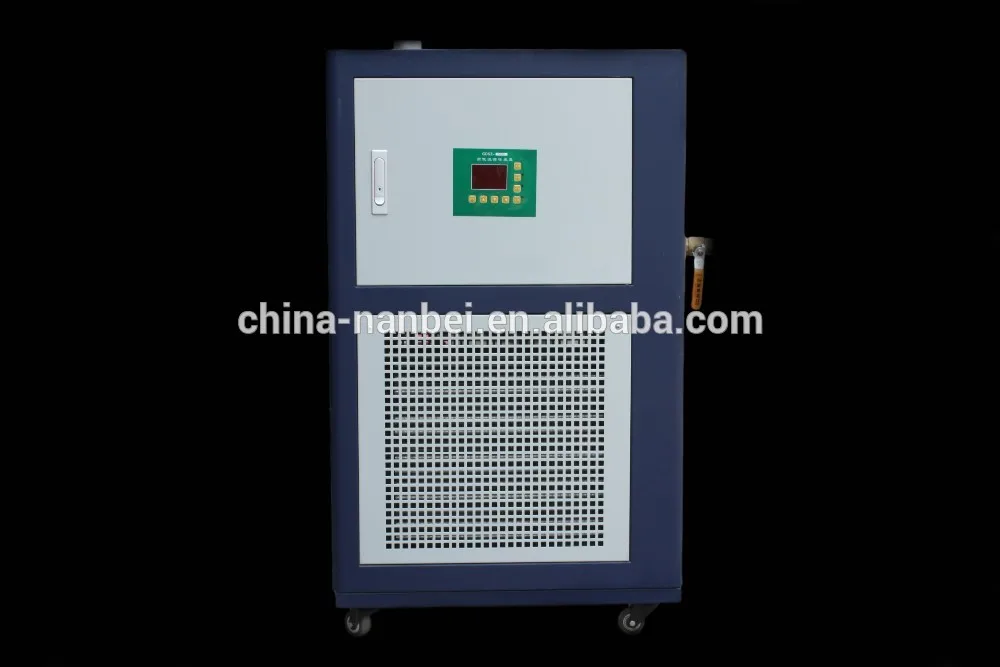

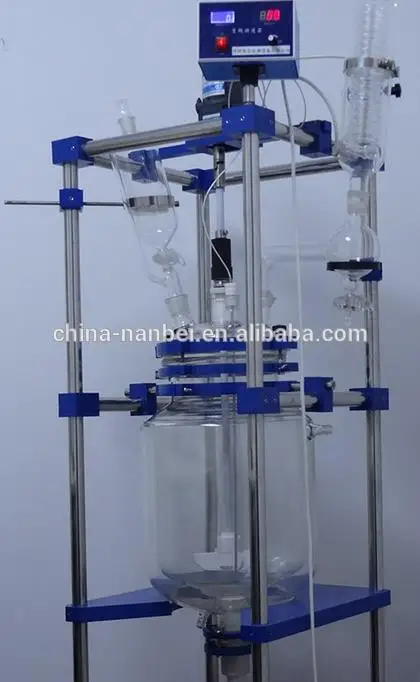

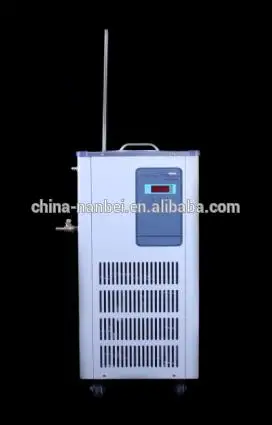

Glass reactor Chiller

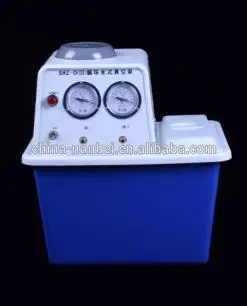

Water circulating vacuum pump High and low temp circulating pump
Packaging & Shipping
Our Services
² 24hours online to ensure quick response to customers' inquiry or online message;
² Guide customers to choose the best suitable machine model;
² Offer detailed specification and competitive prices;
Contract execution
² Machine production will be arranged strictly according to the contract;
² Machine photos will be sent to you for inspection during production;
² Send customs clearance documents by DHL;
² Update latest news after delivery and prepare customs clearance;
After-sale service
² 12 months warranty except for wear parts;
² Broken spare parts (except for wear parts) will be sent for free due to quality problems;
² In time response to customers technical problems;
² New products update for customers' reference
FAQ
1.How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2.Does your price is competitive?
Dear customer, we make sure to offer you the best quality with competitive price.
3.How can I pay?
Dear customer, we accept many payment term, such as T/T, Western Union…
4.When I receive it after pay?
Dear customer, normal models can be delivered with 5-7days, please contact us to check transport time to your address.
5.How to deliver?
Dear customer, we can send by Express, by Sea and by Air.
6.Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.
7.What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
8.What should I do if some parts broken?
Dear customer, please do not worry, we have 12months warranty except wear parts. You can also buy parts from us after 12months
