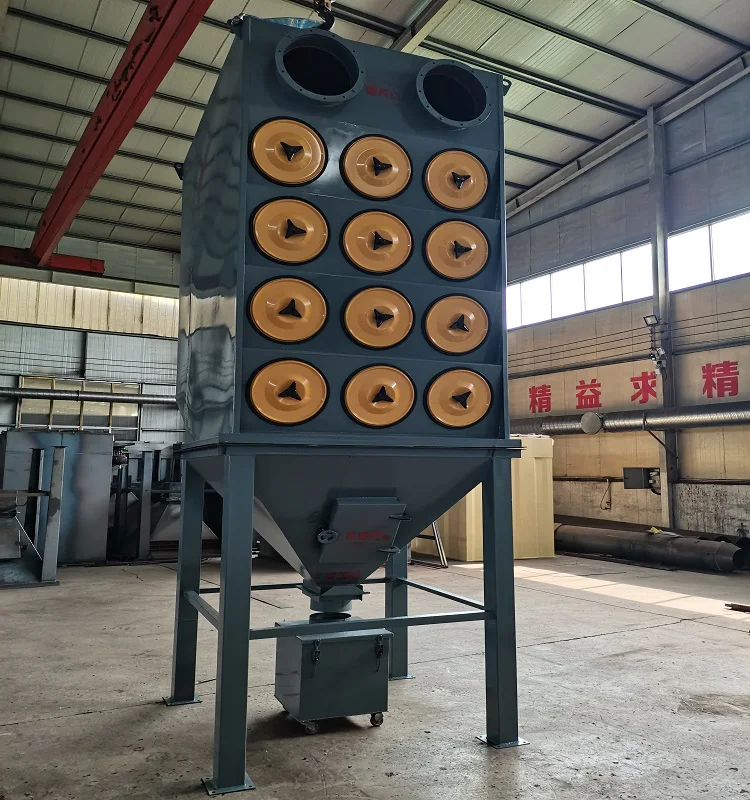

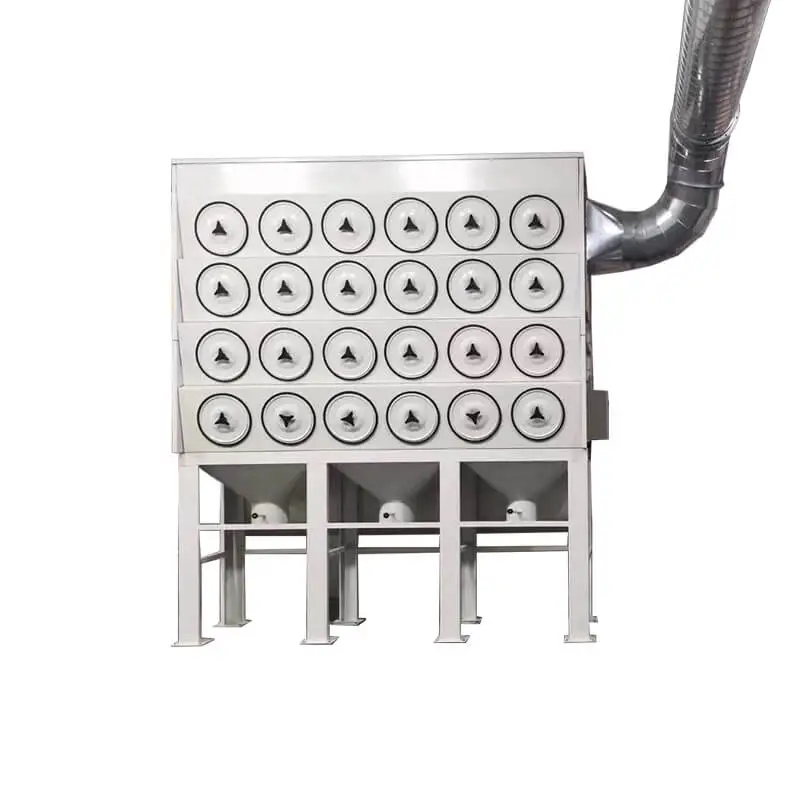

High Quality customizable Industrial Dust Collector cartridge dust collector for Dust collection and treatment
- Category: >>>
- Supplier: Botou Yite Environmental Protection Machinery Manufacturing Co. Ltd.
Share on (1600928505645):
Product Overview
Description

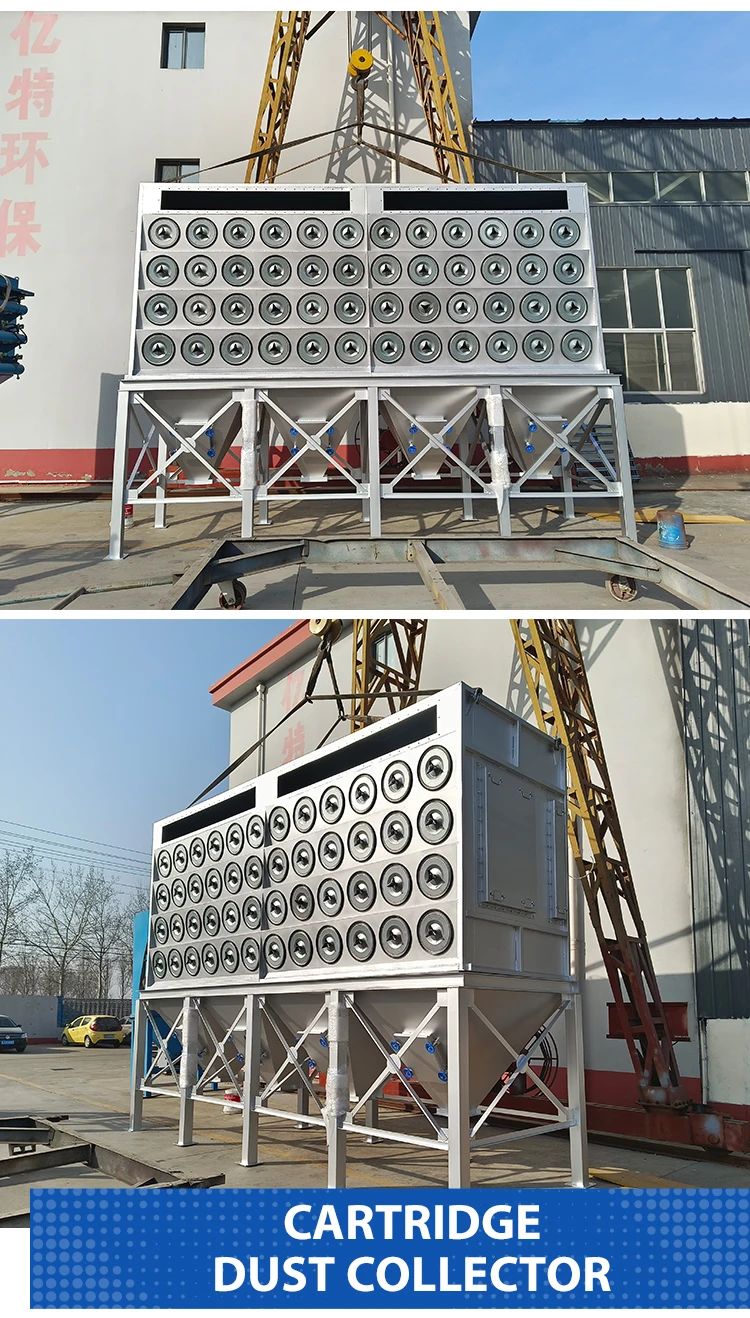

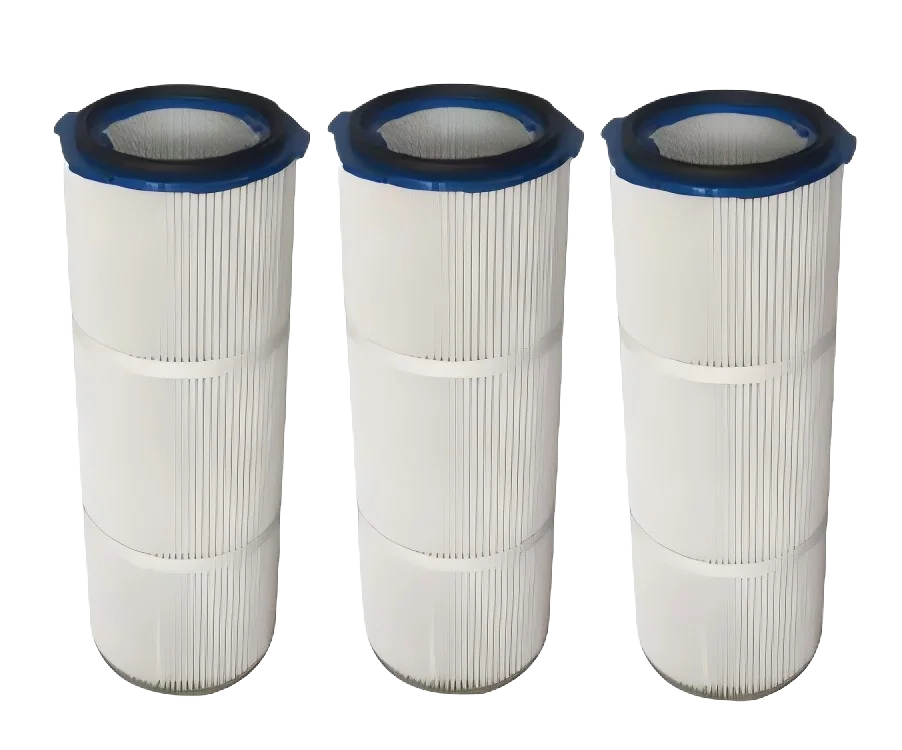

Cartridge dust collectors use gravity and downward airfow to achieve self-cleanand reduce pressure across the cartridge flters. They collect airborne contaminants from industrial processes varying from welding and metal working to chemical and pharmaceutical processing. The units can be used in almost every manufacturing processes and effciently control pollution levels. They are economical, simple in.stall and maintenance. They are especially suitable for fne and low dust loading applications.

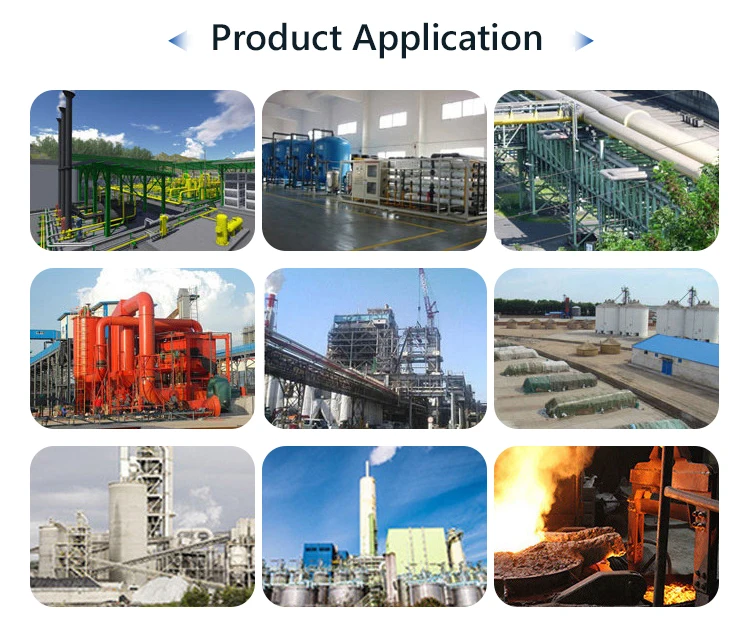

Compared with pulse bag dust collector, the oblique filter cartridge pulse dust collector has a smaller footprint and a high-efficiency purification effect. It is suitable for various working conditions such as machinery, metallurgy, rubber, flour, chemical, pharmaceutical, carbon, building materials, mining, laboratory and other enterprises, dust removal and purification of non-fibrous industrial dust and material recovery. Material: stainless steel, carbon steel.

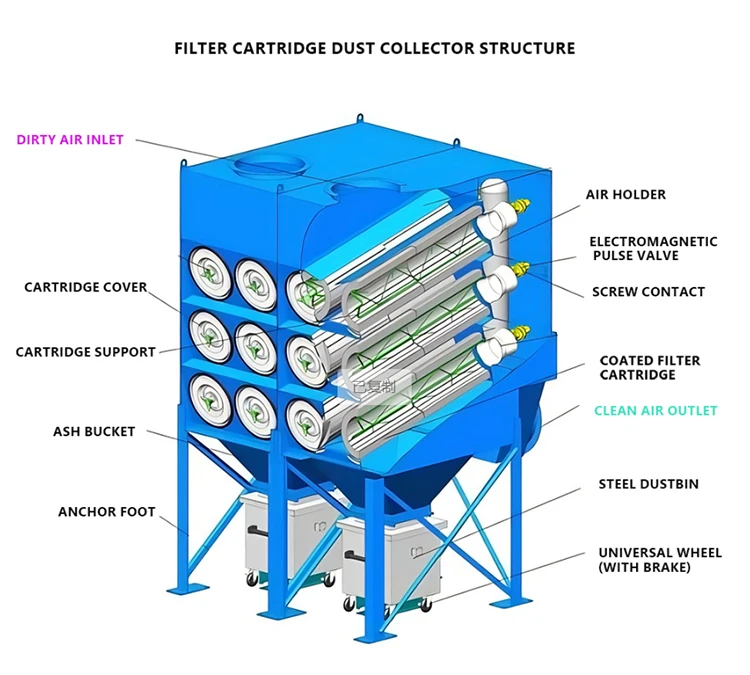

Main structure

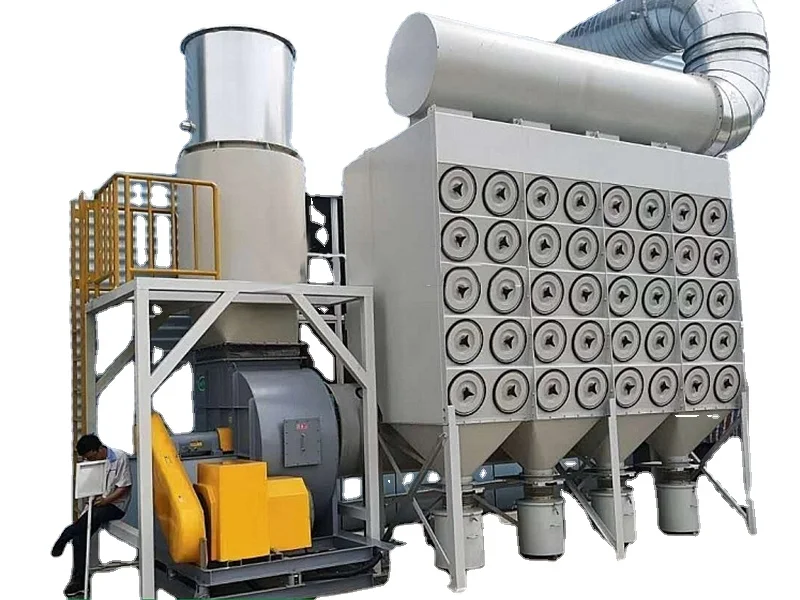

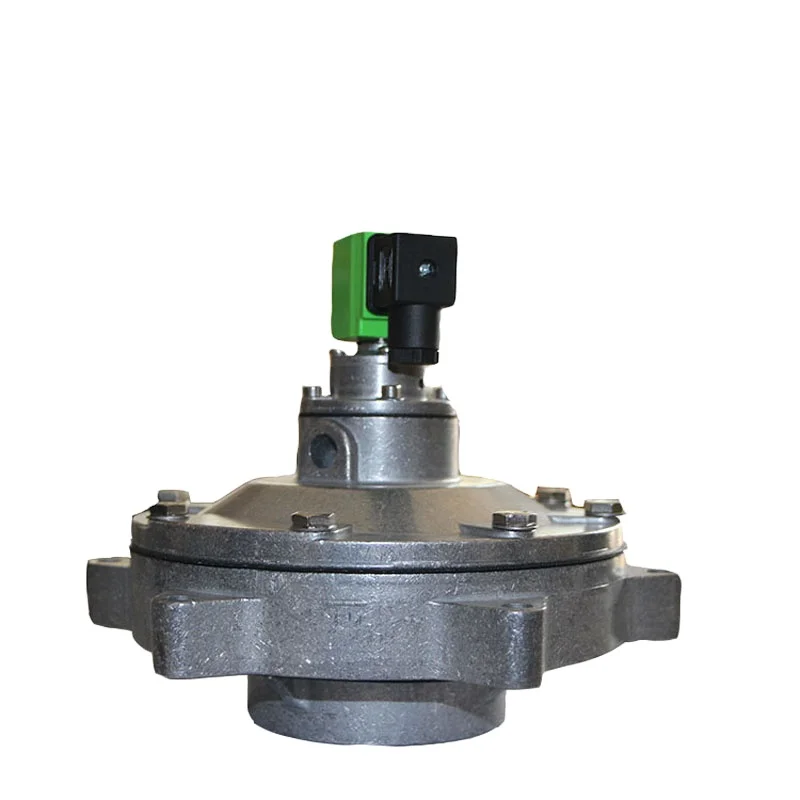

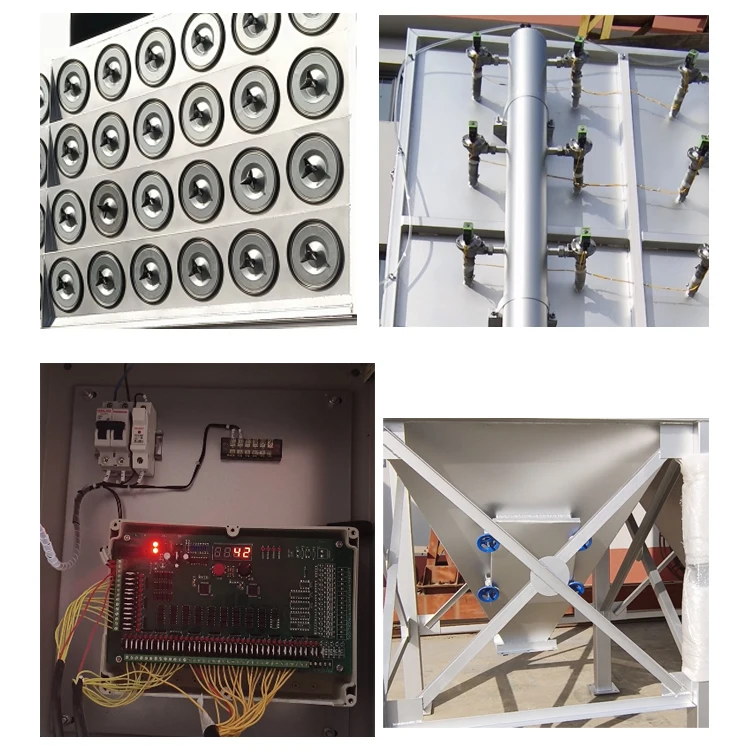

The flter cartridge dust collector is mainly composed of upper chamber, ashhopper, ladder and platform, bracket, pulse jetting system, electric control systemfan, air inlet and air outlet, According to the installation method, it can be dividedinto horizontal cartridge dust collector and vertical cartridge dust collector.
No. | Model | Filter area ㎡ | Air volume m³/h | filter cartridges | Dimensions mm | Weight kg |
1 | YT-03LTZ8 | 184 | 3300-7500 | 8 | 1016*2159*2159 | 1100 |
2 | YT-03LTZ16 | 368 | 6600-15000 | 16 | 1164*2159*2159 | 1400 |
3 | YT-03LTZ24 | 552 | 10000-22000 | 24 | 1695*2159*2159 | 1800 |
4 | YT-03LTZ32 | 736 | 13500-30000 | 32 | 2032*2159*2159 | 2400 |
5 | YT-03LTZ36 | 828 | 15000-33500 | 36 | 2377*2159*2159 | 3000 |
6 | YT-03LTZ48 | 1104 | 20000-45000 | 48 | 3136*2159*2159 | 3500 |
7 | YT-03LTZ64 | 1472 | 28000-60000 | 64 | 3700*2159*2159 | 5000 |
