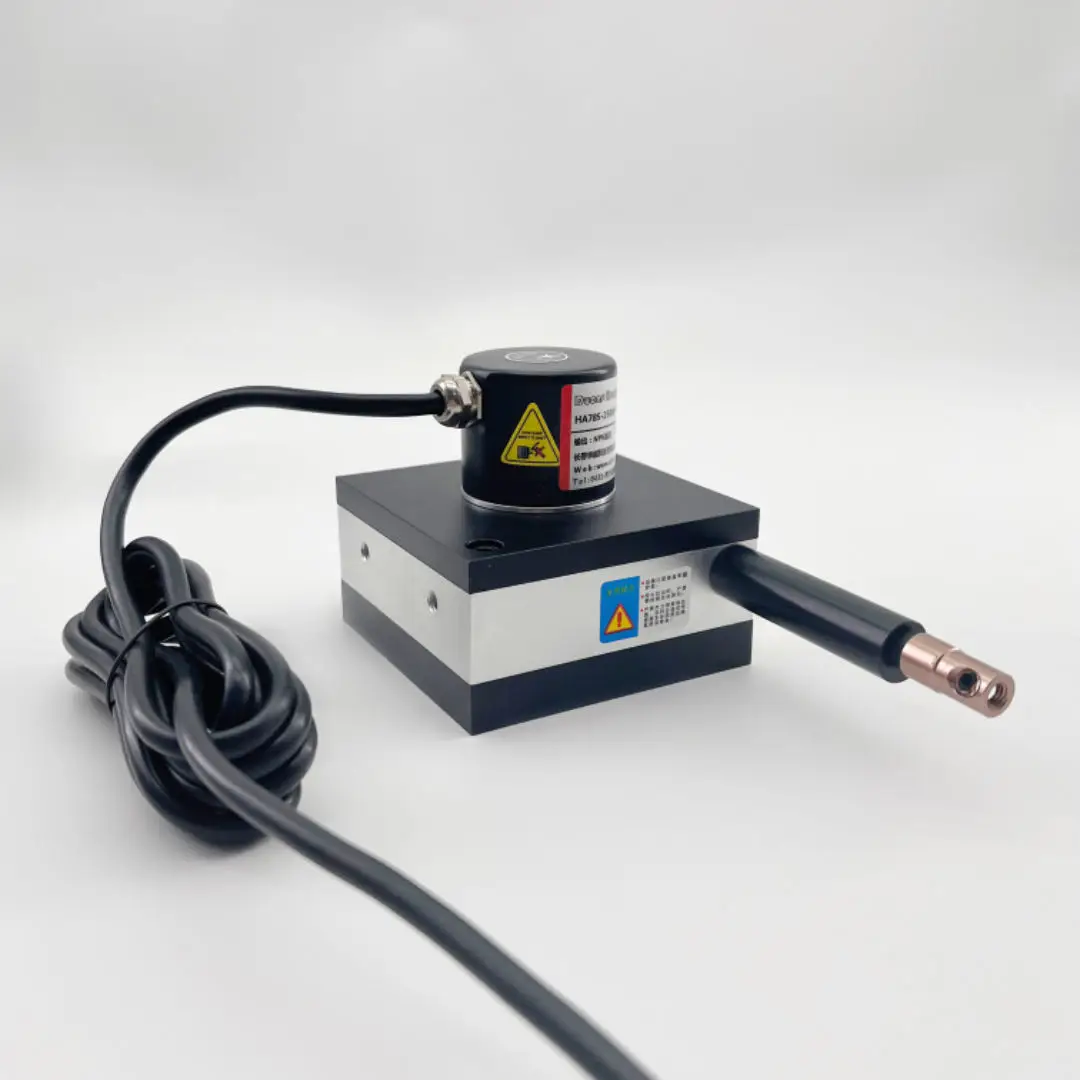

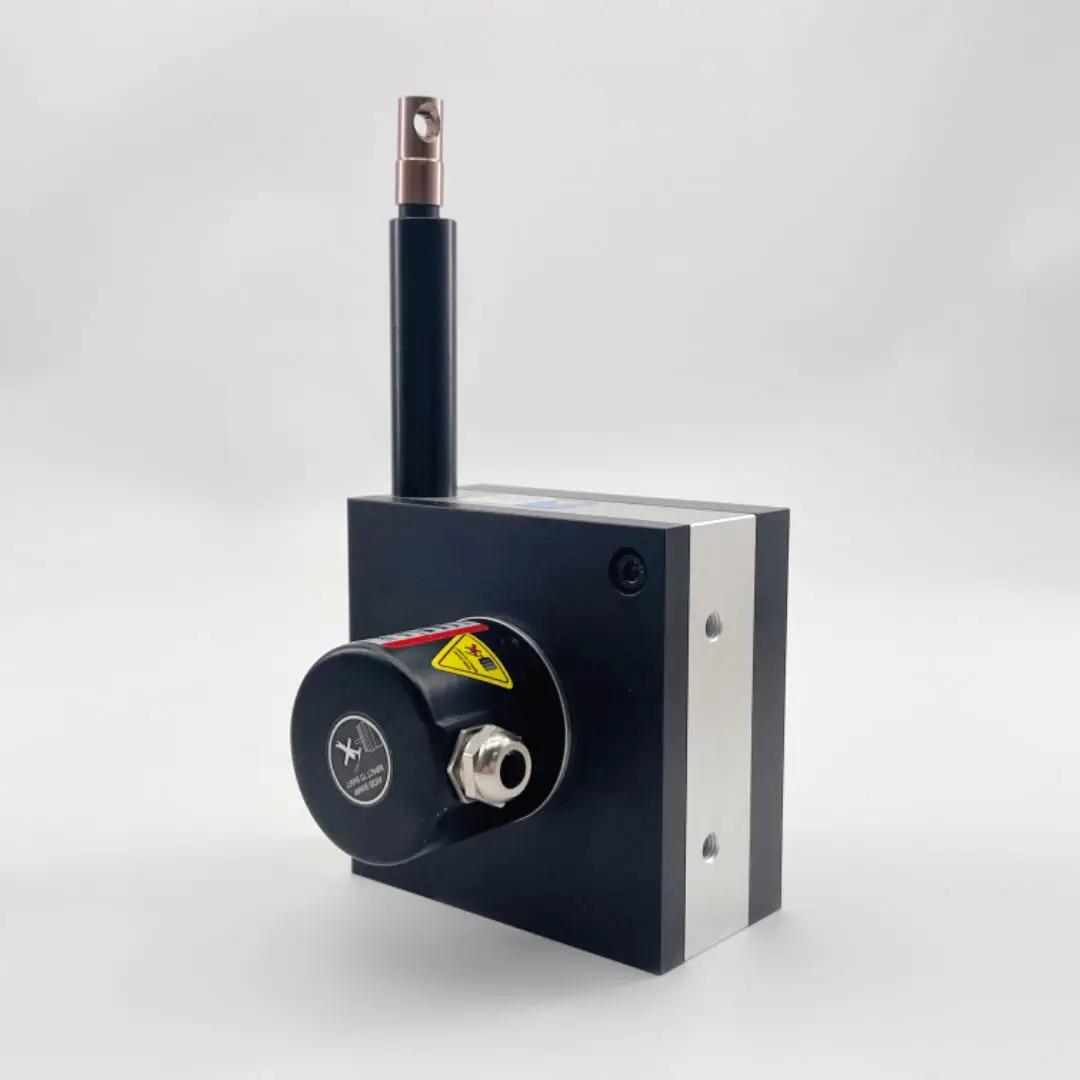

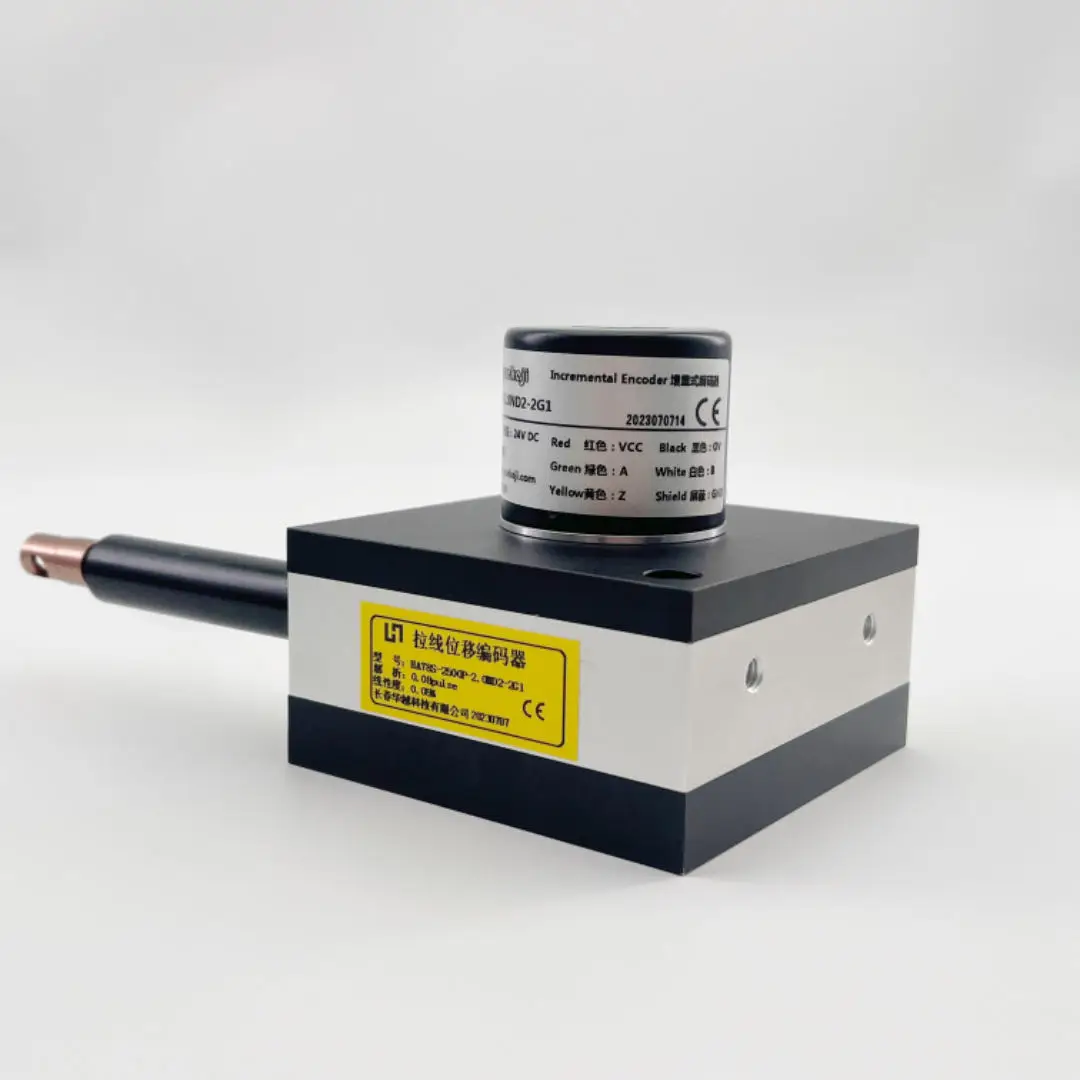

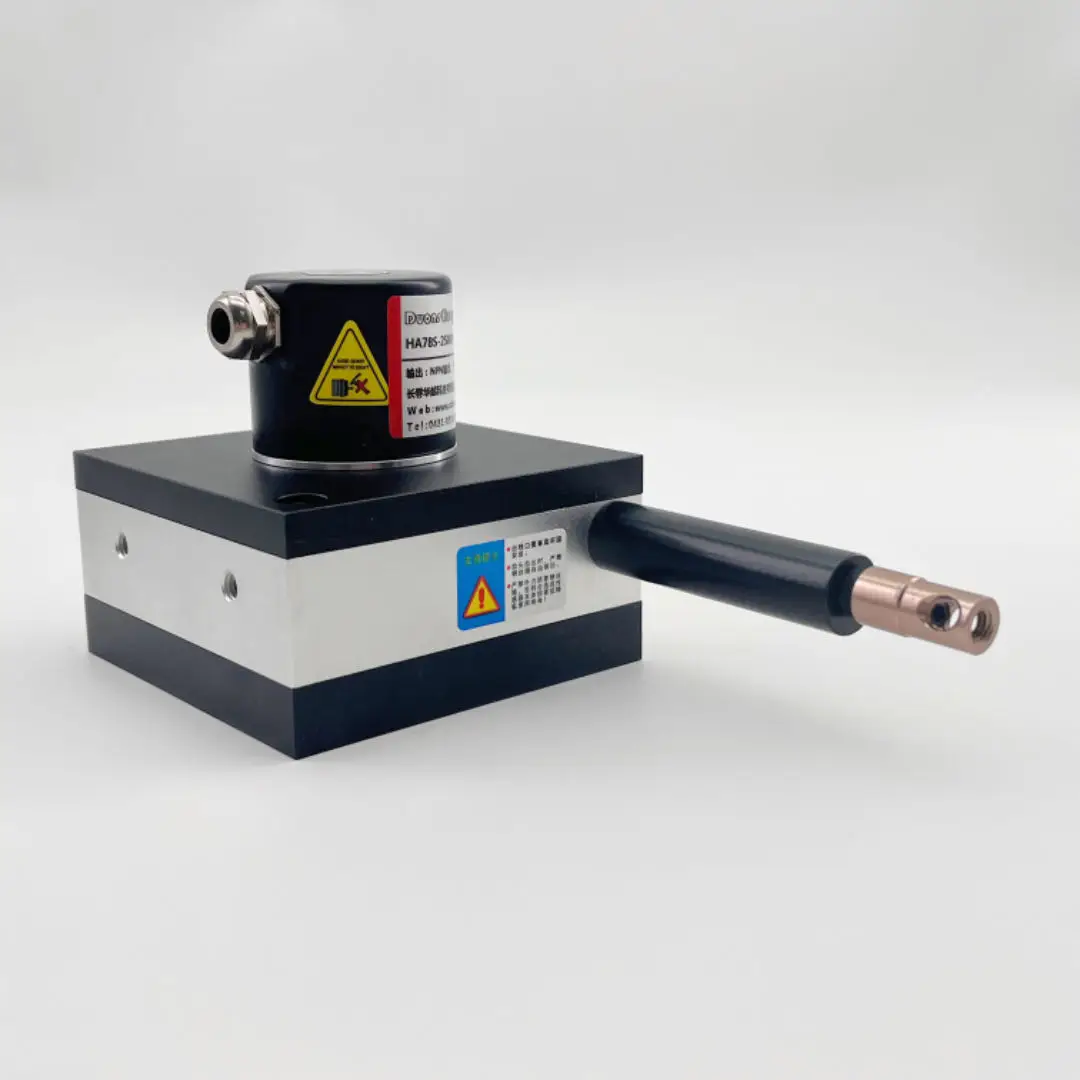

0 2000mm Range 4 20mA 0 10V 0 10K output Draw Wire Position Displacement Sensor
- Category: >>>
- Supplier: Changchun Huayue Technology Co. Ltd.
Share on (1600928606908):
Product Overview
Description
Sensor type | Optical Linear Encoder |

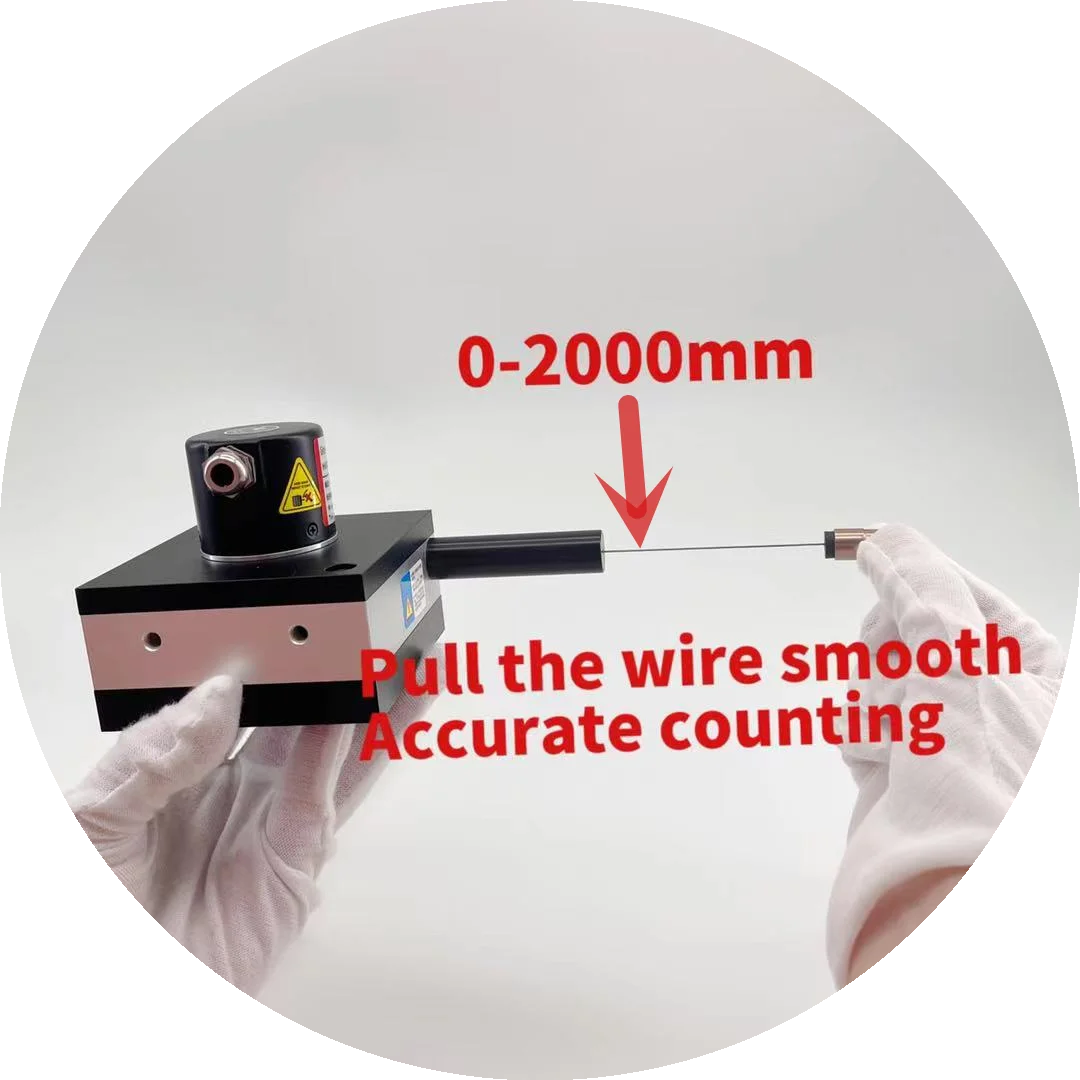

Measuring Range | 0-2000mm |

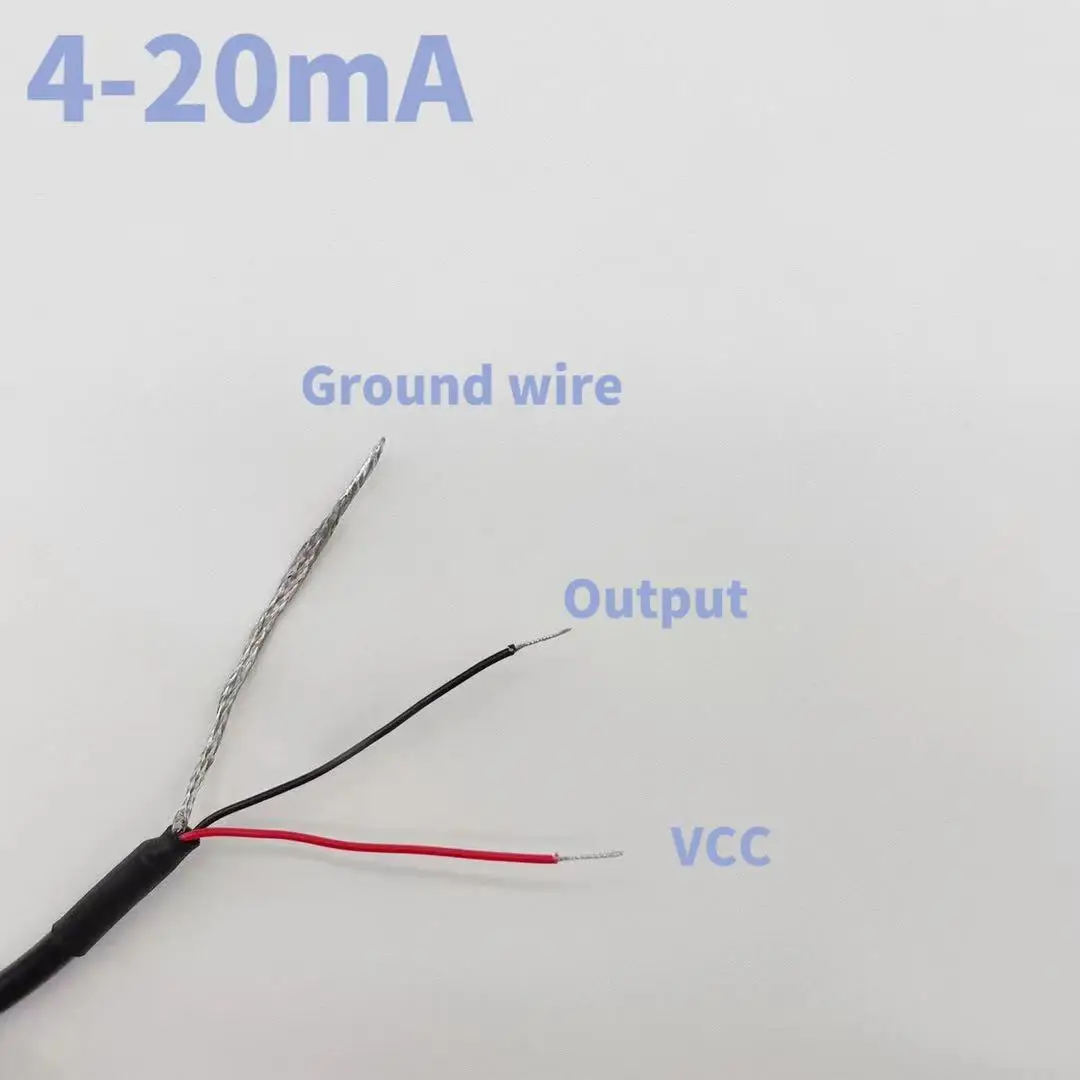

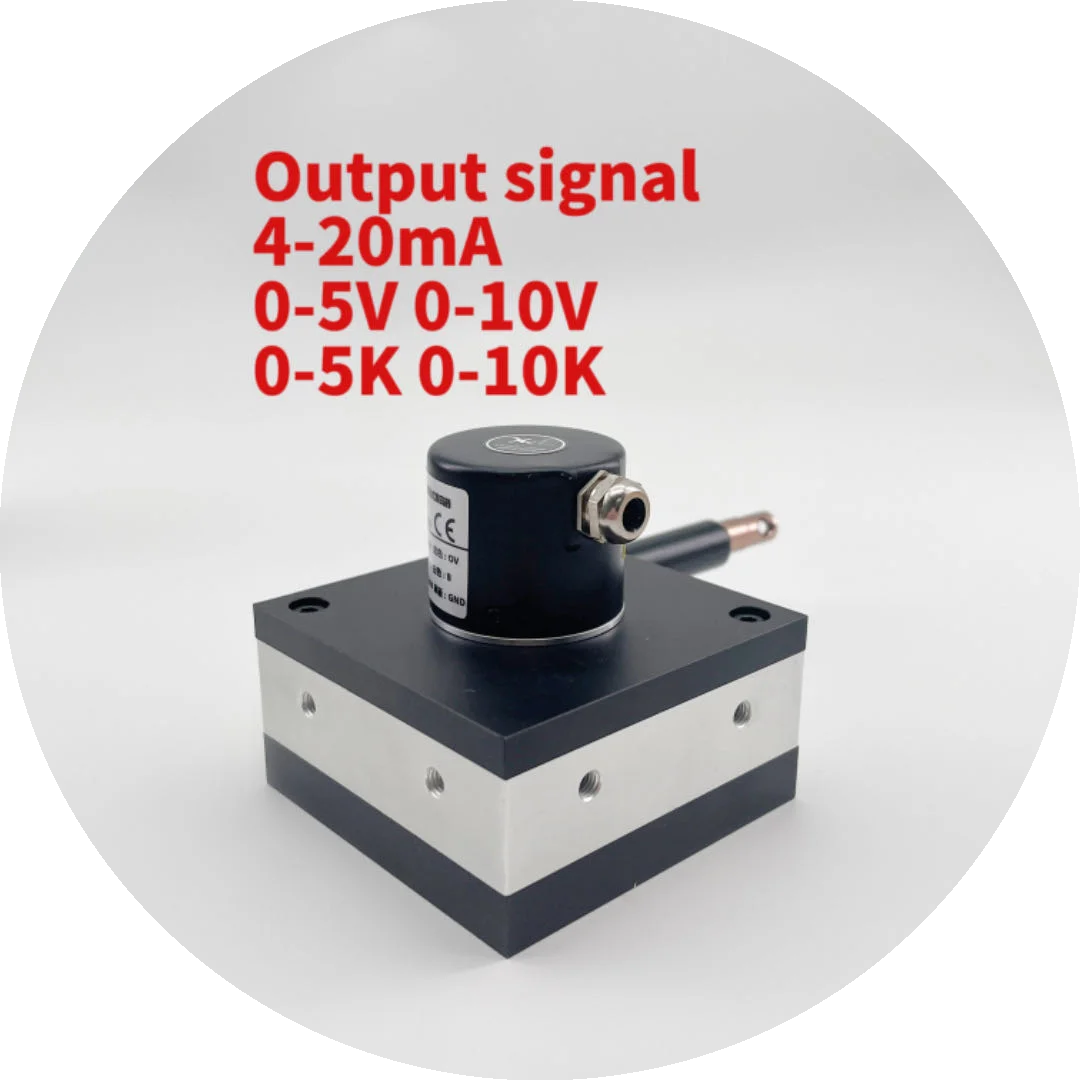

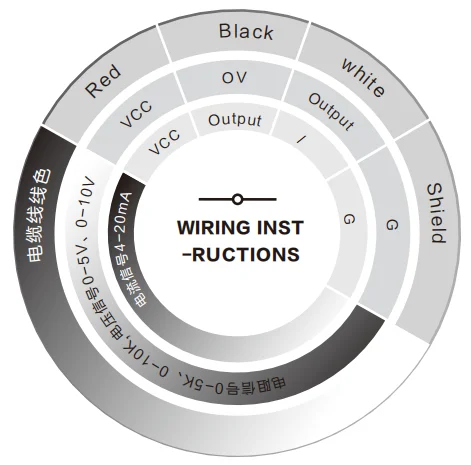

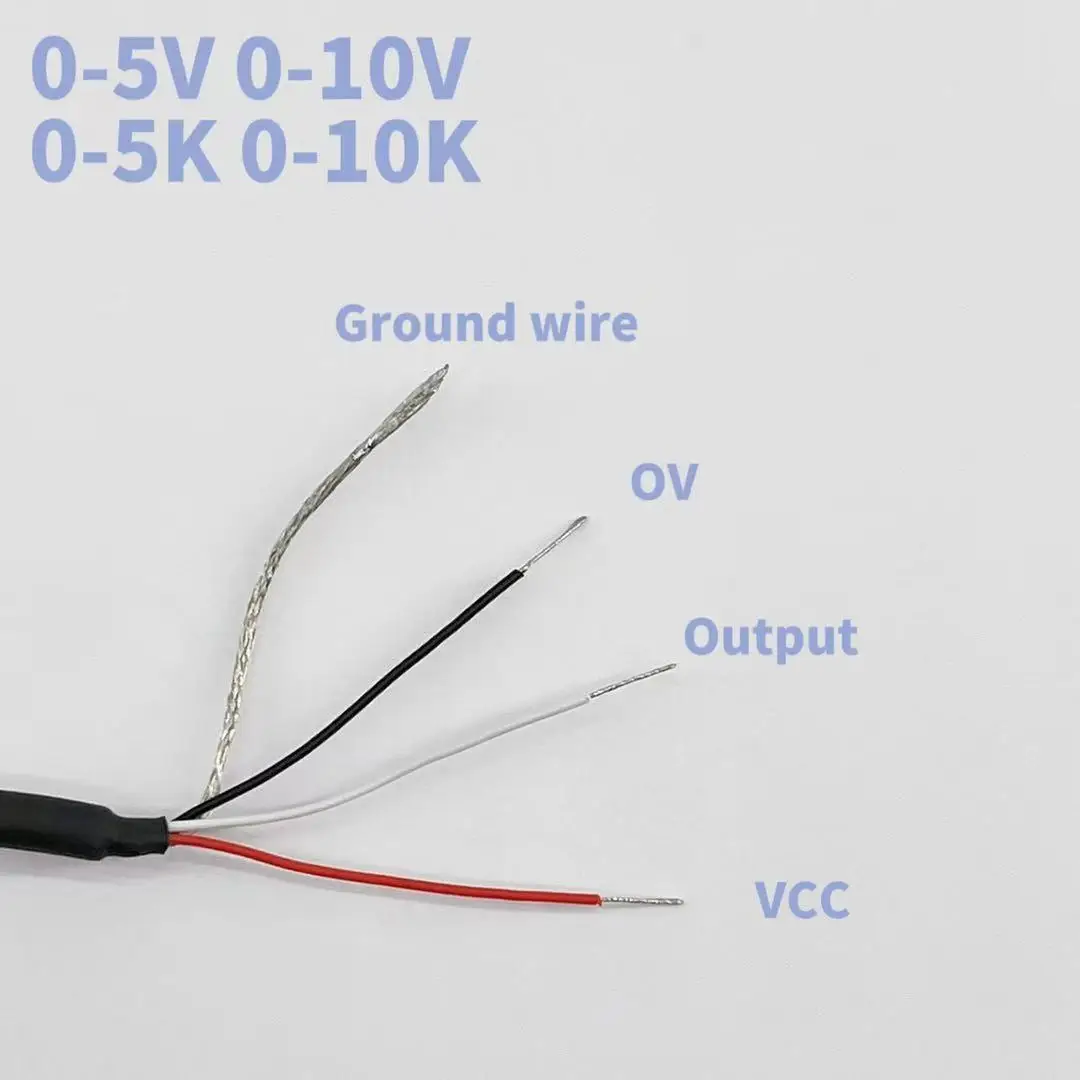

Output signal | 4-20mA,0-10V,0-10K,0-5K,0-5V |
working voltage | 5~30V;5V;12V;24V |
Linear Accuracy | Standard 0.25% FS; Optional 0.1% FS |
Repeatability Accuracy | 0.01% |
Anti vibration | 10Hz ~ 1500Hz 10G |
protection grade | IP54 |
Pull box shell material | Sandblasting oxidation of aluminum alloy surface |
Maximum reciprocating speed | 600mm/S |
weight | 0.9kg（Including packaging weight）；net weight 0.75kg |
operation temperature | -35℃~+90℃ |
Life | >200 million times |
Wire retraction force | 5N |
Cable Length | Optional 2M;Customizable according to needs |
Housing Material | Aluminium alloy, oxidation surface treating,wear and corrosion prevention |
Q1:How to order our product ?
A:1).Please tell us the model and quantity and other requestyou need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you afterreceiving your payment.
4).After the goods finished, we send the goods out to you andtell you the tracking number.
5).We will track your goods until you receive the goods.
Q2:Can I have a sample for testing?
A: Actually we have a very good price principle, when youmake the bulk order then cost of sample will be return to you.The price is the same for 1-20 sets including the sample
Q3:Can I add my logo on the encoder ?
A:1).Please tell us the model and quantity and other requestyou need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you afterreceiving your payment.
4).After the goods finished, we send the goods out to you andtell you the tracking number.
5).We will track your goods until you receive the goods.
Q2:Can I have a sample for testing?
A: Actually we have a very good price principle, when youmake the bulk order then cost of sample will be return to you.The price is the same for 1-20 sets including the sample
Q3:Can I add my logo on the encoder ?
A:Yes,OEM and ODM are available for us.
Q4:How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us. If it is the men-made problems,we also send thespare parts,but you should pay. For our range hood motors itis lifelong maintenance.
Q5 :Do you have inspection procedures for encoder ?
Q4:How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us. If it is the men-made problems,we also send thespare parts,but you should pay. For our range hood motors itis lifelong maintenance.
Q5 :Do you have inspection procedures for encoder ?
A:100% self-inspection before packing
