maggie noodle making machine instant noodle production line fried noodle making machine
- Category: >>>
- Supplier: Henan Brother Machinery Co. Ltd.
Share on (1600928611864):
Product Overview
Description
Processing Flow
Product Description
ITEM NAME: FLOUR MIXER
MODEL: HMJ50QUANTITY: 1 UNIT
Volume： 50kg
Size(mm) ： 1100(L)×650(W) ×800(H)
Material： Mixing tank: SUS304#3.0(t) Side plate4.0mm manual door, and flour contact is stainless steel
Power： 3KW
Function:Mixing the water and flour fully to be uniform particles.
Volume： 50kg
Size(mm) ： 1100(L)×650(W) ×800(H)
Material： Mixing tank: SUS304#3.0(t) Side plate4.0mm manual door, and flour contact is stainless steel
Power： 3KW
Function:Mixing the water and flour fully to be uniform particles.

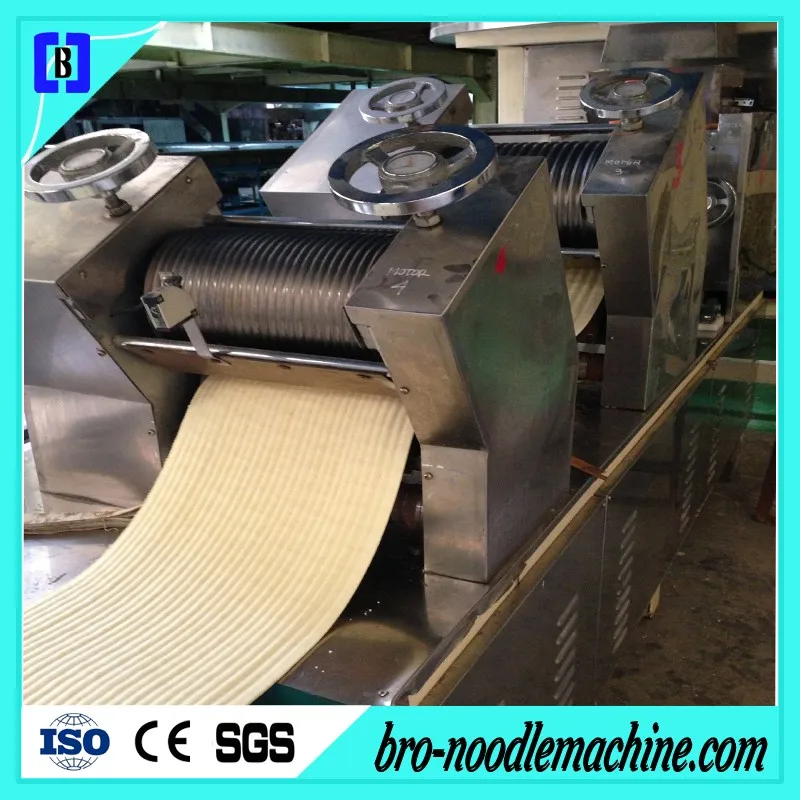

ITEM NAME: COMPOUND AND CONTINOUS ROLLING MACHINE
MODEL: MT7-50
QUANTITY: 1 UNIT
Size（mm）： 1500(L) ×620(W) ×130(H)
Material：Rolling shaft: Regular Steel
Roller bracket: Carbon steel plating
Bracket,chain,gear: Regular steel
Power: 2.2KW, with Speed Adjuster and Reducer
Supply for inspection over-loading of shaky control device.
Function:Pressing dough into sheet.
QUANTITY: 1 UNIT
Size（mm）： 1500(L) ×620(W) ×130(H)
Material：Rolling shaft: Regular Steel
Roller bracket: Carbon steel plating
Bracket,chain,gear: Regular steel
Power: 2.2KW, with Speed Adjuster and Reducer
Supply for inspection over-loading of shaky control device.
Function:Pressing dough into sheet.
ITEM NAME: STEAMING MACHINE
MODEL: CZM50
QUANTITY: 1 UNIT
Size（mm）：8100(L) ×700(W) ×1200(H)
Material：Steam bucket ,flour contact is stainless steel
Temperature meter: 98℃
Power：6KW With Reducer and Speed Adjuster
QUANTITY: 1 UNIT
Size（mm）：8100(L) ×700(W) ×1200(H)
Material：Steam bucket ,flour contact is stainless steel
Temperature meter: 98℃
Power：6KW With Reducer and Speed Adjuster

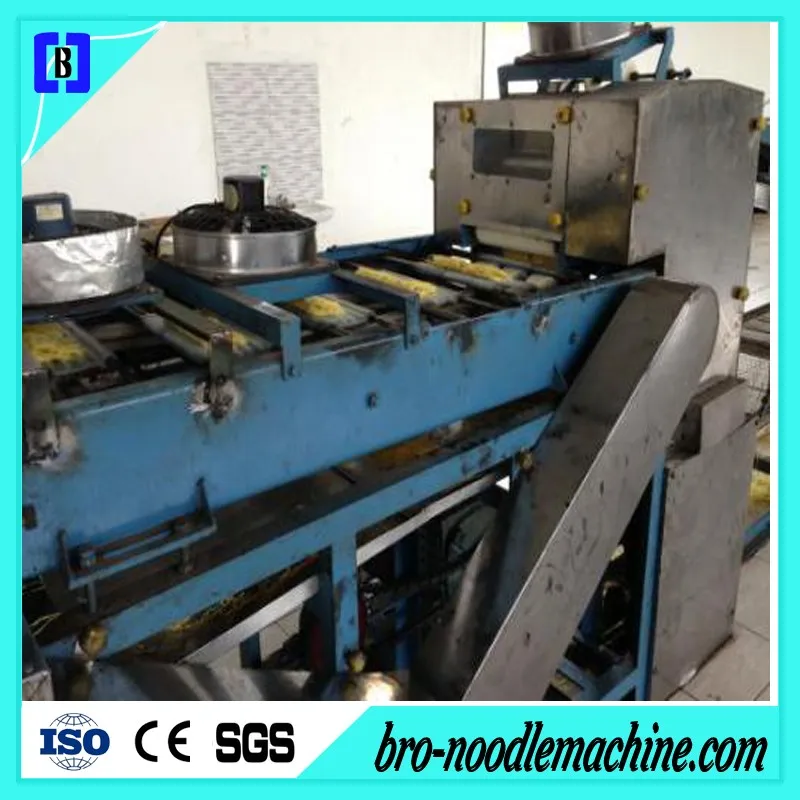

ITEM NAME: CUTTING AND DIVIDING MACHINE
MODEL: QF50
QUANTITY: 1 UNIT
Size(mm):2700(L) ×800(W) ×1300(H)
Supply for urgency stop of switch
With spray device, cutting knife times 14 knives/min, adjustable
Material：flour contact is stainless steel
Bearing and drive device: Regular steel
Power: 2KW With Reducer and Speed Adjuster , cutting times display
in the control panel
Function:Cutting noodles into noodle blocks and conveying into fried machine
QUANTITY: 1 UNIT
Size(mm):2700(L) ×800(W) ×1300(H)
Supply for urgency stop of switch
With spray device, cutting knife times 14 knives/min, adjustable
Material：flour contact is stainless steel
Bearing and drive device: Regular steel
Power: 2KW With Reducer and Speed Adjuster , cutting times display
in the control panel
Function:Cutting noodles into noodle blocks and conveying into fried machine

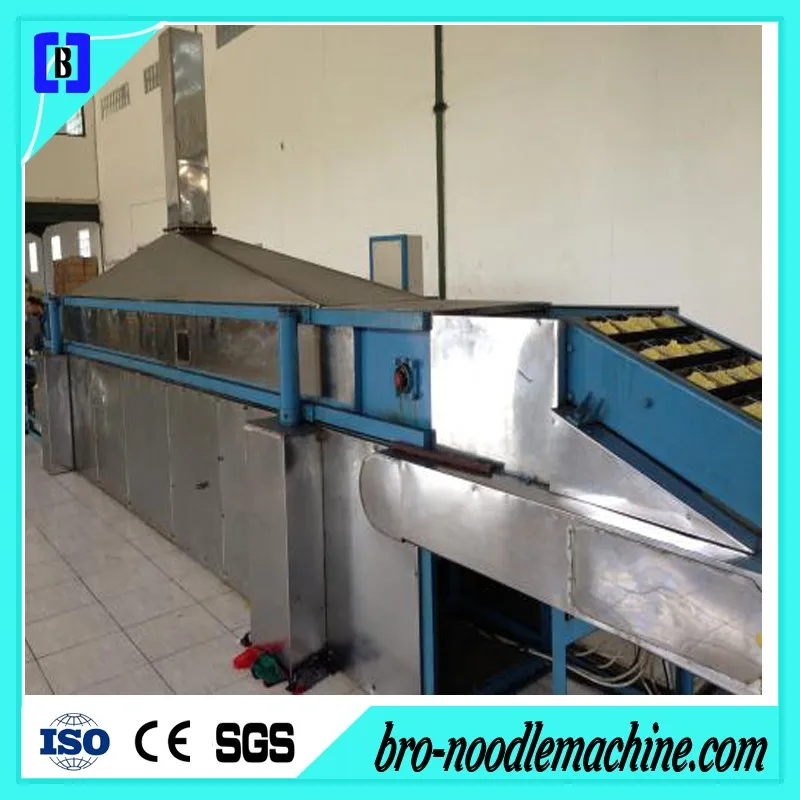

ITEM NAME: OIL FRYING MACHINE
MODEL: YZ50
QUANTITY: 1 UNITSize（mm）： 3700(L) ×2000(W) ×2000(H)
Material：Frying Pan Body: carbon steel,flour contact is stainless steel
Steam of Cost：about <0.8 t/h (0.6mpa)
Power：1.1KW With Reducer and Speed Adjuster
Function:Drying the noodles by oil frying.
QUANTITY: 1 UNITSize（mm）： 3700(L) ×2000(W) ×2000(H)
Material：Frying Pan Body: carbon steel,flour contact is stainless steel
Steam of Cost：about <0.8 t/h (0.6mpa)
Power：1.1KW With Reducer and Speed Adjuster
Function:Drying the noodles by oil frying.

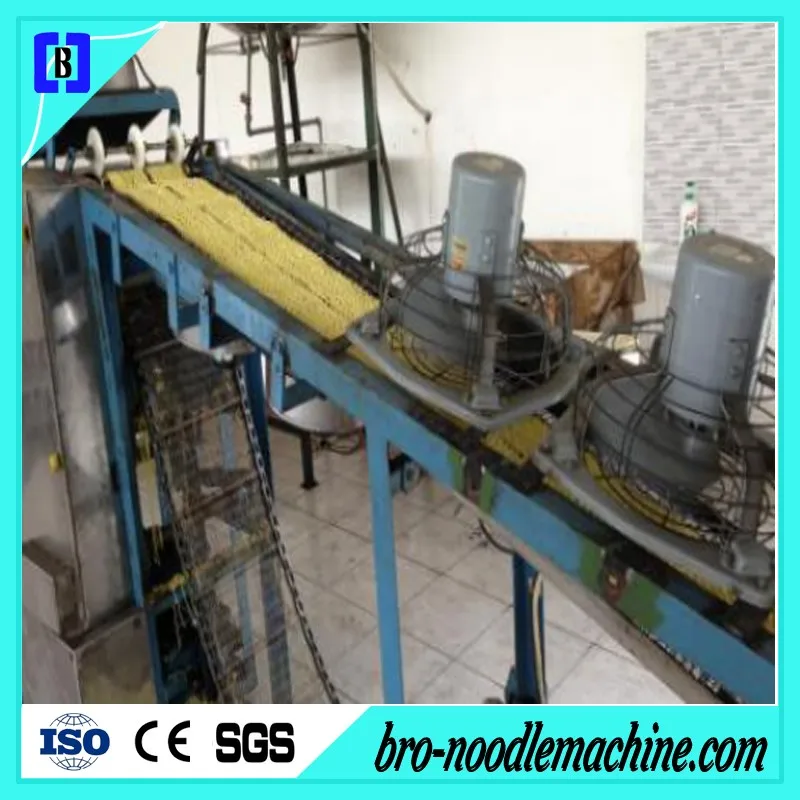

ITEM NAME: COOLING MACHINE
MODEL: FL50
QUANTITY: 1 UNITSize(mm):3000(L) ×550(W) ×900(H)
Material：flour contact is stainless steel
Blow: 30wX3 , extractor fan power supplied by frying
QUANTITY: 1 UNITSize(mm):3000(L) ×550(W) ×900(H)
Material：flour contact is stainless steel
Blow: 30wX3 , extractor fan power supplied by frying
ITEM NAME: PLC AUTOMATIC CONTROL PANEL
MODEL: BPT-1
QUANTITY: 1 SETThe main process adopts frequency conversion speed regulation.
Capacity/8Hours：~11,000pcs/8hrs（70g/piece）
Specification of Equipment(m)：25(L) ×0.8(W) ×1.6(H)m
Power： about 88KW（380V/50 Hz）
Steam of Cost：about <0.8 t/h (0.6mpa)
QUANTITY: 1 SETThe main process adopts frequency conversion speed regulation.
Capacity/8Hours：~11,000pcs/8hrs（70g/piece）
Specification of Equipment(m)：25(L) ×0.8(W) ×1.6(H)m
Power： about 88KW（380V/50 Hz）
Steam of Cost：about <0.8 t/h (0.6mpa)
Company Profile
Henan brother Machinery Co., Ltd is a production entity company specializing in the production of Mini mist fogger, Rice transplanter, Paddy field weeder, Brush cutter, Dryland weeder and noodle machine and spare parts. It is an agricultural machinery manufacturing company integrating science, industry and trade as one. The products are distributed throughout major grain producing areas in Chinese market and are exported to major grain-producing countries such as Vietnam, Thailand, India, Iran, Indonesia, and Myanmar etc, and are highly praised by agricultural experts and customers.
Our company adheres to the business philosophy of "Sentimental Agriculture and Serving Farmers" and actively promotes agricultural mechanization, intensive, and socialized production, and strivrs to turn the traditional peasants from traditional homework to sowing, farming, planting, planting, harvesting, transportation etc. In the process of full mechanization, a pioneer and sower. Brother company is willing to go hand in hand with friends at home and abroad to create brilliant career.
Our company adheres to the business philosophy of "Sentimental Agriculture and Serving Farmers" and actively promotes agricultural mechanization, intensive, and socialized production, and strivrs to turn the traditional peasants from traditional homework to sowing, farming, planting, planting, harvesting, transportation etc. In the process of full mechanization, a pioneer and sower. Brother company is willing to go hand in hand with friends at home and abroad to create brilliant career.
Packing & Delivery
International Standard Wooden Case
FAQ
1. who are we?
We are based in Henan, China, start from 2015,sell to Eastern Asia(30.00%),South Asia(20.00%),Africa(20.00%),Mid East(20.00%),Domestic Market(10.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Noodle machine,Noodle slitter,Noodle production line,Instant noodle machine,Dried noodle machine
4. why should you buy from us not from other suppliers?
Henan B.R.O Machinery Co., Ltd, located in Zhengzhou city,Henan province of China, is a professional manufacturer specialized in researching and technical supporting on complete sets of noodle machines.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Henan, China, start from 2015,sell to Eastern Asia(30.00%),South Asia(20.00%),Africa(20.00%),Mid East(20.00%),Domestic Market(10.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Noodle machine,Noodle slitter,Noodle production line,Instant noodle machine,Dried noodle machine
4. why should you buy from us not from other suppliers?
Henan B.R.O Machinery Co., Ltd, located in Zhengzhou city,Henan province of China, is a professional manufacturer specialized in researching and technical supporting on complete sets of noodle machines.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
