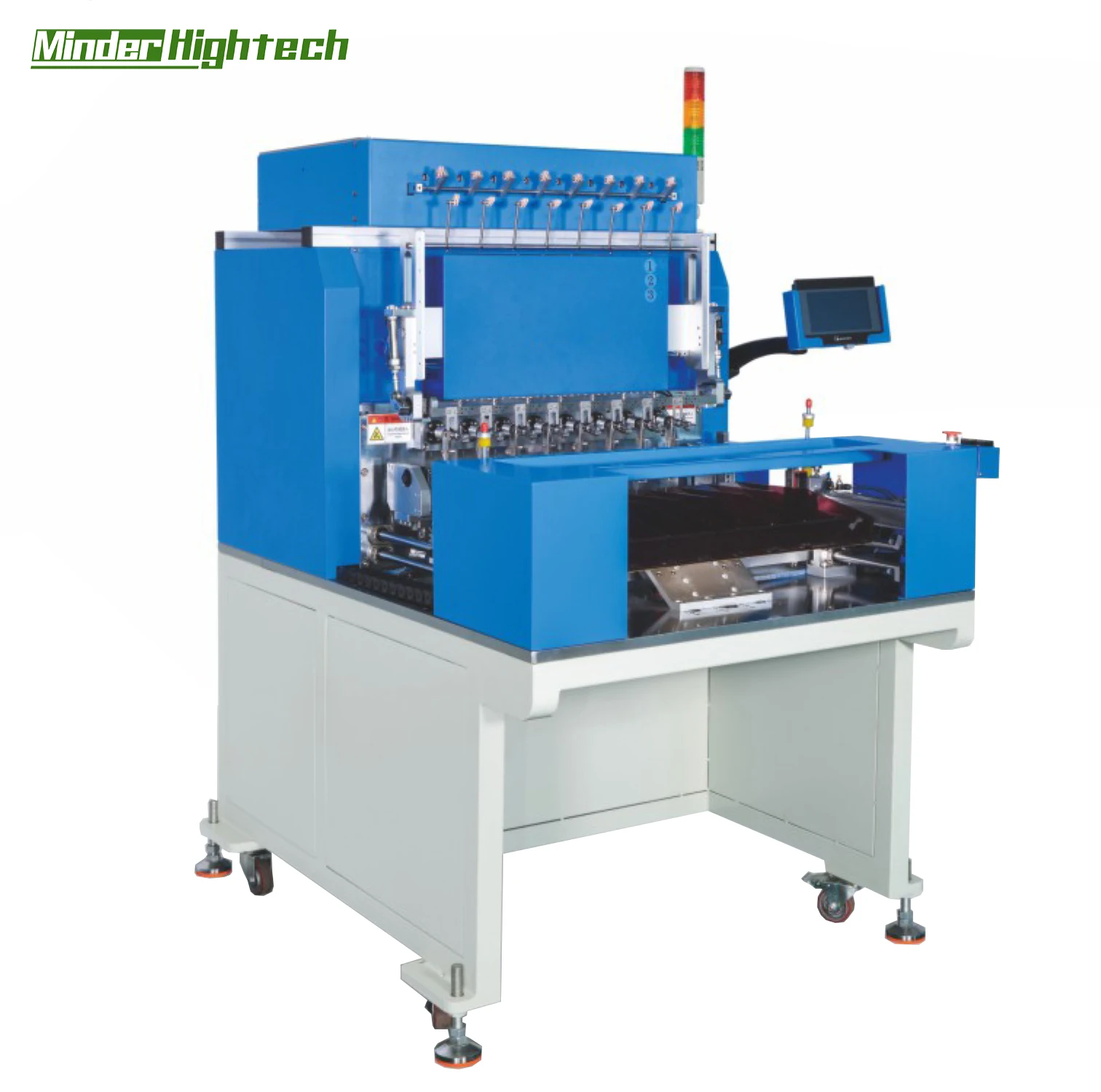

Capacitor winding machine/Motor coil winding machine/Capacitor production line
- Category: >>>
- Supplier: Guangzhou Minder-Hightech Co. Ltd.
Share on (1600928635882):
Product Overview
Description
Product Description
Feature:
Key components are Japanese, German or Taiwan Brand, high reliability and durability, greatly prolonged the machine lifetime.
Adopt Zongheng precision close loop wire spread system, to achieve accurate alignment above 20 layers no wire overlapping.
Equipped with vibrator loading, use straight vibrator to align and manipulator to load.
Special double spindle alternative design, can separate winding and taping, loading & unloading work independently, increase efficiency.
Adopt Zongheng precision close loop wire spread system, to achieve accurate alignment above 20 layers no wire overlapping.
Equipped with vibrator loading, use straight vibrator to align and manipulator to load.
Special double spindle alternative design, can separate winding and taping, loading & unloading work independently, increase efficiency.
Specification
Models | WZY-AP15001 |
Spindle Pitch | 150mm |
Spindle Numbers | 1 |
Spindle Speed | 8000rpm |
Spindle Motor | 1500W |
Wire rang | 0.035~1.5mm |
Max.Bobbin OD | 100mm |
Jig Inner diameter | 20mm |
Power Voltage | AC 220V±10% |
Power | 4000W |
Air Pressure | 0.4~0.6mpa |
Machine Size | 900*850* 1600mm |
Machine Weight | ~400kgs |
Company Profile
1.Professional algorithm, tight and beautiful wiring
2.Low energy consumption and high efficiency
3.Mature integration scheme, higher versatility
4.Patented control software operation interface, user-friendly operation
5.Provide customers with satisfactory winding machine equipment solutions

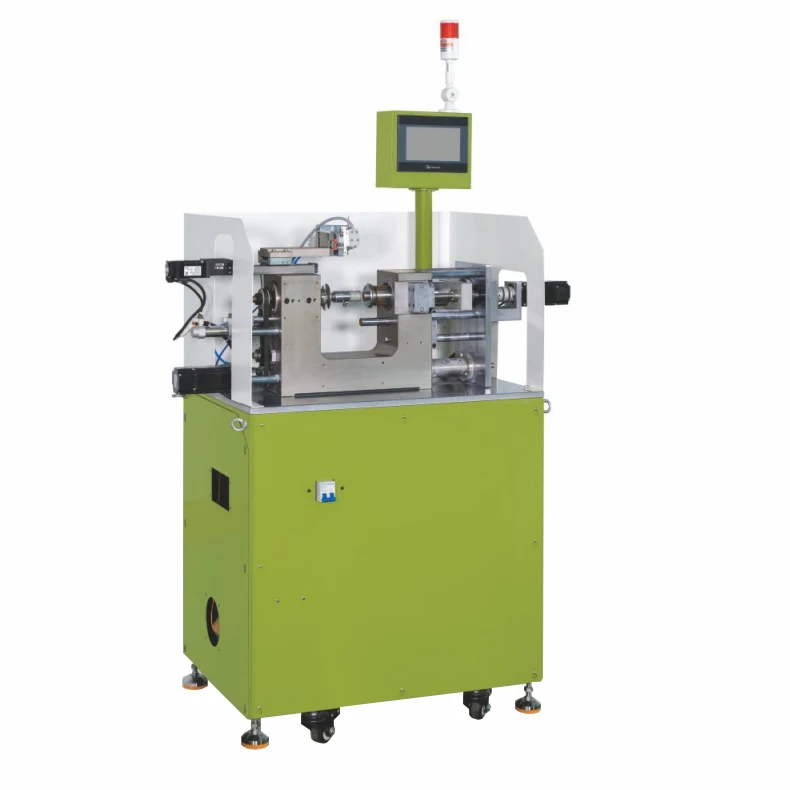

Spindle precision spreading stripping and
winding machine

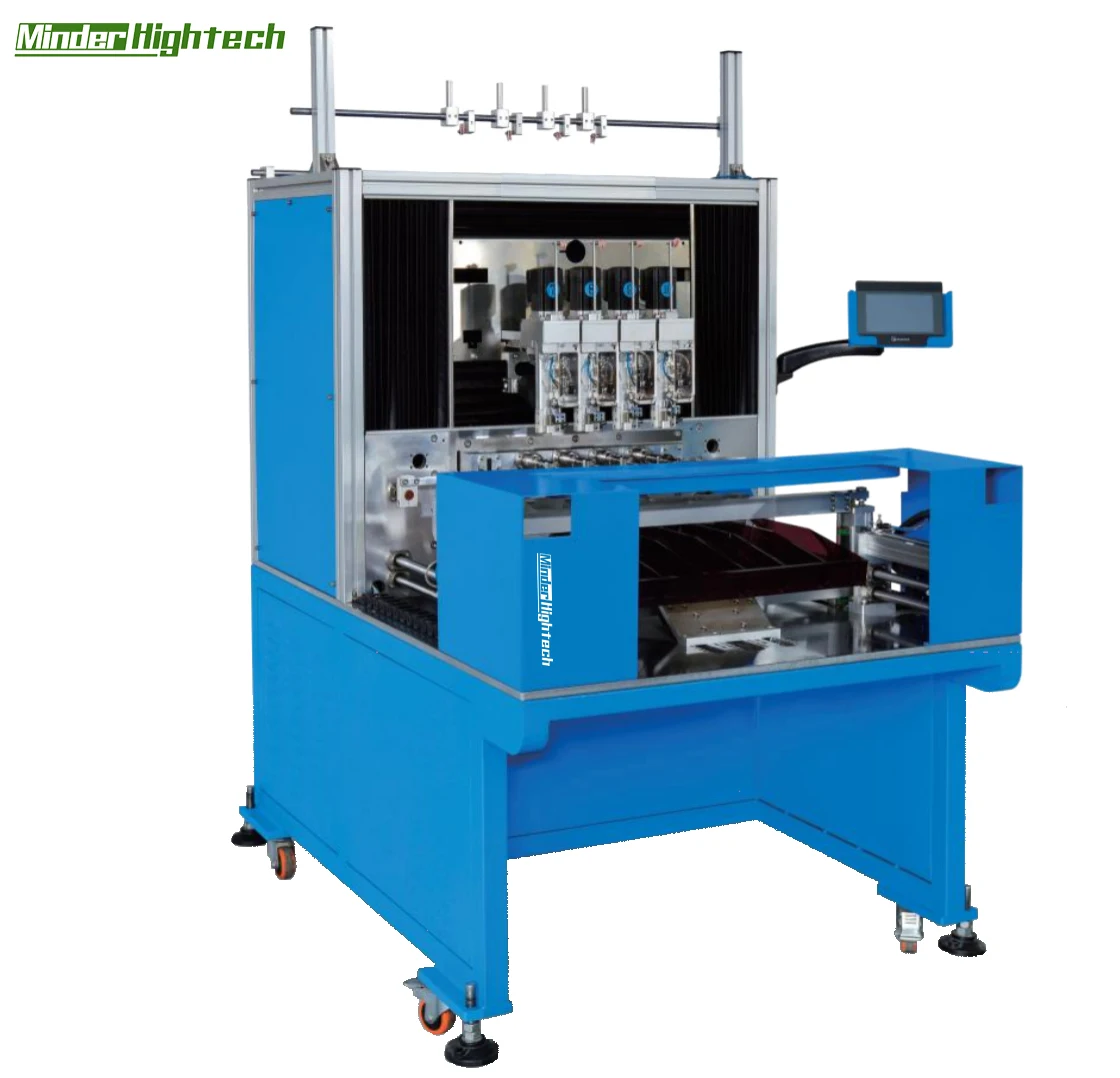

Spindle precision unfolded
wire stripping and winding machine

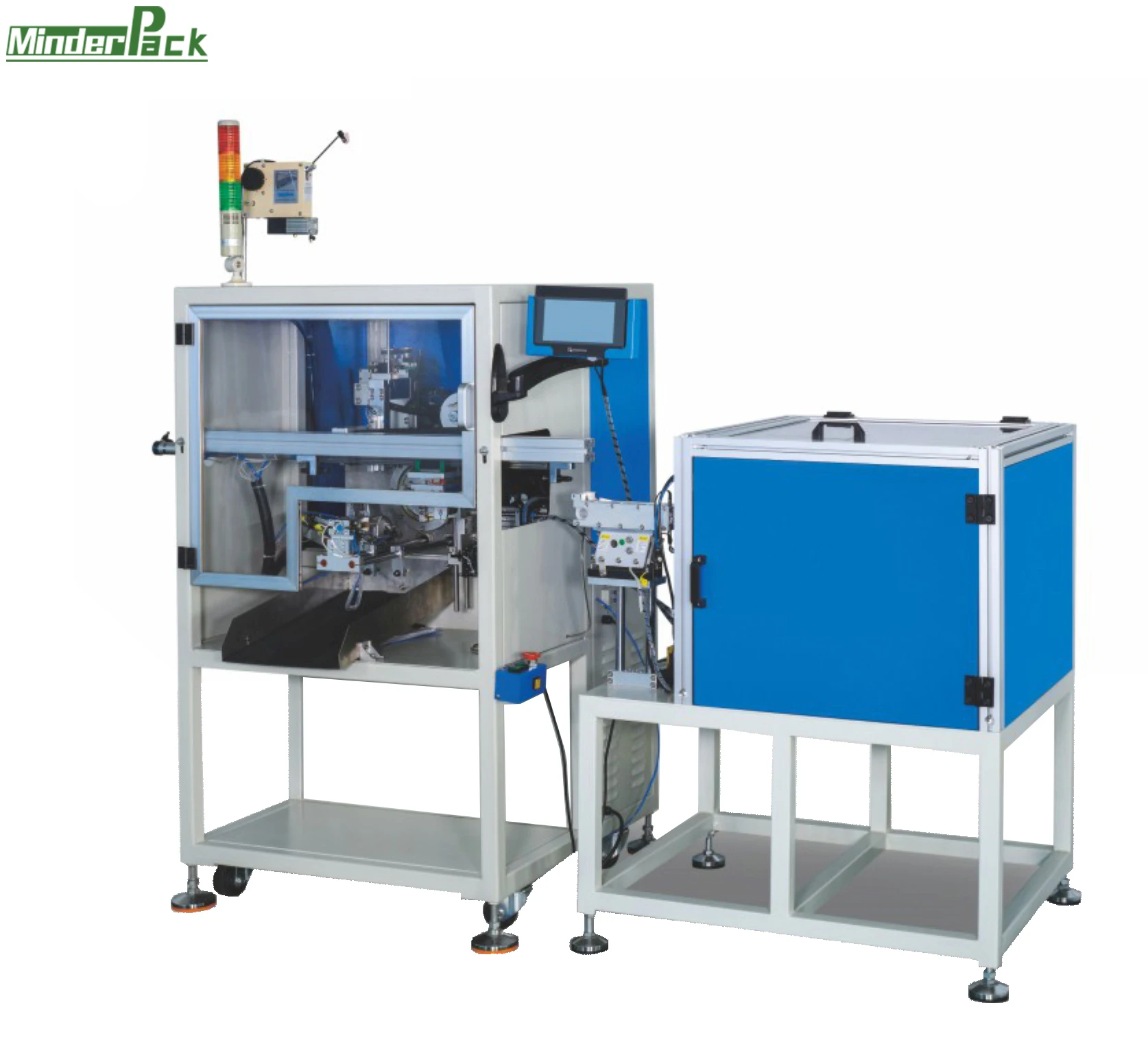

Automatic air coil
winding machine

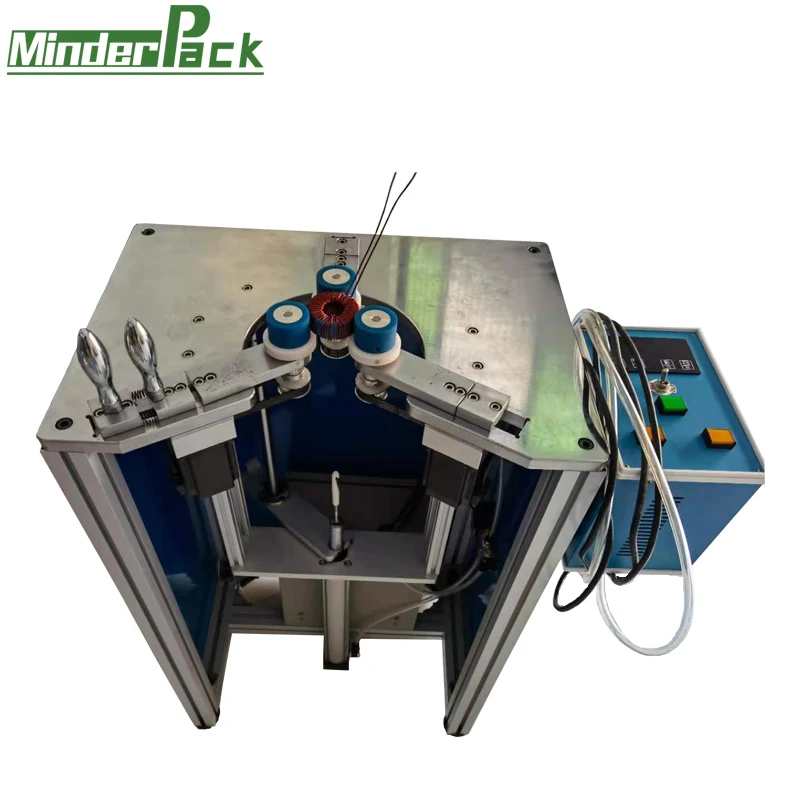

manual crochet hook type winding machine
