Automatic L sealer Heat Tunnel Pva Film Packing Shrink Wrapping Machine For Carton Box Cosmetic Food Bottle

Product Overview

Description

Good Selling Pack And Gift Paper Tunnel L Sealer Shrink Film Wrapping Machine

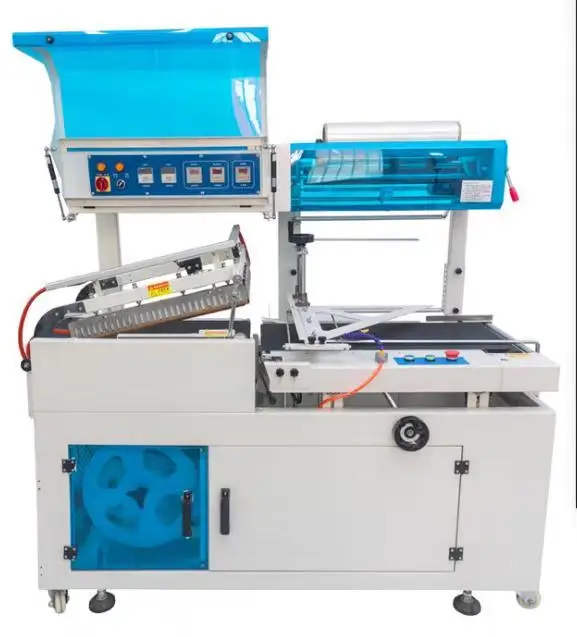

FQL-450 series sealing and cutting machine is a fully automatic unmanned operation of the L-type sealing and cutting machine, widely used in mass production of packaging water operations, high efficiency, automatic film perforation
Devices and manual adjustment of the guide film system and the manual adjustment of the feed conveyor platform for different sizes of products.

Scope of application:
Applicable to software, food, cosmetics, printing, pharmaceutical and flooring, ceramics, beverages, hardware and other industries in large quantities shrink packaging.

MODEL	FQL450	FQL550
Voltage	220/50-60Hz	220/50-60Hz
Air Pressure Required	5-7	5-7
Power	1.35KW	1.5KW
Capac ity	15-30bags/min	15-30bags/min
Maximum packing size	<500mm	<600mm
Maximum packing size	<400mm	<500mm
Cutter size	550×450	650×550
Applicable shrinkage film	POF/PE	POF/PE
External Dinens ions	1650x800 x1450	1750x900 x1450
Net we ight	300	350



Machine modeling handsome, stable quality, safety and energy saving, patented products, the national initiative; for PVC PP POF film shrink packaging perfect effect.

Technical features:
1. Appearance and knot in accordance with national standards, the fuselage with fingerprint-resistant production after the spray.
2. Control panel using programming system, 12V DC input, key switch, digital display.
3. Conveyor using 24V DC gear motor, speed control using frequency conversion technology 0-9 file adjustment.
4. Conveyor belt with wire mesh belt, chain roller, Teflon mesh with three.
5. Heating with 380V 1000W stainless steel heating tube.
6. Temperature control using high-precision intelligent temperature controller system.
7. Hot air circulation 380V 370W 2800 long axis motor with wind wheel.
8. Furnace height adjustable (50mm-350mm).

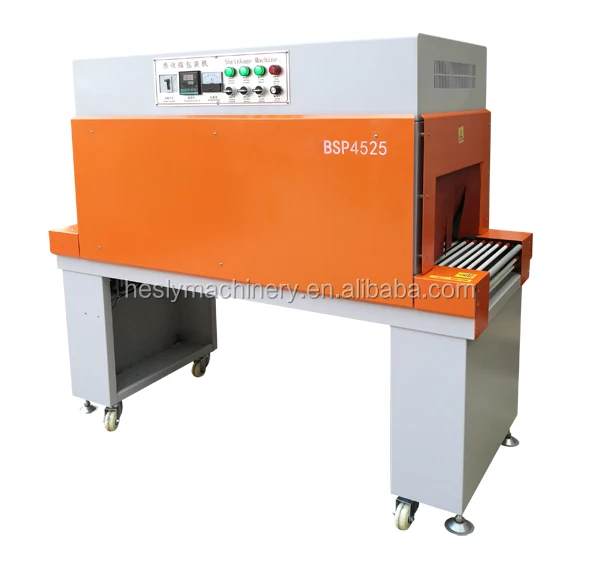

MODEL	BSD4535
Voltag	380V50-60Hz
Power	10KW
Capacity	0-15m/min
Tunnel Size	1200×450×350mm
Product size	400×300mm
Transport material	Chain network,Roller chain,Teflon
Conveying load	10kg Max.
External Dimens ions	1600×650×1050mm
weight	120kg
Applicable shrinkage film	POF, PVC, PP
