Industry Mill Four Side Planer Saw for Square Timber Electric Lifting
- Category: >>>
- Supplier: Foshan Zhonghaoxing Woodworking Machinery Co. Ltd.
Share on (1600928657688):
Product Overview
Description

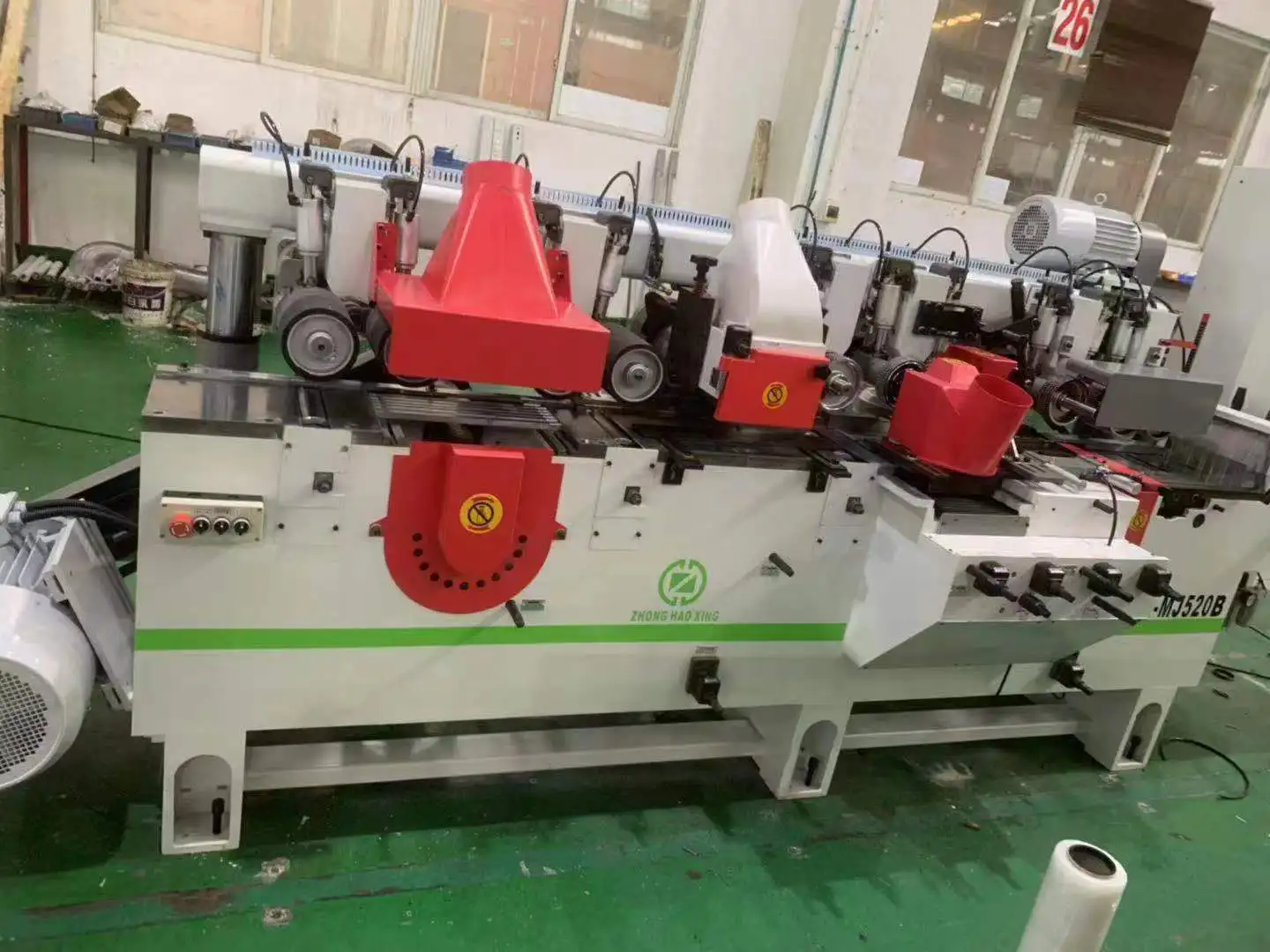

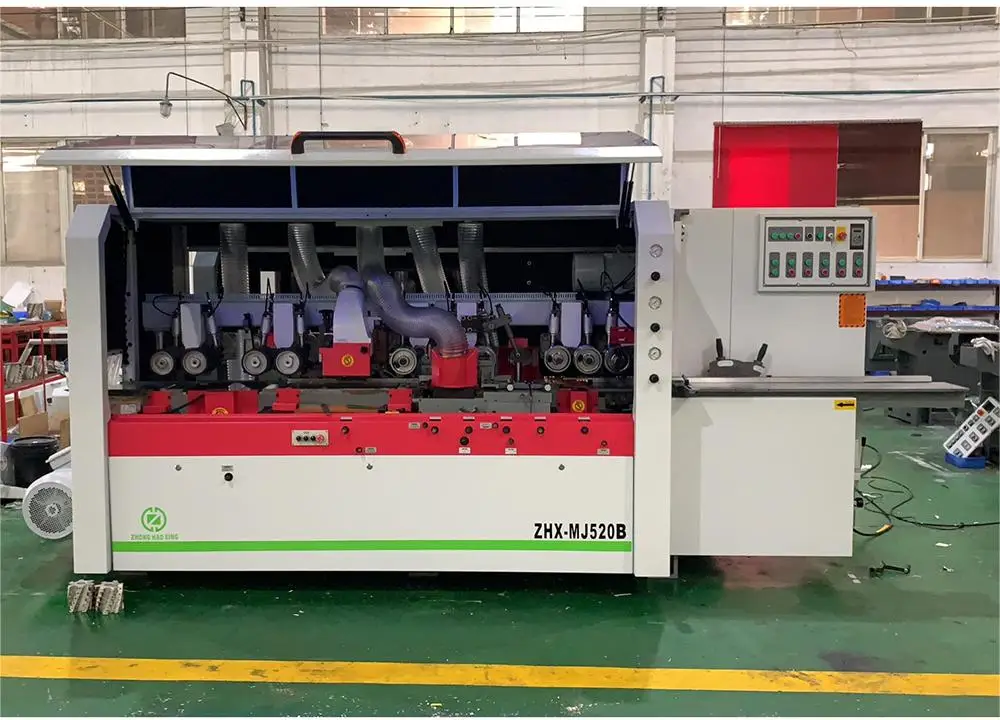

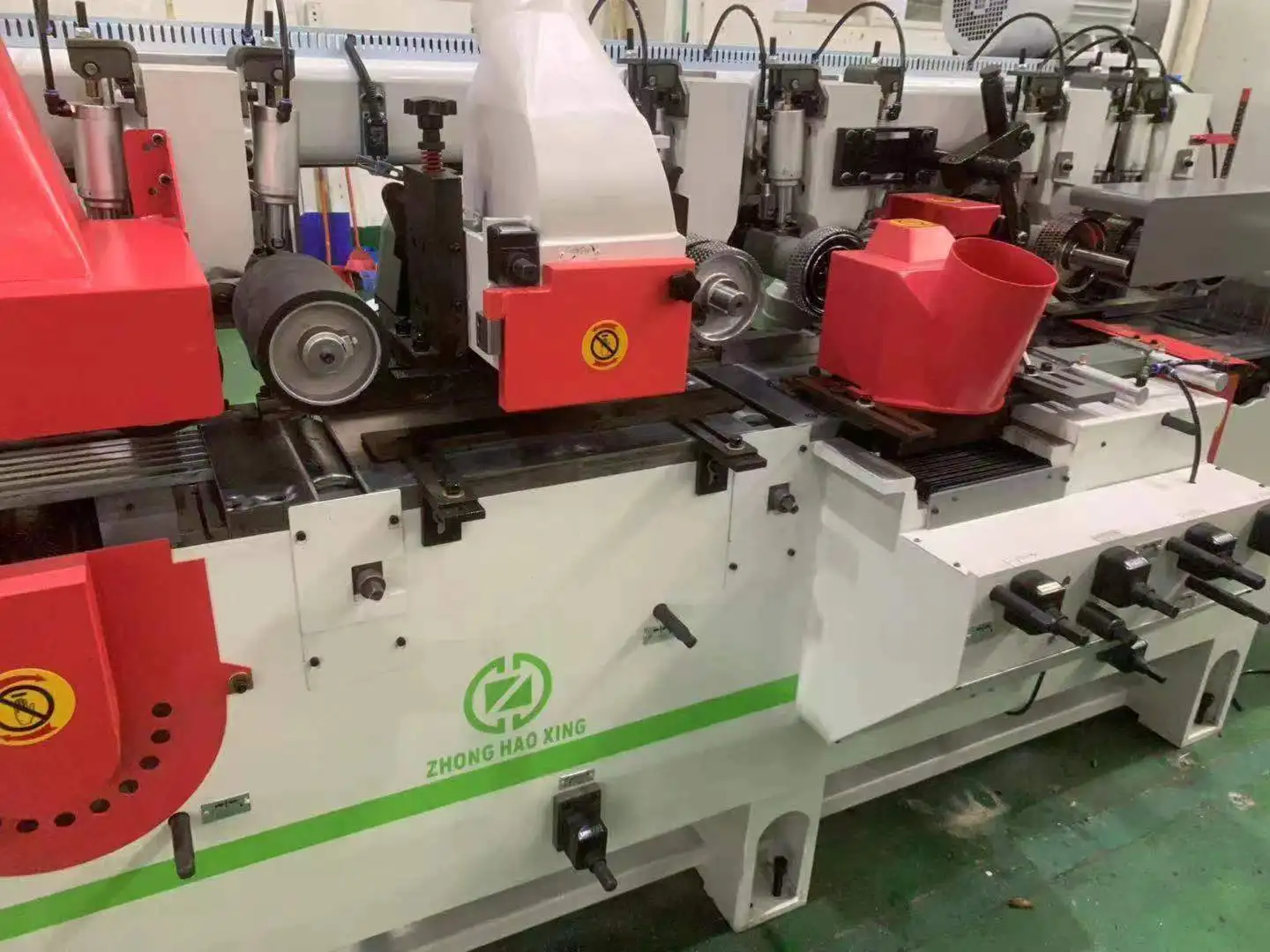

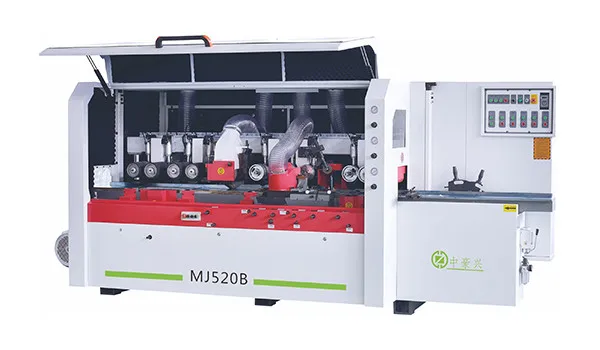

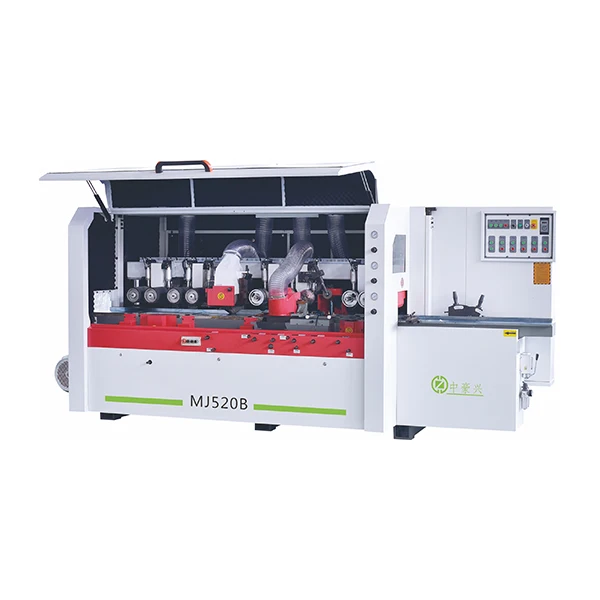

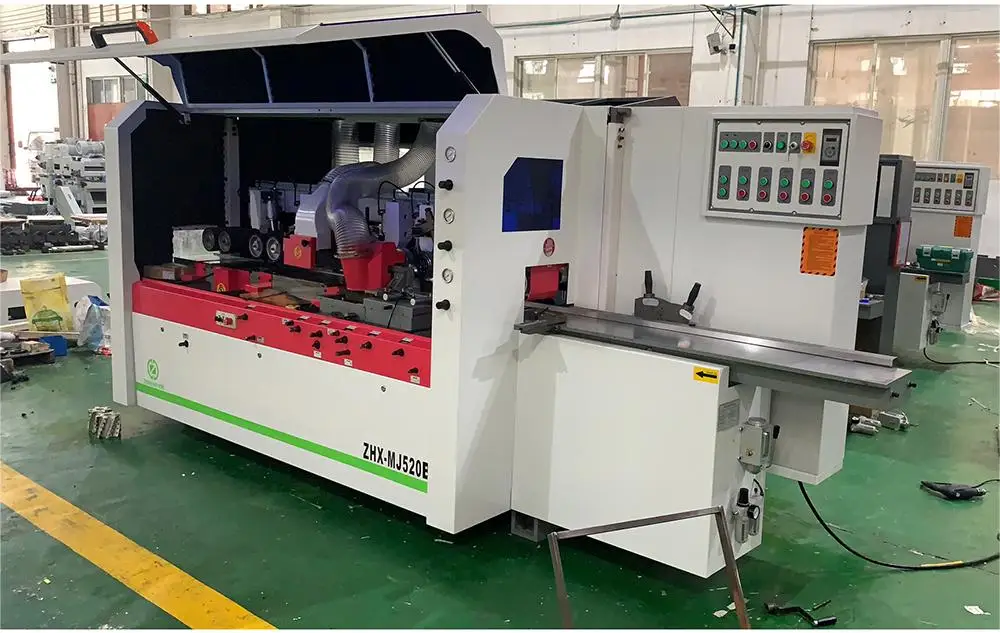

MJ520B Industry Mill Four Side Planer Saw for Square Timber Electric Lifting
Specifications
| Model | ZHX-ML620DA | ZHX-MJ520B | |
Technical Data | Max Working Width | 20~200mm | 25~200mm |
| Max Working Thickness | 10~120mm | 8~1205mm | |
| Min Working Length | 650~480mm | - | |
| Air Pressure | 0.3~0.6mpa | 0.3~0.6mpa | |
| Saw Spindle Diameter | 40mm | 50mm | |
| Saw Spindle Speed | 4500rpm | 4500rpm | |
| Cutter Spindle Diameter | 40mm | 40mm | |
| Cutter Spindle Speed | 6000rpm | 6000rpm | |
| Saw Spindle Keyway | 12*4mm | 16*5mm | |
| Feeding Speed | 5~35m/min | 5~35m/min | |
| Motor Power | The First Bottom Spindle | 5.5kw | 5.5kw |
| The Second Bottom Spindle | - | 22kw | |
| Left Right Vertical Knife | 2*15kw | 2*5.5kw | |
| Left Right Saw Spindle Motor | 2*1.5kw | - | |
| Feeding Motor | 4kw | 4kw | |
| Rear Auxiliary Feeding Motor | 2*0.37kw | - | |
| Feeding Rising Motor | 0.75kw | 0.75kw | |
| Total Power | 51.99kw | 50.75kw | |
| Cutter Diameter | The First Bottom Cutter | 125mm | 125mm |
| Left Right Vertical Knife | 110~180mm | 110~180mm | |
| Left Right Saw Blade | 180~250mm | 180~250mm | |
| Others | Feeding Wheel Diameter | 140mm | 140mm |
| Dust Absorp Tube Diameter | 2*150+4*120mm | 2*150+4*120mm | |
| Net Weight | 3500kg | 3000kg | |
| Dimensions | 4300*1600*1800mm | 4300*1400*1800mm |
Product Description
> Professional solutions, large quantities of wood panels, sauna board, bed, sofa bottom seat board wood
board material specifications.
> Four side planer saw machine structure is reasonable, the operation is simple and convenient.
> Saw shaft frequency independent operation, transportation, according to wood hardness choose
reasonable transmission speed.
> Hard chromium plating on the working table, smooth and wear resistance.

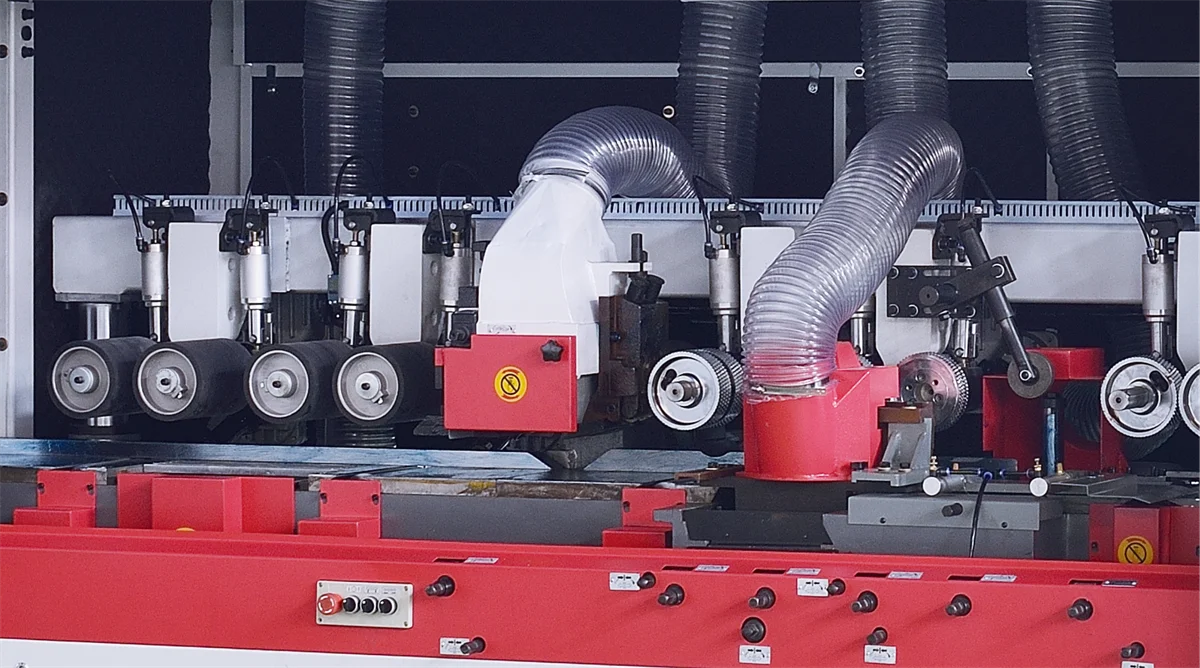

> Four groups of active vertical out of the roller wheel, to ensure that the feeding material is smooth.
> Saw blade adopts automatic jet cooling device with automatic jet, and the usage rate of saw balde if promotoed.
> High efficiency, energy saving, material saving, one machine with multiple purposes.
