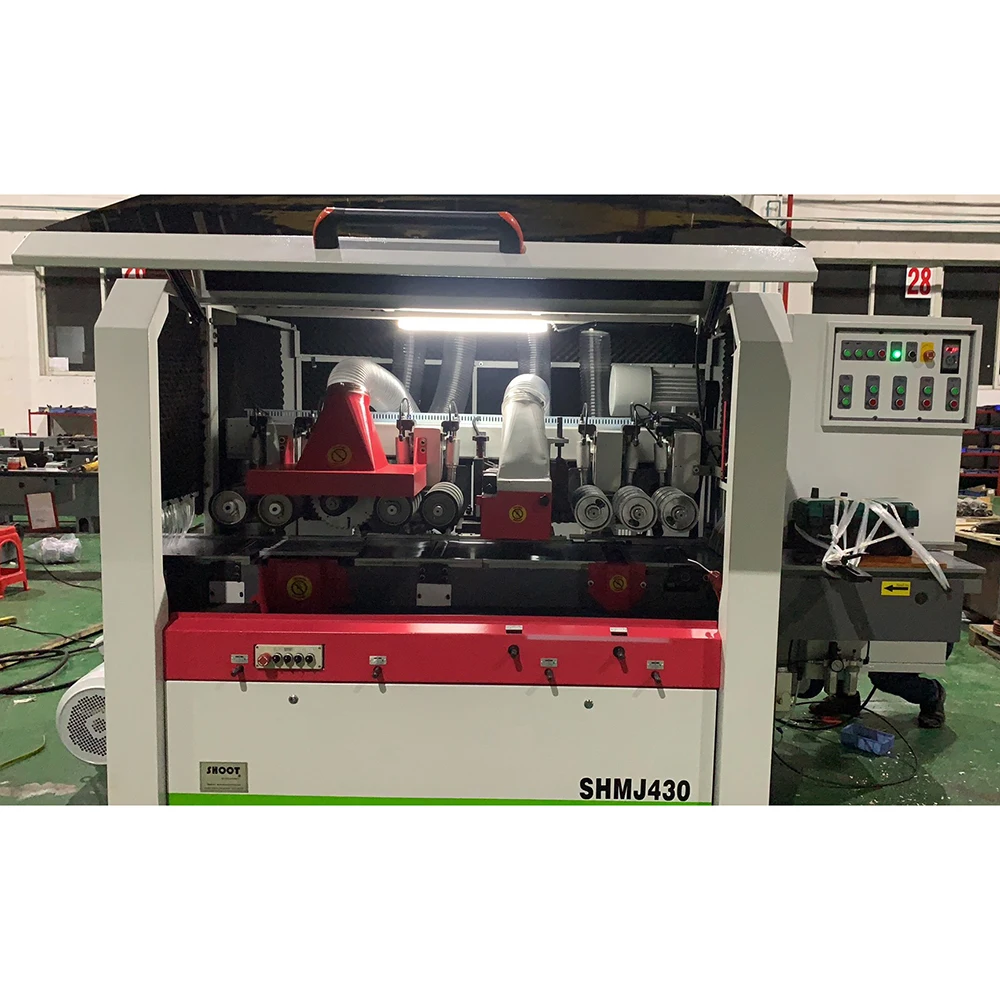

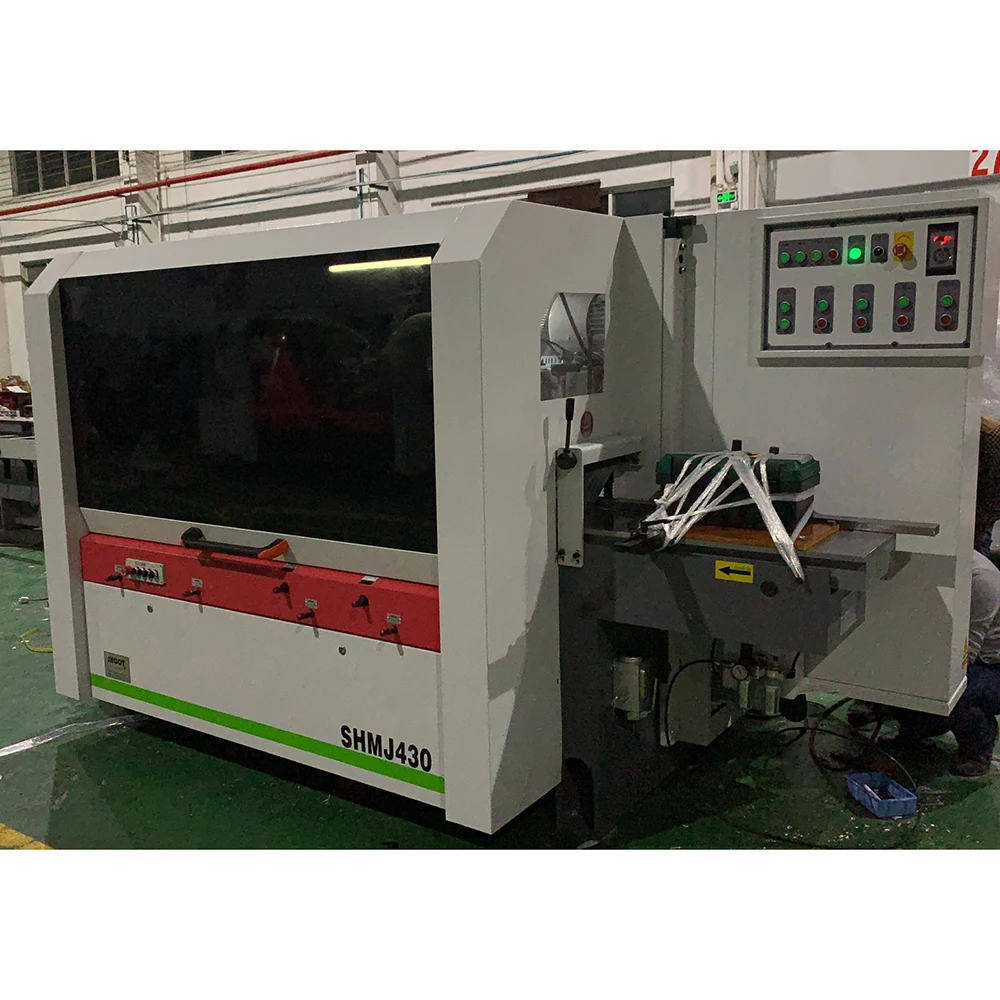

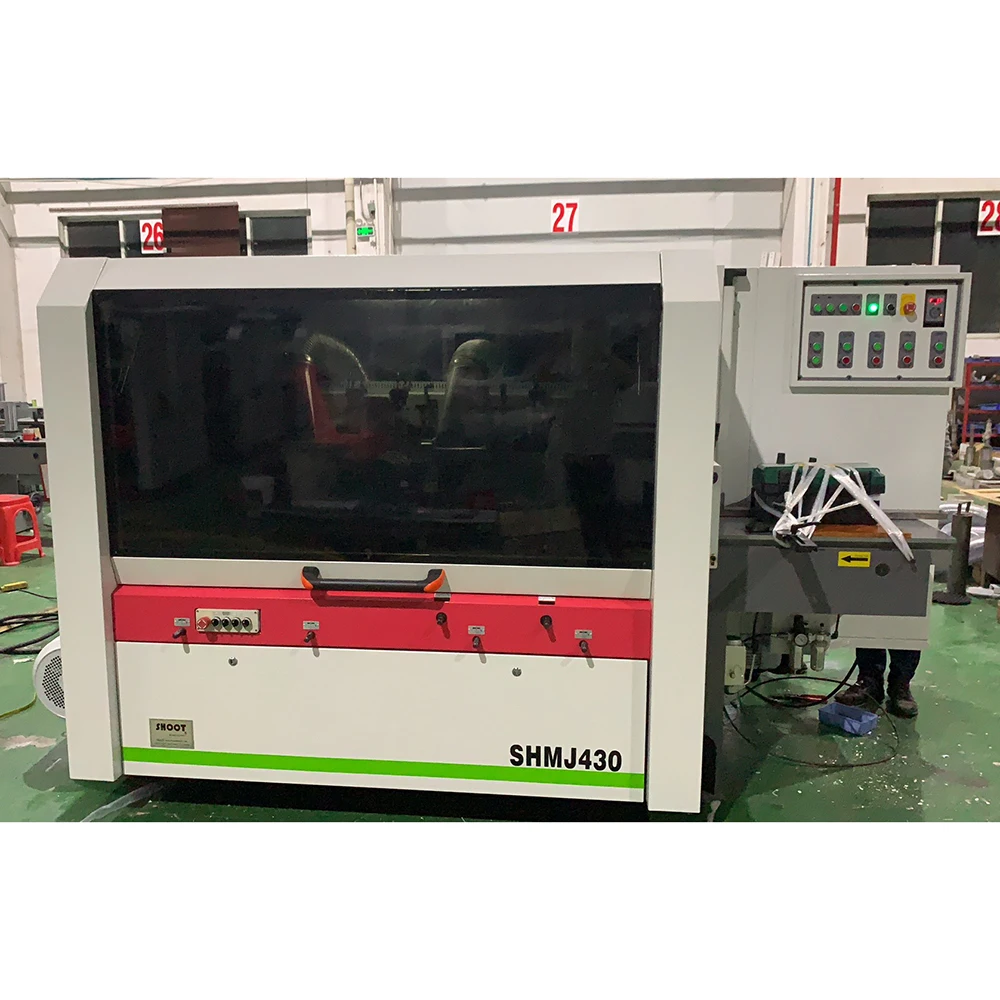

Multi Function Planing Sawing Machine for Timber Log Digital Operation
- Category: >>>
- Supplier: Foshan Zhonghaoxing Woodworking Machinery Co. Ltd.
Share on (1600928710152):
Product Overview
Description
Multi Function Planing Sawing Machine for Timber Log Digital Operation
Specifications

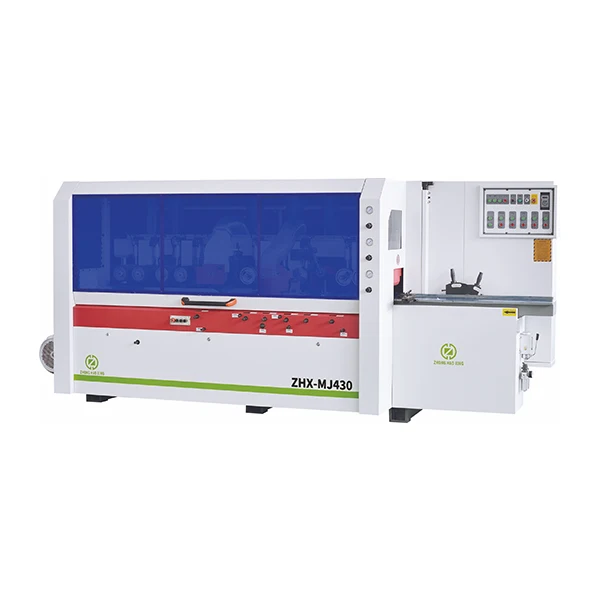

| Model | ZHX-MJ330 | ZHX-MJ425 | ZHX-MJ430 | |

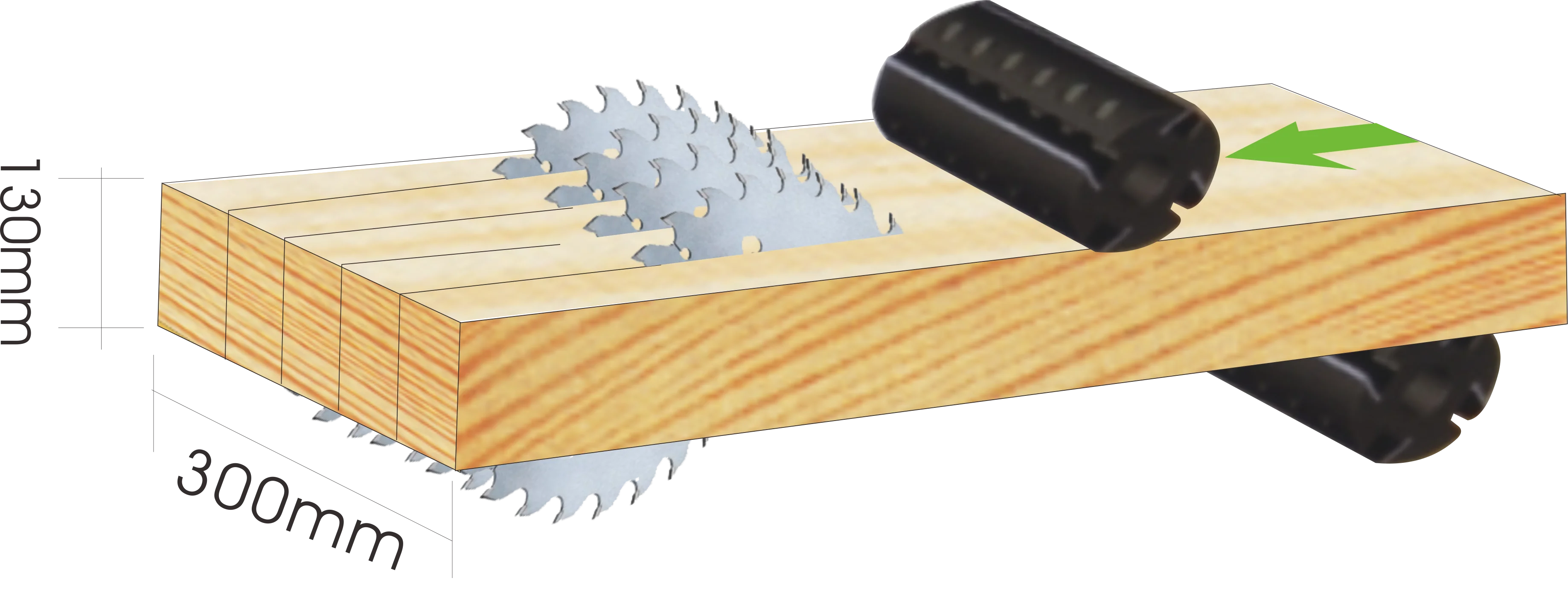

Technical Data | Max Working Width | 300mm | 250mm | 300mm |
| Max Working Thickness | 85mm | 130mm | 130mm | |
| Feeding Speed | 5~35m/min | 5~35m/min | 5~35m/min | |
| Cutter Spindle Diameter | 50mm | 50mm | 50mm | |
| Saw Spindle Diameter | 50mm | 50mm | 50mm | |
| Cutter Spindle Speed | 7000rpm | 7000rpm | 7000rpm | |
| Saw Spindle Speed | 4000rpm | 4000rpm | 4000rpm | |
| Saw Spindle Keyway | 16*5mm | 20*5mm | 16*5mm | |
| Cutter Spindle Left Right Moverable | 10mm | 10mm | 10mm | |
| Air Pressure | 0.4mpa | 0.4mpa | 0.4~0.6mpa | |
| Motor Power | The First Bottom Spindle | 7.5kw | 7.5kw | 7.5kw |
| The First Top Spindle | 11kw | 11kw | 11kw | |
| Feeding Motor | 4kw | 4kw | 4kw | |
| Feeding Rising Motor | 0.55kw | 0.55kw | 0.37kw | |
| Top Saw Spindle Motor | - | 18kw | 18kw | |
| Bottom Saw Spindle Motor | 22kw | 22kw | 22kw | |
| Total Power | 45.6kw | 58.75kw | 58.757kw | |
| Cutter Diameter | The First Bottom Cutter | 125mm | 125mm | 125mm |
| The Second Top Cutter | 125mm | 125mm | 125~160mm | |
| Top and Bottom Saw Spindle | - | 185~255mm | 185~255mm | |
| Saw Blade Diameter | 305mm | 255mm | 250mm | |
| Others | Feeding Wheel Diameter | 140mm | 140mm | 140mm |
| Dust Absorp Tube Diameter | 150mm | 125mm | 150mm | |
| Net Weight | 2500kg | 2800kg | 2800kg | |
| Dimensions | 3250*1300*1820mm | 3500*1500*1600mm | 3500*1500*1600mm |
Product Description
Main Features
> Professional solutions, large quantities of wood panels, sauna board, bed, sofa bottom seat board wood board material specifications.
> Four side planer saw machine structure is reasonable, the operation is simple and convenient.

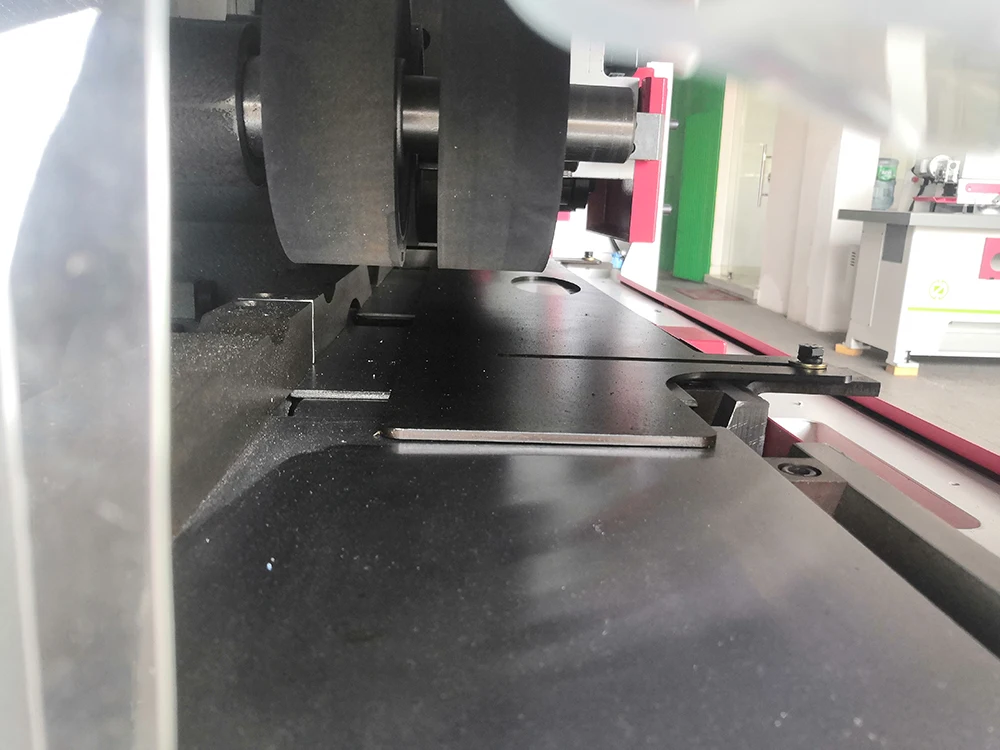

> Hard chromium plating on the working table, smooth and wear resistance.

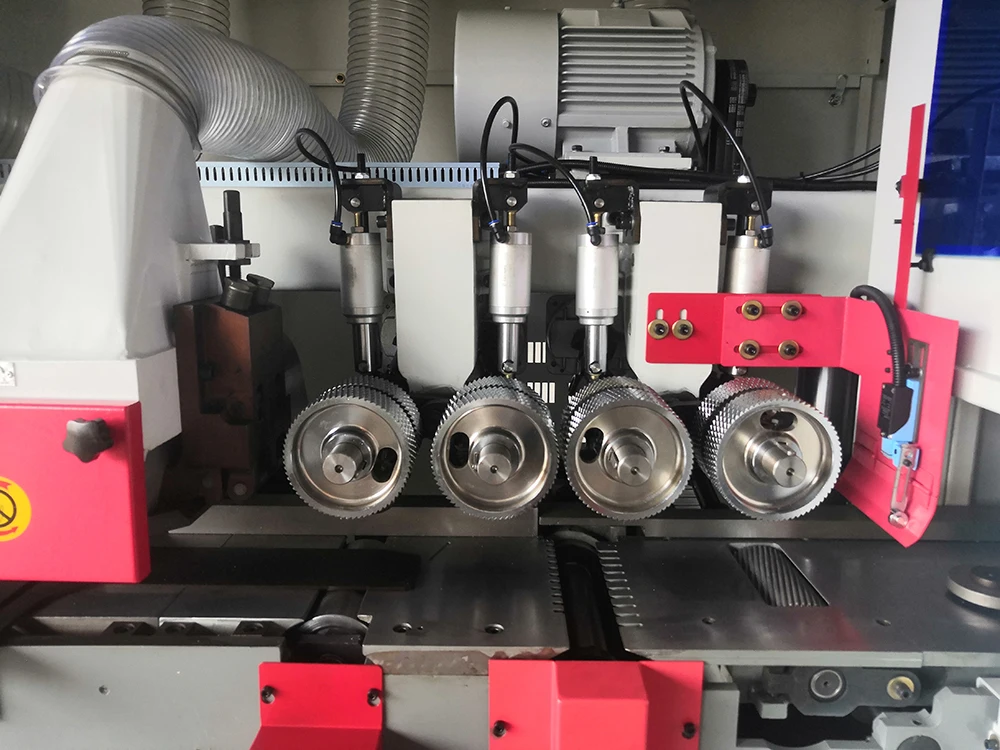

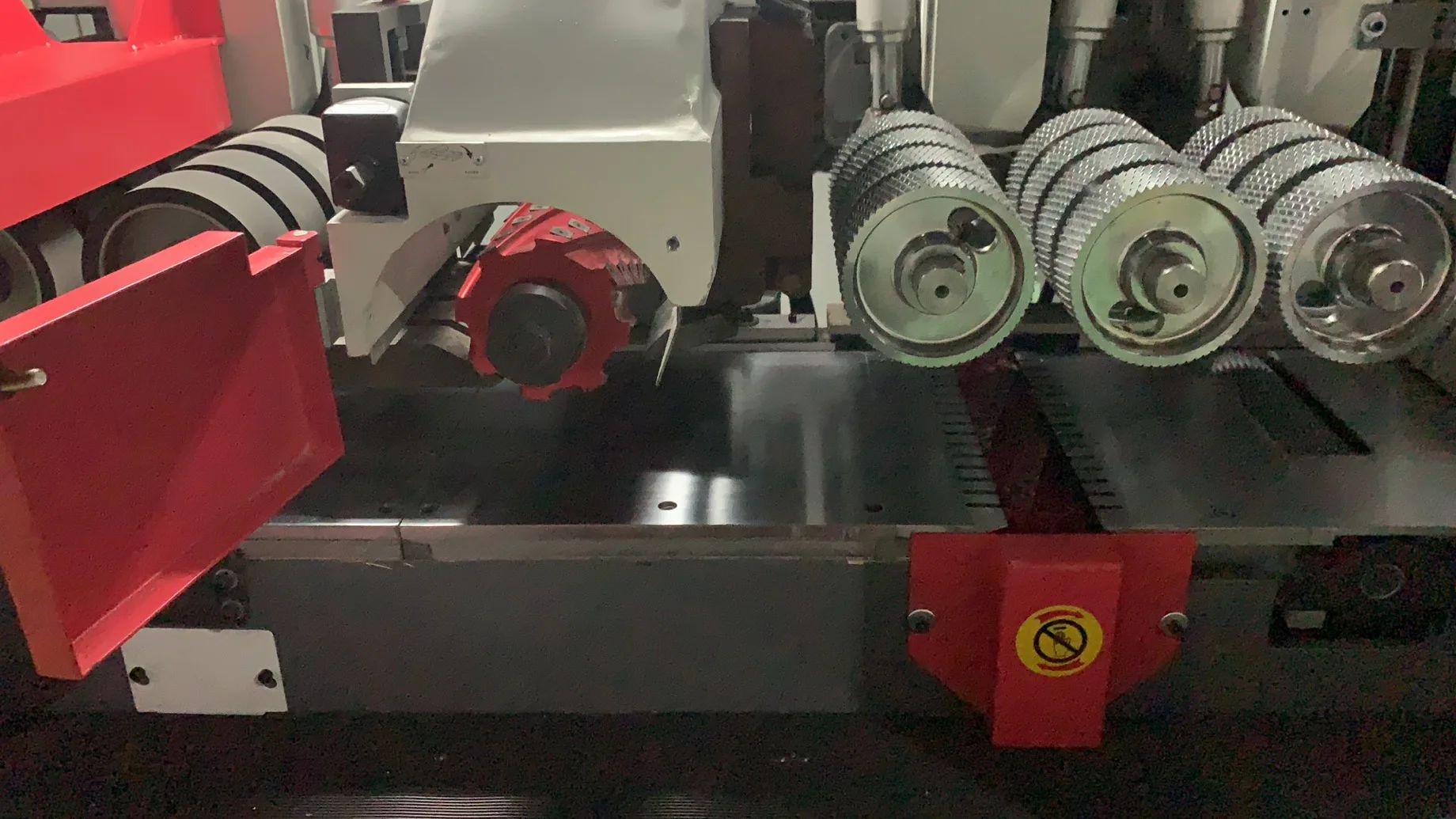

> Four groups of active vertical out of the roller wheel, to ensure that the feeding material is smooth.
> Saw blade adopts automatic jet cooling device with automatic jet, and the usage rate of saw balde if promotoed.
> High efficiency, energy saving, material saving, one machine with multiple purposes.
> Saw shaft frequency independent operation, transportation, according to wood hardness choose reasonable transmission speed.

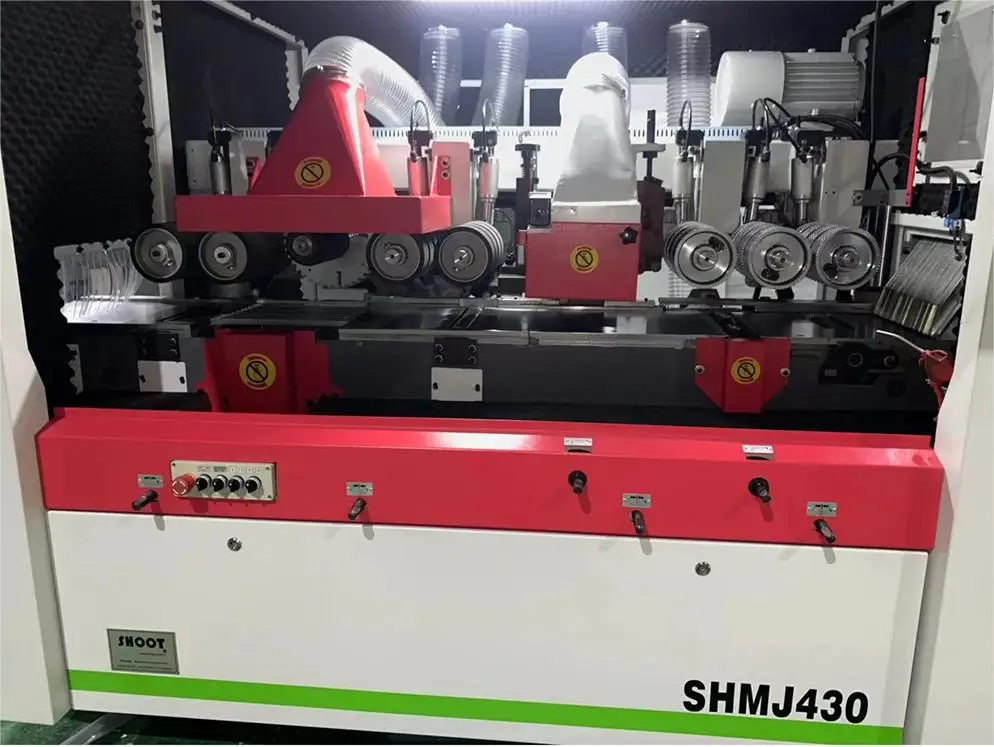

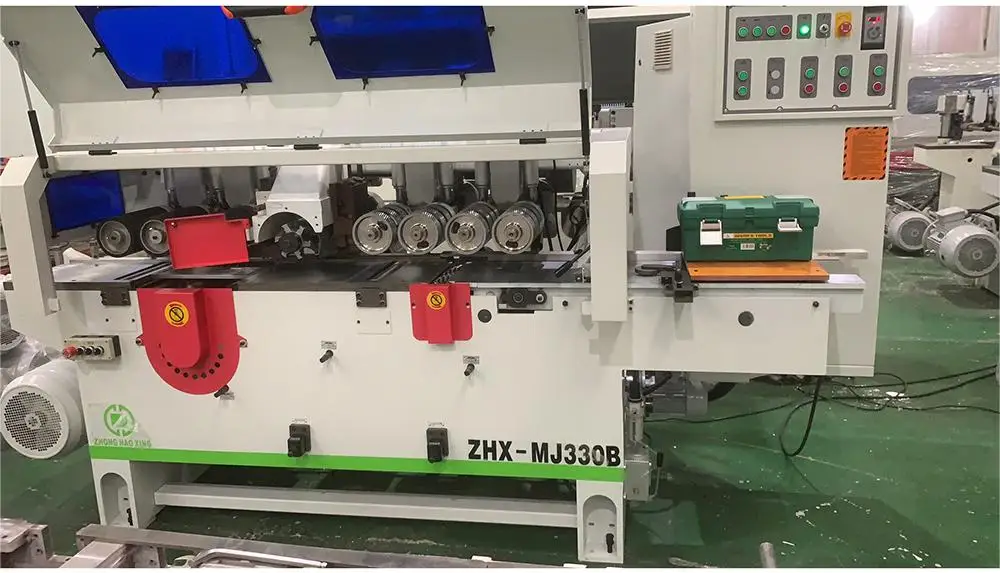

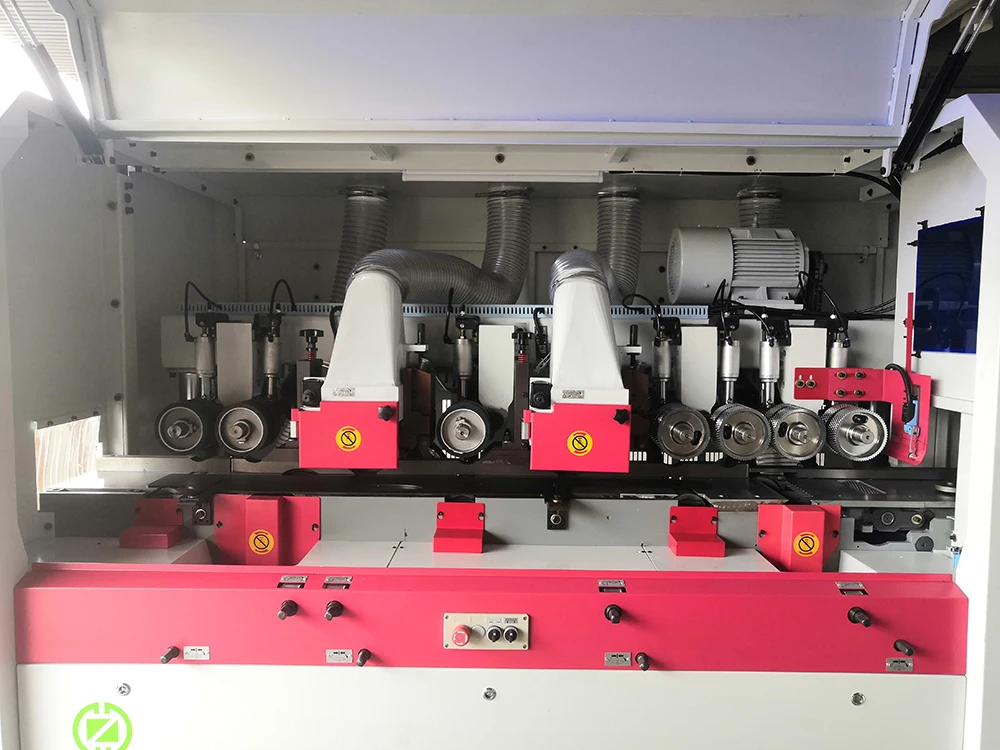

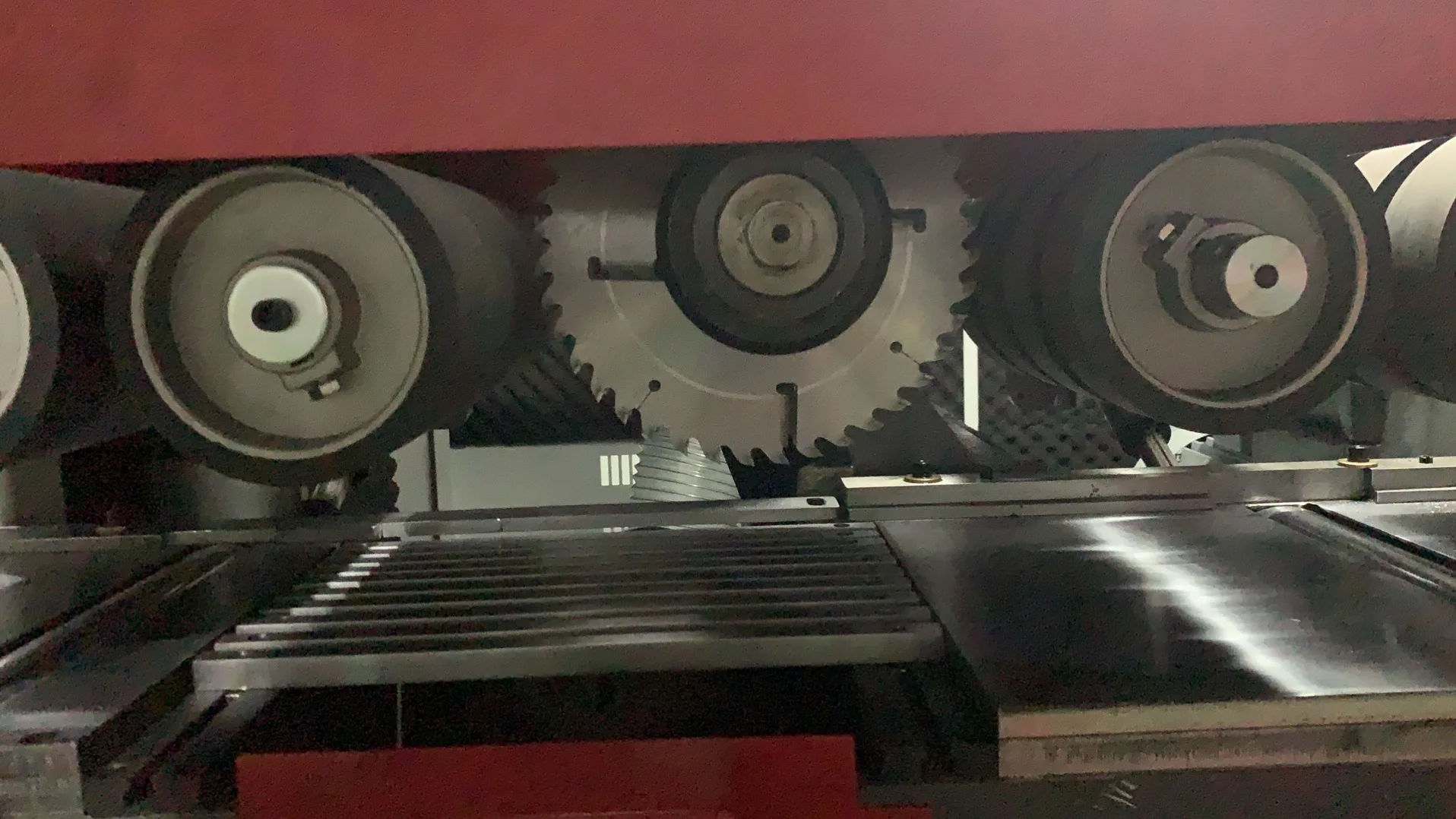

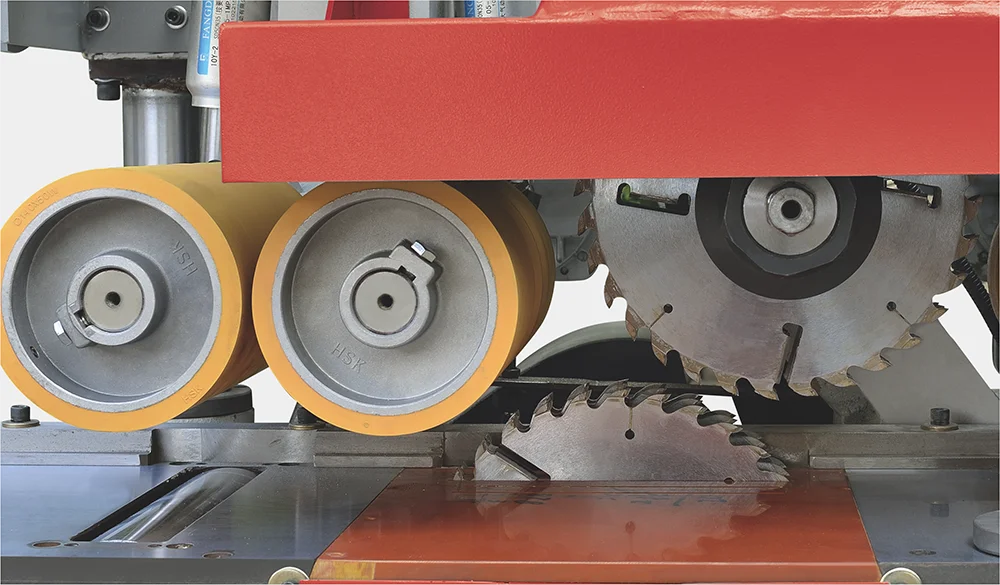

Detailed Images
