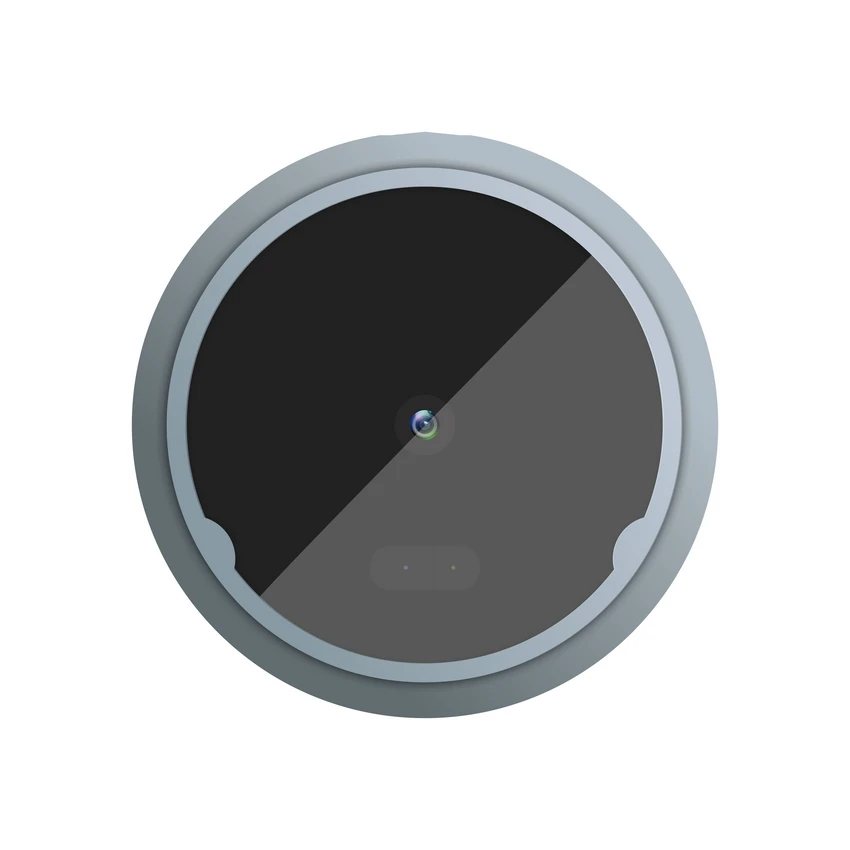

AD335 Ring Embedded seven colors 2d qr code scanning module barcode scanner reader module
- Category: >>>
- Supplier: Brmicro Electronic Technology Co. Ltd
Share on (1600928732807):
Product Overview
Description
Products Description
Image sensor | CMOS |
Pixel | 640*480 |
Read code system | 1D EAN-13， EAN-8， UPC-A， UPC-E， ISSN， ISBN， CodaBar， Code 128， Code93， ITF-14， ITF-6， Interleaved 2 of 5， Industrial 2 of 5，Matrix 2 of 5， GS1 Databar(RSS)， Code 39， Code 11， MSI-Plessey， etc |
Read code system | 2D QR Code， Data Matrix， PDF417， Maxi Code***， etc |
Communication interface | UART(TTL) |

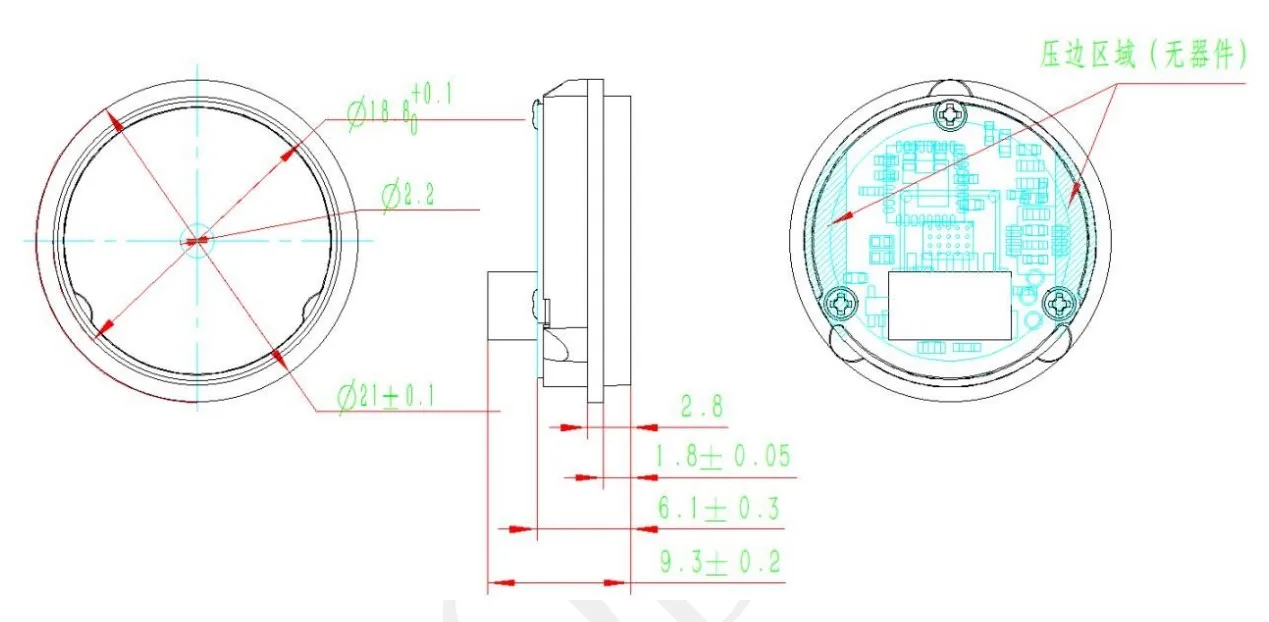

Appearance of size(mm) | Diameter 21*6.1mm |
Weight | 3g |
Symbol contrast | ≥30% |
Barcode sensitivity | Pitch/Skew+- 45°,Tilt-360° |
Working voltage | 3.3V±5% |
Current@3.3v | Operating current 100mA(Max.) |
