electrical universal white and black 240V 110V 120V power supply ac to dc 36V1.67A 36vdc 1670ma 60W UL Class2 transformer
- Category: >>>
- Supplier: Shenzhen Keysun Technology Limited
Share on (1600928756517):
Product Overview
Description
Products Description
electrical universal white and black 240V 110V 120V power supply ac to dc 36V1.67A 36vdc 1670ma 60W UL Class2 transformer
Input Voltage | 100-240 Volts AC 50/60Hz | ||||||
Output Voltage | 36VDC | ||||||
Output Current | 1670mA | ||||||
Rated Power | 60Watt | ||||||
Working Temperature | -40℃ to +50℃ | ||||||
Certification | UL cUL FCC Class 2 ... | ||||||

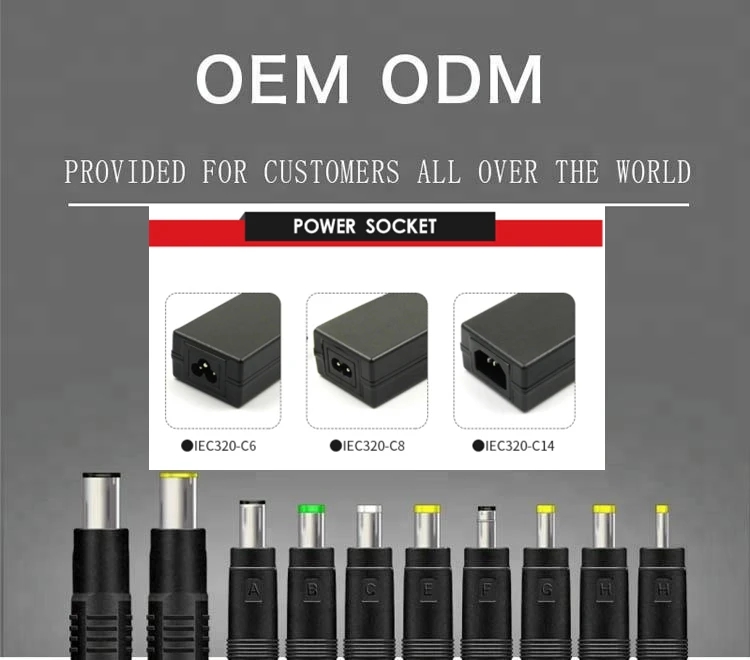

DC Connector Size | 5.5*2.1mm or 5.5*2.5mm or others | ||||||
NO. | ZF120A-3660 | ZF120A-3660 | |||||

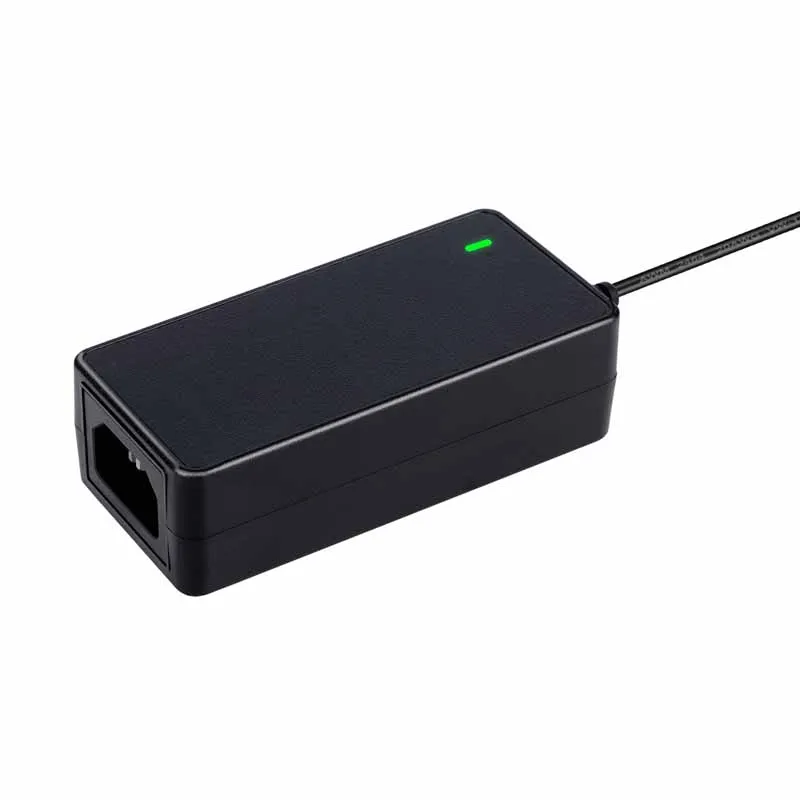

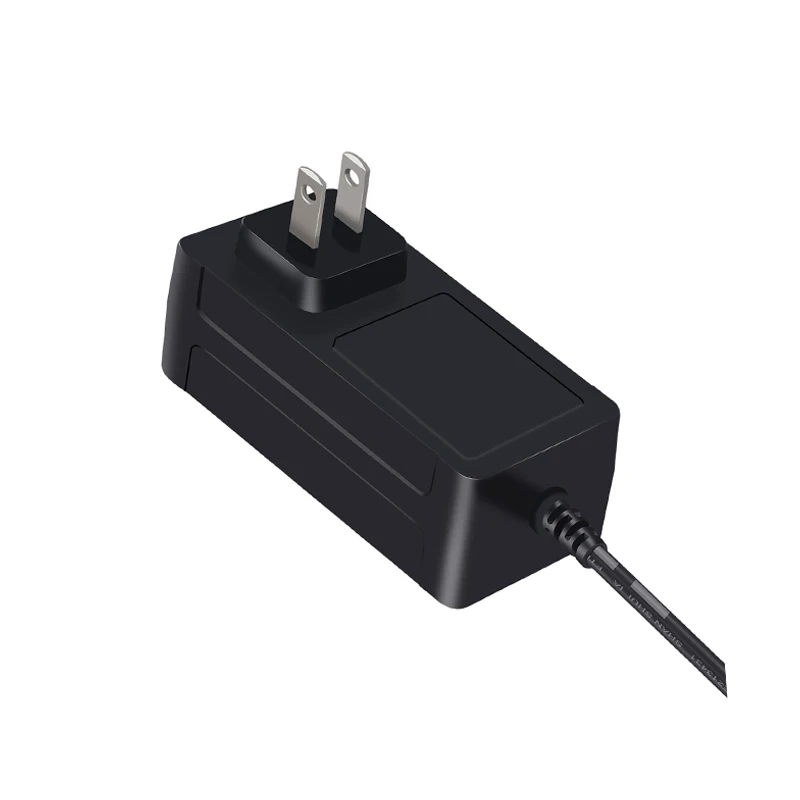

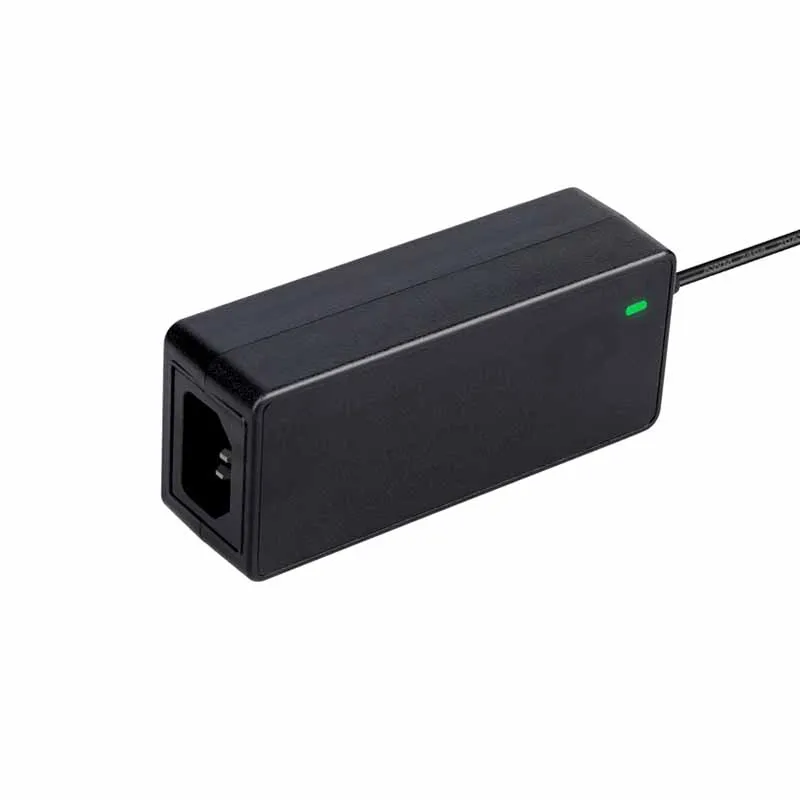

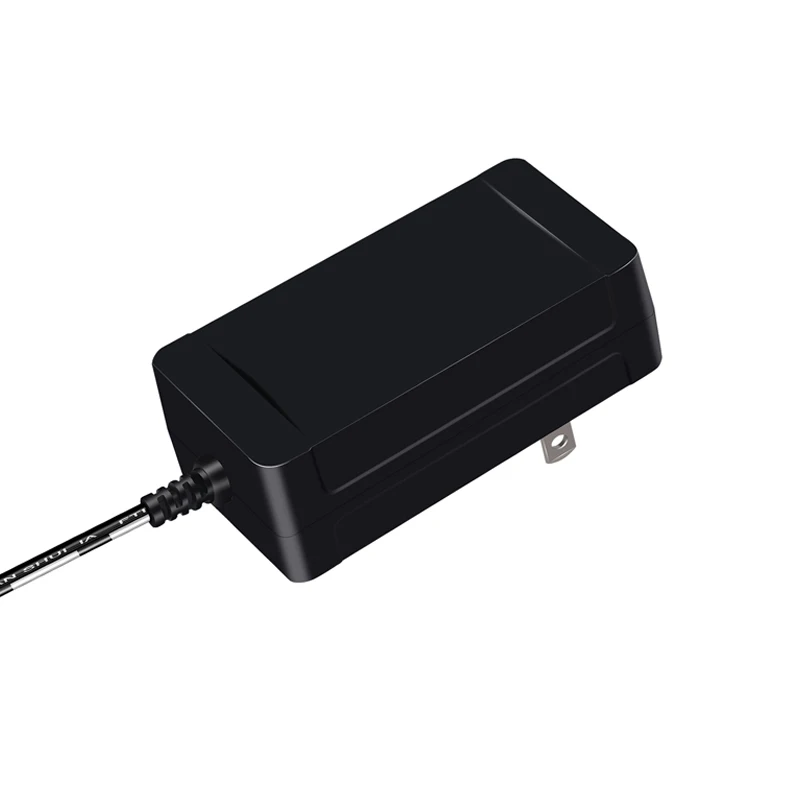

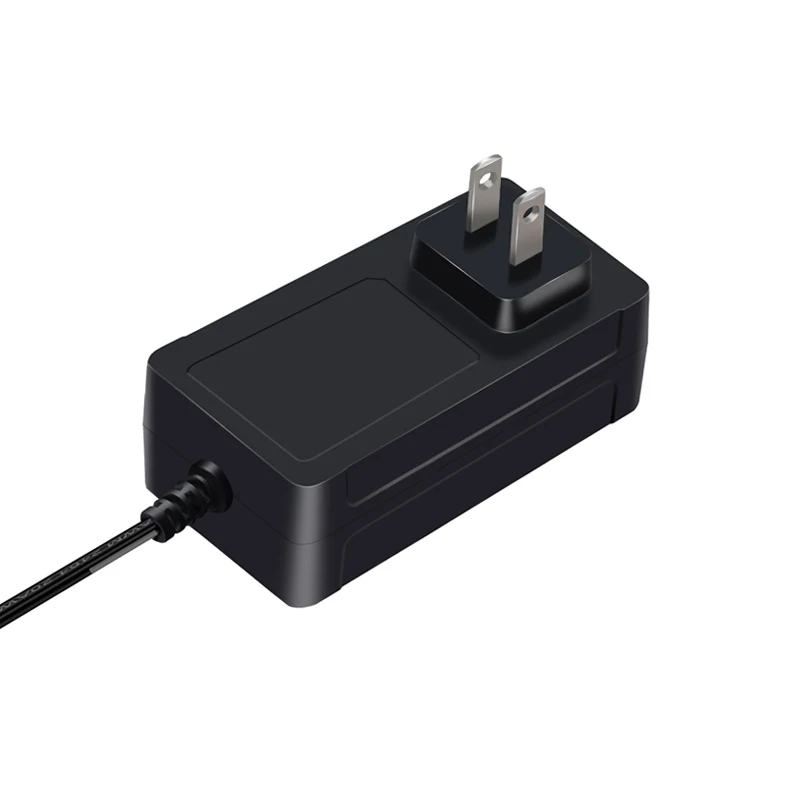

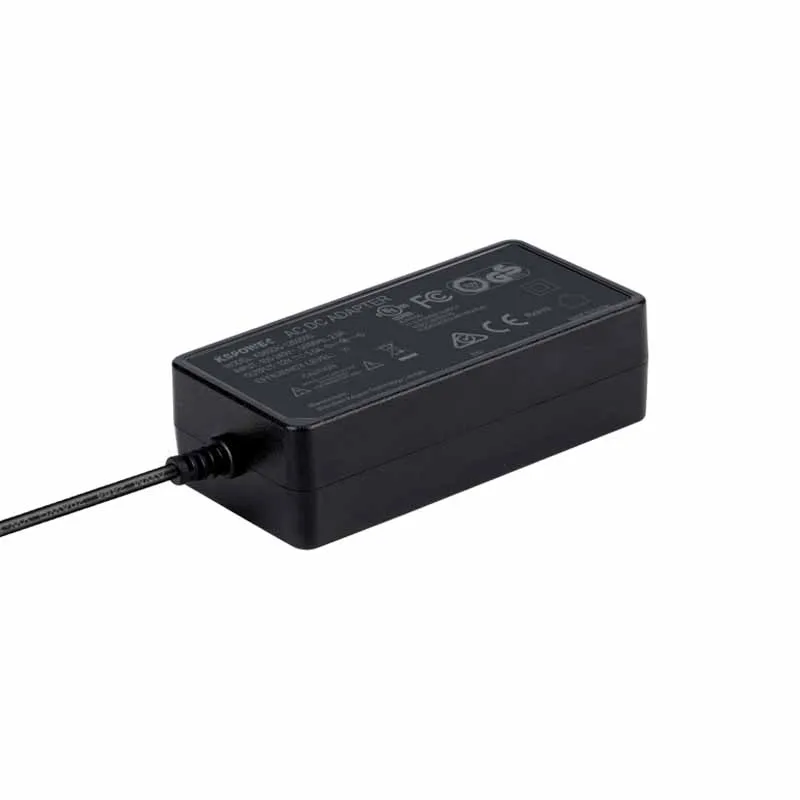

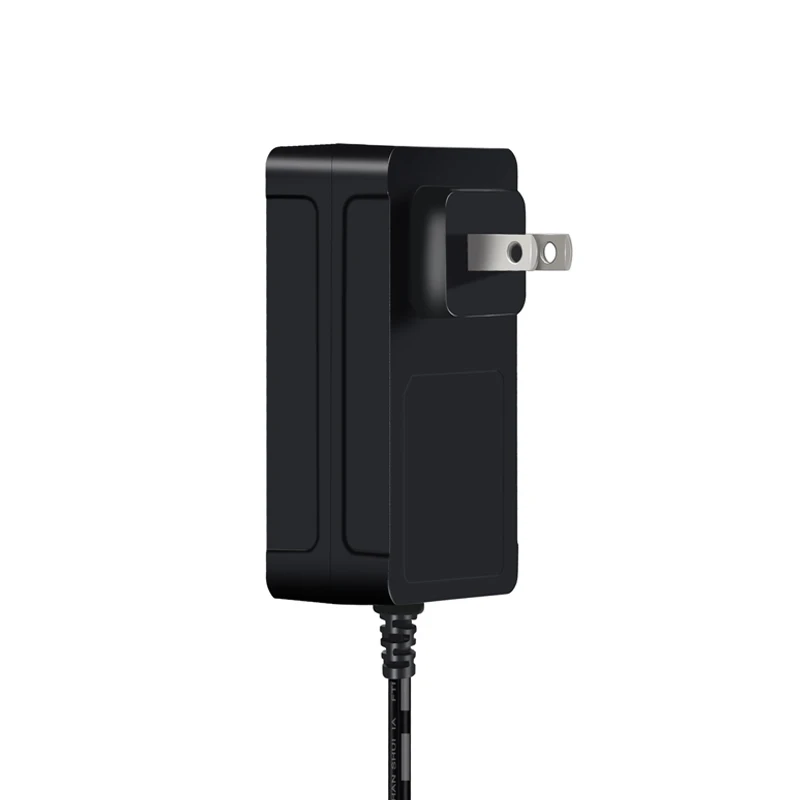

Type | Wall mount | Desktop | |||||
Dimension(L*W*H) | 108*50*31mm /4.26*1.97*1.22in | 114*51*31mm /4.49*1.97*1.22in | |||||
AC plug | US plug 2 pin | US plug 2 pin or 3 pin | |||||
AC Inlet | / | IEC320-C8/C6/C14 | |||||
Features:
● Class 2 power units ● Single channel & Constant Voltage power supply
● 100% Full load burn-in test ● Pass LPS (limited power source)
● 3 Years After-sale Service ● Compact size, fully enclosed plastic case
● Starting time:〈 3 s ● Energy Efficiency: DOE/CEC Level VI
● 100% Full load burn-in test ● Pass LPS (limited power source)
● 3 Years After-sale Service ● Compact size, fully enclosed plastic case
● Starting time:〈 3 s ● Energy Efficiency: DOE/CEC Level VI
Show Details
Product packaging
1. Sample is available.
2. Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others
a. for wall mount type: each one put in one small inner brown box, then 50 pcs put in one standard carton.
2. Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others
a. for wall mount type: each one put in one small inner brown box, then 50 pcs put in one standard carton.
Package | Piece/Carton(pcs) | Piece Weight(KG) | ||||
OEM package | 50 | 0.24 | ||||
Dimension/Brown Box(mm) | Dimension/Carton(mm) | Gross Weight/Carton(KG) | ||||
80*57*132 | 420*310*290 | 13 | ||||
b.for desktop type: each one put in one small inner brown box, then 50 pcs put in one standard carton.
Package | Piece/Carton(pcs) | Piece Weight(KG) | ||||
OEM package | 50 | 0.26 | ||||
Dimension/Brown Box(mm) | Dimension/Carton(mm) | Gross Weight/Carton(KG) | ||||
155*85*35 | 455*370*175 | 13.5 | ||||
Applications
Wide Uses:
⋆Security and surveillance devices: CCTV Security Camera DVR .
⋆RGB & Single Color 2835 3528 5050 5630 5730 DC36V Low Voltage Flexible LED Rope Strip Lights.
⋆External harddrive, keyboads, microphones, aquarium light, electric scales.
⋆Record player, router, DVD, Monitor, SDR project, Printer and Other DC 36V devices (Not more than 60W).
⋆Security and surveillance devices: CCTV Security Camera DVR .
⋆RGB & Single Color 2835 3528 5050 5630 5730 DC36V Low Voltage Flexible LED Rope Strip Lights.
⋆External harddrive, keyboads, microphones, aquarium light, electric scales.
⋆Record player, router, DVD, Monitor, SDR project, Printer and Other DC 36V devices (Not more than 60W).
Company Profile
Shenzhensshi Zhenhuan Electronic Co., Ltd and Shenzhen Keysun Technology Limited.
We’re an enterprise integrating industry and trade, which was founded in 2008, located in Shenzhen. Specializing in R&D, production and sales of AC DC adapter, Power Supply Units, LED driver and Li-ion battery charger, with more than 15 years of experience.
As a strength manufacturer, we have two factories in Shenzhen and Dongguan. We focus on finished product assembly and plug-in semi-finished product processing respectively. At present, we have more than 100 workers and a production area of 3,000 square meters.
We have our own brand--KSPOWER. Brand concept is “ Concentrate on doing one thing well and provide customers with a competitive and reliable products.
As a strength manufacturer, we have two factories in Shenzhen and Dongguan. We focus on finished product assembly and plug-in semi-finished product processing respectively. At present, we have more than 100 workers and a production area of 3,000 square meters.
We have our own brand--KSPOWER. Brand concept is “ Concentrate on doing one thing well and provide customers with a competitive and reliable products.
