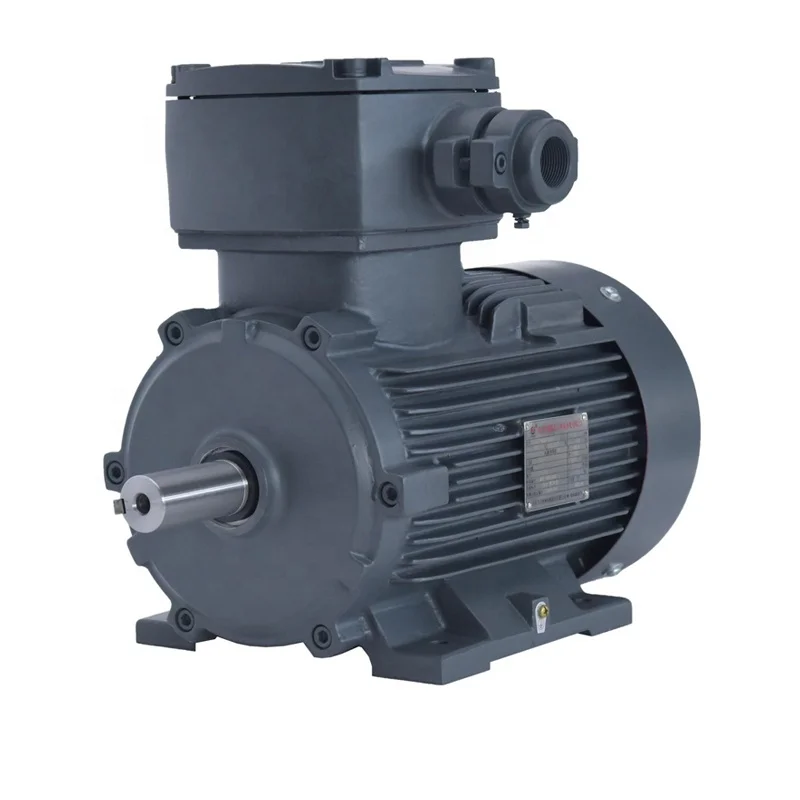

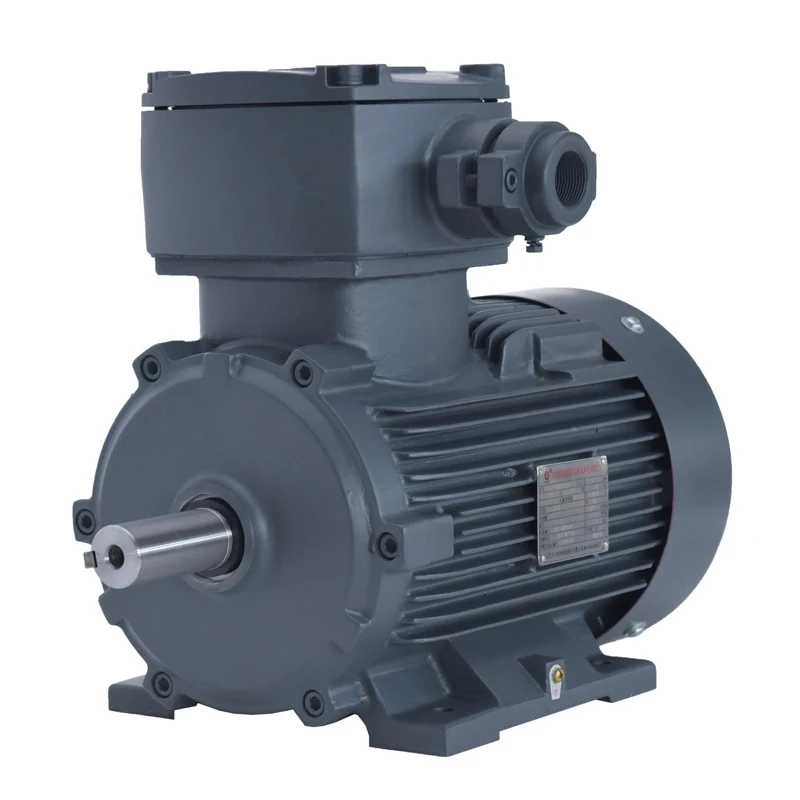

LEADGO Manufacture YB3X series Special Design Explosion proof Three Phase Asynchronous Motor Electric 100kw
- Category: >>>
- Supplier: Shandong Lijiu Electrical Machinery Co. Ltd.
Share on (1600928772015):
Product Overview
Description

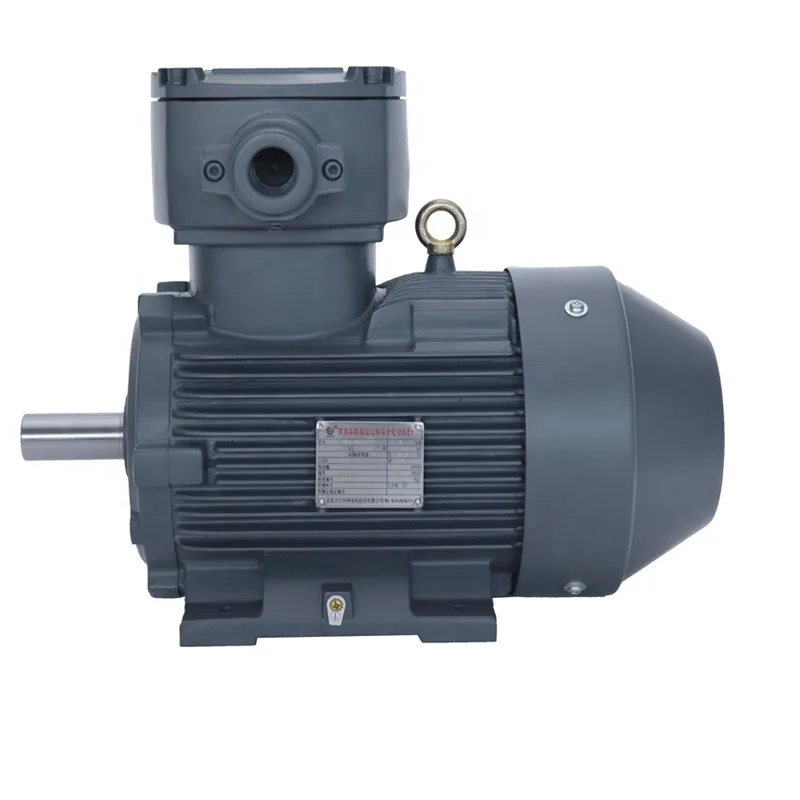

YBX3 Series High Efficiency Explosion-proof Three Phase Asynchronous Electric Motor in Power 11kW 3000RPM
OEM acceptable, all our motors are custom made products, we will always fulfill your need.
Product Description
YBX3 series high efficiency explosion-proof three phase asynchronous electric motors are fully enclosed. And the efficiency index complies with Grade 2 of GB18613-2012.
This series of products have the advantages of safe use, compact structure, high efficiency, high reliability, low noise, light
weight, convenient installation and maintenance, ect.
This series of products meet the national standards GB 3836.1-2010 "Explosive Atmosphere Part 1: General Requirements for Equipment " and GB 3836.2-2010 "Explosive Atmosphere Part 2: Equipment should Be Protected by Explosion-proof Enclosure ‘d’ ". The explosion-proof mark Ex d I Mb is suitable for mining places, and the explosion-proof mark ExdⅡBT1Gb~T4Gb is suitable for factory use. The explosion-proof capacity is Class ⅡB. And the highest surface temperature is not lower than temperature of the T4 group where the explosive mixture exists.
This series of products have the advantages of safe use, compact structure, high efficiency, high reliability, low noise, light
weight, convenient installation and maintenance, ect.
This series of products meet the national standards GB 3836.1-2010 "Explosive Atmosphere Part 1: General Requirements for Equipment " and GB 3836.2-2010 "Explosive Atmosphere Part 2: Equipment should Be Protected by Explosion-proof Enclosure ‘d’ ". The explosion-proof mark Ex d I Mb is suitable for mining places, and the explosion-proof mark ExdⅡBT1Gb~T4Gb is suitable for factory use. The explosion-proof capacity is Class ⅡB. And the highest surface temperature is not lower than temperature of the T4 group where the explosive mixture exists.

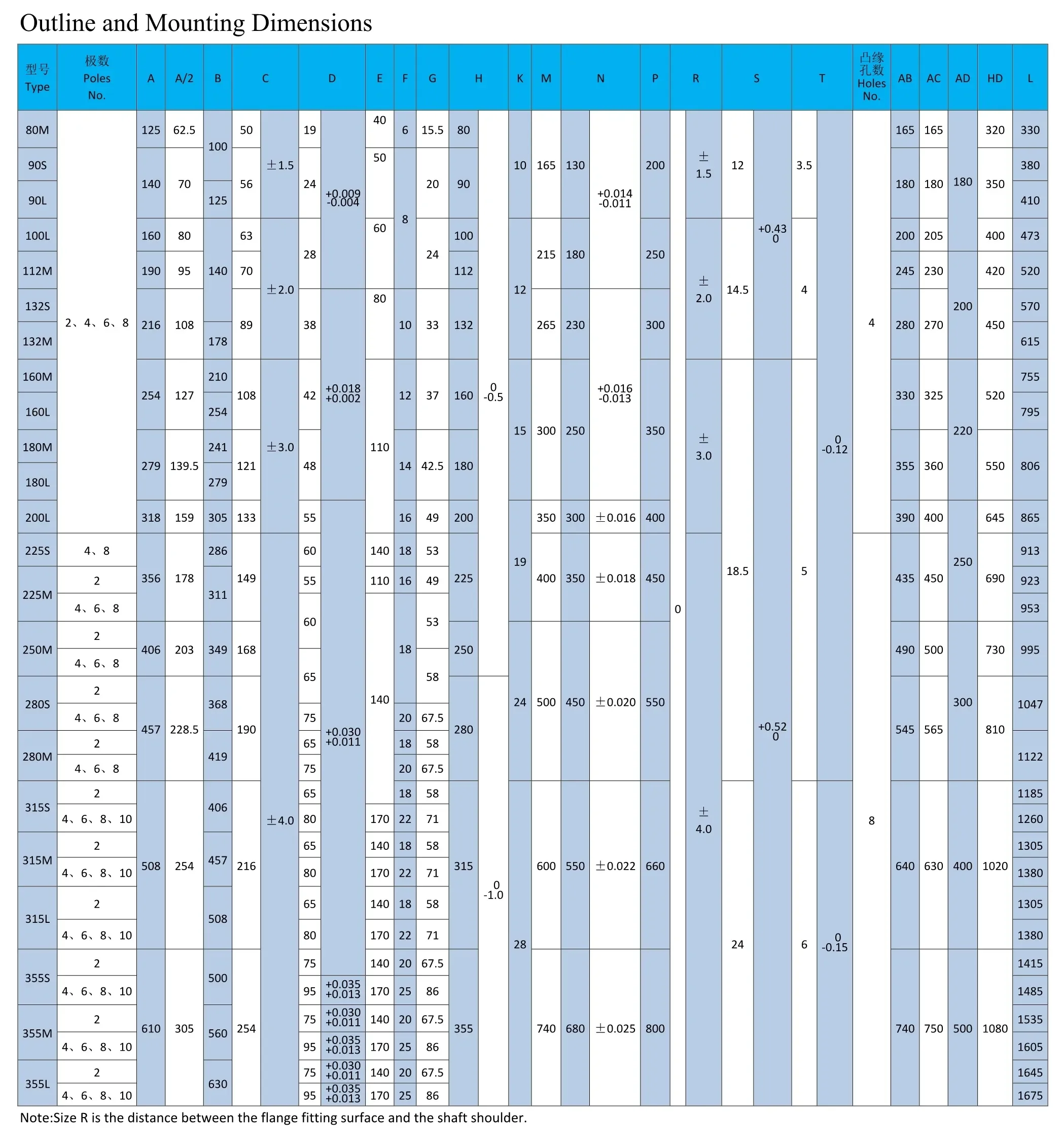

Center Height of Frame | H80~H355mm |
Rated Output Power | 0.75kW~315kW |
Rated voltage, frequency | 380V,660V,1140V,380V/660V, 660V/1140V, 50Hz (can be customized) |
Protection Level | IP55 |
Thermal Class | 155 (F) (B temperature rise) |
Cooling | IC411 |
Explosion-proof Marks | Ex d IIB T4 Gb(for factory use ); Ex d I Mb(for mine use) |

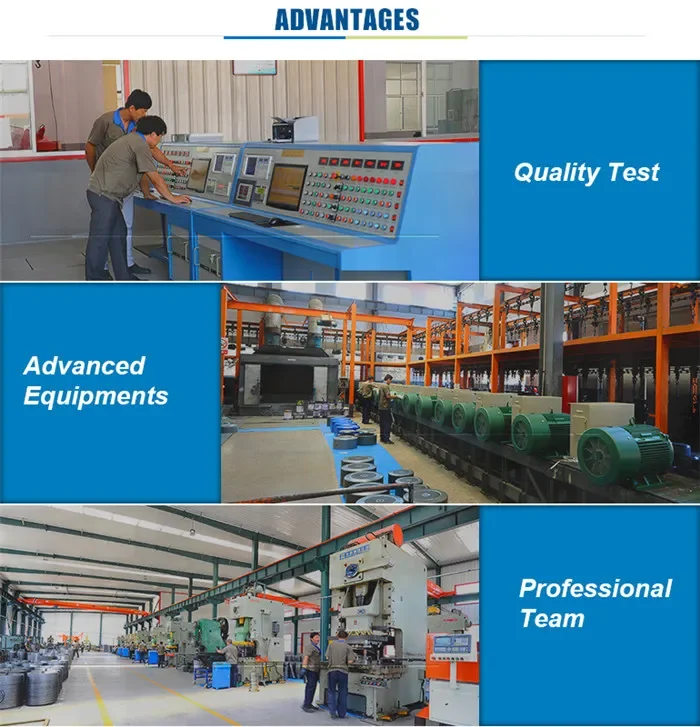

Why Choose Us
Rich Case Applications | 1. Supplier of CNPC and SINOPEC 2. Provide electrical products and motor control system solutions for 30 000 enterprises |
Professional Strength | Build a first-class experimental equipment and equipped with the world's top testing equipment |
Scientific Production | 1. Implement ERP and PDM system 2. Meet customer demand for product customization. |
Comprehensive strength | 1. Specialize in manufacturing electric motor with more than 40 years. 2.Have 68 national patents and participated in the development of sixteen national and industry standards. |
Related Products
IE Standard Electric Motor | 1.1 IE3(YE3)Series Premium Efficiency Three Phase Induction Electric Motor |
1.2 IE2(YX3,YE2)Series High Efficiency Three Phase Induction Electric Motor | |
1.3 Low Voltage High Power Three Phase Induction Electric Motor | |
1.4 YKK YXKK Series High Voltage High Efficiency Three Phase Induction Electric Motor | |
1.5 Y YX Series High Voltage High Efficiency Three Phase Induction Electric Motor | |
1.6 Y2 YX2 Series High Voltage High Efficiency Three Phase Induction Electric Motor | |
NEMA Electric Motor | 2.1 NEMA Premium Efficiency Three Phase Induction Electric Motor(design A,B) |
2.2 NEMA Premium Efficiency Variable Frequency Three Phase Induction Electric Motor(design A,B) | |
2.3 NEMA Standard Three Phase Asynchronous Electric Motor for Oil Well Pump(Design D) | |
2.4 NEMA Standard (JM,JP) Premium Efficiency Motors for Tight Coupling Pump | |
Special Electric Motor | 3.1 YVP Series Variable Frequency and Variable Speed Three Phase Induction Motor |
3.2 YCT Series Electromagnetic Adjustable Speed Motor | |
3.3 TYPL Series (IP55) Explosion-proof Permanent Magnet Variable Frequency Motor Direct Drive Screw Pump Ground System | |
3.4 DYG Series High Starting Torque Multi-speed Motor System | |
3.5 TYJX Series High Starting Torque High Efficiency Permanent Magnet Synchronous Motor | |
3.6 YEJ Series Electromagnetic Brake Three Phase Induction Motors | |
3.7 YDGJ Series Multi-power Three Phase Induction Motors | |
3.8 TYPLM Series (IP55) Explosive-proof Permanent Magnet Servo Driving System for Coal-bed Gas | |
3.9 YVPM Series Three Phase Induction Motor Adiustable Frequency and Speed System for Coal-bed Gas | |
3.10 YDT Series Pole-changing Multi-speed Three Phase Induction Motor for Fans & Pumps | |
3.11 YD Series Pole-changing Multi-speed Three Phase Induction Motor | |
3.12 TYP Series Premium Efficiency Permanent Magnetic Variable Frequency Motor | |
3.13 KYGJ Series (IP55) High Efficiency Three Phase Induction Motor for Compressor | |
3.14 Motor for Injection Molding Machine(SJY,SJY2,SZY,SZY2,SZBY) | |
3.15 High Efficiency, Premium Efficiency Motors for Vacuum Pump | |
3.16 Motor Control System |
Company Profile
Shandong Lijiu Electrical Machinery Co., Ltd
Shandong Lijiu Electrical Machinery Co., Ltd is an electric motor systems manufacturer and service provider with more than 40 years of expert manufacturing experience.It has a Tech-center of Shandong Provincial grade, a Special Purpose Motor Engineering Research Center, a National Grade Post-doctoral Research Workstation and owns 68 national patents, participated to establish 16 national and industrial standards. What's more it offers special and high quality motor system products and services to customers.
The main products include: Three main categories which are special electric motors, standard electric motors and motor-controlling systems.
The main products include: Three main categories which are special electric motors, standard electric motors and motor-controlling systems.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Certifications
Exhibition
Packing & Delivery

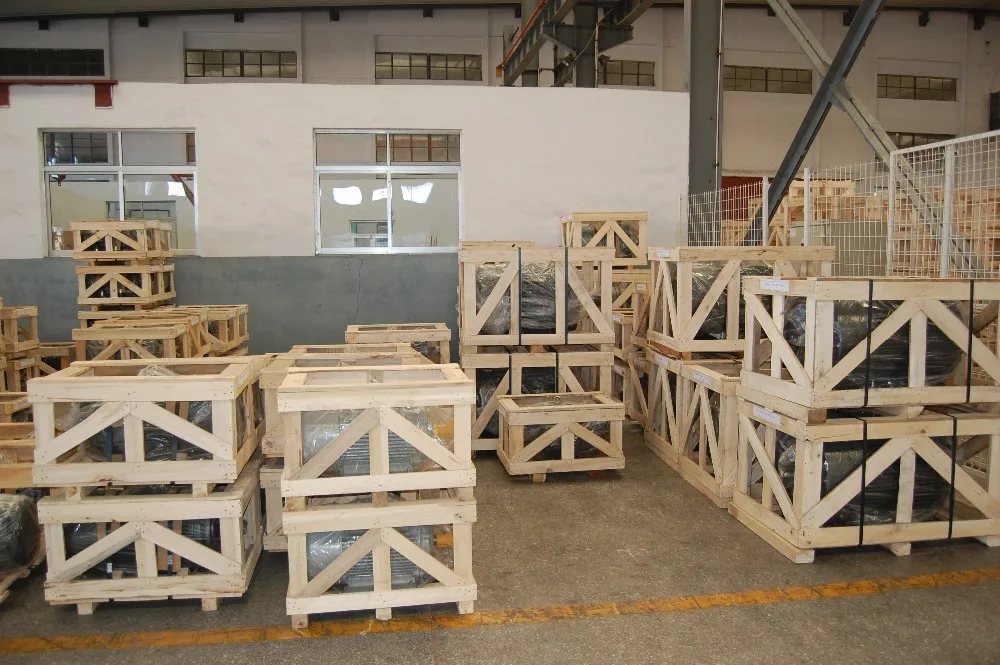

Packing Details: Wooden Crate
Delivery Details: Shipped in 30-45 days after payment
Delivery Details: Shipped in 30-45 days after payment
FAQ
1. Q: Are you trading company or manufacturer?
A: Yes. We are a professional motor manufacturer with 40 years experience.
2. Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 30-40 days if the goods are not in stock, it is according to
quantity.
3.Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample, but we need to charger samples fee and freight fees.
4.Q: What is your terms of payment?
A: Payment<=1000USD,100% in advance. Payment>=1000USD, 40% T/T in advance, balance before shipment.
A: Yes. We are a professional motor manufacturer with 40 years experience.
2. Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 30-40 days if the goods are not in stock, it is according to
quantity.
3.Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample, but we need to charger samples fee and freight fees.
4.Q: What is your terms of payment?
A: Payment<=1000USD,100% in advance. Payment>=1000USD, 40% T/T in advance, balance before shipment.
