High End 650nm red laser module Marker icon 5mw DOE 10x10 Gird Laser pattern customizer laser equipment parts
High End 650nm red laser module Marker icon 5mw DOE 10x10 Gird Laser pattern customizer laser equipment parts
High End 650nm red laser module Marker icon 5mw DOE 10x10 Gird Laser pattern customizer laser equipment parts
High End 650nm red laser module Marker icon 5mw DOE 10x10 Gird Laser pattern customizer laser equipment parts
High End 650nm red laser module Marker icon 5mw DOE 10x10 Gird Laser pattern customizer laser equipment parts
High End 650nm red laser module Marker icon 5mw DOE 10x10 Gird Laser pattern customizer laser equipment parts
High End 650nm red laser module Marker icon 5mw DOE 10x10 Gird Laser pattern customizer laser equipment parts

High End 650nm red laser module Marker icon 5mw DOE 10x10 Gird Laser pattern customizer laser equipment parts

Share on (1600928832981):


Price:$15.99 - $19.90

Quantity:


Product Overview

Description




































































































 Product parameters: currently allocated Settable scheme

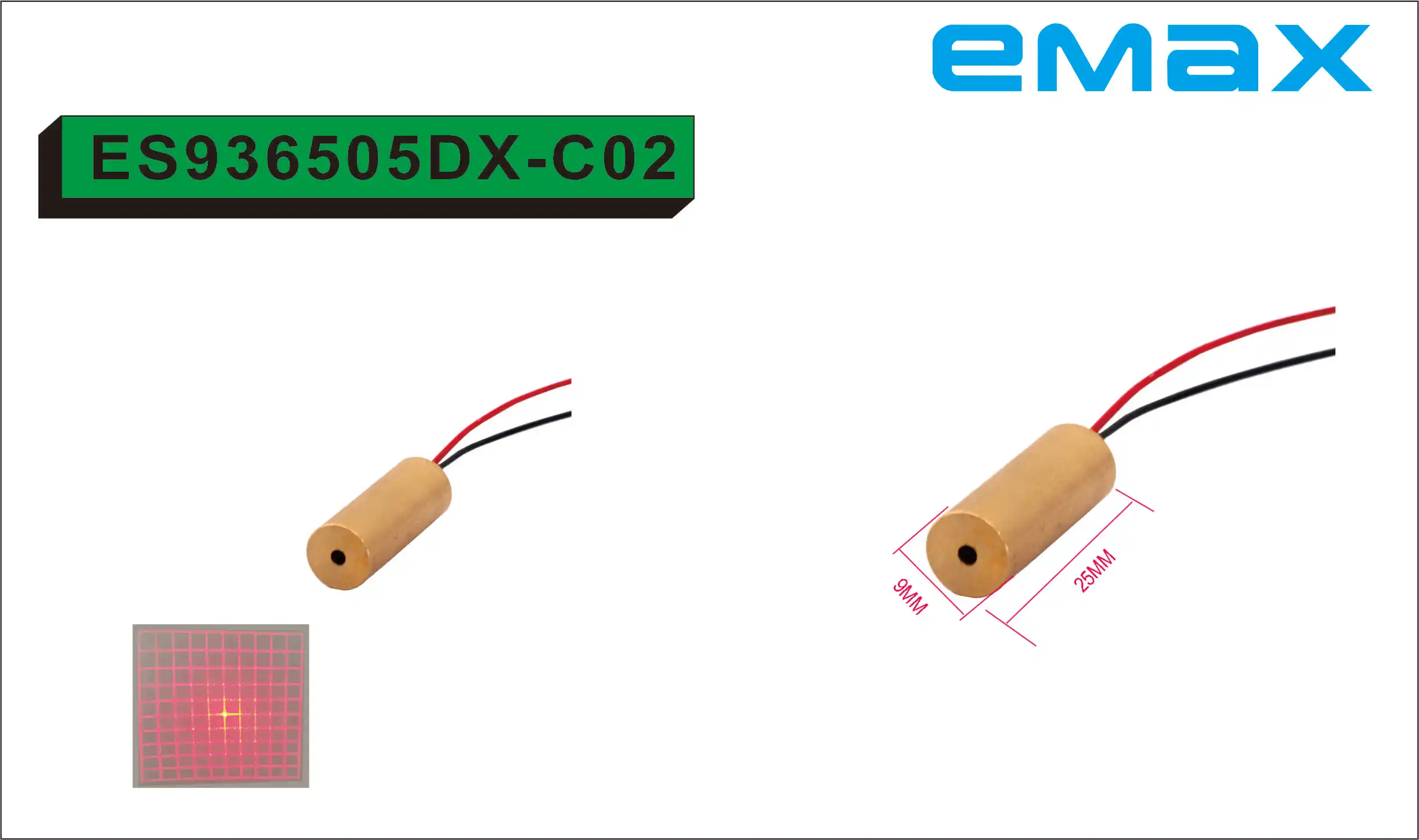

1model:ES936505DX-C02 According to customization requirements

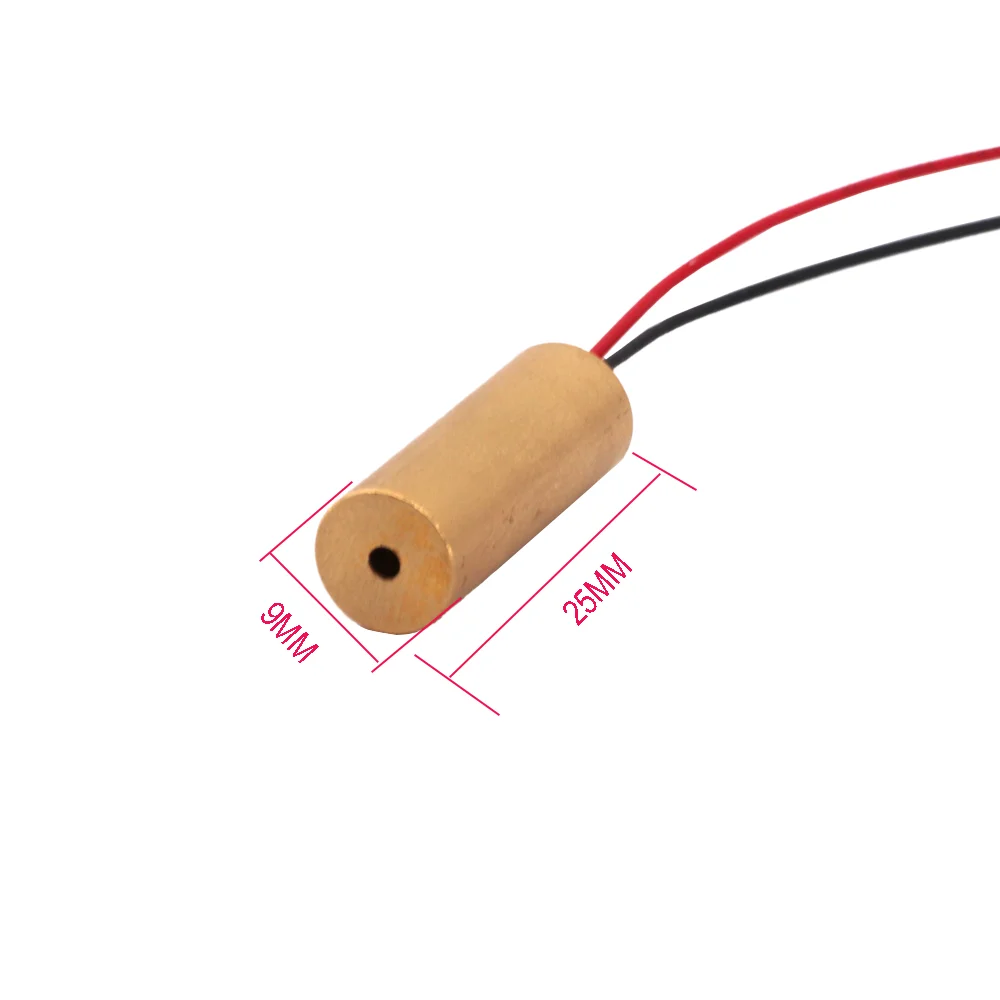

2 Overall dimensions: §9x25mm According to customization requirements
3 texture of material:copper Copper, aluminum, steel, PC.ABS, etc
5 service life: >8000H According to customization requirements
6 Output wavelength:650nm 400nm-980nm optional
7 output power:5mw 0.5mw-500mw optional, consult customer service

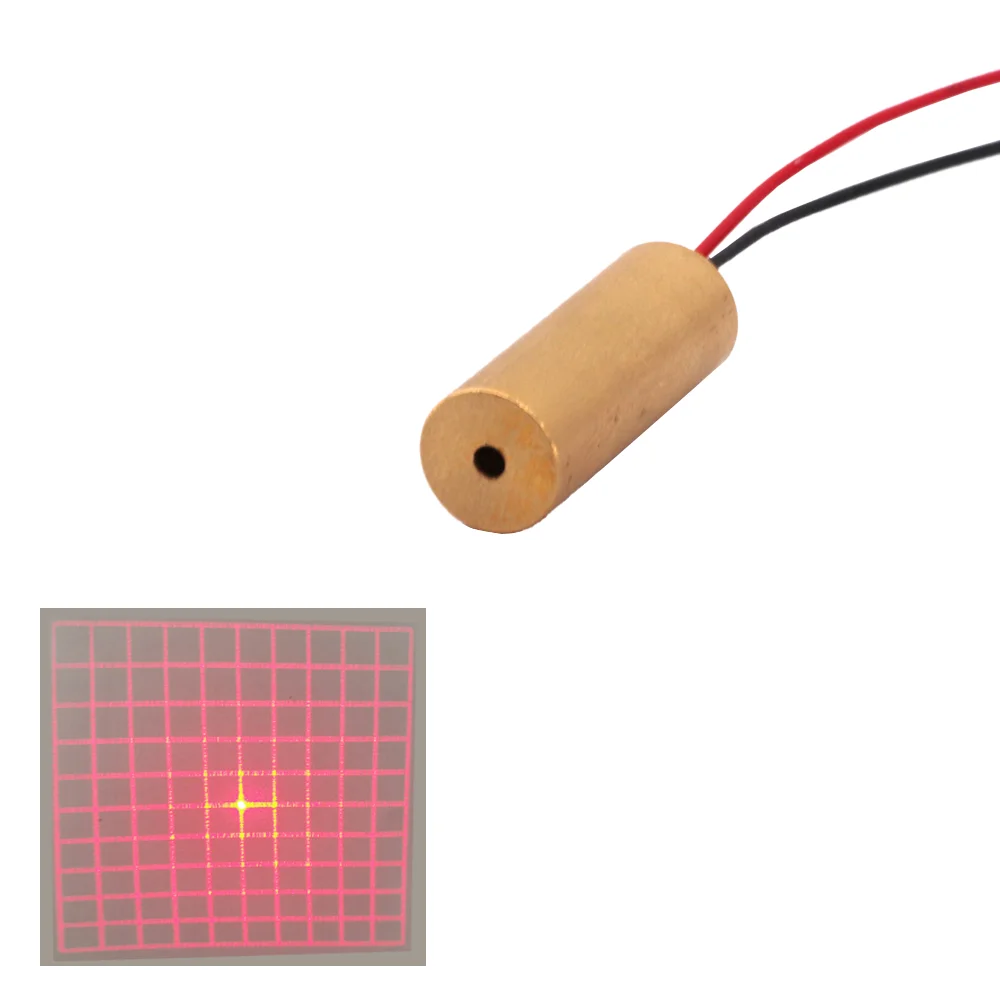

 Optical lens:DOE  10x10 Gird-
11 Spot mode:Marking pattern Dots, lines, crosshairs and other patterns
13 drive circuit:ACC constant current control ACC.APC.TTL can be customized
14 working voltage:3V 3V-24V customizable
15 Maximum operating current: <50ma Current is proportional to light power
17 wireway:UL1571 26# Different wires and terminal wires can be customized
18 working temperature: -10℃-+50℃ Depending on laser diode
19 Storage temperature: -30℃-+80℃ Depending on laser diode




 Note: All customized products will incur certain expenses. Please consult customer service for details











33

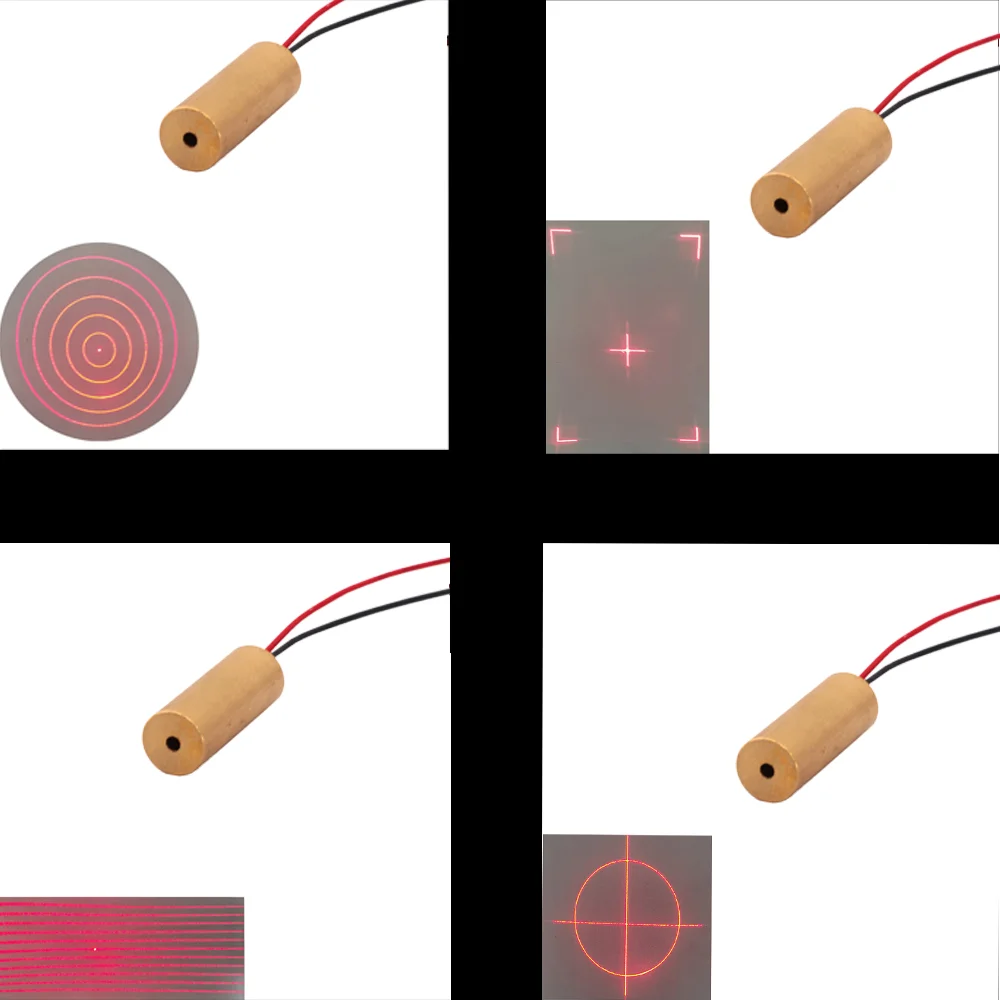

GS-13


35

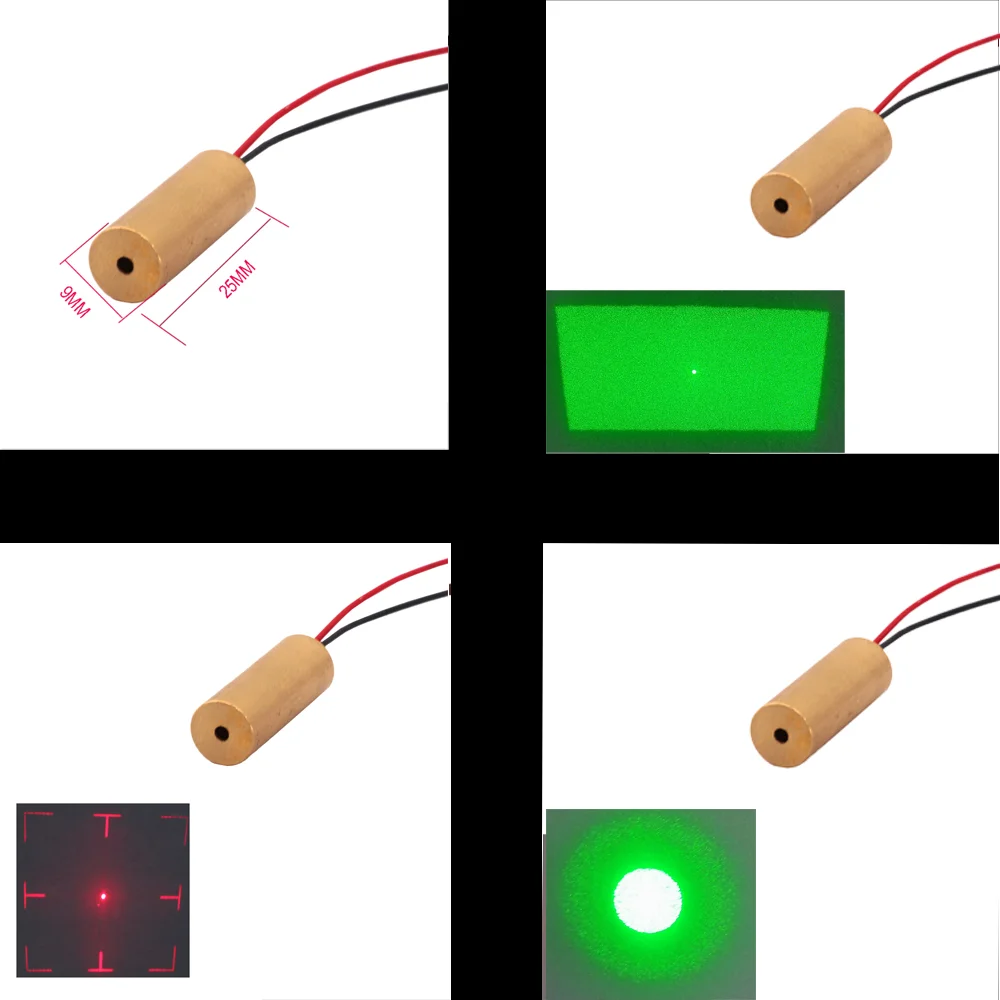

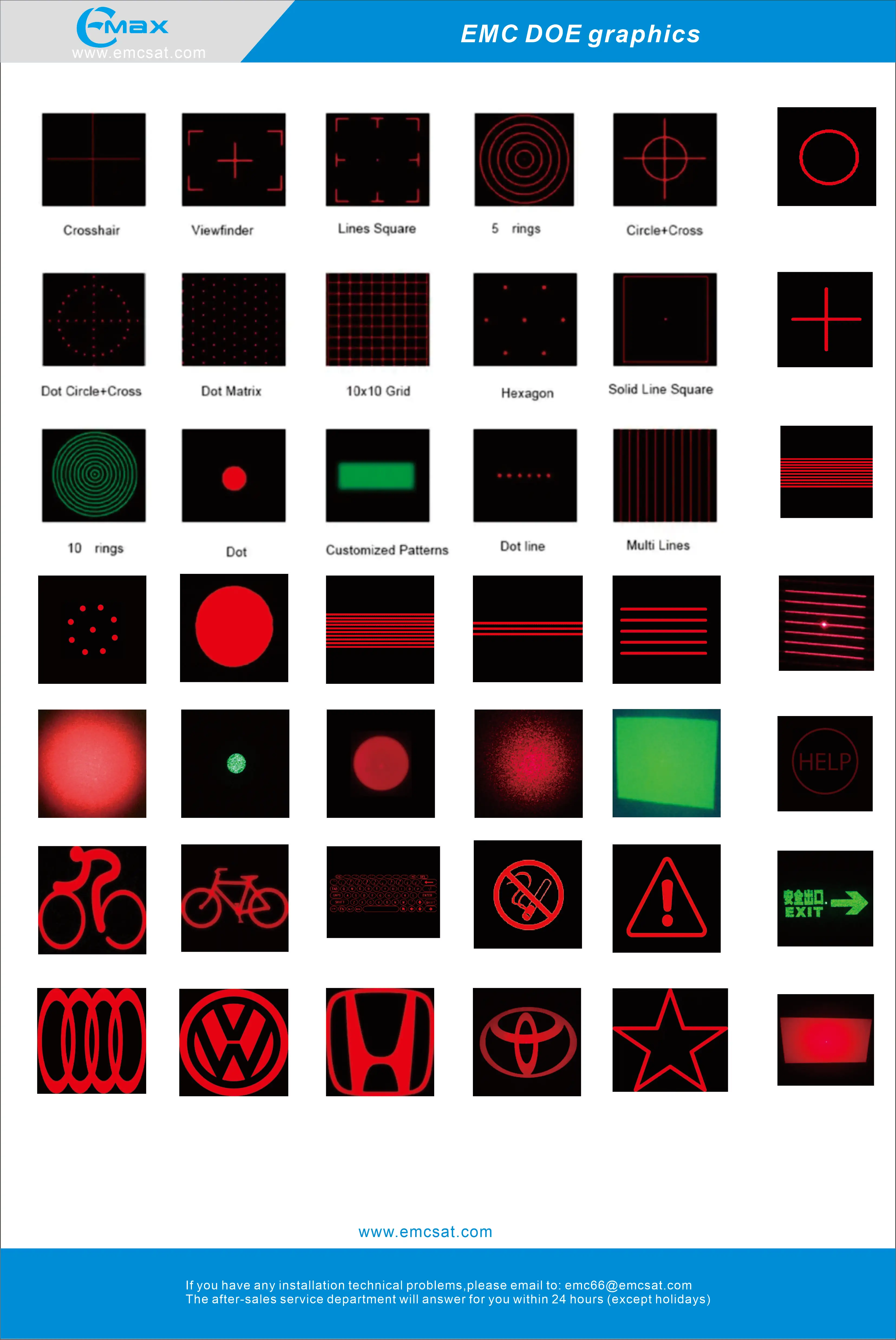

           This model also provides the following patterns

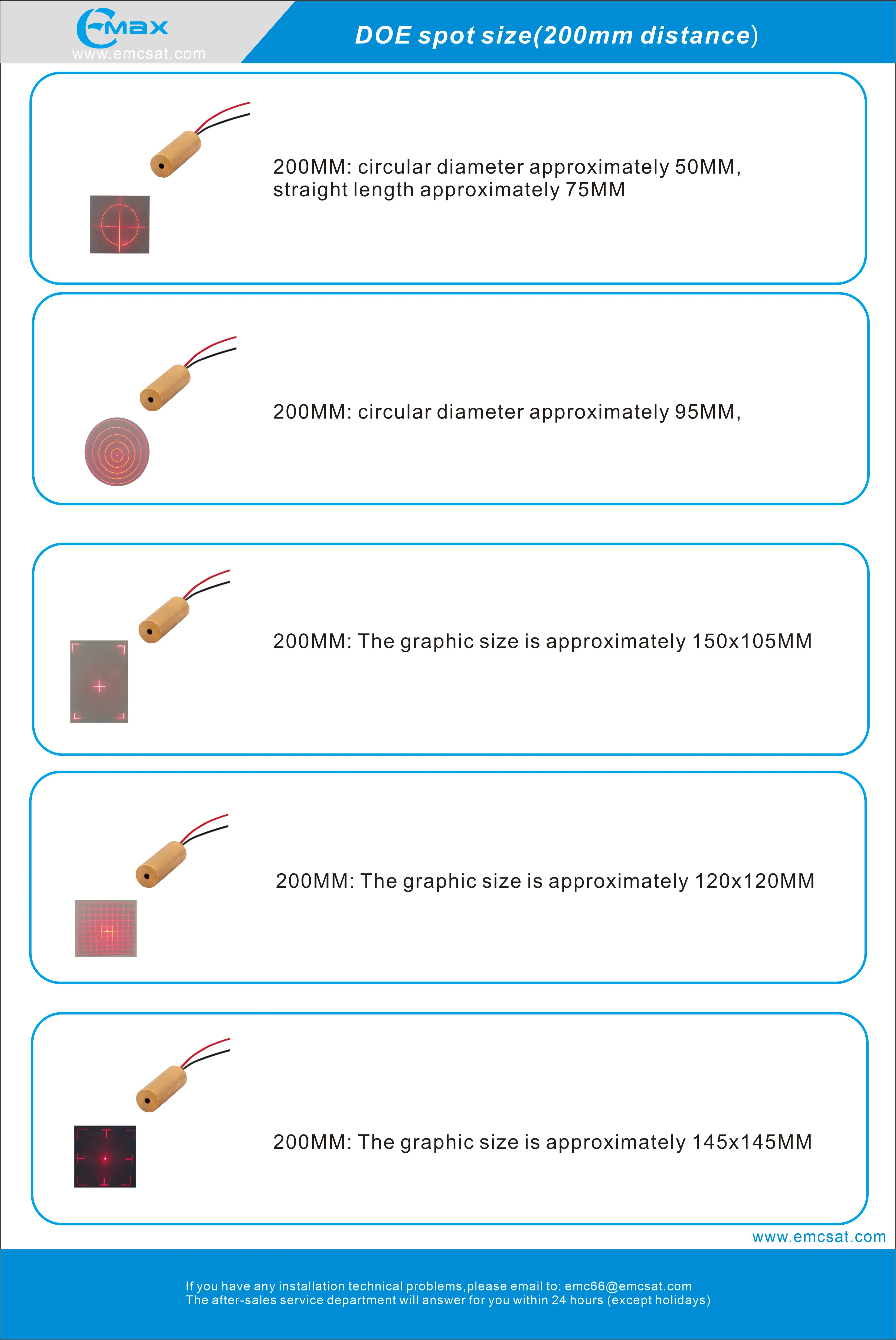

   200MM-230828

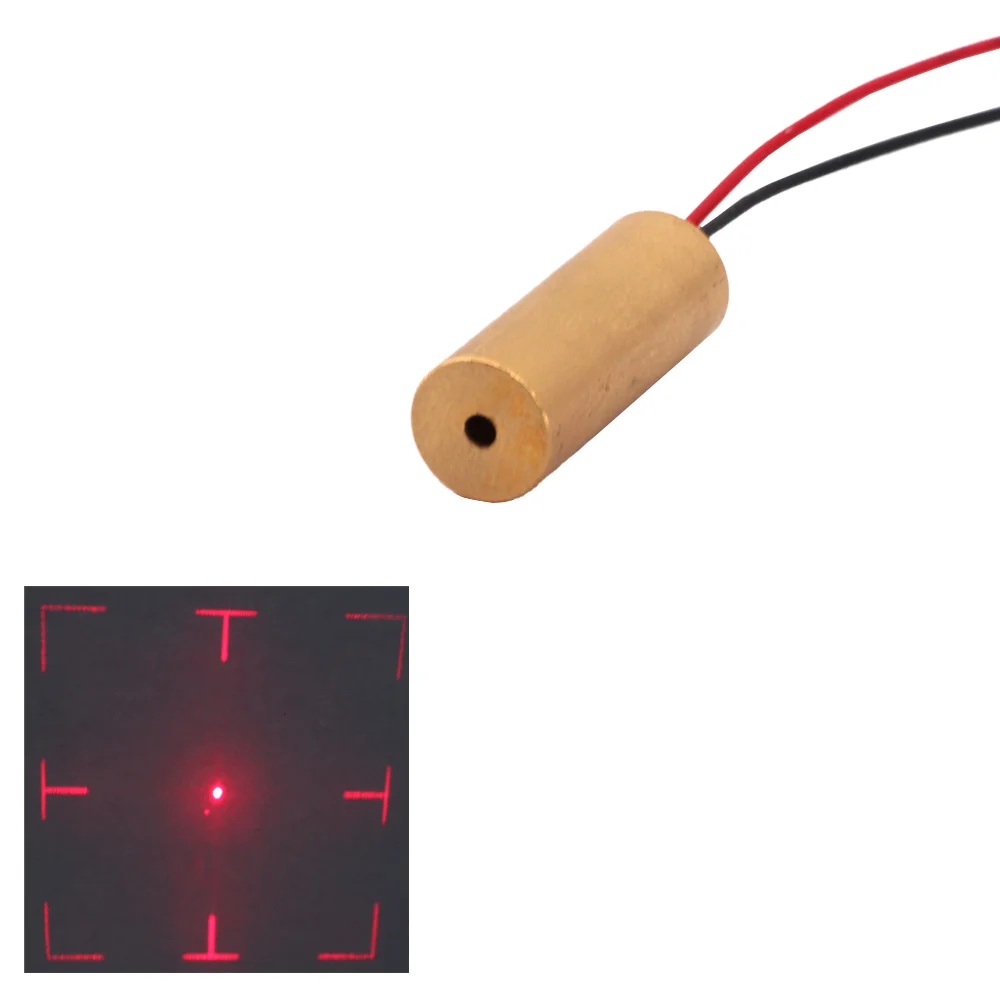

https://www.alibaba.com/product-detail/High-End-red-Laser-Module-10mW_1600929050466.html?spm=a2747.manage.0.0.6c0f71d2lA4KH9G-32psd

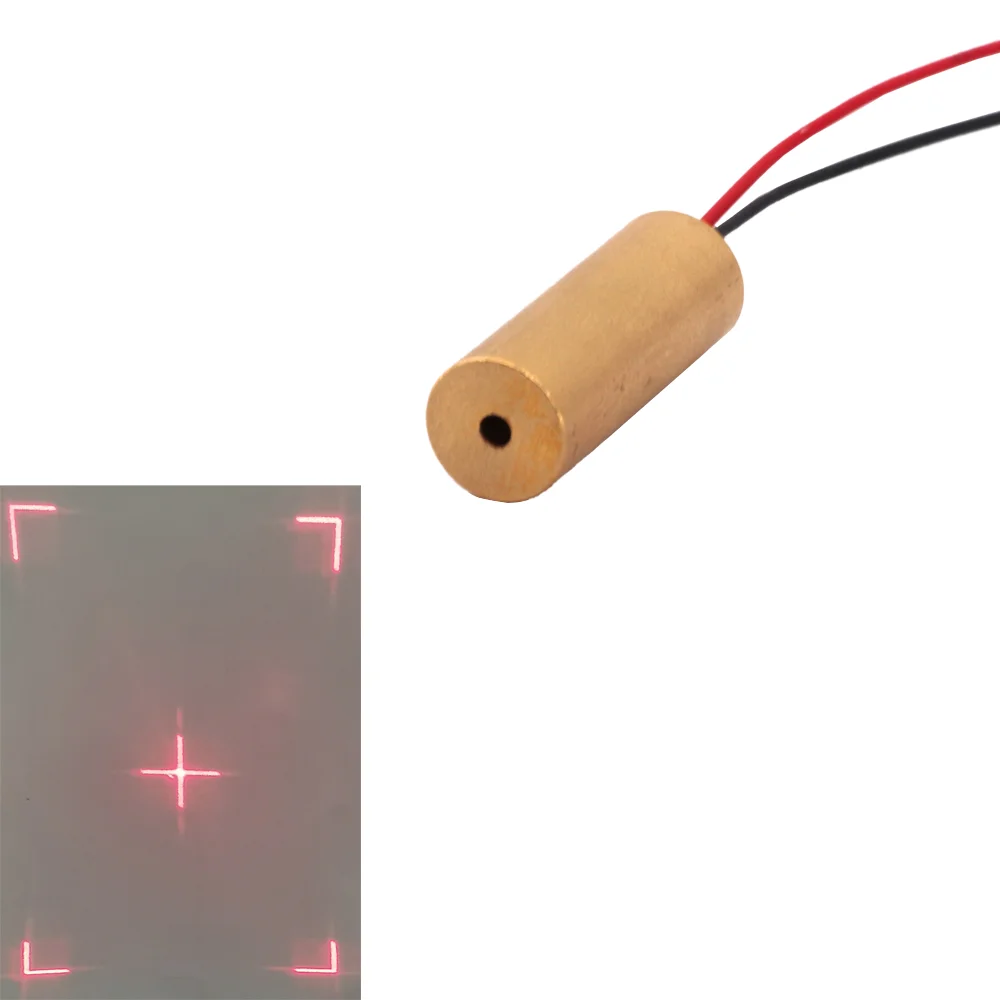

https://www.alibaba.com/product-detail/High-End-red-Laser-Module-10mW_1600675078895.html?spm=a2747.manage.0.0.6c0f71d2lA4KH9   G-05.png

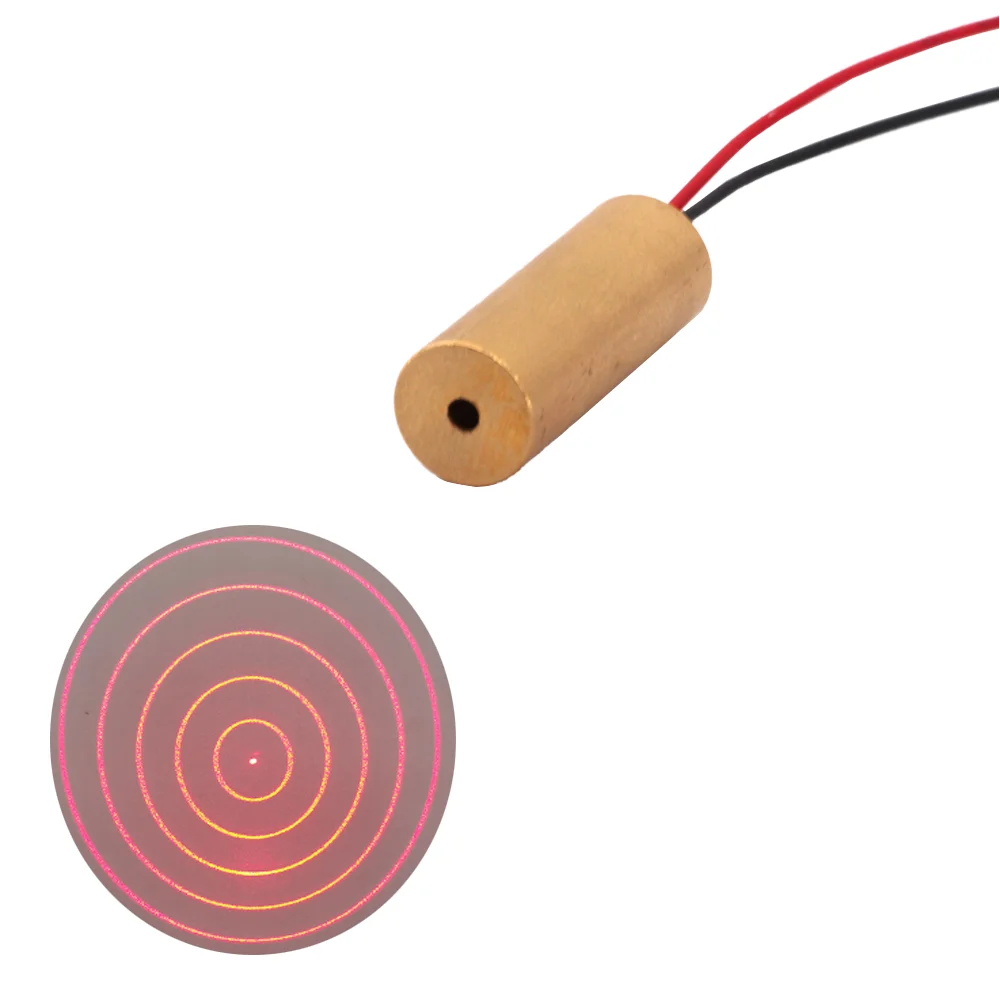

https://www.alibaba.com/product-detail/High-End-red-Laser-Module-10mW_1600675999438.html?spm=a2747.manage.0.0.6c0f71d2lA4KH9G-04.png

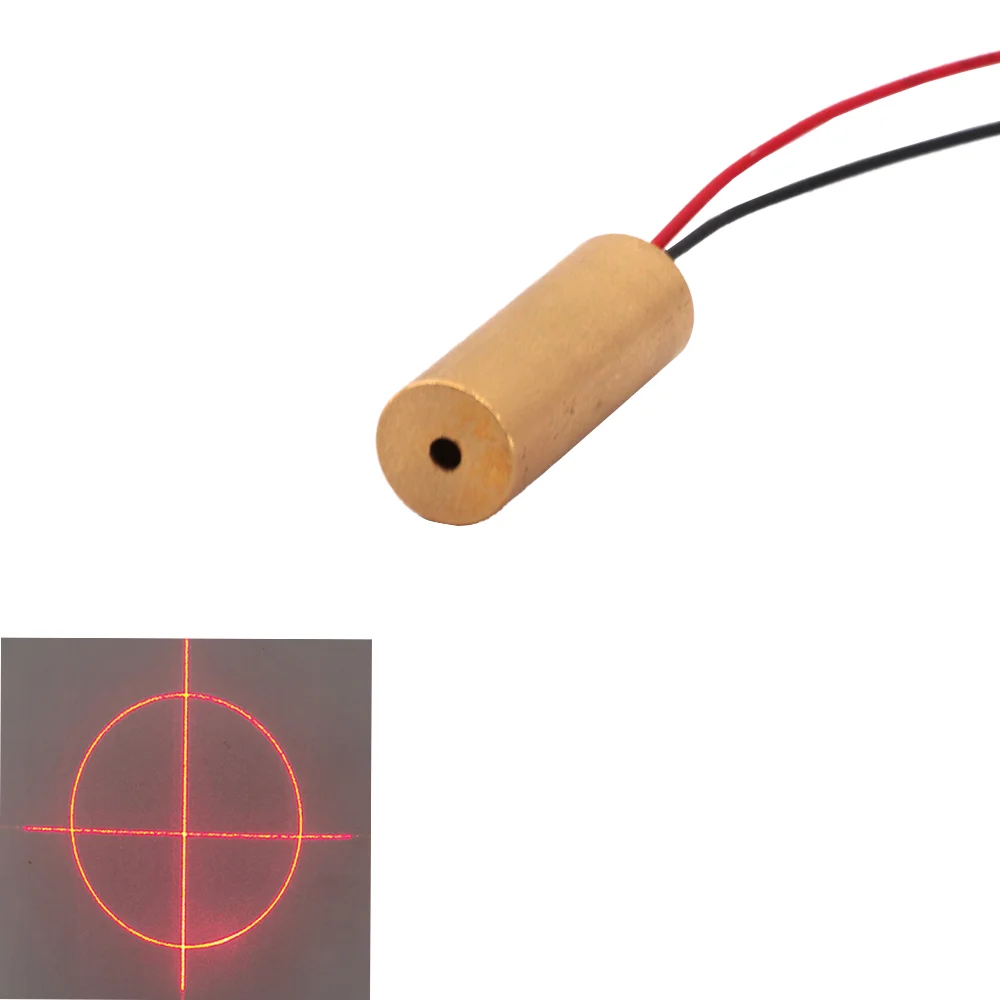

https://www.alibaba.com/product-detail/red-Laser-Module-650nm-red-dot_1600676381558.html?spm=a2747.manage.0.0.6c0f71d2lA4KH9G-23








             -MIYA-24k
