commercial maggi instant noodle production line maggi noodles making machine automatic malaysia dry noodles maker
- Category: >>>
- Supplier: Henan Brother Machinery Co. Ltd.
Share on (1600928879113):
Product Overview
Description

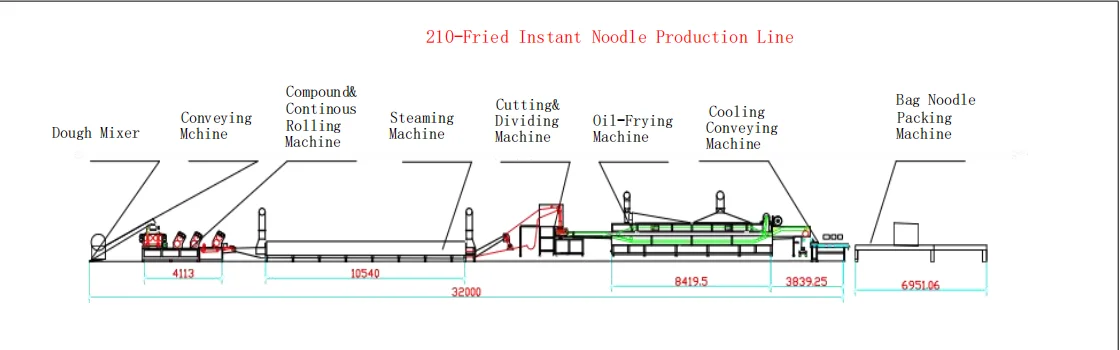

Processing Flow
Product Description

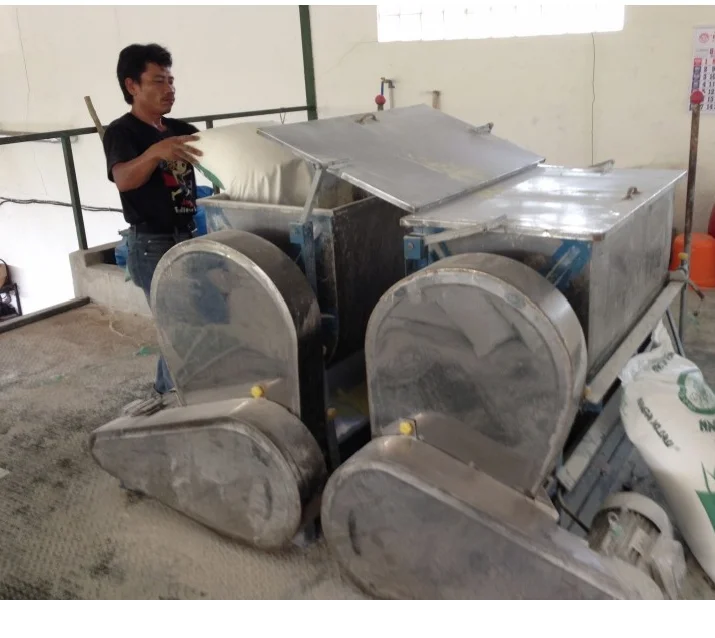

ITEM NAME: FLOUR MIXER
MODEL: HMJ50QUANTITY: 1 UNIT
Volume： 50kg
Size(mm) ： 1100(L)×650(W) ×800(H)
Material： Mixing tank: SUS304#3.0(t) Side plate4.0mm manual door, and flour contact is stainless steel
Power： 3KW
Function:Mixing the water and flour fully to be uniform particles.
Volume： 50kg
Size(mm) ： 1100(L)×650(W) ×800(H)
Material： Mixing tank: SUS304#3.0(t) Side plate4.0mm manual door, and flour contact is stainless steel
Power： 3KW
Function:Mixing the water and flour fully to be uniform particles.

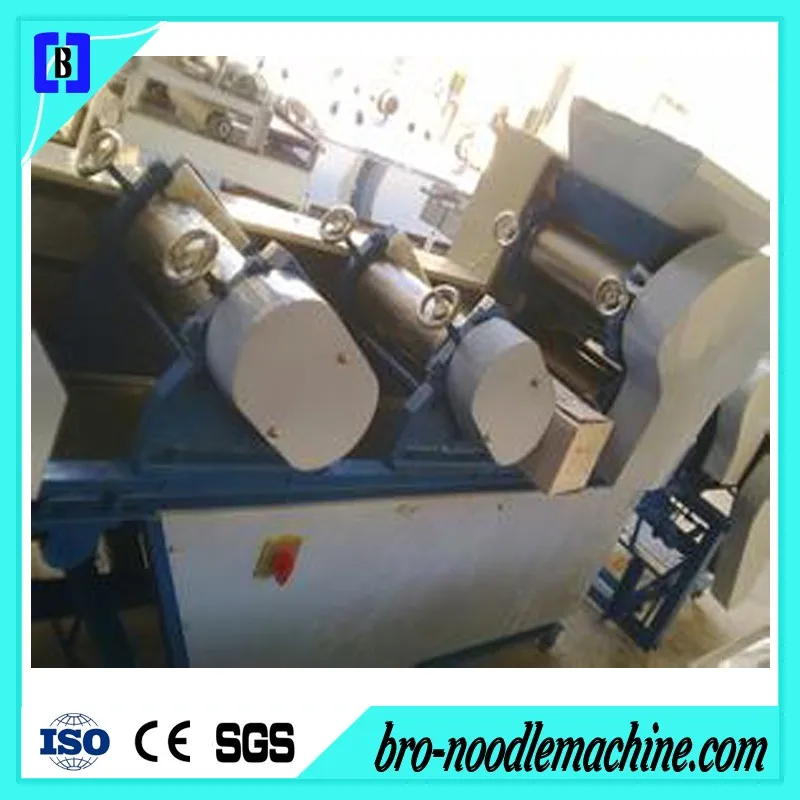

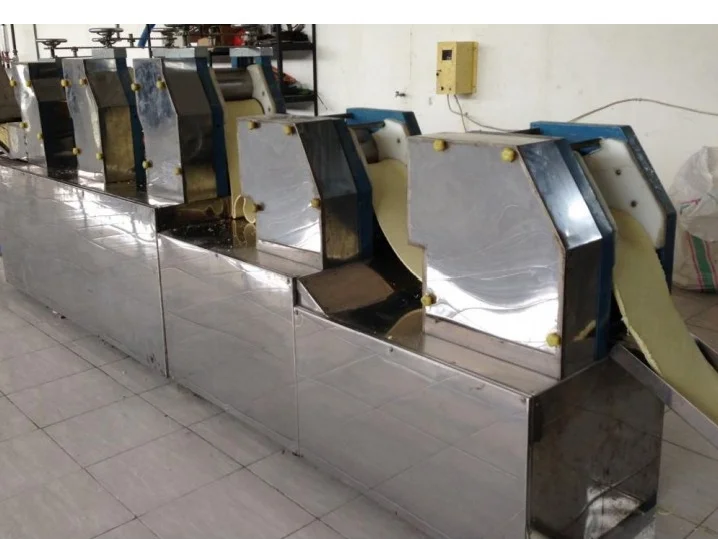

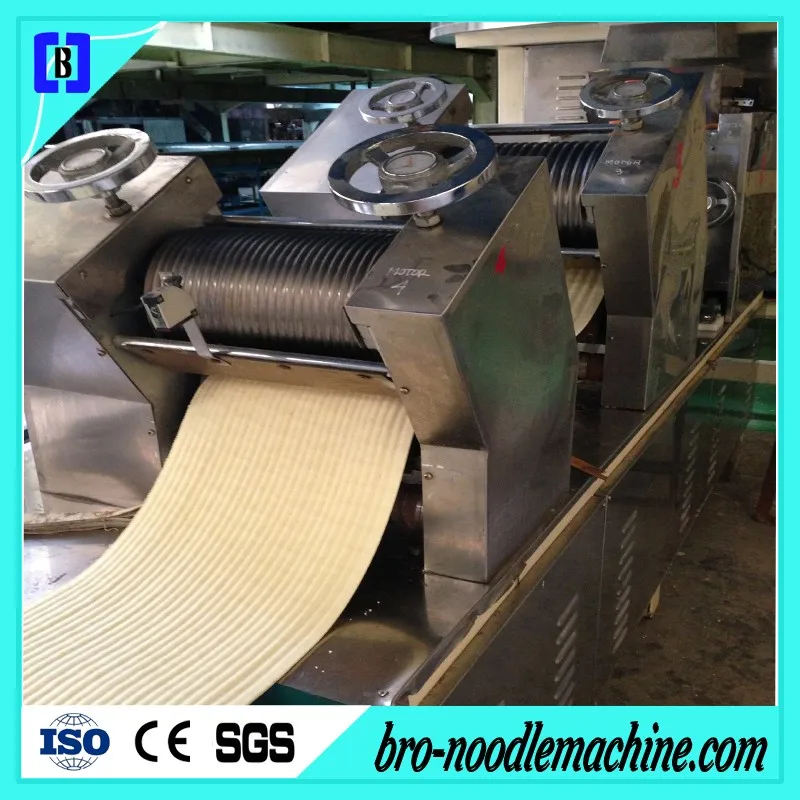

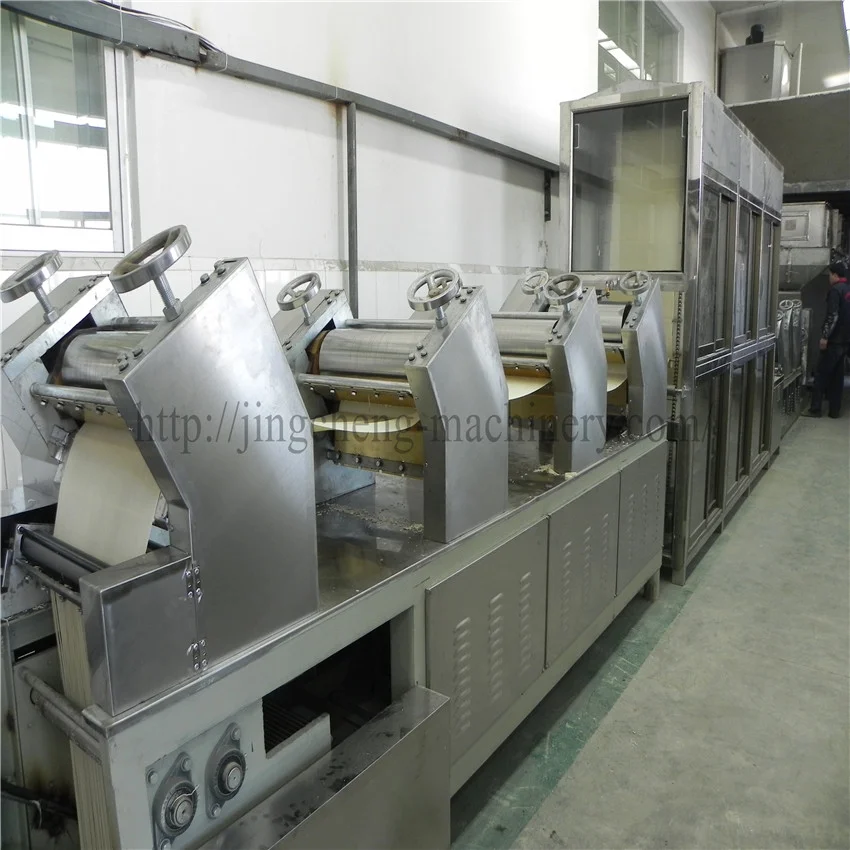

ITEM NAME: COMPOUND AND CONTINOUS ROLLING MACHINE
MODEL: MT7-50
QUANTITY: 1 UNIT
Size（mm）： 1500(L) ×620(W) ×130(H)
Material：Rolling shaft: Regular Steel
Roller bracket: Carbon steel plating
Bracket,chain,gear: Regular steel
Power: 2.2KW, with Speed Adjuster and Reducer
Supply for inspection over-loading of shaky control device.
Function:Pressing dough into sheet.
QUANTITY: 1 UNIT
Size（mm）： 1500(L) ×620(W) ×130(H)
Material：Rolling shaft: Regular Steel
Roller bracket: Carbon steel plating
Bracket,chain,gear: Regular steel
Power: 2.2KW, with Speed Adjuster and Reducer
Supply for inspection over-loading of shaky control device.
Function:Pressing dough into sheet.
ITEM NAME: STEAMING MACHINE
MODEL: CZM50
QUANTITY: 1 UNIT
Size（mm）：8100(L) ×700(W) ×1200(H)
Material：Steam bucket ,flour contact is stainless steel
Temperature meter: 98℃
Power：6KW With Reducer and Speed Adjuster
QUANTITY: 1 UNIT
Size（mm）：8100(L) ×700(W) ×1200(H)
Material：Steam bucket ,flour contact is stainless steel
Temperature meter: 98℃
Power：6KW With Reducer and Speed Adjuster

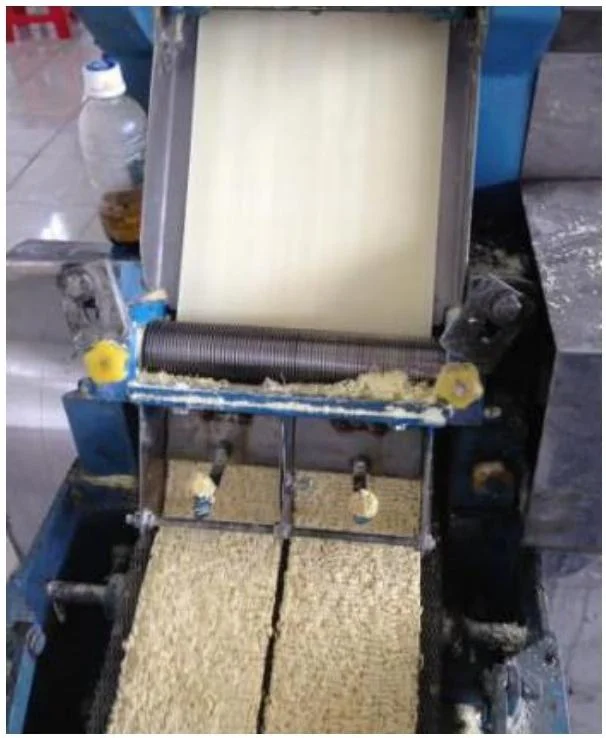

ITEM NAME: CUTTING AND DIVIDING MACHINE
MODEL: QF50
QUANTITY: 1 UNIT
Size(mm):2700(L) ×800(W) ×1300(H)
Supply for urgency stop of switch
With spray device, cutting knife times 14 knives/min, adjustable
Material：flour contact is stainless steel
Bearing and drive device: Regular steel
Power: 2KW With Reducer and Speed Adjuster , cutting times display
in the control panel
Function:Cutting noodles into noodle blocks and conveying into fried machine
QUANTITY: 1 UNIT
Size(mm):2700(L) ×800(W) ×1300(H)
Supply for urgency stop of switch
With spray device, cutting knife times 14 knives/min, adjustable
Material：flour contact is stainless steel
Bearing and drive device: Regular steel
Power: 2KW With Reducer and Speed Adjuster , cutting times display
in the control panel
Function:Cutting noodles into noodle blocks and conveying into fried machine

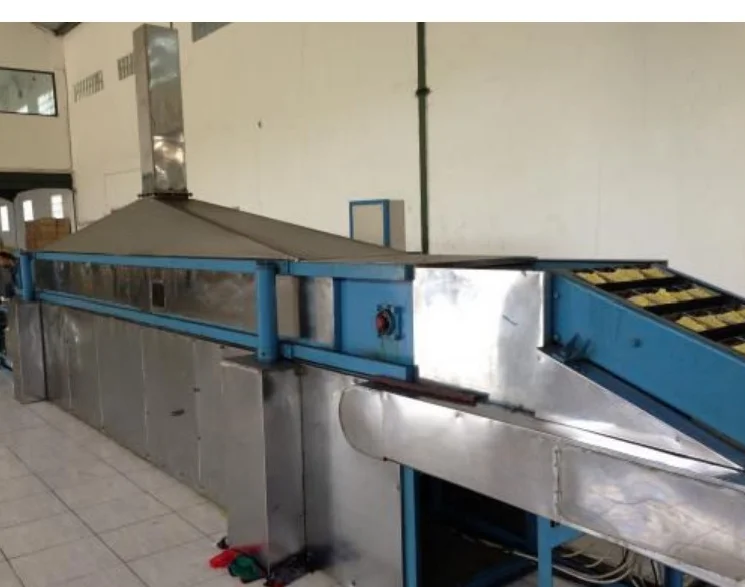

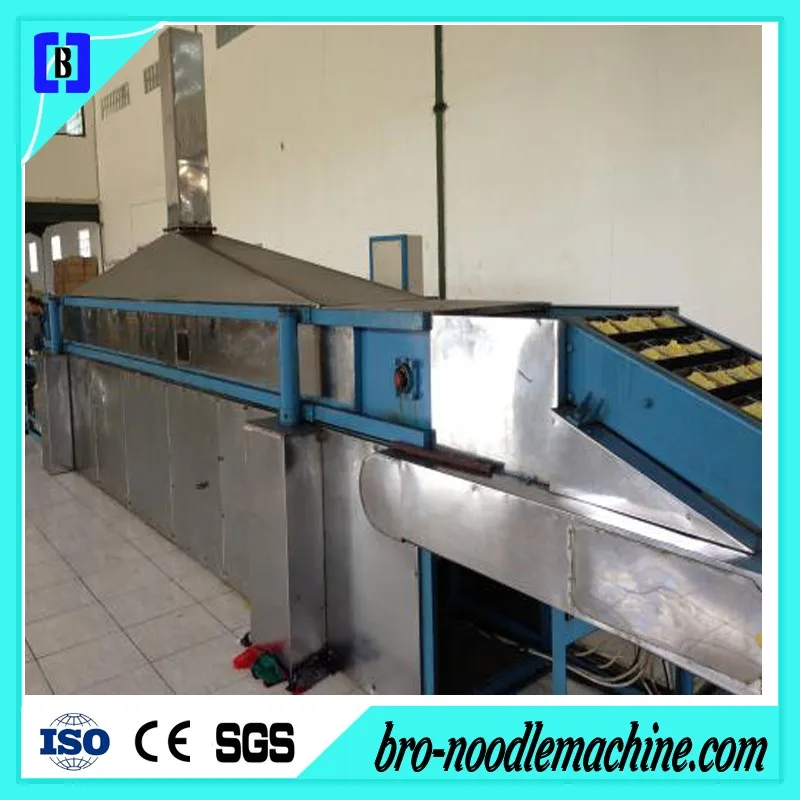

ITEM NAME: OIL FRYING MACHINE
MODEL: YZ50
QUANTITY: 1 UNITSize（mm）： 3700(L) ×2000(W) ×2000(H)
Material：Frying Pan Body: carbon steel,flour contact is stainless steel
Steam of Cost：about <0.8 t/h (0.6mpa)
Power：1.1KW With Reducer and Speed Adjuster
Function:Drying the noodles by oil frying.
QUANTITY: 1 UNITSize（mm）： 3700(L) ×2000(W) ×2000(H)
Material：Frying Pan Body: carbon steel,flour contact is stainless steel
Steam of Cost：about <0.8 t/h (0.6mpa)
Power：1.1KW With Reducer and Speed Adjuster
Function:Drying the noodles by oil frying.

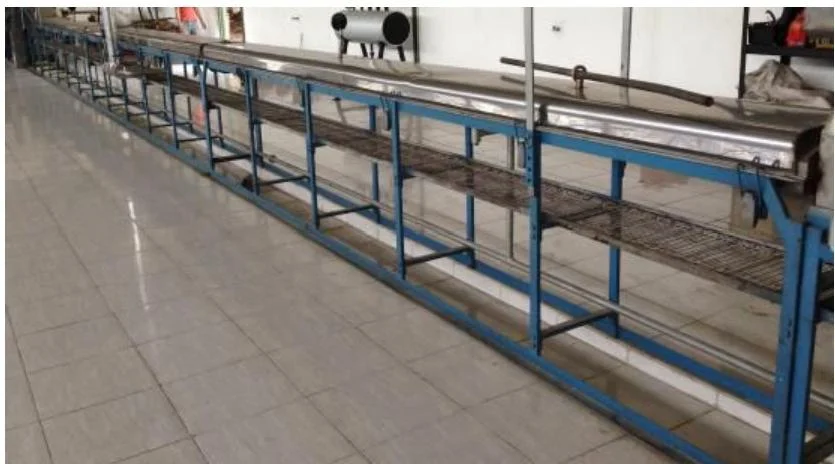

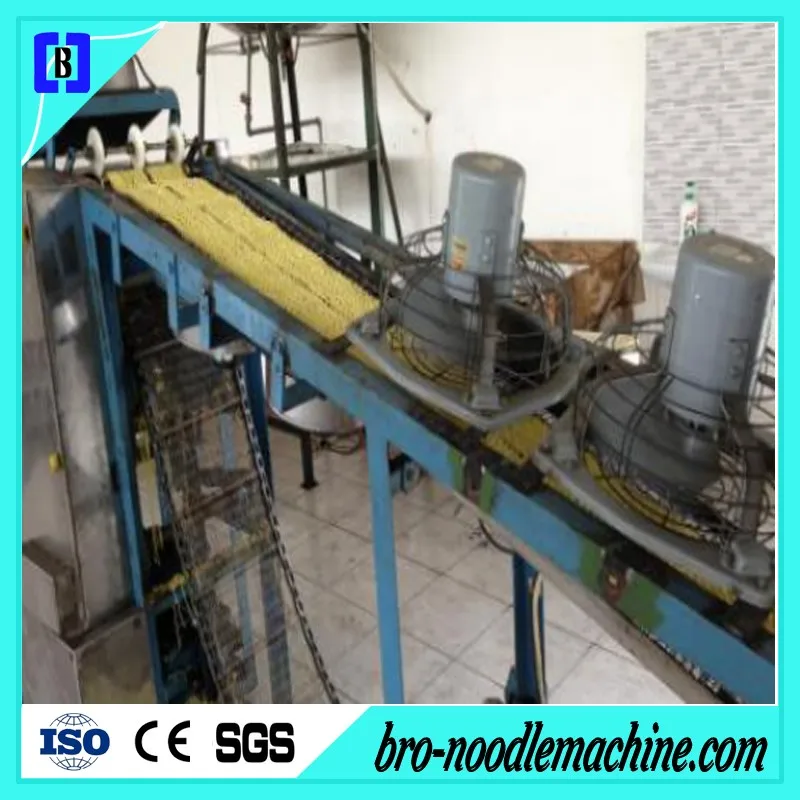

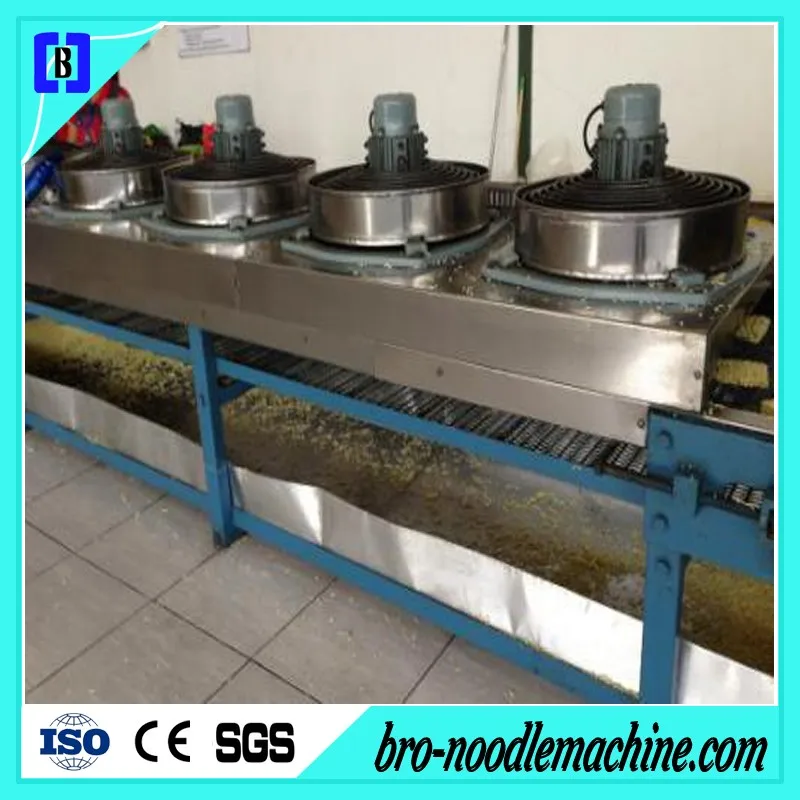

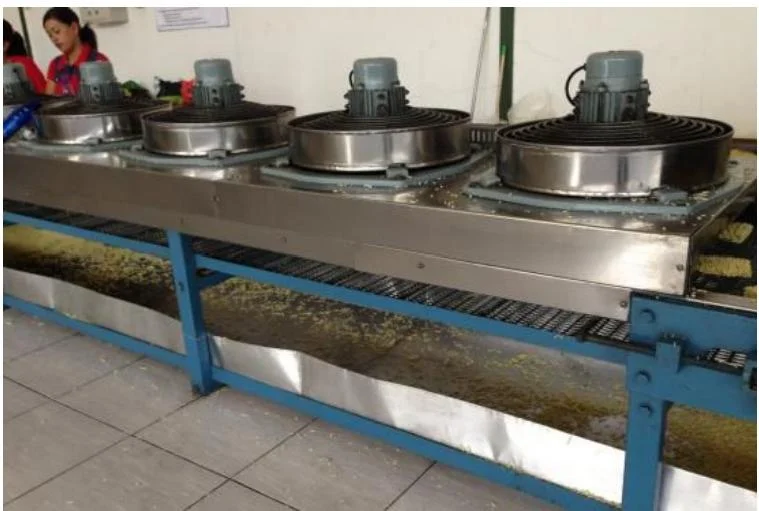

ITEM NAME: COOLING MACHINE
MODEL: FL50
QUANTITY: 1 UNITSize(mm):3000(L) ×550(W) ×900(H)
Material：flour contact is stainless steel
Blow: 30wX3 , extractor fan power supplied by frying
QUANTITY: 1 UNITSize(mm):3000(L) ×550(W) ×900(H)
Material：flour contact is stainless steel
Blow: 30wX3 , extractor fan power supplied by frying

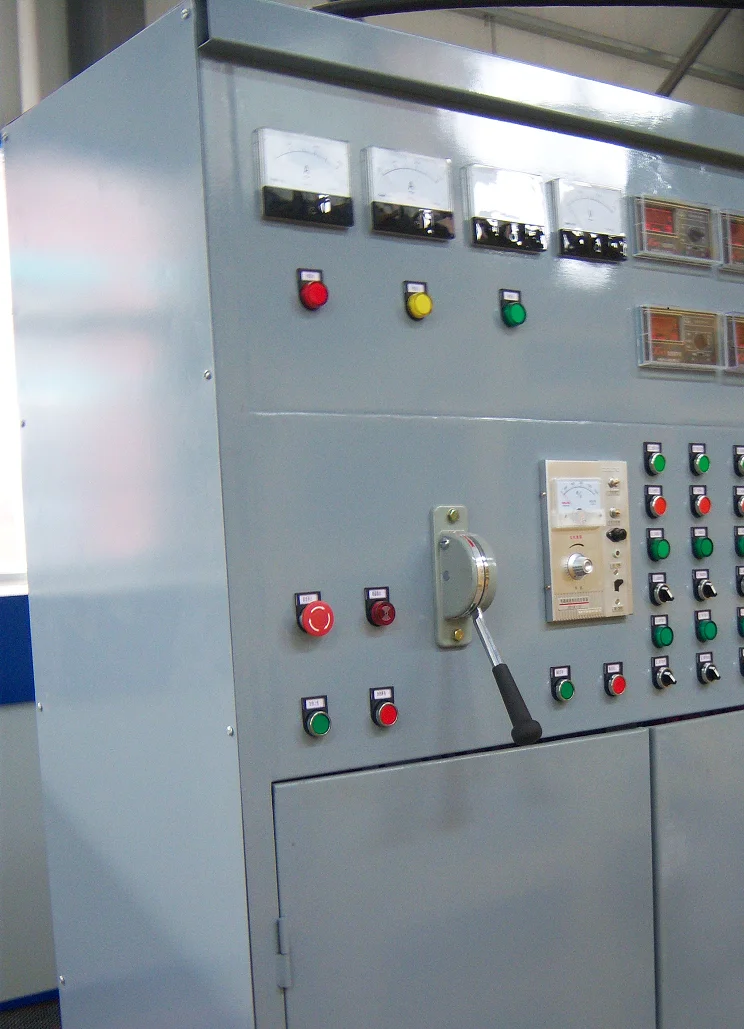

ITEM NAME: PLC AUTOMATIC CONTROL PANEL
MODEL: BPT-1
QUANTITY: 1 SETThe main process adopts frequency conversion speed regulation.
Capacity/8Hours：~11,000pcs/8hrs（70g/piece）
Specification of Equipment(m)：25(L) ×0.8(W) ×1.6(H)m
Power： about 88KW（380V/50 Hz）
Steam of Cost：about <0.8 t/h (0.6mpa)
QUANTITY: 1 SETThe main process adopts frequency conversion speed regulation.
Capacity/8Hours：~11,000pcs/8hrs（70g/piece）
Specification of Equipment(m)：25(L) ×0.8(W) ×1.6(H)m
Power： about 88KW（380V/50 Hz）
Steam of Cost：about <0.8 t/h (0.6mpa)
