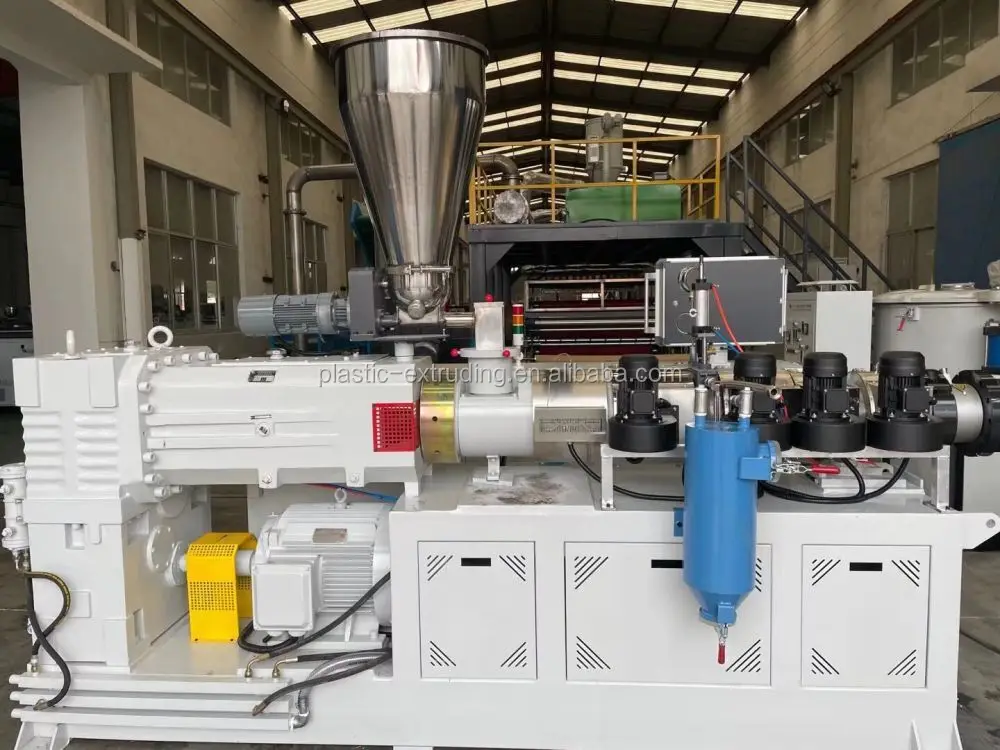

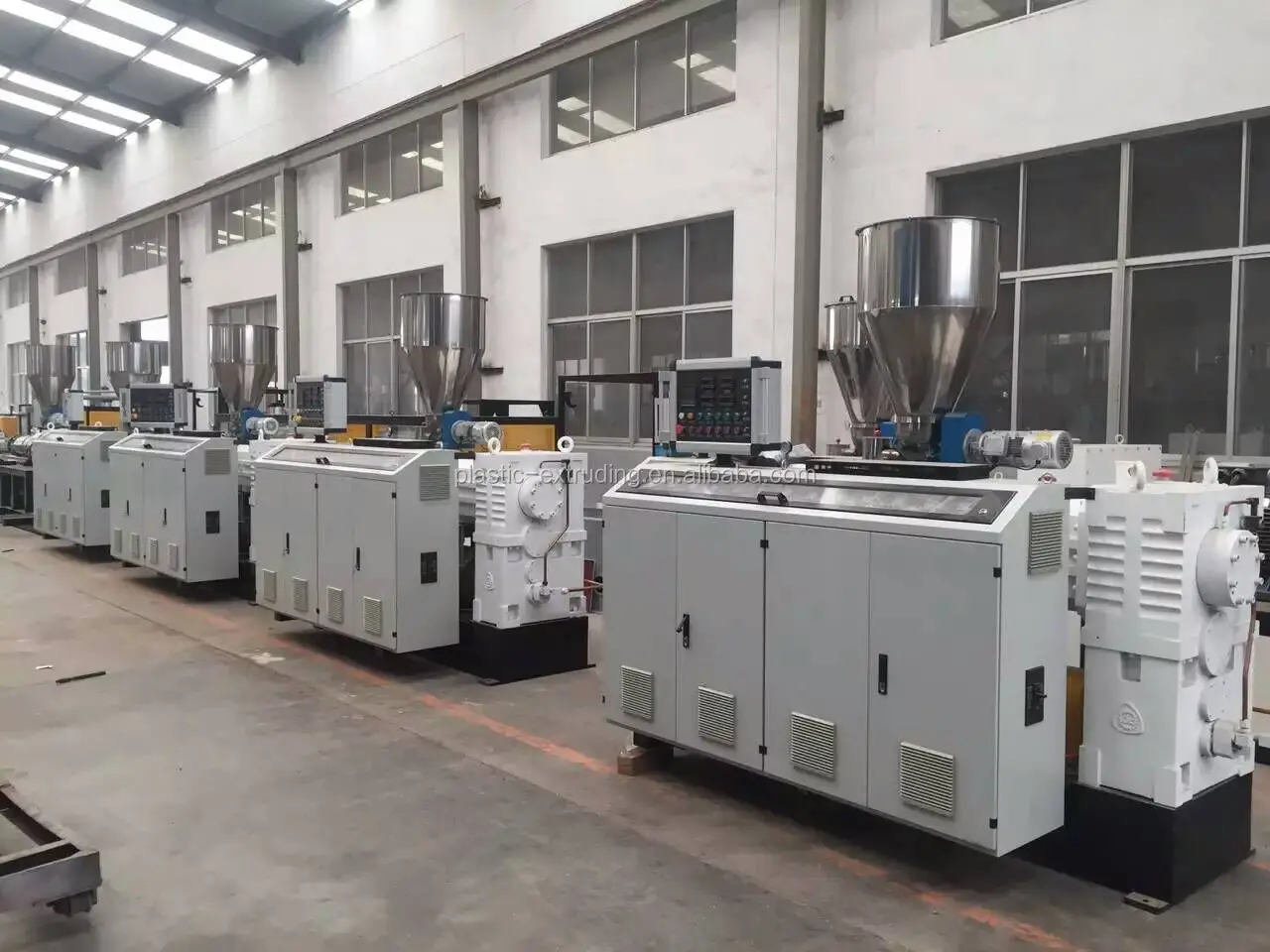

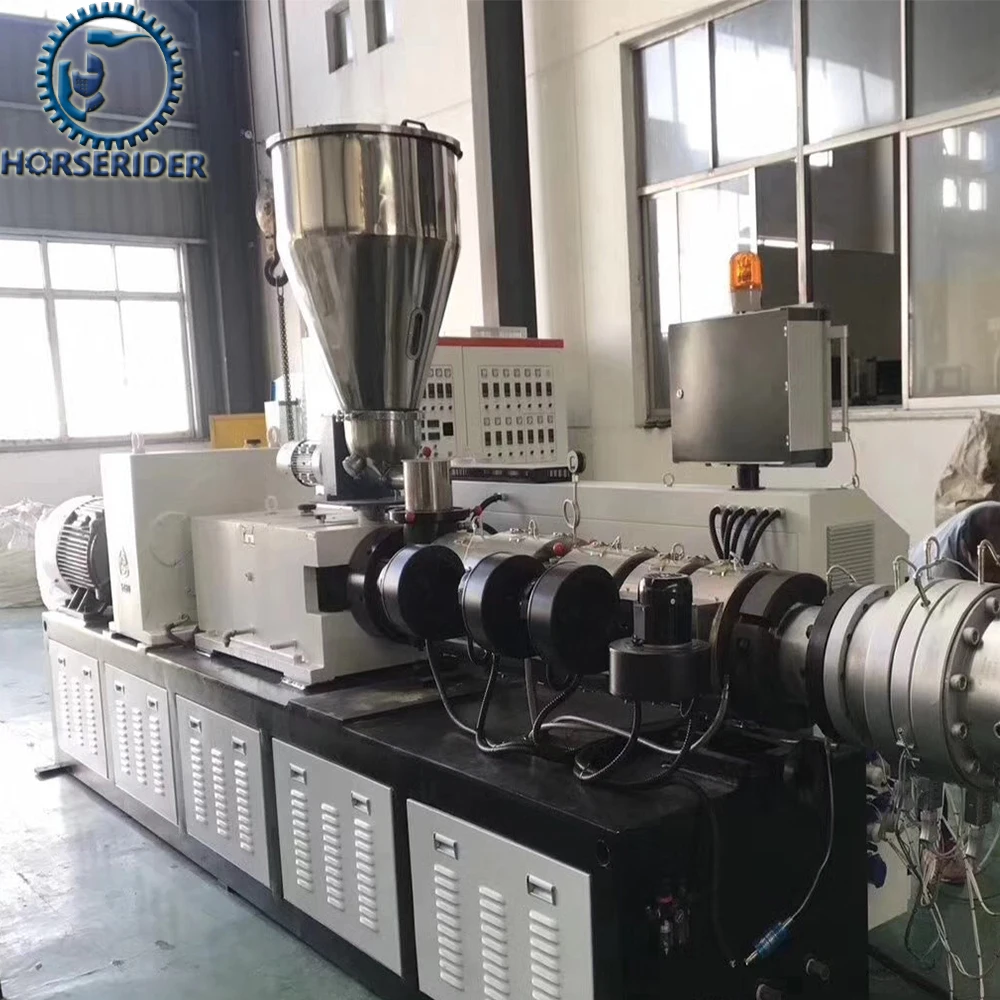

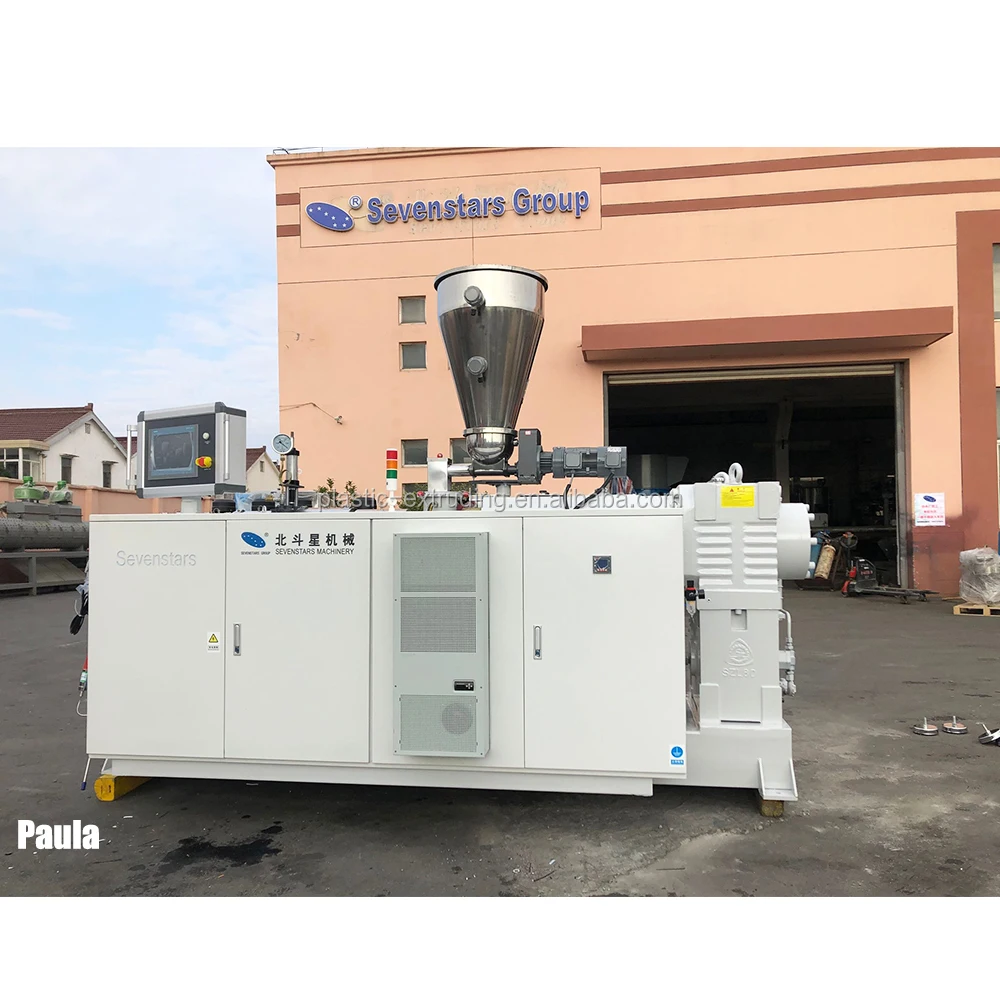

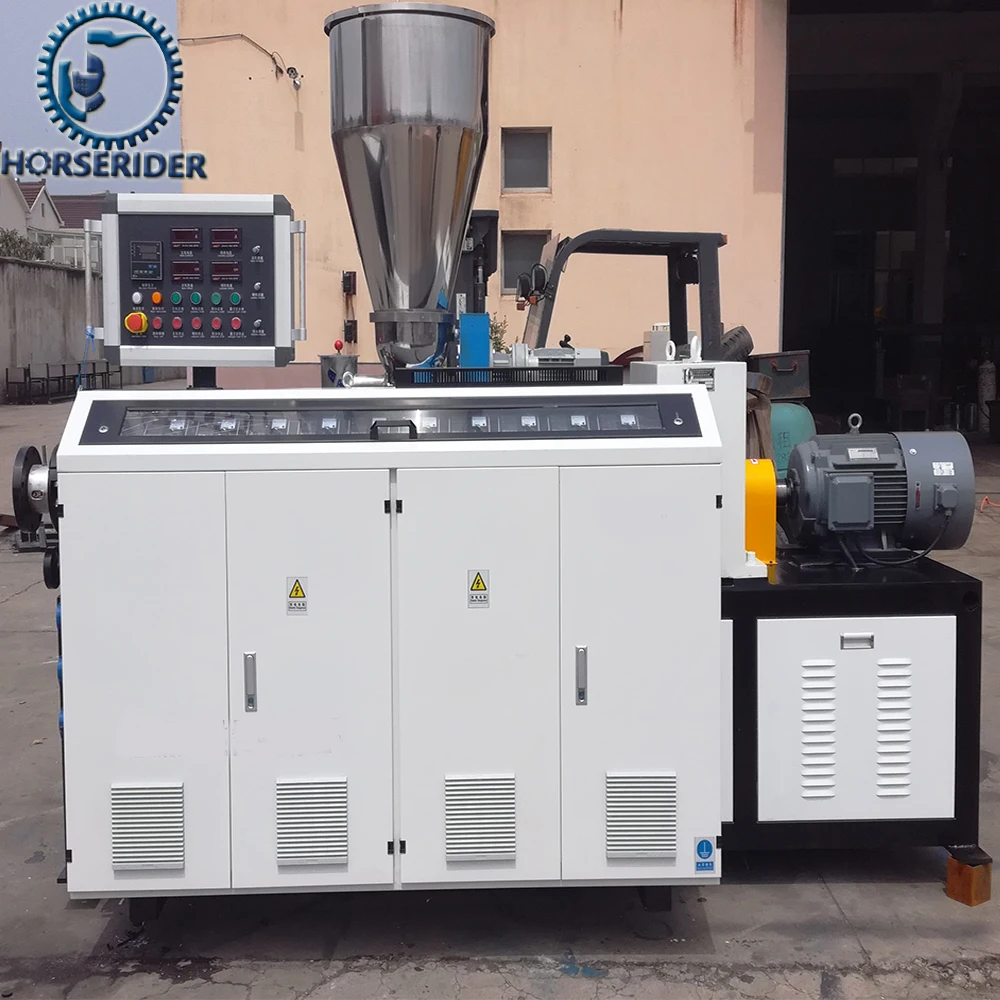

New design SJSZ serizes 45/51/55/65/80/92 double screw plastic conical extruder
- Category: >>>
- Supplier: Zhangjiagang Horserider Machinery Co. Ltd.
Share on (1600928931780):
Product Overview
Description
Product Description
Specification
item | value |
Condition | New |
Plastic Processed | PVC |
Application | PIPE, Sheet, Profile, Plates, Pelletizing, Straw |
Screw Design | Single-screw |
Screw Material | 38CrMoAlA |
Screw diameter (mm) | 51 |
Screw L/D Ratio | 33:1 |
Screw Speed (rpm) | 45rpm |
Showroom Location | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France |
Place of Origin | China |
Jiangsu | |
Brand Name | Horserider |
Voltage | 380v 50hz Customized |
Dimension(L*W*H) | 3600*1100*2100 |
Power (kW) | 15 |
Weight | 3200KG |
Warranty | 1 -2 YEAR |
Key Selling Points | High Productivity |
Applicable Industries | Manufacturing Plant |
Video outgoing-inspection | Provided |
Warranty of core components | More than 5 years |
Core Components | Motor, PLC, Gearbox |
Machinery Test Report | Provided |
screw design | Counter conical twin screw |
Draw Ratio of Screw | 33:1 |
Max. Vacuum Degree | -0.095MPa for SJSZ 55/110 extruder |
Indicators | Melt pressure&temperature indication |
Speed Adjusting Mode | frequency conversion adjustable |
Material of the Screw and barrel | 38CrMoAl for SJSZ 51/105 extruder |
Frequency Convertor | ABB |
Temperature controllor | RKC |
Element of Electric System | SEIMENS |
Cooling for barrel | Airflow cooling |
Product Details
Technical parameter
Model | SJSZ-45 | SJSZ-51 | SJSZ-55 | SJSZ-65 | SJSZ-80 | SJSZ-92 | |||||
Diameter of screw(mm) | 45/92 or 45/118 | 51/105 | 55/120 | 65/132 | 80/156 | 92/188 | |||||
Number of screw | 2 | 2 | |||||||||
Screw rotation speed(rpm) | 1-45 | 1-45 | 40 | 1-35 | 1-37 | 1-33 | |||||
Effective length of screw(mm) | 985 | 1070 | 1200 | 1440 | 1800 | 2500 | |||||
Power of main engine(kw) | 15 | 18.5 | 22/30 | 37 | 55 | 90 or 110 | |||||
Barrel heating power(kw) | 12 | 15 | 18 | 24 | 36 | 86.8 | |||||
Production capacity(kg/h) | 120 | 80-150 | 150-180 | 250-300 | 320-400 | 600-800 | |||||
Center height(mm) | 1000 | ||||||||||
Weight(kg) | 2800 | 3200 | 3500 | 4000 | 5000 | 8000 | |||||
Dimensions(L*W*H) | 3300*1200*2100 | 3600*1100*2100 | 3600*1100*2100 | 4235*1520*2450 | 4750*1550*2460 | 6752*1550*2841 | |||||
Packing & Delivery
Company Profile
Zhangjiagang Horserider Machinery Co., Ltd. is a group company. We devote ourselves to the research and development and production of plastic machines.
For plastic machines, we mainly produce big-mouth PVC pipe extrusion production lines, PE big-mouth machines for gas, water supply extrusion production lines, plastic sheet or panel production lines, PVC/WPC profile production lines, plastic granulating production lines, PET washing and recycling line, plastic extruders, high speed mixers, shredding machine, tire recycling machine, crushers and various plastic auxiliary machines.
in this department , we are mainly taking up of tire recycling machine , shredding machine , crushers and PET dehumidifiers .
Please feel free to contact us for further details. We are looking forward to forming a profitable business relationship with your company in the near future. We welcome you to visit our company at any time.
For plastic machines, we mainly produce big-mouth PVC pipe extrusion production lines, PE big-mouth machines for gas, water supply extrusion production lines, plastic sheet or panel production lines, PVC/WPC profile production lines, plastic granulating production lines, PET washing and recycling line, plastic extruders, high speed mixers, shredding machine, tire recycling machine, crushers and various plastic auxiliary machines.
in this department , we are mainly taking up of tire recycling machine , shredding machine , crushers and PET dehumidifiers .
Please feel free to contact us for further details. We are looking forward to forming a profitable business relationship with your company in the near future. We welcome you to visit our company at any time.
FAQ
1. who are we?
We are based in Jiangsu, China, start from 2010,sell to South America(15.00%),Africa(15.00%),Mid East(12.00%),South Asia(10.00%),Southern Europe(10.00%),Domestic Market(10.00%),Southeast Asia(10.00%),North America(5.00%),Eastern Europe(5.00%),Western Europe(4.00%),Central America(2.00%),Eastern Asia(1.00%),Oceania(1.00%),Northern Europe(0.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Plastic Recycling Line, Plastic Pelletizing Line, Plastic Board Production Line; Plastic Profile Extrusion Line; Plastic Pipe Extrusion Production Line
4. why should you buy from us not from other suppliers?
We are the manufacturer, we can control both the manufacture of the machine materials and its fabrication into the finished product to ensure the dependability of our products.We have four modern standard workshops,We have fine working environment.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card;
Language Spoken:English,Chinese
We are based in Jiangsu, China, start from 2010,sell to South America(15.00%),Africa(15.00%),Mid East(12.00%),South Asia(10.00%),Southern Europe(10.00%),Domestic Market(10.00%),Southeast Asia(10.00%),North America(5.00%),Eastern Europe(5.00%),Western Europe(4.00%),Central America(2.00%),Eastern Asia(1.00%),Oceania(1.00%),Northern Europe(0.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Plastic Recycling Line, Plastic Pelletizing Line, Plastic Board Production Line; Plastic Profile Extrusion Line; Plastic Pipe Extrusion Production Line
4. why should you buy from us not from other suppliers?
We are the manufacturer, we can control both the manufacture of the machine materials and its fabrication into the finished product to ensure the dependability of our products.We have four modern standard workshops,We have fine working environment.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card;
Language Spoken:English,Chinese
