PACKBOXPRICE HF2211 Serial Port RJ45 RS232 485 422 Serial To Ethernet /Wi Fi Conversion Server

Product Overview

Description





Description:
Overview of Characteristic
Wide DC Input 5~36VDC or 9~50VDC
FCC/CE/Ro HS Certificated

Item Parameters:
System Information:
Processor/Frequency:MIPS/320MHz
Flash/SDRAM:4MB/8MB
Operating System: E Cos
Ethernet Port:
Port Number: 1 RJ45
Interface Standard: 10/100 Base-T Auto-Negotiation
Protection: 8KV Isolation
Transformer: Integrated
Network Protocol: IP,TCP,UDP,DHCP,DNS,HTTP Server/Client,ARP, BOOTP, Auto IP, ICMP,Web socket, Telnet, FTP,TFTP, UPNP, NTP, SNMP, Mod bus TCP
Security Protocol: SSL v3
AES 128Bit
DES3
IPV6 Support: Plan to Support
Wi-Fi Interface
Standard 802.11 b/g/n
Frequency: 2.412GHz-2.484GHz
Network Mode: STA/AP/STA+AP
Security: WEP/WPAPSK/WPA2PSK
Encryption: WEP64/WEP128/TKIP/ AES
Tx Power: 802.11b: +20dBm(Max.)
802.11g: +18dBm(Max.)
802.11n: +15dBm(Max.)
Rx Sensitive:802.11b: -89dBm
802.11g: -81dBm
802.11n: -71dBm
Antenna: 3dBi Stick Antenna
Serial Port:
Port Number: 1 RS232/RS485/RS422
Interface Standard: RS232: DB9
RS485/RS422: 5.08mm connector
Data Bits: 8
Stop Bit: 1,2
Check Bit: None, Even, Odd, Space, Mark
Baud Rate: TTL: 600 bps~460800bps
Flow Control No Flow control
Hardware RTS/CTS,DSR/DTR
Software X on/ X off flow control
Software:
Web Pages: Http Web Configuration
Customization of HTTP Web Pages
Configuration Web
CLI
XML import
Telnet
IOT Manager PC: Software
Firmware Upgrade: Web
SDK For Dev.: Plan to Provide
Basic Parameter:
Size 95 x65x 25 mm
Operating Temp.:-45 ~ 70°C
Storage Temp. -45 ~ 105°C, 5 ~ 95% RH(no condensation)
Input Voltage: 5~36VDC or 9~50VDC
Working Current:~200mA

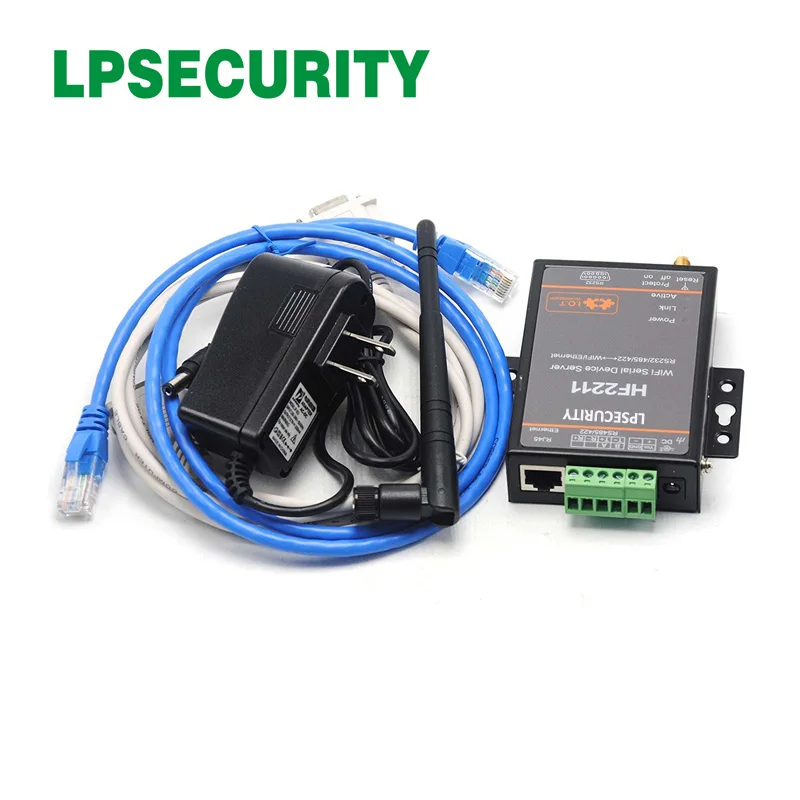

Package:
1PC Server

power adaptor
