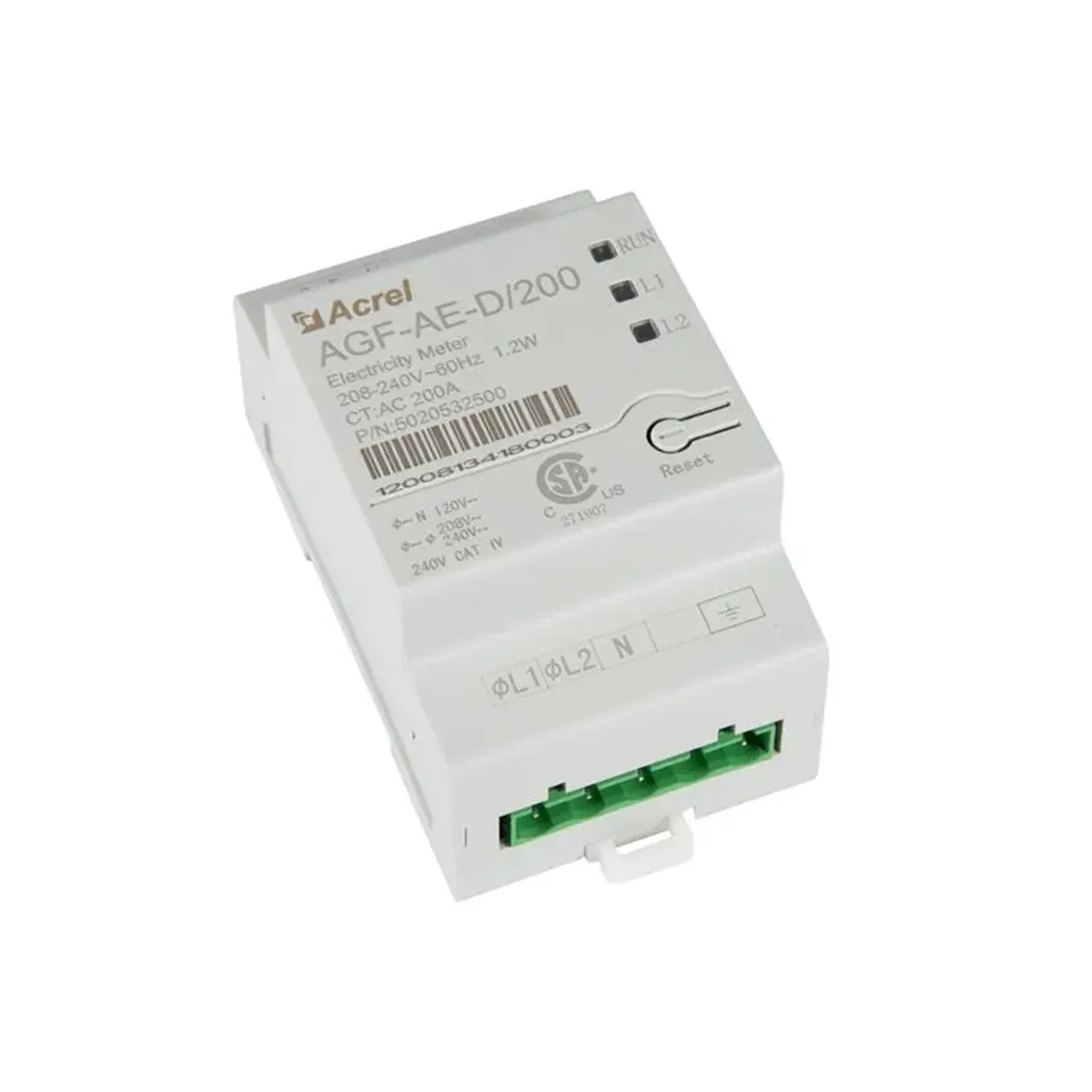

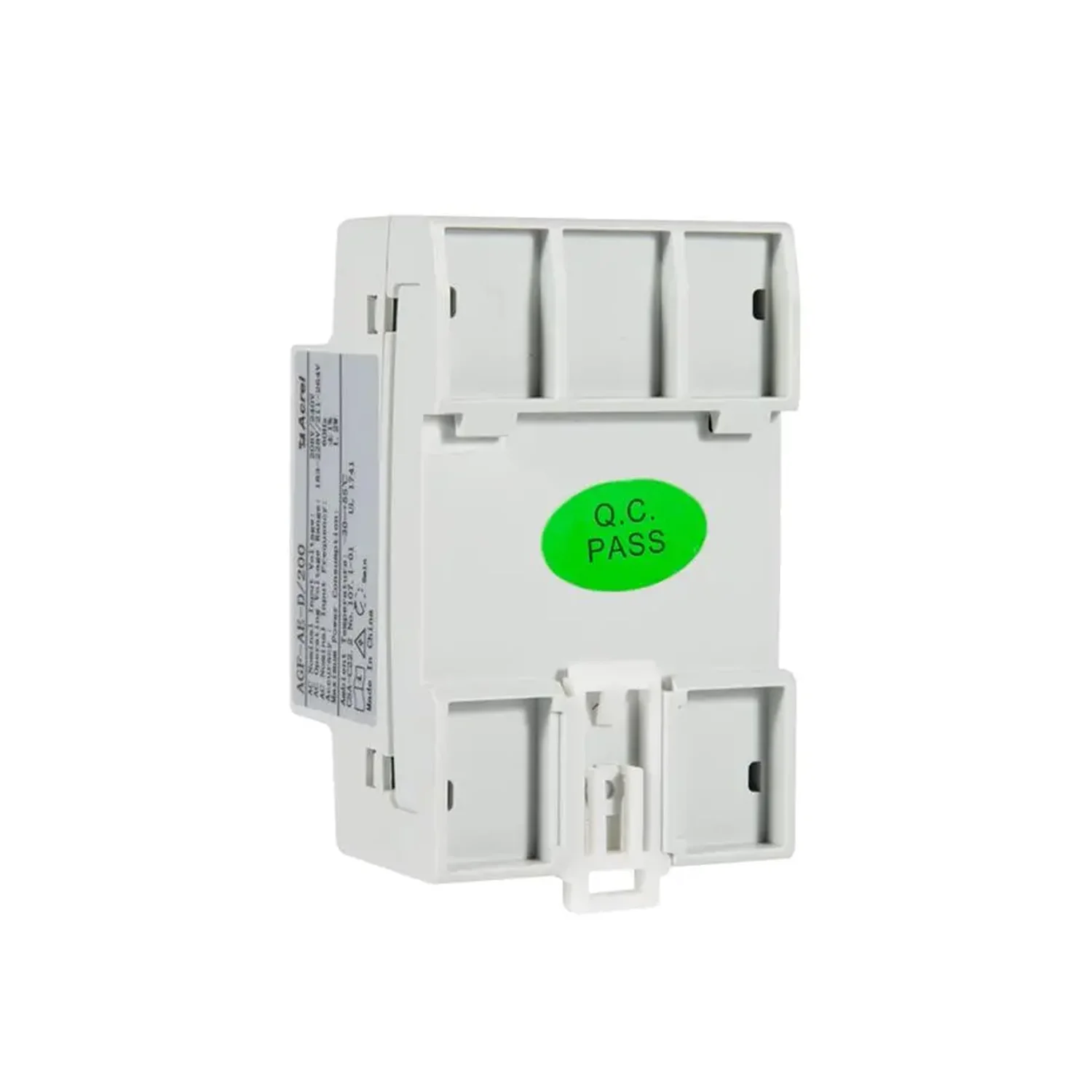

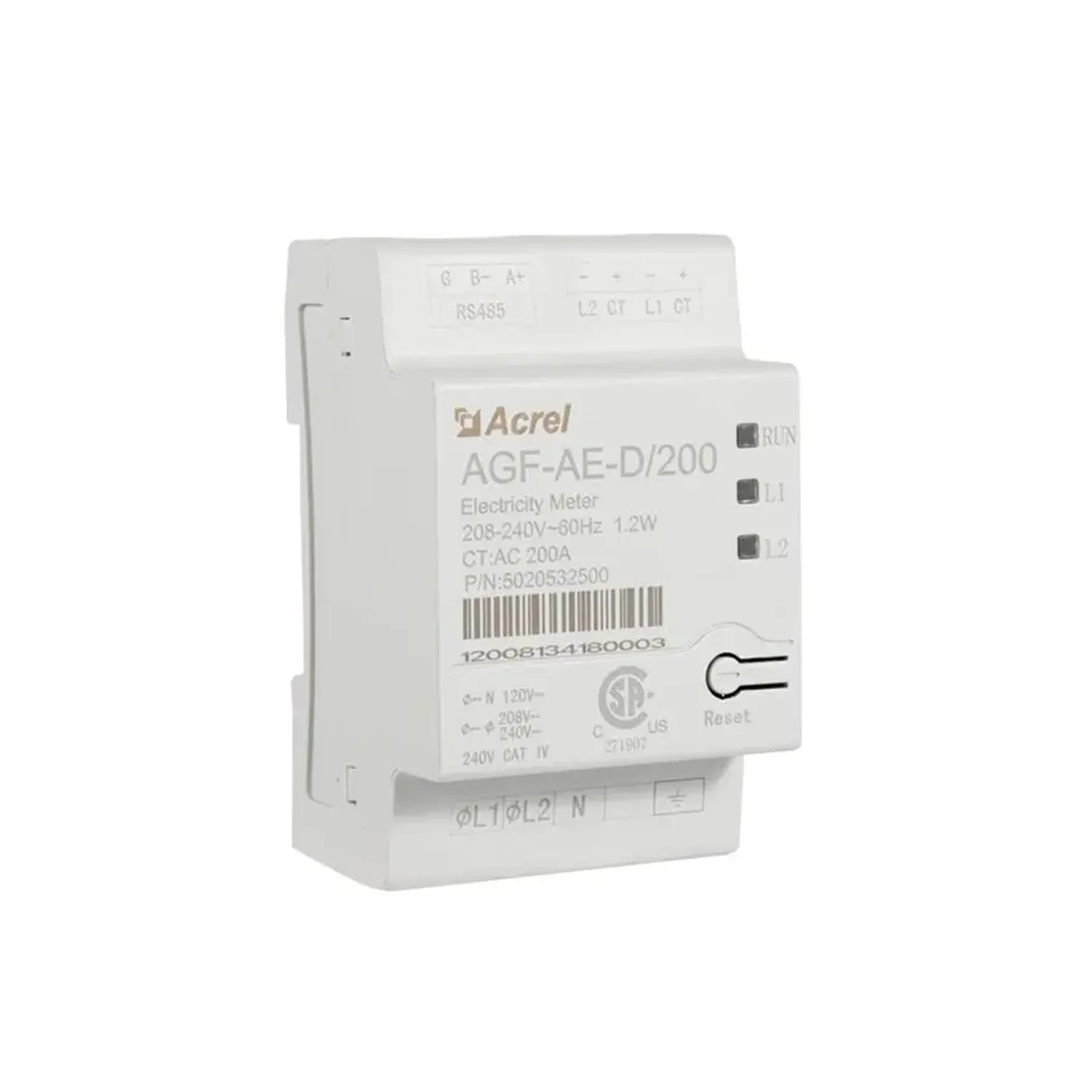

Acrel AGF AE D Solar PV Bidirectional Energy Consumption Meter Zero Export RS485 Modbus for Solar Inverter
- Category: >>>
- Supplier: Jiangsu Acrel Electrical Manufacturing Co. Ltd.
Share on (1600928974461):
Product Overview
Description

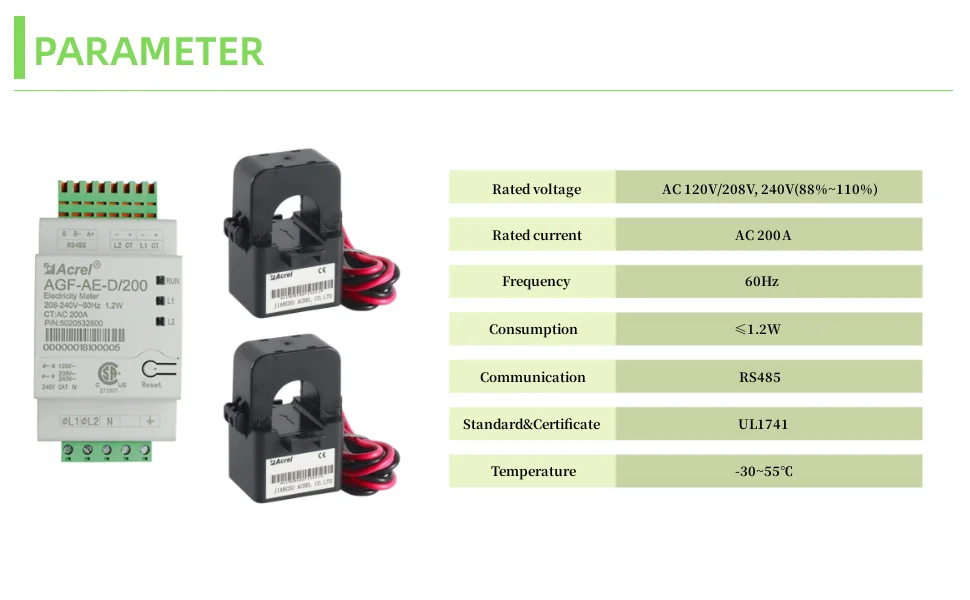

Meter Electrical Service | Units | |||
Rated Voltage-Line to N | 120 | V | ||
Rated Voltage-Line to Line | 208/240 | V | ||
Extended Voltage Range | 88%~110% | |||
AC Frequency | 60 | Hz | ||
Grids Supported | L1/L2/N/PE | |||
Power Consumption | 1.2 | W | ||
Communication | Communication | |||
Meter Communication Interfaces | RS 485 | |||
Response Time | ≤1 | S | ||
Meter Accuracy | ||||
Rated RMS current | 200 | A | ||
1%-100% of CT Current | ±1 | % | ||

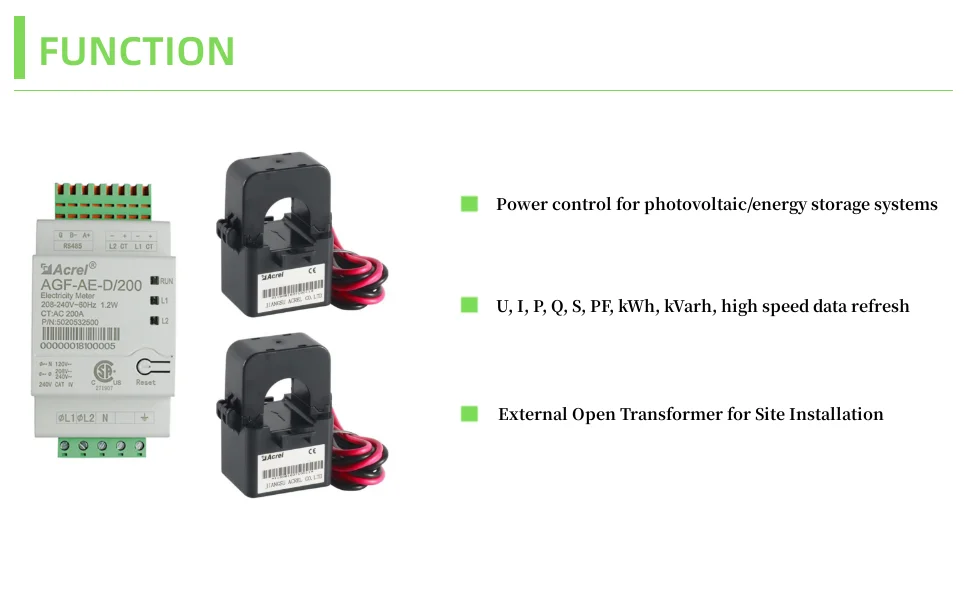

Current Transformers | ||||
Number of Supplied Current Transformers | 2 | |||
Dimensions | 70.5×54.5×39 (H×W×D) | mm | ||
Standard Compliance | ||||
Safety | UL1741 | |||
Installation Specifications | ||||

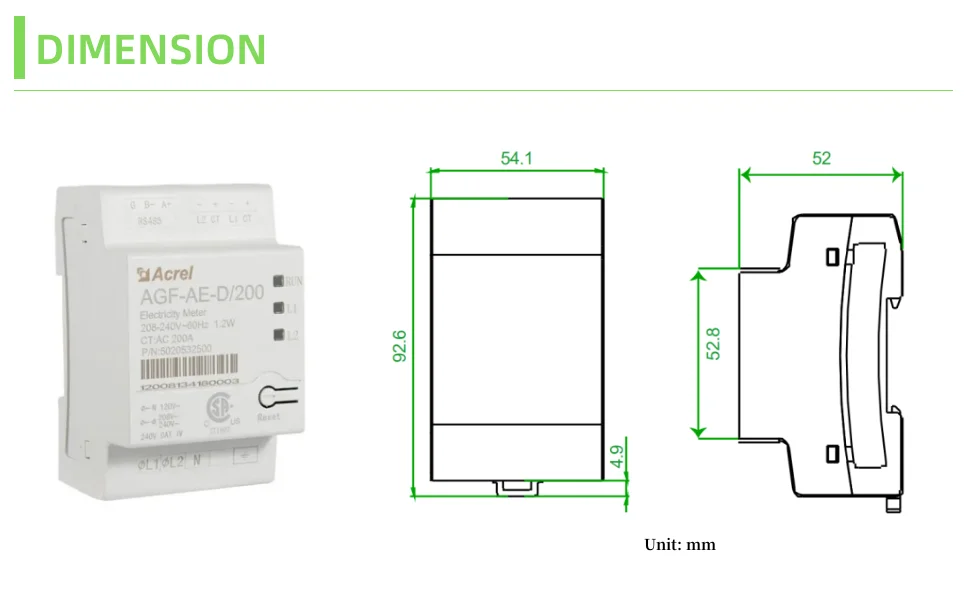

Dimensions(H×W×D) | 54.1×87.8×52 | mm | ||
Weight | 0.2 | kg | ||
Operating Temperature Range | 30~55 | ℃ | ||
Relative Humidity (noncondensing) | 5 - 90 | % | ||

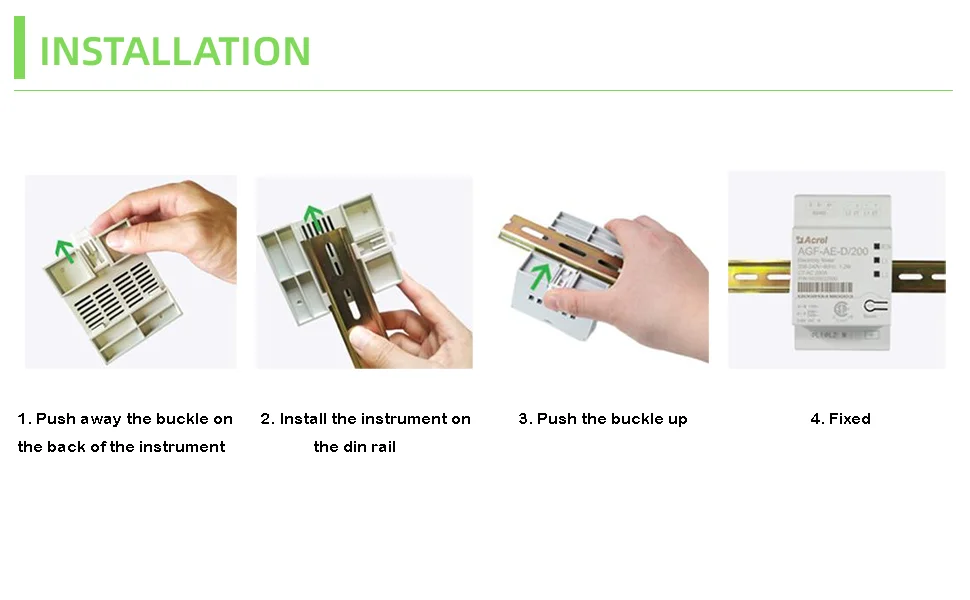

Mounting Type | DIN-Rail，35mm | |||
Acrel Co., Ltd.[stock code: 300286.sz] is a high-tech enterprise integrates R&D, production, sales and service, since its establishment, it committed to provide users with energy efficiency management and power security system solutions. Acrel Electric has a complete production line from cloud platform software to sensors. At present, more than 8,000 sets of various solutions are running all over the country, help users to realize the visual management of energy consumption, provide users the energy data services, and escort users an efficient and safe energy consumption.
Acrel energy efficiency management system including substation operations and maintenance cloud platform, electricity safety management cloud platform, Environmental equipment power consumption monitoring cloud platform, prepaid management (system) cloud platform, intelligent power distribution monitoring system, power quality management system, building energy consumption management system, industrial energy control platform, leakage power monitor and control system, fire-fighting device power monitoring system, fire-proof door monitoring system, emergency lighting and evacuation indicating system, EV charger management system, data center power&environment monitoring system, smart lighting control system, IT isolation power supply system and related products.
