M3 M24 Factory OEM High Speed Steel Straight fluted Tap
- Category: >>>
- Supplier: SHANGHAI UNI-STAR TOOLS COMPANYSHANGHAI COMPANY
Share on (1600928978039):
Product Overview
Description
Product Description

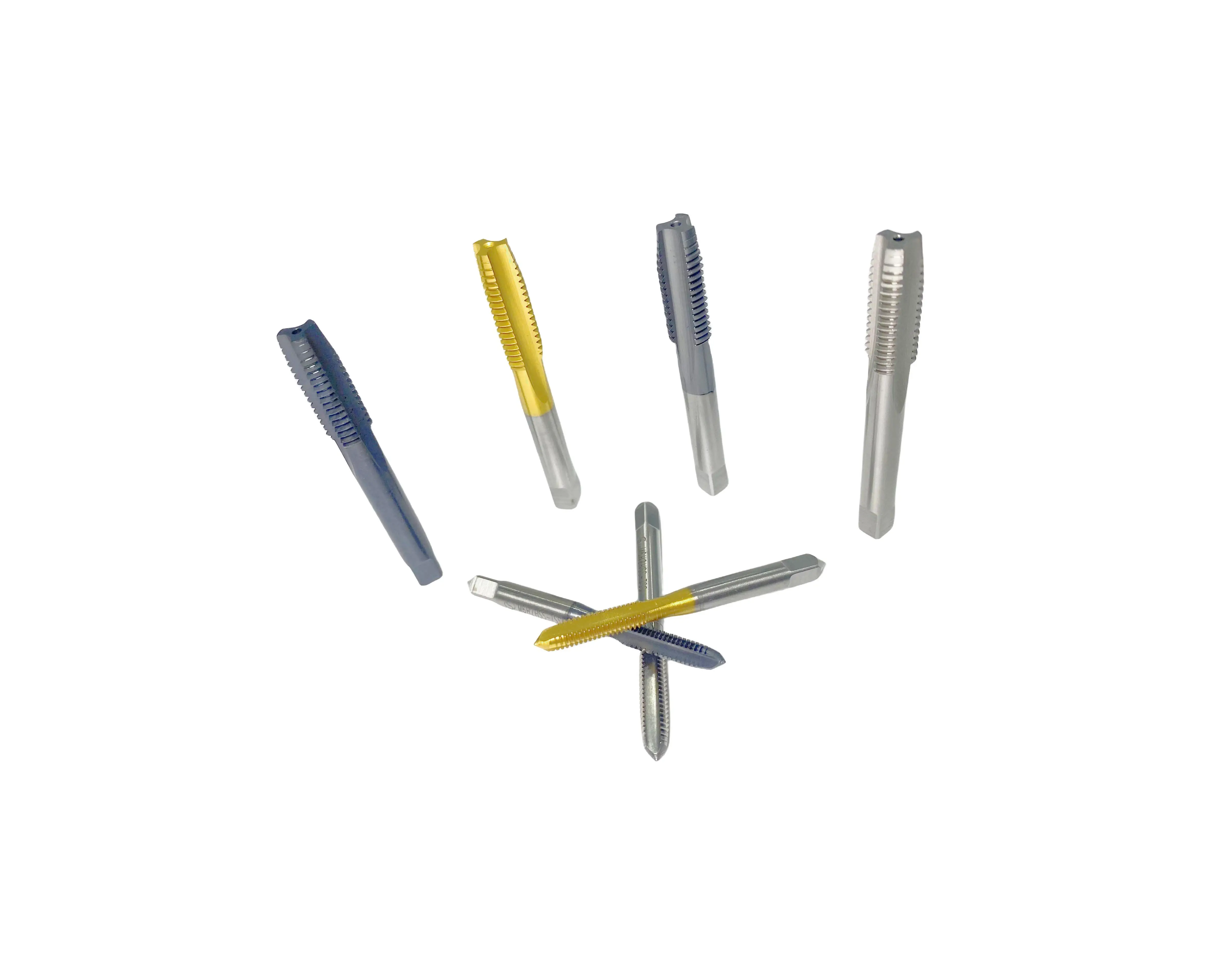

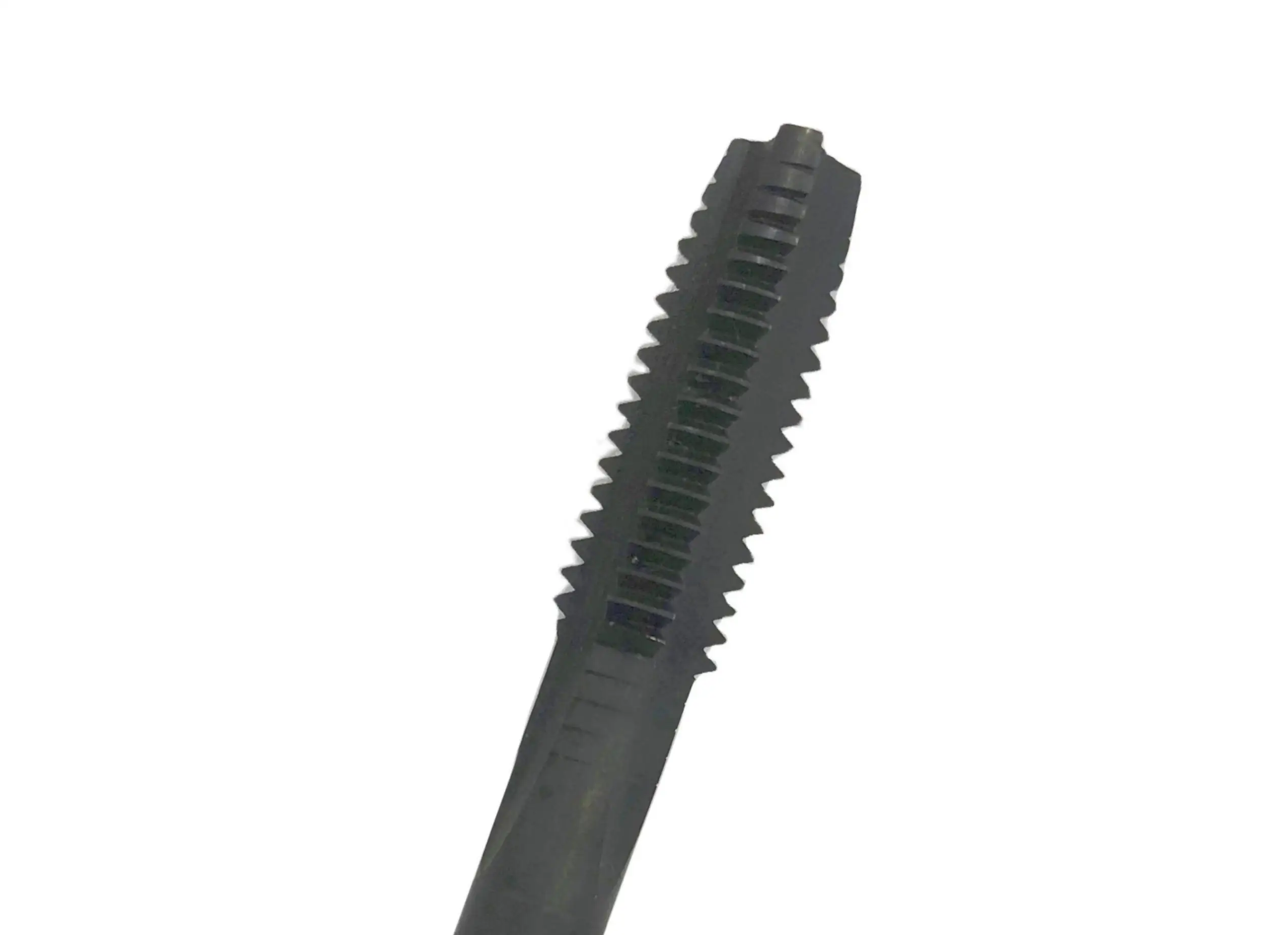

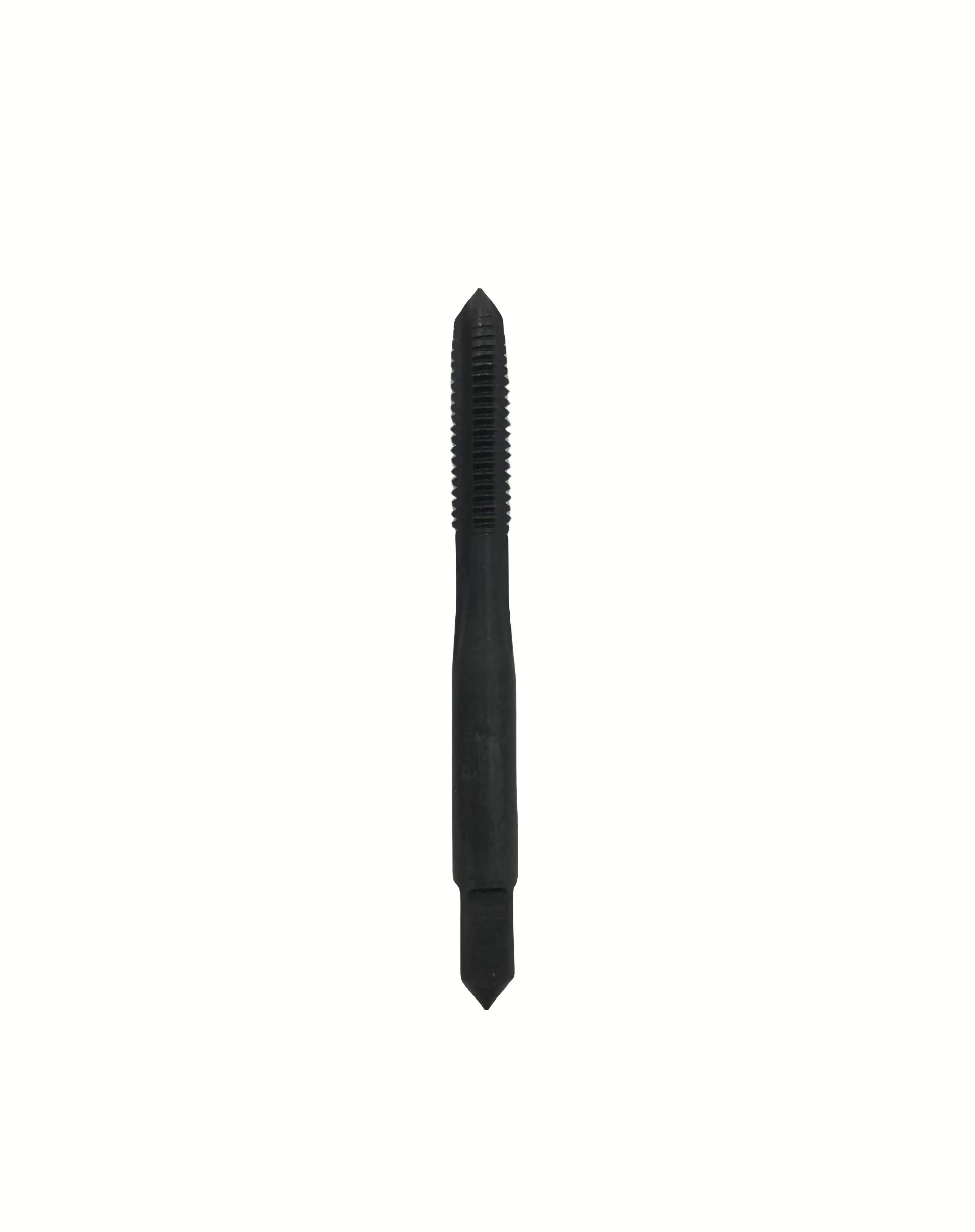

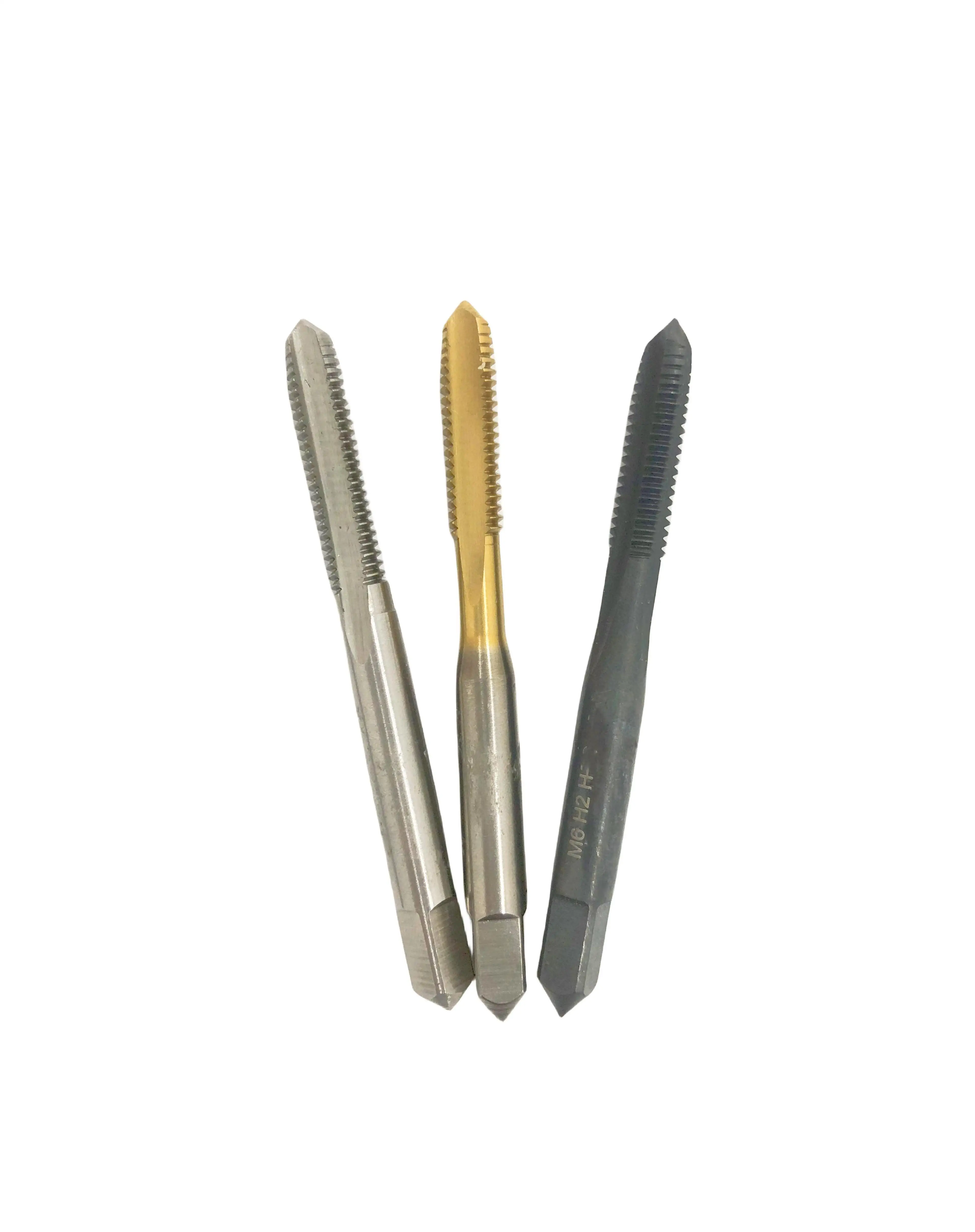

M3-M24 Factory OEM High Speed Steel Straight-fluted Tap
Straight-flute taps create or repair internal threads in blind holes and through holes. They are sometimes called hand taps. Chips move into the taps' flutes but are not evacuated as the taps are rotated into a hole to cut threads.
High-speed steel taps offer good wear resistance for tapping a range of materials.
Free samples are available.
Feature:
（1）Taps with straight flutes.
（2）The straight flute is the standard style of tap.
（2）The straight flute is the standard style of tap.
（3）Durability is improved by high-quality HSS and special production technology.
（4）Most suitable for most of steel materials with water or cutting oil.
（5）Ideal for blind hole tapping.
Specification
Size | Pitch | Overall length | Thread length |
M3×0.5 | 0.5 | 46 | 15 |
M3.5×0.6 | 0.6 | 48 | 16 |
M4×0.7 | 0.7 | 52 | 18 |
M5×0.8 | 0.8 | 60 | 21 |
M6×1.0 | 1.0 | 62 | 24 |
M8×1.25 | 1.3 | 70 | 23 |
M10×1.5 | 1.5 | 75 | 25.5 |
M12×1.75 | 1.8 | 82 | 30 |
M14×2.0 | 2.0 | 88 | 30 |
M16×2.0 | 2.0 | 95 | 32 |
M18×2.5 | 2.5 | 112 | 37 |
M20×2.5 | 2.5 | 112 | 37 |
M22×2.5 | 2.5 | 118 | 38 |
M24×3 | 3.0 | 130 | 45 |

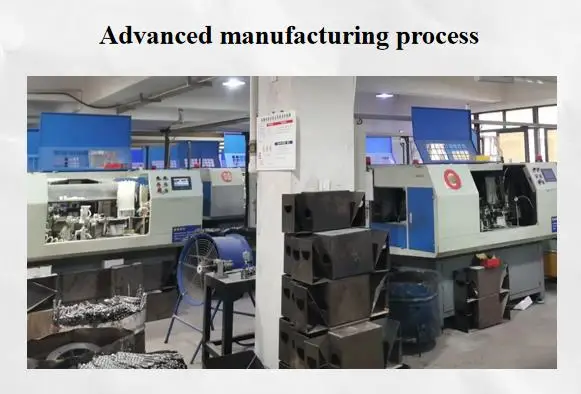

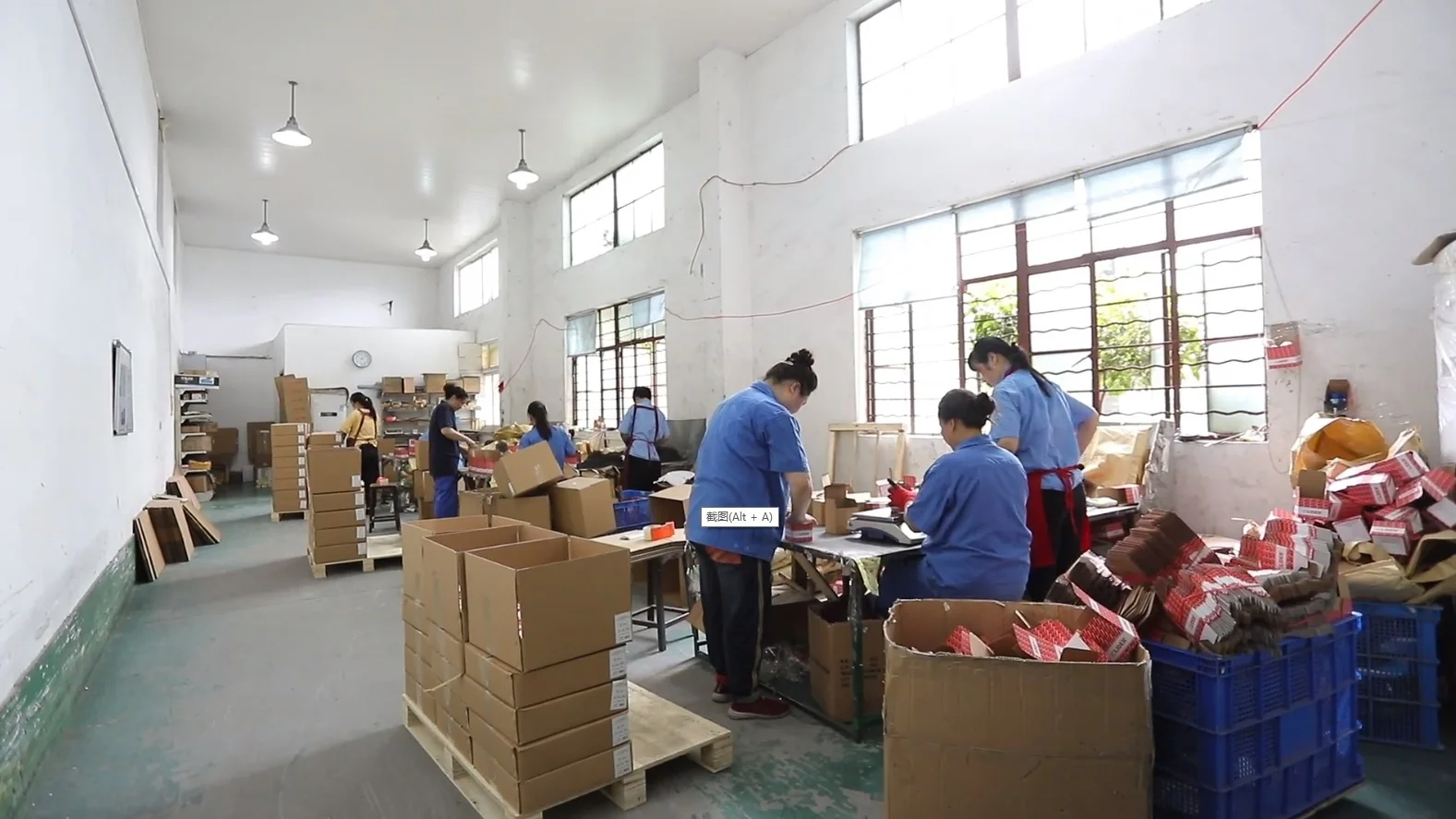

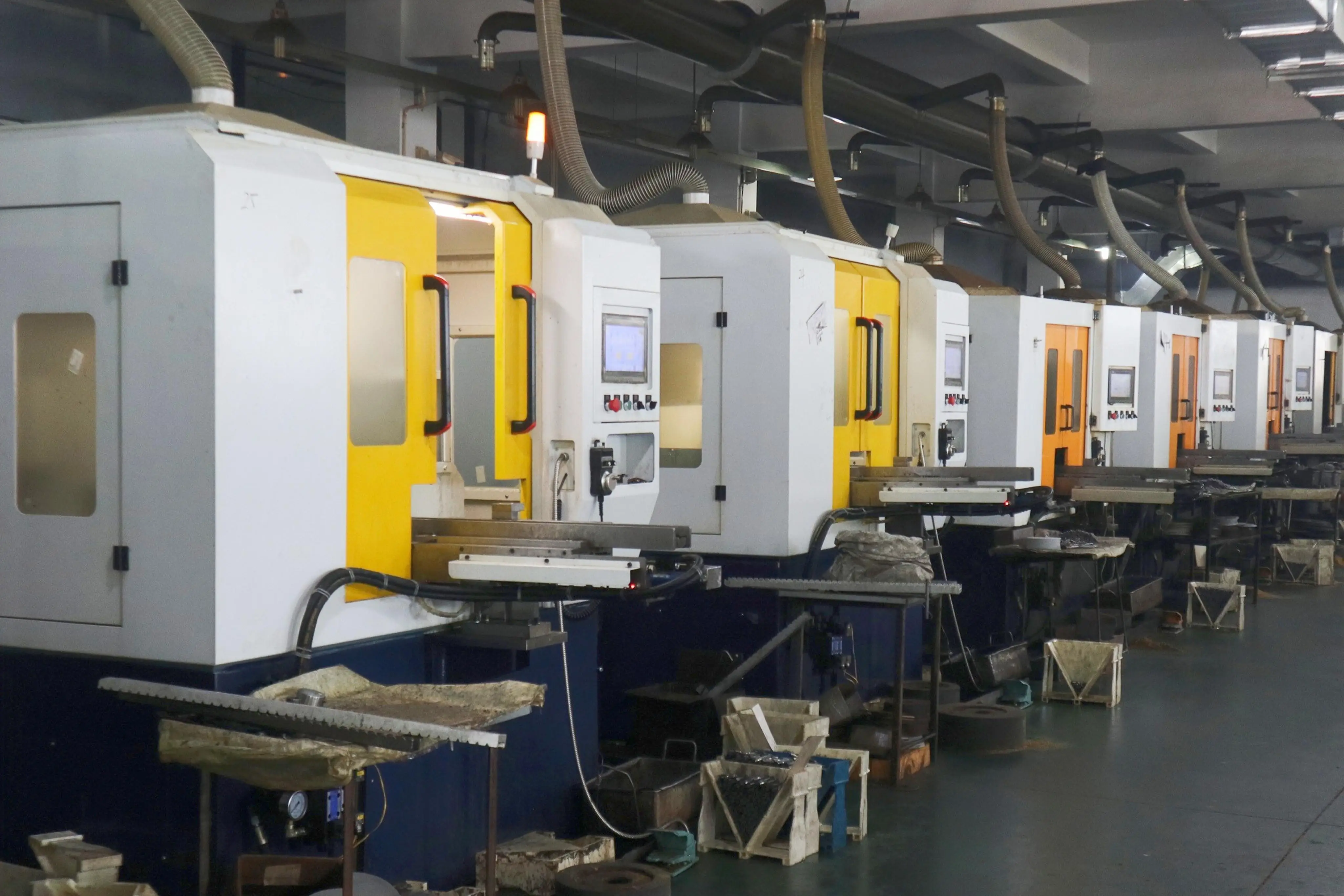

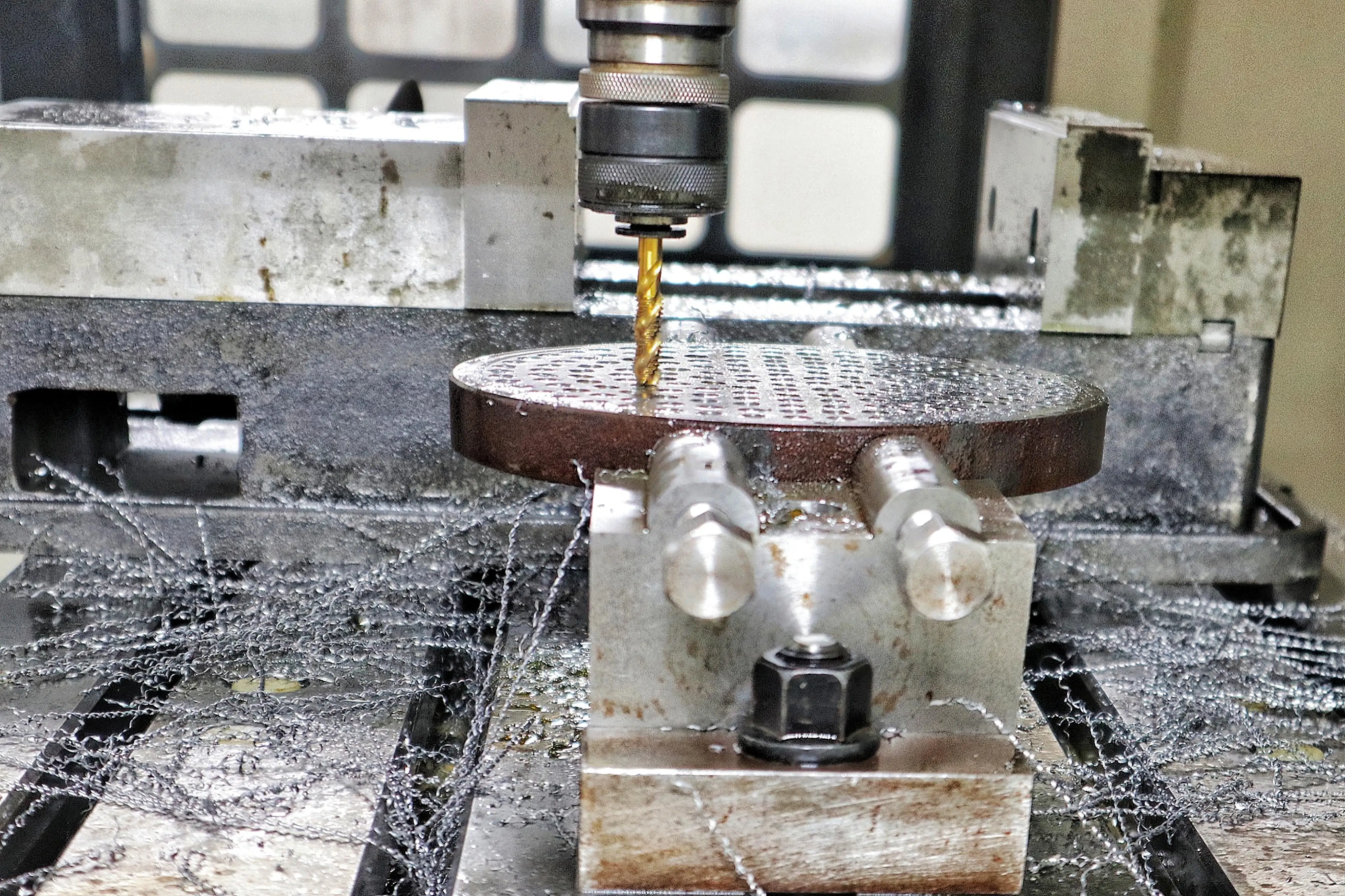

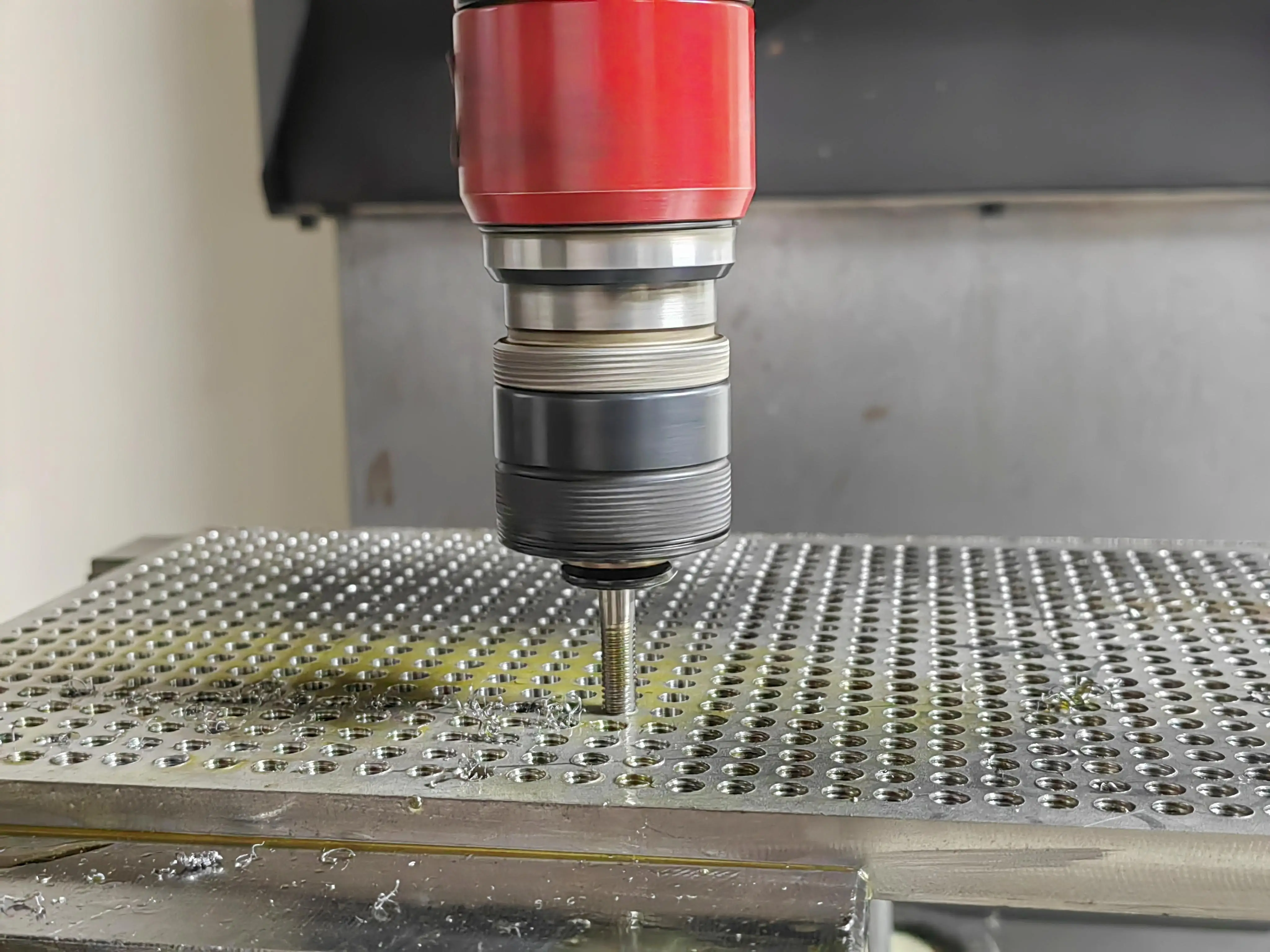

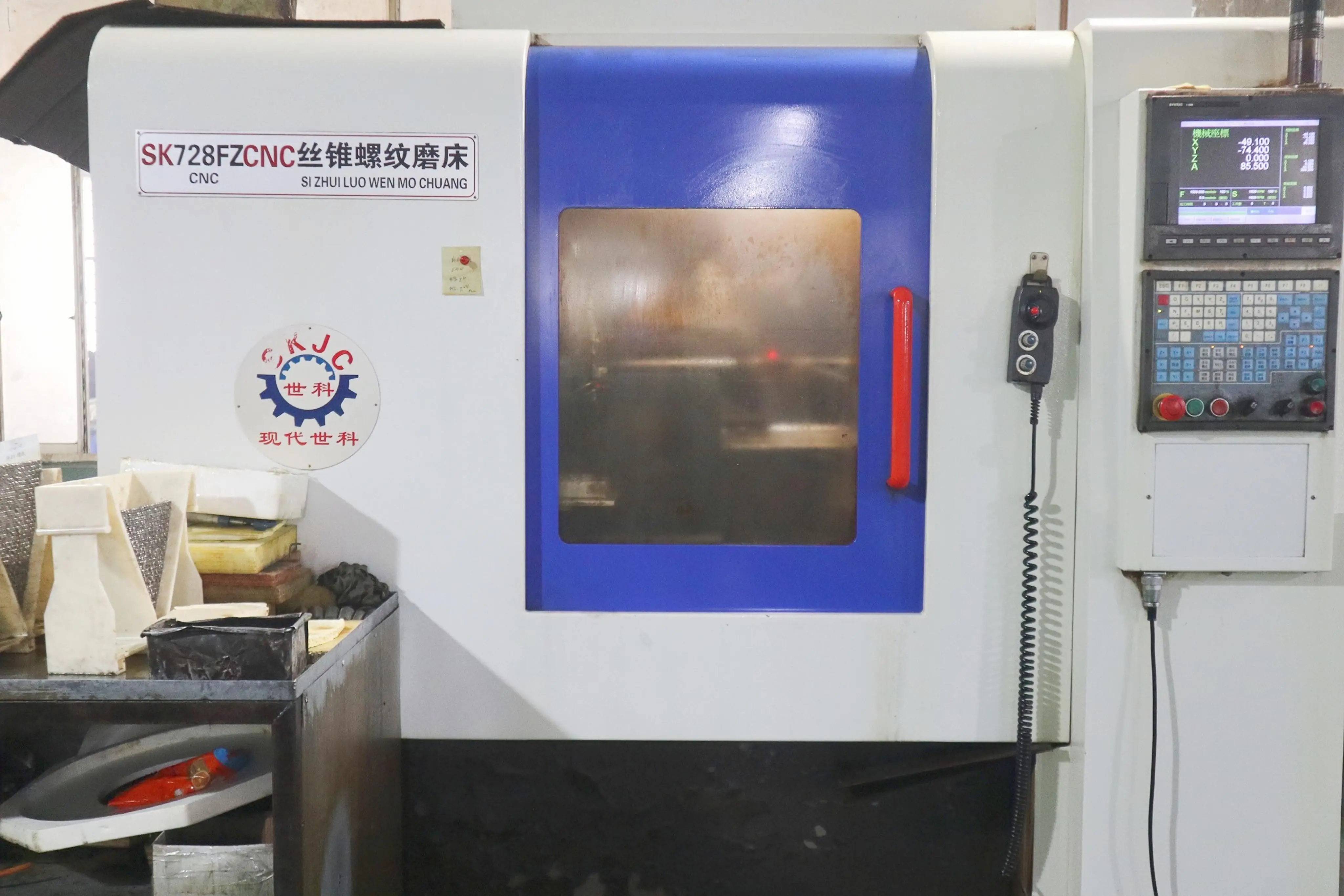

Plant

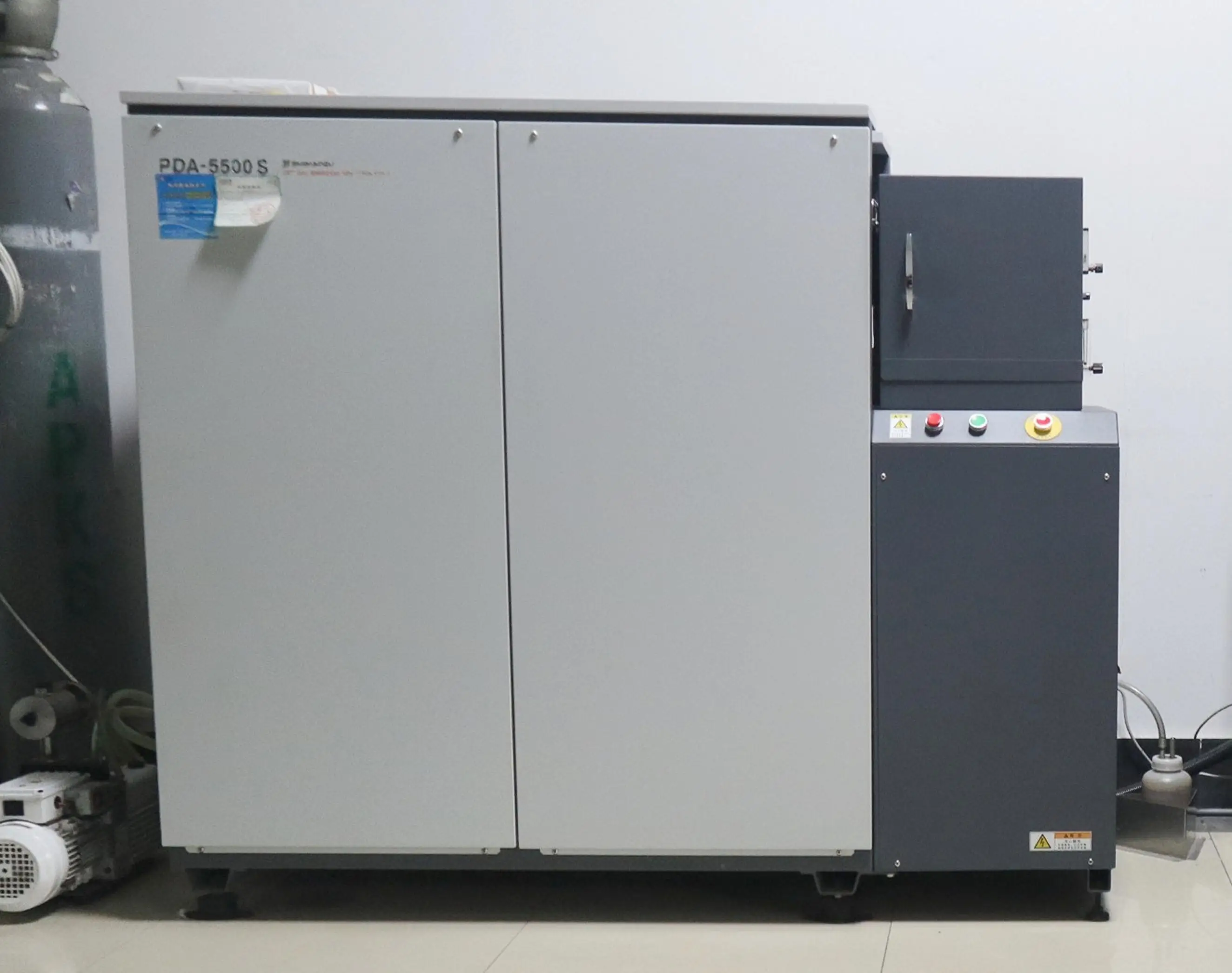

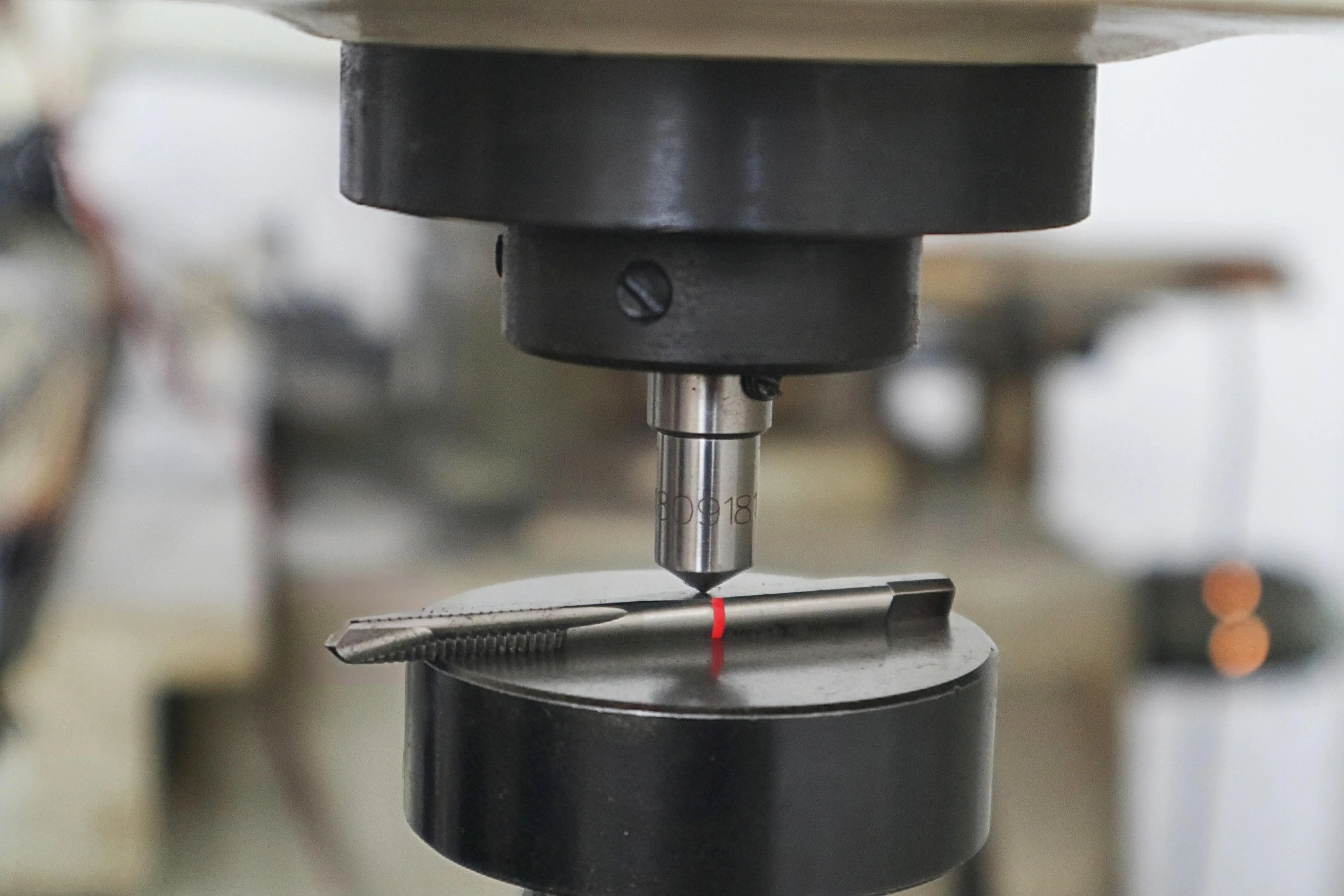

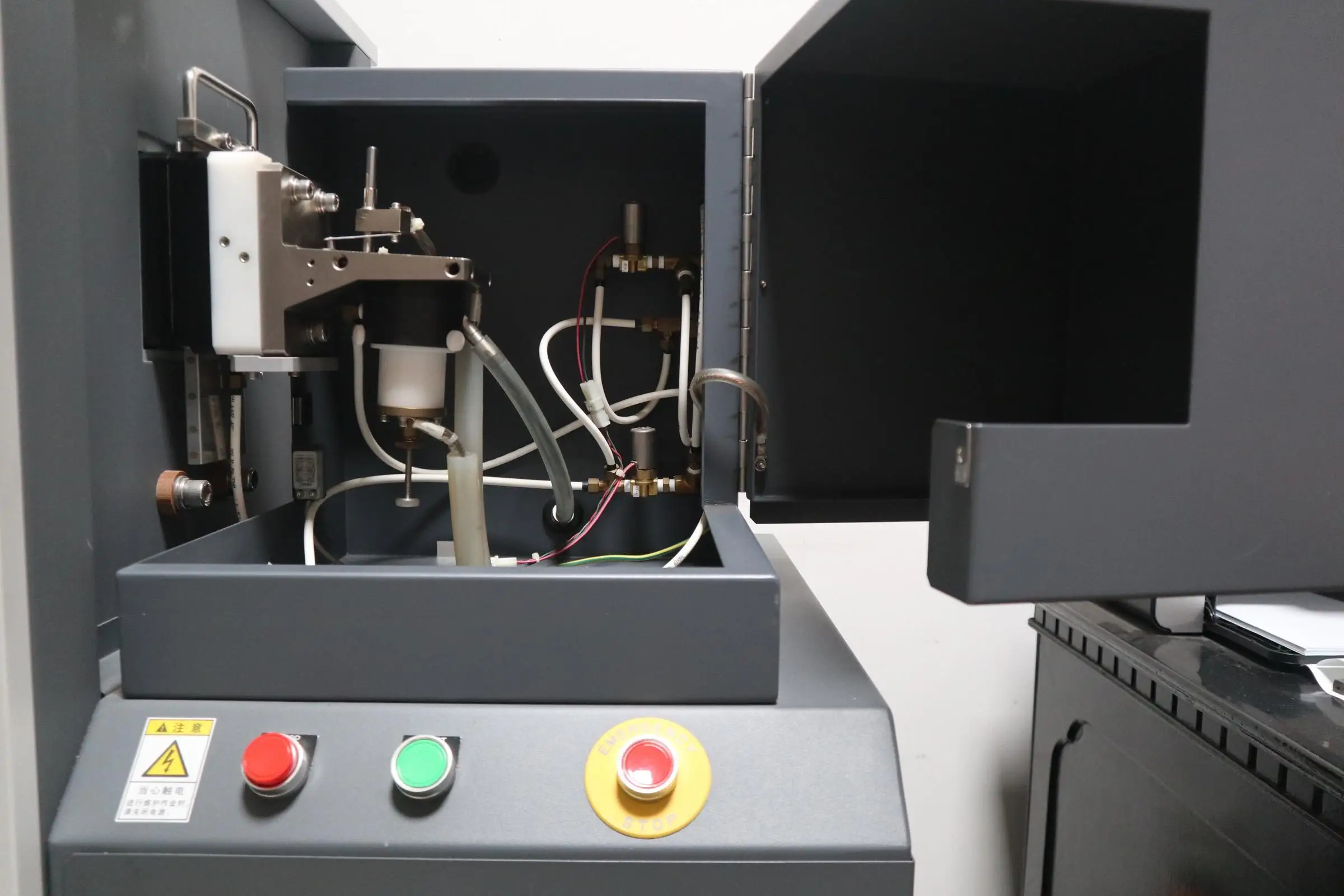

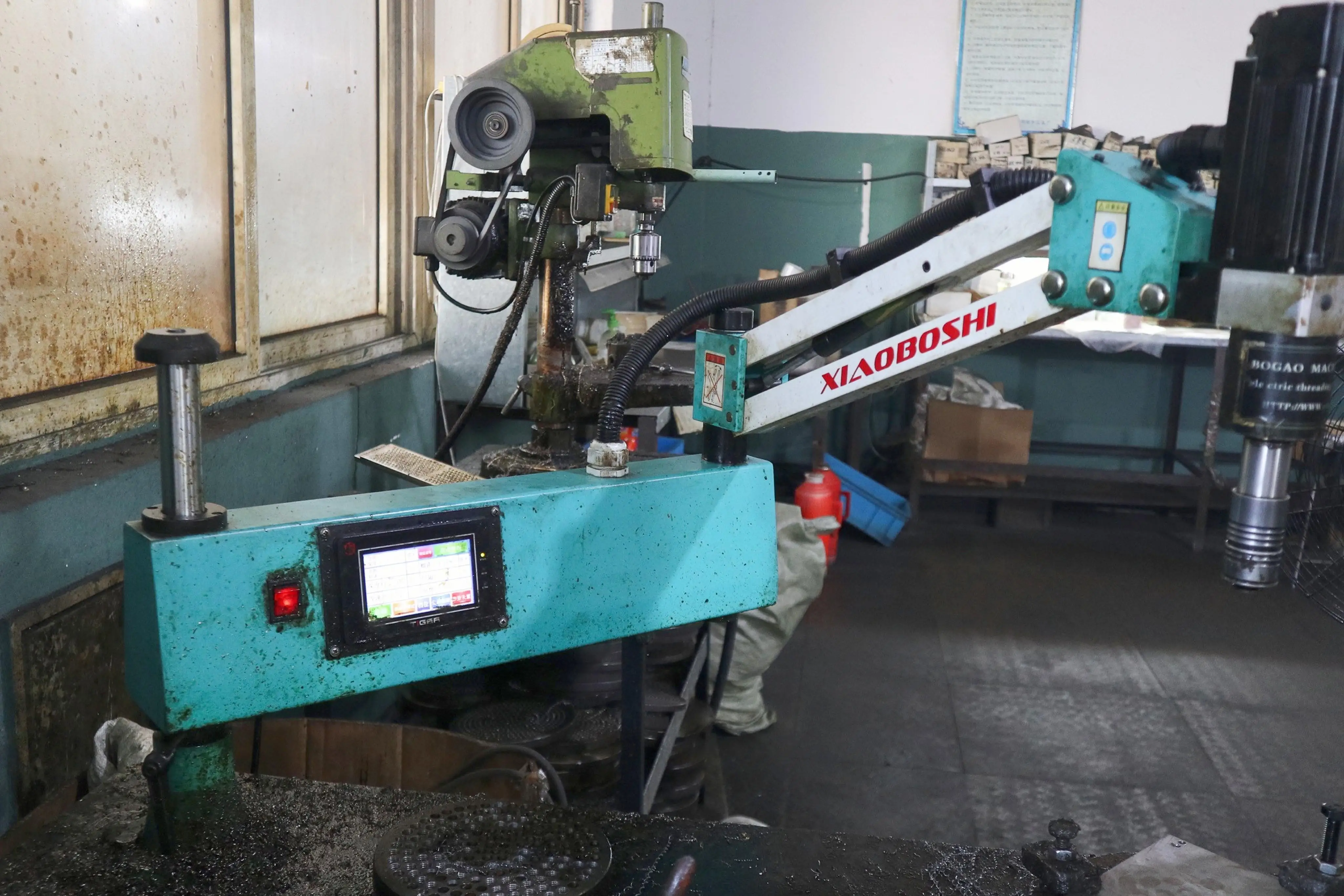

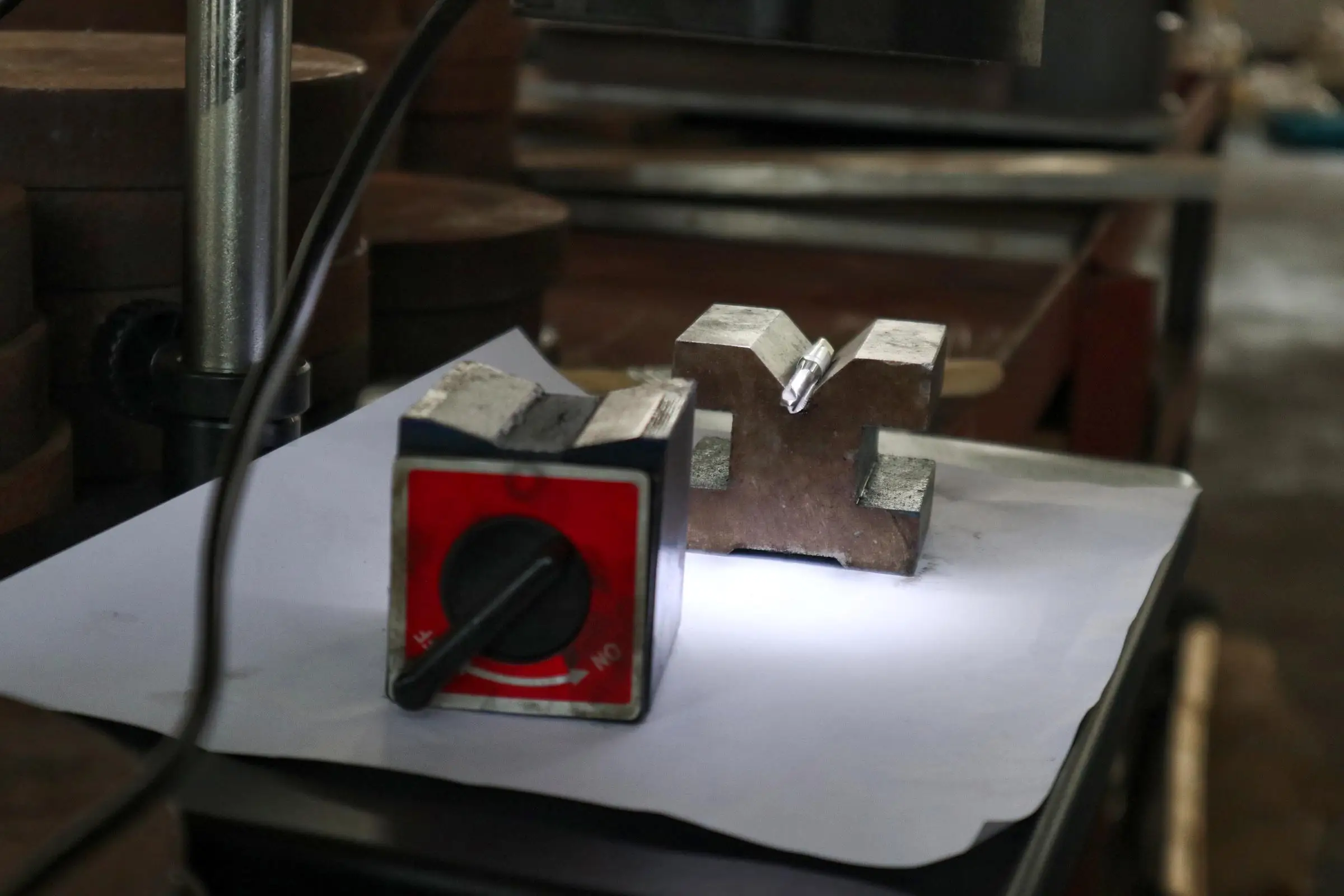

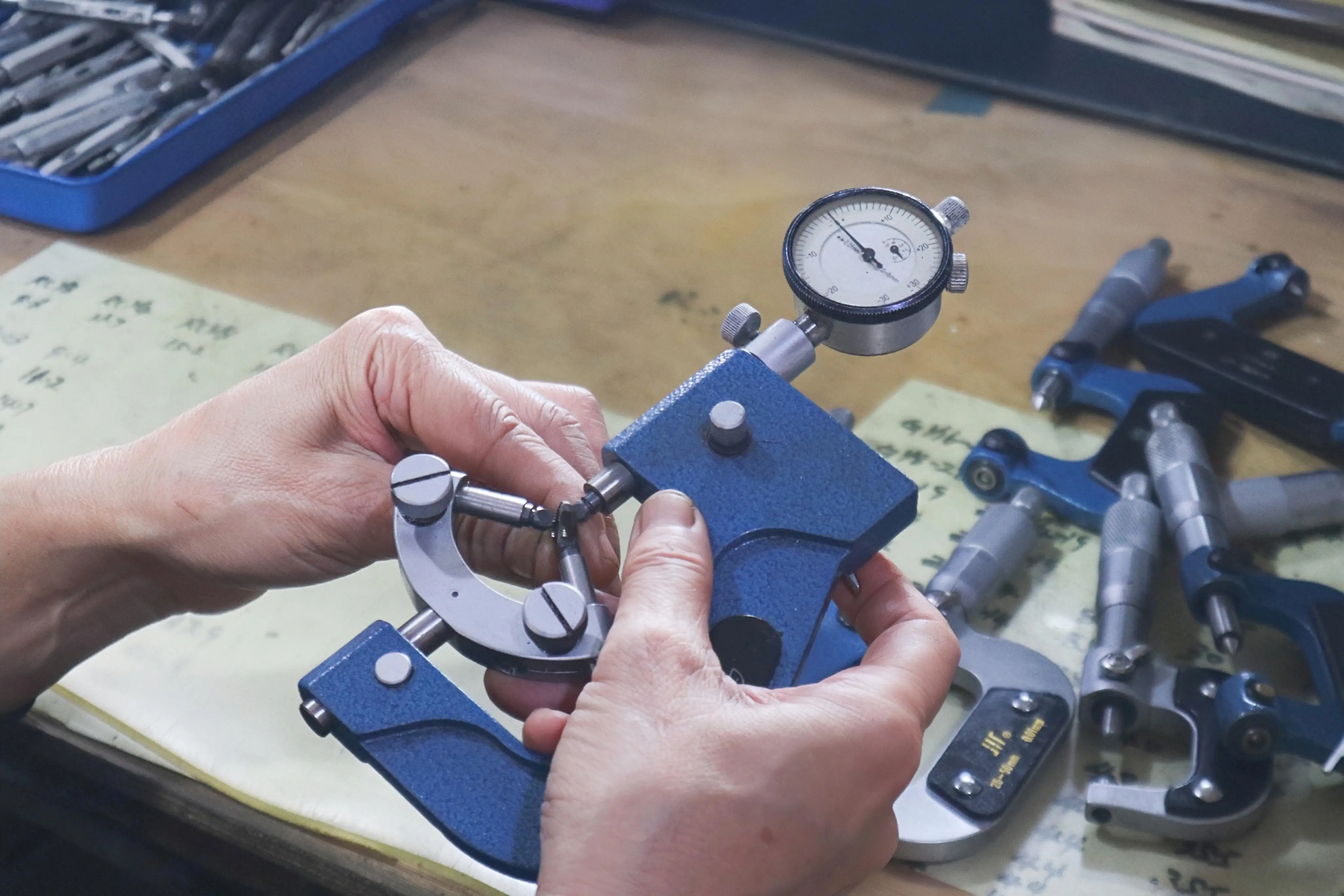

Quality Test

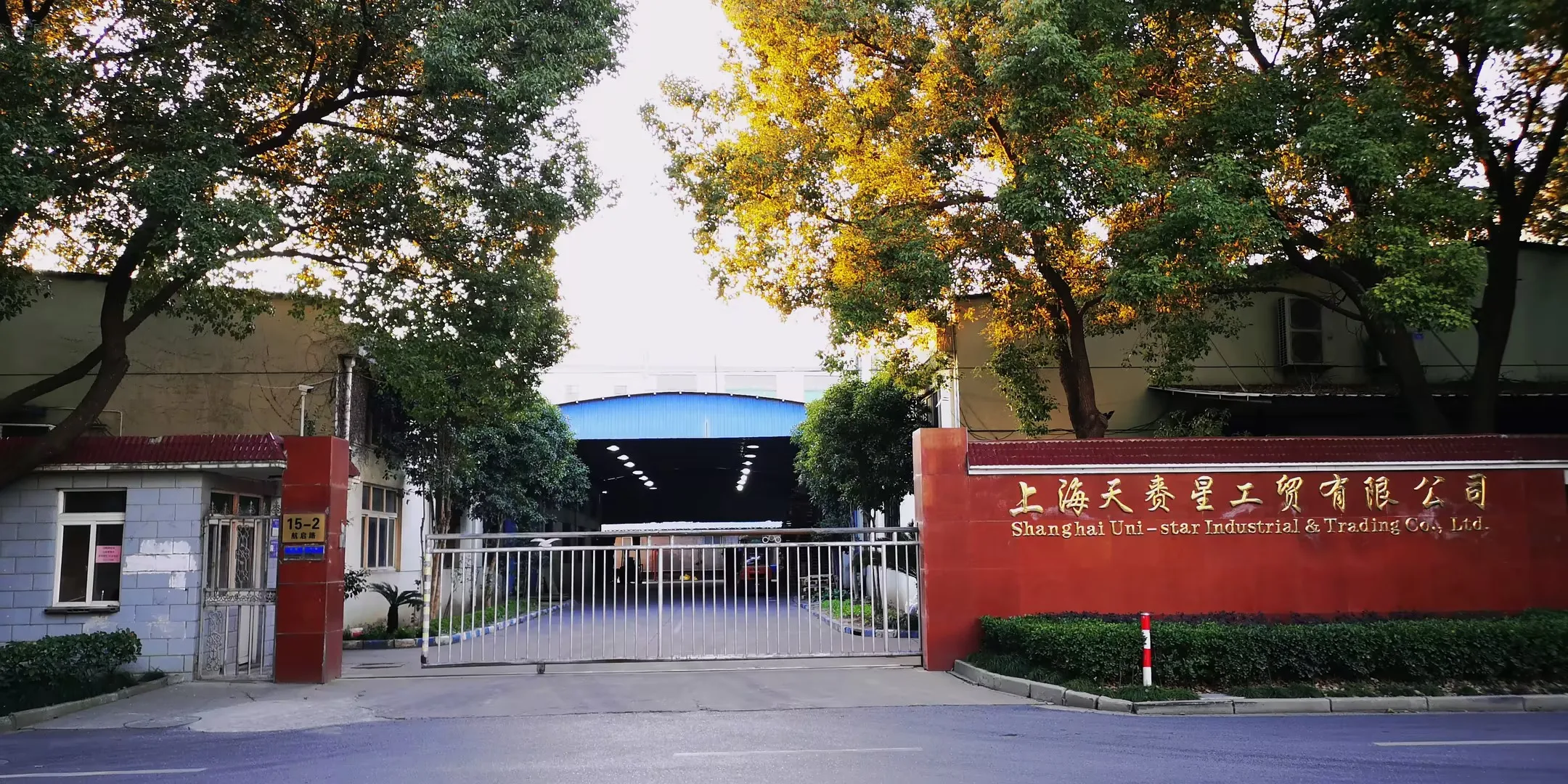

Company Profile
Established in 2002, Shanghai Uni-star specializes in manufacture and export of tools and hardware for more than 20 years. After years of accumulation, we have a well-established system which includes research, development, production, inspection, packaging,warehousing, logistics and service components.
This system enables us to provide customized service, competitive prices, timely production, high quality control, diversified packaging, and logistics advantages. As a result, we have a good reputation with our clients, which spread over Western Europe, Eastern Europe, North America, South America, Southeast Asia, and Africa.
Our team are honest, knowledgeable, eager, well equipped in the tool business, and can maintain attractive prices without cutting corners on quality. We have striven for total customer satisfaction during the past 20 years, and welcome you to enjoy all benefits of our service. You will find our value during cooperation!
Exhibition
SALES AND SERVICE NETWORK
Why Choose Us

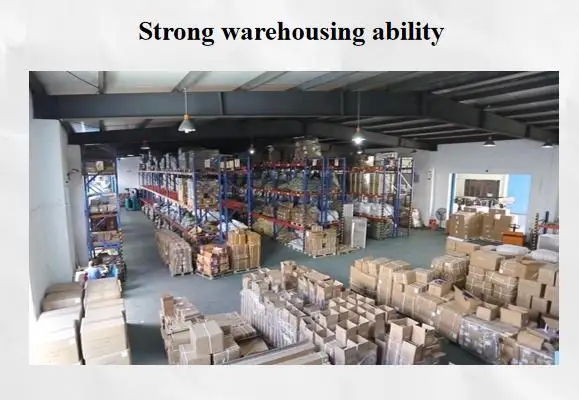

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
FAQ
Q1: Are you a factory or trading company?
A1: We are an industry and trade integrated company with more than 20 years of experience in this field.
Q2: Do you accept OEM?
A2: Yes, we provide OEM, customization and label printing service. Just send us your packing design and logo.
Q3: Can I get samples?
A3: Generally free samples are available while freight is chargeable.
Q4: What is your payment terms?
A4: T/T, L/C, D/A, D/P and Paypal for different circumstances.
Q5: What is the delivery time?
A5: Generally it takes 7 working days for sample shipping, and 45-60 working days for mass order, depending on the quantity or your specific requirement. Please contact us for further information.
Q6: Do you have inspection procedures before shipping?
A6: Yes, we have 100% QC inspection before shipping.
