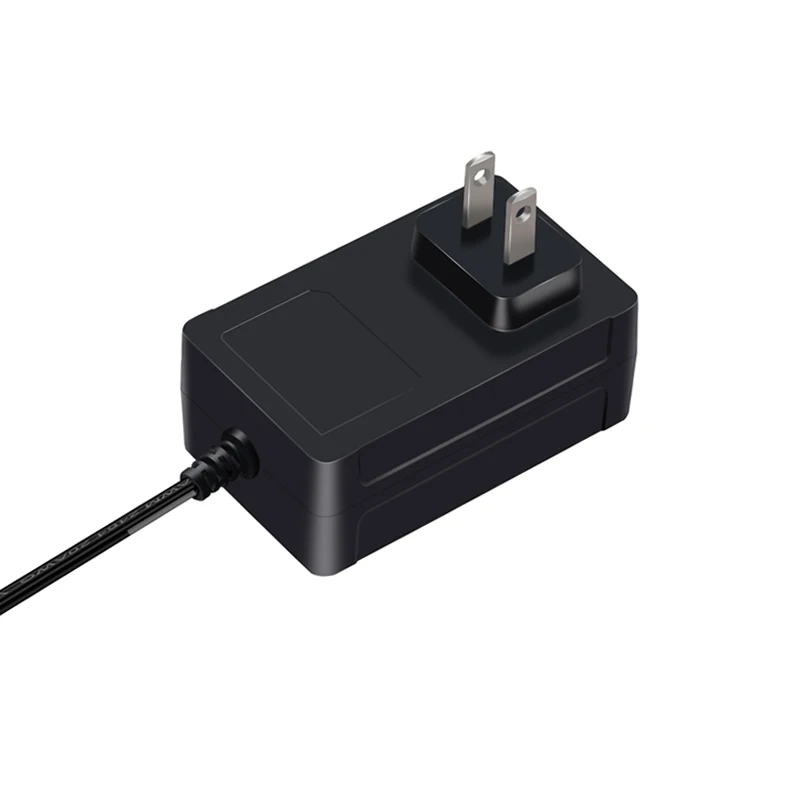

customizable power adapter 18W 36V0.5A 36 V Vdc Volt Volts 0.5 A Amp Amps Ampere 36volts 0.5amps 36vdc 500ma UL1310 Transformers
- Category: >>>
- Supplier: Shenzhen Keysun Technology Limited
Share on (1600928996149):
Product Overview
Description
Products Description
customizable power adapter 18W 36V0.5A 36 V Vdc Volt Volts 0.5 A Amp Amps Ampere 36volts 0.5amps 36vdc 500ma UL1310 Transformers
Input Voltage | 100-240 Volts AC 50/60Hz | ||||||
Output Voltage | 36VDC | ||||||
Output Current | 500mA | ||||||
Rated Power | 18Watt | ||||||
Working Temperature | -40℃ to +50℃ | ||||||
Certification | UL cUL FCC Class 2 ... | ||||||
DC Connector Size | 5.5*2.1mm or 5.5*2.5mm or others | ||||||
NO. | ZF120A-3618 | ||||||

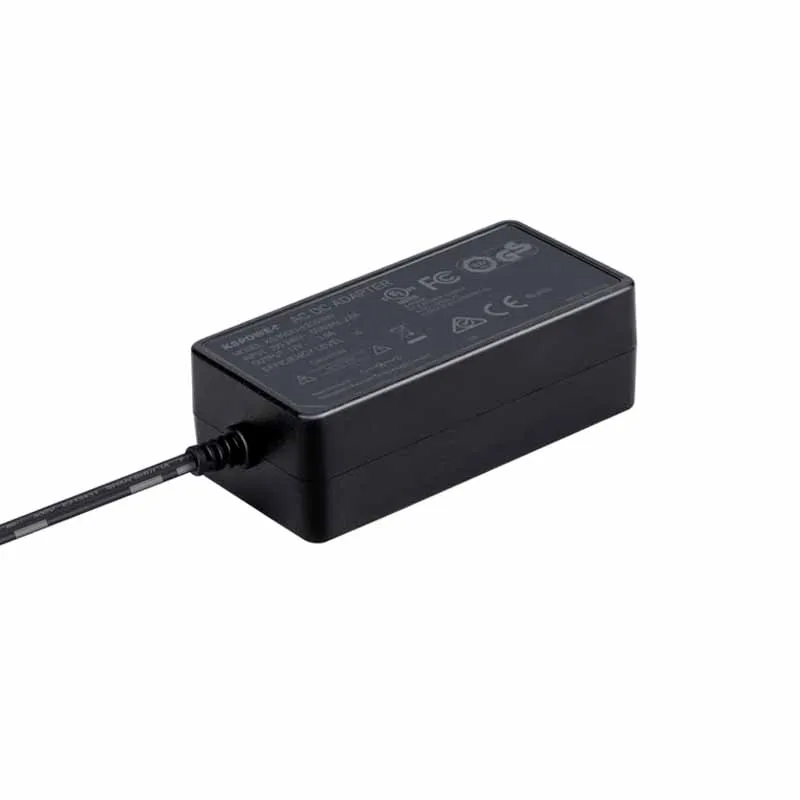

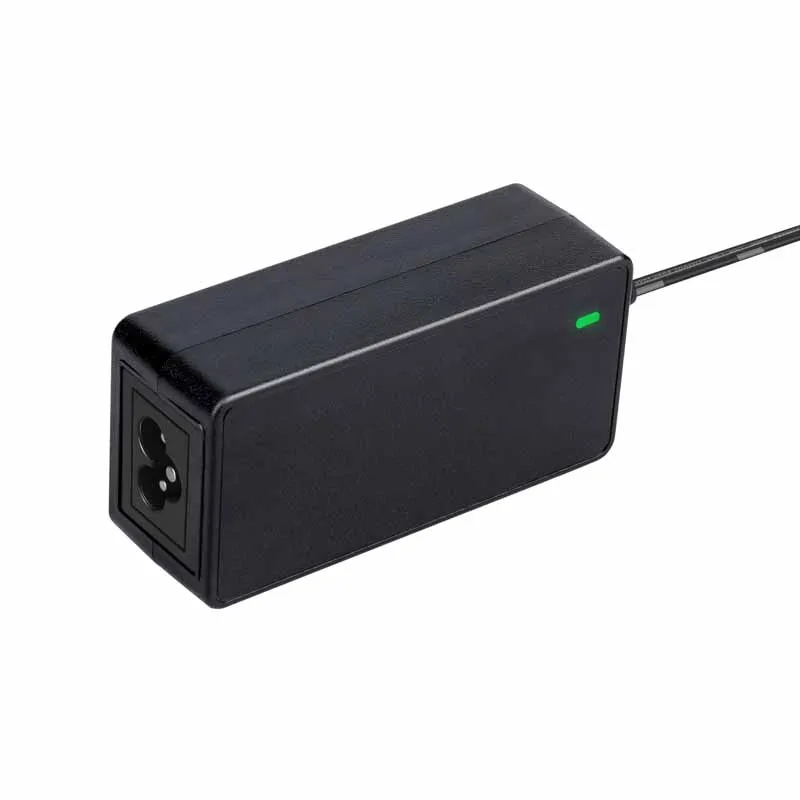

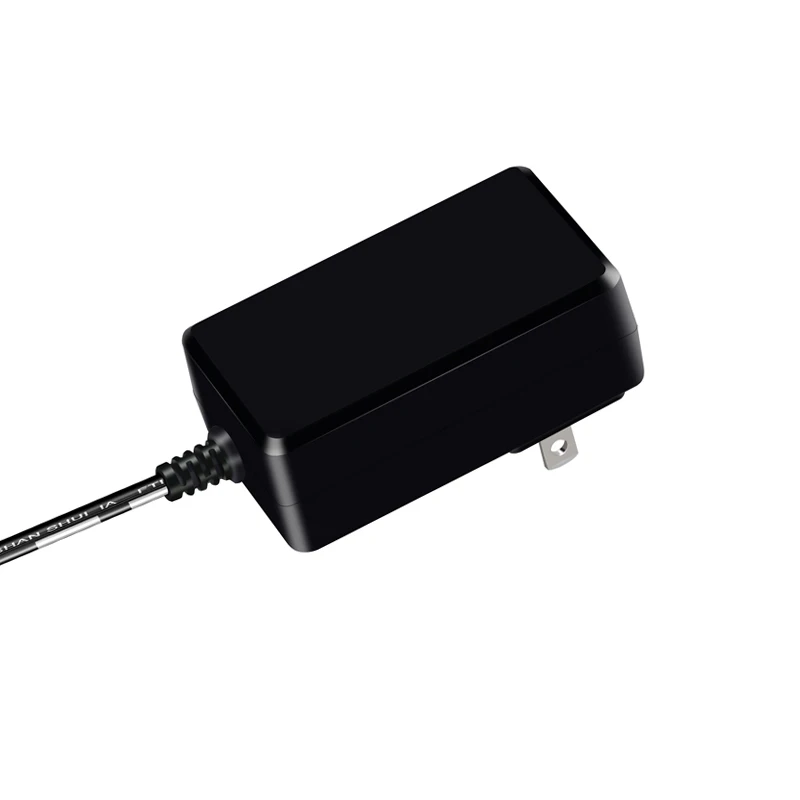

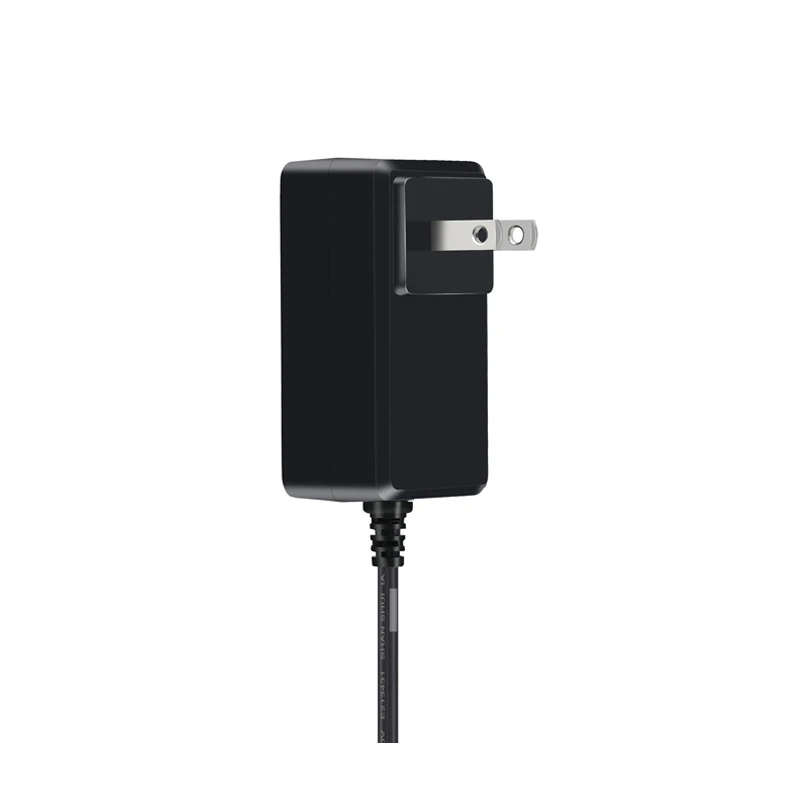

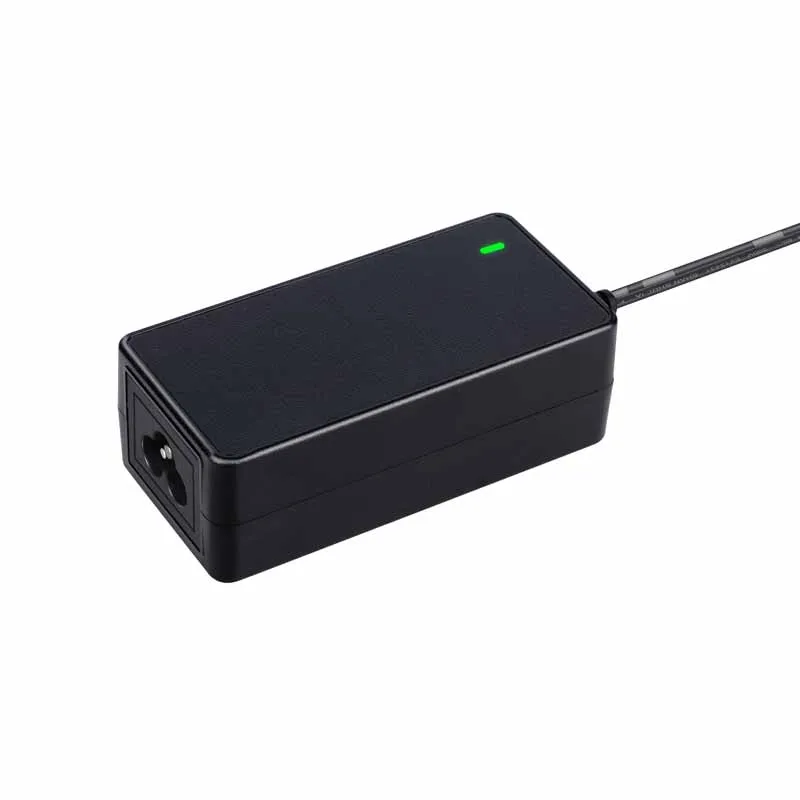

Type | Desktop type/ Plug in | ||||||

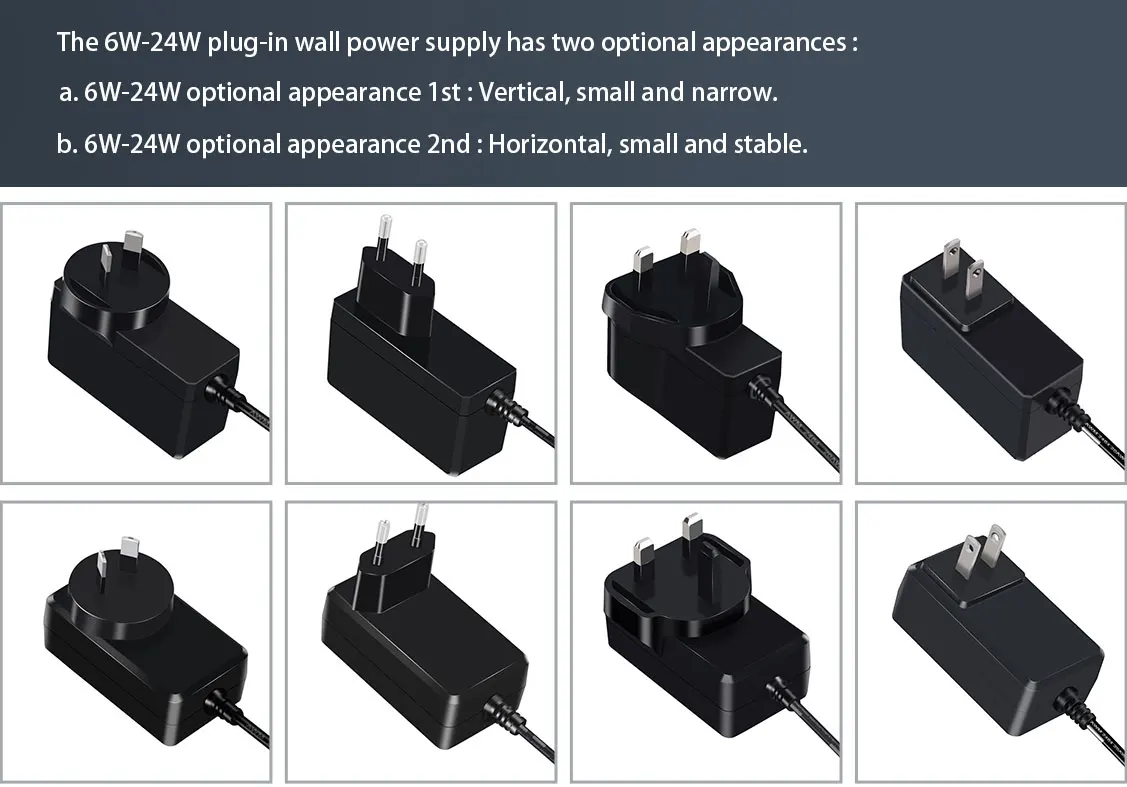

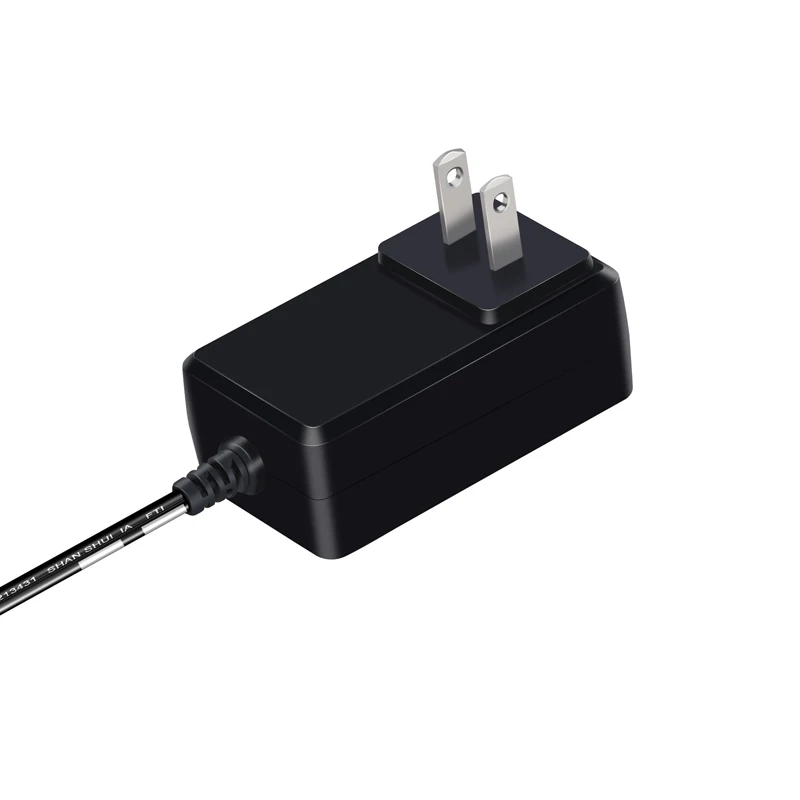

AC plug | US plug 2 pin or 3 pin | ||||||

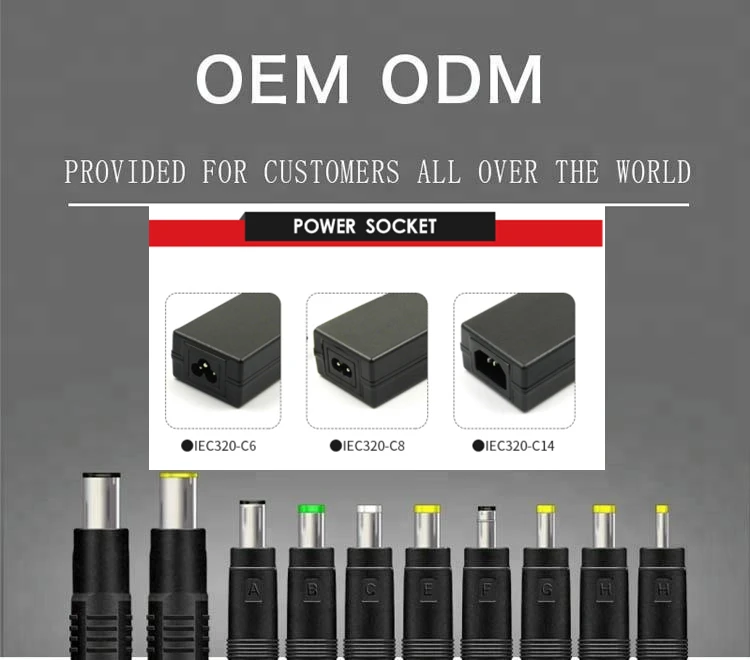

AC Inlet | IEC320-C8/C6/C14 | ||||||
Features:
* Single channel & Constant Voltage power supply
* Class 2 power units
* 100% Full load burn-in test
* Pass LPS (limited power source)
* 36 Months Warranty
* Compact size, fully enclosed plastic case
* Starting time:〈 3 s
* Energy Efficiency: DOE/CEC Level VI
* Class 2 power units
* 100% Full load burn-in test
* Pass LPS (limited power source)
* 36 Months Warranty
* Compact size, fully enclosed plastic case
* Starting time:〈 3 s
* Energy Efficiency: DOE/CEC Level VI
Show Details
Product packaging
1. Sample is available.
2. Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others.
a.for wall mount type: each one put in one small inner brown box, then 60 pcs put in one standard carton
2. Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others.
a.for wall mount type: each one put in one small inner brown box, then 60 pcs put in one standard carton
Package | Piece/Carton(pcs) | Piece Weight(KG) | ||||
OEM package | 60 | 0.168 | ||||
Dimension/Brown Box(mm) | Dimension/Carton(mm) | Gross Weight/Carton(KG) | ||||
68*55*115 | 360*352*250 | 11 | ||||
b.for desktop type: each one put in one small inner brown box, then 50 pcs put in one standard carton.
Package | Piece/Carton(pcs) | Piece Weight(KG) | ||||
OEM package | 50 | 0.14 | ||||
Dimension/Brown Box(mm) | Dimension/Carton(mm) | Gross Weight/Carton(KG) | ||||
155*85*35 | 455*370*175 | 7.5 | ||||
Applications
Wide Uses:
⋆Security and surveillance devices: CCTV Security Camera DVR .
⋆RGB & Single Color 2835 3528 5050 5630 5730 DC36V Low Voltage Flexible LED Rope Strip Lights.
⋆External harddrive, keyboads, microphones, aquarium light, electric scales.

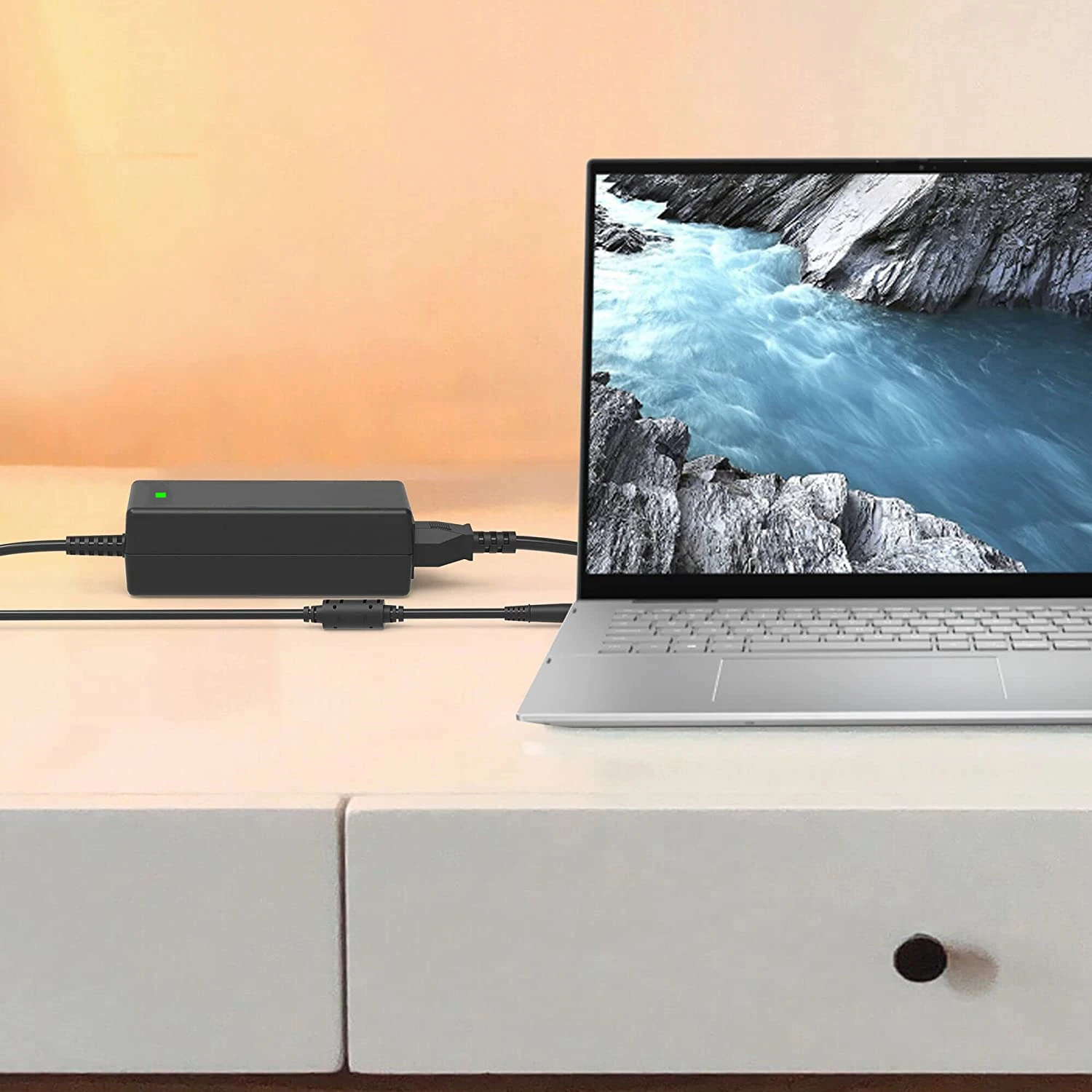

⋆Record player, router, DVD, Monitor, SDR project, Printer and Other DC 36V devices (Not more than 18W).
⋆Security and surveillance devices: CCTV Security Camera DVR .
⋆RGB & Single Color 2835 3528 5050 5630 5730 DC36V Low Voltage Flexible LED Rope Strip Lights.
⋆External harddrive, keyboads, microphones, aquarium light, electric scales.
⋆Record player, router, DVD, Monitor, SDR project, Printer and Other DC 36V devices (Not more than 18W).
How to determine whether this adapter is suitable for your device:
1. Please find the spec label of your device and check the working voltage. It should be 36VDC, not be AC 36V or lower/higher than 36V DC. Otherwise, your device will not work or be damaged.
2.Check the max current your device will draw. It should be equal to or less than 0.5 A, Otherwise, your device won’t work well and the power supply will be damaged very soon.
3. Check the power input port of your device. Inner core polarity should be"+", exterior polarity should be" - ".Please confirm
whether the listed DC interface size includes the power input interface size of your device.
4. If you have a power supply for reference, their output voltage, plug size, polarity should be the same .If our ac adapter
current is equal to or higher than original one’s, then it will work with your device.
2.Check the max current your device will draw. It should be equal to or less than 0.5 A, Otherwise, your device won’t work well and the power supply will be damaged very soon.
3. Check the power input port of your device. Inner core polarity should be"+", exterior polarity should be" - ".Please confirm
whether the listed DC interface size includes the power input interface size of your device.
4. If you have a power supply for reference, their output voltage, plug size, polarity should be the same .If our ac adapter
current is equal to or higher than original one’s, then it will work with your device.
Company Profile
Shenzhensshi Zhenhuan Electronic Co., Ltd and Shenzhen Keysun Technology Limited.
We’re an enterprise integrating industry and trade, which was founded in 2008, located in Shenzhen. Specializing in R&D, production and sales of AC DC adapter, Power Supply Units, LED driver and Li-ion battery charger, with more than 15 years of experience.
As a strength manufacturer, we have two factories in Shenzhen and Dongguan. We focus on finished product assembly and plug-in semi-finished product processing respectively. At present, we have more than 100 workers and a production area of 3,000 square meters.
We have our own brand--KSPOWER. Brand concept is “ Concentrate on doing one thing well and provide customers with a competitive and reliable products.
As a strength manufacturer, we have two factories in Shenzhen and Dongguan. We focus on finished product assembly and plug-in semi-finished product processing respectively. At present, we have more than 100 workers and a production area of 3,000 square meters.
We have our own brand--KSPOWER. Brand concept is “ Concentrate on doing one thing well and provide customers with a competitive and reliable products.
