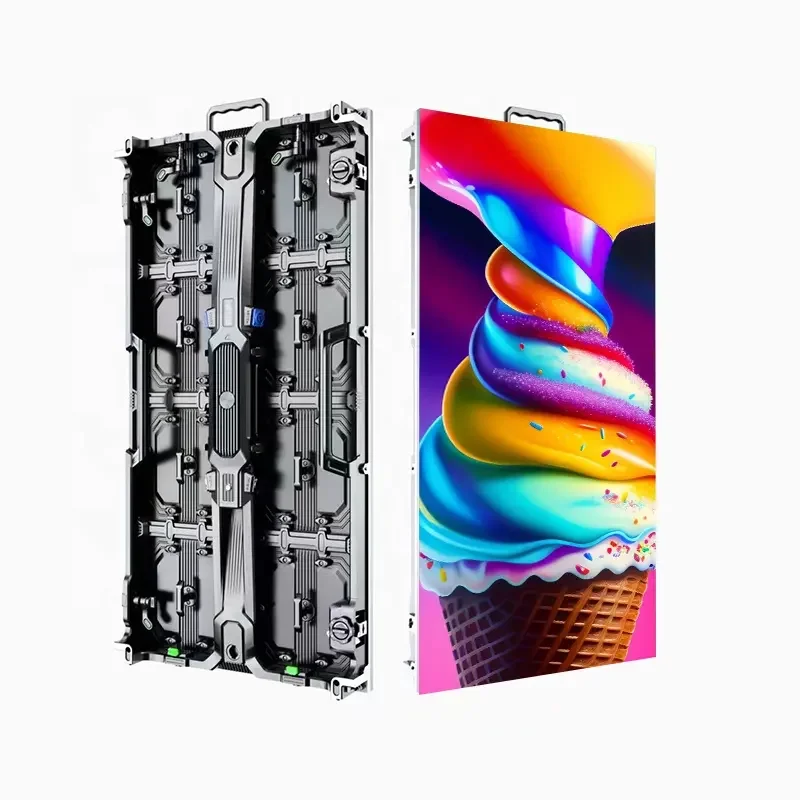

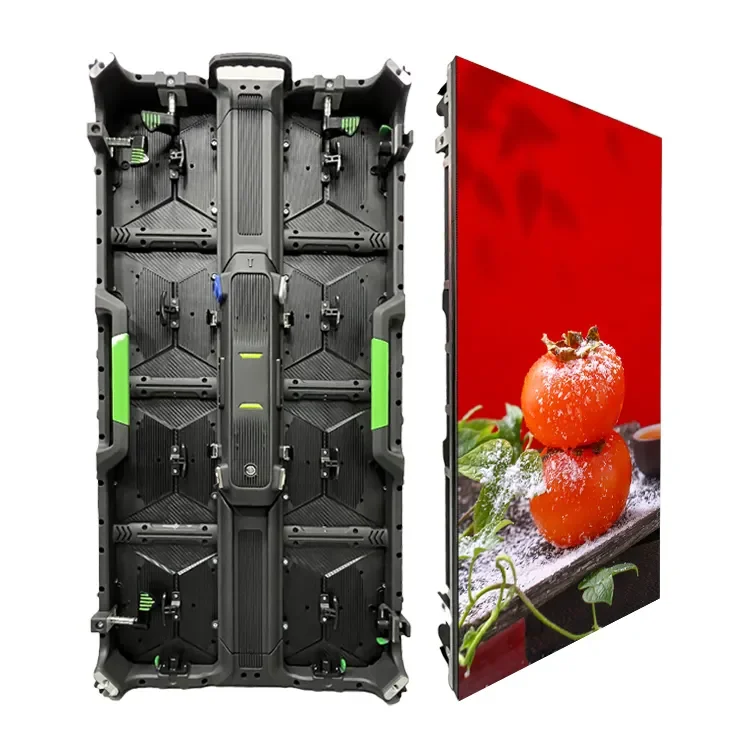

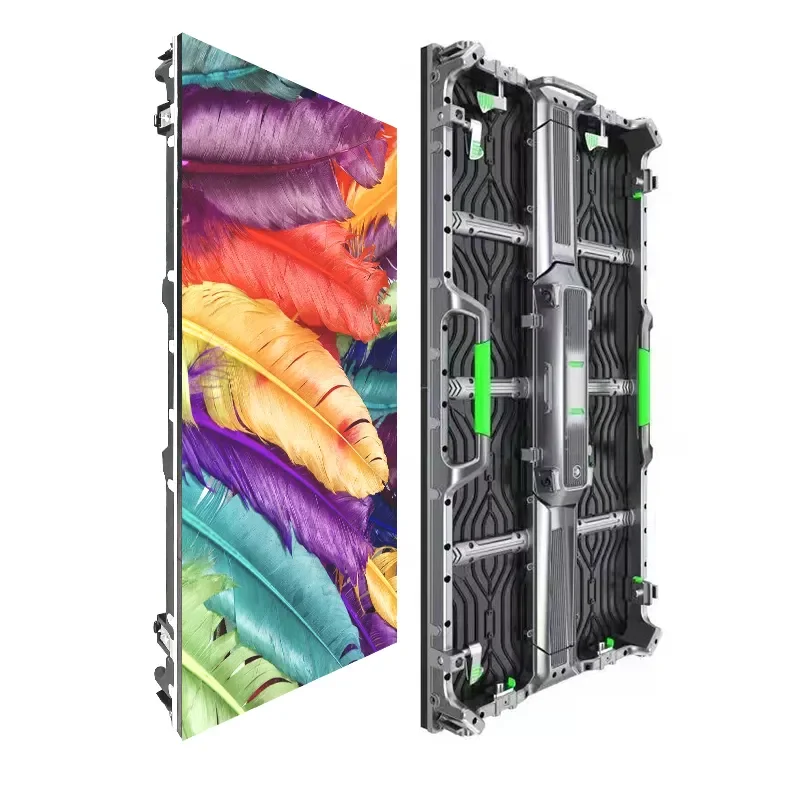

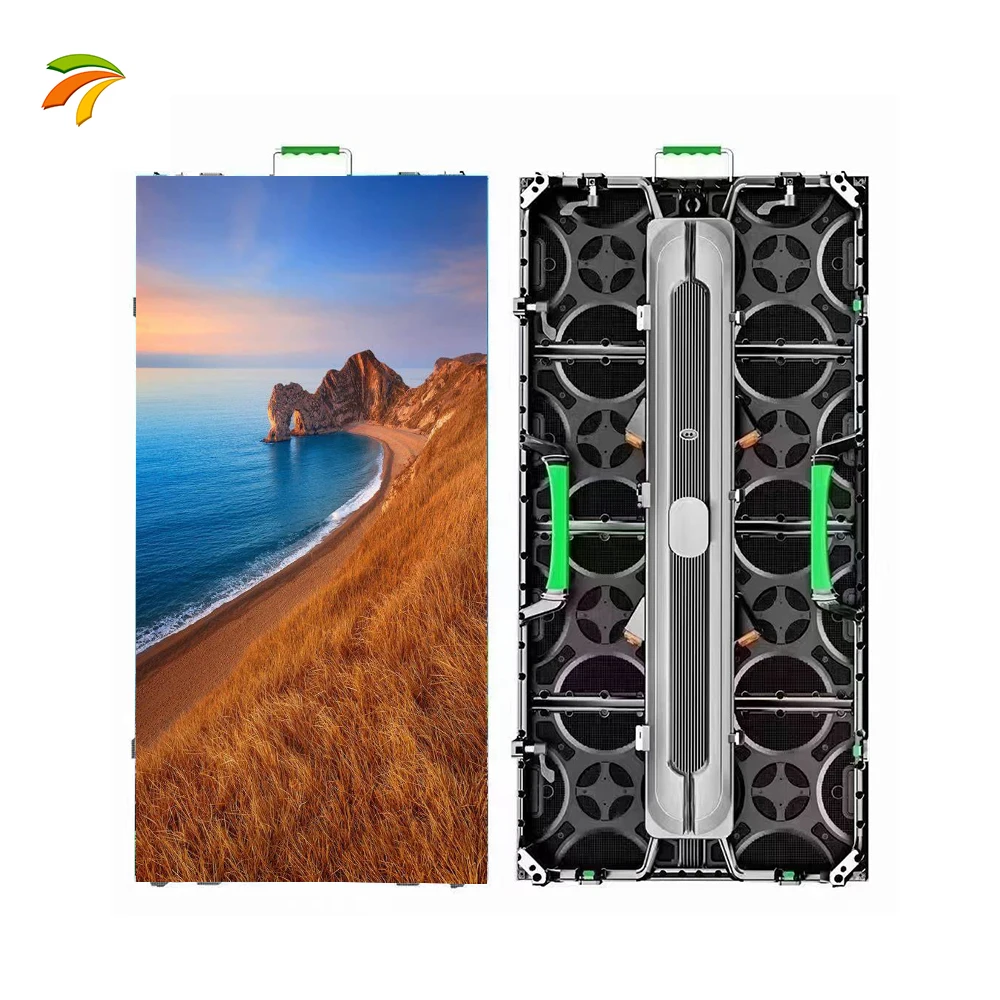

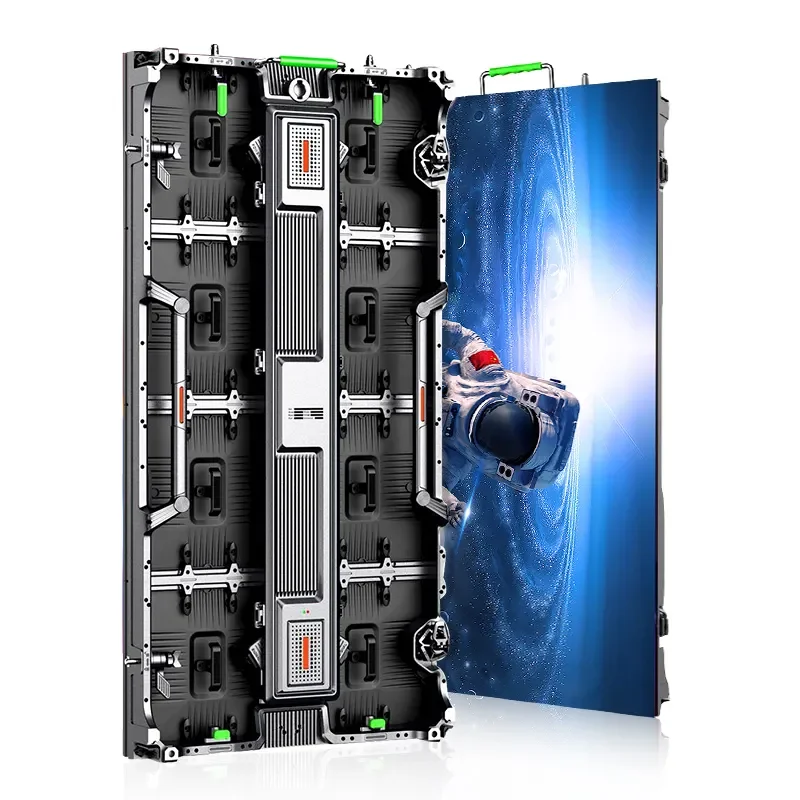

Led Video Wall Score Board Led Display Advertising Led Display Panel P3.91 Aluminium Stage Led Window Film

Share on (1600929020972):


Price:$169.00 - $173.00

Quantity:


Product Overview

Description



Product Details










Product Specification


Pixel Pitch
2.6mm
2.9mm
3.9mm
4.8mm
LED Configuration
SMD2121
SMD2121
SMD2121
SMD2121
Application
Indoor
Indoor
Indoor
Indoor
Pixel Density/sqm
147456dots
112896 dots
65536 dots
43264 dots
Module Size/mm
250 x 250
250 x 250
250 x 250
250 x 250
Module Resolution
96x 96 dots
84x 84 dots
64 x 64 dots
52 x 52 dots
Cabinet Size
500x1000mm
500x1000mm
500x1000mm
500x1000mm
Cabinet Resolution
192 x 384 dots
168x 336dots
128 x 256 dots
104 x 208 dots
Cabinet Weight
12.5Kg
12.5Kg
12.5Kg
12.5Kg
IP Rating
IP31
IP31
IP45
IP45
Scan
1/32S
1/28S
1/16S
1/13S
Brightness /sqm
1000 nits
1000 nits
1200 nits
1200 nits
View Angle/°
160°/ 140°(H/V)
160°/ 140°(H/V)
160°/ 140°(H/V)
160°/ 140°(H/V)
Gray Scale/bit
16 bit
16 bit
16 bit
16 bit
Max. Power Consumption/W
640 W/sqm
640 W/sqm
640 W/sqm
640 W/sqm
Ave. Power Consumption/W
192 W/sqm
192 W/sqm
192 W/sqm
192 W/sqm
Refresh Frequency/Hz
1920-3840 Hz
1920-3840 Hz
1920-3840 Hz
1920-3840 Hz
Operating Power
AC 96~242V 50/60Hz
Operating Humidity
10~90%RH
Operating Life
100,000Hours
Operating Temperature
-40℃~+60℃




Product effect








Company Profile


Guangzhou Noey Photoelectric Technology CO.,LTD.
is a manufacturer of Stage lights and LED Display with well-equipped testing
facilities and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are
extensively used in lights and other industries. Our products are widely recognized and trusted by users and can meet continuously
changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business
relationships and mutual success!
