Product Overview

Description



Product Description

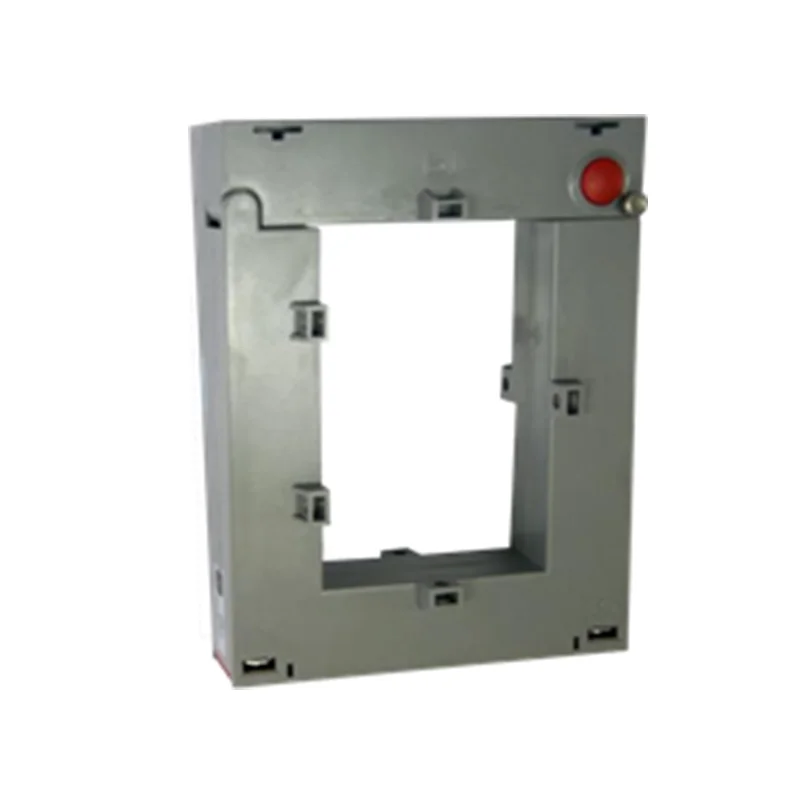

TYKCT-FA120*80 is used for the measurement of alternating current, when the current to be measured is too large to apply directly to the measuring instrument. The standard output currents are /1A and /5A. The precision is indicated by the class, the most used being class 0.5 (0.5% error) and class 1 (1% error).

In the bus bar current transformers, the current cable to be measured must pass through the central hole, without the need to cut it. They are the most used because of their good Precision/Price ratio for intensities greater than 50A.


Features


* Beautiful appearance and small size；
* Terminal output, flexible wiring;
* Beautiful appearance and small size;
* Split core design, small core loss and high precision;
* There is no need to disconnect the bus, and the installation is convenient;
* Snap type opening and closing structure, convenient opening and closing.


Specification


 Rated secondary current 5A/1A)

Model
Rated primary current (A)
Load (VA)
Class 0.5S
Class 0.5
Class 1




TYKCT-YJ25
50
/
/
1
100
/
1
2.5
150
1
1.5
2.5
200
1.5
2.5
5
250
2.5
3.75
5
300
3.75
5
7.5
 (Rated secondary output mA/mV)
Rated primary current
0~300A
continuous current
360A
Rated secondary current
0~100mA
Rated secondary voltage
0~1V
Load Resistance
0~10Ω
Accuracy class
0.5s/0.5
Other：
Equipment maximum voltage: 0.66kV
Rated input: 0~2000A
Rated output: 5A/1A/mA/mV
Working frequency: 50Hz~60Hz
Working temperature: -40℃~+85℃
Relative humidity: ≤90%, when the temperature is 40°C
Power frequency withstand voltage: 3000V/1mA/1min(50Hz)
Insulation resistance: DC500V/1000MΩ/min


Note: If you have any puzzles or requests about this product (including model number, data sheet or any other aspects), please contact us immediately.


Application


* Sub-Metering Accurate Measurement
* Data Loggers to analyze Building & Machinery Performance
* Digital Fault Recorders
* Smart Grid Application Features, Load Center
* Three Phase Balance Control
* In-Factory Display, or In-Home Display
* Inverters for Solar & Wind Turbine Systems
* Power Measurement Device for PLC
