China Factory HDPE/Pprc/PPR/LLDPE/MDPE/PVC Plastic Pipe Extrusion Production Line Pipe Making Line Plastic Extruder Machine
- Category: >>>
- Supplier: Qingdao Wings Plastic Technology Co. Ltd.
Share on (1600929072373):
Product Overview
Description
Product Description
Plastic Hdpe Pe Pp PPR Electricity Conduit Water Supply Hose Pipe Tube Extruder Making Machine Machinery Production Line

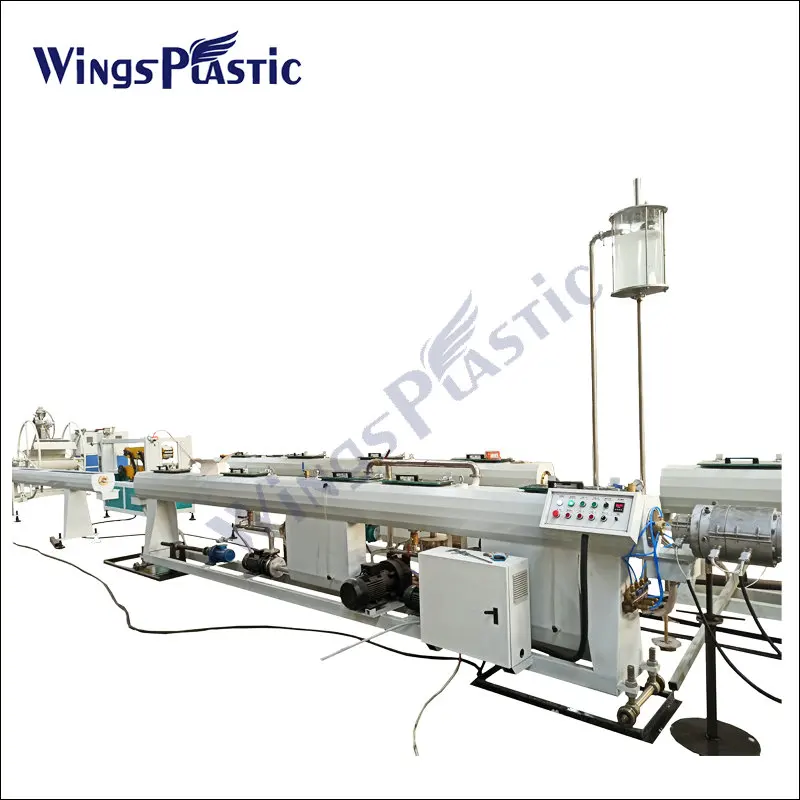

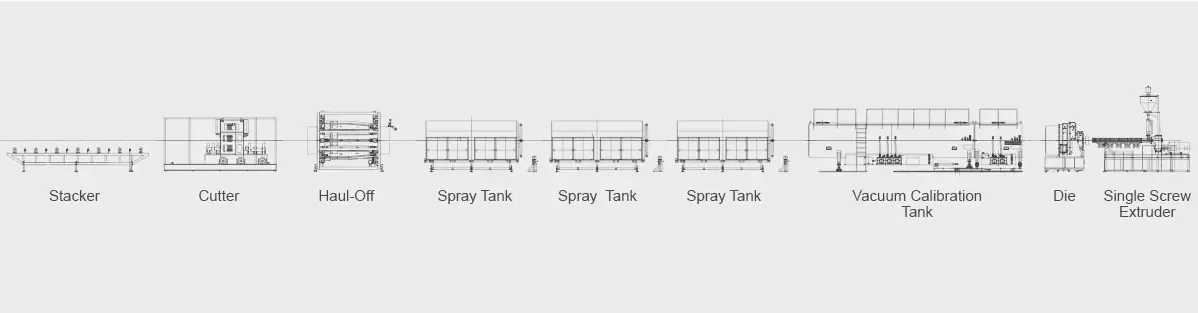

PPR PE pipe production/extrusion line / PPR PE pipe making machinery is used to produce PPR pipes for cold and hot water supply in house. It's composed of vacuum feeding machine, hopper dryer, single screw extruder, mould, make line co-extruder, vacuum calibration and cooling tank, extended spraying cooling tank, haul off machine, printer, cutter and stack bracket.
Main advantages:
1. Barrier type screw, by which the material can get good plasticizing at low temperature but high extrusion output.
2. Barrel with feeding groove, material is 38CrMoAl and nitrogen treated, surface hardness is HRC 65-68, which can has a long use life.
3. Millipore type mould with suitable inner compression ratio which can guarantee to produce high quality PPR PE pipes.
4. High automatic level. The production line is controlled by PLC(touch screen). All parts, like extruder, haul off unit, cutter
etc can be controlled by touch screen synchronously.
Ppr Pe Pipe Making Machine, Ppr Pipe Extrusion Line, Ppr Fiberglass Extrusion Machine
Qingdao Wings Plastic Technology Co.,Ltd is a proffesional manufacturer for plastic extruder machinery production.
We could produce various pp pe pvc extruder machine, like plastic pipe extruder, pp meltblow fabric extruder, pp sheet / pp strap extruder etc.
PPR PE pipe production/extrusion line / PPR PE pipe making machinery is used to produce PPR pipes for cold and hot water supply in house. It's composed of vacuum feeding machine, hopper dryer, single screw extruder, mould, make line co-extruder, vacuum calibration and cooling tank, extended spraying cooling tank, haul off machine, printer, cutter and stack bracket.
Main advantages:
1. Barrier type screw, by which the material can get good plasticizing at low temperature but high extrusion output.
2. Barrel with feeding groove, material is 38CrMoAl and nitrogen treated, surface hardness is HRC 65-68, which can has a long use life.
3. Millipore type mould with suitable inner compression ratio which can guarantee to produce high quality PPR PE pipes.
4. High automatic level. The production line is controlled by PLC(touch screen). All parts, like extruder, haul off unit, cutter
etc can be controlled by touch screen synchronously.
Single Screw Extruder big capacity
There is 45/33,65/30,65/33,75/30,75/33 ... etc extruders according diameters and ouput.
High production capacity of extrusion on the high quality basis. Lower temperature plasticizing design, ensure high quality pipe extrusion. Material of screw and barrel: 38CrMoAlA, nitrogen quenched (0.4-0.7mm ), Rigidity of screw: >740 , Rigidity of barel>940, the surface of screw is chromeplated Feeding bush with water cooling system
High production capacity of extrusion on the high quality basis. Lower temperature plasticizing design, ensure high quality pipe extrusion. Material of screw and barrel: 38CrMoAlA, nitrogen quenched (0.4-0.7mm ), Rigidity of screw: >740 , Rigidity of barel>940, the surface of screw is chromeplated Feeding bush with water cooling system

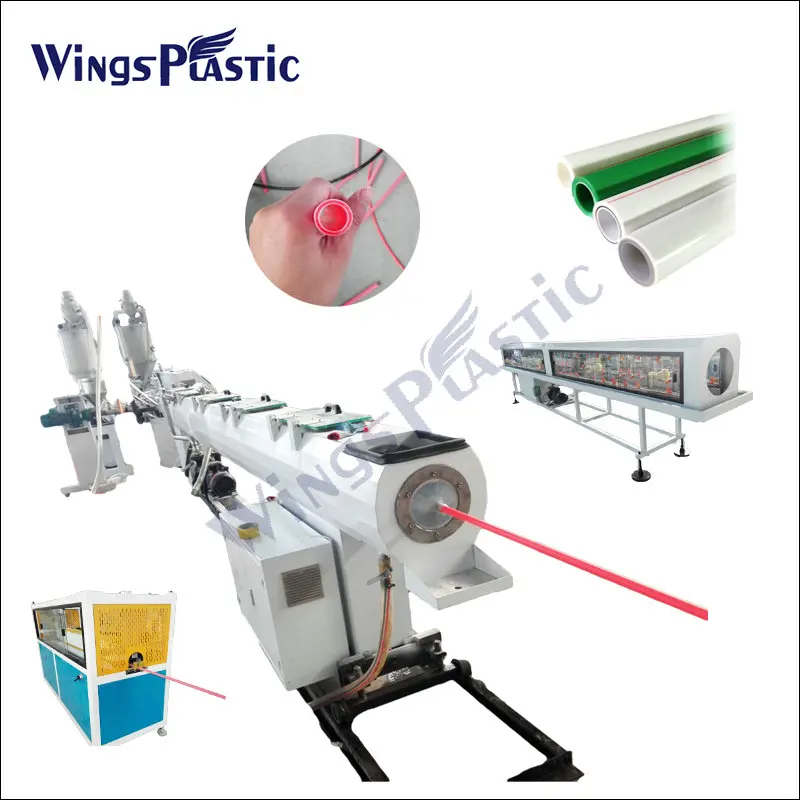

Mark line Extruder
Always PPR pipe, HDPE water pipe needs the markline extruder to produce a blue or red markline on pipe surface.

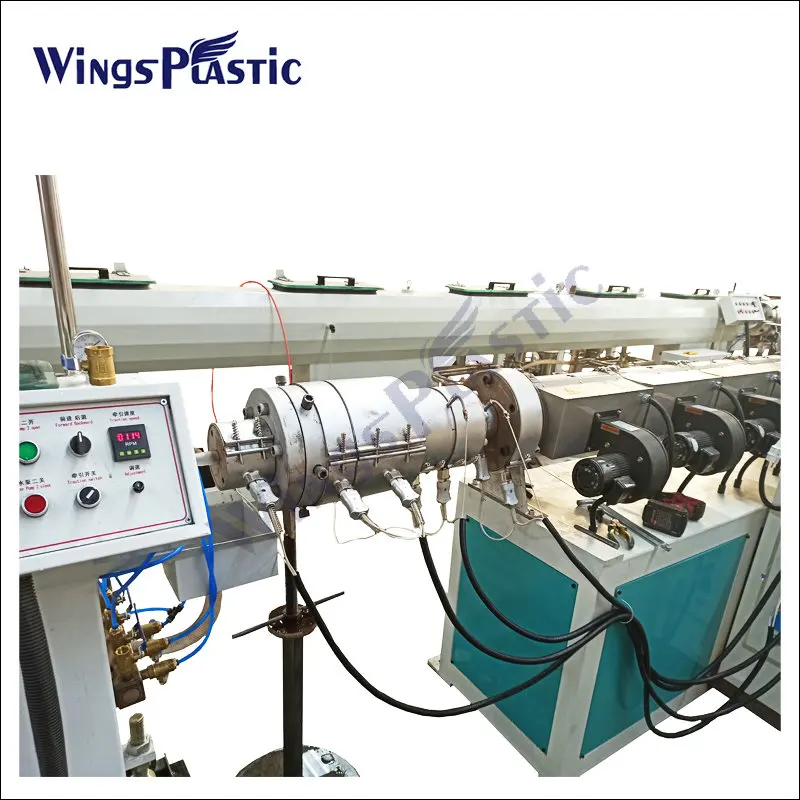

Pipe Extrusion Die head
The die head is made by 40Cr moulds materials.
Using mica heating way 、
Using mica heating way 、
Die Mould
- Spacious flow channel design to guarantee highextrusion capacity and good melt.
- Optimized temperature control and flow channeldesign, precise melt temperature control.
- Optimized temperature control and flow channeldesign, precise melt temperature control.

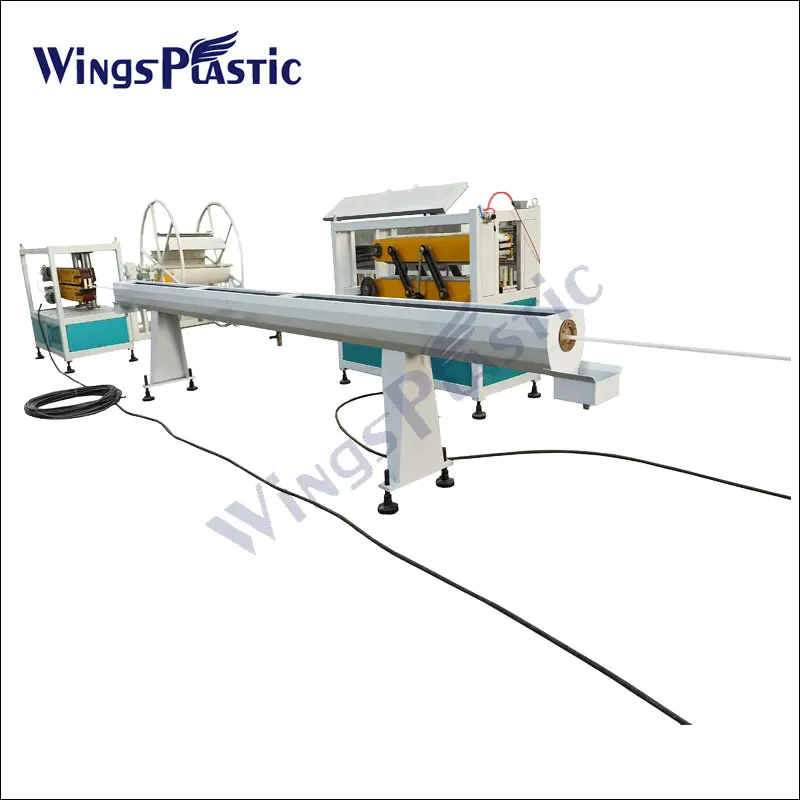

Pipe Vacuum Tank
It is adopted stainless steel materials, high quality vacuum and water pumb. There is flow stabilization system for better pipe surface.
The excellent vacuum system ensures the precise sizing for pipes;sprayingcooling will improve the cooling efficiency; Auto water
temperature control system make the machine more intelligent.
temperature control system make the machine more intelligent.
Water cooling tank
it is stainless steel materials.
It could be water leaching cooling way or water spray cooling way according pipe diameters and extrusion speed.
It could be water leaching cooling way or water spray cooling way according pipe diameters and extrusion speed.

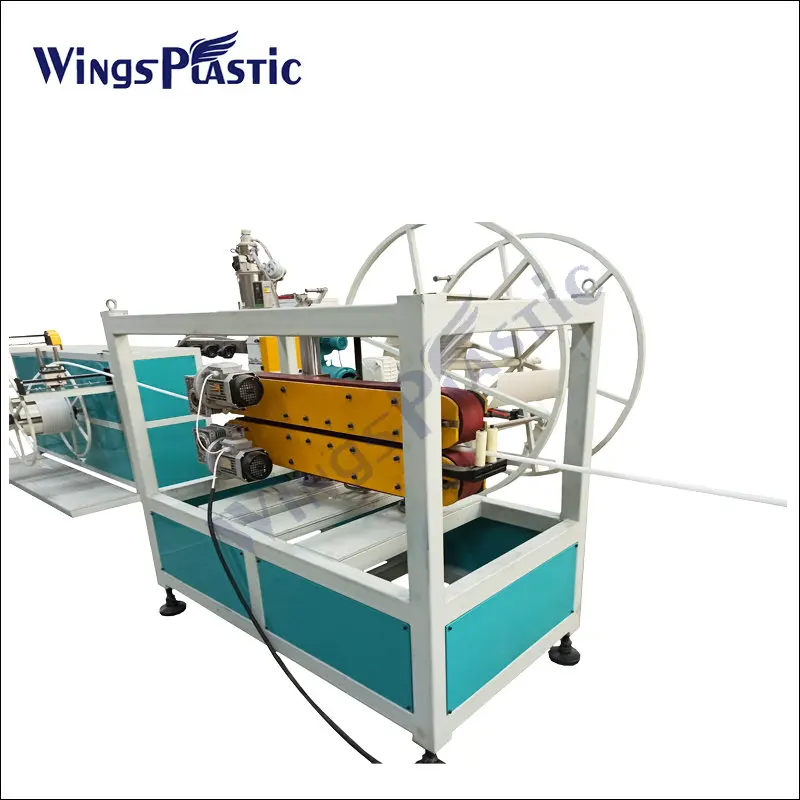

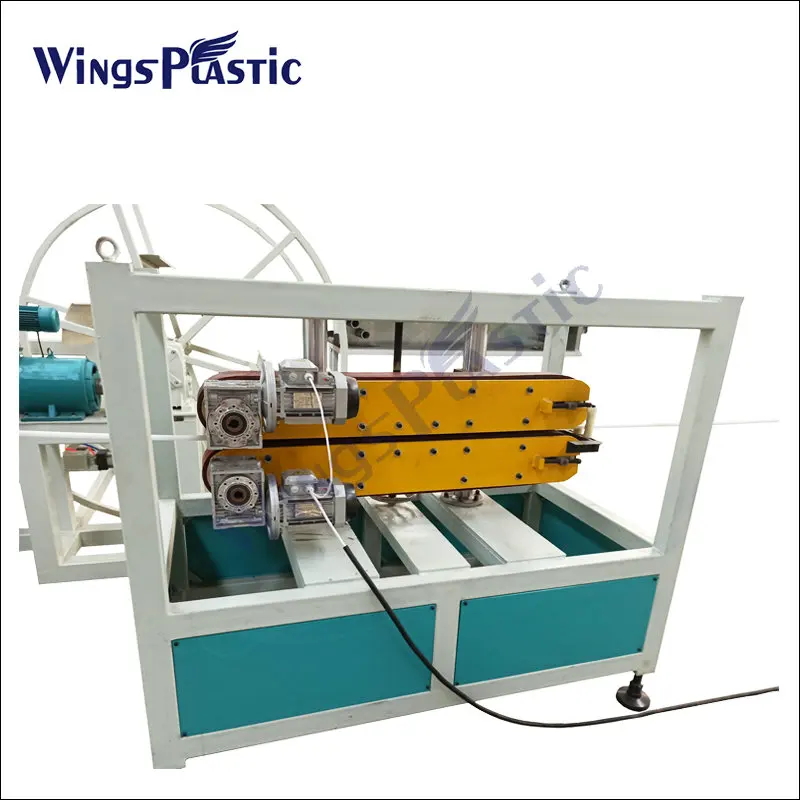

Haul off unit
It could be rubber belt or rubber block clamping way.
2 claw, 3 claw, 4 claw ,6 claw, 8 claw, 12 claw made according pipe diameters.
2 claw, 3 claw, 4 claw ,6 claw, 8 claw, 12 claw made according pipe diameters.
For the large diameter pipe, a pipe winch device is equipped to the production line to reduced the waster material.
Cutting Machine
Always it is no dust cutting way. The blades will cut the pipe by rotating way with pneumatic powder and it is also equipped with strong scrap attracting device to reduce the work of maintenance to the lowest degree.
Small Pipe Winding Unit
It could be double wheel or single wheel winding according pipe diameters. Always 10-40mm will use double wheel like the photo.
Bigger Pipe Winding Unit
It could be used for 16-63mm or 50-110mm diameters
Stacker
Length 6000mm
Stacking way:Pneumatic way
Stacking way:Pneumatic way

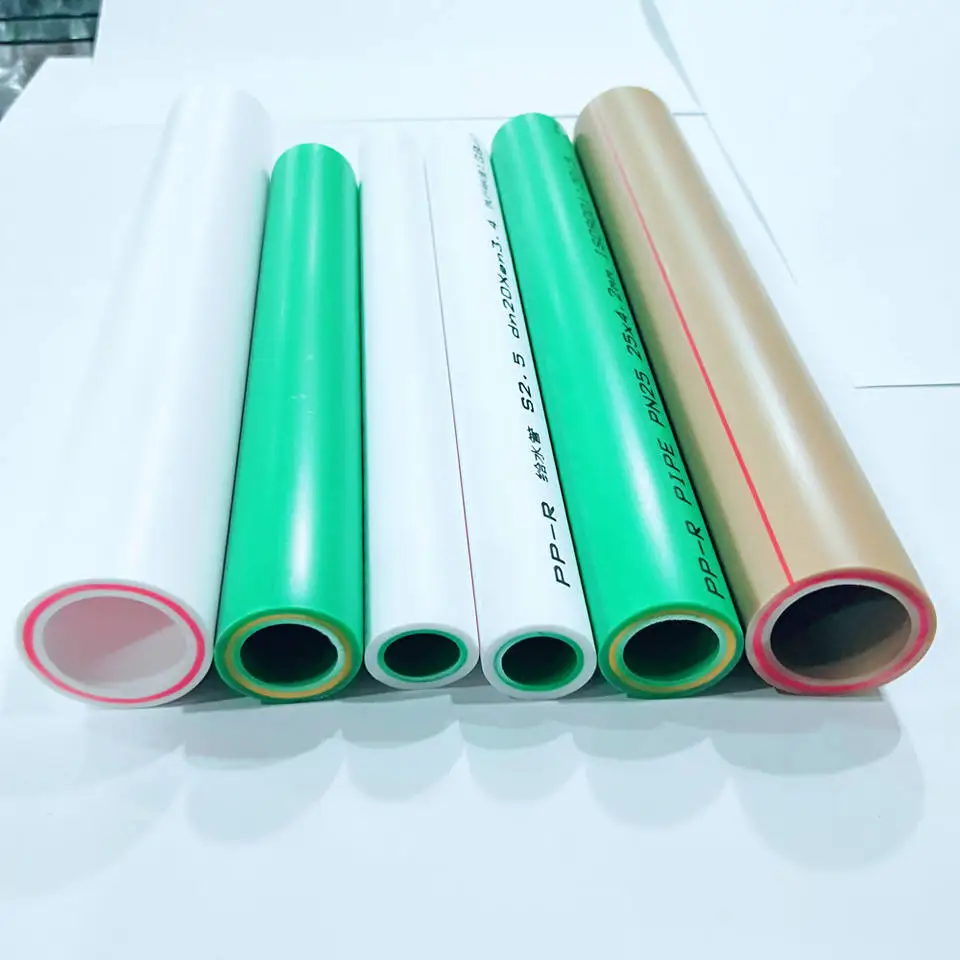

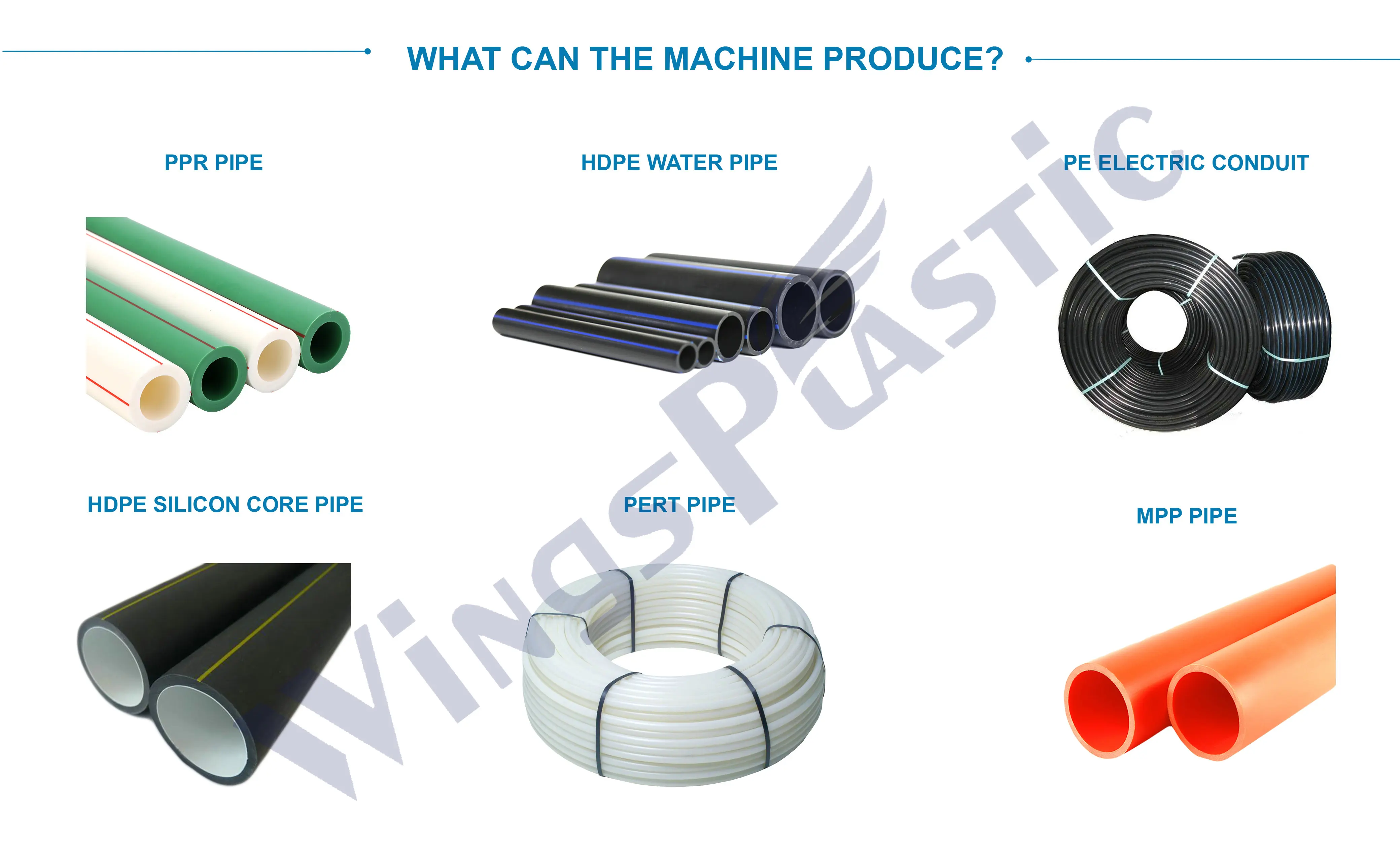

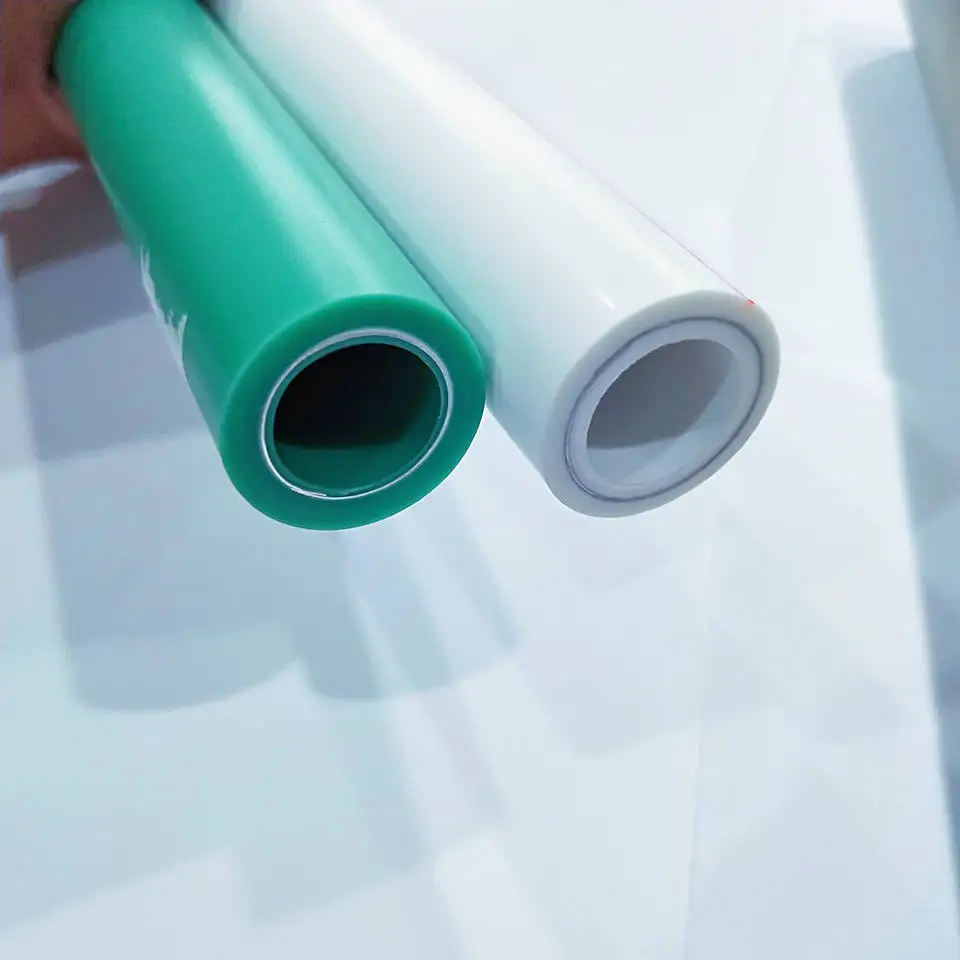

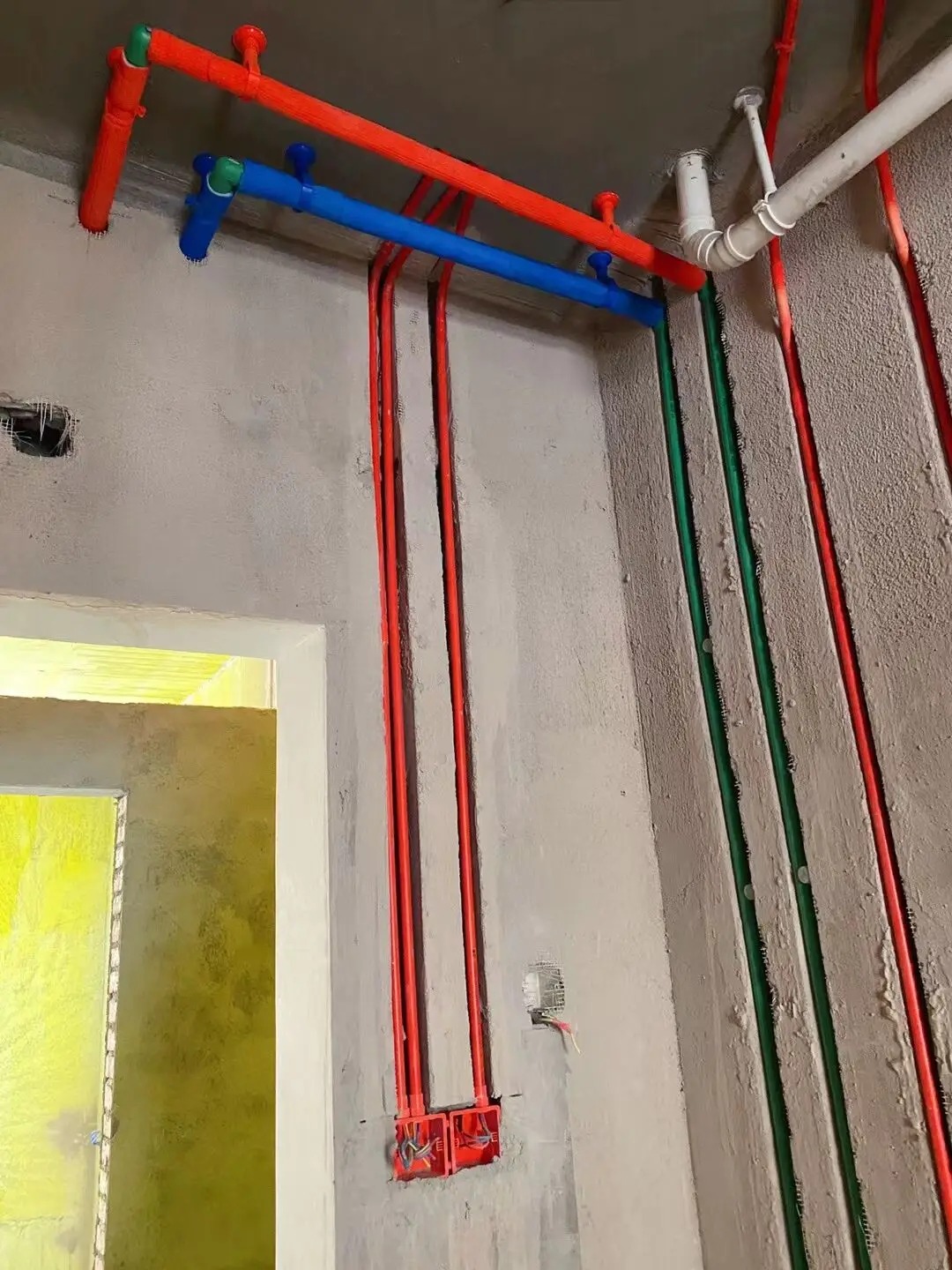

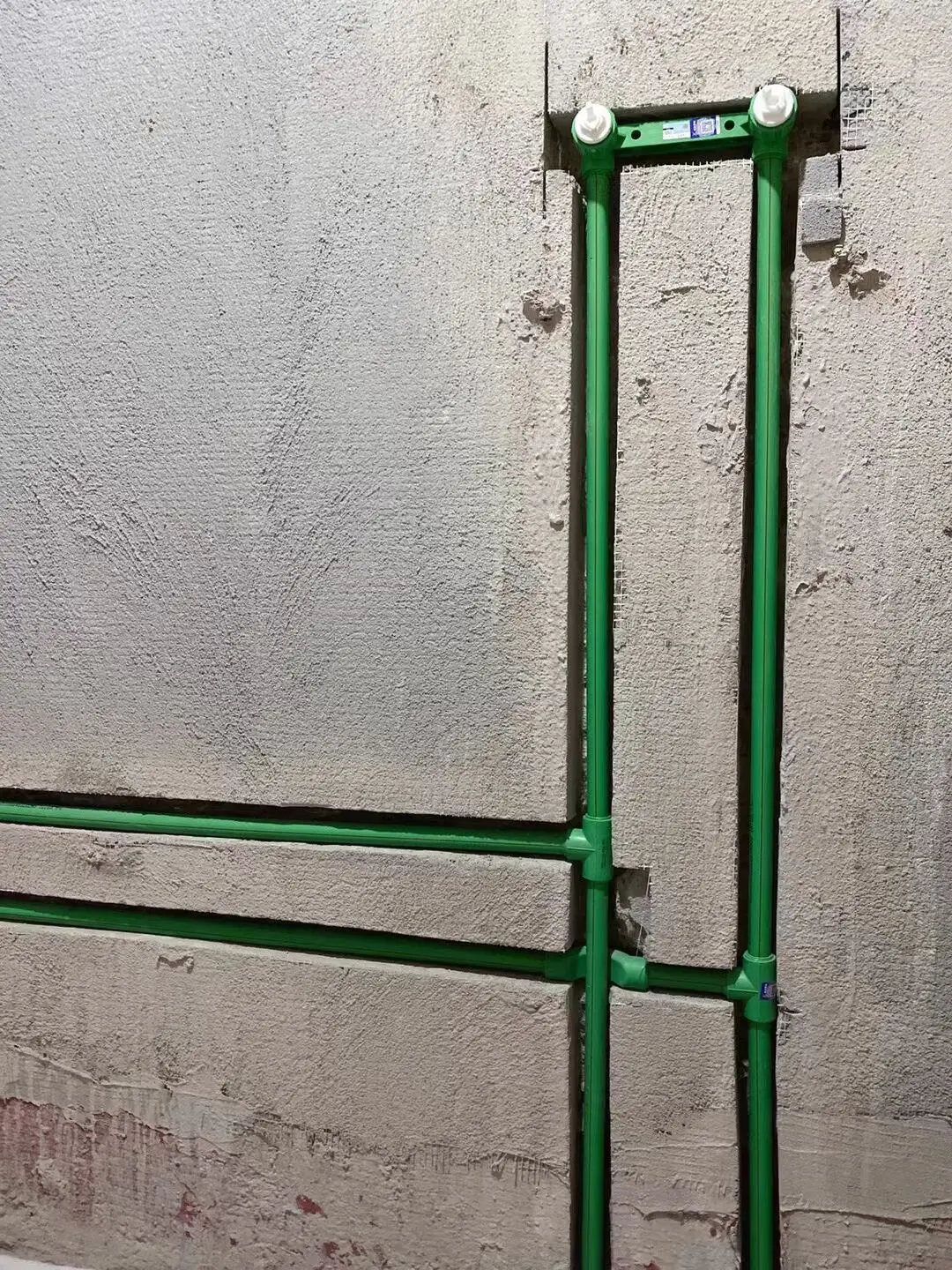

Final Product & Application
Machine List
1. | Single Screw Plastic Extruder | 1set |
2. | Mould | 1set |
3. | Vacuum Calibration Tank | 1set |
4. | Hauling Machine | 1set |
5. | Pipe Cutting Machine | 1set |
6. | Stacker | 1set |
Model & Parameters
Specifications | ||
Processed Material | PVC,PE,HDPE PPR and etc. | |
Final Product Shape | Pipe | |
Output Range(kg/h) | 120-1100 | |
Diameter of screw | 50mm-130mm(standard) | |
Voltage Standard | According to the Voltage of the Customer's Location | |
Warranty | 12 months from the date of bill of lading | |
Technical services | Project design, factory construction, installation and recommendations, commissioning | |
Company Introduction
Qingdao Wings Plastic Technology Co., LTD., specializing in the production of HDPE PP PVC PA single wall corrugated pipe machine, double-wall corrugated pipe production line, HDPE PP PVC Sheet, Coil Mat, Strap, Protector Machine
Equipment operation is stable, automatic production, saving labor, efficient extrusion
Equipment operation is stable, automatic production, saving labor, efficient extrusion
FAQ
Q: Is your company factory or trade company?
A: we are factory, we are engaged in this business for 11 years
A: we are factory, we are engaged in this business for 11 years
Q: Installation and stuff training available from you?
A: Yes, our engineers will guide machine installation and train your workers.
Q: What is the payment term?
A: The best way for both of us is 30% T/T deposit and 70% T/T balance payment before shipping, since we will test the machine before shipping. Of course, you can choose the way that more convenient (Payment terms: T/T, L/C, Western Union etc.)
Q: How about after service?
A:We can offer 12 months free warranty since the machinery arrived at your factory. We also offer space parts or repair service to our customer anytime and anywhere, we will send our technician to your factory if necessary.
Q: How to reach our factory?
A: It will take 40 minutes from Jiaodong International Airport to our factory by car, and we will arrange our driver to pick you to our factory anytime.
A: Yes, our engineers will guide machine installation and train your workers.
Q: What is the payment term?
A: The best way for both of us is 30% T/T deposit and 70% T/T balance payment before shipping, since we will test the machine before shipping. Of course, you can choose the way that more convenient (Payment terms: T/T, L/C, Western Union etc.)
Q: How about after service?
A:We can offer 12 months free warranty since the machinery arrived at your factory. We also offer space parts or repair service to our customer anytime and anywhere, we will send our technician to your factory if necessary.
Q: How to reach our factory?
A: It will take 40 minutes from Jiaodong International Airport to our factory by car, and we will arrange our driver to pick you to our factory anytime.
